tailgate FIAT DOBLO COMBI 2011 Owner handbook (in English)

7
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0022mfig. 5F0V0005mfig. 6
Replacing the battery of the key with remote
control fig. 6
To replace the battery, proceed as follows:
❒press button A and bring the metal insert B to the open
position;
❒turn the screw C to :using a fine screwdriver;
❒take out the battery case D and replace the battery E,
respecting its polarity;
❒refit the battery case D inside the key and lock it by
turning the screw C to
Á. Button
Qunlocks all the doors (including the tailgate, the
rear swing doors and the sliding side doors for ver-
sions/markets where provided).
Button Álocks all the doors;
Button Punlocks the boot, the rear swing doors and the
sliding side doors (depending on the version).
Unlocking the load compartment from inside the
vehicle (Cargo versions)
Pressing button A-fig. 5 unlocks the loading area (rear
swing doors/boot and sliding side doors) from inside the
vehicle. If the LED is on, the load compartment is locked.
Used batteries are harmful to the environ-
ment. You can dispose of them either in the
correct containers as specified by law or by
taking them to the Fiat Service Network, who will
deal with their disposal.

67
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0171mfig. 52
REAR COURTESY LIGHT WITH MOVABLE
LENS
(Cargo versions without fixed window)
This is located on the rear panel of the load compartment.
The light comes on automatically when you open the slid-
ing side doors (for versions/markets where provided) and
the rear swing doors/tailgate (for versions/markets where
provided), and goes out when you close them.
Press the left or right side of the movable lens A, as shown
in fig. 52, to switch the light on/off when the doors are
closed.REAR COURTESY LIGHT WITH MOVABLE
LENS
(additional for Cargo long wheelbase versions)
It is located on the right side of the load compartment.
The light comes on automatically when the sliding side
doors and the rear swing door/tailgate are opened and it
goes out when they are closed.
Press the left side of the lens A-fig. 52, as shown in the
diagram, to switch the light on/off when the doors are
closed.
LUGGAGE COMPARTMENT COURTESY
LIGHT
(Doblò/Doblò Combi version)
The light fig. 53 comes on automatically when the swing
doors or tailgate (for versions/markets where provided)
are opened and goes out when they are closed.
F0V0172mfig. 53

68
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX


F0V0174mfig. 55
To switch the light on/off when the doors are closed press
the switch A-fig.54.
Switch A can have three different positions:
❒with the switch in central position the light comes on
when a rear door is opened;
❒with the switch pushed up (position 1), the light is al-
ways on;
❒with the switch pushed down (position 2 - AUTO
OFF), the light is always off.
TORCH FUNCTION
(for Cargo versions where provided)
This is located on the right side of the load compartment.
It has a removable electric torch.
To use the removable torch A-fig. 55, push button B and
remove the torch in the direction shown by the arrow.
Then press switch C to switch the light on/off. REAR COURTESY LIGHT WITH REMOVABLE
TORCH
(for Cargo versions where provided)
The removable roof light is not connected to the doors ,
it switches on/off only manually pressing switch A-fig. 54,
with key on MAR-ON.
Switch A can assume three different positions:❒with the switch in the middle, the light is always off;
❒with the switch pushed up (position 1), the light is al-
ways on;
❒with the switch pushed down (position 2 – AUTO
OFF), the light is always off.
For Cargo versions with fixed window
The light comes on automatically when you open the slid-
ing side doors and the rear swing doors/tailgate; then, it
goes out when you close them.
F0V0173mfig. 54

69
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
The rear courtesy lights go out immediately (with fading),
if the key is in the MAR position when all the side doors
and the rear door (swing or tailgate) are closed.
The rear courtesy lights go out after 10 secs. (with fading),
if the key is in the OFF position when all the side doors
and the rear door (swing or tailgate) are closed.
Doblò/Doblò Combi versions
Switching on
The front and rear courtesy lights come on when one of
the front doors or a sliding side door is opened and they
stay on for 3 minutes if at least one of these doors con-
tinues to remain open.
Switching off
The front and rear courtesy lights go out immediately (with
fading), if the key is in the MAR position when all the front
doors and the sliding side doors are closed.
The front and rear courtesy lights go out after 10 secs.
(with fading), if the key is in the OFF position when all
the front doors and the sliding side doors are closed. When the removable courtesy light is secured to its fixed
support, the electric torch battery is automatically
recharged.
For Cargo versions with fixed window
With the vehicle stationary and the ignition key either
turned to STOP or removed, the courtesy light is
recharged for a maximum of 15 minutes.
SWITCHING COURTESY LIGHTS ON/OFF
Cargo versions
Switching on
The front courtesy light comes on when one of the two
front doors is opened and remains on for 3 minutes if at
least one of the two doors continues to remain open.
The rear courtesy lights come on when one of the sliding
side doors or the rear door (swing or tailgate) is opened
and they stay on for 3 minutes if at least one of these doors
remains open.
Switching off
The front courtesy light goes out immediately (with fad-
ing), if the key is in the MAR position when all the front
doors are closed.
The front courtesy light goes out after 10 secs. (with fad-
ing), if the key is in the OFF position when all the front
doors are closed.

77
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0046mfig. 72F0V0022mfig. 73
Press button Pshortly to remotely unlock the load com-
partment (Cargo version), to turn on the rear roof lights
for a limited period and to double flash the direction in-
dicators. Turn the metal tang counterclockwise in the dri-
ver's door to unlock the front doors only.
Press button
Qshortly to remotely unlock only the front
doors (Cargo version), to turn on the front roof light for
a limited period and to double flash the direction indica-
tors. Press button Pshortly to remotely unlock the load
compartment (Cargo version), to turn on the rear roof
lights for a limited period and to double flash the direction
indicators. Turn the metal tang counterclockwise in the
driver's door to unlock the front doors only.
Unlocking the load compartment from inside
the vehicle (Cargo version)
Press button A-fig. 73 (Cargo version) to unlock the load
compartment (rear swing doors/tailgate and sliding side
doors) from inside the vehicle. If the LED is on, the load
compartment is locked.
DOORS
CENTRAL DOOR
LOCKING/UNLOCKING SYSTEM
Door locking from the outside
The doors will only be locked if all doors are shut. If one
or more of the doors is open after button Áis pressed on
the remote control, the direction indicators will flash quick-
ly for around three seconds. You can lock all the doors
by turning the key clockwise in the driver’s door. Pressing
button Á
on the remote controltwice in quick succession
activates the dead lock device (see “Dead lock”).
Door unlocking from the outside
Press button
Qshortly to remotely unlock only the front
doors (Cargo version), to turn on the front roof light for
a limited period and to double flash the direction indica-
tors.

81
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0067mfig. 78F0V0079mfig. 79
Opening/closing the first swing door from the
outside
To open the door, turn the key in the lock or press but-
ton Pon the remote control and then pull handle
A-fig. 79 in the direction of the arrow. To close the door,
turn the key in the lock or press button
Áon the remote
control. Using the key pawl on the door, you can do the following:
❒for Cargo versions with swing door/boot: centrally un-
lock the load compartment (sliding side doors + rear
swing doors/tailgate), centrally lock all the doors;
❒for Doblò/Doblò Combi versions with swing door: lo-
cal unlocking/locking.
The spring-loaded system was designed for
optimum usage. Accidental knocks or
a strong gust of wind may release the springs, forc-
ing the doors to close.
WARNINGWhen closing, shut the right hand door ful-
ly before you close the left hand door.
Never shut the two doors at the same time.
WARNING
Emergency opening of the first swing door from
the inside
From inside the vehicle, use device A-fig. 80.

85
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0134mfig. 84F0V0135mfig. 85
EMERGENCY OPENING FROM THE INSIDE
In the event of an emergency, you can open the boot from
inside the vehicle as follows:
❒open the sliding side door and fully fold the rear seats;
❒push lever A-fig. 85 inside the boot and open the rear
door.
BOOT
OPENING THE TAILGATE FROM THE
OUTSIDE
The tailgate (when unlocked) can be opened only from the
outside by using the electric opening handle A-fig. 84 lo-
cated under the large handle.
The tailgate can be opened at any time if the doors are un-
locked.
To open it the handle must be enabled by opening one of
the front doors or operating the remote control unlock-
ing button (for Doblò/Doblò Combi versions). On Car-
go versions, the opening of the tailgate is subject to the
enabling of the handle. The handle is enabled after press-
ing the third button on the remote control or by operat-
ing the unlocking button from the interior of the vehicle.
Opening can also take place by using the mechanical key
or the metal insert for the remote control key.

F0V0164mfig. 159a
F0V0163mfig. 158
176
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
THIRD BRAKE LIGHT fig. 158-159a-159b
To change the bulb, proceed as follows:
❒for versions with tailgate, loosen the two fastening
screws A-fig. 158 and extract the cluster;
❒for versions with swing doors, remove rubber plugs
B-fig. 159a, manoeuvre retaining tabs C and extract the
cluster;❒for versions with high roof and swing doors, remove
the pressure-fit plastic guard A-fig. 159b and rubber
cap B-fig.159b; using a screwdriver, release the retain-
ing tags as shown in the figure and remove the unit;
❒manoeuvre the appropriate tabs and remove the bulb
holder;
❒remove the snap-fitted bulb and replace it.
F0V0035mfig. 157

185
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
PROTECTED DEVICE FUSE FUSE AMPS FIGURE
Right low beam F12 7,5 177
Front courtesy light, rear courtesy light, lights on sun visors,
door clearance lights, boot light F32 7,5 177
Instrument panel F53 5 177
Door lock/unlock motors, dead lock actuator motors,
tailgate lock motor F38 20 177
Power + battery for EOBD diagnostic socket, automatic climate control unit,
alarm siren, sound system, convergence control unit Blue&Me™,
tyre pressure detector control unit F36 10 177
Windscreen/rear window washer pump F43 15 177
Window winder motor for front door passenger side F48 20 177
Left low beam, headlight corrector F13 7,5 177
Int. power for brake pedal switch,
clutch pedal switch, interior heater,
convergence control unit Blue&Me™, sound system set-up F51 7,5 177
Int. power for instrument panel, brake pedal switch,
third brake light F37 5 177
Int. power for control panel lights, parking control unit,
tyre pressure detector control unit, electric door mirror motor,
rain sensor, electric top control unit, My-port infotainment socket F49 5 177
Int. power for engine fusebox relay coils and
body computer relay coils F31 5 177

269
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

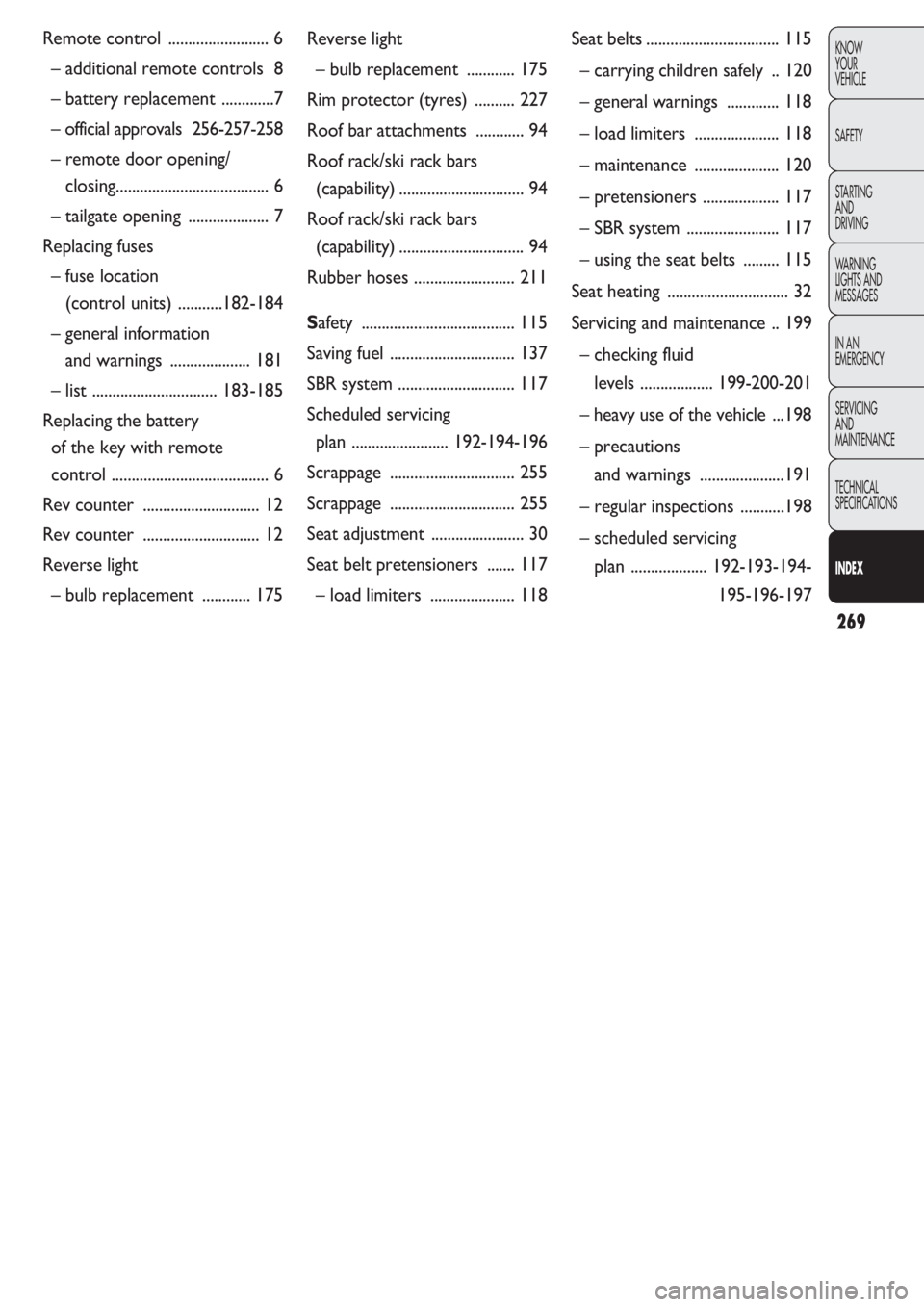

Remote control ......................... 6
– additional remote controls 8
– battery replacement .............7
– official approvals 256-257-258
– remote door opening/
closing...................................... 6
– tailgate opening .................... 7
Replacing fuses
– fuse location
(control units) ...........182-184
– general information
and warnings .................... 181
– list ...............................183-185
Replacing the battery
of the key with remote
control ....................................... 6
Rev counter ............................. 12
Rev counter ............................. 12
Reverse light
– bulb replacement ............ 175Reverse light
– bulb replacement ............ 175
Rim protector (tyres) .......... 227
Roof bar attachments ............ 94
Roof rack/ski rack bars
(capability)............................... 94
Roof rack/ski rack bars
(capability)............................... 94
Rubber hoses ......................... 211
Safety ...................................... 115
Saving fuel ............................... 137
SBR system ............................. 117
Scheduled servicing
plan ........................192-194-196
Scrappage ............................... 255
Scrappage ............................... 255
Seat adjustment ....................... 30
Seat belt pretensioners ....... 117
– load limiters ..................... 118Seat belts................................. 115
– carrying children safely .. 120
– general warnings ............. 118
– load limiters ..................... 118
– maintenance ..................... 120
– pretensioners ................... 117
– SBR system ....................... 117
– using the seat belts ......... 115
Seat heating .............................. 32
Servicing and maintenance .. 199
– checking fluid
levels ..................199-200-201
– heavy use of the vehicle...198
– precautions
and warnings .....................191
– regular inspections ...........198
– scheduled servicing
plan ...................192-193-194-
195-196-197
