• Illuminated Approach (for versions/markets,
where provided)
Press the Illuminated Approach button on the touch-
screen to change this display. When this feature is
selected, the headlights will activate and remain on for
0, 30, 60, or 90 seconds when the doors are unlocked
with the RKE transmitter. To change the Illuminated
Approach status press the 0, 30, 60 or 90 button on the
touchscreen followed by pressing the arrow back but-
ton on the touchscreen.
• Headlights with Wipers (for versions/markets,
where provided)
Press the Headlights with Wipers button on the touch-
screen to change this display. When this feature is
selected, and the headlight switch is in the AUTO
position, the headlights will turn on approximately 10
seconds after the wipers are turned on. The headlights
will also turn off when the wipers are turned off if they
were turned on by this feature. To make your selection,
press the Headlights with Wipers button on the touch-
screen, select On or Off followed by pressing the
arrow back button on the touchscreen.• Auto High Beams “SmartBeam™” (for versions/
markets, where provided)
Press the Auto High Beams button on the touchscreen
to change this display. When this feature is selected,
the high beam headlights will deactivate automatically
under certain conditions. To make your selection,
press the Auto High Beams button on the touchscreen,
select ON or OFF followed by pressing the arrow back
button on the touchscreen. Refer to “Lights/
SmartBeam™ (for versions/markets, where provided)”
in “Knowing Your Vehicle” for further information.
• Flash Headlights with Lock (for versions/
markets, where provided)
Press the Flash Headlights with Lock button on the
touchscreen to change this display. When this feature is
selected, the front and rear turn signals will flash when
the doors are locked or unlocked with the RKE trans-
mitter. To make your selection, press the Flash Head-
lights with Lock button on the touchscreen, select On
or Off followed by pressing the arrow back button on
the touchscreen.
35
KNOWING
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 49 of 412
• Hill Start Assist (for versions/markets, where
provided)
When this feature is selected, the Hill Start Assist
(HSA) system is active. Refer to “Electronic Brake
Control System” in “Starting And Driving” for system
function and operating information. To make your
selection, press the Hill Start Assist button on the
touchscreen, select On or Off followed by pressing the
arrow back button on the touchscreen.
Lights
• Headlight Off Delay
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90
seconds when exiting the vehicle. To change the Head-
light Off Delay status press the 0, 30, 60 or 90 button
on the touchscreen followed by pressing the arrow
back button on the touchscreen.
• Headlight Illumination on Approach (for
versions/markets, where provided)
When this feature is selected, the headlights will acti-
vate and remain on for 0, 30, 60, or 90 seconds when
the doors are unlocked with the RKE transmitter. To
change the Illuminated Approach status press the 0, 30,
60 or 90 button on the touchscreen followed by
pressing the arrow back button on the touchscreen.• Headlights with Wipers (for versions/markets,
where provided)
When this feature is selected, and the headlight switch
is in the AUTO position, the headlights will turn on
approximately 10 seconds after the wipers are turned
on. The headlights will also turn off when the wipers
are turned off if they were turned on by this feature. To
make your selection, press the Headlights with Wipers
button on the touchscreen, select On or Off followed
by pressing the arrow back button on the touchscreen.
• Auto Dim High Beams “SmartBeam™” (for
versions/markets, where provided)
When this feature is selected, the high beam headlights
will deactivate automatically under certain conditions.
To make your selection, press the Auto High Beams
button on the touchscreen, select ON or OFF fol-
lowed by pressing the arrow back button on the touch-
screen. Refer to “Lights/SmartBeam™ (for versions/
markets, where provided)” in “Knowing Your Vehicle”
for further information.
• Headlight Dipped Beam (Traffic Changeover)
(for versions/markets, where provided)
Low beam headlights have more control of upward
light and direct most of their light downward and either
to the left for right hand drive countries or to the right
for left hand drive countries to provide safe forward
visibility without excessive glare.
43
KNOWING
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 99 of 412
To operate, rotate the headlight leveling switch until
the appropriate number, which corresponds to the
load listed on the following chart, illuminates on the
switch.
0 Driver only, or driver and front passen-ger.
1 Driver, plus an evenly distributed load in
the luggage compartment. The total
weight of the driver and load does not
exceed the maximum load capacity of the
vehicle.
2 All seating positions occupied, plus an
evenly distributed load in the luggage
compartment. The total weight of pas-
sengers and load does not exceed the
maximum load capacity of the vehicle.
Calculations based on a passenger weight of 75 kg.
HEADLIGHTS ON WITH WIPERS
(AVAILABLE WITH AUTOMATIC
HEADLIGHTS ONLY)
When this feature is active, the headlights will turn on
approximately 10 seconds after the wipers are turned
on if the headlight switch is placed in the AUTO
position. In addition, the headlights will turn off when
the wipers are turned off if they were turned on by this
feature. NOTE:
The Headlights On with Wipers feature can be
turned on and off using the Uconnect® System, refer
to “Uconnect® Settings” in “Knowing Your Vehicle”
for further information.
HEADLIGHT TIME DELAY
This feature provides the safety of headlight illumina-
tion for up to 90 seconds when leaving your vehicle in
an unlit area.
To activate the delay feature, turn OFF the ignition
switch while the headlights are still on. Then, turn off
the headlights within 45 seconds. The delay interval
begins when the headlight switch is turned off.
NOTE: The lights must be turned off within 45 sec-
onds of turning the ignition OFF to activate this fea-
ture.
If you turn the headlights, park lights or ignition switch
ON again, the system will cancel the delay.
If you turn the headlights off before the ignition, they
will turn off in the normal manner.
NOTE: The Headlight Time Delay is programmable
using the Uconnect® System, refer to “Uconnect®
Settings” in “Knowing Your Vehicle” for further infor-
mation.
93
KNOWING
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 103 of 412
ILLUMINATED ENTRY
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter to unlock the
doors or open any door or liftgate.
This feature also turns on the approach lighting in the
outside mirrors (for versions/markets, where pro-
vided). Refer to “Mirrors” in “Knowing Your Vehicle”
for further information.
The interior lights will fade to off after approximately
30 seconds or they will immediately fade to off once
the ignition is cycled to the ON/RUN position from the
OFF position.
NOTE:
• The front courtesy overhead console and door cour-tesy lights will turn on if the dimmer control is in the
"Dome ON" position (extreme top position).
• The Illuminated Entry system will not operate if the dimmer control is in the “Dome defeat” position
(extreme bottom position).
WINDSHIELD WIPERS AND
WASHERS
The windshield wiper/washer control lever is located
on the left side of the steering column.
(fig. 62)
The front wipers are operated by rotating a switch,
located at the end of the lever. Refer to “Rear Window
Features” for further information on using the rear
window wiper/washer.
(fig. 62)
Windshield Wiper/Washer Lever
97
KNOWING
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 105 of 412
NOTE:The wipers will automatically return to the
“park” position if you turn OFF the ignition switch
while they are operating. The wipers will resume op-
eration when you turn the ignition switch back to the
ON position.
• Turn the windshield wipers OFF when
driving through an automatic car wash.
Damage to the windshield wipers may
result if the wiper control is left in any position
other than OFF.
• In cold weather, always turn OFF the wiper
switch and allow the wipers to return to the park
position before turning OFF the engine. If the
wiper switch is left ON and the wipers freeze to
the windshield, damage to the wiper motor may
occur when the vehicle is restarted.
• Always remove any buildup of snow that pre-
vents the windshield wiper blades from returning
to the “park” position. If the windshield wiper
control is turned OFF, and the blades cannot
return to the “park” position, damage to the wiper
motor may occur. WINDSHIELD WASHERS
To use the windshield washer, push the washer knob,
located on the end of the multifunction lever, inward to
the second detent.
If you activate the washer while the wiper control is in
the delay range, the wipers will operate in low-speed
for two or three wipe cycles after releasing the lever
and then resume the intermittent interval previously
selected.
If you activate the washer while the wiper control is in
the OFF position, the wipers will operate for two or
three wipe cycles and then turn OFF.
WARNING!
Sudden loss of visibility through the
windshi eld
could lead to a collision. You
might not see other vehicles or other obstacles.To
avoid sudden icing of the windshield during freez-
ing weather, warm the windshield with the de-
froster before and during windshield washer use.
99
KNOWING
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 106 of 412
MIST FEATURE
Push the washer knob, located on the end of the
multifunction lever, inward to the first detent to acti-
vate a single wipe cycle to clear the windshield of road
mist or spray from a passing vehicle. The wipers will
continue to operate until you release the lever.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
HEADLIGHTS ON WITH WIPERS (for
versions/markets, where provided)
When this feature is active, the headlights will turn on
after the wipers are turned on if the headlight switch is
placed in the AUTO position and programmable fea-
ture is set to ON. In addition, the headlights will turn
off when the wipers are turned off if they were turned
on by this feature.
NOTE: The Headlights On with Wipers feature can be
turned on or off using the Uconnect® System. Refer to
“Uconnect® Settings” in “Knowing Your Vehicle” for
further information.HEADLIGHT WASHERS (for
versions/markets, where
provided)
The Headlight Washers are recessed into the top of
the fascia, centrally located below each headlight.
The windshield wiper/washer control lever operates
the headlight washers when the ignition switch is in the
ON position and the headlights are ON. The lever is
located on the left side of the steering column.
To use the headlight washers, push the washer knob,
located on the end of the multifunction lever, inward to
the second detent to activate the windshield washers
and release it. When this is done, the two stationary
washer nozzles at each headlight spray one timed
high-pressure spray of washer fluid onto each headlight
lens. In addition, the windshield washers will spray the
windshield and the windshield wipers will cycle.
NOTE: After turning the ignition switch and head-
lights ON, the headlight washers will operate on the
first spray of the windshield washer and then every
eleventh spray after that.
100
KNOWING YOUR
VEHICLE
SAFETY
STAR
TINGAND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICINGAND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 324 of 412

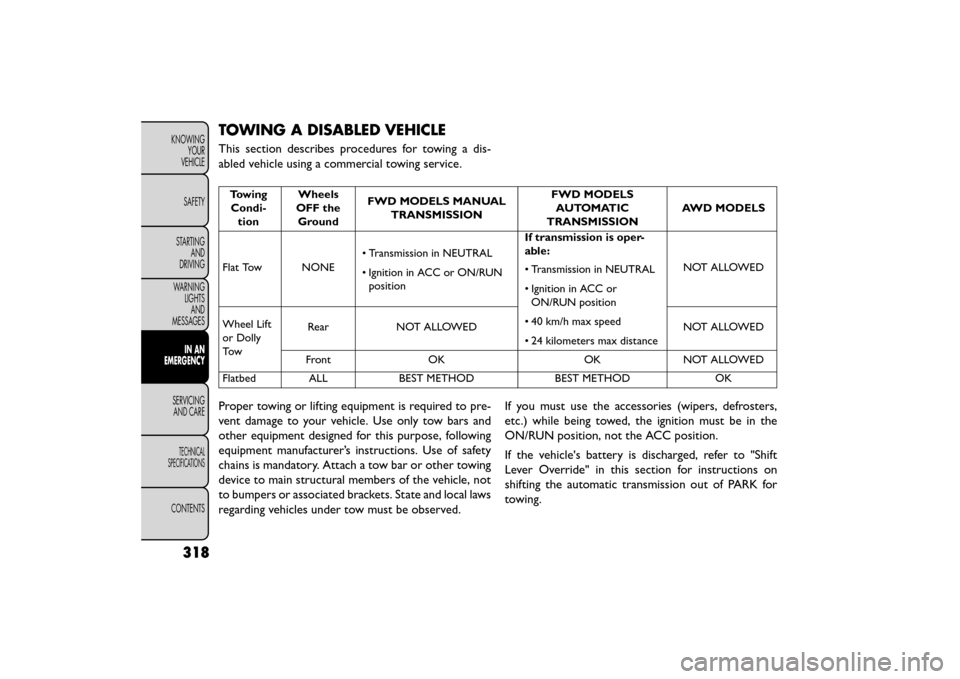

TOWING A DISABLED VEHICLE
This section describes procedures for towing a dis-
abled vehicle using a commercial towing service.
TowingCondi- tion Wheels
OFF the Ground FWD MODELS MANUAL
TRANSMISSION FWD MODELS
AUTOMATIC
TRANSMISSION AWD MODELS
Flat Tow NONE • Transmission in NEUTRAL
• Ignition in ACC or ON/RUN
position If transmission is oper-
able:
• Transmission in NEUTRAL
• Ignition in ACC or
ON/RUN position
• 40 km/h max speed
• 24 kilometers max distance NOT ALLOWED
Wheel Lift
or Dolly
To w Rear NOT ALLOWED NOT ALLOWED
Front OK OK NOT ALLOWED
Flatbed ALL BEST METHOD BEST METHOD OK
Proper towing or lifting equipment is required to pre-
vent damage to your vehicle. Use only tow bars and
other equipment designed for this purpose, following
equipment manufacturer’s instructions. Use of safety
chains is mandatory. Attach a tow bar or other towing
device to main structural members of the vehicle, not
to bumpers or associated brackets. State and local laws
regarding vehicles under tow must be observed. If you must use the accessories (wipers, defrosters,
etc.) while being towed, the ignition must be in the
ON/RUN position, not the ACC position.
If the vehicle's battery is discharged, refer to "Shift
Lever Override" in this section for instructions on
shifting the automatic transmission out of PARK for
towing.
318
KNOWING
YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SER VICING
AND
CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 348 of 412
Car maintenance should be done at a
FIAT Dealership. For routine and minor
maintenance operations you wish to
carry out yourself, we do recommend you have
the proper equipment , genuine FIAT spare parts
and the necessary fluids; do not however carry out
these operations if you have no experience.
WIPER BLADES
Clean the rubber edges of the wiper blades and the
windshield and rear window periodically with a sponge
or soft cloth and a mild nonabrasive cleaner. This will
remove accumulations of salt, waxes, or road film, and
help reduce streaking and smearing.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always
use washer fluid when using the wipers to remove salt
or dirt from a dry windshield or rear window.
Avoid using the wiper blades to remove frost or ice
from the windshield or rear window. Make sure that
they are not frozen to the glass before turning them on
to avoid damaging the blade. Keep the blade rubber out
of contact with petroleum products such as engine oil,
gasoline, etc. NOTE:
Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these condi-
tions are present, clean the wiper blades or replace as
necessary.

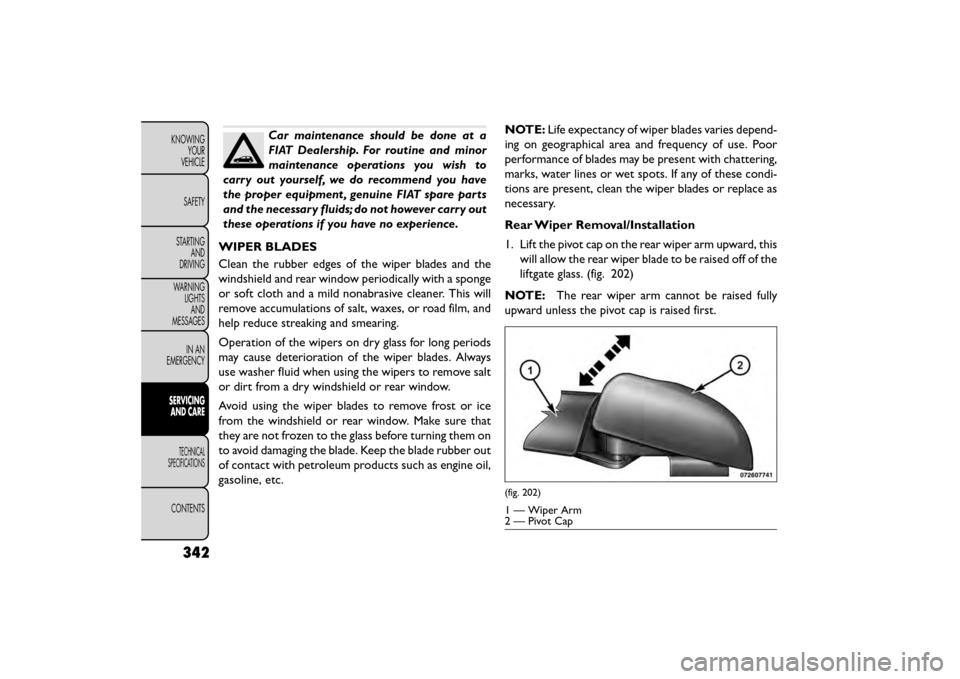

Rear Wiper Removal/Installation
1. Lift the pivot cap on the rear wiper arm upward, this will allow the rear wiper blade to be raised off of the
liftgate glass. (fig. 202)
NOTE: The rear wiper arm cannot be raised fully
upward unless the pivot cap is raised first.
(fig. 202)
1 — Wiper Arm
2 — Pivot Cap
342
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICINGAND C ARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 399 of 412
Drain, Flush, and Refill . . . . . . . .............346
Inspection ........................... .348
Points to Remember . . . . . . . . . ............349
Pressure Cap . . . . . . . . . . . . . . . ...........348
Radiator Cap ......................... .348
Selection of Coolant (Antifreeze) . . .346, 347, 384, 385
Temperature Gauge . ......................8
Corrosion Protection . . . ................... .355
Cupholders ............................. .115
Data Recorder, Event ...................... .215
Daytime Brightness, Interior Lights . ..............96
Defroster, Rear Window . . . . .................102
Defroster, Windshield ................... .83, 235
Delay (Intermittent) Wipers . . . . . ..............98
Diagnostic System, Onboard ..................149
Diesel Fuel . . . . . . . . .................. .384, 385
Diesel Fuel Requirements . . . . . . . . . ...........384
Dimmer Switch, Headlight .....................95
Dipsticks Automatic Transmission . . . ................352
Oil (Engine) . . . . . . . . . .................. .336
Power Steering . . . . . . . ..................150
Disabled Vehicle Towing . ................... .318
Disposal Antifreeze (Engine Coolant) . . . . . ...........348
Door Locks Door Locks ........................... .119
KeyFob ............................. .119
Remote . . . . . . . . . . . . . . . ...............119
Remote Keyless Entry (RKE) ................119
Door Locks, Automatic . . . . . . . . . . ............121
Downshifting . . . ......................... .246Driving
Through Flowing, Rising, or Shallow Standing Water. .257
Driving to Achieve Maximum Fuel Economy .........29
DVD Player (Video Entertainment System™) .......168
E-85 Fuel .............................. .381
Electrical Outlet, Auxiliary (Power Outlet) .........112
Electrical Power Outlets .................... .112
Electric Remote Mirrors ......................67
Electronic Brake Control System ...............141
Anti-Lock Brake System .................. .141
Brake Assist System ..................... .143
Electronic Roll Mitigation ..................144
Traction Control System ..................144
Electronic Roll Mitigation (ERM) ................144
Electronic Speed Control (Cruise Control) .........103
Electronic Stability Control (ESC) ...............144
Electronic Vehicle Information Center (EVIC) .....20, 165
Emergency, In Case of Freeing Vehicle When Stuck ................314
Hazard Warning Flasher .................. .107
Jump Starting ......................... .279
Towing ............................. .318
Engine .......................... .237, 332, 334
Air Cleaner ........................... .338
Break-In Recommendations .................237
Checking Oil Level ...................... .336
Compartment ...................... .332, 333
Compartment Identification .................333
Coolant (Antifreeze) ................. .346, 385
Cooling ............................. .345
Exhaust Gas Caution ................. .131, 234
Fails to Start .......................... .239
393
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 401 of 412
Requirements......................... .379
Saver Mode ............................29
Specifications . . . . . .................... .385
Tank Capacity . . . . . . . . . . . ...............384
Fuel, Flexible . . . . . . . . . . . . . ................381
Fueling . . . . . . . . ........................ .190
Fuel Optimizer ............................29
Fuel Saver ................................29
Fuel System Caution . ...................... .191
Fuses . ................................ .307
Gas Cap (Fuel Filler Cap) .................... .190
Gas Gauge (Fuel Gauge) .......................7
Gasoline, Clean Air ....................... .380
Gasoline (Fuel) .......................... .379
Conserving ............................29
Gauges Coolant Temperature . .....................8
Fuel . . ................................7
Speedometer ............................7
Tachometer .............................7
Gear Ranges . . . . . . . . . . . . . . . . . ............249
Gear Select Lever Override . . . . . . . ............313
General Information . . . . . . . . . . . . . ........12, 158
General Maintenance ...................... .335
Glass Cleaning . . ......................... .358
Gross Axle Weight Rating . . . . . . . .............259
Gross Vehicle Weight Rating . . . . . . . ...........258
Hazard Driving Through Flowing, Rising, or Shallow Standing
Water .............................. .257
Hazard Warning Flasher . ................... .107Headlights
Automatic .............................92
Bulb Replacement ...................... .301
Cleaning ............................ .357
Delay ................................93
High Beam ........................... .301
High Beam/Low Beam Select Switch ............95
Leveling ...............................92
Lights On Reminder ......................94
On With Wipers .................... .93, 100
Passing ...............................95
Switch ................................92
Time Dela y............................
93
Washers ............................ .100
Headlight Washers ........................ .100
Head Restraints ............................54
Heated Mirrors ............................69
Heated Seats ..............................50
High Beam Indicator ....................... .274
High Beam/Low Beam Select (Dimmer) Switch .......95
Hill Start Assist .......................... .147
Holder, Coin ............................ .108
Holder, Cup ............................ .115
Hood Release ........................... .136
Ignition Key ..................................8
Illuminated Entry ...........................97
Immobilizer (Sentry Key) ......................11
Inflation Pressure Tires ..................... .275
Information Center, Vehicle ....................20
Inside Rearview Mirror .......................66
Instrument Cluster ........................ .273
395
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
