CD player FIAT IDEA 2005 1.G Radio CD Manual

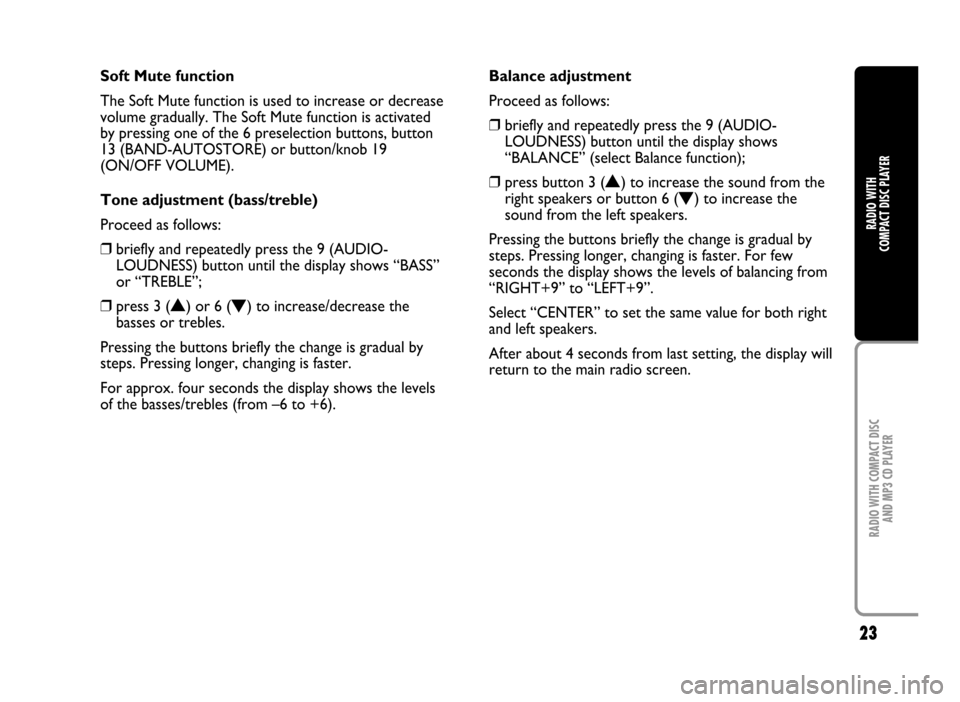

23
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
Soft Mute function
The Soft Mute function is used to increase or decrease
volume gradually. The Soft Mute function is activated
by pressing one of the 6 preselection buttons, button
13 (BAND-AUTOSTORE) or button/knob 19
(ON/OFF VOLUME).
Tone adjustment (bass/treble)
Proceed as follows:
❒briefly and repeatedly press the 9 (AUDIO-
LOUDNESS) button until the display shows “BASS”
or “TREBLE”;
❒press 3 (
N) or 6 (O) to increase/decrease the
basses or trebles.
Pressing the buttons briefly the change is gradual by
steps. Pressing longer, changing is faster.
For approx. four seconds the display shows the levels
of the basses/trebles (from –6 to +6).Balance adjustment
Proceed as follows:
❒briefly and repeatedly press the 9 (AUDIO-
LOUDNESS) button until the display shows
“BALANCE” (select Balance function);
❒press button 3 (
N) to increase the sound from the
right speakers or button 6 (
O) to increase the
sound from the left speakers.
Pressing the buttons briefly the change is gradual by
steps. Pressing longer, changing is faster. For few
seconds the display shows the levels of balancing from
“RIGHT+9” to “LEFT+9”.
Select “CENTER” to set the same value for both right
and left speakers.
After about 4 seconds from last setting, the display will
return to the main radio screen.

24
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
Fader adjustment
Proceed as follows:
❒briefly and repeatedly press the 9 (AUDIO-
LOUDNESS) button until the display shows
“FADER” (select Fader function);
❒press button 3 (
N) to increase the sound from the
rear speakers or button 6 (
O) to increase the
sound from the front speakers.
Pressing the buttons briefly the change is gradual by
steps. Pressing longer,changing is faster. For few
seconds the display shows the levels of fader from
“FRONT+9” to “REAR+9”.
Select “CENTER” to set the same value for both front
and rear speakers.
After about 4 seconds from last setting, the display will
return to the main radio screen.
NOTE Audio adjustments (Bass, Treble, Fader,
Balance) will deactivate in the following cases (after
having performed the required adjustments, values will
be stored):
❒after about 4 seconds from last adjustment;
❒pressing button 9 (AUDIO-LOUDNESS) again;
❒adjusting or deactivating a function requiring info
display;
❒activating a new function (e.g.: TA, Tel Mute or
inserting a CD).Loudness function
The Loudness function improves the sound volume
when listening at low level, increasing the basses and
trebles. It is cut off when the volume is set to
maximum.
To switch the function on/off,keep button 9 (AUDIO-
LOUDNESS) pressed until hearing the “beep”. The
function condition (on or off) is shown on the display
for few seconds by “LOUDNESS ON” or
“LOUDNESS OFF”.
TELEPHONE PROVISION (where provided)
If the handsfree kit is installed on the car, when a
phone call is received the radio audio is connected to
the phone input, muting the radio or the CD. The
telephone sound is heard with a fixed volume, but it
can be adjusted during the conversation by
button/knob 19 (ON/OFF VOLUME).
The fixed telephone volume can be adjusted through
the “PHONE” function of the menu (see paragraph
“MENU”).

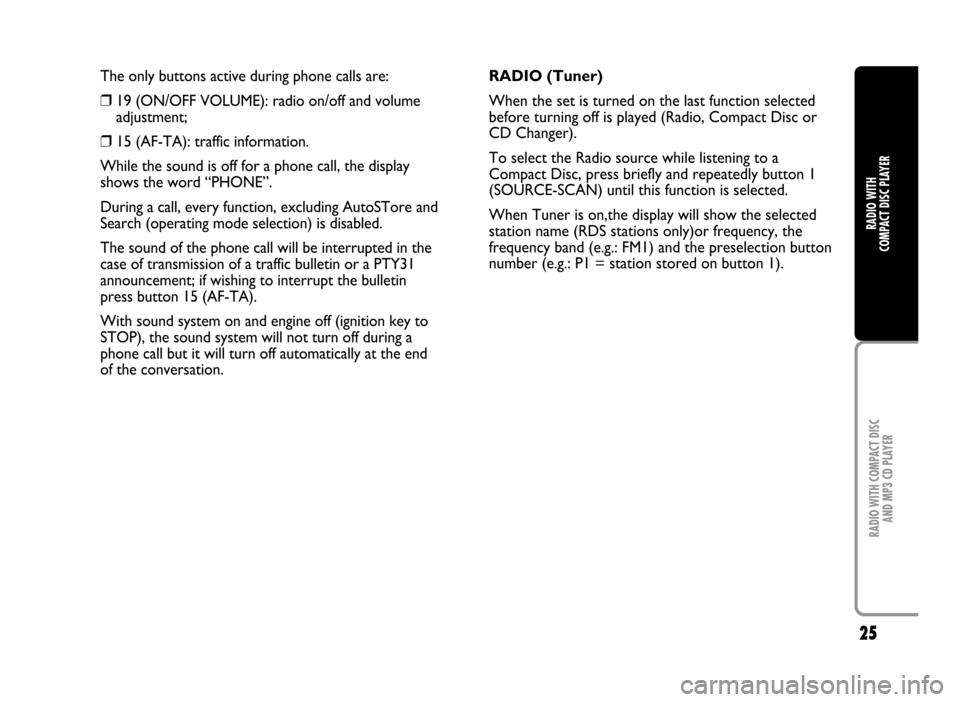

25
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
The only buttons active during phone calls are:
❒19 (ON/OFF VOLUME): radio on/off and volume
adjustment;
❒15 (AF-TA): traffic information.
While the sound is off for a phone call, the display
shows the word “PHONE”.
During a call, every function, excluding AutoSTore and
Search (operating mode selection) is disabled.
The sound of the phone call will be interrupted in the
case of transmission of a traffic bulletin or a PTY31
announcement; if wishing to interrupt the bulletin
press button 15 (AF-TA).
With sound system on and engine off (ignition key to
STOP), the sound system will not turn off during a
phone call but it will turn off automatically at the end
of the conversation.RADIO (Tuner)
When the set is turned on the last function selected
before turning off is played (Radio, Compact Disc or
CD Changer).
To select the Radio source while listening to a
Compact Disc, press briefly and repeatedly button 1
(SOURCE-SCAN) until this function is selected.
When Tuner is on,the display will show the selected
station name (RDS stations only)or frequency, the
frequency band (e.g.: FM1) and the preselection button
number (e.g.: P1 = station stored on button 1).

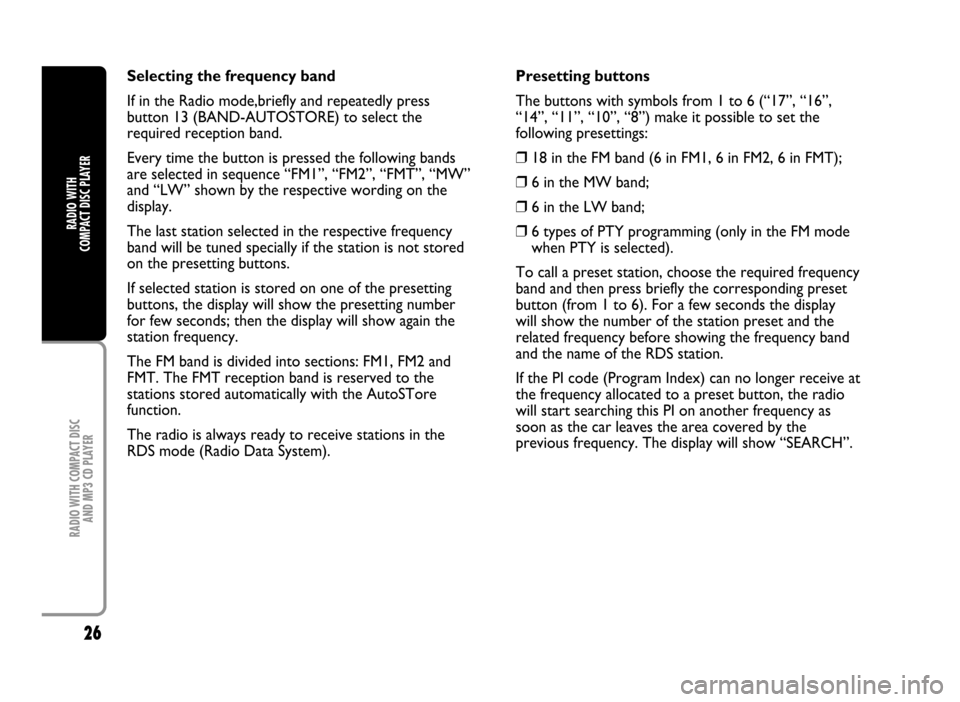

26
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
Selecting the frequency band
If in the Radio mode,briefly and repeatedly press
button 13 (BAND-AUTOSTORE) to select the
required reception band.
Every time the button is pressed the following bands
are selected in sequence “FM1”, “FM2”, “FMT”, “MW”
and “LW” shown by the respective wording on the
display.
The last station selected in the respective frequency
band will be tuned specially if the station is not stored
on the presetting buttons.
If selected station is stored on one of the presetting
buttons, the display will show the presetting number
for few seconds; then the display will show again the
station frequency.
The FM band is divided into sections: FM1, FM2 and
FMT. The FMT reception band is reserved to the
stations stored automatically with the AutoSTore
function.
The radio is always ready to receive stations in the
RDS mode (Radio Data System).Presetting buttons
The buttons with symbols from 1 to 6 (“17”, “16”,
“14”, “11”, “10”, “8”) make it possible to set the
following presettings:
❒18 in the FM band (6 in FM1, 6 in FM2, 6 in FMT);
❒6 in the MW band;
❒6 in the LW band;
❒6 types of PTY programming (only in the FM mode
when PTY is selected).
To call a preset station, choose the required frequency
band and then press briefly the corresponding preset
button (from 1 to 6). For a few seconds the display
will show the number of the station preset and the
related frequency before showing the frequency band
and the name of the RDS station.
If the PI code (Program Index) can no longer receive at
the frequency allocated to a preset button, the radio
will start searching this PI on another frequency as
soon as the car leaves the area covered by the
previous frequency. The display will show “SEARCH”.

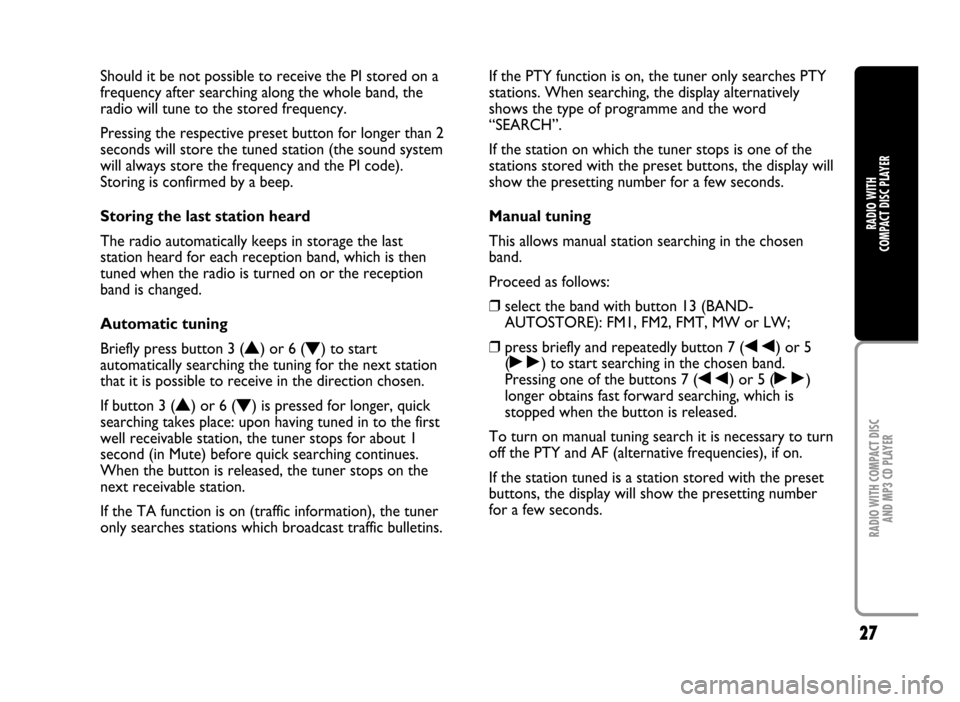

27
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
Should it be not possible to receive the PI stored on a
frequency after searching along the whole band, the
radio will tune to the stored frequency.
Pressing the respective preset button for longer than 2
seconds will store the tuned station (the sound system
will always store the frequency and the PI code).
Storing is confirmed by a beep.
Storing the last station heard
The radio automatically keeps in storage the last
station heard for each reception band, which is then
tuned when the radio is turned on or the reception
band is changed.
Automatic tuning
Briefly press button 3 (
N) or 6 (O) to start
automatically searching the tuning for the next station
that it is possible to receive in the direction chosen.
If button 3 (
N) or 6 (O) is pressed for longer, quick
searching takes place: upon having tuned in to the first
well receivable station, the tuner stops for about 1
second (in Mute) before quick searching continues.
When the button is released, the tuner stops on the
next receivable station.
If the TA function is on (traffic information), the tuner
only searches stations which broadcast traffic bulletins.If the PTY function is on, the tuner only searches PTY
stations. When searching, the display alternatively
shows the type of programme and the word
“SEARCH”.
If the station on which the tuner stops is one of the
stations stored with the preset buttons, the display will
show the presetting number for a few seconds.
Manual tuning
This allows manual station searching in the chosen
band.
Proceed as follows:
❒select the band with button 13 (BAND-
AUTOSTORE): FM1, FM2, FMT, MW or LW;
❒press briefly and repeatedly button 7 (
÷) or 5
(
˜) to start searching in the chosen band.
Pressing one of the buttons 7 (
÷) or 5 (˜)
longer obtains fast forward searching, which is
stopped when the button is released.
To turn on manual tuning search it is necessary to turn
off the PTY and AF (alternative frequencies), if on.
If the station tuned is a station stored with the preset
buttons, the display will show the presetting number
for a few seconds.

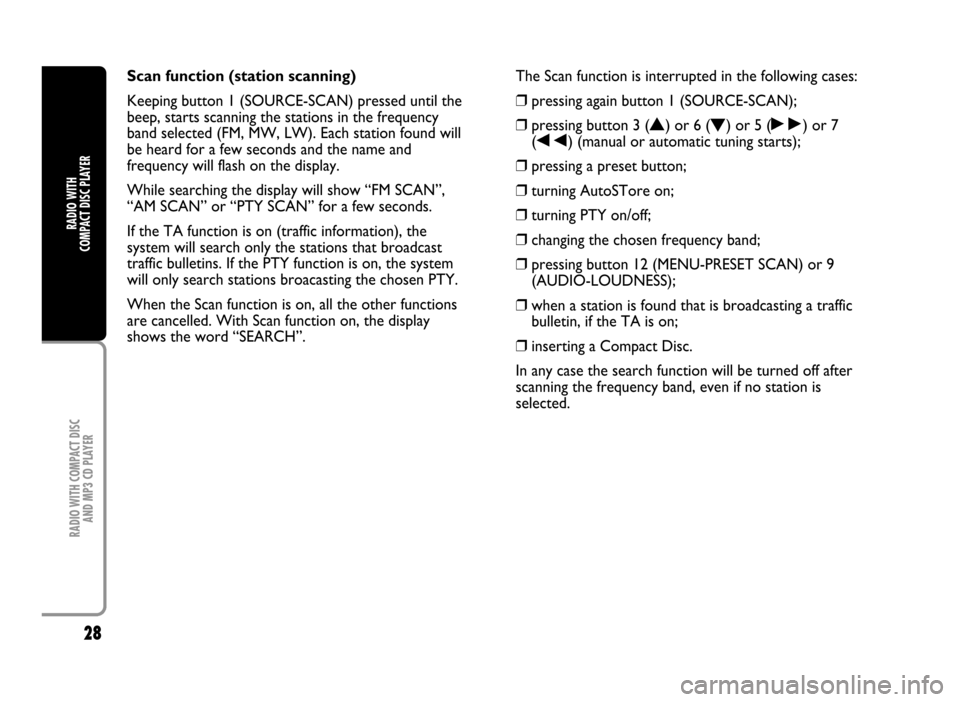

28
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
Scan function (station scanning)
Keeping button 1 (SOURCE-SCAN) pressed until the
beep, starts scanning the stations in the frequency
band selected (FM, MW, LW). Each station found will
be heard for a few seconds and the name and
frequency will flash on the display.
While searching the display will show “FM SCAN”,
“AM SCAN” or “PTY SCAN” for a few seconds.
If the TA function is on (traffic information), the
system will search only the stations that broadcast
traffic bulletins. If the PTY function is on, the system
will only search stations broacasting the chosen PTY.
When the Scan function is on, all the other functions
are cancelled. With Scan function on, the display
shows the word “SEARCH”.The Scan function is interrupted in the following cases:
❒pressing again button 1 (SOURCE-SCAN);
❒pressing button 3 (
N) or 6 (O) or 5 (˜) or 7
(
÷) (manual or automatic tuning starts);
❒pressing a preset button;
❒turning AutoSTore on;
❒turning PTY on/off;
❒changing the chosen frequency band;
❒pressing button 12 (MENU-PRESET SCAN) or 9
(AUDIO-LOUDNESS);
❒when a station is found that is broadcasting a traffic
bulletin, if the TA is on;
❒inserting a Compact Disc.
In any case the search function will be turned off after
scanning the frequency band, even if no station is
selected.

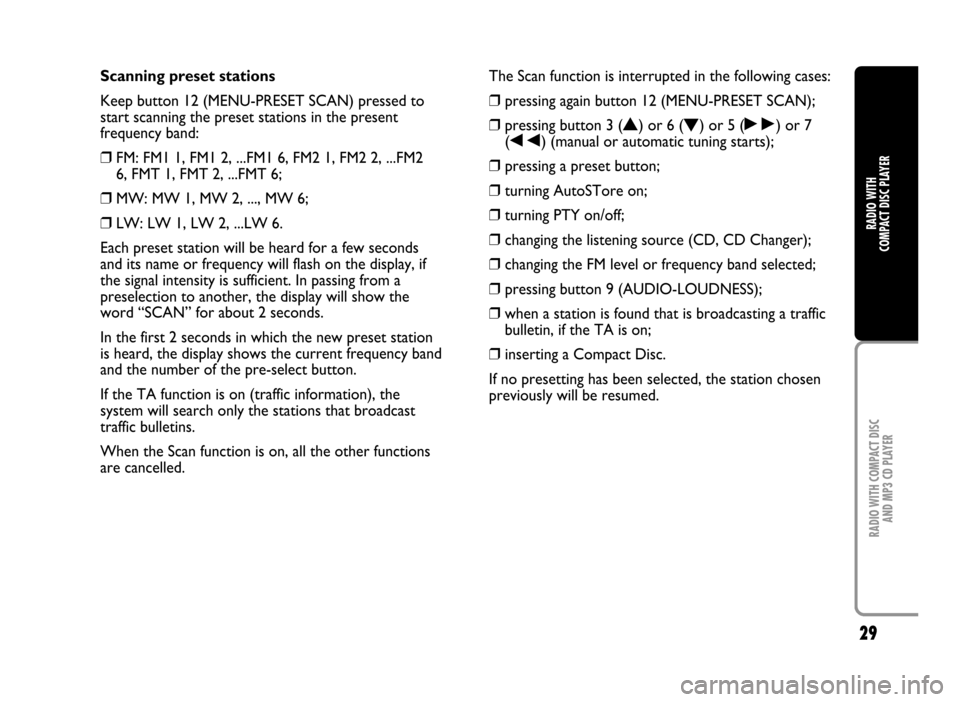

29
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
Scanning preset stations
Keep button 12 (MENU-PRESET SCAN) pressed to
start scanning the preset stations in the present
frequency band:
❒FM: FM1 1, FM1 2, ...FM1 6, FM2 1, FM2 2, ...FM2
6, FMT 1, FMT 2, ...FMT 6;
❒MW: MW 1, MW 2, ..., MW 6;
❒LW: LW 1, LW 2, ...LW 6.
Each preset station will be heard for a few seconds
and its name or frequency will flash on the display, if
the signal intensity is sufficient. In passing from a
preselection to another, the display will show the
word “SCAN” for about 2 seconds.
In the first 2 seconds in which the new preset station
is heard, the display shows the current frequency band
and the number of the pre-select button.
If the TA function is on (traffic information), the
system will search only the stations that broadcast
traffic bulletins.
When the Scan function is on, all the other functions
are cancelled.The Scan function is interrupted in the following cases:
❒pressing again button 12 (MENU-PRESET SCAN);
❒pressing button 3 (
N) or 6 (O) or 5 (˜) or 7
(
÷) (manual or automatic tuning starts);
❒pressing a preset button;
❒turning AutoSTore on;
❒turning PTY on/off;
❒changing the listening source (CD, CD Changer);
❒changing the FM level or frequency band selected;
❒pressing button 9 (AUDIO-LOUDNESS);
❒when a station is found that is broadcasting a traffic
bulletin, if the TA is on;
❒inserting a Compact Disc.
If no presetting has been selected, the station chosen
previously will be resumed.

30
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER

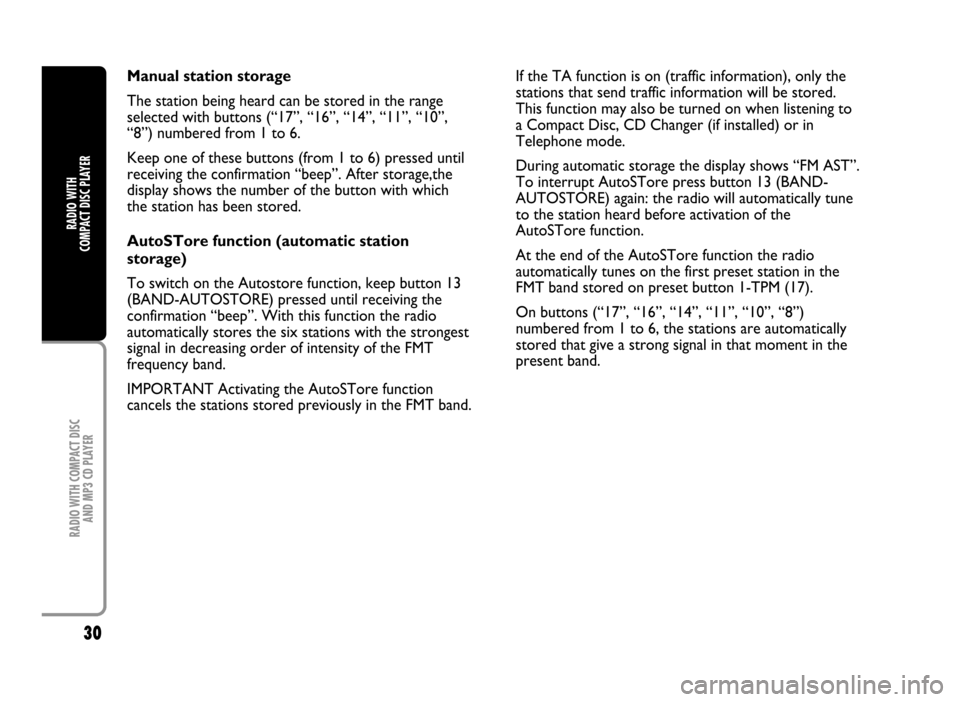

Manual station storage
The station being heard can be stored in the range
selected with buttons (“17”, “16”, “14”, “11”, “10”,
“8”) numbered from 1 to 6.
Keep one of these buttons (from 1 to 6) pressed until
receiving the confirmation “beep”. After storage,the
display shows the number of the button with which
the station has been stored.
AutoSTore function (automatic station
storage)
To switch on the Autostore function, keep button 13
(BAND-AUTOSTORE) pressed until receiving the
confirmation “beep”. With this function the radio
automatically stores the six stations with the strongest
signal in decreasing order of intensity of the FMT
frequency band.
IMPORTANT Activating the AutoSTore function
cancels the stations stored previously in the FMT band.If the TA function is on (traffic information), only the
stations that send traffic information will be stored.
This function may also be turned on when listening to
a Compact Disc, CD Changer (if installed) or in
Telephone mode.
During automatic storage the display shows “FM AST”.
To interrupt AutoSTore press button 13 (BAND-
AUTOSTORE) again: the radio will automatically tune
to the station heard before activation of the
AutoSTore function.
At the end of the AutoSTore function the radio
automatically tunes on the first preset station in the
FMT band stored on preset button 1-TPM (17).
On buttons (“17”, “16”, “14”, “11”, “10”, “8”)
numbered from 1 to 6, the stations are automatically
stored that give a strong signal in that moment in the
present band.

31
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
The behaviour of the set during AutoSTore is as
follows:
❒at the beginning of the AutoSTore function all the
other functions are disabled;
❒pressing one of the radio function buttons, e.g.: 18
(PTY), 3 (
N), 7 (÷), 6 (O), 5 (˜), (8), (10),
(11), (14), (16), (17) the automatic storage process
is interrupted,the last station heard before
AutoSTore was turned on is tuned and the function
associated with the button pressed is run;
❒pressing button 15 (AF-TA) during AutoSTore will
interrupt it, the TA function (traffic information) will
be turned on/off and a new automatic storage
process will be started;
❒changing the listening source (Radio, Compact Disc,
CD Changer) during automatic storage will not
interrupt the AutoSTore function.
❒Activating the AutoSTore function in MW or LW
bands will automatically select the FMT band where
the function is then run.
IMPORTANT Sometimes the AutoSTore function is
unable to find 6 stations with a strong signal. In this
case the previous stations will be stored on the free
preset buttons.Listening to stored stations
Proceed as follows:
❒select the required frequency band (FM, MW, LW);
❒briefly press one of the six station storage buttons.
The display will show the number that corresponds to
the button.
In bands FM1, FM2 and FMT, if reception is poor and
the AF alternative frequency search function is active,
the station with the strongest signal that is
broadcasting the same programme will be sought
automatically.
AF function (alternative frequency search)
Within the RDS system the radio can work in two
different modes:
❒“AF ON”: alternative frequency search on (the
display shows “AF”);
❒“AF OFF”: alternative frequency search off.

32
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
When the signal of the RDS station tuned weakens,
the following two cases may occur:
❒with “AF ON” the RDS system activates automatic
tuning of the optimum frequency of the station
chosen, with the stations enabled, therefore the
radio is automatically tuned to the station with the
strongest signal that is broadcasting the same
programme. During the journey it will thus be
possible to continue listening to the station chosen
without having to change the frequency when
changing area. Of course, the station being listened
to must be receivable in the area the car is crossing.
❒With “AF OFF” the radio will not tune the
strongest station automatically and it will have to be
found manually using the tuner buttons.
To turn the AF function on/off, keep button 15 (AF-
TA) pressed until hearing the beep.
The name RDS (if available) stays on the display and if
the AF function has been turned on the symbol “AF” is
shown.
If the radio is working in the AM band, when button
15 (AF-TA) is pressed, it passes to the FM1 band on

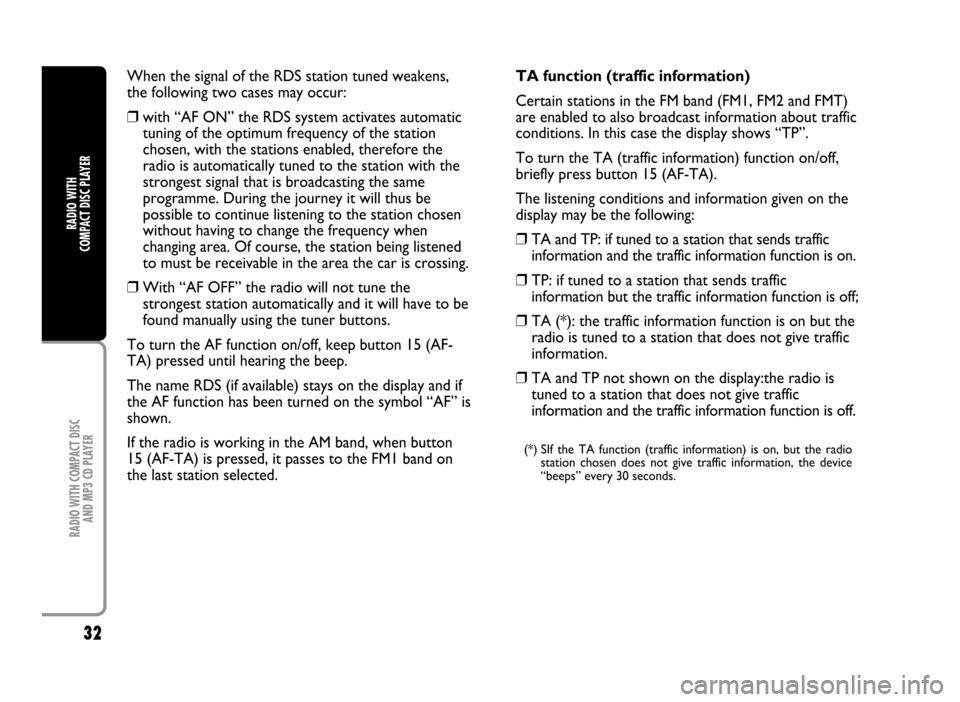

the last station selected.TA function (traffic information)
Certain stations in the FM band (FM1, FM2 and FMT)
are enabled to also broadcast information about traffic
conditions. In this case the display shows “TP”.
To turn the TA (traffic information) function on/off,
briefly press button 15 (AF-TA).
The listening conditions and information given on the
display may be the following:
❒TA and TP: if tuned to a station that sends traffic
information and the traffic information function is on.
❒TP: if tuned to a station that sends traffic
information but the traffic information function is off;
❒TA (*): the traffic information function is on but the
radio is tuned to a station that does not give traffic
information.
❒TA and TP not shown on the display:the radio is
tuned to a station that does not give traffic
information and the traffic information function is off.
(*) SIf the TA function (traffic information) is on, but the radio
station chosen does not give traffic information, the device
“beeps” every 30 seconds.
