FIAT MAREA 2001 1.G Workshop Manual

Marea-Marea Weekend Electrical system
2000 range (§) Radio System
55.
Repetition of a CD (REPEAT)
To repeat the current CD continously: press the RPT key for longer than 2 seconds: "RPT CD" appears on
the display.
A different CD may be selected. To suspend the function, press the RPT key again for longer than 2 sec­
onds: «RPT MAG» appears on the display.
Selecting tracks in a random sequence (TRACK RANDOM)
To start the random track search:
press the RND key: "RND ON" appears on the display. The selected CD tracks are played in a random se­
quence.
Press the RND key again to end the random track search: "RND OFF" appears on the display.
NOTE: The TRACK RANDOM function cannot be combined with the TRACK REPEAT and CD REPEAT
functions.
Concluding CD operation
Press the EJECT key
Alternatively, press the SRC to listen to the radio again
ADVICE AND PRECAUTIONS
RECEPTION CONDITIONS
The reception conditions will vary greatly while driving.
Reception can be affected by mountains, buildings or bridges especialy when far away from the transmit­
ter of the station you are listening to.
Note: when listening to traffic information (TA), the volume may rise considerably compared to normal
levels.
MAINTENANCE
The radio is built for long-term use without any special maintenance requirements.
If necessary, clean the panel with a soft, antistatic cloth. Cleaning and polishing products could damage
the surface.
TAPES
For optimal playing conditions:
- do not use poor quality tapes, with deformations or peeling labels;
- do not leave the tape inside the radio when not in use;
- do not introduce any objects into the cassette slot;
- do not expose the tapes to sunlight, excessive temperature or high moisture levels;
- replace the tapes in their cases after use;
- dirt on the playing heads caused by tapes could eventually lead to a reduction in high tones during
playing. It is therefore advisable to clean the playing heads at intervals using a special non-abrasive
head cleaning tape;
- it is preferable to C60 tapes or in the worst case C90 tapes to ensure optimum playing quality at all
times. The very fine tape contained in very long cassettes could also break very easily;
- avoid inserting cassettes with loose tapes, particularly if C90, because the tape could emerge and block
the mechanism. If the radio detects a loose tape or similar problems, the cassette is in any case auto­
matically ejected;
- do not lubricate the tape mechanism;
- do not touch the playing heads with magnetic or hard items.
Copyright by Fiat Auto XII 00 - Update 51

Radio System
Electrical system Marea- Marea Weekend
2000 range ©
55.

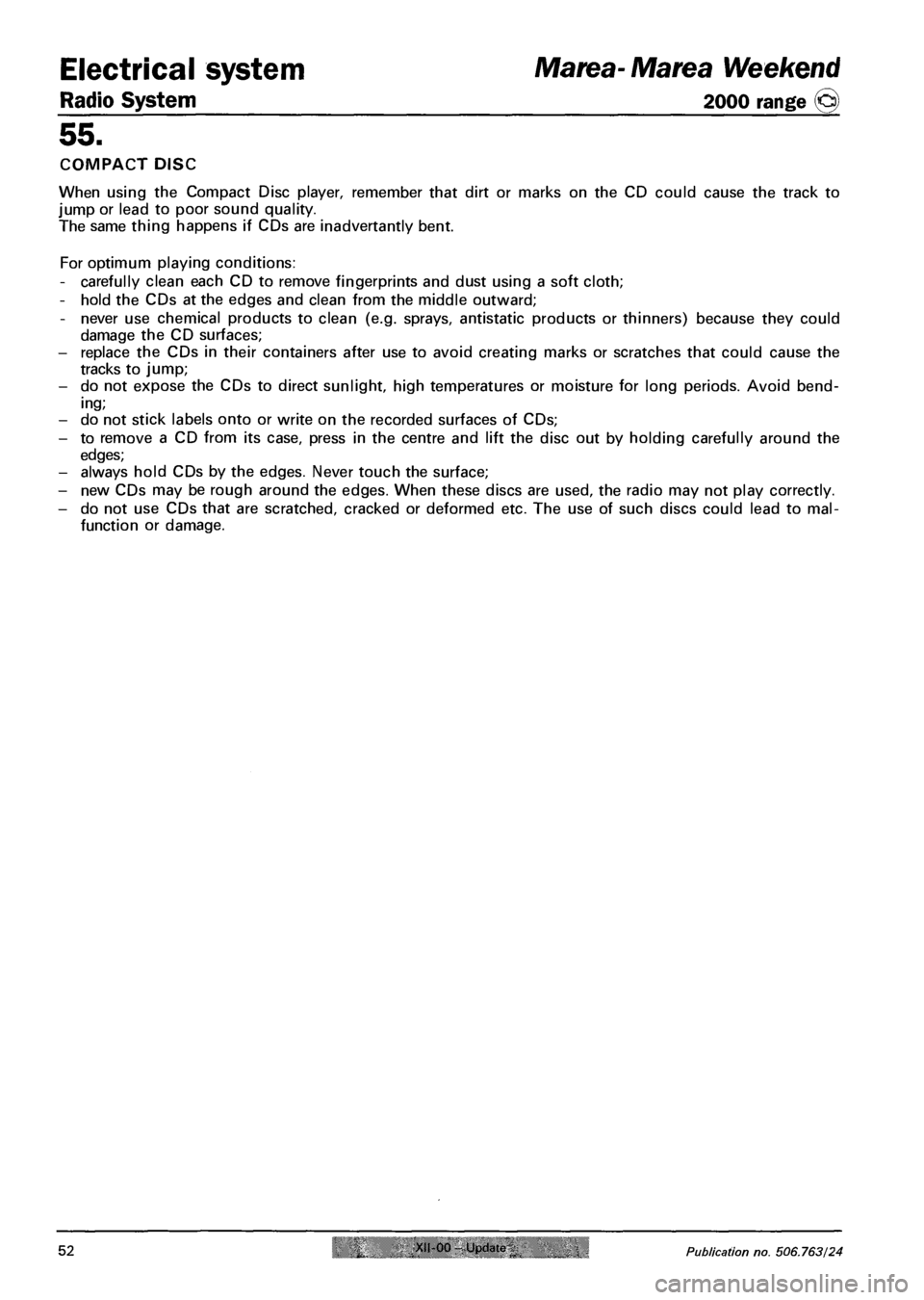

COMPACT DISC
When using the Compact Disc player, remember that dirt or marks on the CD could cause the track to
jump or lead to poor sound quality.
The same thing happens if CDs are inadvertantly bent.
For optimum playing conditions:
- carefully clean each CD to remove fingerprints and dust using a soft cloth;
- hold the CDs at the edges and clean from the middle outward;
- never use chemical products to clean (e.g. sprays, antistatic products or thinners) because they could
damage the CD surfaces;
- replace the CDs in their containers after use to avoid creating marks or scratches that could cause the
tracks to jump;
- do not expose the CDs to direct sunlight, high temperatures or moisture for long periods. Avoid bend­
ing;
- do not stick labels onto or write on the recorded surfaces of CDs;
- to remove a CD from its case, press in the centre and lift the disc out by holding carefully around the
edges;
- always hold CDs by the edges. Never touch the surface;
- new CDs may be rough around the edges. When these discs are used, the radio may not play correctly.
- do not use CDs that are scratched, cracked or deformed etc. The use of such discs could lead to mal­
function or damage.
52 XII-00 - Update Publication no. 506.763/24

Marea-Marea Weekend
2000 range ©
Electrical equipment
Index
Electrical symbols
Explanation for reading wiring diagram
Wiring diagrams
Connector block
Key
55.
page
1
4
5
82
141
Copyright by Fiat Auto

Marea-Marea Weekend Electrical system
2000 range ©> Wiring diagrams
55.
DESCRIPTION
Marea-Marea Weekend
DESCRIPTION JTD
SIDE LIGHTS AND WARNING LIGHT - DIPPED HEADLAMPS - MAIN BEAM HEADLAMPS AND WARNING LIGHT - NUMBER PLATE LIGHTS (POLYELLIPTIC HEADLAMPS) 5 5 5 5
SIDE LIGHTS AND WARNING LIGHT - DIPPED HEADLAMPS - MAIN BEAM HEADLAMPS AND WARNING LIGHT - NUMBER PLATE LIGHTS (PARABOLA HEADLAMPS) 7 7 7 7
FOG LIGHTS - REAR FOG LIGHTS 9 9 9 9
DIRECTION INDICATORS AND WARNING LIGHT (WITH ALARM) - HAZARD WARNING LIGHTS - BRAKE LIGHTS (WITH CHECK) - REVERSING LIGHTS 11 11 11 11
DIRECTION INDICATORS AND WARNING LIGHT (WITHOUT ALARM) - HAZARD WARNING LIGHTS - BRAKE LIGHTS (WITHOUT CHECK) - REVERSING LIGHTS 13 13 13 13
FIAT MAREA
CAR INTERIOR LIGHTING - SYMBOL LIGHTING 15 15 15 15
FIAT MAREA WEEKEND
CAR INTERIOR LIGHTING - SYMBOL LIGHTING 17 17 17 17
RADIO SYSTEM - CIGAR LIGHTER 19 19 19 19
FRONT ELECTRIC WINDOWS 21 21 21 21
REAR ELECTRIC WINDOWS 23 23 23 23
FIAT CODE DEVICE AND WARNING LIGHT 25 25 25 25
ALARM/DOOR CHECK 27 27 27 27
CENTRAL LOCKING 29 29 29 29
HEATED, ELECTRICALLY ADJUSTABLE DOOR MIRRORS 31 31 31 31
Copyright by Fiat Auto '' XI Supersedes previous verster*.

Electrical system Marea-Marea Weekend
Wiring diagrams 2000 range (jcj)
55.
DESCRIPTION
Marea-Marea Weekend
DESCRIPTION lnp> Ittpl a.t
PREDISPOSITION FOR CAR PHONE AND TELEPASS 33 33 33 33
ELECTRIC SUN-ROOF 35 35 35 35
HEADLLAMP ALIGNMENT CORRECTOR 37 37 37 37
ADJUSTABLE, HEATED FRONT SEATS 39 39 39 39
AIR BAG AND PRETENSIONERS AND FAILURE WARNING LIGHT 41 41 41 41
AIR BAG WITH SIDE BAG AND PRETENSIONERS AND FAILURE WARNING LIGHT 43 43 43 43
WINDSCREEN WASH/WIPE - REAR WASH/WIPE - HORNS - HEATED REAR WINDOW - HEADLAMP WASHER 45 45 45 45
INSTRUMENT PANEL CONNECTIONS 47 49 47 47
CHECK PANEL/DOOR CHECK CONNECTIONS — — — —
THERMOSTATICALLY-ADJUSTABLE CLIMATE CONTROL SYSTEM/HEATER 51 51 53 55
ADDITIONAL HEATER — — 57 —
VERSIONS WITH CLIMATE CONTROL
ENGINE COOLING 59 59 61 63
VERSIONS WITHOUT CLIMATE CONTROL
ENGINE COOLING 65 65 61 —
Xll-Oa-i.Supersedes previous version 'u • Publication no. 506.763/24

Marea-Marea Weekend Electrical equipment
2000 range (§) Wiring diagrams
55.
DESCRIPTION
Engine types
DESCRIPTION 10i 0) c.a. 01/70
ANTI-LOCKING BRAKING SYSTEM (ABS) AND FAILURE WARNING LIGHT 67 67 67 67
STARTING - ELECTRONIC IGNITION AND INJECTION - RECHARGING AND WARNING LIGHT - INSUFFICIENT ENGINE OIL PRESSURE WARNING LIGHT - INJECTION SYSTEM FAILURE WARNING LIGHT -
REV COUNTER 69 69 — 71
STARTING - ELECTRONIC INJECTION - RECHARGING AND WARNING LIGHT - LOW ENGINE OIL PRESSURE WARNING LIGHT - HEATER PLUGS WARNING LIGHT - INJECTION SYSTEM FAILURE WARNING
LIGHT - FUEL PREHEATING — — 73 —
STARTING - EGR CONTROL - INJECTION CONTROL - HEATER PLUGS AND WARNING LIGHT - RECHARGING AND WARNING LIGHT - LOW ENGINE OIL PRESSURE WARNING LIGHT — — — —
AUTOMATIC TRANSMISSION - SYSTEM FAILURE WARNING LIGHT — 75 — —
DIAGNOSTIC SOCKECT CONNECTIONS 77 77 77 77
PREPARATION FOR TAXI 79 79 79 79
FM.B. The numbers in the table correspond to the page number of the electrical system in the manual
Copyright by Fiat Auto III

Marea- Marea Weekend
2000 range ©
Electrical equipment
Wiring diagrams
55.
Electrical symbols
M
Lt3
Position
Main beams
Heated seat
Seat belts
Heated rear windscreen
Handbrake applied and
low brake fluid level
ABS
Hazard warning lights
Direction indicator
Handbrake applied and
low brake fluid level
Recharging
Engine oil pressure
IX!
(O)
Hum®
120 Km/h
Choke
Water in fuel filter
Heater plugs warning
light
Turbocharger pressure
Rear fog lamps
Fog light
Brake pad wear
Turbocharger pressure
Automatic transmission
fluid temperature
Speed limits
Fuel level
Engine coolant
temperature
to
Switch discharge
Dipped beams
Central locking direction
indicators signal
Horns
Left direction indicator
Right direction indicator
Engine cooling
Windscreen wiper
Electronic sun-roof
Catalytic converter
temperature
Resistance
Diode
Copyright by Fiat Auto 1

Electrical equipment
Wiring diagrams
Marea- Marea Weekend
2000 range ©
55.
Electrical symbols
Warning light
Bulb
/--txi
T
Fuse
Switch open
Selector switch
Coil control switch
(relay)
Engine
Rear wiper
Headlamp washer
Windscreen wash/wipe
Rear wash/wipe
Engine oil pressure
BRAKE
SPORT
K
ANT I LOCK
STOP
Trip computer control
Electronic injection
Engine oil level
Brake fluid level
(Japanese, Version)
Doors ajar
Central locking
Controlled damping
suspension Sport
Function
Transistor
Air-bag
ABS (Japanese version)
Car brake failure
Windscreen wiper
H Differential lock
Automatic transmission
fluid temperature
00' Temperature
Antitheft device
Electrically operated
windows
Earth
Number plate lights
Pulse generator (timed
operation)
Analogue clock
Digital clock
Speedometer
Rev counter
2 Print n° 506.763/23

Marea- Marea Weekend
2000 range ©
Electrical equipment
Wiring diagrams
Electrical symbols
55.
388
_ a IIIIIIIIIIMI
'
Eb * ®
minium
Ev3
' Digital speedometer
Digital rev counter
Digital fuel level
Analogue fuel level
Analogue engine
coolant temperature
Economy gauge
Digital engine coolant
temperature
Engine oil temperature
vfOSv EN9|NE °'l pressure M35^ gauge
iE2 Voltmeter
Copyright by Fiat Auto 3

Electrical equipment
Wiring diagrams
Marea- Marea Weekend
2000 range ©
55.
EXPLANATION FOR READING WIRING DIAGRAM
2610/f=T
1 2 3 "
nnoi t
m IC01H ^ HSU
8515
^— PC7
-BB27 -8615 1 W-B06C-
8600A
1-8615—1
H
ni3u
L13U m
BFOO
V
B
R13U
FT
2615
BBOO
PSFO 23 27
5 4 3 2 1 TO
A
m m
II IC01P m m IC01S
lUsi.1V
(BWIC01B,
N.O.
p"3 N.D.
• PC? •
PC3 T^lFTi£5 PCI •
N10U
« ii
EN
N.D. |
D
— BB7 —'T
MN5A2B3A132B5B1
i
B6U
4, , 11 TT^l ITT B3B2B1M/V
N.D.
LO to 1
G8U
11
<£0 iO ID
£2 £1 B 3
V2620 U2610
(0)
MP23
0004
Key to references
A Component code
B Connector code
C Colour code
D Connection number of ways
E Connection number of ways
F Ultrasound welding taped in cable loom
4 Print n° 506.763/23
