Page 106 of 204

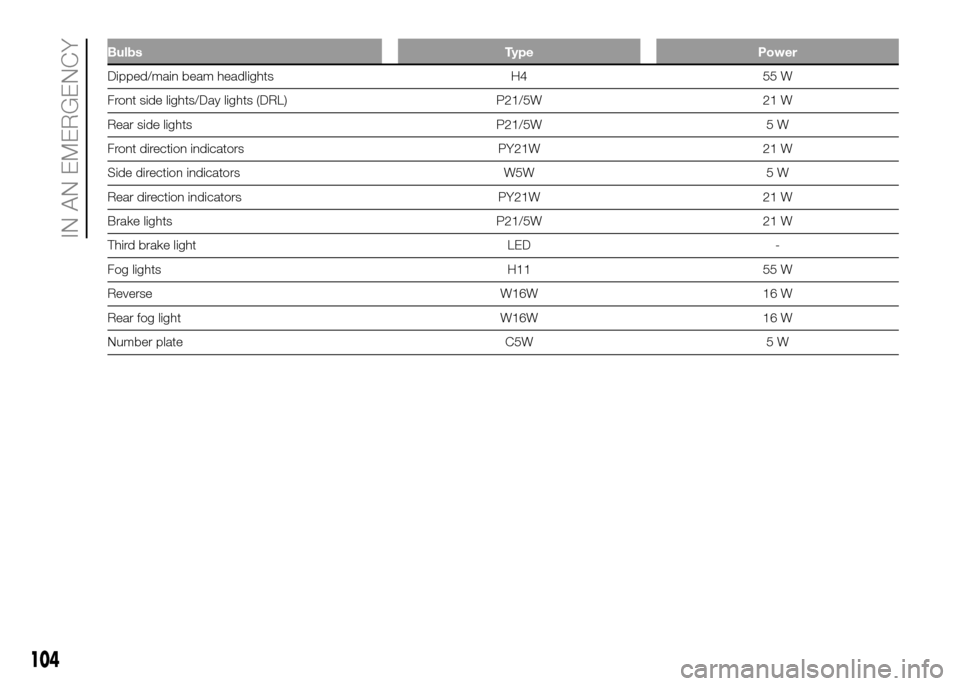

Bulbs Type Power
Dipped/main beam headlights H4 55 W
Front side lights/Day lights (DRL) P21/5W 21 W
Rear side lights P21/5W 5 W
Front direction indicators PY21W 21 W
Side direction indicators W5W 5 W
Rear direction indicators PY21W 21 W
Brake lights P21/5W 21 W
Third brake light LED -
Fog lights H11 55 W
Reverse W16W 16 W
Rear fog light W16W 16 W
Number plate C5W 5 W
104
IN AN EMERGENCY
Page 107 of 204

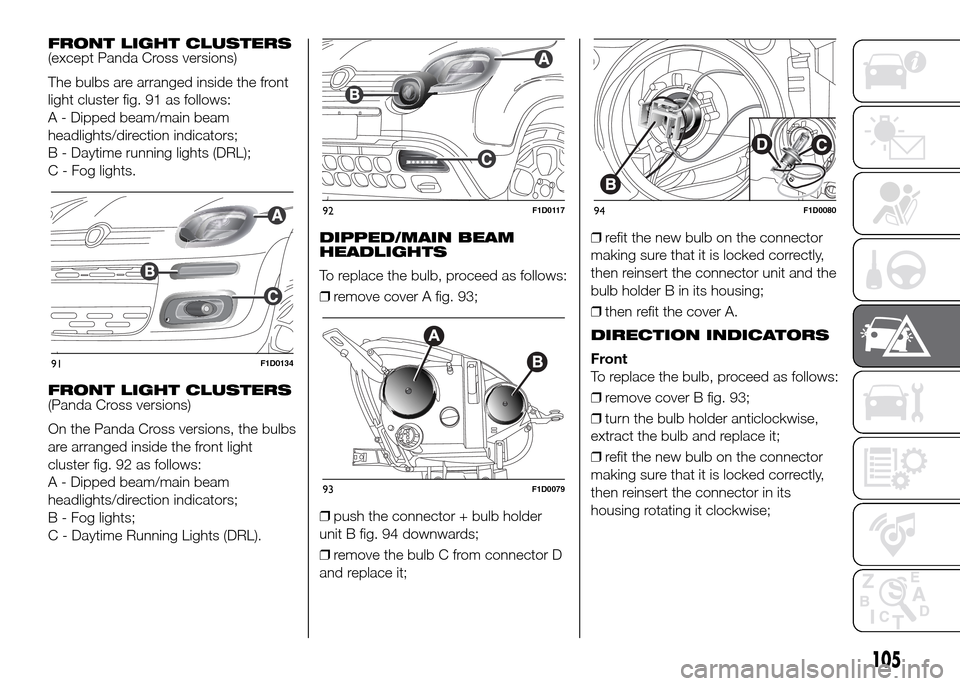

FRONT LIGHT CLUSTERS
(except Panda Cross versions)
The bulbs are arranged inside the front
light cluster fig. 91 as follows:
A - Dipped beam/main beam
headlights/direction indicators;
B - Daytime running lights (DRL);
C - Fog lights.
FRONT LIGHT CLUSTERS
(Panda Cross versions)
On the Panda Cross versions, the bulbs
are arranged inside the front light
cluster fig. 92 as follows:
A - Dipped beam/main beam
headlights/direction indicators;
B - Fog lights;
C - Daytime Running Lights (DRL).DIPPED/MAIN BEAM
HEADLIGHTS
To replace the bulb, proceed as follows:
❒remove cover A fig. 93;
❒push the connector + bulb holder
unit B fig. 94 downwards;
❒remove the bulb C from connector D
and replace it;❒refit the new bulb on the connector
making sure that it is locked correctly,
then reinsert the connector unit and the
bulb holder B in its housing;
❒then refit the cover A.
DIRECTION INDICATORS
Front
To replace the bulb, proceed as follows:
❒remove cover B fig. 93;
❒turn the bulb holder anticlockwise,
extract the bulb and replace it;
❒refit the new bulb on the connector
making sure that it is locked correctly,
then reinsert the connector in its
housing rotating it clockwise;
91F1D0134
92F1D0117
93F1D0079
94F1D0080
105
Page 108 of 204
❒turn the bulb holder C anticlockwise,
extract the bulb and replace it;
❒refit the bulb holder C in the lens and
turn it clockwise;
❒refit the unit making sure that the
internal clip B clicks into position.

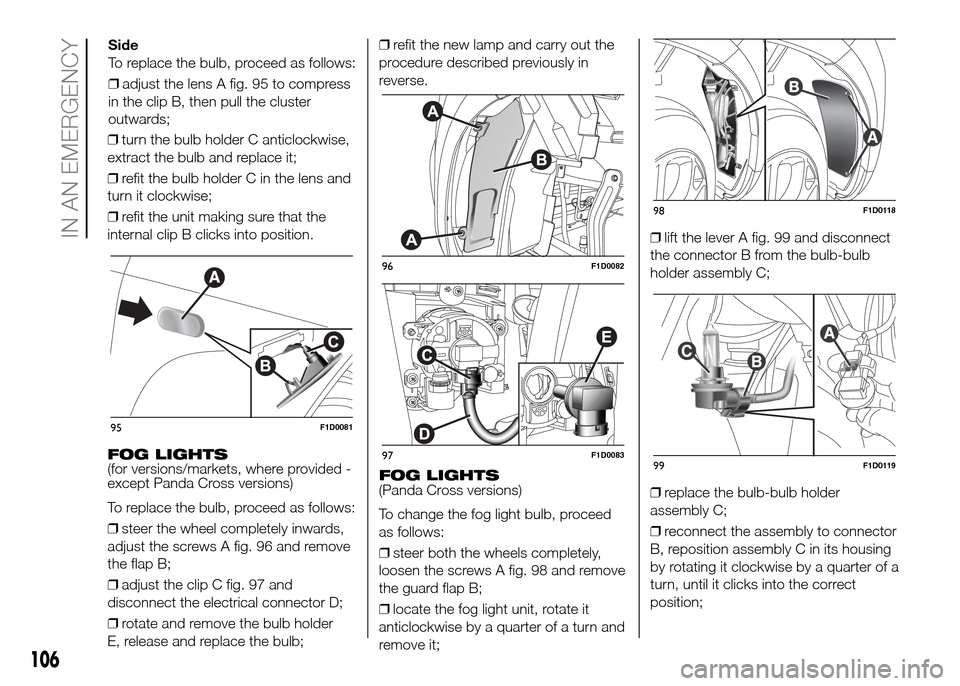

FOG LIGHTS
(for versions/markets, where provided -
except Panda Cross versions)
To replace the bulb, proceed as follows:
❒steer the wheel completely inwards,
adjust the screws A fig. 96 and remove
the flap B;
❒adjust the clip C fig. 97 and
disconnect the electrical connector D;
❒rotate and remove the bulb holder
E, release and replace the bulb;❒refit the new lamp and carry out the
procedure described previously in
reverse.
FOG LIGHTS
(Panda Cross versions)
To change the fog light bulb, proceed
as follows:
❒steer both the wheels completely,
loosen the screws A fig. 98 and remove
the guard flap B;
❒locate the fog light unit, rotate it
anticlockwise by a quarter of a turn and
remove it;❒lift the lever A fig. 99 and disconnect
the connector B from the bulb-bulb
holder assembly C;
❒replace the bulb-bulb holder
assembly C;
❒reconnect the assembly to connector
B, reposition assembly C in its housing
by rotating it clockwise by a quarter of a
turn, until it clicks into the correct
position;
95F1D0081
96F1D0082
97F1D0083
98F1D0118
99F1D0119
106
IN AN EMERGENCY
Side
To replace the bulb, proceed as follows:
❒adjust the lens A fig. 95 to compress
in the clip B, then pull the cluster
outwards;
Page 110 of 204
❒adjust the clip C fig. 104 and
disconnect the electrical connector D;❒turn the bulb holder E and remove
it, extract the bulb and replace it;
❒refit the new lamp and carry out the
procedure described previously in
reverse.
THIRD BRAKE LIGHTS
These are located in the tailgate and
are LED lights. For replacement,
contact a Fiat Dealership.
NUMBER PLATE LIGHTS
To replace the bulbs proceed as
follows:
❒remove lens A fig. 105;❒replace the bulb A fig. 106, releasing
it from the side contacts;
❒Insert the new bulb and make sure
that it is correctly clamped between the
contacts, then refit the lens A fig. 106.
WARNING
133)Modifications or repairs to the electric
system that are not carried out properly
or do not take the system technical
specifications into account can cause
malfunctions leading to the risk of fire.
134)Halogen bulbs contain pressurised
gas; in the case of breakage they may
burst.
135)Before replacing the bulb, wait for the
catalytic converter to cool down: RISK
OF BURNS.
103F1D0087
104F1D0088
105F1D0089
106F1D0090
108
IN AN EMERGENCY

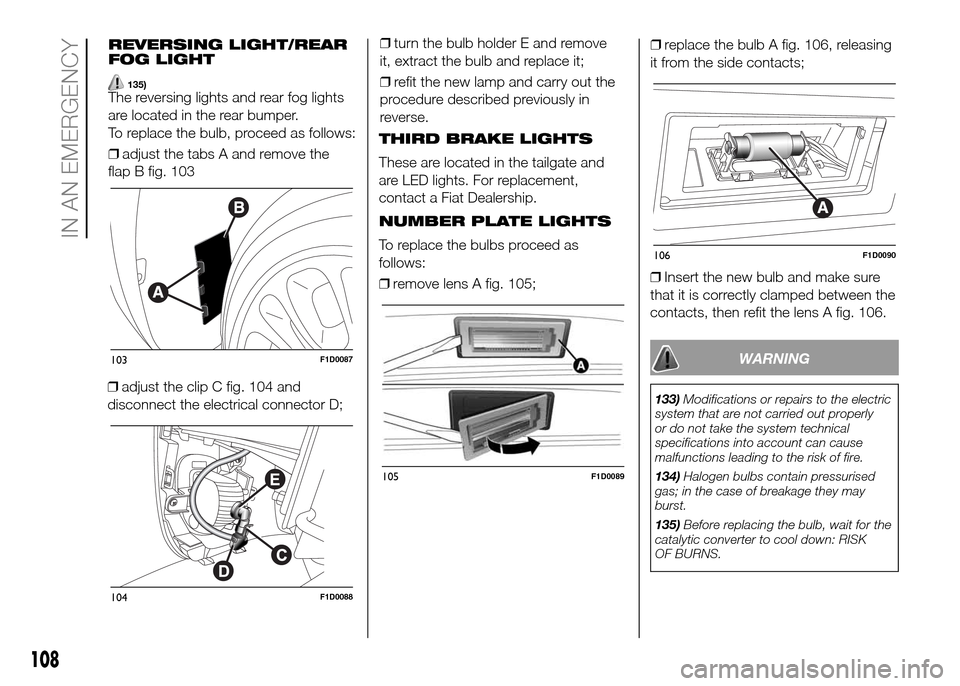

REVERSING LIGHT/REAR
FOG LIGHT
135)The reversing lights and rear fog lights
are located in the rear bumper.
To replace the bulb, proceed as follows:
❒adjust the tabs A and remove the
flap B fig. 103
Page 201 of 204
INDEX
3
rd brake light (bulb
replacement) ................................ 108
ABS (system) ................................ 61
Active safety systems ..................... 61
Airbags .......................................... 85
ASR (system) ................................. 62
Battery (recharging)....................... 137
Blue&Me ........................................ 182
Bonnet ........................................... 29
CBC system ................................. 67
Checking levels .............................. 131
Child protection systems ................ 76
Climate control system ................... 22
CO2 emissions............................... 174
Control panel and on-board
instruments .................................. 38
Dashboard.................................... 7
Daytime running lights (DRL)
– "Daytime Running Lights" .......... 17
Dimensions .................................... 155
Dipped beam headlights
– control....................................... 17
Dipped/main beam headlights
(bulb replacement) ....................... 105
Direction indicators (changing a
bulb) ............................................ 105
Direction indicators
– control....................................... 17Display ........................................... 39
Doors ............................................. 10
– door locking/unlocking .............. 10
Driving assistance systems ............ 66
DRL (Daytime Running Lights) ........ 17
Dualdrive electric power steering .... 28
Dualogic gearbox ........................... 94
Dusk sensor ................................... 16
ECO function ................................ 29
Electric windows ............................ 26
Engine compartment...................... 131
Engine............................................ 143
ESC (system) ................................. 61
Exterior lights ................................. 16
Fiat CODE (system) ....................... 10
Fix&Go Automatic kit...................... 115
Fluids and lubricants ...................... 1
Fog lights (bulb replacement) ......... 106
Fog lights/rear fog lights ................. 18
Follow me home (device) ................ 18
Front airbags .................................. 85
Front roof light ................................ 19
Fuel consumption .......................... 172
Fuel cut-off system......................... 119
Fuses (replacement) ....................... 109
Gear Shift Indicator ....................... 39
Handbrake.................................... 93
Hazard warning lights..................... 103HBA (system) ................................. 62
Head restraints............................... 13
HH (system) ................................... 61
Ignition device ............................... 9
Important information and
recommendations ........................ 19
Interior lights .................................. 19
iTPMS ............................................ 68
Jump starting ................................ 117
Keys
– key without remote control ........ 8
– key with remote control ............. 8
Lifting the vehicle .......................... 139
Luggage compartment................... 31
Main beam headlights
– control....................................... 17
Manual gearbox ............................. 94
Mode selector ................................ 98
Number plate lights (bulb
replacement) ................................ 108
Occupant protection systems ....... 71
Parking lights ................................ 17
Parking sensors ............................. 96
Performance (top speed) ................ 17
Prescriptions for handling the
vehicle at the end of its life ........... 17 5
Pretensioners ................................. 74
Radio ............................................ 1
682
1
77
Page 202 of 204
Rear fog lights ................................ 18
Rear light clusters (bulb
replacement) ................................ 107
Rear view mirrors ........................... 15
Refuelling the vehicle ......................
Replacing a bulb ............................ 103
Reversing light/rear fog light ........... 10
SBR (Seat Belt Reminder)
system ......................................... 72
Scheduled servicing ....................... 122
Seat belts....................................... 71
Seats ............................................. 11
– Adjustments .............................. 11
Side bags....................................... 88
Side lights/daytime running lights
(bulb replacement) ....................... 107Snow chains .................................. 154
Starting the engine ......................... 92
Steering lock .................................. 9
Steering wheel ............................... 14
Steering wheel stalks
– left stalk..................................... 16
– right stalk .................................. 20
Stop/Start system .......................... 96
Sun roof ......................................... 26
Supplementary Restraint System
(SRS) - Airbag .............................. 85
Supplies ......................................... 166
Symbols......................................... 4
Technical specifications ................ 141The keys ........................................ 8
Towing the vehicle .......................... 119
Towing trailers ................................
TP system ...................................... 66
Version with LPG system .............. 32
Version with methane system
(Natural Power) ............................ 34
Warning lights on panel ................ 41
Weights.......................................... 158
Wheel (changing)............................ 114
Wheels and tyres ........................... 139
Wheels ........................................... 1
Window cleaning............................ 20
Windscreen/rear window wiper ...... 138
INDEX 99
