Setting the clock (Set time)
This function allows you to set the clock
through two submenus: “Time” and
“Mode”.
To carry out the adjustment, proceed as
follows:
– briefly press MENU ESC– the display
will show the two sub-menus “Time” and
“Mode”;
– press +or –to switch between the two
sub-menus;
– select the required option and then
press MENU ESCbriefly;
– if selecting “Time”, briefly press MENU
ESC– the “hours” will flash on the display;
– press +or –to set the value;
– briefly press MENU ESC– the “min-
utes” will flash on the display; Trip B activation (trip B data)
This function may be used to activate
(On) or deactivate (Off) the Trip B display
(partial trip).
For more information see the “Trip com-
puter” section.
For activation/deactivation, proceed as fol-
lows:
– briefly press MENU ESC, On or Off
will flash on the display (depending on pre-
vious setting);
– press +or –to make your choice;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving. CORNER LIGHTS
(activation/deactivation of corner
lights – fog lights with cornering
function) (for versions/markets
where provided)
This function activates/deactivates the cor-
ner lights. To activate/deactivate (ON/OFF)
the lights, proceed as follows:
– press the MENU ESCbutton briefly:
the display will show “On” or “Off” flash-
ing depending on the previous setting;
– press +or –to make your choice;
– briefly press the MENU ESCbutton to
go back to the menu screen or hold the
button down to go back to the standard
screen without saving.
001-032 PUNTO POP 1ed EN 29/08/13 14.32 Pagina 24

25
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES

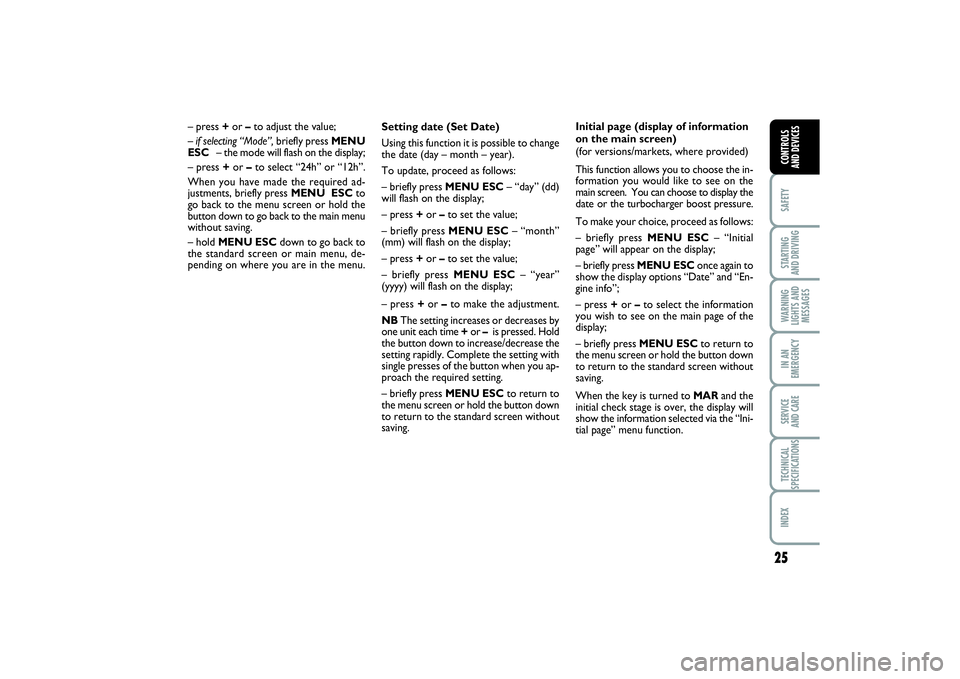

Setting date (Set Date)
Using this function it is possible to change
the date (day – month – year).
To update, proceed as follows:
– briefly press MENU ESC– “day” (dd)
will flash on the display;
– press +or –to set the value;
– briefly press MENU ESC– “month”
(mm) will flash on the display;
– press +or –to set the value;
– briefly press MENU ESC– “year”
(yyyy) will flash on the display;
– press +or –to make the adjustment.
NBThe setting increases or decreases by
one unit each time +or – is pressed. Hold
the button down to increase/decrease the
setting rapidly. Complete the setting with
single presses of the button when you ap-
proach the required setting.
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving. – press +or –to adjust the value;
– if selecting “Mode”,briefly press MENU
ESC – the mode will flash on the display;
– press +or –to select “24h” or “12h”.
When you have made the required ad-
justments, briefly press MENU ESCto
go back to the menu screen or hold the
button down to go back to the main menu
without saving.
– hold MENU ESCdown to go back to
the standard screen or main menu, de-
pending on where you are in the menu.Initial page (display of information
on the main screen)
(for versions/markets, where provided)
This function allows you to choose the in-
formation you would like to see on the
main screen. You can choose to display the
date or the turbocharger boost pressure.
To make your choice, proceed as follows:
– briefly press MENU ESC– “Initial
page” will appear on the display;
– briefly press MENU ESConce again to
show the display options “Date” and “En-
gine info”;
– press +or –to select the information
you wish to see on the main page of the
display;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.
When the key is turned to MARand the
initial check stage is over, the display will
show the information selected via the “Ini-
tial page” menu function.
001-032 PUNTO POP 1ed EN 29/08/13 14.32 Pagina 25

26SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES

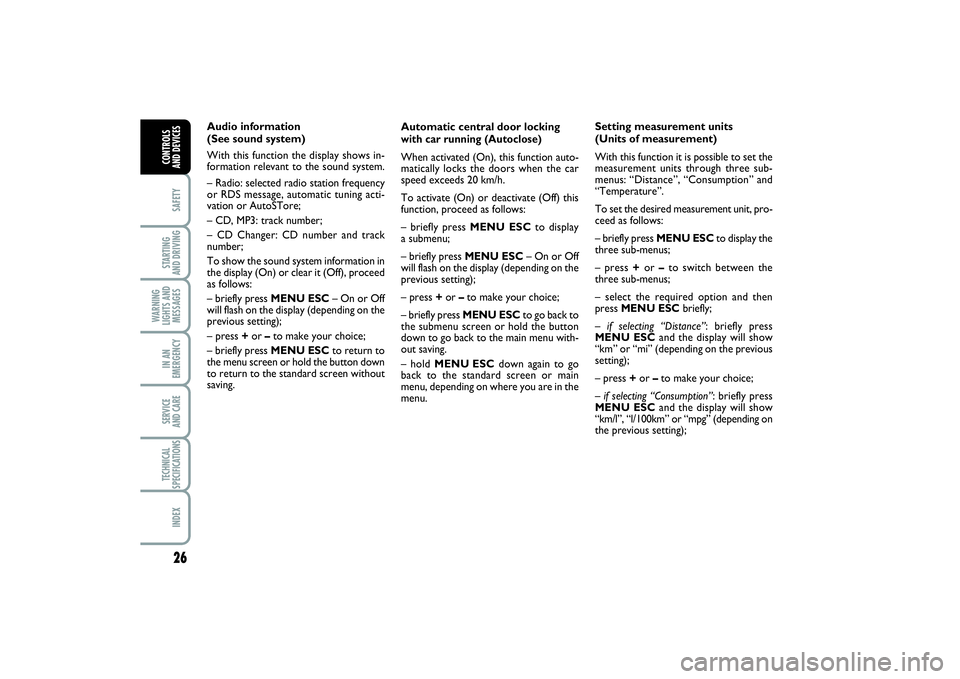

Automatic central door lockingwith car running (Autoclose)When activated (On), this function auto-
matically locks the doors when the car
speed exceeds 20 km/h.
To activate (On) or deactivate (Off) this
function, proceed as follows:
– briefly press MENU ESCto display
a submenu;
– briefly press MENU ESC– On or Off
will flash on the display (depending on the
previous setting);
– press +or –to make your choice;
– briefly press MENU ESCto go back to
the submenu screen or hold the button
down to go back to the main menu with-
out saving.
– hold MENU ESCdown again to go
back to the standard screen or main
menu, depending on where you are in the
menu. Audio information
(See sound system)
With this function the display shows in-
formation relevant to the sound system.
– Radio: selected radio station frequency
or RDS message, automatic tuning acti-
vation or AutoSTore;
– CD, MP3: track number;
– CD Changer: CD number and track
number;
To show the sound system information in
the display (On) or clear it (Off), proceed
as follows:
– briefly press MENU ESC– On or Off
will flash on the display (depending on the
previous setting);
– press +or –to make your choice;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.Setting measurement units
(Units of measurement)
With this function it is possible to set the
measurement units through three sub-
menus: “Distance”, “Consumption” and
“Temperature”.
To set the desired measurement unit, pro-
ceed as follows:
– briefly press MENU ESCto display the
three sub-menus;
– press +or –to switch between the
three sub-menus;
– select the required option and then
press MENU ESCbriefly;
– if selecting “Distance”: briefly press
MENU ESCand the display will show
“km” or “mi” (depending on the previous
setting);
– press +or –to make your choice;
– if selecting “Consumption”: briefly press
MENU ESCand the display will show
“km/l”, “l/100km” or “mpg” (depending on
the previous setting);
001-032 PUNTO POP 1ed EN 29/08/13 14.32 Pagina 26

27
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES

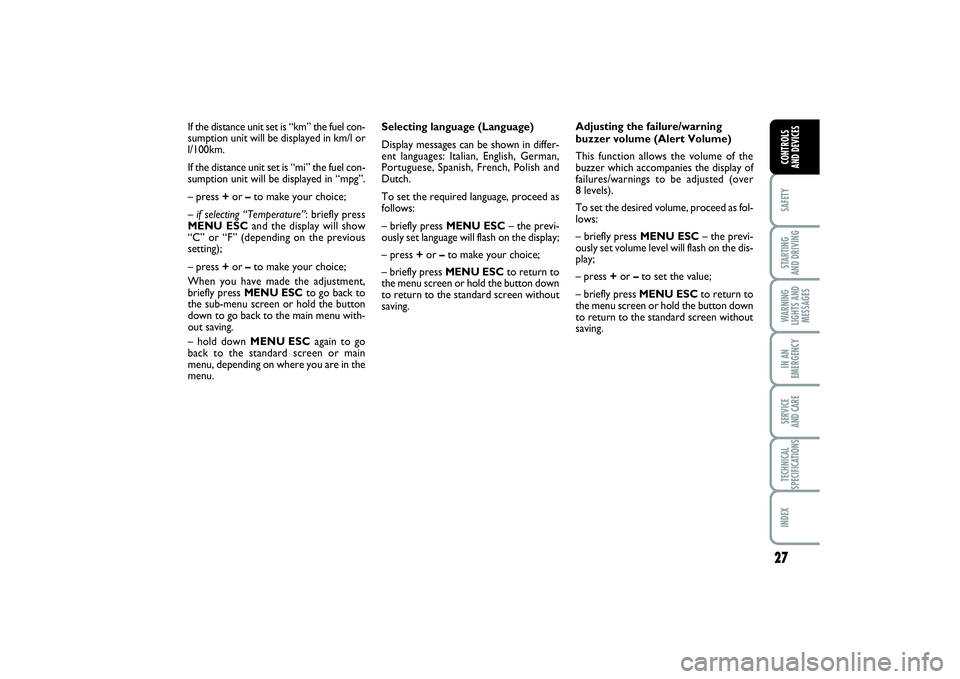

Selecting language (Language)
Display messages can be shown in differ-
ent languages: Italian, English, German,
Portuguese, Spanish, French, Polish and
Dutch.
To set the required language, proceed as
follows:
– briefly press MENU ESC– the previ-
ously set language will flash on the display;
– press +or –to make your choice;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.Adjusting the failure/warning
buzzer volume (Alert Volume)
This function allows the volume of the
buzzer which accompanies the display of
failures/warnings to be adjusted (over
8 levels).
To set the desired volume, proceed as fol-
lows:
– briefly press MENU ESC– the previ-
ously set volume level will flash on the dis-
play;
– press +or –to set the value;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving. If the distance unit set is “km” the fuel con-
sumption unit will be displayed in km/l or
l/100km.
If the distance unit set is “mi” the fuel con-
sumption unit will be displayed in “mpg”.
– press +or –to make your choice;
– if selecting “Temperature”: briefly press
MENU ESCand the display will show
“C” or “F” (depending on the previous
setting);
– press +or –to make your choice;
When you have made the adjustment,
briefly press MENU ESCto go back to
the sub-menu screen or hold the button
down to go back to the main menu with-
out saving.
– hold down MENU ESCagain to go
back to the standard screen or main
menu, depending on where you are in the
menu.
001-032 PUNTO POP 1ed EN 29/08/13 14.32 Pagina 27

28SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES

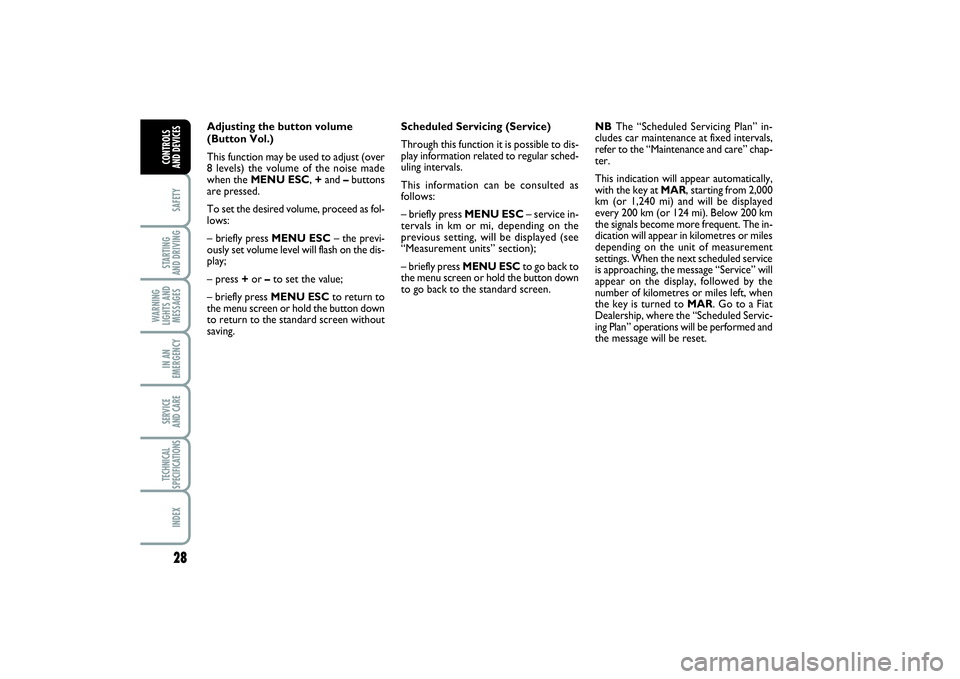

Adjusting the button volume
(Button Vol.)
This function may be used to adjust (over
8 levels) the volume of the noise made
when the MENU ESC, +and –buttons
are pressed.
To set the desired volume, proceed as fol-
lows:
– briefly press MENU ESC– the previ-
ously set volume level will flash on the dis-
play;
– press +or –to set the value;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.Scheduled Servicing (Service)
Through this function it is possible to dis-
play information related to regular sched-
uling intervals.
This information can be consulted as
follows:
– briefly press MENU ESC– service in-
tervals in km or mi, depending on the
previous setting, will be displayed (see
“Measurement units” section);– briefly press MENU ESCto go back to
the menu screen or hold the button down
to go back to the standard screen.NBThe “Scheduled Servicing Plan” in-
cludes car maintenance at fixed intervals,
refer to the “Maintenance and care” chap-
ter.
This indication will appear automatically,
with the key at MAR, starting from 2,000
km (or 1,240 mi) and will be displayed
every 200 km (or 124 mi). Below 200 km
the signals become more frequent. The in-
dication will appear in kilometres or miles
depending on the unit of measurement
settings. When the next scheduled service
is approaching, the message “Service” will
appear on the display, followed by the
number of kilometres or miles left, when
the key is turned to MAR. Go to a Fiat
Dealership, where the “Scheduled Servic-
ing Plan” operations will be performed and
the message will be reset.
001-032 PUNTO POP 1ed EN 29/08/13 14.32 Pagina 28

29
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
Passenger front and side airbag
activation/deactivation)
(for versions/markets, where provided)
This function is used to activate/deactivate
the front passenger’s air bag.
Proceed as follows:❒
press MENU ESCand, after seeing
messages “Bag pass: Off” (to deactivate)
or “Bag pass: On” (to activate) by
pressing buttons +and –, press MENU
ESCagain;
❒
the display will show the confirmation
request message;
❒
press +or –to select either Yes (to
confirm activation/deactivation) or No
(to abort);
❒
briefly press MENU ESC to confirm
setting and go back to the menu screen
or hold the button down to go back to
the standard screen without saving.
MENU ESCMENU ESCMENU ESC
– +
– +
– +
– +
F0M1009g
F0M1011gF0M1010g F0M1013g
F0M1014g
F0M1009g
F0M1015g
F0M1016gF0M1009g
DAYTIME RUNNING LIGHTS
(D.R.L.)
(for versions/markets where provided)

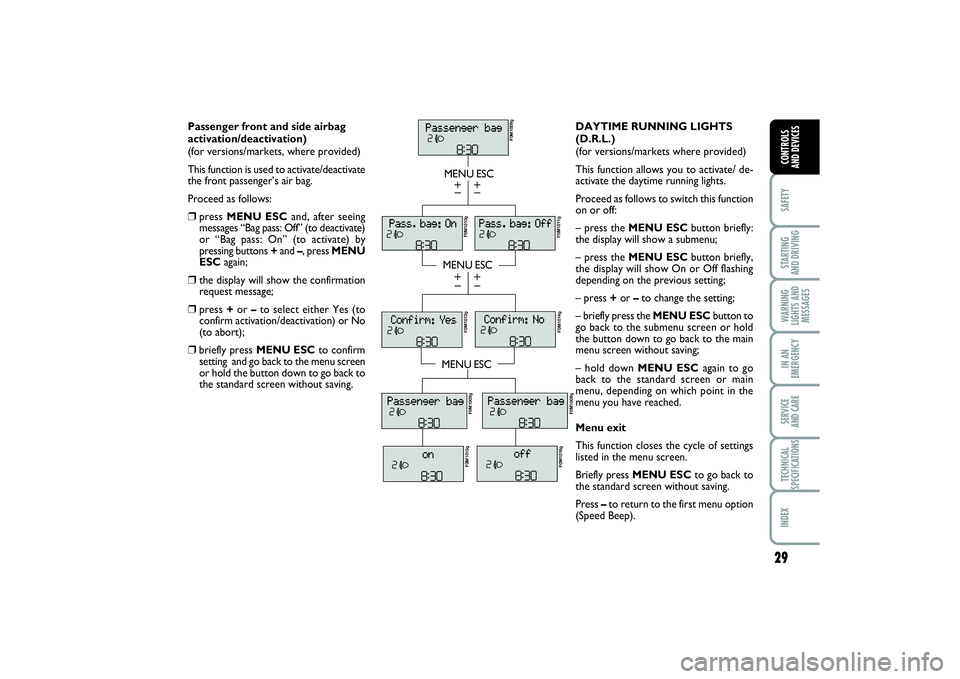

This function allows you to activate/ de-
activate the daytime running lights.
Proceed as follows to switch this function
on or off:
– press the MENU ESCbutton briefly:
the display will show a submenu;
– press the MENU ESCbutton briefly,
the display will show On or Off flashing
depending on the previous setting;
– press +or –to change the setting;
– briefly press the MENU ESCbutton to
go back to the submenu screen or hold
the button down to go back to the main
menu screen without saving;
– hold down MENU ESCagain to go
back to the standard screen or main
menu, depending on which point in the
menu you have reached.
Menu exit
This function closes the cycle of settings
listed in the menu screen.
Briefly press MENU ESCto go back to
the standard screen without saving.
Press –to return to the first menu option
(Speed Beep).
001-032 PUNTO POP 1ed EN 29/08/13 14.32 Pagina 29

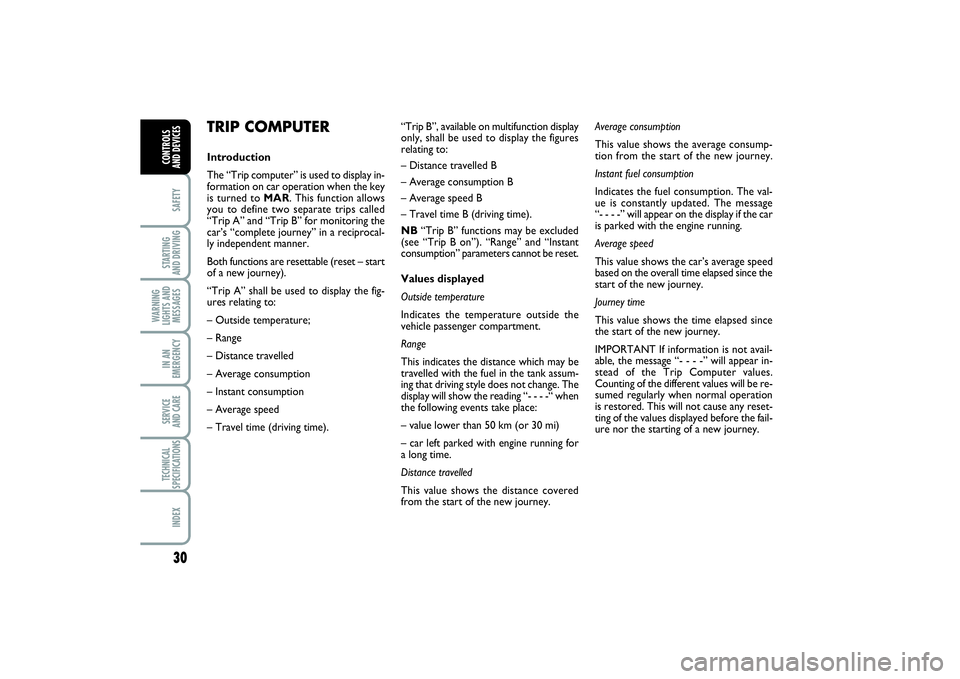

30SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
TRIP COMPUTERIntroduction
The “Trip computer” is used to display in-
formation on car operation when the key
is turned to MAR. This function allows
you to define two separate trips called
“Trip A” and “Trip B” for monitoring the
car’s “complete journey” in a reciprocal-
ly independent manner.
Both functions are resettable (reset – start
of a new journey).
“Trip A” shall be used to display the fig-
ures relating to:
– Outside temperature;
– Range
– Distance travelled
– Average consumption
– Instant consumption
– Average speed
– Travel time (driving time).“Trip B”, available on multifunction display
only, shall be used to display the figures
relating to:
– Distance travelled B
– Average consumption B
– Average speed B
– Travel time B (driving time).
NB“Trip B” functions may be excluded
(see “Trip B on”). “Range” and “Instant
consumption” parameters cannot be reset.
Values displayed
Outside temperature
Indicates the temperature outside the
vehicle passenger compartment.
Range
This indicates the distance which may be
travelled with the fuel in the tank assum-
ing that driving style does not change. The
display will show the reading “- - - -“ when
the following events take place:
– value lower than 50 km (or 30 mi)
– car left parked with engine running for
a long time.
Distance travelled
This value shows the distance covered
from the start of the new journey.Average consumption
This value shows the average consump-
tion from the start of the new journey.
Instant fuel consumption
Indicates the fuel consumption. The val-
ue is constantly updated. The message
“- - - -” will appear on the display if the car
is parked with the engine running.
Average speed
This value shows the car’s average speed
based on the overall time elapsed since the
start of the new journey.
Journey time
This value shows the time elapsed since
the start of the new journey.
IMPORTANT If information is not avail-
able, the message “- - - -” will appear in-
stead of the Trip Computer values.
Counting of the different values will be re-
sumed regularly when normal operation
is restored. This will not cause any reset-
ting of the values displayed before the fail-
ure nor the starting of a new journey.
001-032 PUNTO POP 1ed EN 29/08/13 14.32 Pagina 30

31
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
fig. 21
F0M0609m

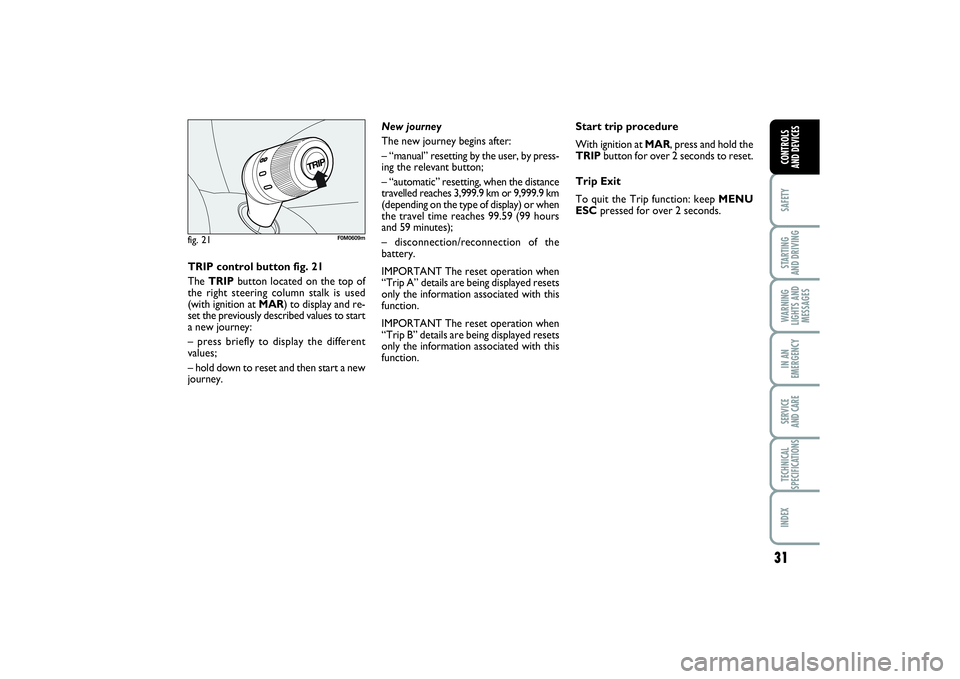

TRIP control button fig. 21
The TRIPbutton located on the top of
the right steering column stalk is used
(with ignition at MAR) to display and re-
set the previously described values to start
a new journey:
– press briefly to display the different
values;
– hold down to reset and then start a new
journey.New journey
The new journey begins after:
– “manual” resetting by the user, by press-
ing the relevant button;
– “automatic” resetting, when the distance
travelled reaches 3,999.9 km or 9,999.9 km
(depending on the type of display) or when
the travel time reaches 99.59 (99 hours
and 59 minutes);
– disconnection/reconnection of the
battery.
IMPORTANT The reset operation when
“Trip A” details are being displayed resets
only the information associated with this
function.
IMPORTANT The reset operation when
“Trip B” details are being displayed resets
only the information associated with this
function.Start trip procedure
With ignition at MAR, press and hold the
TRIPbutton for over 2 seconds to reset.
Trip Exit
To quit the Trip function: keep MENU
ESCpressed for over 2 seconds.
001-032 PUNTO POP 1ed EN 29/08/13 14.32 Pagina 31

32SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
The fabric upholstery of your
car is designed to withstand
normal wear and tear for
a long time. Some precau-
tions are needed though. Avoid pro-
longed and/or excessive rubbing
against clothing accessories such as
metal buckles and Velcro strips which,
by applying a high pressure on the fab-
ric in a small area, could cause some
threads to break, thereby damaging
the upholstery.

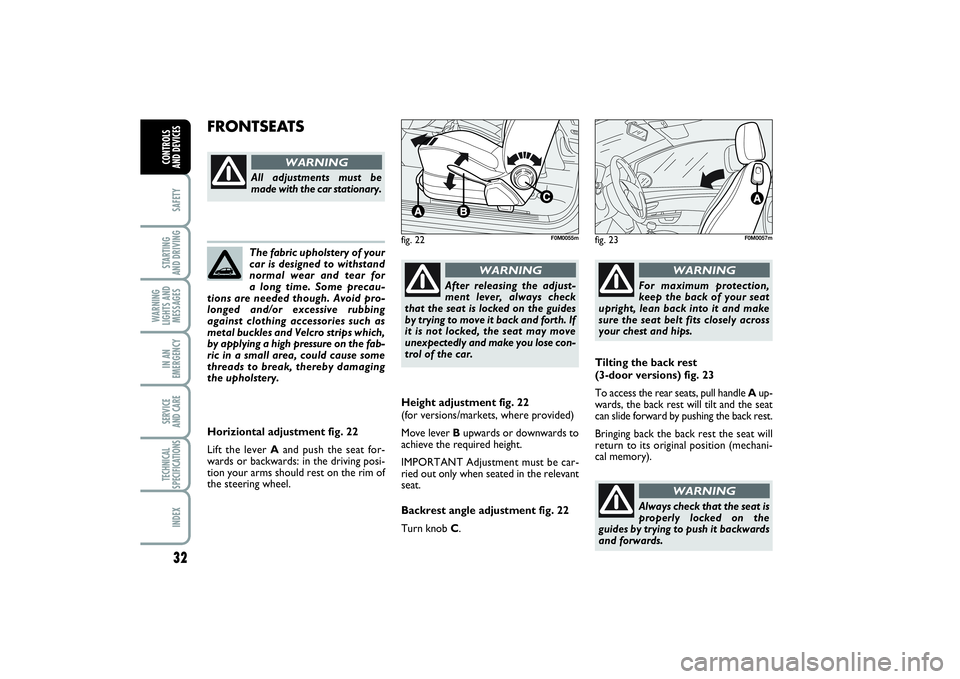

Height adjustment fig. 22
(for versions/markets, where provided)
Move lever Bupwards or downwards to
achieve the required height.
IMPORTANT Adjustment must be car-
ried out only when seated in the relevant
seat.
Backrest angle adjustment fig. 22
Turn knob C.
FRONTSEATS
fig. 22
F0M0055m
All adjustments must be
made with the car stationary.
WARNING
Horiziontal adjustment fig. 22
Lift the lever Aand push the seat for-
wards or backwards: in the driving posi-
tion your arms should rest on the rim of
the steering wheel.
After releasing the adjust-
ment lever, always check
that the seat is locked on the guides
by trying to move it back and forth. If
it is not locked, the seat may move
unexpectedly and make you lose con-
trol of the car.
WARNING
For maximum protection,
keep the back of your seat
upright, lean back into it and make
sure the seat belt fits closely across
your chest and hips.
WARNING
fig. 23
F0M0057m
Tilting the back rest
(3-door versions) fig. 23
To access the rear seats, pull handle Aup-
wards, the back rest will tilt and the seat
can slide forward by pushing the back rest.
Bringing back the back rest the seat will
return to its original position (mechani-
cal memory).
Always check that the seat is
properly locked on the
guides by trying to push it backwards
and forwards.
WARNING
001-032 PUNTO POP 1ed EN 29/08/13 14.32 Pagina 32

33
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
The fabric upholstery of your
car is designed to withstand
normal wear and tear for
a long time. Some precautions
are needed though. Avoid prolonged
and/or excessive rubbing against cloth-
ing accessories such as metal buckles
and Velcro strips which, by applying
a high pressure on the fabric in a small
area, could cause some threads to
break, thereby damaging the upholstery.

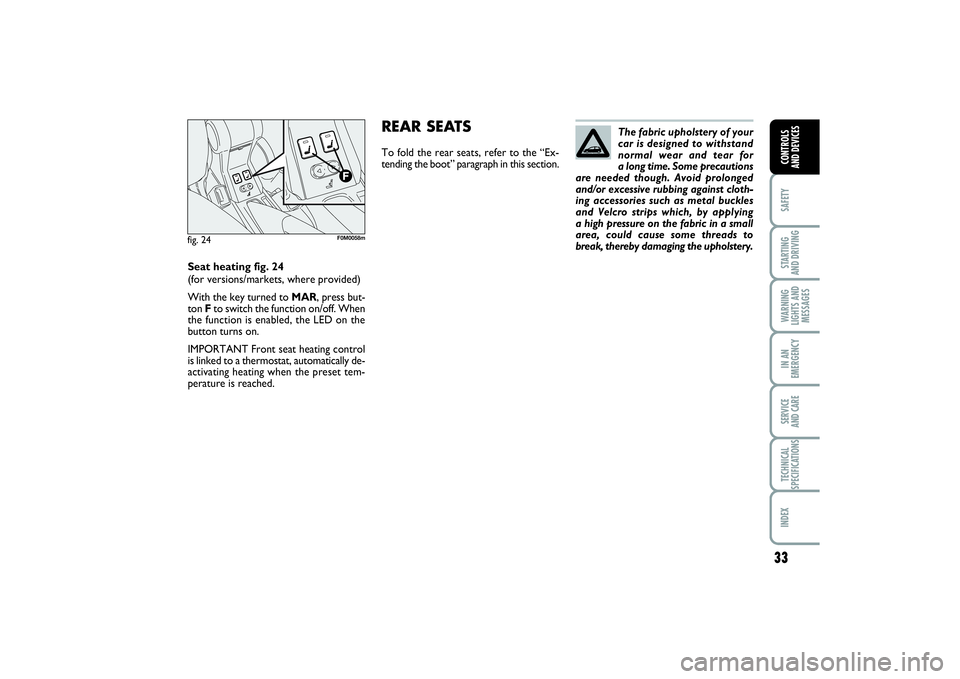

Seat heating fig. 24
(for versions/markets, where provided)
With the key turned to MAR, press but-
ton Fto switch the function on/off. When
the function is enabled, the LED on the
button turns on.
IMPORTANT Front seat heating control
is linked to a thermostat, automatically de-
activating heating when the preset tem-
perature is reached.
REAR SEATSTo fold the rear seats, refer to the “Ex-
tending the boot” paragraph in this section.
fig. 24
F0M0058m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 33
