WARNING
If the remote control battery is flat , the
sys
tem can be engaged by inser ting
the metal key in the door lock as described
previously: in this case, the device only remains
active for the rear doors.
Switching the device on
The system is automatically enabled on all the doors
by pressing button
twice on the key with remote
control.
The direction indicators flash twice to let you know
that the device is active.
If one or more of the doors is not perfectly shut, the
dead lock device will not be activated, thus
preventing a person getting into the car through the
open door and, on shutting, it, remaining stuck
inside the passenger compartment.
Switching the device off
The system is disabled automatically on every door
when:
❒by unlocking the doors;
❒by turning the ignition key to the ON position.
ALARM
(for versions/markets, where provided)
The alarm, in addition to all the previously described
remote control functions, is controlled by the
receiver located under the dashboard near the fuse
box.
ALARM TRIPPING
The alarm trips in the following cases:
❒unauthorised opening of a door, the bonnet, the
tailgate or a sliding side door (if present)
(perimeter protection)
❒unauthorized operation of the starting device (key
turned on using a key that is not enabled)
❒cutting of the battery leads
❒moving presence inside the passenger
compartment (volumetric protection)
❒anomalous lifting/tilting of the vehicle.
Depending on the market, the activation of the alarm
causes the activation of the siren and the direction
indicators (for about 26 seconds). Alarm tripping and
the number of cycles depend on the sales market.
There are a maximum number of acoustic/visual
cycles. When this is reached the system returns to
normal operation.
Volumetric and antilifting protections are disabled by
pressing the control button installed on the front
dashboard (see paragraph "Antilift protections).
9
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
If a fuse blows again, contact a Fiat
Dealer
ship.
Never replace a blown fuse with metallic
wires or other material.
WARNING
Never replace a fuse with another
h
aving higher amperage; FIRE HAZARD.
WARNING
If a general protection fuse (MEGA-
FUSE
, MIDI-FUSE) is activated, contact
a Fiat Dealership.
WARNING
Remove the key from the ignition and
s
witch off or disable all devices before
replacing a fuse.
WARNING
Contact Fiat Dealership if a safety
sys
tem (air bags, brakes), engine system
(engine, gearbox) or steering system general
protection fuse blows.
To identify the protective fuse, see the tables on the
following pages.
155
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

ENGINE BAY FUSE BOX
The fuse box is on the right-hand side of the engine.
Removing the fuse box lid
Proceed as follows:
❒remove protective lid A fig. 158 from the positive
battery terminal by lifting it upwards;
❒press the tab A fig. 159 and remove the fuse box
protective lid B;❒move the lid towards the headlight, turning it
anticlockwise (as shown by the arrow) and then
remove it fig. 159;
fig. 158F0T0171fig. 159F0T0172
156
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

❒the fuse box can be accessed in this manner fig.
160.
If you need to clean the engine
compartment , take care not to directly hit
the fuse box with the water jet .Refitting the fuse box lid
Proceed as follows to refit the lid:
❒insert the two tabs A fig. 161 in the respective
seats located on the fuse box;
❒refasten the tab B in the corresponding seat until it
clicks.
fig. 160F0T0173fig. 161F0T0174
157
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

PASSENGER COMPARTMENT FUSE BOX
Loosen the two screws A fig. 163 using the metallic
insert of ignition key and then remove the flap B.
The fuses are positioned in the two areas shown in
fig. 164.
fig. 163F0T0178fig. 164F0T0183
160
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

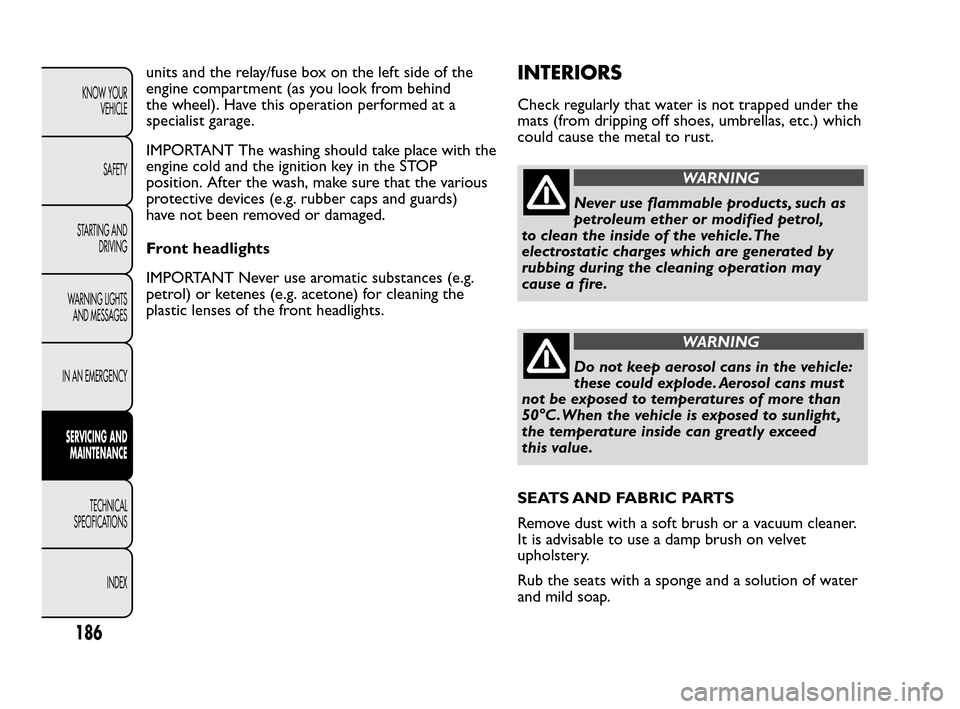

units and the relay/fuse box on the left side of the
engine compartment (as you look from behind
the wheel). Have this operation performed at a
specialist garage.
IMPORTANT The washing should take place with the
engine cold and the ignition key in the STOP
position. After the wash, make sure that the various
protective devices (e.g. rubber caps and guards)
have not been removed or damaged.
Front headlights
IMPORTANT Never use aromatic substances (e.g.
petrol) or ketenes (e.g. acetone) for cleaning the
plastic lenses of the front headlights.INTERIORS
Check regularly that water is not trapped under the
mats (from dripping off shoes, umbrellas, etc.) which
could cause the metal to rust.
WARNING
Never use flammable products, such as
pet
roleum ether or modified petrol,
to clean the inside of the vehicle.The
electrostatic charges which are generated by
rubbing during the cleaning operation may
cause a fire.
WARNING
Do not keep aerosol cans in the vehicle:
t
hese could explode. Aerosol cans must
not be exposed to temperatures of more than
50°C.When the vehicle is exposed to sunlight ,
the temperature inside can greatly exceed
this value.
SEATS AND FABRIC PARTS
Remove dust with a soft brush or a vacuum cleaner.
It is advisable to use a damp brush on velvet
upholstery.
Rub the seats with a sponge and a solution of water
and mild soap.
186
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

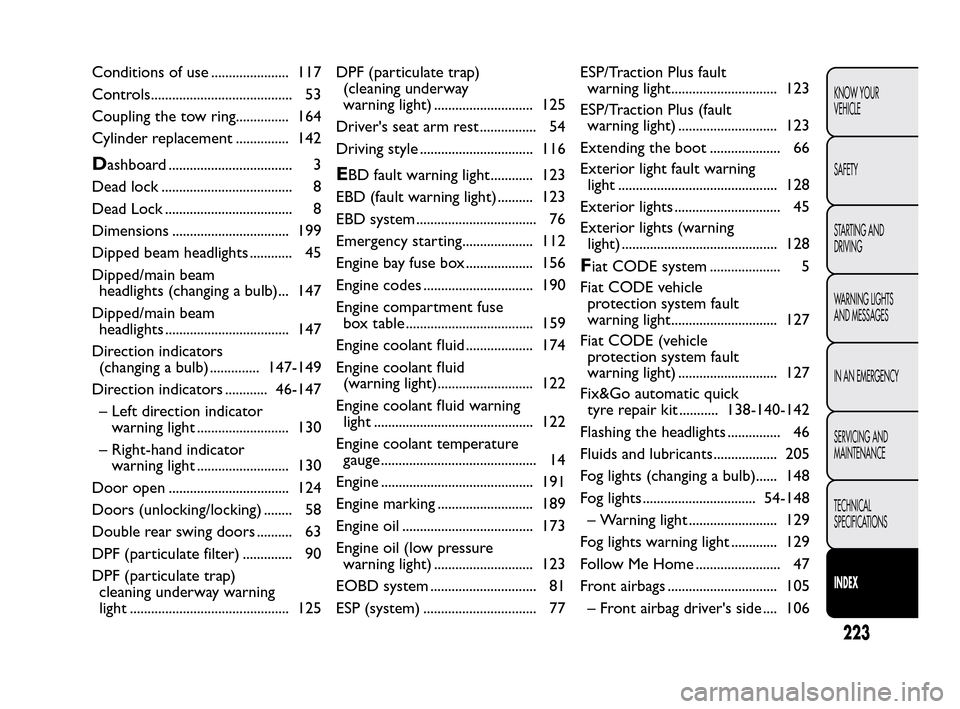

Conditions of use ...................... 117
Controls........................................ 53
Coupling the tow ring............... 164
Cylinder replacement ............... 142
Dashboard ................................... 3
Dead lock ..................................... 8
Dead Lock .................................... 8
Dimensions ................................. 199
Dipped beam headlights ............ 45
Dipped/main beam
headlights (changing a bulb)... 147
Dipped/main beam
headlights ................................... 147
Direction indicators
(changing a bulb) .............. 147-149
Direction indicators ............ 46-147
– Left direction indicator
warning light .......................... 130
– Right-hand indicator
warning light .......................... 130
Door open .................................. 124
Doors (unlocking/locking) ........ 58
Double rear swing doors .......... 63
DPF (particulate filter) .............. 90
DPF (particulate trap)
cleaning underway warning
light ............................................. 125DPF (particulate trap)
(cleaning underway
warning light) ............................ 125
Driver's seat arm rest ................ 54
Driving style ................................ 116EBD fault warning light............ 123
EBD (fault warning light) .......... 123
EBD system .................................. 76
Emergency starting.................... 112
Engine bay fuse box ................... 156
Engine codes ............................... 190
Engine compartment fuse
box table .................................... 159
Engine coolant fluid ................... 174
Engine coolant fluid
(warning light)........................... 122
Engine coolant fluid warning
light ............................................. 122
Engine coolant temperature
gauge............................................ 14
Engine ........................................... 191
Engine marking ........................... 189
Engine oil ..................................... 173
Engine oil (low pressure
warning light) ............................ 123
EOBD system .............................. 81
ESP (system) ................................ 77ESP/Traction Plus fault
warning light.............................. 123
ESP/Traction Plus (fault
warning light) ............................ 123
Extending the boot .................... 66
Exterior light fault warning
light ............................................. 128
Exterior lights .............................. 45
Exterior lights (warning
light) ............................................ 128
Fiat CODE system .................... 5
Fiat CODE vehicle
protection system fault
warning light.............................. 127
Fiat CODE (vehicle
protection system fault
warning light) ............................ 127
Fix&Go automatic quick
tyre repair kit ........... 138-140-142
Flashing the headlights ............... 46
Fluids and lubricants.................. 205
Fog lights (changing a bulb)...... 148
Fog lights ................................ 54-148
– Warning light ......................... 129
Fog lights warning light ............. 129
Follow Me Home ........................ 47
Front airbags ............................... 105
– Front airbag driver's side .... 106
223
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Keys
– Key without remote
control ..................................... 6
– Key with remote control..... 6
– Ordering additional
remote controls .................... 8
Left direction indicator
warning light ............................. 130
Lifting the vehicle....................... 164
Light beam direction .................. 73
Low battery charge warning
light ............................................. 122
Low engine oil level ................... 124
Low engine oil pressure
warning light.............................. 123
Main beam headlights ............... 45
Maintenance and care -
regular checks........................... 170
Maintenance and care -
scheduled servicing.................. 167
Maintenance and care -
scheduled servicing plan......... 168
Manual climate control
system ......................................... 41
Manual deactivation of
passenger front airbag and
side bag ...................................... 107
MSR system.................................. 79Multifunction display
– Control buttons .................... 16
– Setup menu............................. 17
– Standard screen ..................... 15
Number plate lights (bulb
replacement)............................. 150
Number plate lights................... 150
Oddment tray ............................. 55
Ordering additional remote
controls ....................................... 8
Parking......................................... 113
Parking lights ................................ 45
Parking sensor fault warning
light ............................................. 129
Parking sensors ........................... 82
Parking sensors (warning
light) ............................................ 129
Particulate filter (DPF) .............. 90
Partition ........................................ 31
Passenger air bag/side bag
off warning light ....................... 121
Passenger air bag/side bag
(warning light)........................... 121
Passenger compartment
fuse box ..................................... 160
Passenger compartment
fuse box table ........................... 160Performance................................ 200
Pollen filter .................................. 177
Power steering fluid .................. 176
Pressure check and
correction.................................. 142
Prolonged vehicle inactivity ..... 119
Protecting the environment ..... 90
Radio ............................................. 84
Radio transmitters and
mobile phones ........................... 86
Rear ceiling light ......................... 152
Rear fog lights (changing a
bulb) ............................................ 149
Rear fog lights .............................. 54
– Warning light ......................... 129
Rear fog lights warning light .... 129
Rear light clusters (changing
a bulb)......................................... 148
Rear light clusters ...................... 148
Rear side windows ..................... 57
Rear-view mirrors
– Interior rear-view mirror..... 35
– Wing mirrors ......................... 35
Rear window washer ................. 48
Rear window wiper ............. 48-182
Refuelling the vehicle ................. 87
Removable ceiling light ............. 153
225
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
