dimensions FIAT STILO 2006 1.G Owners Manual

97
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ESP SYSTEM (Electronic
Stability Program)
(where provided)
The ESP system is an electronic system
controlling the car stability in the event of
tyre grip loss.
The ESP system is therefore particularly
useful when grip conditions of the road
surfaces changes.
ABS SYSTEM INTERVENTION
It is signalled by the blinking of the warn-
ing light
áon the instrument panel, to in-
form the driver that the car is in critical
stability and grip conditions.
ESP SYSTEM OPERATION
The ESP system is automatically activat-
ed when the car is started and cannot be
de-activated.FAILURE INDICATIONS
In the event of failure, the ESP system is
automatically disconnected and the warn-
ing light
áwill turn on glowing steadily on
the instrument panel, together with the
message on the display (see section
“Warning lights and messages”). In this
case, go to a Fiat Dealership as soon as
possible.

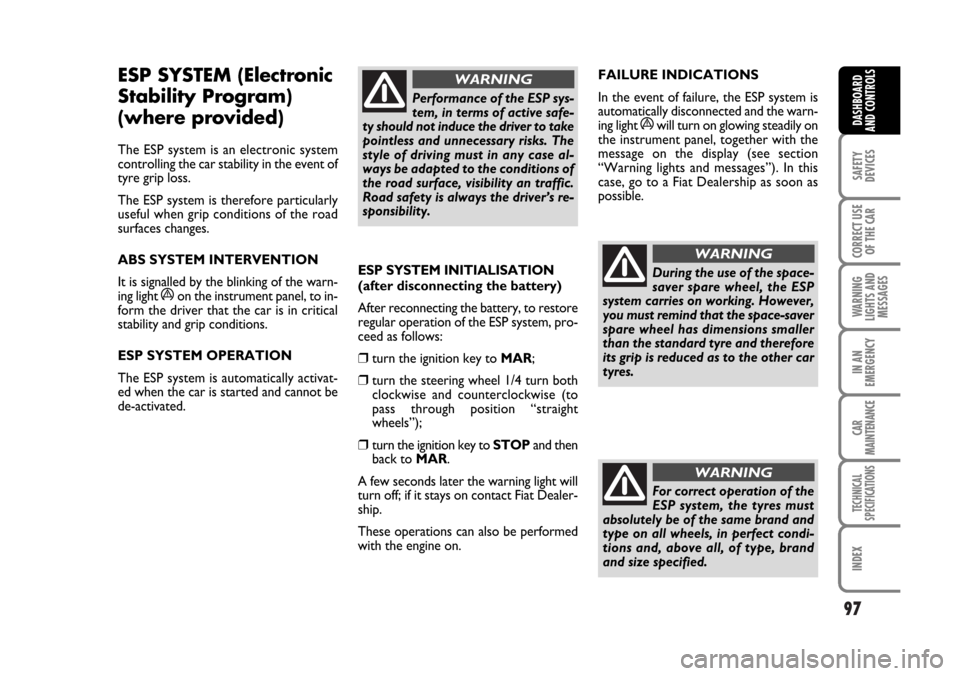

Performance of the ESP sys-
tem, in terms of active safe-
ty should not induce the driver to take
pointless and unnecessary risks. The
style of driving must in any case al-
ways be adapted to the conditions of
the road surface, visibility an traffic.
Road safety is always the driver’s re-
sponsibility.
WARNING
ESP SYSTEM INITIALISATION
(after disconnecting the battery)
After reconnecting the battery, to restore
regular operation of the ESP system, pro-
ceed as follows:
❒turn the ignition key to MAR;
❒turn the steering wheel 1/4 turn both
clockwise and counterclockwise (to
pass through position “straight
wheels”);
❒turn the ignition key to STOPand then
back to MAR.
A few seconds later the warning light will
turn off; if it stays on contact Fiat Dealer-
ship.
These operations can also be performed
with the engine on.
During the use of the space-
saver spare wheel, the ESP
system carries on working. However,
you must remind that the space-saver
spare wheel has dimensions smaller
than the standard tyre and therefore
its grip is reduced as to the other car
tyres.
WARNING
For correct operation of the
ESP system, the tyres must
absolutely be of the same brand and
type on all wheels, in perfect condi-
tions and, above all, of type, brand
and size specified.
WARNING

237
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IDENTIFICATION DATA ................................................... 238
ENGINE CODES - BODYWORK VERSIONS .............. 240
ENGINE .................................................................................... 241
FUEL FEED/IGNITION ........................................................ 243
TRANSMISSION .................................................................... 243
BRAKES ..................................................................................... 244
SUSPENSIONS......................................................................... 244
STEERING ................................................................................. 244
WHEELS .................................................................................... 245
DIMENSIONS .......................................................................... 250
PERFORMANCE ..................................................................... 253
WEIGHTS ................................................................................. 254
CAPACITIES ........................................................................... 257
FLUIDS AND LUBRICANTS ............................................... 259
FUEL CONSUMPTION ........................................................ 261
CO
2EMISSIONS .................................................................... 263
T T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S

250
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
DIMENSIONS
Dimensions are expressed in mm and re-
fer to the car fitted with standard tyres.
The height refers to the car unladen.
Boot volume
Unladen boot volume
(V.D.A. standards) ...................... 305 dm
3
Extended boot volume
with rear folded seat back ........1002 dm3
F0C0332mfig. 6
1.416V - 1.616V-
1.8
16V
1.9 Multijet
2.4
20V
Saloon versions
ABCDEF GH3-door
4182 887 2600 695 1475 1514 (*) 1784 1508 (*)
4182 887 2600 695 1475 1518 (*) 1784 1512 (*)
(*) Track measurements may vary according to rim size.

251
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Dimensions are expressed in mm and re-
fer to the car fitted with standard tyres.
The height refers to the car unladen.
Boot volume
Unladen boot volume
(V.D.A. standards) .............. 370 dm
3(Õ)
370 dm
3(▲)
335 dm
3(å)
410 dm
3(ç)
Extended boot volume (with folded seat
back) ...........1035 dm
3(ç)/1120 dm3(Õ)
(Õ) For versions with rear fixed seat.
(▲) For versions with rear sliding seat
(rated value).
(
å) For versions with rear sliding seat, set
completely in backward position.
(
ç) For versions with rear sliding seat, set
completely in forward position.
F0C0474mfig. 7
1.416V - 1.616V-
1.8
16V
1.9 Multijet
2.4
20V
Saloon versions
ABCD E F GH5-door
4253 893 2600 760 1525 1514 (*) 1756 1508 (*)
4253 893 2600 760 1525 1518 (*) 1756 1512 (*)
(*) Track measurements may vary according to rim size.

252
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Dimensions are expressed in mm and re-
fer to the car fitted with standard tyres.
The height refers to the car unladen.
Boot volume
Unladen boot volume
(V.D.A. standards) ............. 510 dm
3(Õ)
550 dm
3(▲)
Extended boot volume (with folded
seat back) ............................ 1380 dm
3(å)
1480 dm
3(ç)
(Õ) For versions with rear fixed seat.
(
▲) For versions with rear sliding seat
(rated value).
(
å) For versions with rear sliding seat, set
completely in backward position.
(
ç) For versions with rear sliding seat, set
completely in forward position.
F0C0348mfig. 8
1.416V - 1.616V-
1.8
16V1.9 Multijet Saloon versions
ABCDEFGH
Multi Wagon versions
4516 893 2600 1023 1570 1514 (*)1756/1773 (**)1508
(*) Track measurements may vary according to rim size.
(**) UPROAD versions

264
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
– types of bulbs .................................. 182
Capacities .............................................. 257
Car inactivity.......................................... 156
Car maintenance............................. 209
– additional checks ............................ 213
– annual Inspection Schedule .......... 213
– scheduled service ........................... 210
– Service Schedule ............................. 211
Cargo box .............................................. 91
Carrying children safely ...................... 116
Ceiling lights ......................................... 67
Central door locking system ............ 79
Checking fluid levels ........................... 216
Child lock .............................................. 79
Child restraint systems
(specifications for use) .................... 119
Cigar lighter .......................................... 72
Climate control system
– automatic two-zone
climate control system ................ 51
– manual climate control system .. 48
CO
2emissions ..................................... 263
Code Card ............................................ 10
Containing running costs ................... 149Controls ................................................ 68
Correct use of the car................. 135
Courtesy mirror light
(bulb replacement) ............................ 194
Cruise Control .................................... 65
Current outlet....................................... 72
Cut-off switch fuel .............................. 69
Dashboard............................................. 5
Dashboard and controls.............. 4
Daylight sensor .................................... 61
Dead lock (device) .............................. 14
Diesel fuel filter ..................................... 225
Diesel particulate filter (DPF) ........... 108
Dimensions ........................................... 250
Dipped beam headlights...................... 59
Direction indicators
– control ............................................. 60
– front bulb replacement ................ 186
– rear bulb replacement ................. 188
– side bulb replacement .................. 186
Doors ..................................................... 79
Dualdrive (electric power steering) 102
Easy entry ............................................ 38
ABS ........................................................ 95
Accessories purchased
by the owner ......................................... 101
Air bags
– front................................................... 126
– side..................................................... 130
Air filter .................................................. 225
Armrests (front rear) .......................... 70
Ashtray .................................................... 72
ASR .......................................................... 98
At the filling station .............................. 105
Automatic headlights sensor
(daylight sensor) ................................. 611
Battery
– checking the charge ....................... 226
– jump starting.................................... 170
– replacing .......................................... 227
Bodywork ............................................... 233
Bonnet ..................................................... 92
Boot ......................................................... 81
Boot light (bulb replacement) ........... 195
Brake Assist ........................................... 96
Brakes ...................................................... 244
Bulb (replacement)............................... 181
I I
N N
D D
E E
X X
