NOTE Depending on the versions,
adjust a few of the parameters on the
multi-media display panel 3 fig. 103.
Moving shape 4 (depending on the
vehicle): is represented in blue on the
multi-media display panel 3fig. 103.It
indicates the vehicle's trajectory
according to the steering wheel
position.Stationary shape 5: the stationary
shape consists of coloured references
A, B and C fig. 104 that indicate the
distance behind the vehicle:
A (red) about 30 centimetres from the
vehicle;
B (yellow) about 70 centimetres from
the vehicle;
C (green) about 150 centimetres
from the vehicle.
This shape remains stationary and
indicates the vehicle's trajectory if the
wheels are aligned.
This system is initially used by making
use of one or more shapes (moving for
the trajectory, stationary for the
distance). When you get to the red
zone, use the bumper representation to
stop accurately.IMPORTANT The display will show a
reversed image. The shapes are a
projected representation on flat ground;
this information has to be ignored when
you superimpose it on a vertical object
or one resting on the ground. The items
that appear on the edge of the screen
can be distorted. If the light is too bright
(snow, vehicle is in sunshine) the video
camera's vision can be disrupted.
When the rear doors are open or not
closed properly, the dedicated message
appears and, depending on the vehicle,
the video camera image disappears.
WARNING
53)Parking and other potentially
dangerous manoeuvres are, however,
always the driver’s responsibility. While
carrying out these manoeuvres, always
make sure that no people (especially
children) or animals are in the area
concerned. The camera is an aid for the
driver, but the driver must never allow
his/her attention to lapse during potentially
dangerous manoeuvres, even those
executed at low speeds. Always keep a
slow speed, so as to promptly brake in the
case of obstacles.
102T36621
103T36519-3
104T39009
59

IMPORTANT
15)It is vital, for correct operation, that the
camera is always kept clean and free from
any mud, dirt, snow or ice. Be careful not
to scratch or damage the camera while
cleaning it. Avoid using dry, rough or hard
cloths. The camera must be washed using
clean water, with the addition of car
shampoo if necessary. In washing stations
which use steam or high-pressure jets,
clean the camera quickly, keeping the
nozzle more than 10 cm away from the
sensors. Also, do not apply stickers to the
camera.
ELECTRIC WINDOWS
ELECTRIC WINDOWS
54) 55)
With the starter device inserted:press the button of the window
concerned to lower it to the desired
position;
lift the button of the window
concerned to raise it to the desired
position.
On the driver's side, press the button
fig. 105:
1for driver's side;
2for front passenger side.IMPORTANT Do not place objects on a
partly closed window: it could damage
the window.
Press functions
Depending on the versions, this mode
is an additional function to the electric
window described earlier. It concerns
only the driver's window. Briefly press
down or lift up switch 1 fig. 107: the
window either lowers or raises
completely. Any further action on the
switch stops the window movement.
105T36560
106T36561
On the front passenger side, press
button 3. fig. 106
60
KNOWING YOUR VEHICLE

NOTE If the window encounters any
resistance during closing (for example a
tree branch, etc.) it stops and lowers a
few centimetres again.
Irregular operation
If the window closing fails to function,
the system moves to no pressure
mode: pull the concerned switch up as
much as needed until the window
closes completely (the window goes
back up gradually); then keep the
switch pulled up (always on the closing
side) for a second, then lower it and
raise it back up completely to reinstate
the system.
If necessary, contact a Fiat Dealership.
Rear sliding windows:
56)
Use the handle 4 fig. 108 and run the
window to the desired stop.
WARNING
54)Incorrect use of the electric windows
may be dangerous. Before and during
operation, always check that nobody is
exposed to the risk of being injured either
directly by the moving window or through
objects getting caught or hit by it. When
leaving the vehicle (equipped with
mechanical key with remote control),
always remove the key from the ignition
device to prevent accidental operation of
the electric windows from being a hazard
for those still on board.
55)When you close the windows, check
that no part of a body (arm, hand, etc.) is
sticking out from the vehicle. Danger of
serious injury.
56)Before manoeuvring it, make sure no
occupant is sticking out of a window or an
open door.
ENGINE BONNET
57) 58) 59) 60) 61) 62) 63)
16)
To open, pull lever 1 fig. 109.
Unlocking bonnet safety catch
To open it, push lever 2 fig. 110 to the
left: the bonnet will be lifted.
107T36560-1108T36562
109T36581
110T36594
61

Opening the bonnet
Lift the bonnet and accompany it.
Lifting is aided by side dampers.
Closing the bonnet
Make sure nothing has been left in the
engine compartment. Lower the bonnet
to approximately 30 centimetres from
the engine compartment then let it
drop. Make sure that the bonnet is
completely closed and not only
fastened by the locking device by trying
to open it. If it is not perfectly closed,
do not try to press the bonnet lid down
but open it and repeat the procedure.
WARNING
57)Before any intervention, the engine
must be turned off (and not in stand-by):
you must turn the engine off (refer to the
"Starting the engine" paragraph in the
“Starting and driving” chapter).
58)Do not lean on the bonnet: it could
close involuntarily.
59)When you intervene near the engine,
this last could be hot. Moreover, the
cooling fan could start up at any time. Risk
of injury.
60)When working in the engine
compartment, make sure that the
windscreen wiper is in the stopped
position. Risk of injury.
61)In case of a collision, even a light one
like against the cowling or bonnet, have it
checked at a Fiat Dealership as soon as
possible.62)Use both hands to lift the bonnet.
Before lifting, check that the windscreen
wiper arms are not raised from the
windscreen, that the vehicle is stationary
and that the parking brake is engaged.
63)For safety reasons, the bonnet must
always be properly closed while the car is
travelling. Therefore, make sure that the
bonnet is properly closed and that the lock
is engaged. If you discover that the bonnet
is not perfectly closed during travel, stop
immediately and close the bonnet in the
correct manner.
IMPORTANT
16)After every intervention in the engine
compartment, make sure you have not left
anything (rags, tools, etc.); basically these
could damage the engine or start a fire.
INTERIOR FITTINGS
SUN VISORS
Lower the sun visor 1 fig. 111. You can
tilt the sun visor against the side
window.
For versions/markets where provided,
lower the sun visor 3 fig. 112 to access
the mirror.
111T36563
112T36564
62
KNOWING YOUR VEHICLE

HOUSING
64)
Housing 1 fig. 113 can be used as a
cup holder, item holder or to attach an
ashtray.
STORAGE
COMPARTMENT
64)
To open the compartment 3 fig. 113,
pull handle 2.
DOCUMENT HOLDER
POCKET
65)
The document holder pocket 4
fig. 114 on the sun visor can hold
motorway tickets, paper, etc.
STORAGE
COMPARTMENT
Compartment 5 fig. 115 can hold pay
cards, coins, etc.
PHONE SUPPORT(For versions/markets where provided)
66)
Phone support 6 fig. 116.
SUPPORT FOR MULTI-
MEDIA TABLET
(For versions/markets where provided)
Pull handle 7 fig. 117 all the way
towards the driver as far as it will go.
Rotate support 8 fig. 118 and push it as
far as it will go.
113T36645
114T36576
115T36572
116T38819
117T38815
63

If necessary, lower base 9 fig. 119 of
support 8 to extend it.
To refit it, pull the support all the way
towards the driver, lift it until it is
horizontal and push it as far as it will go.
GLOVE COMPARTMENT
IN THE DASHBOARD
INSTRUMENT PANEL
65)
Glove compartment in the dashboard
instrument panel 10 - 11 - 13 fig. 120.
HOUSING
Housing 12 fig. 120 can be used as a
cup holder, item holder or to attach an
ashtray.
64)
GLOVE COMPARTMENT
IN THE DASHBOARD
INSTRUMENT PANEL
(For versions/markets where provided)
To open the compartment 15 fig. 121,
press handle 14.
PASSENGER SIDE GLOVE
COMPARTMENT
67)
To open, pull handle 16.fig. 122
Depending on the version, the glove
compartment is also ventilated and air
conditioned (it can hold a 1.5 l bottle).
118T38816
119T38817
120T36646
121T38822
122T36654
64
KNOWING YOUR VEHICLE

HOUSING

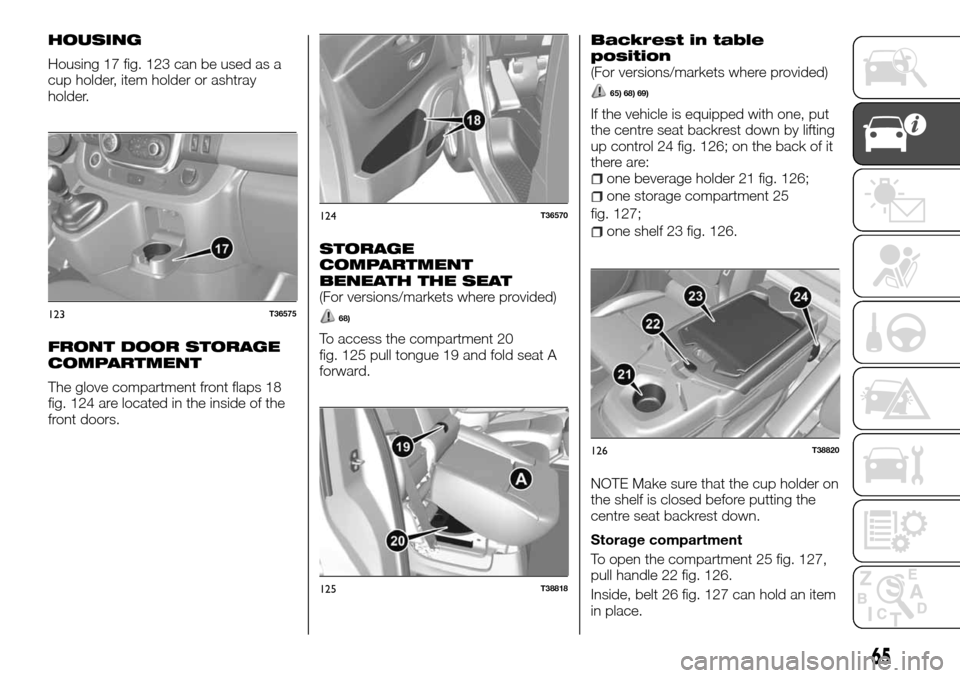

Housing 17 fig. 123 can be used as a
cup holder, item holder or ashtray
holder.
FRONT DOOR STORAGE
COMPARTMENT
The glove compartment front flaps 18
fig. 124 are located in the inside of the
front doors.
STORAGE
COMPARTMENT
BENEATH THE SEAT
(For versions/markets where provided)
68)
To access the compartment 20
fig. 125 pull tongue 19 and fold seat A
forward.
Backrest in table
position
(For versions/markets where provided)
65) 68) 69)
If the vehicle is equipped with one, put
the centre seat backrest down by lifting
up control 24 fig. 126; on the back of it
there are:
one beverage holder 21 fig. 126;
one storage compartment 25
fig. 127;
one shelf 23 fig. 126.
NOTE Make sure that the cup holder on
the shelf is closed before putting the
centre seat backrest down.
Storage compartment
To open the compartment 25 fig. 127,
pull handle 22 fig. 126.
Inside, belt 26 fig. 127 can hold an item
in place.
123T36575
124T36570
125T38818
126T38820
65

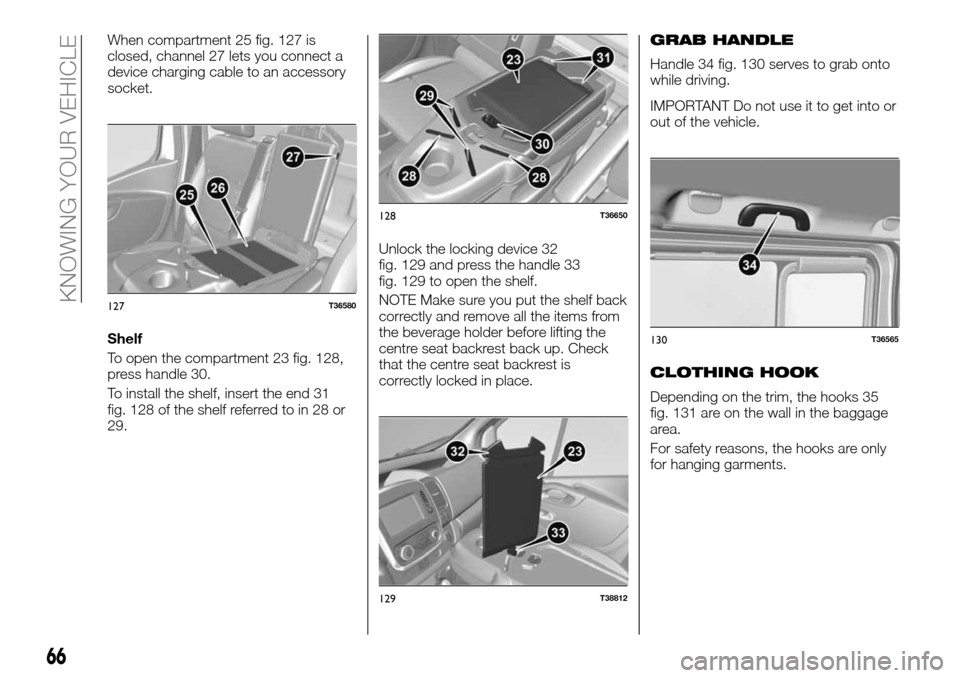

When compartment 25 fig. 127 is
closed, channel 27 lets you connect a
device charging cable to an accessory
socket.
Shelf
To open the compartment 23 fig. 128,
press handle 30.
To install the shelf, insert the end 31
fig. 128 of the shelf referred to in 28 or
29.Unlock the locking device 32
fig. 129 and press the handle 33
fig. 129 to open the shelf.
NOTE Make sure you put the shelf back
correctly and remove all the items from
the beverage holder before lifting the
centre seat backrest back up. Check
that the centre seat backrest is
correctly locked in place.GRAB HANDLE
Handle 34 fig. 130 serves to grab onto
while driving.
IMPORTANT Do not use it to get into or
out of the vehicle.
CLOTHING HOOK
Depending on the trim, the hooks 35
fig. 131 are on the wall in the baggage
area.
For safety reasons, the hooks are only
for hanging garments.
127T36580
128T36650
129T38812
130T36565
66
KNOWING YOUR VEHICLE

STORAGE AREA ABOVE
THE REAR
COMPARTMENT
71) 72)
Compartment 36 fig. 132 is only for
carrying items.
The total weight of the compartment
contents for the storage area above the
rear compartment must not exceed
35 kg spread out uniformly.
CARGO PLUS
(COMPARTMENT AND
FLAP)
64) 70)
Depending on the length of the items
carried in the rear area, use the
compartment or recess 38 fig. 133.
Open flap 37, which is held closed
magnetically.
Use the cover flap 40 fig. 134 to extend
the load length:
pull the tab 39 fig. 134 to lift up the
backrest B fig. 134;
move the flap 40 fig. 134 towards the
inside of the backrest, pulling on tongue
41 fig. 135.
131T36634
132T36678
133T36636
134T36658
135T36662
67

ACCESSORIES SOCKET
72)
Socket 3 fig. 138 and, depending on
the trim, sockets 4 fig. 139 and 5
fig. 140 are for connecting accessories
whose power supply is not greater than
120 Watts (12 V).
WARNING
64)There should be no objects on the
driver's side floorboard: in case of sharp
braking, they could slide under the pedals,
hampering their use.
65)Check there are no hard, heavy or
sharp objects sticking out or in the "open"
compartments: they could endanger the
safety of the vehicle's occupants in a curve
or in case of sharp braking.
66)We would like to remind you to respect
local laws regarding use of phones and/or
multi-media tablets.
67)In a curve, while accelerating or
braking, make sure that the liquid in the
container in the beverage holder does not
spill. Risk of injury if the liquid is hot
68)Always leave the seat closed while
driving. Risk of injury in case of sharp
braking or accident, risk of objects falling
into the passenger compartment.
69)Sitting on the central seat while its
backrest is reclined is prohibited.
136T36647
137T36574
138T36582
139T36583
140T36719
68
KNOWING YOUR VEHICLE
ASHTRAY
This can be held in either housings 1
fig. 136 or 2 fig. 137.
IMPORTANT If the vehicle has no
cigarette lighter or ashtray, you can buy
them at Accessories.
