FORD ASPIRE 1996 1.G Owner's Guide
Manufacturer: FORD, Model Year: 1996, Model line: ASPIRE, Model: FORD ASPIRE 1996 1.GPages: 268, PDF Size: 2.2 MB
Page 31 of 268
29 [SR16960(ALL)05/94]
half page art:0032255-B
Safety belt buckle placement for child seats
[SR16980(ALL)05/95]
Using the Dual Locking Mode Retractor
When Installing a Child Safety Seat
*
[SR17000(ALL)05/95]
Your vehicle is equipped with a dual locking
mode retractor on the shoulder belt portoin of
the front passenger seat and both rear seats. The
automatic locking modemust be usedwhen
installing a child seat or infant carrier in the
front passenger seat or rear seats.
*
[SR17010(ALL)07/95]
RWARNING
Never install a rear-facing child seat or
infant carrier in the right front passenger
seat.
File:03icsrf.ex
Update:Wed Jan 24 14:30:01 1996
Page 32 of 268
30
*
[SR17020(ALL)07/95]
RWARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
*
[SR17025(ALL)06/95]
If you choose to install a child safety seat in the
front seat, move the seat as far back as possible.
*
[SR17050(ALL)05/95]
1. Position the child seat or infant carrier on
the passenger seat of the vehicle.
*
[SR17075(ALL)07/95]
2. Pull down on shoulder belt, then grasp
shoulder belt and lap belt together. See
Figure 1.
[SR17100(ALL)07/95]
half page art:0032244-C
Grasping the shoulder and lap belt together
File:03icsrf.ex
Update:Wed Jan 24 14:30:01 1996
Page 33 of 268
31
*
[SR17127(ALL)07/95]
3. While holding the shoulder and lap belt
portions together, route the tongue through
the child seat according to the child seat
manufacturer's instructions. See Figure 2. Be
sure the belt webbing is not twisted, and
insert the tongue into the buckle. See
Figure 3.
[SR17135(ALL)07/95]
one half page art:0032269-A
Routing the lap/shoulder belt
File:03icsrf.ex
Update:Wed Jan 24 14:30:01 1996
Page 34 of 268
32 [SR17160(ALL)07/95]

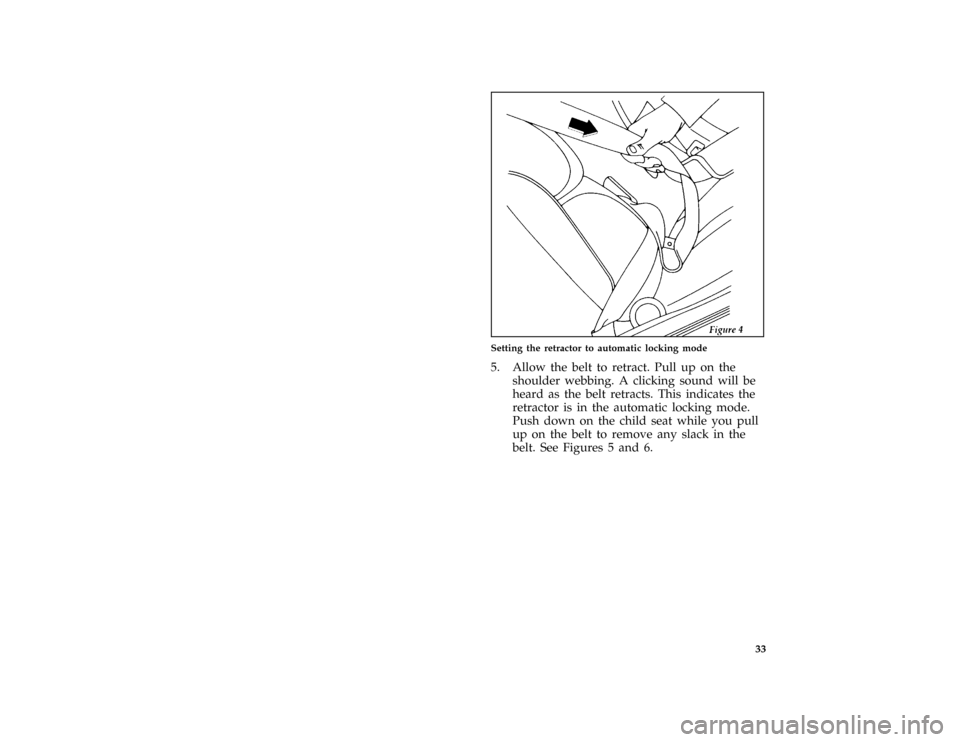

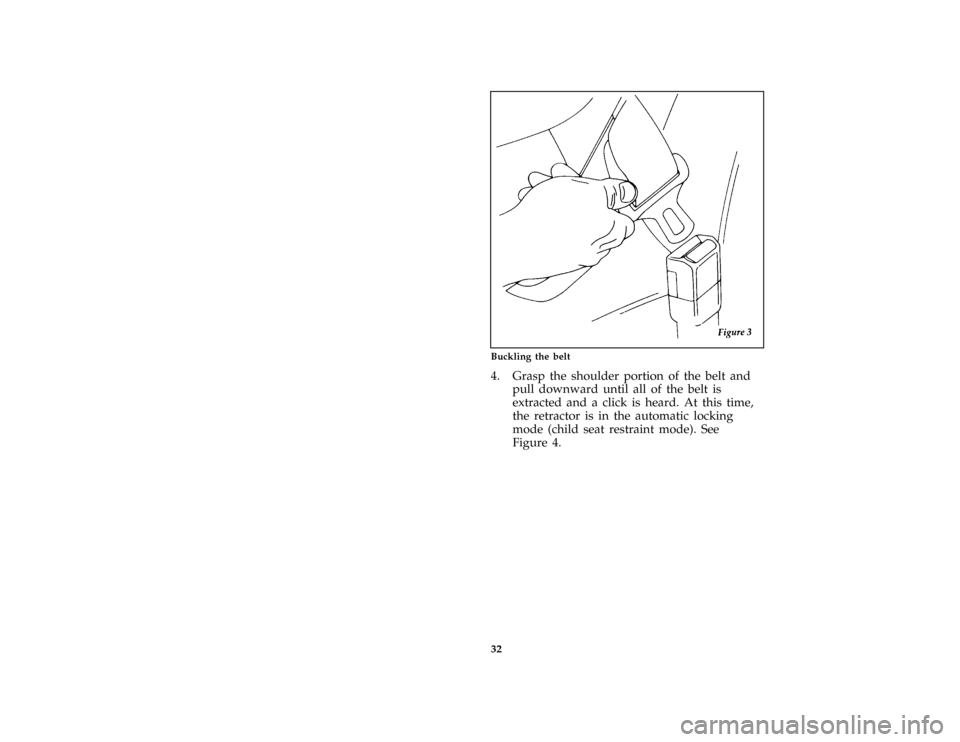

half page art:0032270-BBuckling the belt
*
[SR17225(ALL)07/95]
4. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted and a click is heard. At this time,
the retractor is in the automatic locking
mode (child seat restraint mode). See
Figure 4.
File:03icsrf.ex
Update:Wed Jan 24 14:30:01 1996
Page 35 of 268
33 [SR17275(ALL)07/95]
half page art:0032271-A
Setting the retractor to automatic locking mode
*
[SR17280(ALL)07/95]

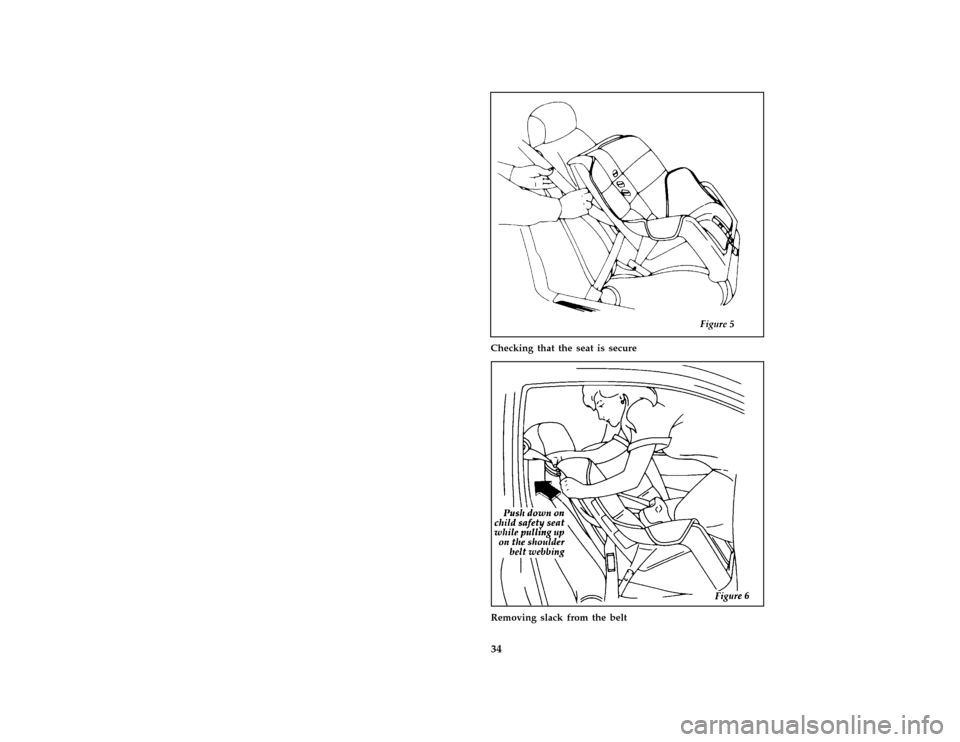

5. Allow the belt to retract. Pull up on the
shoulder webbing. A clicking sound will be
heard as the belt retracts. This indicates the
retractor is in the automatic locking mode.
Push down on the child seat while you pull
up on the belt to remove any slack in the
belt. See Figures 5 and 6.
File:03icsrf.ex
Update:Wed Jan 24 14:30:01 1996
Page 36 of 268
34 [SR17281(ALL)07/95]
half page art:0032272-BChecking that the seat is secure
[SR17282(ALL)07/95]
half page art:0032273-A
Removing slack from the belt
File:03icsrf.ex
Update:Wed Jan 24 14:30:01 1996
Page 37 of 268
35 [SR17284(ALL)07/95]
half page art:0032246-C
Removing slack from the belt
*
[SR17286(ALL)07/95]

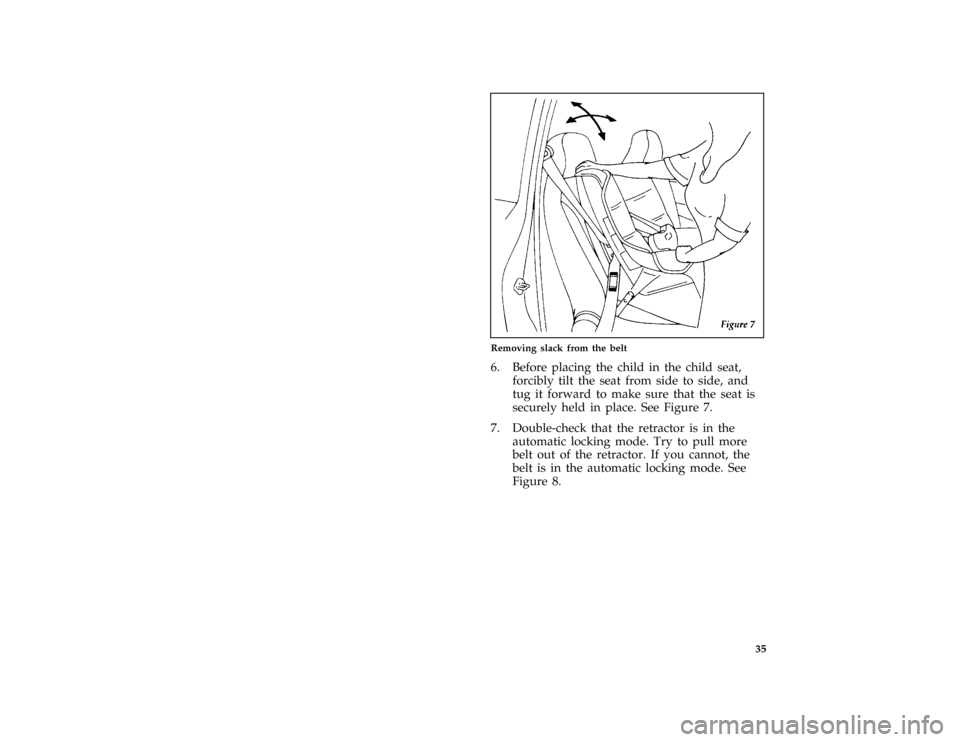

6. Before placing the child in the child seat,
forcibly tilt the seat from side to side, and
tug it forward to make sure that the seat is
securely held in place. See Figure 7.
[SR17300(ALL)05/95]

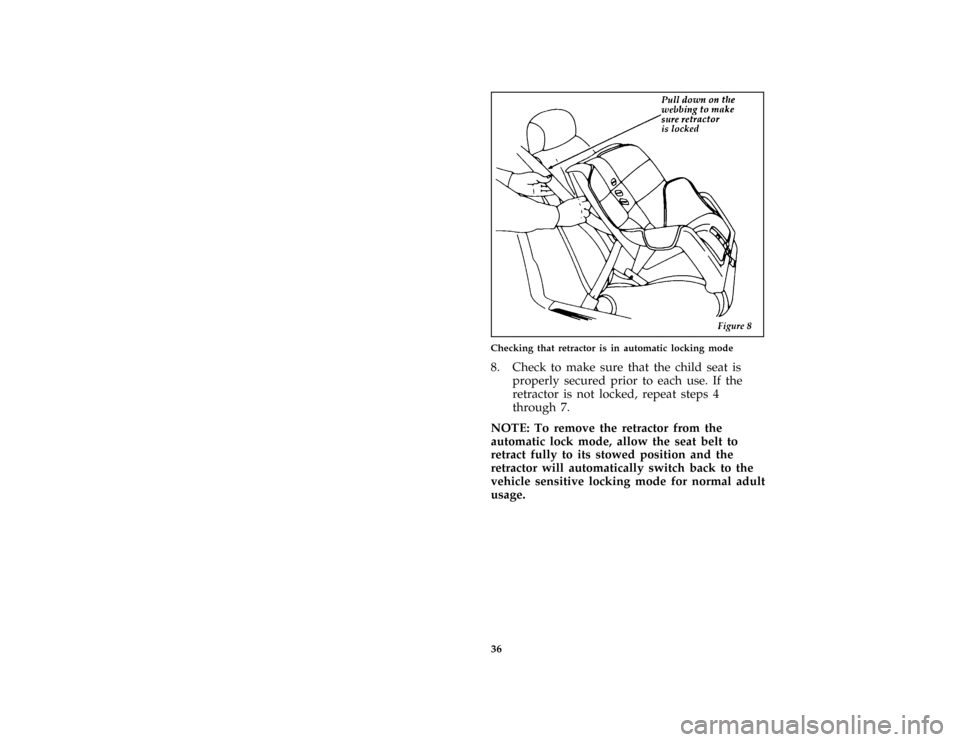

7. Double-check that the retractor is in the
automatic locking mode. Try to pull more
belt out of the retractor. If you cannot, the
belt is in the automatic locking mode. See
Figure 8.
File:03icsrf.ex
Update:Wed Jan 24 14:30:01 1996
Page 38 of 268
36 [SR17310(ALL)07/95]
half page art:0032275-AChecking that retractor is in automatic locking mode
[SR17325(ALL)05/95]
8. Check to make sure that the child seat is
properly secured prior to each use. If the
retractor is not locked, repeat steps 4
through 7.
[SR17350(ALL)05/95]
NOTE: To remove the retractor from the
automatic lock mode, allow the seat belt to
retract fully to its stowed position and the
retractor will automatically switch back to the
vehicle sensitive locking mode for normal adult
usage.
File:03icsrf.ex
Update:Wed Jan 24 14:30:01 1996
Page 39 of 268
37
*
[SR20200(ALL)06/95]
Attaching Safety Seats With Tether Straps
*
[SR20300(ALL)06/95]
Some manufacturers make safety seats that
include a tether strap that goes over the back of
the vehicle seat and attaches to an anchoring
point. Other manufacturers offer the tether strap
as an accessory. Contact the manufacturer of
your child safety seat for information about
ordering a tether strap.
*
[SR20350(ALL)07/95]
Front Seats
*
[SR20400(ALL)07/95]
To install a tether from a child safety seat in the
front seat:
[SR20425(ALL)07/95]
1. Buckle the lap/shoulder belt in the right rear
seat.
*
[SR20450(ALL)07/95]
2. Pull all the stored belt out of the rear seat
retractor to switch the retractor to automatic
locking mode.
*
[SR20500(ALL)07/95]
3. Let the retractor wind up the slack from the
lap/shoulder belt.
*
[SR20525(ALL)07/95]
4. Install the child safety seat in the front seat.
Refer to the previous section onInstalling
Safety Seats. Hook the tether strap hook
around the webbing near the center of the
shoulder portion of the locked lap/shoulder
belt.
*
[SR20550(ALL)07/95]
5. Tighten the tether strap.
*
[SR20575(ALL)07/95]
Rear Seats
*
[SR20600(ALL)07/95]
If you use a tethered safety seat on one of the
rear seats, you can anchor the strap to the
appropriate tether anchor directly behind that
seat position.
File:03icsrf.ex
Update:Wed Jan 24 14:30:01 1996
Page 40 of 268
38 [SR20650(ALL)07/95]Tether Anchorage Hardware
[SR20700(ALL)05/95]
All vehicles built for sale in Canada include a
tether anchor hardware kit for use with
Canadian child safety seats.
[SR20790(ALL)07/95]

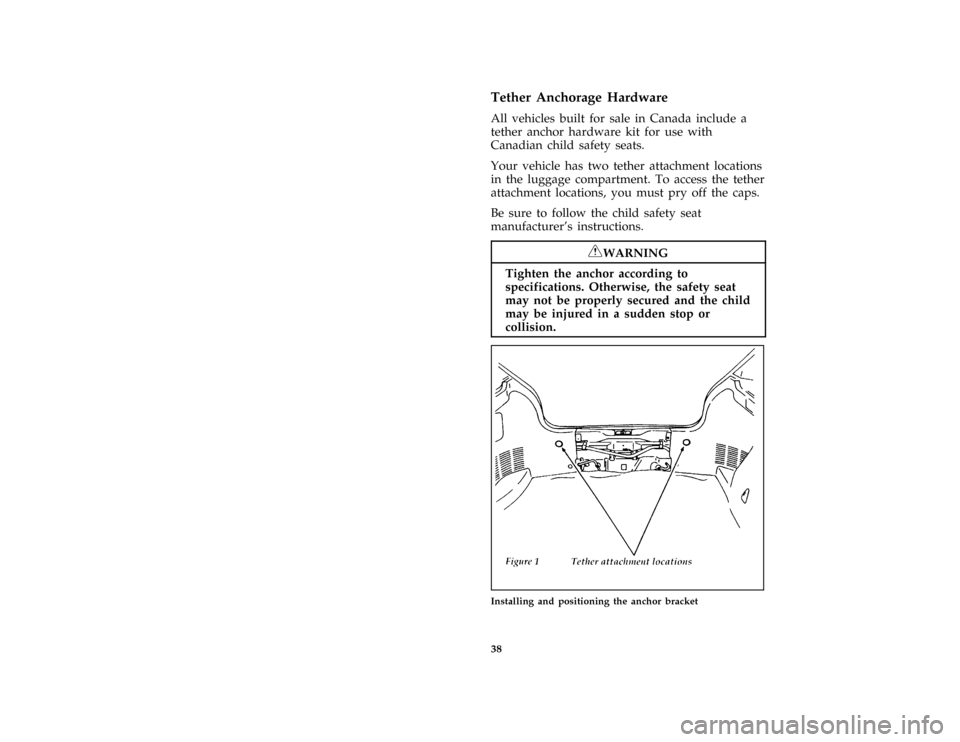

Your vehicle has two tether attachment locations
in the luggage compartment. To access the tether
attachment locations, you must pry off the caps.
[SR20800(ALL)07/95]
Be sure to follow the child safety seat
manufacturer's instructions.
[SR20850(ALL)07/95]
RWARNING
Tighten the anchor according to
specifications. Otherwise, the safety seat
may not be properly secured and the child
may be injured in a sudden stop or
collision.
[SR20900(ALL)07/95]
half page art:0032241-C
Installing and positioning the anchor bracket
File:03icsrf.ex
Update:Wed Jan 24 14:30:01 1996
