149
%*
[MC05000(ALL)01/96]
Engine Oil Recommendations
*
[MC05050(ALL)01/96]
We recommend using Motorcraft oil or an
equivalent oil meeting Ford Specification
WSS-M2C153-F and displaying the American
Petroleum Institute CERTIFICATION MARK on
the front of the container.
*
[MC05100(ALL)01/96]
one third page art:0060021-E
The API Certification Mark
*
[MC05200(ALL)01/96]
Neveruse:
*
[MC05300(ALL)01/96]
q
ªNon-Detergentº oils
*
[MC05350(ALL)02/96]
q
Oils labeled API SA, SB, SC, SD, SE, SF or SG
%*
[MC05400(ALL)01/96]
q
Additional engine oil additives, oil treatments
or engine treatments
%*
[MC05500(ALL)01/96]
Engine oils with anSAE 5W-30viscosity are
PREFERREDfor your vehicle. They provide the
best engine performance, fuel economy and
engine protection for all climates down to-15ÊF
(-25ÊC).
%*
[MC05600(ALL)03/96]
Synthetic engine oils which are CERTIFIED and
of the preferred viscosity may be used in your
engine. The engine oil and oil filter must still be
changed according to the maintenance schedule.
File:11icmcf.ex
Update:Tue Mar 4 08:57:16 1997
Page 152 of 254
![FORD ASPIRE 1997 1.G Owners Manual 150
*
[MC05650(ALL)05/96]
NOTE: Ford production and aftermarket
(Motorcraft) oil filters are designed for
added engine protection and long life.
If a replacement oil filter is used that
does not meet FORD ASPIRE 1997 1.G Owners Manual 150
*
[MC05650(ALL)05/96]
NOTE: Ford production and aftermarket
(Motorcraft) oil filters are designed for
added engine protection and long life.
If a replacement oil filter is used that
does not meet](/img/11/4754/w960_4754-151.png)
150
*
[MC05650(ALL)05/96]
NOTE: Ford production and aftermarket
(Motorcraft) oil filters are designed for
added engine protection and long life.
If a replacement oil filter is used that
does not meet Ford material and design
specifications, startup engine noises or
knock may be experienced. It is
recommended you use the appropriate
ªMotorcraftº oil filter (or another brand
meeting Ford specifications) for your
engine application.
%*
[MC05700(ALL)01/96]
Checking and Adding Engine Oil
*
[MC05800(ALL)01/96]
Since the proper amount of engine oil is
important for safe engine operation, check the oil
using the dipstick each time you put fuel in
your vehicle. Remember the engine must be off,
the oil must be warm and the vehicle must be
parked on level ground.
%*
[MC05900(ALL)01/96]
Checking the engine oil level:
*
[MC06000(ALL)01/96]
1. Turn the engine off after it has warmed up
and allow a few minutes for the engine oil
to drain back into the oil pan.
[MC06100(ALL)01/96]
2. Set the parking brake fully and make sure
the gearshift is securely latched in P (Park)
or 1 (First).
*
[MC06200(ALL)01/96]
3. Open the hood. Protect yourself from engine
heat.
[MC06300(ALL)01/96]
4. Locate the dipstick (highlighted in yellow)
and carefully pull it out of the engine.
*
[MC06400(ALL)01/96]
5. Wipe the dipstick clean and put it back into
position, making sure it is fully seated.
File:11icmcf.ex
Update:Tue Mar 4 08:57:16 1997
Page 153 of 254
![FORD ASPIRE 1997 1.G Owners Manual 151 [MC06500(ALL)01/96]
quarter page art:0032227-B
Engine oil dipstick
[MC06600(ALL)01/96]
6. Carefully pull the dipstick out again. If the
oil level is at or below the ªLº line, add
engine oil as n FORD ASPIRE 1997 1.G Owners Manual 151 [MC06500(ALL)01/96]
quarter page art:0032227-B
Engine oil dipstick
[MC06600(ALL)01/96]
6. Carefully pull the dipstick out again. If the
oil level is at or below the ªLº line, add
engine oil as n](/img/11/4754/w960_4754-152.png)
151 [MC06500(ALL)01/96]
quarter page art:0032227-B
Engine oil dipstick
[MC06600(ALL)01/96]
6. Carefully pull the dipstick out again. If the
oil level is at or below the ªLº line, add
engine oil as necessary. If the oil level is
beyond the letter ªFº, engine damage or
high oil consumption may occur and some
oil must be removed from the engine.
[MC06700(ALL)04/96]
NOTE: The distance between the L (low) and
F (full) marks on the dipstick
represents 1.06 qts (1.0 liter).
*
[MC06800(ALL)01/96]
7. Put the dipstick back in and make sure it is
fully seated.
*
[MC06900(ALL)01/96]
It may be necessary to add some oil between oil
changes. Make sure you use a CERTIFIED
engine oil of the preferred viscosity. Your
vehicle's warranty coverage may not apply if
engine damage is caused by the use of improper
engine oil.
*
[MC07000(ALL)09/96]
Add engine oil through the oil filler cap
highlighted in yellow. To add oil, remove the
filler cap and use a funnel to pour oil into the
opening. Be careful not to overfill the engine.
Recheck the oil level after you finish adding oil.
File:11icmcf.ex
Update:Tue Mar 4 08:57:16 1997
Page 154 of 254
![FORD ASPIRE 1997 1.G Owners Manual 152 %
*
[MC07100(ALL)01/96]
Changing the Engine Oil and the Oil Filter
*
[MC07200(ALL)01/96]
Change the engine oil and oil filterper the
following, whichever occurs first.
*
[MC07300(ALL)05/96]
one th FORD ASPIRE 1997 1.G Owners Manual 152 %
*
[MC07100(ALL)01/96]
Changing the Engine Oil and the Oil Filter
*
[MC07200(ALL)01/96]
Change the engine oil and oil filterper the
following, whichever occurs first.
*
[MC07300(ALL)05/96]
one th](/img/11/4754/w960_4754-153.png)
152 %
*
[MC07100(ALL)01/96]
Changing the Engine Oil and the Oil Filter
*
[MC07200(ALL)01/96]
Change the engine oil and oil filterper the
following, whichever occurs first.
*
[MC07300(ALL)05/96]
one third page art:0060618-C
Oil change intervals
*
[MC07400(ALL)05/96]
Refer to theMaintenance Schedulebooklet for
additional information.
%*
[MC07500(ALL)05/96]
NOTE: Always dispose of used automotive
fluids in a responsible manner. Follow
your community's standards for
disposing of these types of fluids. Call
your local recycling center to find out
about recycling automotive fluids.
*
[MC07600(ALL)01/96]
WARNING
Continuous contact with USED motor oil
has caused cancer in laboratory mice.
*
[MC07700(ALL)01/96]
Protect your skin by washing with soap and
water.
%
*
[MC17282(ALL)05/96]
Brake Fluid
*
[MC17284(ALL)01/96]
Under normal circumstances, your vehicle
should not use up brake fluid rapidly. However,
expect the level of the brake fluid to slowly fall
as you put more mileage on your vehicle and
the brake pads wear.
File:11icmcf.ex
Update:Tue Mar 4 08:57:16 1997
Page 155 of 254
![FORD ASPIRE 1997 1.G Owners Manual 153 [MC17286(ALL)07/96]
Check the brake fluid at least once a year. You
can do this by looking at the fluid level in the
plastic reservoir on the master cylinder. The
fluid level should be at or near FORD ASPIRE 1997 1.G Owners Manual 153 [MC17286(ALL)07/96]
Check the brake fluid at least once a year. You
can do this by looking at the fluid level in the
plastic reservoir on the master cylinder. The
fluid level should be at or near](/img/11/4754/w960_4754-154.png)
153 [MC17286(ALL)07/96]
Check the brake fluid at least once a year. You
can do this by looking at the fluid level in the
plastic reservoir on the master cylinder. The
fluid level should be at or near the MAX mark.
*
[MC17288(ALL)01/96]
WARNING
Brake fluid is toxic.
*
[MC17290(ALL)01/96]
If brake fluid contacts eyes, flush eyes with
running water for 15 minutes. Get medical
attention if irritation persists. If taken internally,
drink water and induce vomiting. Get medical
attention immediately.
[MC17292(ALL)01/96]

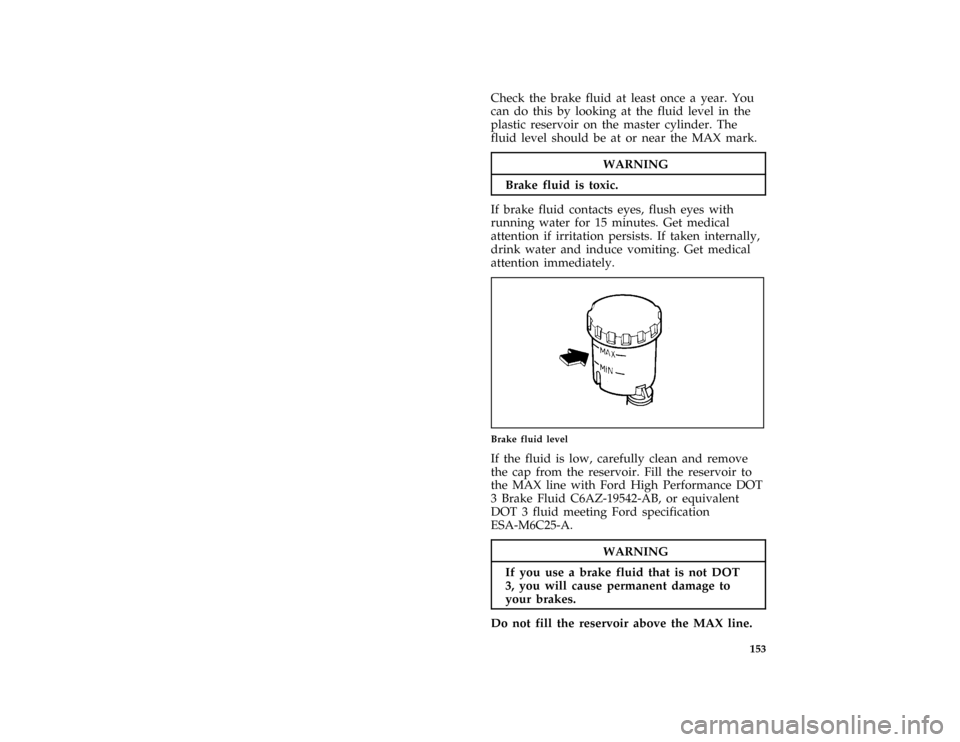

one third page art:0030229-A
Brake fluid level
*
[MC17294(ALL)04/96]
If the fluid is low, carefully clean and remove
the cap from the reservoir. Fill the reservoir to
the MAX line with Ford High Performance DOT
3 Brake Fluid C6AZ-19542-AB, or equivalent
DOT 3 fluid meeting Ford specification
ESA-M6C25-A.
*
[MC17296(ALL)01/96]
WARNING
If you use a brake fluid that is not DOT
3, you will cause permanent damage to
your brakes.
*
[MC17298(ALL)01/96]
Do not fill the reservoir above the MAX line.
File:11icmcf.ex
Update:Tue Mar 4 08:57:16 1997
Page 156 of 254
![FORD ASPIRE 1997 1.G Owners Manual 154
*
[MC17300(ALL)01/96]
If you find that the fluid level is excessively low
Ð below the seam or ridge on the outside of the
plastic reservoir Ð have the brake system
inspected.
*
[MC17302(ALL)01/9 FORD ASPIRE 1997 1.G Owners Manual 154
*
[MC17300(ALL)01/96]
If you find that the fluid level is excessively low
Ð below the seam or ridge on the outside of the
plastic reservoir Ð have the brake system
inspected.
*
[MC17302(ALL)01/9](/img/11/4754/w960_4754-155.png)
154
*
[MC17300(ALL)01/96]
If you find that the fluid level is excessively low
Ð below the seam or ridge on the outside of the
plastic reservoir Ð have the brake system
inspected.
*
[MC17302(ALL)01/96]
WARNING
Do not let the reservoir for the master
cylinder run dry. This may cause the
brakes to fail.
%
*
[MC17307(ALL)02/96]
Windshield Washer Fluid
*
[MC17308(ALL)02/96]
Check the level of the windshield washer fluid
every time you stop for fuel. The reservoir for
the windshield washer fluid is located in the
engine compartment.
[MC17312(ALL)02/97]

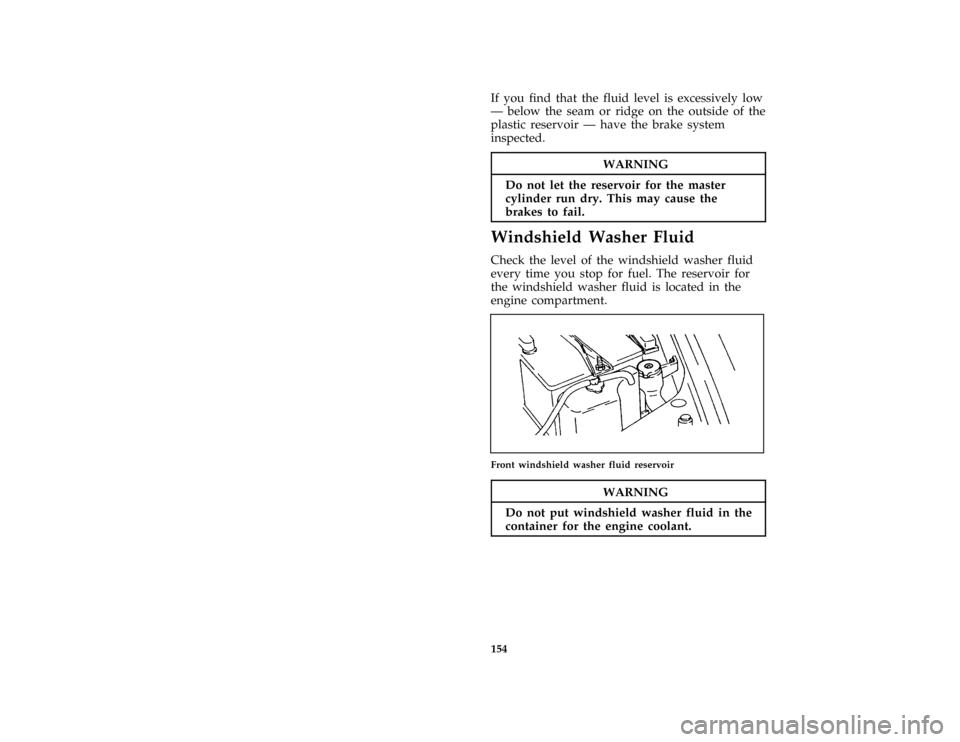

page art:0032217-D
Front windshield washer fluid reservoir
*
[MC17314(ALL)01/96]
WARNING
Do not put windshield washer fluid in the
container for the engine coolant.
File:11icmcf.ex
Update:Tue Mar 4 08:57:16 1997
Page 157 of 254
![FORD ASPIRE 1997 1.G Owners Manual 155 %
*
[MC17316(ALL)02/96]
Use specially formulated windshield washer
fluid rather than plain water, because specially
formulated washer fluids contain additives that
dissolve road grime. For safety FORD ASPIRE 1997 1.G Owners Manual 155 %
*
[MC17316(ALL)02/96]
Use specially formulated windshield washer
fluid rather than plain water, because specially
formulated washer fluids contain additives that
dissolve road grime. For safety](/img/11/4754/w960_4754-156.png)
155 %
*
[MC17316(ALL)02/96]
Use specially formulated windshield washer
fluid rather than plain water, because specially
formulated washer fluids contain additives that
dissolve road grime. For safety reasons, washer
fluids containing an appropriate antifreeze such
as methanol should be used in freezing weather
(temperatures below32ÊF [0ÊC]).State or local
regulations on Volatile Organic Compounds
(VOCs) may restrict use of the most common
antifreeze, methanol. Washer fluids containing
non-methanol antifreeze agents should be used
only if they provide cold weather protection
without damaging the vehicle's paint finish,
wiper blades, and windshield washer system.
%
*
[MC17700(ALL)01/96]
Engine Coolant
%*
[MC17710(ALL)01/96]
Checking the Engine Coolant
*
[MC17715(ALL)05/96]
NOTE: Be sure to read and understand
Precautions When Servicing Your
Vehicleat the beginning of this chapter.
*
[MC17720(ALL)05/96]
WARNING
The cooling fan is automatic and may
come on at any time. Always disconnect
the negative terminal of the battery before
working near the fan.
[MC17800(ALL)02/96]
Your vehicle's coolant protects your engine from
overheating in the summer and from freezing in
the winter. Check the level of the coolant at least
once a month. Simply look at the engine coolant
reservoir located in the engine compartment. To
locate the reservoir, see the diagram of your
vehicle's engine underEngine Typein the
Capacities and Specificationschapter.
[MC18000(ALL)01/96]
q
If the engine is hot, the reservoir should be
filled with engine coolant to the FULL mark,
and the radiator should be full.
File:11icmcf.ex
Update:Tue Mar 4 08:57:16 1997
Page 158 of 254
![FORD ASPIRE 1997 1.G Owners Manual 156 [MC18100(ALL)01/96]q
If the engine is cold, the reservoir should be
filled with engine coolant to just above the
LOW mark, and the radiator should be full.
[MC18400(ALL)01/96]
one third page art:0 FORD ASPIRE 1997 1.G Owners Manual 156 [MC18100(ALL)01/96]q
If the engine is cold, the reservoir should be
filled with engine coolant to just above the
LOW mark, and the radiator should be full.
[MC18400(ALL)01/96]
one third page art:0](/img/11/4754/w960_4754-157.png)
156 [MC18100(ALL)01/96]q
If the engine is cold, the reservoir should be
filled with engine coolant to just above the
LOW mark, and the radiator should be full.
[MC18400(ALL)01/96]
one third page art:0032226-A

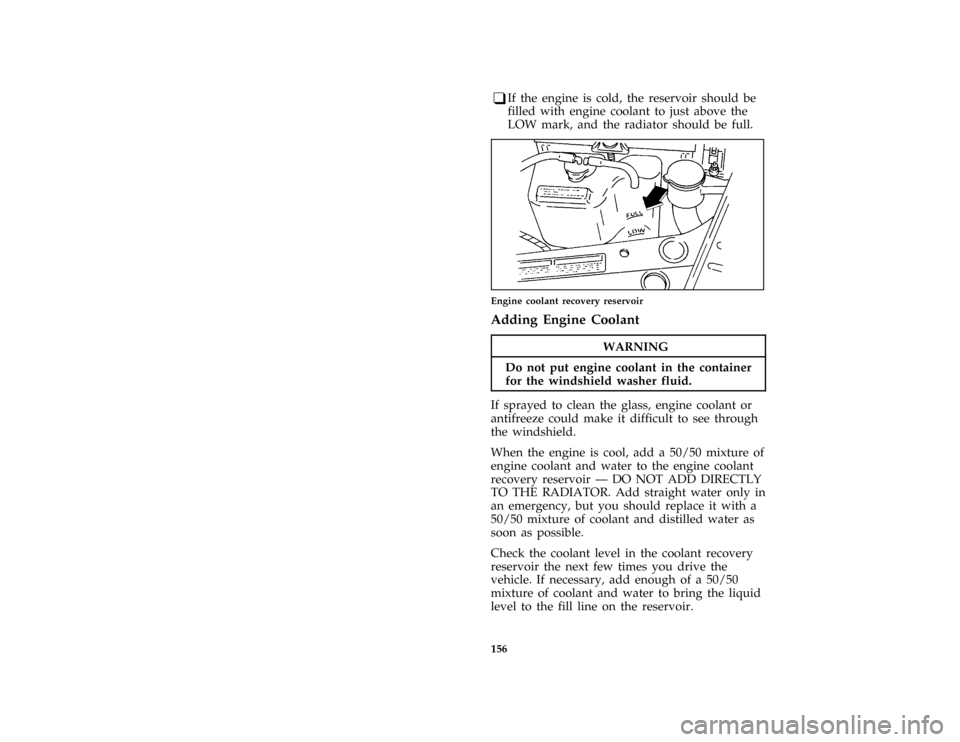

Engine coolant recovery reservoir
*
[MC18500(ALL)05/96]
Adding Engine Coolant
*
[MC18600(ALL)05/96]
WARNING
Do not put engine coolant in the container
for the windshield washer fluid.
*
[MC18610(ALL)05/96]
If sprayed to clean the glass, engine coolant or
antifreeze could make it difficult to see through
the windshield.
[MC18650(ALL)04/96]
When the engine is cool, add a 50/50 mixture of
engine coolant and water to the engine coolant
recovery reservoir Ð DO NOT ADD DIRECTLY
TO THE RADIATOR. Add straight water only in
an emergency, but you should replace it with a
50/50 mixture of coolant and distilled water as
soon as possible.
[MC18660(ALL)04/96]
Check the coolant level in the coolant recovery
reservoir the next few times you drive the
vehicle. If necessary, add enough of a 50/50
mixture of coolant and water to bring the liquid
level to the fill line on the reservoir.
File:11icmcf.ex
Update:Tue Mar 4 08:57:16 1997
Page 159 of 254
![FORD ASPIRE 1997 1.G Owners Manual 157
*
[MC18700(ALL)05/96]
WARNING
Never remove the coolant recovery cap
while the engine is running or hot.
*
[MC18800(ALL)05/96]
If you must remove the coolant recovery cap,
follow these steps to avo FORD ASPIRE 1997 1.G Owners Manual 157
*
[MC18700(ALL)05/96]
WARNING
Never remove the coolant recovery cap
while the engine is running or hot.
*
[MC18800(ALL)05/96]
If you must remove the coolant recovery cap,
follow these steps to avo](/img/11/4754/w960_4754-158.png)
157
*
[MC18700(ALL)05/96]
WARNING
Never remove the coolant recovery cap
while the engine is running or hot.
*
[MC18800(ALL)05/96]
If you must remove the coolant recovery cap,
follow these steps to avoid personal injury
caused by escaping steam or engine coolant:
*
[MC18820(ALL)05/96]
1. Before you remove the cap, turn the engine
off and let it cool.
*
[MC18830(ALL)05/96]
2. When the engine is cool, wrap a thick cloth
around the cap and turn it slowly,
counterclockwise to the first stop.
*
[MC18840(ALL)05/96]
3. Step back while the pressure releases.
*
[MC18850(ALL)05/96]
4. When you are sure that all the pressure has
been released, use the cloth to press the cap
down, turn it counterclockwise, and remove
it.
[MC18900(ALL)05/96]
UseFord Premium Engine Coolant
E2FZ-19549-AA(in Canada, Motorcraft CXC-8-B)
or an equivalent premium engine coolant that
meets Ford Specification ESE-M97B44-A. Ford
Premium Engine Coolant is an optimized
formula that will protect all metals and rubber
elastomers used in Ford cooling systems for 4
years or 50,000 miles (80,000 km).
[MC19000(ALL)05/96]
Do not use alcohol or methanol antifreeze or any
engine coolants mixed with alcohol or methanol
antifreeze. Do not use supplemental coolant
additives in your vehicle. These additives may
harm your engine cooling system.The use of an
improper coolant may void the warranty of
your vehicle's engine cooling system.
File:11icmcf.ex
Update:Tue Mar 4 08:57:16 1997
Page 160 of 254
![FORD ASPIRE 1997 1.G Owners Manual 158
*
[MC20575(ALL)05/96]
Recycled Engine Coolant
*
[MC20580(ALL)05/96]
Ford Motor Company recommends that Ford
and Lincoln-Mercury dealers use recycled engine
coolant produced by Ford-approved proces FORD ASPIRE 1997 1.G Owners Manual 158
*
[MC20575(ALL)05/96]
Recycled Engine Coolant
*
[MC20580(ALL)05/96]
Ford Motor Company recommends that Ford
and Lincoln-Mercury dealers use recycled engine
coolant produced by Ford-approved proces](/img/11/4754/w960_4754-159.png)
158
*
[MC20575(ALL)05/96]
Recycled Engine Coolant
*
[MC20580(ALL)05/96]
Ford Motor Company recommends that Ford
and Lincoln-Mercury dealers use recycled engine
coolant produced by Ford-approved processes.
Not all coolant recycling processes produce
coolant which meets Ford specification
ESE-M97B44-A, and use of such coolant may
harm engine and cooling system components.
*
[MC20590(ALL)05/96]
Always dispose of used automotive fluids in a
responsible manner. Follow your community's
regulations and standards for recycling and
disposing of automotive fluids.
*
[MC20600(ALL)05/96]
Coolant Refill Capacity
*
[MC20650(ALL)05/96]
To find out how much fluid your vehicle's
cooling system can hold, seeRefill capacities for
fluidsin the Index.
[MC20700(ALL)05/96]
Have your dealer check the engine cooling
system for leaks if you have to add more than a
quart (liter) of engine coolant per month.
*
[MC20710(ALL)05/96]
Severe Winter Climate
*
[MC20720(ALL)05/96]
If you drive in extremely cold climates (less than
S34ÊF [S36ÊC]), it may be necessary to increase
the coolant concentration above 50%. Refer to
the chart on the coolant container to ensure the
coolant concentration in your vehicle is such that
the coolant will not freeze at the temperature
level in which you drive during winter months.
Never increase the engine coolant concentration
above 60%. Leave a 50/50 mixture of engine
coolant and water in your vehicle year-round in
non-extreme climates.
File:11icmcf.ex
Update:Tue Mar 4 08:57:16 1997
