Installing Child Safety Seats at the Rear
Outboard Seating Positions (For lap and
shoulder belts combination with ªcinch
tonguesº)
[SR16485(B )04/95]
Your vehicle is equipped with rear seat safety
belts containing a ªcinch tongue.º The rear
outboard safety belts will have the following
label:
[SR16490(B )05/95]
half page art:0021502-AFile:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
Page 52 of 376
50 [SR16495(B )04/95]If you install a child safety seat or infant carrier
in a rear outboard seating position having a
combination lap and shoulder belt with ªcinch
tongue,º use the following procedure:
*
[SR16500(B )04/95]
1. Grasp the belt webbing below the tongue
and pull as much of the belt out of the
retractor as possible. Hold the belt out. See
Figure 1.
[SR16505(B )05/95]
half page art:0011363-A*
[SR16510(B )04/95]
NOTE: The belt webbing below the tongue is
the lap belt portion of the combination
lap/shoulder belt, and the belt webbing
above the tongue is the shoulder belt
portion of the combination
lap/shoulder belt.
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
Page 53 of 376
51
*
[SR16515(B )04/95]
2. With your other hand, grasp the tip (metal
portion) of the tongue (not the cover) and
slide the tongue up the webbing as far as it
will go. See Figure 1. Release the tongue, but
do not let go of the lap portion of the belt
webbing.
*
[SR16520(B )04/95]
3. While still holding the belt webbing below
the tongue in one hand, use your other hand
to grasp the tip (metal portion) of the tongue
and belt webbing together, and again pull
out as much of the belt as possible. Then, let
go of the lap portion of the belt webbing.
*
[SR16525(B )04/95]
4. While holding the shoulder and lap belt
portions together, route the tongue and
webbing through the child seat according to
the child seat manufacturer's instructions.

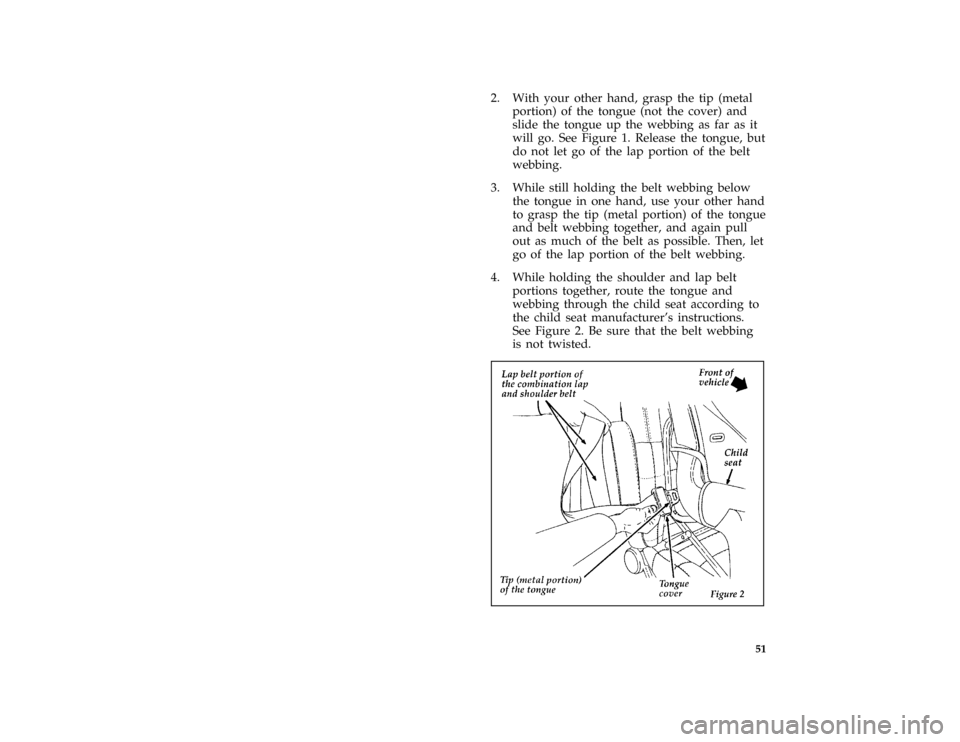

See Figure 2. Be sure that the belt webbing
is not twisted.
*
[SR16530(B )05/95]
half page art:0011364-A
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
Page 54 of 376
52
*
[SR16535(B )04/95]
5. Insert the belt tongue into the proper buckle
for that seating position until you hear a
snap and feel it latch. Make sure the tongue
is securely latched to the buckle by pulling
on the tongue. See Figure 3.
*
[SR16540(B )05/95]
half page art:0011365-A
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
Page 55 of 376
53
*
[SR16545(B )04/95]

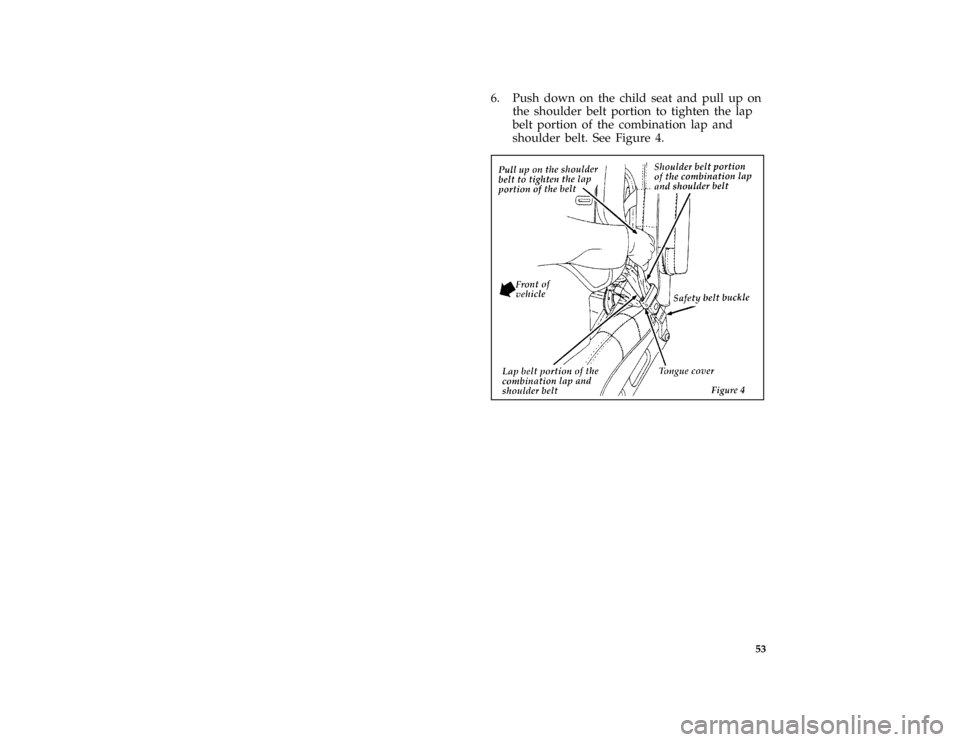

6. Push down on the child seat and pull up on
the shoulder belt portion to tighten the lap
belt portion of the combination lap and
shoulder belt. See Figure 4.
*
[SR16550(B )05/95]
half page art:0011366-A
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
Page 56 of 376
54
*
[SR16555(B )04/95]

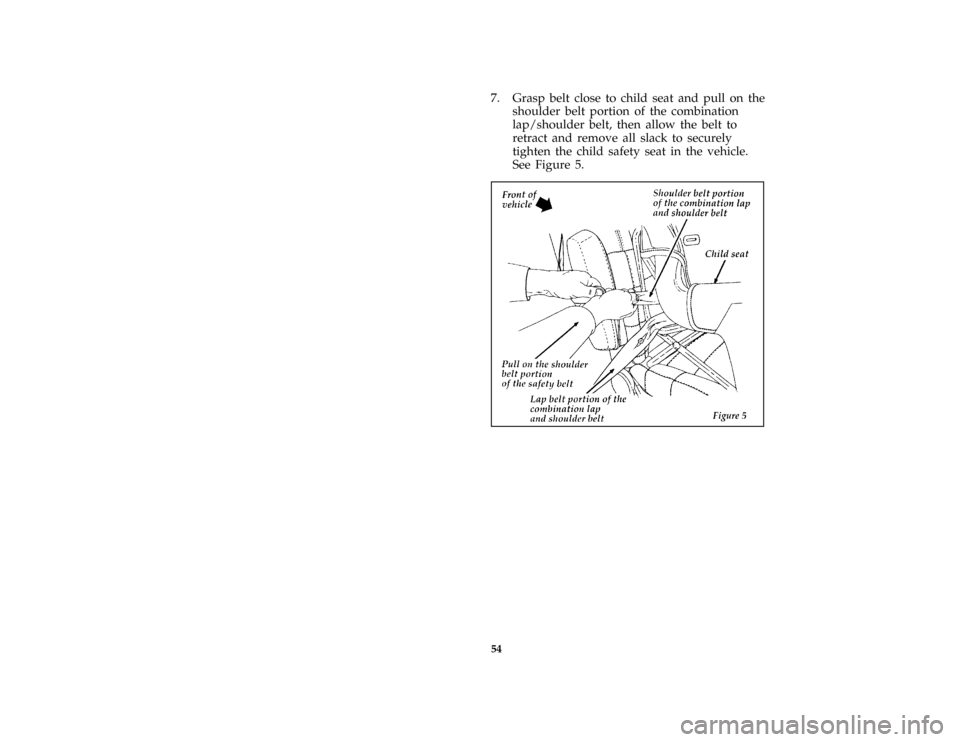

7. Grasp belt close to child seat and pull on the
shoulder belt portion of the combination
lap/shoulder belt, then allow the belt to
retract and remove all slack to securely
tighten the child safety seat in the vehicle.
See Figure 5.
*
[SR16560(B )05/95]
half page art:0011367-A
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
Page 57 of 376
55
*
[SR16565(B )04/95]

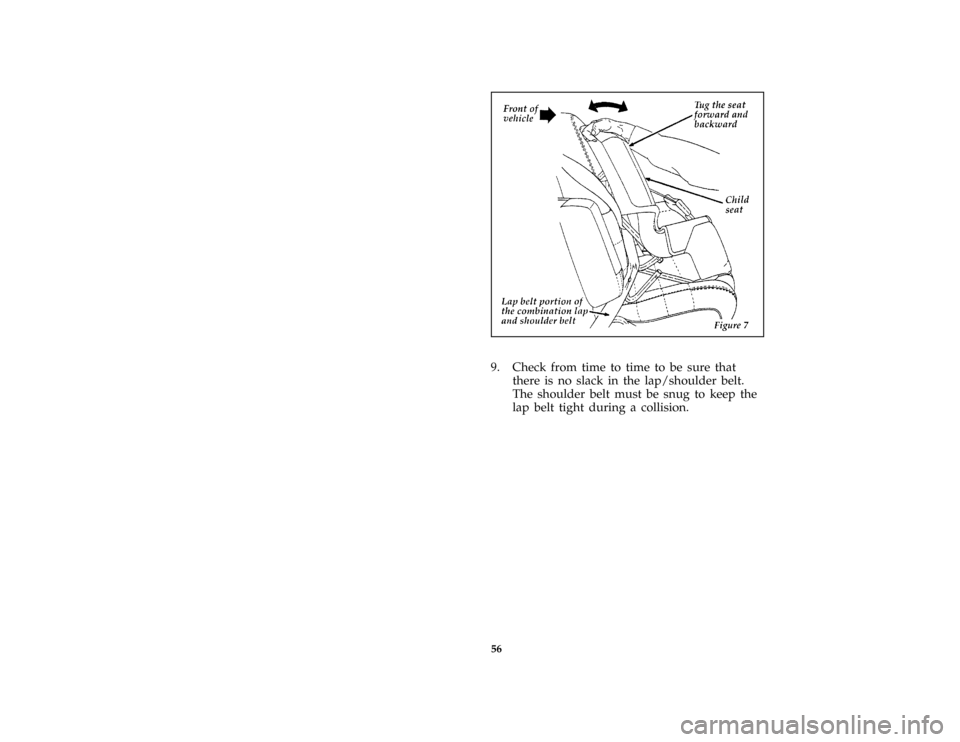

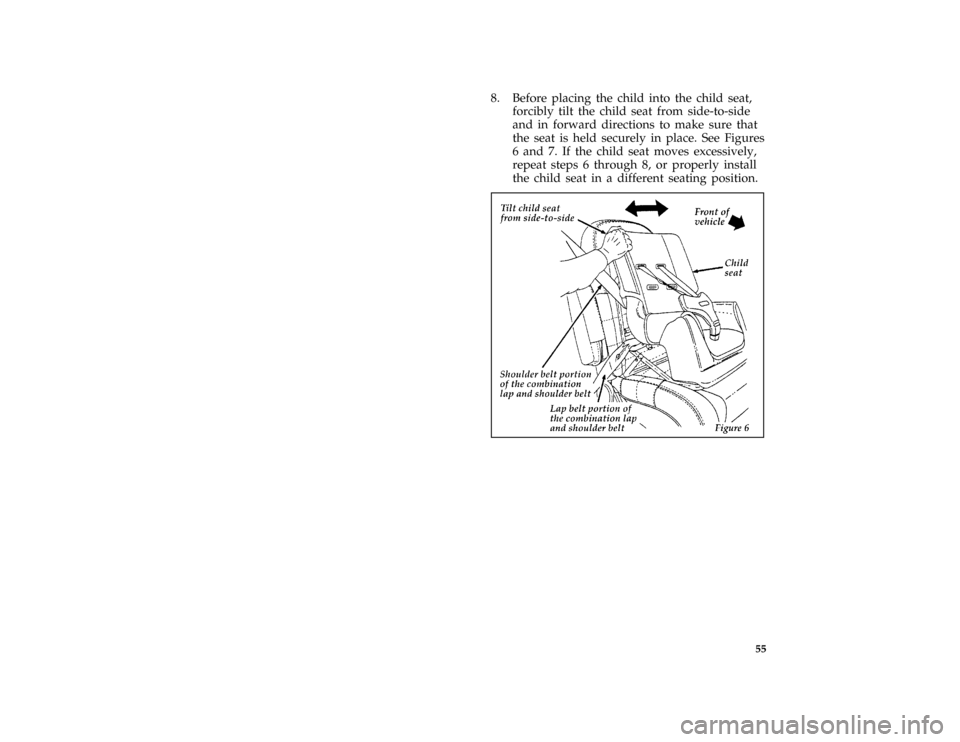

8. Before placing the child into the child seat,
forcibly tilt the child seat from side-to-side
and in forward directions to make sure that
the seat is held securely in place. See Figures
6 and 7. If the child seat moves excessively,
repeat steps 6 through 8, or properly install
the child seat in a different seating position.
[SR16570(B )05/95]
half page art:0011368-AFile:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
Page 58 of 376
56
*
[SR16575(B )05/95]
half page art:0011369-A
*
[SR16580(B )04/95]
9. Check from time to time to be sure that
there is no slack in the lap/shoulder belt.
The shoulder belt must be snug to keep the
lap belt tight during a collision.
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
Page 59 of 376
57
*
[SR18400(BEF )04/95]
Attaching Safety Seats With Tether Straps
*
[SR18410(BEF )03/01]
General Instructions
[SR18413(BEF )02/95]
Some manufacturers make safety seats that
include an upper tether strap that goes over the
seatback and attaches to an anchoring point.
Other manufacturers offer the tether strap as an
accessory. Contact the manufacturer of your
child safety seat for information about ordering
a tether strap.
*
[SR18417(B )12/91]
You can attach a tether strap anchor bracket to
the rear floor by using a tether anchor kit
(613D74), available at no charge from any Ford
dealership.
*
[SR18420(BEF )03/91]
Read and follow the instructions provided with
the kit carefully for installation of the child
tether strap anchor.
*
[SR18501(BEF )03/91]
Follow the child seat manufacturer's instructions
to attach the tether strap to the tether bracket.
*
[SR18700(B )04/95]
Ford recommends placement of tethered safety
seats in a rear seating position with the tether
strap installed to the tether anchoring point as
shown in the instructions provided with the
child tether strap anchor kit.
[SR18875(B )04/95]
This vehicle has provisions to install a tether
anchorage in the front, right hand and all second
row seating positions. It is easiest to install a
tether anchor at the second row, rear, center
seating position.
[SR18900(B )03/91]
If the tethered seat is installed in the front seat,
Ford recommends the center front seating
position, with the tether strap secured to the
center rear lap belt tongue or to the webbing of
the buckled center rear lap belt behind the child
safety seat. The front, right hand seating position
may be used if it is the only seating position
available.
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
Page 60 of 376
58
*
[SR18950(BEF )05/95]
RWARNING
Only use the tether attachment hole
locations shown in the illustrations. The
tether anchor may not perform properly if
the wrong mounting location is used.
*
[SR19400(B F )04/95]
The rear lap/shoulder safety belts should not be
used to secure the tether strap of a safety seat
located in the front seat.
*
[SR19500(BEF )05/95]
RWARNING
Failure to follow these precautions could
increase the chance of injury in an
accident.
*
[SR19550(B )05/95]
RWARNING
If the anchor bolt(s) is ever removed, the
hole(s) in the floor must be sealed to
prevent the possibility of exhaust fumes
entering the passenger compartment.
