Canadian roadside coverage and benefits
may differ from the U.S. coverage. If you
require more information, please refer to
the coverage section of your warranty
guide, call us in Canada at
1-800-665-2006, or visit our website at
www.ford.ca.
Sykes Assistance Services Corporation
administers the Roadside Assistance
program. You must receive covered
services in Canada or the continental
United States. Coverage extends to
vehicles that use public, non-seasonal,
annually traveled roadways. Roadside
Assistance coverage does not extend to
vehicles involved in cross-country driving,
logging, autocross and any other form of
off-road use. Well maintained roads and
surfaces help ensure safe travel for the
supplier, and allow their representatives
to perform service as per the standard
operating procedures.
In Remote Locations
If our supplier cannot take your vehicle by
road to the nearest authorized dealership,
transportation by rail or water may be
necessary. The program covers a tow to
the dock or rail terminal and also to the
dealership at the end of the trip.
For rail or water transportation, however,
contact your authorized dealer to confirm
if you are eligible for additional coverage
before you authorize or pay for the service.
Call Ford Roadside Assistance at
1-800-665-2006 for additional
information.
HAZARD WARNING FLASHERS
Note:
If used when the vehicle is not
running, the battery will lose charge. There
may be insufficient power to restart your
vehicle. The hazard warning button is
located on the instrument panel.
Use it when your vehicle is
creating a safety hazard for other
motorists.
• Press the button to turn on the hazard
warning function, and the front and
rear direction indicators will flash.
• Press the button again to turn them
off.
FUEL SHUTOFF WARNING
Failure to inspect and, if necessary,
repair fuel leaks after a collision may
increase the risk of fire and serious
injury. Ford Motor Company recommends
that the fuel system be inspected by an
authorized dealer after any collision. In the event of a moderate to severe
collision, this vehicle has a fuel pump
shut-off feature that stops the flow of fuel
to the engine. Not every impact will cause
a shut-off.
Should your vehicle shut off after a
collision, you may restart your vehicle.
For vehicles equipped with a key system:
1. Switch off the ignition.
2. Switch on the ignition.
3. Check the information display for the
Ready to Drive light as the gasoline
engine may not start, but the electric
motor may be running. If you do not see
the Ready to Drive light, repeat Steps
1 and 2 up to two more times.
For vehicles equipped with a push button
start system:
1. Press the push button start to switch off the ignition.
192
C-MAX (CCG) Canada/United States of America, enUSA, Second Printing Roadside Emergencies

Protected components
Fuse amp rating
Fuse or relay number
Washer pump.
20A
F77
Ignition switch, Start button.
5A
F78
Radio.
15A
F79
Hazard light switch.
Not used (spare).
20A
F80
Power sun shade.
5A
F81
Remote receiver antenna.
Washer pump ground.
20A
F82
Central locking ground.
20A
F83
Drive door unlock ground.
20A
F84
Electronic 15 feed.
7.5A
F85
Restraints control module.
10A
F86
Passenger air bag deactivation indicator.
Not used (spare).
15A
F87
Not used (spare).
25A
F88
Not used.
—
F89
Luggage Compartment Fuse Panel
The fuse panel is located in the luggage
compartment behind the left side wheel
well. Remove the fuse panel cover to gain
access to the fuses.
209
C-MAX (CCG) Canada/United States of America, enUSA, Second Printing Fuses

For a complete listing of the
accessories that are available for your
vehicle, please contact your authorized
dealer or visit our online store at:
Web Address
www.Accessories.Ford.com
You can also visit: Web Address
www.Ford.ca
Ford Motor Company will repair or replace
any properly authorized dealer-installed
Ford Genuine Accessory found to be
defective in factory-supplied materials or
workmanship during the warranty period,
as well as any component damaged by the
defective accessories. Ford Motor
Company will warrant your accessory
through the warranty that provides the
greatest benefit:
• 24 months, unlimited mileage.
• The remainder of your new vehicle
limited warranty.
Contact an authorized dealer for details
and a copy of the warranty.
Exterior style
• Hood deflector*.
• Side window deflectors.
• Splash guards.
• Custom graphics*.
Interior style
• Floor mats.
• Accent lighting.
• Cargo area protector. Lifestyle
•
Ash cup or smoker's packages.
• Soft cargo organizers.
• Cargo net*.
• Roof racks and carriers*.
Peace of mind
• Keyless entry keypad.
• Remote start.
• Vehicle security systems.
• Wheel locks.
• Bumper-mounted parking assist
system*.
• Rear bumper protector.
• Car covers.
• Charge cord storage bag*.
*Ford Licensed Accessory. The accessory
manufacturer designs, develops and
therefore warrants Ford Licensed
Accessories, and does not design or test
these accessories to Ford Motor Company
engineering requirements. Contact an
authorized Ford dealer for the
manufacturer's limited warranty details,
and request a copy of the Ford Licensed
Accessories product limited warranty from
the accessory manufacturer.
416
C-MAX (CCG) Canada/United States of America, enUSA, Second Printing Accessories

Information....................................................388
911 Assist............................................................... 394
Alerts...................................................................... 394
Calendar............................................................... 394
Sirius Travel Link................................................ 392
SYNC Services (If Equipped, United States Only)................................................................. 389
Vehicle Health Report (If Equipped, United States Only)................................................... 396
Where Am I?........................................................ 397
Information Messages...............................100
AdvanceTrac®.................................................... 100
Alarm...................................................................... 100
Battery and Charging System (High Voltage)............................................................. 101
Doors........................................................................\
101
Fuel........................................................................\
.. 102
Hill Start Assist.................................................... 102
Keys and Intelligent Access............................ 102
Maintenance........................................................ 103
MyKey..................................................................... 104
Park Aid.................................................................. 105
Park Brake............................................................. 105
Power Steering.................................................... 105
Remote Start....................................................... 105
Tire Pressure Monitoring System.................106
Transmission ........................................................ 106
Installing Child Seats.....................................16 Child Seats............................................................... 16
Using Lap and Shoulder Belts.......................... 17
Using Lower Anchors and Tethers for CHildren (LATCH)............................................ 19
Using Tether Straps.............................................. 21
Instrument Cluster
........................................84
Instrument Lighting Dimmer......................74
Vehicles With Front Fog Lamps...................... 74
Vehicles Without Front Fog Lamps...............75
Interior Lamps
.................................................76
Front Interior Lamp.............................................. 76
Front Interior Lamp - With Panorama Roof....................................................................... 77
Rear Interior Lamp................................................ 77
Interior Mirror
...................................................82
Auto-Dimming Mirror.......................................... 82
Introduction.........................................................7 J
Jump Starting the Vehicle.........................193
Connecting the Jumper Cables..................... 193
Jump Starting...................................................... 194
Preparing Your Vehicle...................................... 193
Removing the Jumper Cables........................ 195
K
Keyless Starting
.............................................127
Ignition Modes..................................................... 128
Keys and Remote Controls.........................44
L
Lighting Control
...............................................73
Headlamp Flasher................................................ 73
High Beams............................................................. 73
Lighting...............................................................73
Load Carrying
.................................................178
Load Limit........................................................179
Vehicle Loading - with and without a
Trailer.................................................................. 179
Locking and Unlocking
.................................56
Activating Intelligent Access ........................... 57
Autolock.................................................................. 58
Battery Saver......................................................... 59
Illuminated Entry.................................................. 59
Illuminated Exit..................................................... 59
Mechanical Key..................................................... 57
Opening a Rear Door from Inside................... 57
Power Door Locks................................................ 56
Remote Control.................................................... 56
Smart Unlocks For Integrated Keyhead Transmitter........................................................ 58
Smart Unlocks For Intelligent Access Keys ........................................................................\
........ 58
Locks
...................................................................56
Luggage Covers.............................................178 Removing the Shade......................................... 178
M
Maintenance...................................................213 General Information........................................... 213
461
C-MAX (CCG) Canada/United States of America, enUSA, Second Printing Index

R
Rear Seat Armrest.........................................118
Rear Seats.........................................................117
Folding the Seatback ......................................... 117
Unfolding the Seatback..................................... 117
Rear Under Floor Storage..........................178
Rear View Camera
........................................172
Using the Rear View Camera System..........172
Rear View Camera See: Rear View Camera.................................... 172
Rear Window Wiper and Washers............71 Rear Window Washer.......................................... 72
Rear Window Wiper.............................................. 71
Refueling...........................................................141 Easy Fuel ™ Capless Fuel System
(Non-Energi Vehicles)................................. 142
Easy Fuel ™ Capless System (Energi
Vehicles Only)................................................. 143
Remote Control..............................................44 Car Finder................................................................ 48
Integrated Keyhead Transmitters .................44
Intelligent Access Key......................................... 45
Remote Start (If Equipped)............................. 48
Replacing the Battery......................................... 46
Sounding a Panic Alarm.................................... 48
Remote Start..................................................110 Automatic Settings.............................................. 111
Removing a Headlamp
..............................227
Repairing Minor Paint Damage..............240
Replacement Parts Recommendation.........................................11
Collision Repairs..................................................... 11
Scheduled Maintenance and Mechanical Repairs................................................................... 11
Warranty on Replacement Parts..................... 12
Replacing a Lost Key or Remote Control............................................................49
Reporting Safety Defects (Canada Only)
..............................................................203
Reporting Safety Defects (U.S. Only)..............................................................202 Roadside Assistance....................................191
Vehicles Sold in Canada: Getting Roadside
Assistance......................................................... 191
Vehicles Sold in Canada: Using Roadside Assistance......................................................... 191
Vehicles Sold in the United States: Getting Roadside Assistance..................................... 191
Vehicles Sold in the United States: Using Roadside Assistance..................................... 191
Roadside Emergencies
................................191
Running-In See: Breaking-In.................................................. 188
Running Out of Fuel....................................140 Refilling With a Portable Fuel
Container.......................................................... 140
S
Safety Belt Height Adjustment
................30
Safety Belt Minder..........................................31 Belt-Minder™......................................................... 31
Safety Belts
.......................................................27
Principle of Operation......................................... 27
Safety Belt Warning Lamp and Indicator Chime................................................................31
Conditions of operation...................................... 31
Safety Canopy ™
.............................................41
Safety Precautions......................................138
Satellite Radio..............................................292
Satellite Radio Electronic Serial Number
(ESN)................................................................ 293
Satellite Radio Reception Factors...............293
SIRIUS® Satellite Radio Service.................. 293
Troubleshooting................................................. 294
Scheduled Maintenance Record...........428
Scheduled Maintenance
..........................420
Seats...................................................................112
Security..............................................................65
Settings...........................................................344 Clock....................................................................... 345
Display................................................................... 345
Settings.................................................................. 347
Sound.................................................................... 346
Vehicle................................................................... 346
Side Airbags.....................................................39
Sitting in the Correct Position...................112
Snow Chains See: Using Snow Chains................................. 269
463
C-MAX (CCG) Canada/United States of America, enUSA, Second Printing Index

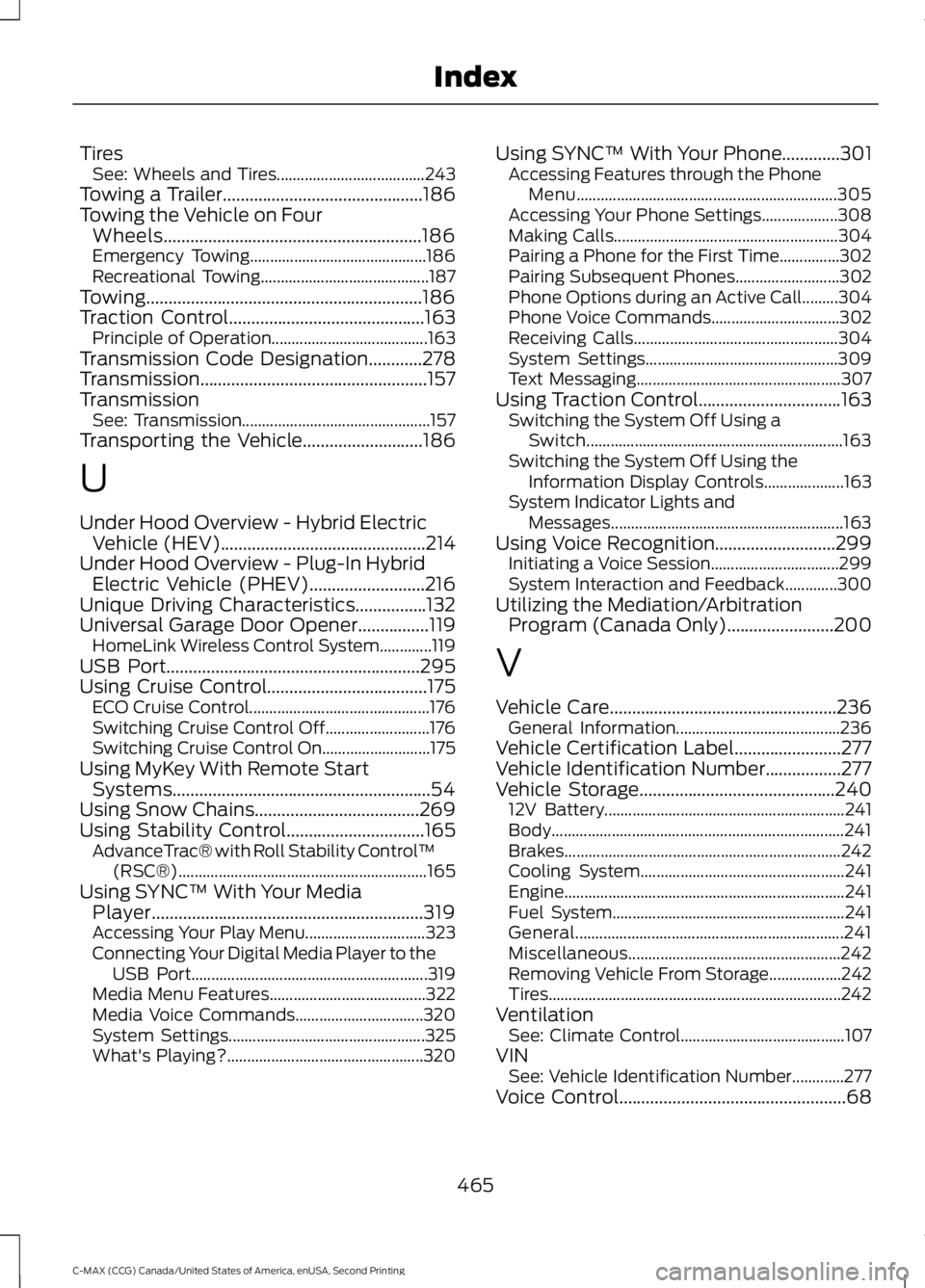

Tires
See: Wheels and Tires..................................... 243
Towing a Trailer.............................................186
Towing the Vehicle on Four Wheels..........................................................186
Emergency Towing............................................ 186
Recreational Towing.......................................... 187
Towing..............................................................186
Traction Control............................................163
Principle of Operation....................................... 163
Transmission Code Designation............278
Transmission...................................................157
Transmission See: Transmission............................................... 157
Transporting the Vehicle...........................186
U
Under Hood Overview - Hybrid Electric Vehicle (HEV)
..............................................214
Under Hood Overview - Plug-In Hybrid Electric Vehicle (PHEV)..........................216
Unique Driving Characteristics................132
Universal Garage Door Opener
................119
HomeLink Wireless Control System.............119
USB Port.........................................................295
Using Cruise Control....................................175 ECO Cruise Control............................................. 176
Switching Cruise Control Off.......................... 176
Switching Cruise Control On........................... 175
Using MyKey With Remote Start Systems..........................................................54
Using Snow Chains.....................................269
Using Stability Control
...............................165
AdvanceTrac® with Roll Stability Control ™
(RSC®).............................................................. 165
Using SYNC™ With Your Media Player
.............................................................319
Accessing Your Play Menu.............................. 323
Connecting Your Digital Media Player to the USB Port........................................................... 319
Media Menu Features....................................... 322
Media Voice Commands................................ 320
System Settings................................................. 325
What's Playing?................................................. 320Using SYNC™ With Your Phone.............301
Accessing Features through the Phone
Menu................................................................. 305
Accessing Your Phone Settings................... 308
Making Calls........................................................ 304
Pairing a Phone for the First Time...............302
Pairing Subsequent Phones.......................... 302
Phone Options during an Active Call.........304
Phone Voice Commands................................ 302
Receiving Calls................................................... 304
System Settings................................................ 309
Text Messaging................................................... 307
Using Traction Control
................................163
Switching the System Off Using a
Switch................................................................ 163
Switching the System Off Using the Information Display Controls.................... 163
System Indicator Lights and Messages.......................................................... 163
Using Voice Recognition
...........................299
Initiating a Voice Session................................ 299
System Interaction and Feedback.............300
Utilizing the Mediation/Arbitration Program (Canada Only)
........................200
V
Vehicle Care
...................................................236
General Information......................................... 236
Vehicle Certification Label........................277
Vehicle Identification Number.................277
Vehicle Storage
............................................240
12V Battery............................................................ 241
Body........................................................................\
. 241
Brakes..................................................................... 242
Cooling System................................................... 241
Engine...................................................................... 241
Fuel System.......................................................... 241
General................................................................... 241
Miscellaneous..................................................... 242
Removing Vehicle From Storage.................. 242
Tires........................................................................\
. 242
Ventilation See: Climate Control......................................... 107
VIN See: Vehicle Identification Number.............277
Voice Control
...................................................68
465
C-MAX (CCG) Canada/United States of America, enUSA, Second Printing Index
