Page 6 of 458
Information Display Control......................67
Heated Steering Wheel...............................67
Wipers and Washers
Windshield Wipers.......................................69
Autowipers......................................................69
Windshield Washers......................................71
Rear Window Wiper and Washers..........72
Lighting
General Information.....................................73
Lighting Control..............................................73
Autolamps.......................................................74
Instrument Lighting Dimmer.....................75
Headlamp Exit Delay....................................75
Daytime Running Lamps............................76
Front Fog Lamps...........................................76
Direction Indicators.......................................77
Interior Lamps.................................................77
Ambient Lighting...........................................78
Windows and Mirrors
Power Windows.............................................79
Exterior Mirrors..............................................80
Interior Mirror...................................................81
Moonroof...........................................................81
Instrument Cluster
Gauges..............................................................83
Warning Lamps and Indicators...............84
Audible Warnings and Indicators............87
Information Displays
General Information....................................88
Trip Computer.................................................91
Information Messages.................................91
Climate Control
Principle of Operation.................................101
Air Vents...........................................................101
Manual Climate Control - Vehicles With:Electronic Manual TemperatureControl (EMTC).......................................102
Automatic Climate Control - VehiclesWith: Electronic AutomaticTemperature Control (EATC).............103
Hints on Controlling the Interior Climate- Vehicles With: Electronic AutomaticTemperature Control (EATC).............105
Hints on Controlling the Interior Climate- Vehicles With: Electronic ManualTemperature Control (EMTC)............106
Heated Rear Window - Vehicles With:Electronic Automatic TemperatureControl (EATC).........................................107
Heated Rear Window - Vehicles With:Electronic Manual TemperatureControl (EMTC)........................................107
Heated Exterior Mirrors..............................107
Cabin Air Filter..............................................108
Seats
Sitting in the Correct Position................109
Head Restraints...........................................109
Manual Seats..................................................111
Power Seats....................................................113
Rear Seats.......................................................116
Heated Seats.................................................119
Auxiliary Power Points
Auxiliary Power Points...............................120
Storage Compartments
Center Console.............................................122
Glasses Holder..............................................122
Starting and Stopping theEngine
General Information...................................123
Ignition Switch..............................................123
Push Button Ignition Switch....................124
2
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingTable of Contents
Page 8 of 458
Hazard Flashers...........................................184
Fuel Shutoff..................................................184
Jump Starting the Vehicle........................185
Post-Crash Alert System..........................188
Customer Assistance
Getting the Services You Need..............189
In California (U.S. Only)............................190
The Better Business Bureau (BBB) AutoLine Program (U.S. Only)......................191
Utilizing the Mediation/ArbitrationProgram (Canada Only).......................192
Getting Assistance Outside the U.S. andCanada........................................................192
Ordering Additional Owner's Literature.........................................................................194
Reporting Safety Defects (U.S. Only).........................................................................194
Reporting Safety Defects (Canada Only).........................................................................194
Fuses
Fuse Box Locations....................................196
Fuse Specification Chart..........................196
Changing a Fuse.........................................203
Maintenance
General Information..................................205
Opening and Closing the Hood.............205
Under Hood Overview - 1.0L EcoBoost™.......................................................................206
Under Hood Overview - 2.0L..................207
Engine Oil Dipstick - 1.0L EcoBoost™.......................................................................208
Engine Oil Dipstick - 2.0L........................208
Engine Oil Check........................................208
Oil Change Indicator Reset.....................209
Engine Cooling Fan.....................................210
Engine Coolant Check...............................210
Automatic Transmission Fluid Check.........................................................................214
Brake Fluid Check........................................214
Washer Fluid Check....................................215
Changing the 12V Battery.........................215
Checking the Wiper Blades......................217
Changing the Wiper Blades......................217
Adjusting the Headlamps.........................218
Removing a Headlamp.............................220
Changing a Bulb..........................................220
Bulb Specification Chart..........................229
Changing the Engine Air Filter...............230
Drive Belt Routing - 1.0L EcoBoost™........................................................................230
Drive Belt Routing - 2.0L...........................231
Vehicle Care
General Information...................................232
Cleaning Products......................................232
Cleaning the Exterior.................................233
Waxing............................................................234
Cleaning the Engine...................................235
Cleaning the Windows and Wiper Blades........................................................................235
Cleaning the Interior..................................236
Cleaning the Instrument Panel andInstrument Cluster Lens......................236
Cleaning Leather Seats.............................237
Repairing Minor Paint Damage..............237
Cleaning the Wheels..................................237
Vehicle Storage...........................................238
Body Styling Kits........................................240
Wheels and Tires
General Information...................................241
Tire Sealant and Inflator Kit...................243
Tire Care.........................................................249
Using Summer Tires..................................264
Using Snow Chains....................................264
Tire Pressure Monitoring System..........265
Lug Nuts.........................................................269
4
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingTable of Contents
Page 77 of 458
GENERAL INFORMATION

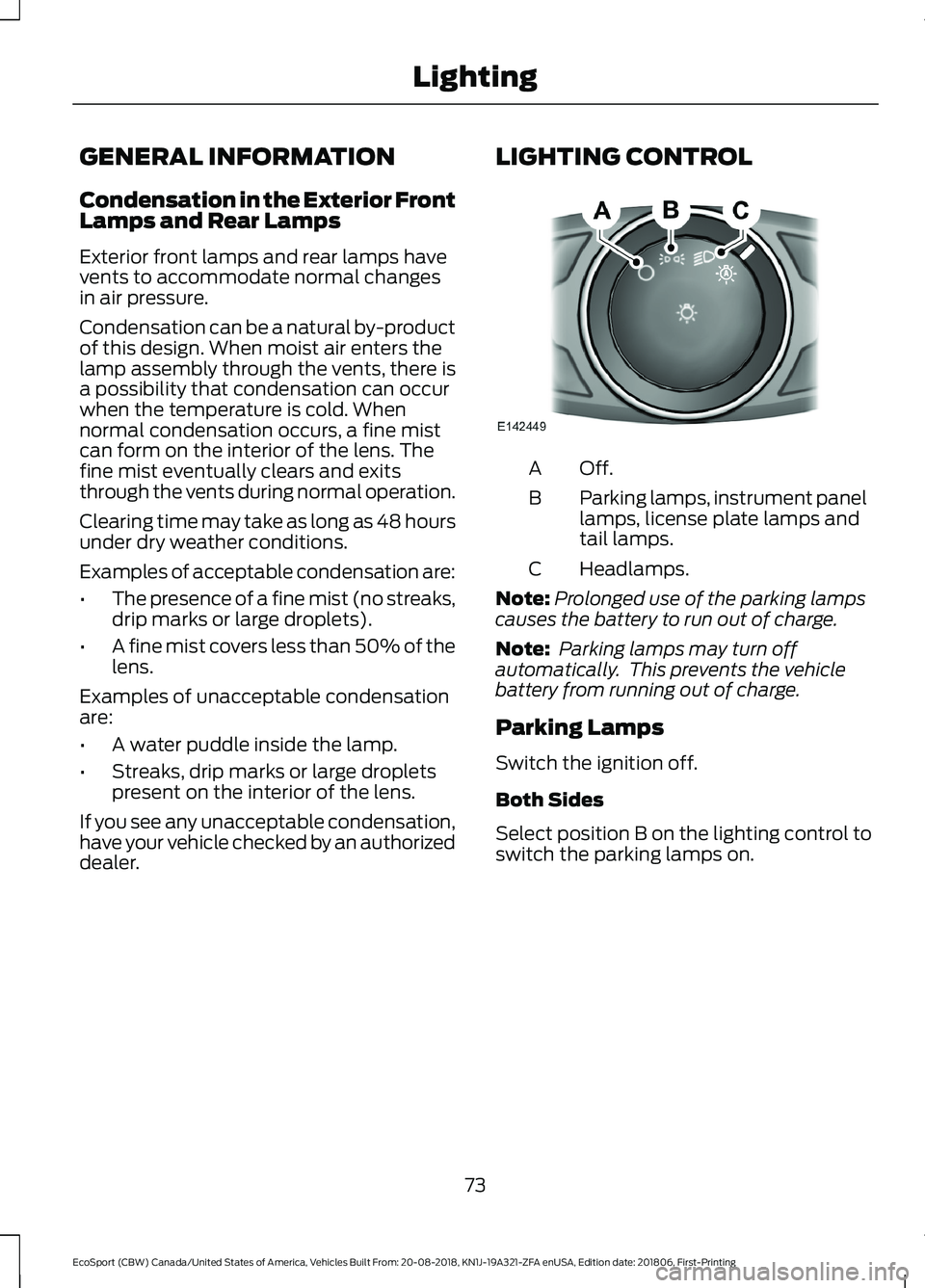

Condensation in the Exterior FrontLamps and Rear Lamps
Exterior front lamps and rear lamps havevents to accommodate normal changesin air pressure.
Condensation can be a natural by-productof this design. When moist air enters thelamp assembly through the vents, there isa possibility that condensation can occurwhen the temperature is cold. Whennormal condensation occurs, a fine mistcan form on the interior of the lens. Thefine mist eventually clears and exitsthrough the vents during normal operation.
Clearing time may take as long as 48 hoursunder dry weather conditions.
Examples of acceptable condensation are:
•The presence of a fine mist (no streaks,drip marks or large droplets).
•A fine mist covers less than 50% of thelens.
Examples of unacceptable condensationare:
•A water puddle inside the lamp.
•Streaks, drip marks or large dropletspresent on the interior of the lens.
If you see any unacceptable condensation,have your vehicle checked by an authorizeddealer.
LIGHTING CONTROL
Off.A
Parking lamps, instrument panellamps, license plate lamps andtail lamps.
B
Headlamps.C
Note:Prolonged use of the parking lampscauses the battery to run out of charge.
Note: Parking lamps may turn offautomatically. This prevents the vehiclebattery from running out of charge.
Parking Lamps
Switch the ignition off.
Both Sides
Select position B on the lighting control toswitch the parking lamps on.
73
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingLighting
Page 78 of 458

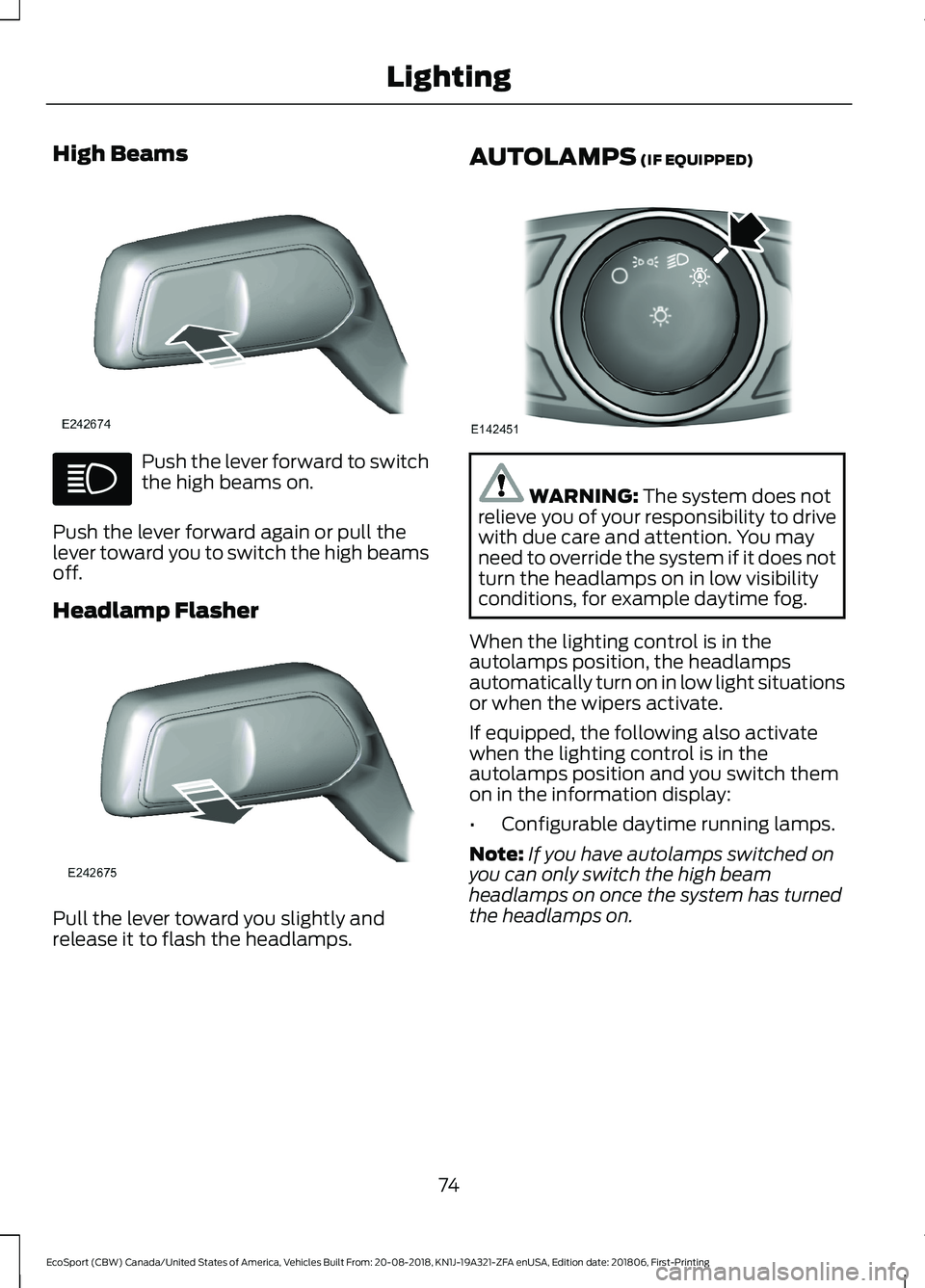

High Beams
Push the lever forward to switchthe high beams on.
Push the lever forward again or pull thelever toward you to switch the high beamsoff.
Headlamp Flasher
Pull the lever toward you slightly andrelease it to flash the headlamps.
AUTOLAMPS (IF EQUIPPED)
WARNING: The system does notrelieve you of your responsibility to drivewith due care and attention. You mayneed to override the system if it does notturn the headlamps on in low visibilityconditions, for example daytime fog.
When the lighting control is in theautolamps position, the headlampsautomatically turn on in low light situationsor when the wipers activate.
If equipped, the following also activatewhen the lighting control is in theautolamps position and you switch themon in the information display:
•Configurable daytime running lamps.
Note:If you have autolamps switched onyou can only switch the high beamheadlamps on once the system has turnedthe headlamps on.
74
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingLighting
Page 79 of 458

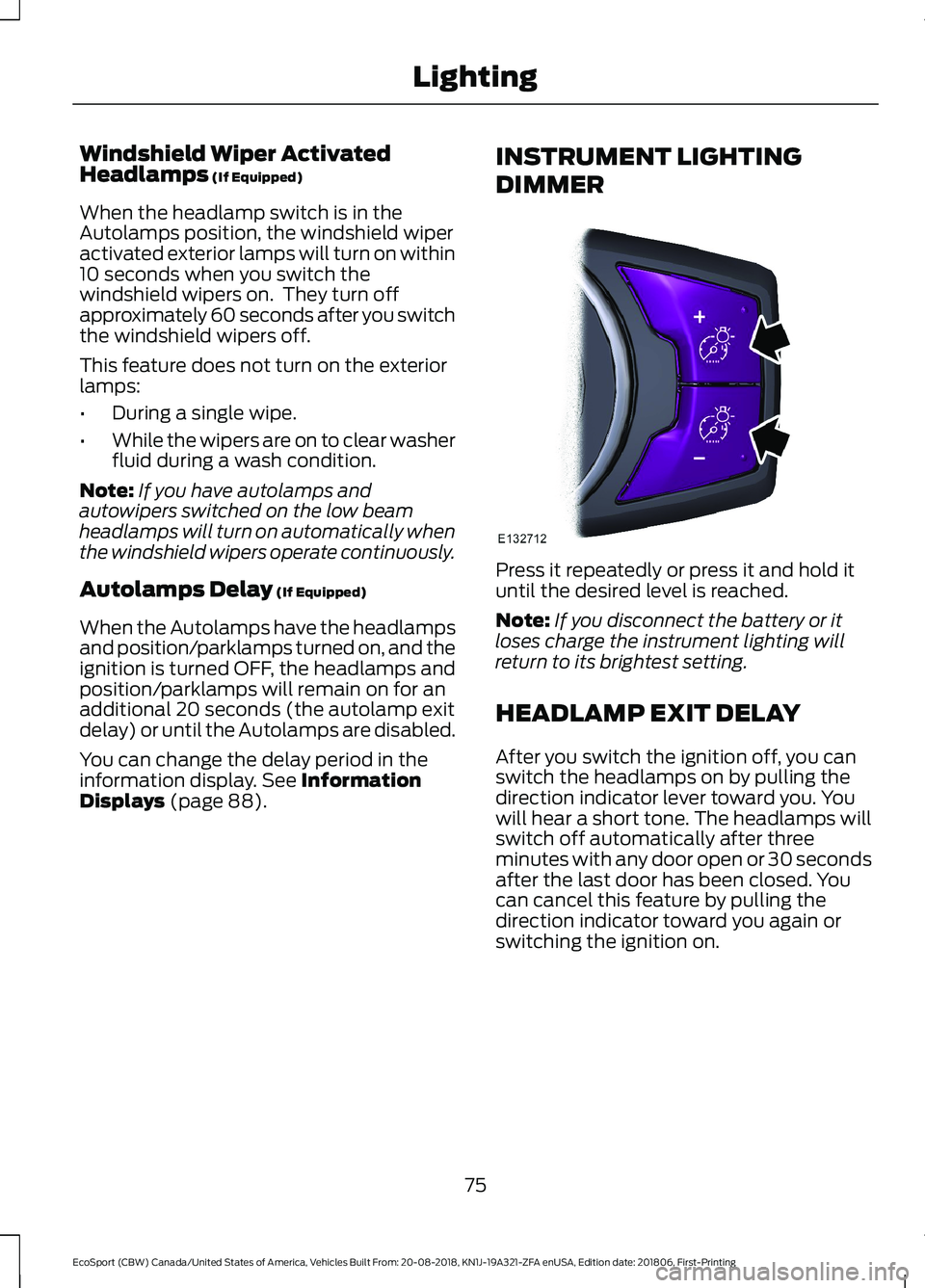

Windshield Wiper ActivatedHeadlamps (If Equipped)
When the headlamp switch is in theAutolamps position, the windshield wiperactivated exterior lamps will turn on within10 seconds when you switch thewindshield wipers on. They turn offapproximately 60 seconds after you switchthe windshield wipers off.
This feature does not turn on the exteriorlamps:
•During a single wipe.
•While the wipers are on to clear washerfluid during a wash condition.
Note:If you have autolamps andautowipers switched on the low beamheadlamps will turn on automatically whenthe windshield wipers operate continuously.
Autolamps Delay (If Equipped)
When the Autolamps have the headlampsand position/parklamps turned on, and theignition is turned OFF, the headlamps andposition/parklamps will remain on for anadditional 20 seconds (the autolamp exitdelay) or until the Autolamps are disabled.
You can change the delay period in theinformation display. See InformationDisplays (page 88).
INSTRUMENT LIGHTING
DIMMER
Press it repeatedly or press it and hold ituntil the desired level is reached.
Note:If you disconnect the battery or itloses charge the instrument lighting willreturn to its brightest setting.
HEADLAMP EXIT DELAY
After you switch the ignition off, you canswitch the headlamps on by pulling thedirection indicator lever toward you. Youwill hear a short tone. The headlamps willswitch off automatically after threeminutes with any door open or 30 secondsafter the last door has been closed. Youcan cancel this feature by pulling thedirection indicator toward you again orswitching the ignition on.
75
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingLighting
Page 80 of 458
DAYTIME RUNNING LAMPS
WARNING: The daytime runninglamps system does not activate the rearlamps and may not provide adequatelighting during low visibility drivingconditions. Make sure you switch theheadlamps on, as appropriate, during alllow visibility conditions. Failure to do somay result in a crash.
Type 1 - Conventional (Non-Configurable)
The daytime running lamps turn on when:
1.You switch the ignition on.
2.The transmission is not in park (P) forvehicles with automatic transmissionsor the parking brake is released forvehicles with manual transmissions.
3.The lighting control is in the off, parkinglamp or autolamps lighting controlsensor must be detecting daylightpositions.
Type 2 - Configurable
You can switch this feature on or off in theinformation display. See InformationDisplays (page 88).
The daytime running lamps turn on when:
1.You switch them on in the informationdisplay.
2.You switch the ignition on.
3.The transmission is not in park (P) forvehicles with automatic transmissionsor the parking brake is released forvehicles with manual transmissions.
4.The lighting control is in the autolampsposition.
5.The lighting control sensor detectsdaylight, and the headlamps or parkinglamps are off.
The other lighting control switch positionsdo not activate the daytime running lamps,and you can use them to temporarilyoverride autolamp control.
When you switch them off in theinformation display, the daytime runninglamps are off in all lighting control switchpositions.
FRONT FOG LAMPS (IF EQUIPPED)
Press the control to switch the fog lampson or off.
You can switch the fog lamps on when thelighting control is in any position exceptoff.
Note:Only use fog lamps during reducedvisibility, for example, fog, snow or heavyrain.
Note:If you switch autolamps on, you canonly switch the fog lamps on onceautolamps has turned the headlamps on.
76
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingLighting
Page 89 of 458

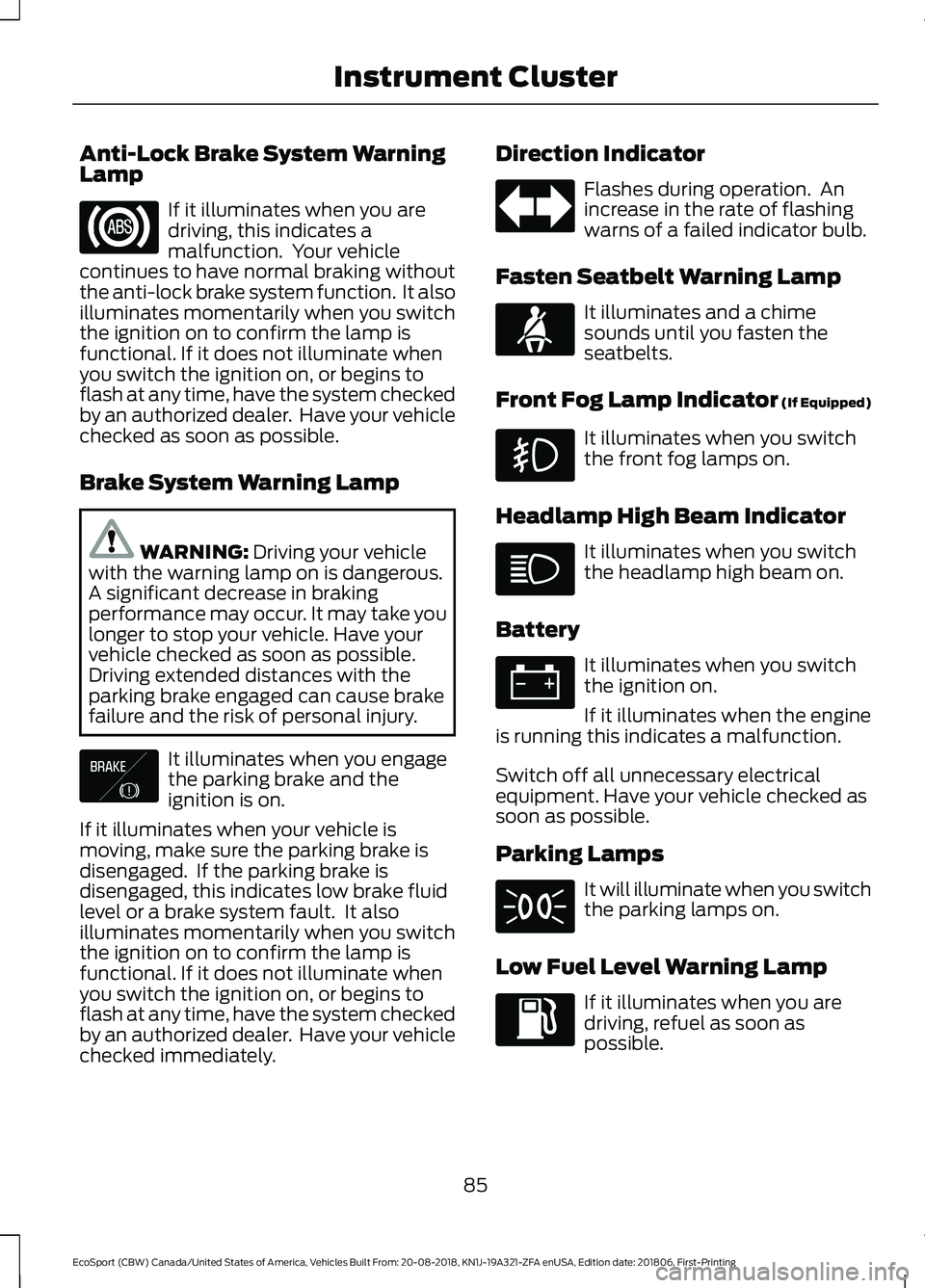

Anti-Lock Brake System WarningLamp
If it illuminates when you aredriving, this indicates amalfunction. Your vehiclecontinues to have normal braking withoutthe anti-lock brake system function. It alsoilluminates momentarily when you switchthe ignition on to confirm the lamp isfunctional. If it does not illuminate whenyou switch the ignition on, or begins toflash at any time, have the system checkedby an authorized dealer. Have your vehiclechecked as soon as possible.
Brake System Warning Lamp
WARNING: Driving your vehiclewith the warning lamp on is dangerous.A significant decrease in brakingperformance may occur. It may take youlonger to stop your vehicle. Have yourvehicle checked as soon as possible.Driving extended distances with theparking brake engaged can cause brakefailure and the risk of personal injury.
It illuminates when you engagethe parking brake and theignition is on.
If it illuminates when your vehicle ismoving, make sure the parking brake isdisengaged. If the parking brake isdisengaged, this indicates low brake fluidlevel or a brake system fault. It alsoilluminates momentarily when you switchthe ignition on to confirm the lamp isfunctional. If it does not illuminate whenyou switch the ignition on, or begins toflash at any time, have the system checkedby an authorized dealer. Have your vehiclechecked immediately.
Direction Indicator
Flashes during operation. Anincrease in the rate of flashingwarns of a failed indicator bulb.
Fasten Seatbelt Warning Lamp
It illuminates and a chimesounds until you fasten theseatbelts.
Front Fog Lamp Indicator (If Equipped)
It illuminates when you switchthe front fog lamps on.
Headlamp High Beam Indicator
It illuminates when you switchthe headlamp high beam on.
Battery
It illuminates when you switchthe ignition on.
If it illuminates when the engineis running this indicates a malfunction.
Switch off all unnecessary electricalequipment. Have your vehicle checked assoon as possible.
Parking Lamps
It will illuminate when you switchthe parking lamps on.
Low Fuel Level Warning Lamp
If it illuminates when you aredriving, refuel as soon aspossible.
85
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingInstrument Cluster
Page 91 of 458

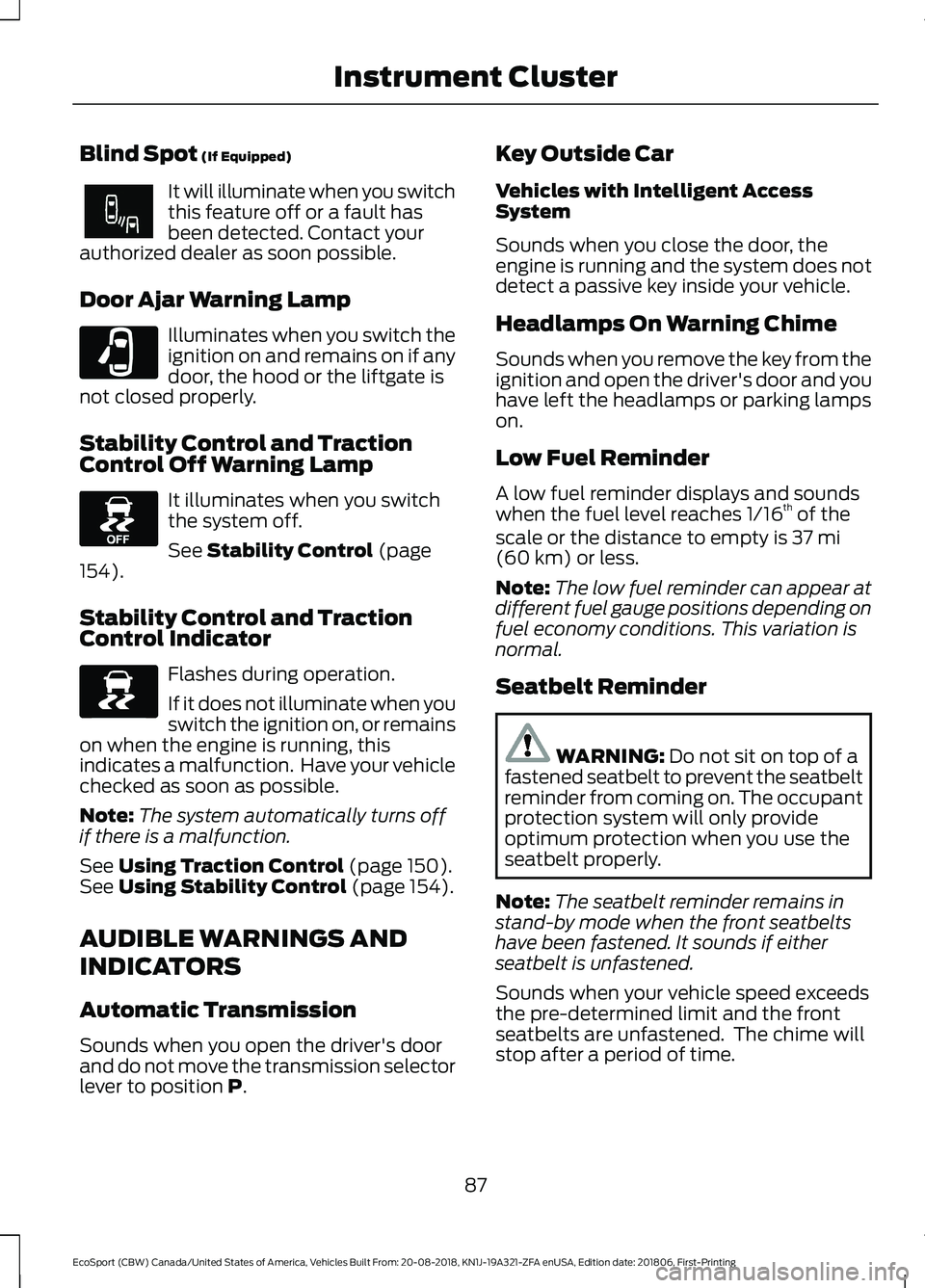

Blind Spot (If Equipped)
It will illuminate when you switchthis feature off or a fault hasbeen detected. Contact yourauthorized dealer as soon possible.
Door Ajar Warning Lamp
Illuminates when you switch theignition on and remains on if anydoor, the hood or the liftgate isnot closed properly.
Stability Control and TractionControl Off Warning Lamp
It illuminates when you switchthe system off.
See Stability Control (page154).
Stability Control and TractionControl Indicator
Flashes during operation.
If it does not illuminate when youswitch the ignition on, or remainson when the engine is running, thisindicates a malfunction. Have your vehiclechecked as soon as possible.
Note:The system automatically turns offif there is a malfunction.
See Using Traction Control (page 150).See Using Stability Control (page 154).
AUDIBLE WARNINGS AND
INDICATORS
Automatic Transmission
Sounds when you open the driver's doorand do not move the transmission selectorlever to position P.
Key Outside Car
Vehicles with Intelligent AccessSystem
Sounds when you close the door, theengine is running and the system does notdetect a passive key inside your vehicle.
Headlamps On Warning Chime
Sounds when you remove the key from theignition and open the driver's door and youhave left the headlamps or parking lampson.
Low Fuel Reminder
A low fuel reminder displays and soundswhen the fuel level reaches 1/16th of thescale or the distance to empty is 37 mi(60 km) or less.
Note:The low fuel reminder can appear atdifferent fuel gauge positions depending onfuel economy conditions. This variation isnormal.
Seatbelt Reminder
WARNING: Do not sit on top of afastened seatbelt to prevent the seatbeltreminder from coming on. The occupantprotection system will only provideoptimum protection when you use theseatbelt properly.
Note:The seatbelt reminder remains instand-by mode when the front seatbeltshave been fastened. It sounds if eitherseatbelt is unfastened.
Sounds when your vehicle speed exceedsthe pre-determined limit and the frontseatbelts are unfastened. The chime willstop after a period of time.
87
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingInstrument Cluster
Page 99 of 458
Keyless Vehicle
ActionMessage
Displayed if the key is not detected by the system. SeePush Button Ignition Switch (page 124).No Key Detected
Displayed as a reminder to turn off the vehicle. SeePush Button Ignition Switch (page 124).Switch ignition off.
Displayed as a reminder to press the brake whilestarting the vehicle.To START Press Brake
Displayed when a valid key is not detected within thevehicle. See Push Button Ignition Switch (page 124).Key Not Inside vehicle
Displays when the key battery is low. Change thebattery as soon as possible. See Remote Control(page 46).
Key Battery low Replace soon
Lighting
ActionMessage
Displays if an electrical malfunction occurs with theheadlamp system. Have your vehicle checked as soonas possible.
Check Headlamp System Seemanual
Maintenance
ActionMessage
Indicates the brake fluid level is low and the brakesystem should be inspected immediately. See BrakeFluid Check (page 214).
Brake fluid level low Servicenow
Indicates that the vehicle sold date has beensuccessful updated. If this date has not been set,contact your authorized dealer.
Maintenance Set initial date
Displays when the date and time are not set.Maintenance Set date
95
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingInformation Displays
Page 130 of 458
•Move the transmission selector leverto the neutral position (vehicles with amanual transmission) or position N(vehicles with an automatictransmission) and use the brakes tobring your vehicle to a safe stop.
•When your vehicle has stopped, movethe transmission selector lever to theneutral position (vehicles with amanual transmission) or position N(vehicles with an automatictransmission) and switch the ignitionoff.

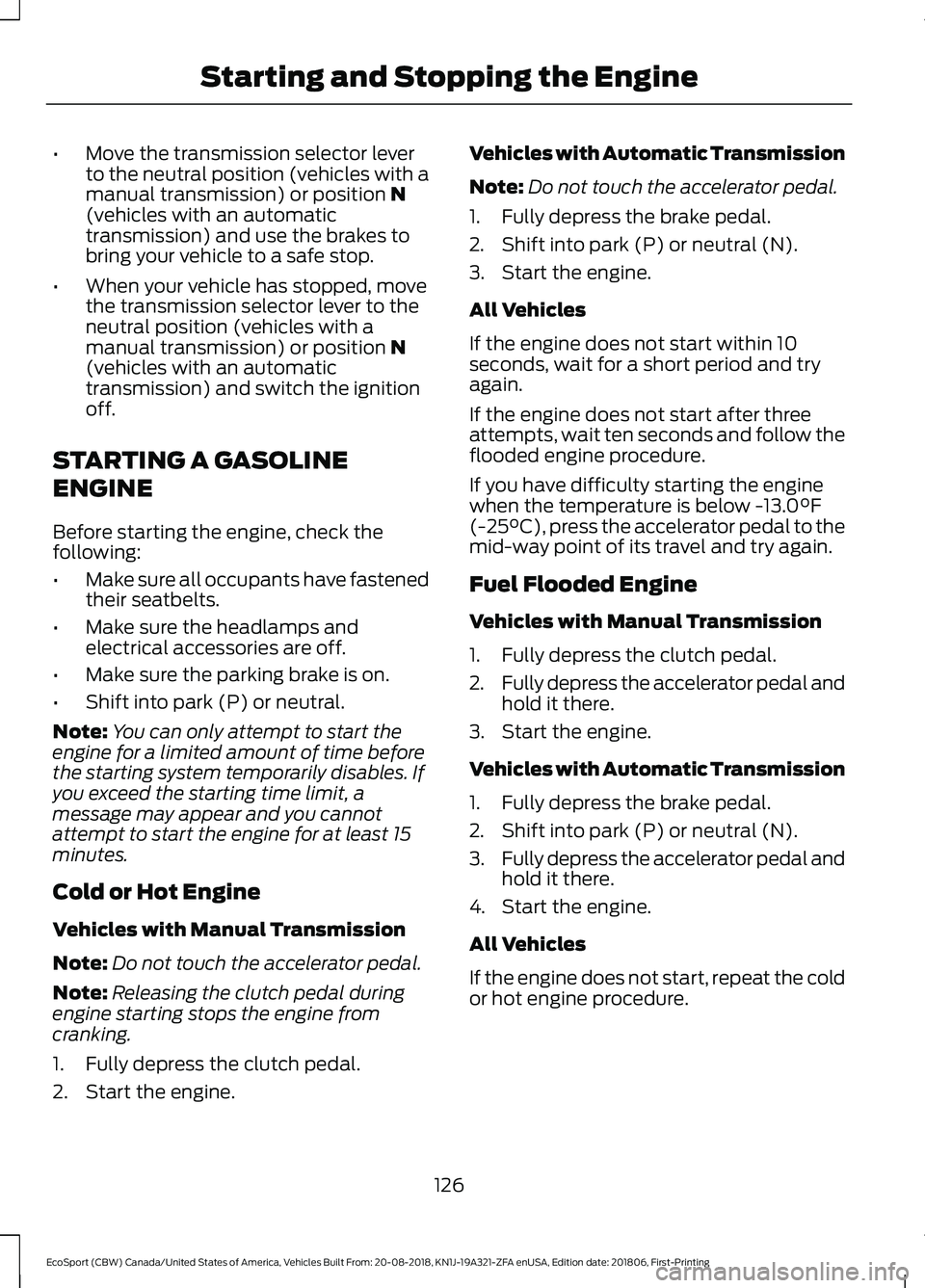

STARTING A GASOLINE
ENGINE
Before starting the engine, check thefollowing:
•Make sure all occupants have fastenedtheir seatbelts.
•Make sure the headlamps andelectrical accessories are off.
•Make sure the parking brake is on.
•Shift into park (P) or neutral.
Note:You can only attempt to start theengine for a limited amount of time beforethe starting system temporarily disables. Ifyou exceed the starting time limit, amessage may appear and you cannotattempt to start the engine for at least 15minutes.
Cold or Hot Engine
Vehicles with Manual Transmission
Note:Do not touch the accelerator pedal.
Note:Releasing the clutch pedal duringengine starting stops the engine fromcranking.
1.Fully depress the clutch pedal.
2.Start the engine.
Vehicles with Automatic Transmission
Note:Do not touch the accelerator pedal.
1.Fully depress the brake pedal.
2.Shift into park (P) or neutral (N).
3.Start the engine.
All Vehicles
If the engine does not start within 10seconds, wait for a short period and tryagain.
If the engine does not start after threeattempts, wait ten seconds and follow theflooded engine procedure.
If you have difficulty starting the enginewhen the temperature is below -13.0°F(-25°C), press the accelerator pedal to themid-way point of its travel and try again.
Fuel Flooded Engine
Vehicles with Manual Transmission
1.Fully depress the clutch pedal.
2.Fully depress the accelerator pedal andhold it there.
3.Start the engine.
Vehicles with Automatic Transmission
1.Fully depress the brake pedal.
2.Shift into park (P) or neutral (N).
3.Fully depress the accelerator pedal andhold it there.
4.Start the engine.
All Vehicles
If the engine does not start, repeat the coldor hot engine procedure.
126
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingStarting and Stopping the Engine
