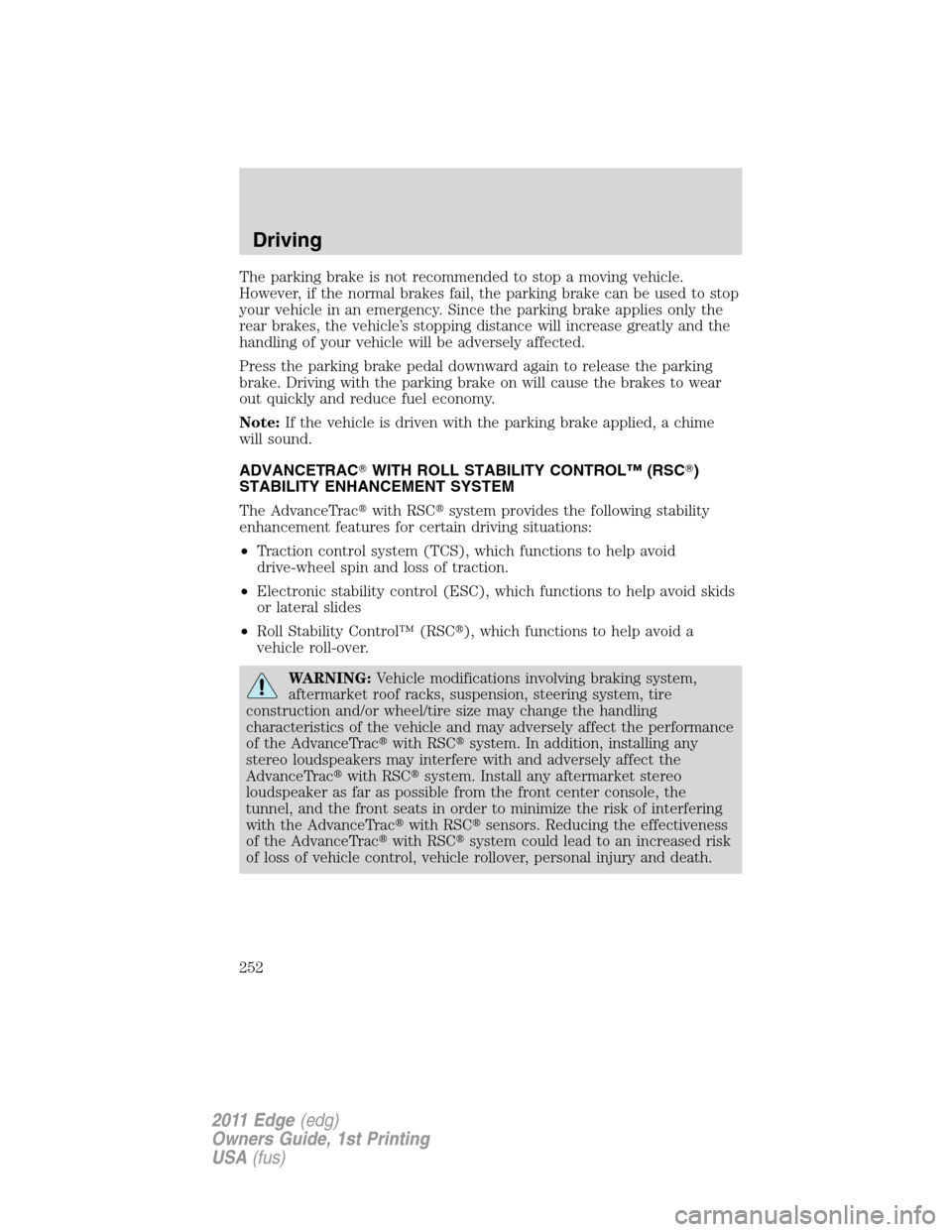

The parking brake is not recommended to stop a moving vehicle.
However, if the normal brakes fail, the parking brake can be used to stop
your vehicle in an emergency. Since the parking brake applies only the
rear brakes, the vehicle’s stopping distance will increase greatly and the
handling of your vehicle will be adversely affected.
Press the parking brake pedal downward again to release the parking
brake. Driving with the parking brake on will cause the brakes to wear
out quickly and reduce fuel economy.
Note:If the vehicle is driven with the parking brake applied, a chime
will sound.
ADVANCETRACWITH ROLL STABILITY CONTROL™ (RSC)
STABILITY ENHANCEMENT SYSTEM
The AdvanceTracwith RSCsystem provides the following stability
enhancement features for certain driving situations:
•Traction control system (TCS), which functions to help avoid
drive-wheel spin and loss of traction.
•Electronic stability control (ESC), which functions to help avoid skids
or lateral slides
•Roll Stability Control™ (RSC), which functions to help avoid a
vehicle roll-over.
WARNING:Vehicle modifications involving braking system,
aftermarket roof racks, suspension, steering system, tire
construction and/or wheel/tire size may change the handling
characteristics of the vehicle and may adversely affect the performance
of the AdvanceTracwith RSCsystem. In addition, installing any
stereo loudspeakers may interfere with and adversely affect the
AdvanceTracwith RSCsystem. Install any aftermarket stereo
loudspeaker as far as possible from the front center console, the
tunnel, and the front seats in order to minimize the risk of interfering
with the AdvanceTracwith RSCsensors. Reducing the effectiveness
of the AdvanceTracwith RSCsystem could lead to an increased risk
of loss of vehicle control, vehicle rollover, personal injury and death.
Driving
252
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Hill start assist (HSA) system
The hill start assist system makes it easier to pull away when the vehicle
is on a slope without the need to use the parking brake. When hill start
assist is active, the vehicle will remain stationary on the slope for up to
three seconds after you release the brake pedal. During this time, you
have time to move your foot from the brake to the accelerator pedal and
pull away. The brakes are released automatically once the engine has
developed sufficient drive to prevent the vehicle from rolling down the
slope. This is an advantage when pulling away on a slope; for example
from a car park ramp, traffic lights or when reversing uphill into a
parking space.
WARNING:The hill start assist system does not replace the
parking brake. When you leave the vehicle, always apply the
parking brake and select first or reverse gear.
Using hill start assist
Hill start assist is activated automatically when the vehicle is stopped on
a slope greater than five degrees. Hill start assist operates with the
vehicle facing downhill if reverse gear is selected.
WARNING:You must remain in the vehicle once you have
activated hill start assist.
Activating hill start assist
1. Press the brake pedal to bring the vehicle to a complete standstill.
Keep the brake pedal pressed.
2. If the sensors detect that the vehicle is on a slope, hill start assist will
be activated automatically.
3. When you remove your foot from the brake pedal, the vehicle will
remain on the slope without rolling away for approximately up to three
seconds. This hold time will automatically be extended if you are in the
process of driving off.
4. Drive off in the normal manner. The brakes will be released
automatically.
WARNING:If the engine is revved excessively, or if a
malfunction is detected when hill start assist is active, hill start
assist will be deactivated.
Driving
264
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

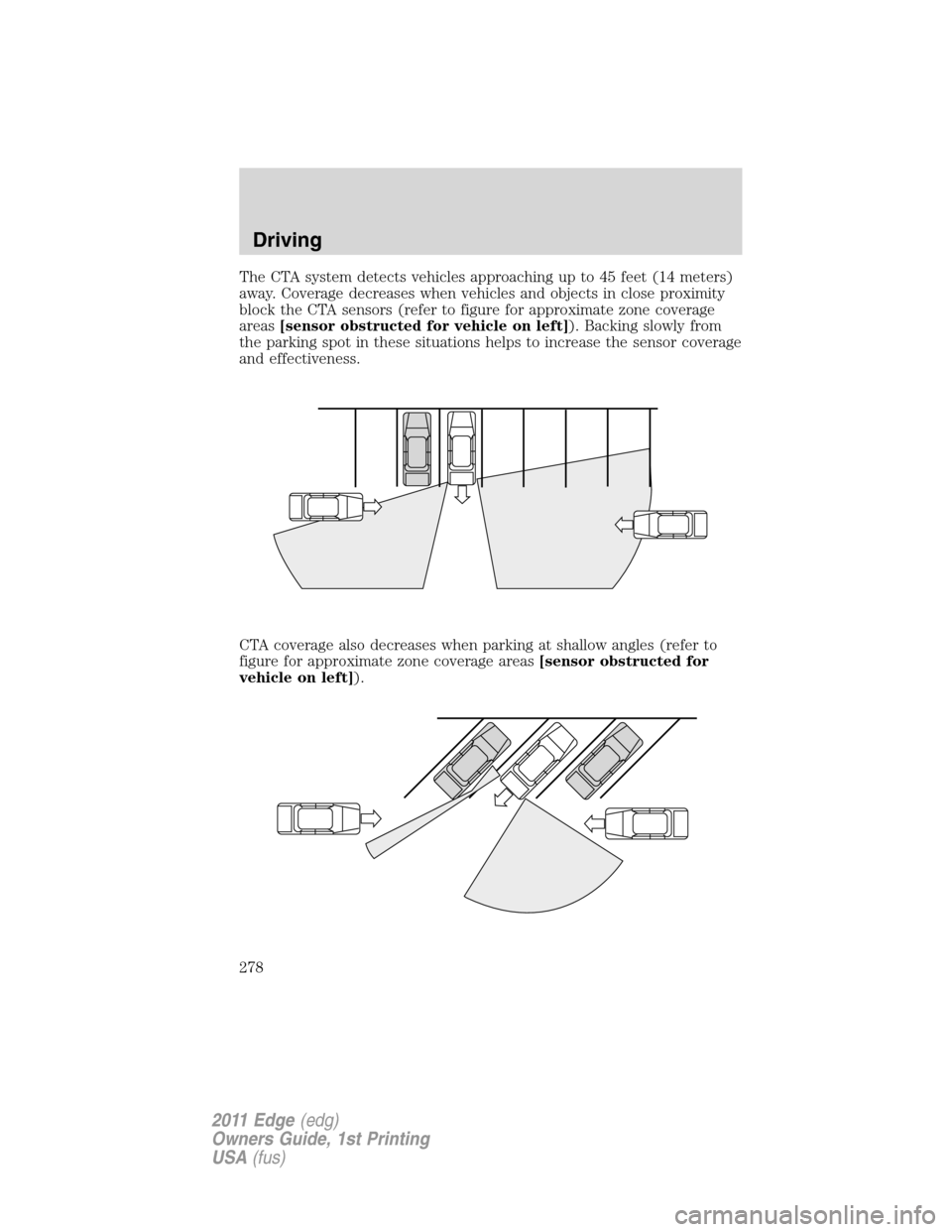

The CTA system detects vehicles approaching up to 45 feet (14 meters)
away. Coverage decreases when vehicles and objects in close proximity
block the CTA sensors (refer to figure for approximate zone coverage
areas[sensor obstructed for vehicle on left]). Backing slowly from
the parking spot in these situations helps to increase the sensor coverage
and effectiveness.
CTA coverage also decreases when parking at shallow angles (refer to
figure for approximate zone coverage areas[sensor obstructed for
vehicle on left]).
Driving
278
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

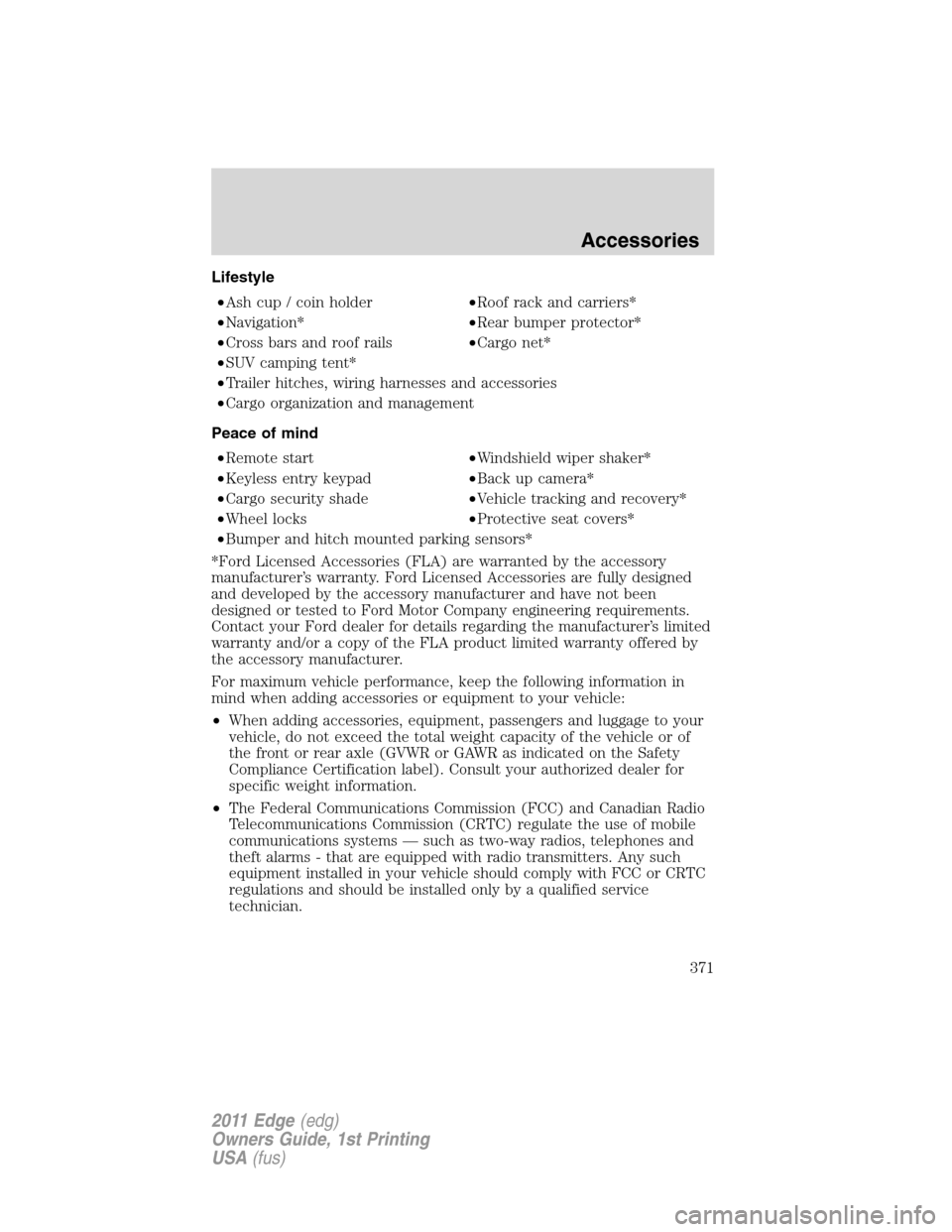

Lifestyle
•Ash cup / coin holder•Roof rack and carriers*
•Navigation*•Rear bumper protector*
•Cross bars and roof rails•Cargo net*
•SUV camping tent*
•Trailer hitches, wiring harnesses and accessories
•Cargo organization and management
Peace of mind
•Remote start•Windshield wiper shaker*
•Keyless entry keypad•Back up camera*
•Cargo security shade•Vehicle tracking and recovery*
•Wheel locks•Protective seat covers*
•Bumper and hitch mounted parking sensors*
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
