Parking brake
To set the parking brake (1), pull
the parking brake handle up as far
as possible.
The BRAKE warning lamp will
illuminate and will remain
illuminated until the parking brake
is released.
To release, press and hold the button (2), pull the handle up slightly,
then push the handle down.
Always set the parking brake fully and make sure that the
gearshift is securely latched in P (Park) (automatic
transmission) or in 1 (First) (manual transmission).
If the parking brake is fully released, but the brake warning lamp
remains illuminated, the brakes may not be working properly.
See your dealer or a qualified service technician as soon as possible.
STEERING
To prevent damage to the power steering system:
•Never hold the steering wheel at its furthest turning points (until it
stops) for more than a few seconds when the engine is running
•Do not operate the vehicle with a low power steering pump fluid level
(below the MIN mark on the reservoir).
•Some noise is normal during operation. If the noise is excessive, check
for low power steering pump fluid level before seeking service by your
dealer.
•Heavy or uneven steering efforts may be caused by low power steering
pump fluid level. Check for low power steering pump fluid level before
seeking service by your dealer.
!
BRAKE
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
174

Mud and water
If you must drive through high
water, drive slowly. Traction or
brake capability may be limited.
When driving through water,
determine the depth; avoid water
higher than the bottom of the hubs
(if possible) and proceed slowly. If
the ignition system gets wet, the
vehicle may stall.
Once through water, always try the brakes. Wet brakes do not stop the
vehicle as effectively as dry brakes. Drying can be improved by moving
your vehicle slowly while applying light pressure on the brake pedal.
Be cautious of sudden changes in vehicle speed or direction when you
are driving in mud. Even 4WD vehicles can lose traction in slick mud. As
when you are driving over sand, apply the accelerator slowly and avoid
spinning your wheels. If the vehicle does slide, steer in the direction of
the slide until you regain control of the vehicle.
If the transmission, transfer case or front axle are submerged in water,
their fluids should be checked and changed, if necessary.
Driving through deep water may damage the transmission.
If the front or rear axle is submerged in water, the axle lubricant should
be replaced.
After driving through mud, clean off residue stuck to rotating driveshafts
and tires. Excess mud stuck on tires and rotating driveshafts causes an
imbalance that could damage drive components.
“Tread Lightly” is an educational
program designed to increase public
awareness of land-use regulations
and responsibilities in our nations
wilderness areas. Ford Motor
Company joins the U.S. Forest Service and the Bureau of Land
Management in encouraging you to help preserve our national forest and
other public and private lands by “treading lightly.”
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
190

SERVICE RECOMMENDATIONS
To help you service your vehicle:
•We highlight do-it-yourself items in the engine compartment for easy
location.
•We providescheduled maintenance informationwhich makes
tracking routine service easy.
If your vehicle requires professional service, your dealership can provide
the necessary parts and service. Check yourWarranty Guide/Owner
Information Guideto find out which parts and services are covered.
Use only recommended fuels, lubricants, fluids and service parts
conforming to specifications. Motorcraft parts are designed and built to
provide the best performance in your vehicle.
PRECAUTIONS WHEN SERVICING YOUR VEHICLE
•Do not work on a hot engine.
•Make sure that nothing gets caught in moving parts.
•Do not work on a vehicle with the engine running in an enclosed
space, unless you are sure you have enough ventilation.
•Keep all open flames and other lit material away from the battery and
all fuel related parts.
Working with the engine off
•Automatic transmission:
1. Set the parking brake and shift to P (Park).
2. Turn off the engine and remove the key.
3. Block the wheels.
•Manual transmission:
1. Set the parking brake, depress the clutch and place the gearshift in 1
(First).
2. Turn off the engine and remove the key.
3. Block the wheels.
Working with the engine on
•Automatic transmission:
1. Set the parking brake and shift to P (Park).
2. Block the wheels.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
237

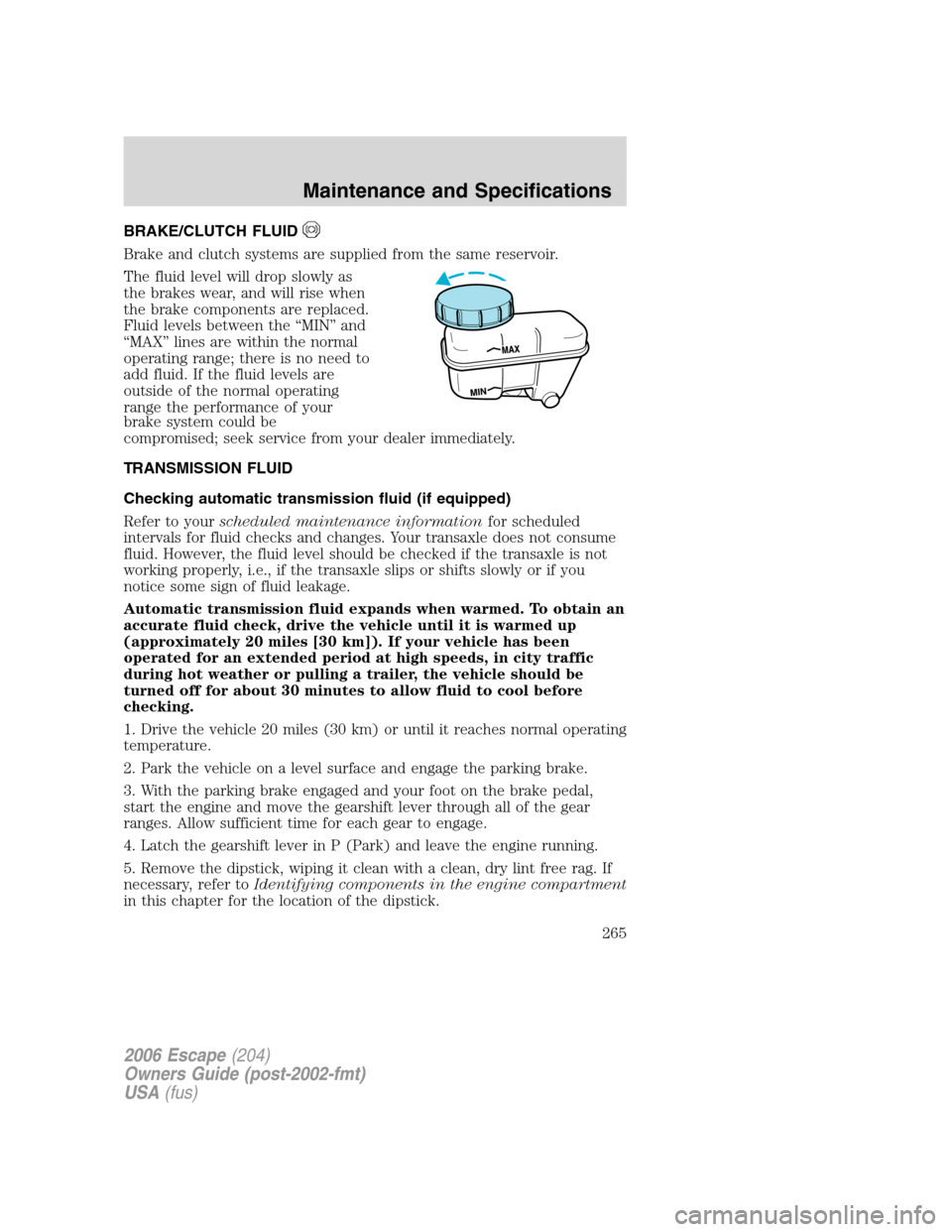

BRAKE/CLUTCH FLUID
Brake and clutch systems are supplied from the same reservoir.
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range the performance of your
brake system could be
compromised; seek service from your dealer immediately.
TRANSMISSION FLUID
Checking automatic transmission fluid (if equipped)
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transaxle does not consume
fluid. However, the fluid level should be checked if the transaxle is not
working properly, i.e., if the transaxle slips or shifts slowly or if you
notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is warmed up
(approximately 20 miles [30 km]). If your vehicle has been
operated for an extended period at high speeds, in city traffic
during hot weather or pulling a trailer, the vehicle should be
turned off for about 30 minutes to allow fluid to cool before
checking.
1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
265

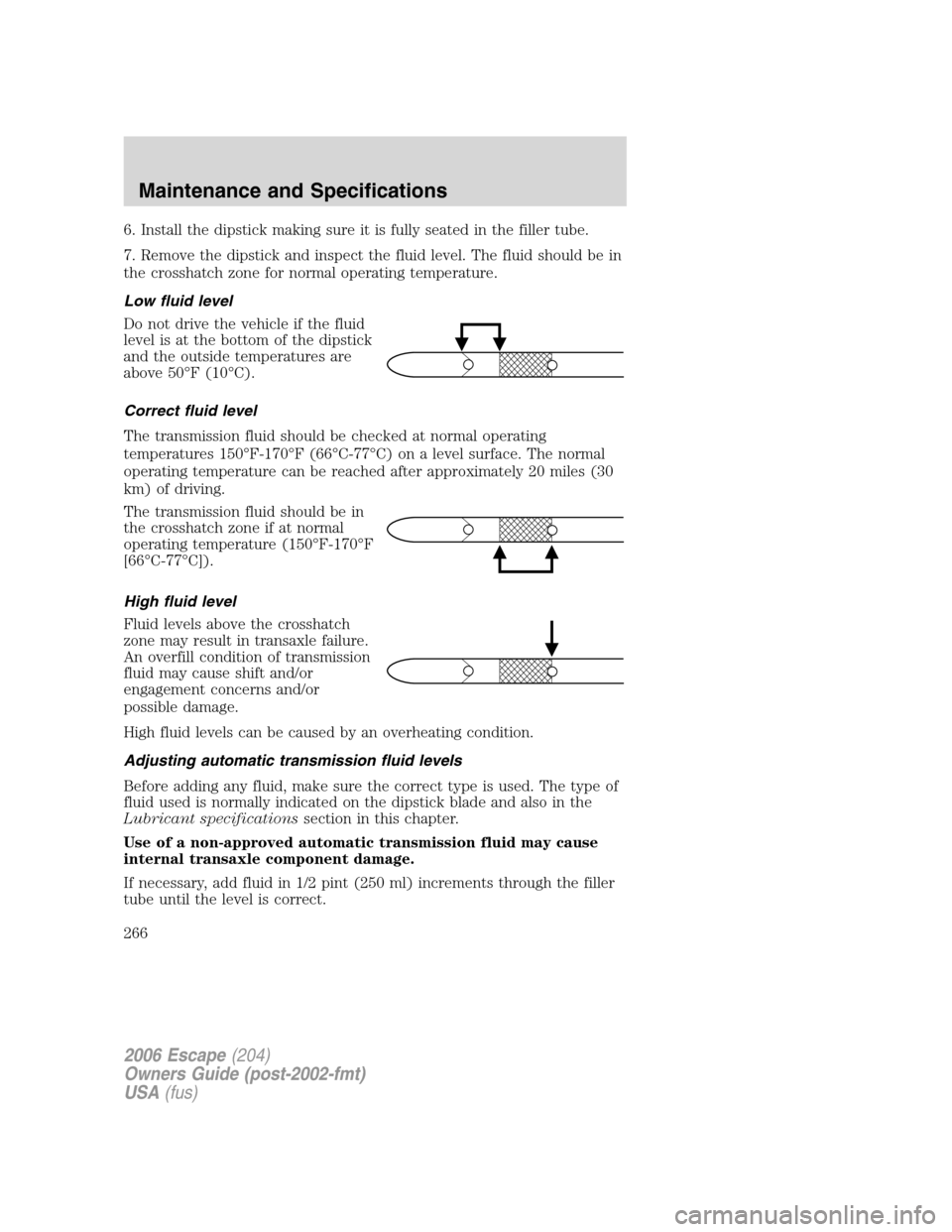

6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in
the crosshatch zone for normal operating temperature.
Low fluid level
Do not drive the vehicle if the fluid
level is at the bottom of the dipstick
and the outside temperatures are
above 50°F (10°C).
Correct fluid level
The transmission fluid should be checked at normal operating
temperatures 150°F-170°F (66°C-77°C) on a level surface. The normal
operating temperature can be reached after approximately 20 miles (30
km) of driving.
The transmission fluid should be in
the crosshatch zone if at normal
operating temperature (150°F-170°F
[66°C-77°C]).
High fluid level
Fluid levels above the crosshatch
zone may result in transaxle failure.
An overfill condition of transmission
fluid may cause shift and/or
engagement concerns and/or
possible damage.
High fluid levels can be caused by an overheating condition.
Adjusting automatic transmission fluid levels
Before adding any fluid, make sure the correct type is used. The type of
fluid used is normally indicated on the dipstick blade and also in the
Lubricant specificationssection in this chapter.
Use of a non-approved automatic transmission fluid may cause
internal transaxle component damage.
If necessary, add fluid in 1/2 pint (250 ml) increments through the filler
tube until the level is correct.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
266

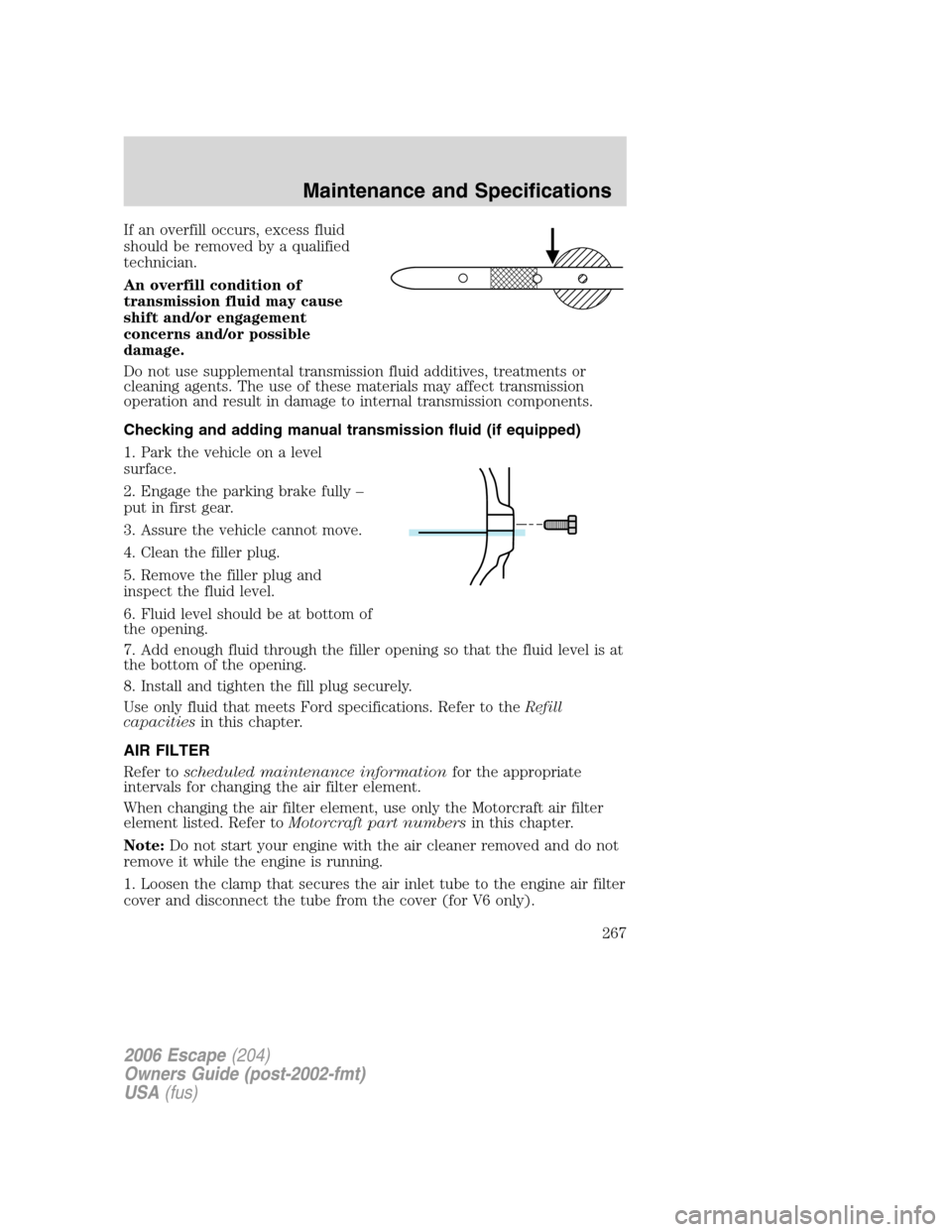

If an overfill occurs, excess fluid
should be removed by a qualified
technician.
An overfill condition of
transmission fluid may cause
shift and/or engagement
concerns and/or possible
damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
Checking and adding manual transmission fluid (if equipped)
1. Park the vehicle on a level
surface.
2. Engage the parking brake fully –
put in first gear.
3. Assure the vehicle cannot move.
4. Clean the filler plug.
5. Remove the filler plug and
inspect the fluid level.
6. Fluid level should be at bottom of
the opening.
7. Add enough fluid through the filler opening so that the fluid level is at
the bottom of the opening.
8. Install and tighten the fill plug securely.
Use only fluid that meets Ford specifications. Refer to theRefill
capacitiesin this chapter.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
Note:Do not start your engine with the air cleaner removed and do not
remove it while the engine is running.
1. Loosen the clamp that secures the air inlet tube to the engine air filter
cover and disconnect the tube from the cover (for V6 only).
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
267

A
Accessory delay ..........................58
Air cleaner filter ...............267, 269
Airbag supplemental restraint
system ........................114, 121, 124
and child safety seats ............116
description ..............114, 121, 124
disposal ....................................127
driver airbag ............116, 122, 125
indicator light .........120, 123, 126
operation .................116, 122, 125
passenger airbag .....116, 122, 125
side airbag ...............................121
All Wheel Drive (AWD),
driving off road .........................186
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................248
Anti-lock brake system
(see Brakes) ..............................173
Anti-theft system ........................90
arming the system ....................90
disarming a triggered system ..91
Audio system
(see Radio) ......................19, 27, 31
Automatic transaxle
fluid, adding ............................265
fluid, checking ........................265
Automatic transmission ............176
driving an automatic
overdrive .................................178
fluid, refill capacities ..............270
fluid, specification ..................274
Auxiliary power point .................55
Axle
lubricant specifications ..272, 274
refill capacities ........................270B
Battery .......................................246
acid, treating emergencies .....246
jumping a disabled battery ....214
maintenance-free ....................246
replacement, specifications ...269
servicing ..................................246
BeltMinder .................................109
Brakes ................................172–173
anti-lock ...................................173
anti-lock brake system (ABS)
warning light ...........................173
fluid, checking and adding ....265
fluid, refill capacities ..............270
fluid, specifications .........272, 274
lubricant specifications ..272, 274
parking ....................................174
shift interlock ..........................176
Bulbs ............................................47
C
Calculating load ........................163
Capacities for refilling fluids ....270
Cargo area shade ........................70
Cargo cover .................................71
Cassette tape player ...................19
Cell phone use ..............................8
Child safety restraints ..............128
child safety belts ....................128
Child safety seats ......................130
attaching with tether straps ..134
in front seat ............................132
in rear seat ..............................132
Cleaning your vehicle
engine compartment ..............232
instrument panel ....................234
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
282

interior .....................................235
interior trim ............................234
plastic parts ............................233
washing ....................................231
waxing .....................................231
wheels ......................................232
wiper blades ............................234
Climate control (see Air
conditioning or Heating) ......38–39
Clock ............................................32
Clock adjust
6-CD in dash .......................20, 25
AM/FM/CD .................................29
AM/FM/Tape/CD .......................32
Single CD ..................................29
Clutch
fluid ..........................................265
operation while driving ..........181
recommended shift speeds ....182
Console ........................................56
overhead ....................................54
Controls
power seat .................................94
Coolant
checking and adding ..............248
refill capacities ................251, 270
specifications ..................272, 274
Cruise control
(see Speed control) ....................59
Customer Assistance ................194
Ford Extended Service
Plan ..........................................228
Getting assistance outside
the U.S. and Canada ..............229
Getting roadside assistance ...194
Getting the service you
need .........................................222
Ordering additional owner’s
literature .................................230The Dispute Settlement
Board .......................................225
Utilizing the
Mediation/Arbitration
Program ...................................228
D
Daytime running lamps
(see Lamps) ................................43
Defrost
rear window ..............................40
Dipstick
automatic transmission
fluid ..........................................265
engine oil .................................242
Doors
lubricant specifications ..........272
Driving under special
conditions ..................180, 188, 191
sand .........................................189
snow and ice ...........................192
through water .................190, 193
E
Electronic message center .........62
Emergencies, roadside
jump-starting ..........................214
Emission control system ..........262
Engine ........................................274
cleaning ...................................232
coolant .....................................248
fail-safe cooling .......................252
idle speed control ...................246
lubrication specifications ......272,
274
refill capacities ........................270
service points ..................239–240
starting after a collision .........196
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
283

Instrument panel
cleaning ...................................234
cluster ........................................12
lighting up panel and
interior .......................................44
J
Jump-starting your vehicle ......214
K
Keyless entry system
autolock .....................................81
Keys
positions of the ignition .........169
L
Lamps
autolamp system .......................41
bulb replacement
specifications chart ..................48
daytime running light ...............43
fog lamps ...................................44
headlamps .................................41
headlamps, flash to pass ..........43
instrument panel, dimming .....44
interior lamps .....................46–48
replacing bulbs ....... 47–48, 50–51
Lane change indicator
(see Turn signal) ........................46
Liftgate ........................................70
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........173
Load limits .................................156
Loading instructions .................163
Locks
autolock .....................................81
childproof ..................................83Lubricant specifications ...272, 274
Lug nuts ....................................214
Luggage rack ...............................71
M
Manual transaxle .......................181
fluid, checking and adding ....267
reverse .....................................182
Manual transmission
fluid capacities ........................270
lubricant specifications ..........274
Message center .....................62–63
english/metric button ...............64
system check button ................65
warning messages .....................66
Mirrors .........................................55
automatic dimming rearview
mirror ........................................58
fold away ...................................59
heated ........................................59
side view mirrors (power) .......58
Moon roof ....................................62
Motorcraft parts ........236, 254, 269
O
Octane rating ............................257
Oil (see Engine oil) ..................242
Overdrive ...................................177
P
Parking .......................................183
Parking brake ............................174
Parts (see Motorcraft parts) ....269
Passenger Occupant
Classification Sensor .................101
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
285

checking the pressure ............144
inspecting and inflating .........144
label .........................................151
replacing ..................................146
rotating ....................................154
safety practices .......................153
sidewall information ...............147
snow tires and chains ............155
spare tire .................................204
terminology .............................143
tire grades ...............................142
treadwear ........................142, 152
Towing .......................................163
recreational towing .................168
trailer towing ..........................163
wrecker ....................................220
Transaxle
fluid, checking and adding
(manual) .................................267
manual operation ....................181
Transmission
automatic operation ...............176
brake-shift interlock (BSI) ....176
fluid, checking and adding
(automatic) .............................265
fluid, refill capacities ..............270
lubricant specifications ..272, 274Turn signal ..................................46
V
Vehicle dimensions ...................274
Vehicle Identification Number
(VIN) ..........................................277
Vehicle loading ..........................156
Ventilating your vehicle ...........172
W
Warning lights (see Lights) .......12
Washer fluid ..............................241
Water, Driving through .............193
Windows
power .........................................57
rear wiper/washer .....................53
Windshield washer fluid and
wipers
checking and adding fluid .....241
liftgate reservoir .....................241
operation ...................................52
replacing wiper blades ...........242
Wrecker towing .........................220
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
287
