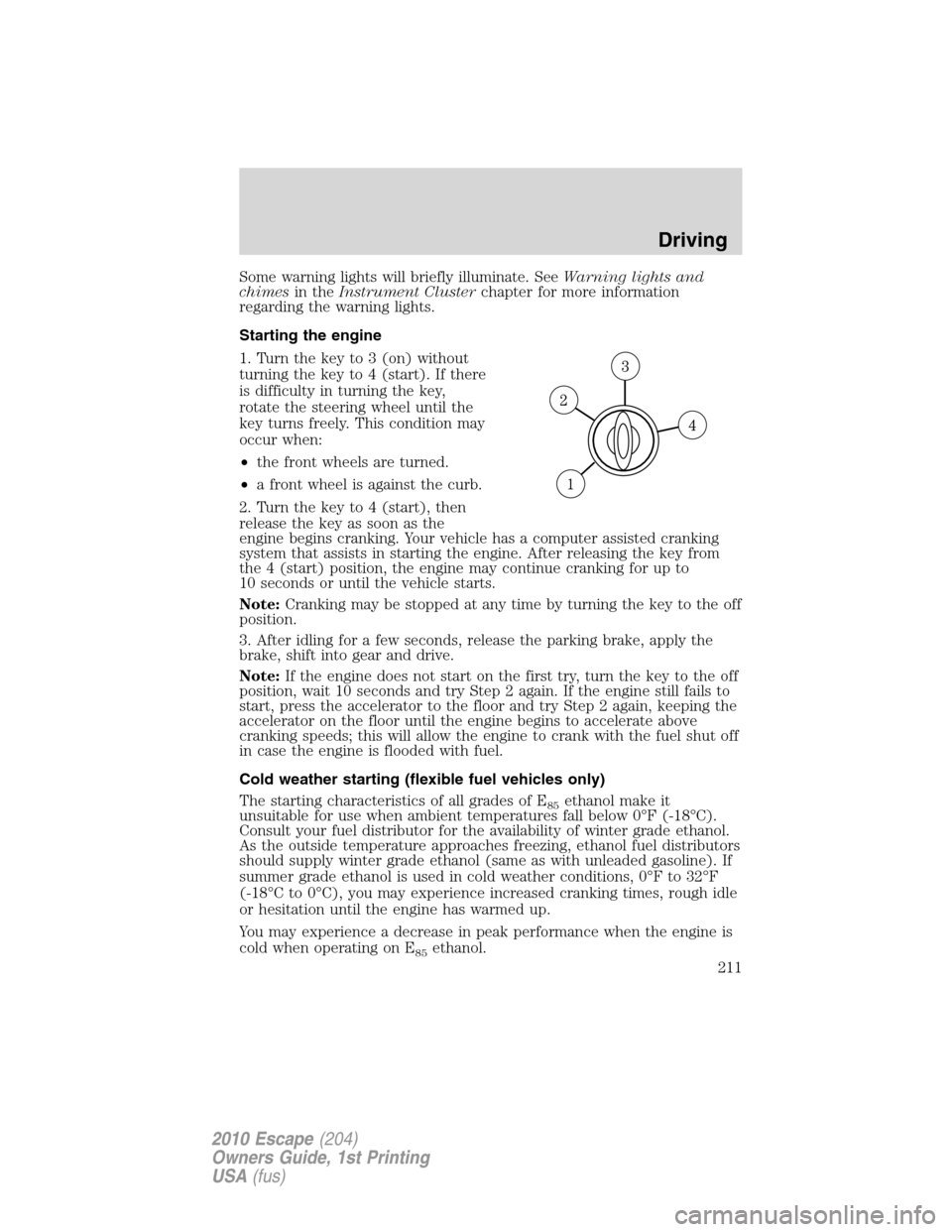

Some warning lights will briefly illuminate. SeeWarning lights and
chimesin theInstrument Clusterchapter for more information
regarding the warning lights.
Starting the engine
1. Turn the key to 3 (on) without
turning the key to 4 (start). If there
is difficulty in turning the key,
rotate the steering wheel until the
key turns freely. This condition may
occur when:
•the front wheels are turned.
•a front wheel is against the curb.
2. Turn the key to 4 (start), then
release the key as soon as the
engine begins cranking. Your vehicle has a computer assisted cranking
system that assists in starting the engine. After releasing the key from
the 4 (start) position, the engine may continue cranking for up to
10 seconds or until the vehicle starts.
Note:Cranking may be stopped at any time by turning the key to the off
position.
3. After idling for a few seconds, release the parking brake, apply the
brake, shift into gear and drive.
Note:If the engine does not start on the first try, turn the key to the off
position, wait 10 seconds and try Step 2 again. If the engine still fails to
start, press the accelerator to the floor and try Step 2 again, keeping the
accelerator on the floor until the engine begins to accelerate above
cranking speeds; this will allow the engine to crank with the fuel shut off
in case the engine is flooded with fuel.
Cold weather starting (flexible fuel vehicles only)
The starting characteristics of all grades of E
85ethanol make it
unsuitable for use when ambient temperatures fall below 0°F (-18°C).
Consult your fuel distributor for the availability of winter grade ethanol.
As the outside temperature approaches freezing, ethanol fuel distributors
should supply winter grade ethanol (same as with unleaded gasoline). If
summer grade ethanol is used in cold weather conditions, 0°F to 32°F
(-18°C to 0°C), you may experience increased cranking times, rough idle
or hesitation until the engine has warmed up.
You may experience a decrease in peak performance when the engine is
cold when operating on E
85ethanol.
Driving
211
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

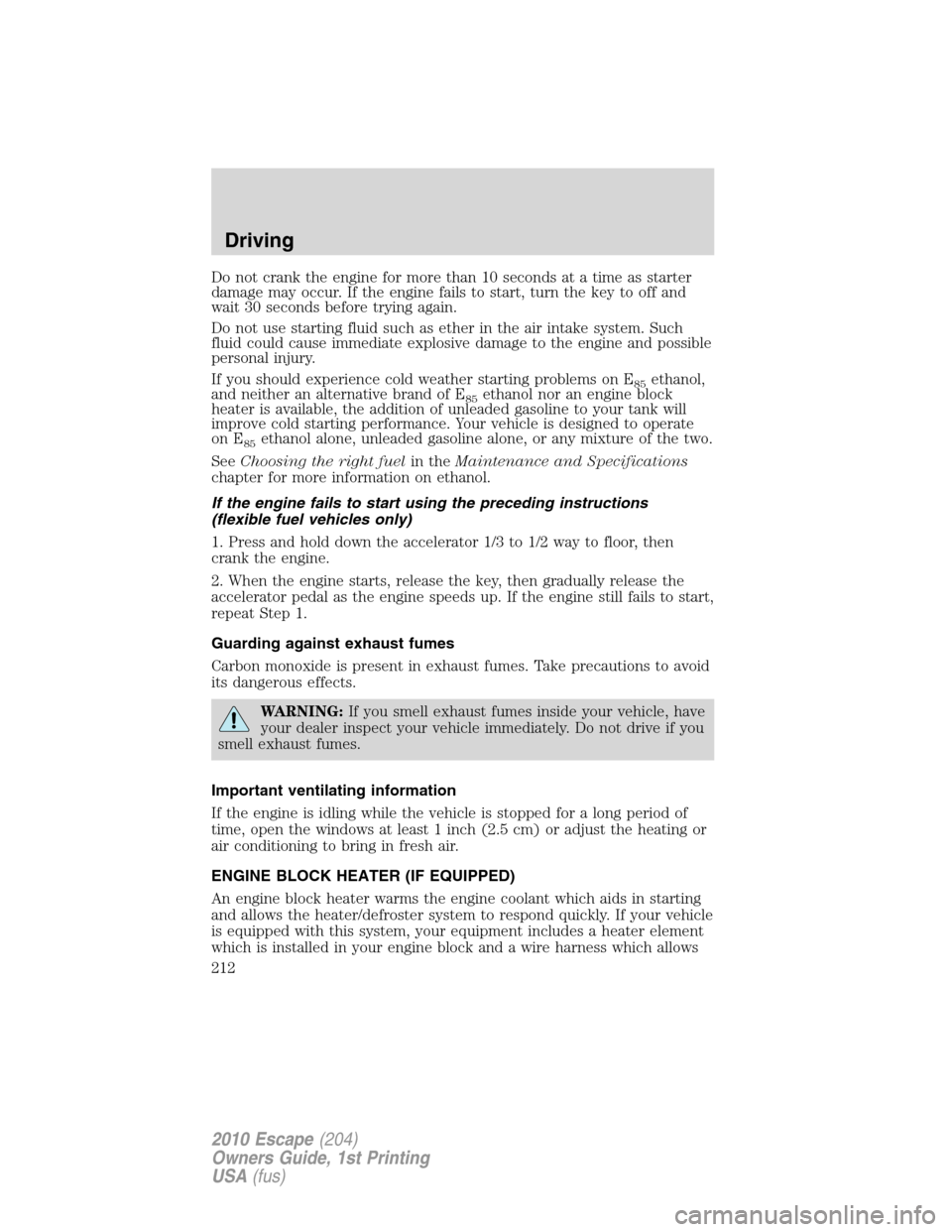

Do not crank the engine for more than 10 seconds at a time as starter
damage may occur. If the engine fails to start, turn the key to off and
wait 30 seconds before trying again.
Do not use starting fluid such as ether in the air intake system. Such
fluid could cause immediate explosive damage to the engine and possible
personal injury.
If you should experience cold weather starting problems on E
85ethanol,
and neither an alternative brand of E
85ethanol nor an engine block
heater is available, the addition of unleaded gasoline to your tank will
improve cold starting performance. Your vehicle is designed to operate
on E
85ethanol alone, unleaded gasoline alone, or any mixture of the two.
SeeChoosing the right fuelin theMaintenance and Specifications
chapter for more information on ethanol.
If the engine fails to start using the preceding instructions
(flexible fuel vehicles only)
1. Press and hold down the accelerator 1/3 to 1/2 way to floor, then
crank the engine.
2. When the engine starts, release the key, then gradually release the
accelerator pedal as the engine speeds up. If the engine still fails to start,
repeat Step 1.
Guarding against exhaust fumes
Carbon monoxide is present in exhaust fumes. Take precautions to avoid
its dangerous effects.
WARNING:If you smell exhaust fumes inside your vehicle, have
your dealer inspect your vehicle immediately. Do not drive if you
smell exhaust fumes.
Important ventilating information
If the engine is idling while the vehicle is stopped for a long period of
time, open the windows at least 1 inch (2.5 cm) or adjust the heating or
air conditioning to bring in fresh air.
ENGINE BLOCK HEATER (IF EQUIPPED)
An engine block heater warms the engine coolant which aids in starting
and allows the heater/defroster system to respond quickly. If your vehicle
is equipped with this system, your equipment includes a heater element
which is installed in your engine block and a wire harness which allows
Driving
212
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

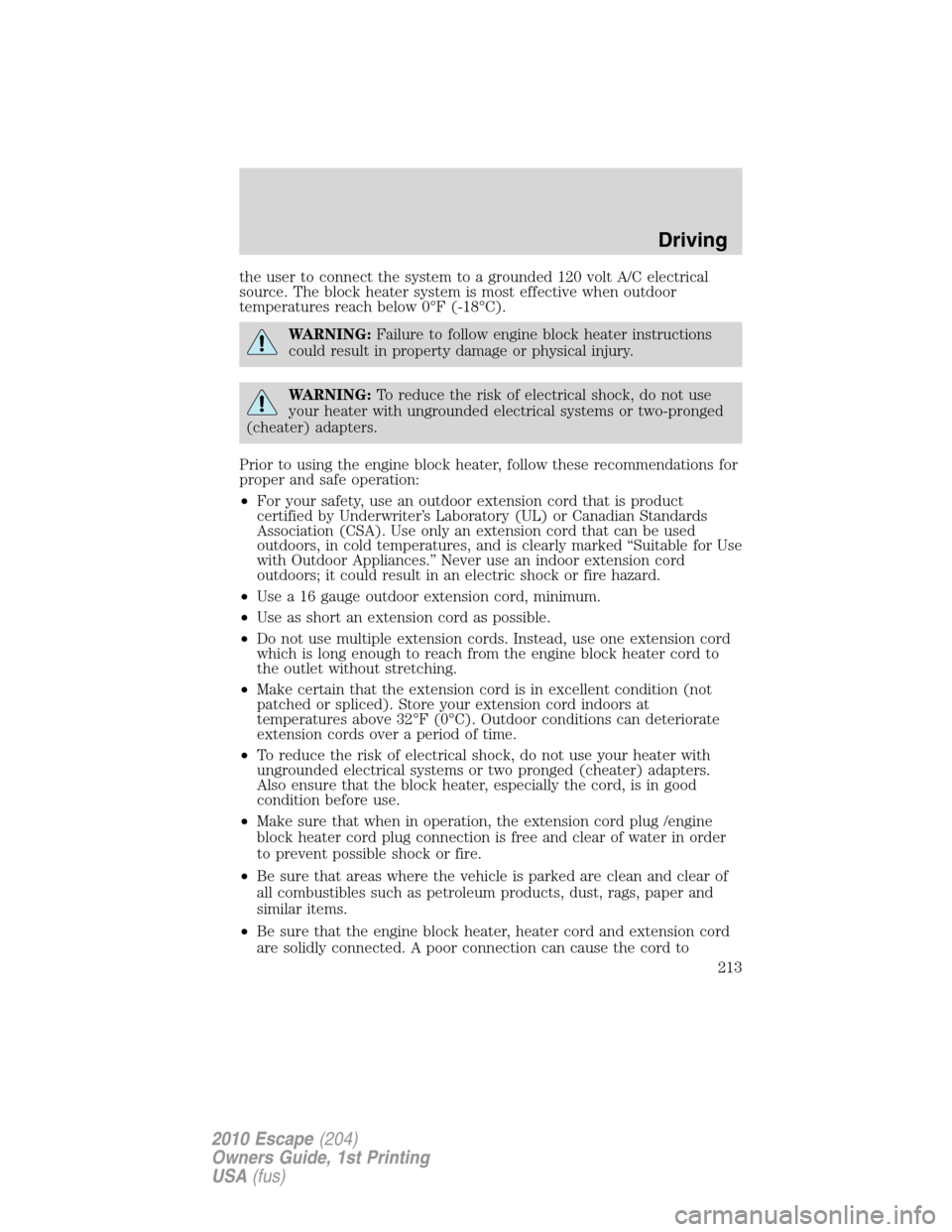

the user to connect the system to a grounded 120 volt A/C electrical
source. The block heater system is most effective when outdoor
temperatures reach below 0°F (-18°C).
WARNING:Failure to follow engine block heater instructions
could result in property damage or physical injury.
WARNING:To reduce the risk of electrical shock, do not use
your heater with ungrounded electrical systems or two-pronged
(cheater) adapters.
Prior to using the engine block heater, follow these recommendations for
proper and safe operation:
•For your safety, use an outdoor extension cord that is product
certified by Underwriter’s Laboratory (UL) or Canadian Standards
Association (CSA). Use only an extension cord that can be used
outdoors, in cold temperatures, and is clearly marked “Suitable for Use
with Outdoor Appliances.” Never use an indoor extension cord
outdoors; it could result in an electric shock or fire hazard.
•Use a 16 gauge outdoor extension cord, minimum.
•Use as short an extension cord as possible.
•Do not use multiple extension cords. Instead, use one extension cord
which is long enough to reach from the engine block heater cord to
the outlet without stretching.
•Make certain that the extension cord is in excellent condition (not
patched or spliced). Store your extension cord indoors at
temperatures above 32°F (0°C). Outdoor conditions can deteriorate
extension cords over a period of time.
•To reduce the risk of electrical shock, do not use your heater with
ungrounded electrical systems or two pronged (cheater) adapters.
Also ensure that the block heater, especially the cord, is in good
condition before use.
•Make sure that when in operation, the extension cord plug /engine
block heater cord plug connection is free and clear of water in order
to prevent possible shock or fire.
•Be sure that areas where the vehicle is parked are clean and clear of
all combustibles such as petroleum products, dust, rags, paper and
similar items.
•Be sure that the engine block heater, heater cord and extension cord
are solidly connected. A poor connection can cause the cord to
Driving
213
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

become very hot and may result in an electrical shock or fire. Be sure
to check for heat anywhere in the electrical hookup once the system
has been operating for approximately a half hour.
•Finally, have the engine block heater system checked during your fall
tune-up to be sure it’s in good working order.
How to use the engine block heater
Ensure the receptacle terminals are clean and dry prior to use. To clean
them, use a dry cloth.
Depending on the type of factory installed equipment, your engine block
heater will use .4 to 1.0 kilowatt-hours of energy per hour of use. Your
factory installed block heater system does not have a thermostat;
however, maximum temperature is attained after approximately three
hours of operation. Block heater operation longer than three hours will
not improve system performance and will unnecessarily use additional
electricity.
Make sure system is unplugged and properly stowed before driving the
vehicle. While not in use, make sure the protective cover seals the
prongs of the engine block heater cord plug.
BRAKES
Occasional brake noise is normal. If a metal-to-metal, continuous grinding
or continuous squeal sound is present, the brake linings may be worn-out
and should be inspected by an authorized dealer. If the vehicle has
continuous vibration or shudder in the steering wheel while braking, the
vehicle should be inspected by an authorized dealer.
Refer toWarning lights and
chimesin theInstrument Cluster
chapter for information on the brake
system warning light.
Under normal operating conditions, brake dust may accumulate on the
wheels. Some brake dust is inevitable as brakes wear and does not
contribute to brake noise. The use of modern friction materials with
emphasis on improved performance and environmental considerations
can lead to more dust than in the past. Brake dust can be cleaned by
weekly washing with soapy water and a soft sponge. Heavier deposits can
be removed with Motorcraft Wheel and Tire Cleaner (ZC-37–A).
Four-wheel anti-lock brake system (ABS)
Your vehicle is equipped with an anti-lock braking system (ABS). This
system helps you maintain steering control during emergency stops by
P!
BRAKE
Driving
214
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

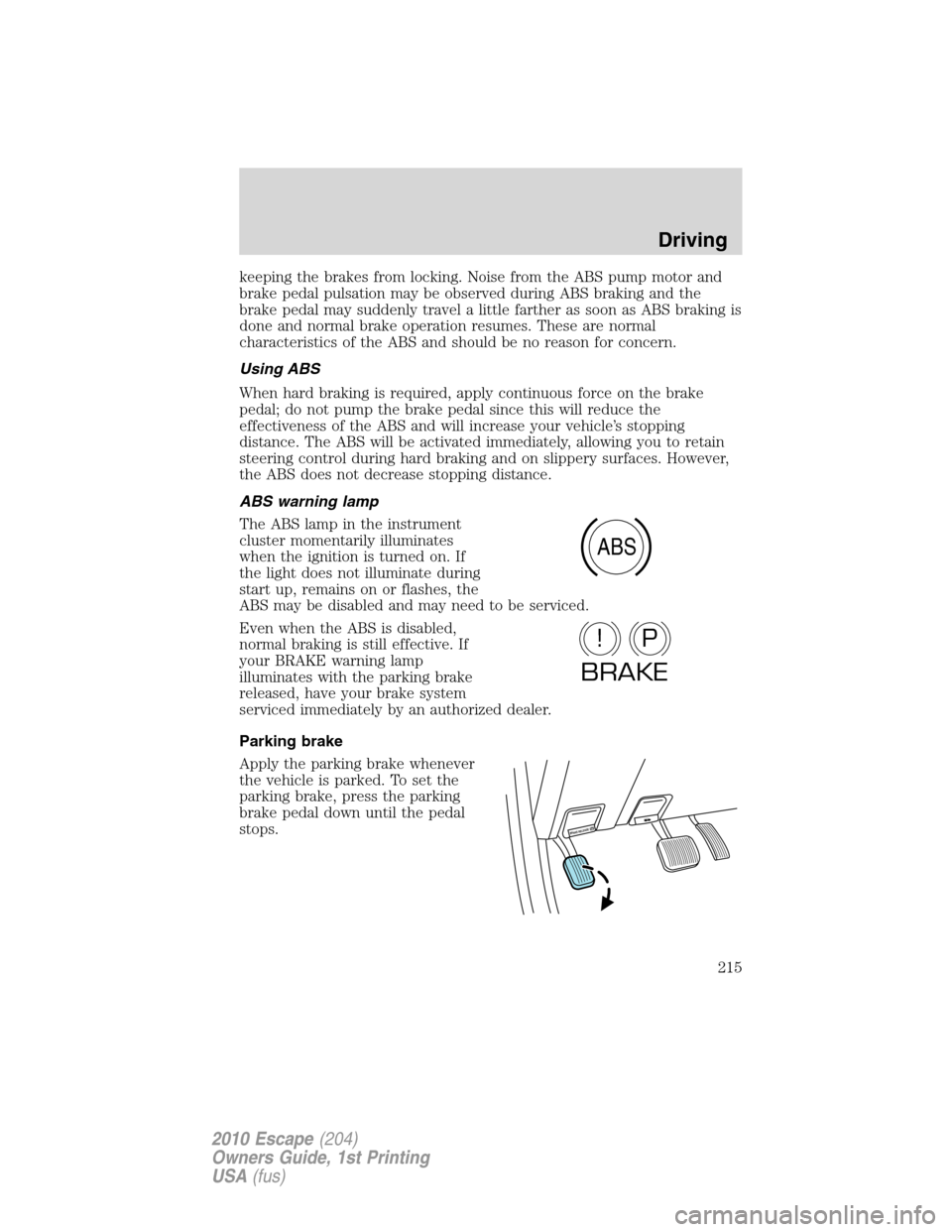

keeping the brakes from locking. Noise from the ABS pump motor and
brake pedal pulsation may be observed during ABS braking and the
brake pedal may suddenly travel a little farther as soon as ABS braking is
done and normal brake operation resumes. These are normal
characteristics of the ABS and should be no reason for concern.
Using ABS
When hard braking is required, apply continuous force on the brake
pedal; do not pump the brake pedal since this will reduce the
effectiveness of the ABS and will increase your vehicle’s stopping
distance. The ABS will be activated immediately, allowing you to retain
steering control during hard braking and on slippery surfaces. However,
the ABS does not decrease stopping distance.
ABS warning lamp
The ABS lamp in the instrument
cluster momentarily illuminates
when the ignition is turned on. If
the light does not illuminate during
start up, remains on or flashes, the
ABS may be disabled and may need to be serviced.
Even when the ABS is disabled,
normal braking is still effective. If
your BRAKE warning lamp
illuminates with the parking brake
released, have your brake system
serviced immediately by an authorized dealer.
Parking brake
Apply the parking brake whenever
the vehicle is parked. To set the
parking brake, press the parking
brake pedal down until the pedal
stops.
ABS
P!
BRAKE
BRAKE RELEASE P
Driving
215
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

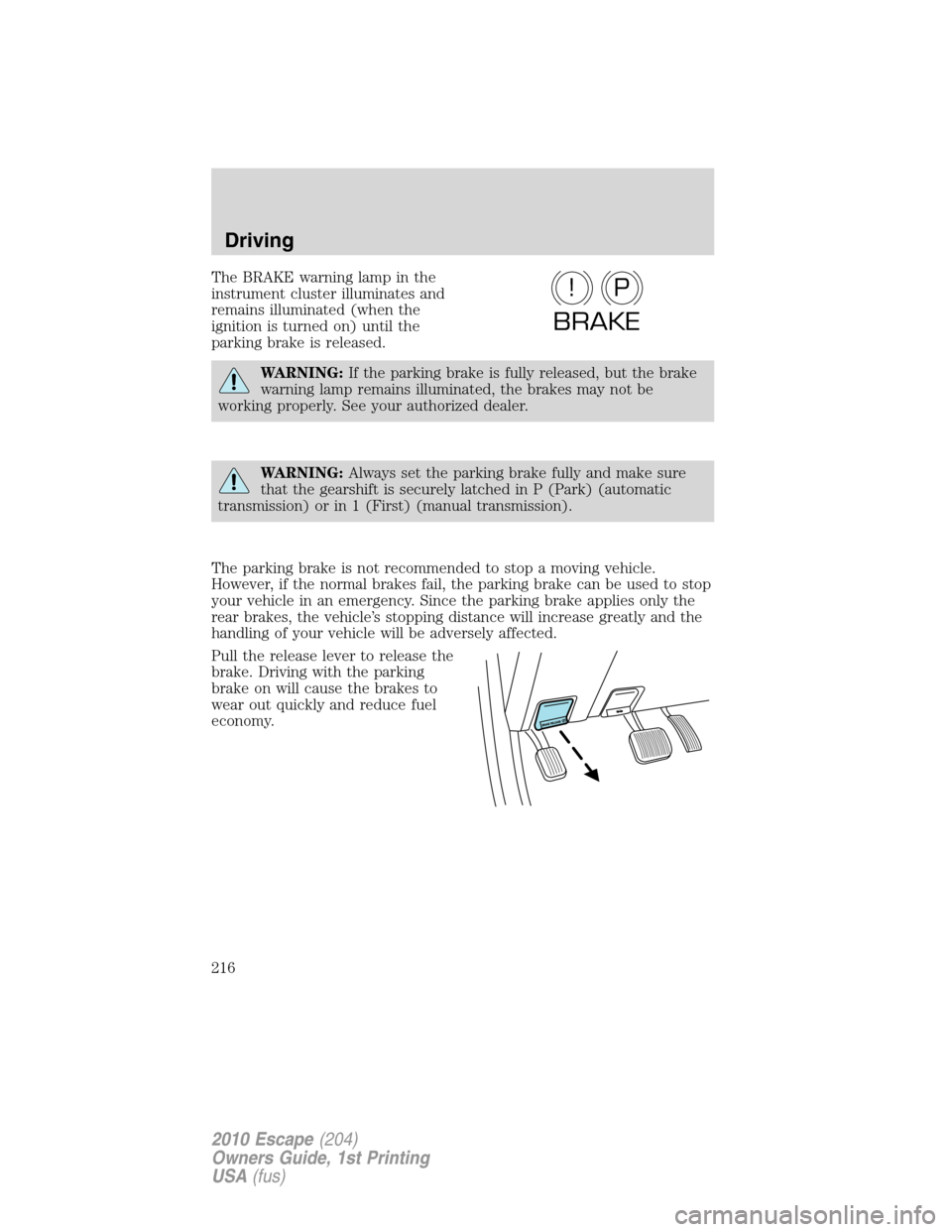

The BRAKE warning lamp in the
instrument cluster illuminates and
remains illuminated (when the
ignition is turned on) until the
parking brake is released.
WARNING:If the parking brake is fully released, but the brake
warning lamp remains illuminated, the brakes may not be
working properly. See your authorized dealer.
WARNING:Always set the parking brake fully and make sure
that the gearshift is securely latched in P (Park) (automatic
transmission) or in 1 (First) (manual transmission).
The parking brake is not recommended to stop a moving vehicle.
However, if the normal brakes fail, the parking brake can be used to stop
your vehicle in an emergency. Since the parking brake applies only the
rear brakes, the vehicle’s stopping distance will increase greatly and the
handling of your vehicle will be adversely affected.
Pull the release lever to release the
brake. Driving with the parking
brake on will cause the brakes to
wear out quickly and reduce fuel
economy.
P!
BRAKE
Driving
216
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

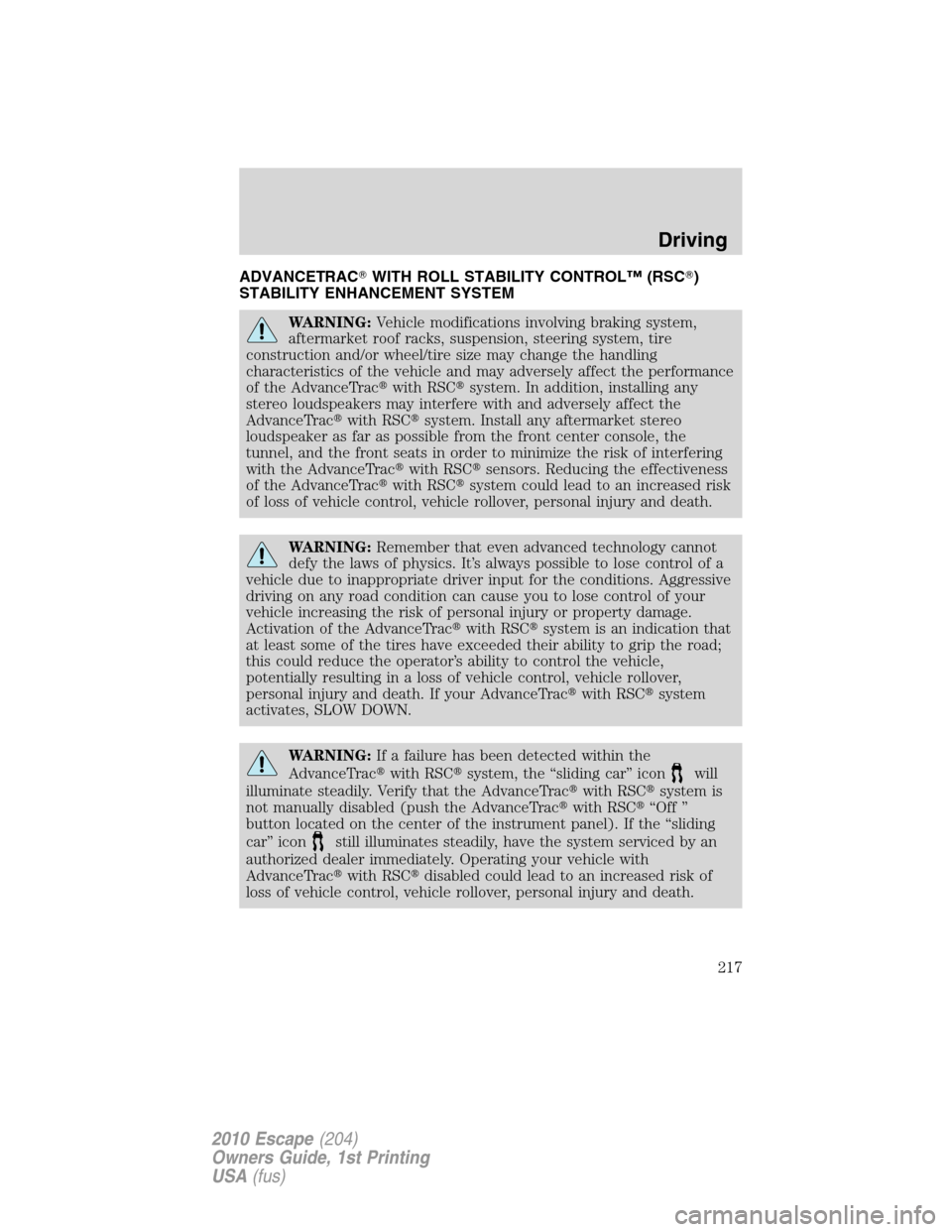

ADVANCETRACWITH ROLL STABILITY CONTROL™ (RSC)
STABILITY ENHANCEMENT SYSTEM
WARNING:Vehicle modifications involving braking system,
aftermarket roof racks, suspension, steering system, tire
construction and/or wheel/tire size may change the handling
characteristics of the vehicle and may adversely affect the performance
of the AdvanceTrac
with RSC
system. In addition, installing any
stereo loudspeakers may interfere with and adversely affect the
AdvanceTrac
with RSC
system. Install any aftermarket stereo
loudspeaker as far as possible from the front center console, the
tunnel, and the front seats in order to minimize the risk of interfering
with the AdvanceTrac
with RSC
sensors. Reducing the effectiveness
of the AdvanceTrac
with RSC
system could lead to an increased risk
of loss of vehicle control, vehicle rollover, personal injury and death.
WARNING:Remember that even advanced technology cannot
defy the laws of physics. It’s always possible to lose control of a
vehicle due to inappropriate driver input for the conditions. Aggressive
driving on any road condition can cause you to lose control of your
vehicle increasing the risk of personal injury or property damage.
Activation of the AdvanceTrac
with RSC
system is an indication that
at least some of the tires have exceeded their ability to grip the road;
this could reduce the operator’s ability to control the vehicle,
potentially resulting in a loss of vehicle control, vehicle rollover,
personal injury and death. If your AdvanceTrac
with RSC
system
activates, SLOW DOWN.
WARNING:If a failure has been detected within the
AdvanceTrac
with RSC
system, the “sliding car” icon
will
illuminate steadily. Verify that the AdvanceTrac
with RSC
system is
not manually disabled (push the AdvanceTrac
with RSC
“Off ”
button located on the center of the instrument panel). If the “sliding
car” icon
still illuminates steadily, have the system serviced by an
authorized dealer immediately. Operating your vehicle with
AdvanceTrac
with RSC
disabled could lead to an increased risk of
loss of vehicle control, vehicle rollover, personal injury and death.
Driving
217
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

The AdvanceTrac
with RSC
system provides the following stability
enhancement features for certain driving situations:
•Traction Control (TCS), which functions to help avoid drive-wheel
spin and loss of traction
•Electronic Stability Control (ESC), which functions to help avoid skids
or lateral slides
•Roll Stability Control™ (RSC
), which functions to help avoid a
vehicle roll-over
The AdvanceTrac
with RSC
system automatically enables each time
the engine is started. All features of the AdvanceTrac
with RSC
system
(TCS, ESC, and RSC
) are active and monitor the vehicle from start-up.
However, the system will only intervene if the driving situation requires
it.
The AdvanceTrac
with RSC

system includes an AdvanceTrac

with RSC
“Off” button on the
instrument panel below the climate
control, and a “sliding car” icon
in the instrument cluster. The
“sliding car” icon
in the instrument cluster will illuminate temporarily
during start-up as part of a normal system self-check, or during driving if
a driving situation causes the AdvanceTrac
with RSC
system to
operate. If the “sliding car” icon
illuminates steadily, verify that the
AdvanceTrac
with RSC
system is not manually disabled by pressing
the AdvanceTrac
with RSC
“Off” button located on the instrument
panel. If the “sliding car” icon
remains steadily illuminated, have the
system serviced by an authorized dealer immediately.
Note:If the system cannot be turned off, refer toMyKey™in theLocks
and Securitychapter for more information.
When AdvanceTrac
with RSC
performs a normal system self-check,
some drivers may notice a slight movement of the brake, and/or a
rumble, grunting, or grinding noise after startup and when driving off.
When an event occurs that activates AdvanceTrac
with RSC
you may
experience the following:
•A slight deceleration of the vehicle
•The “sliding car”
indicator light will flash.
•A vibration in the pedal when your foot is on the brake pedal
Driving
218
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

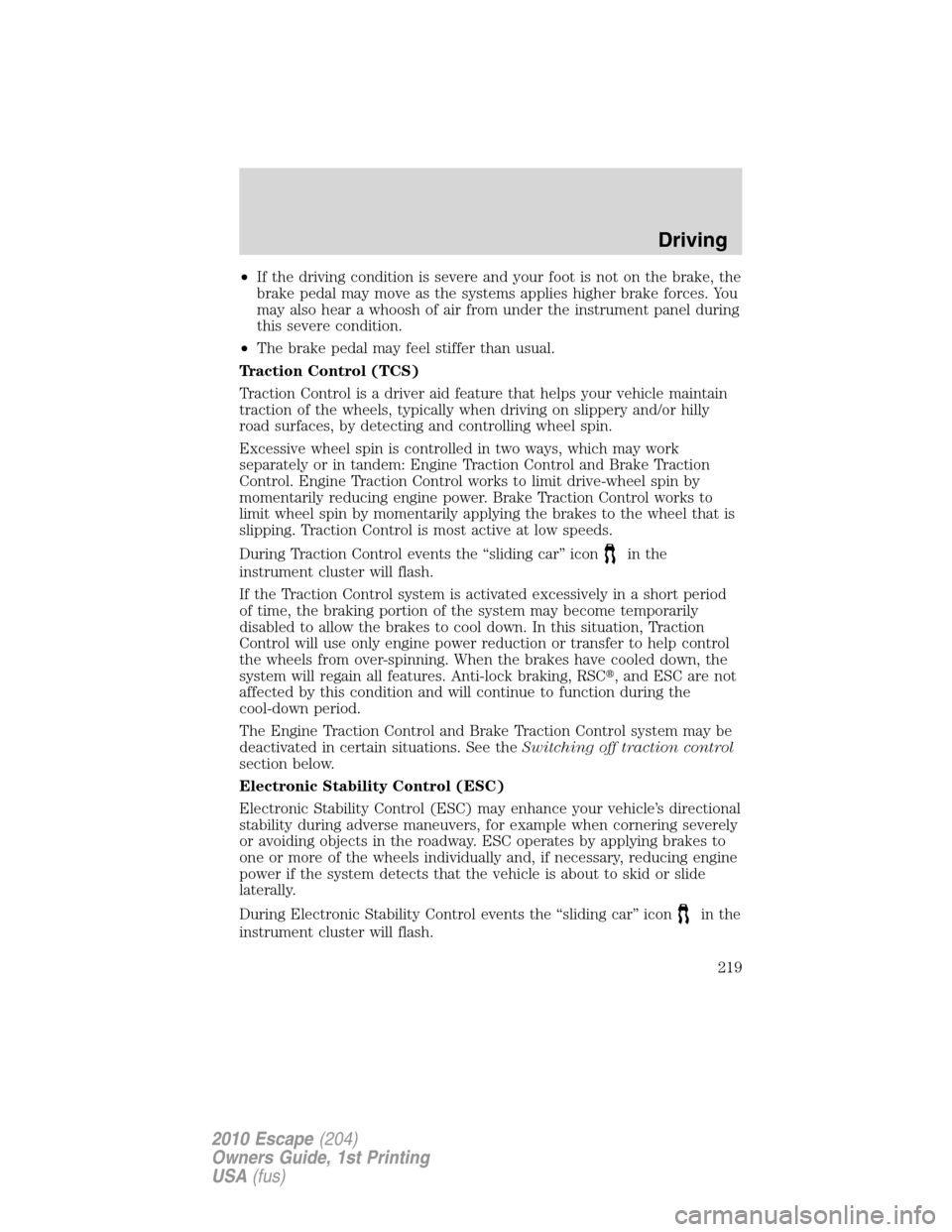

•If the driving condition is severe and your foot is not on the brake, the
brake pedal may move as the systems applies higher brake forces. You
may also hear a whoosh of air from under the instrument panel during
this severe condition.
•The brake pedal may feel stiffer than usual.
Traction Control (TCS)
Traction Control is a driver aid feature that helps your vehicle maintain
traction of the wheels, typically when driving on slippery and/or hilly
road surfaces, by detecting and controlling wheel spin.
Excessive wheel spin is controlled in two ways, which may work
separately or in tandem: Engine Traction Control and Brake Traction
Control. Engine Traction Control works to limit drive-wheel spin by
momentarily reducing engine power. Brake Traction Control works to
limit wheel spin by momentarily applying the brakes to the wheel that is
slipping. Traction Control is most active at low speeds.
During Traction Control events the “sliding car” icon
in the
instrument cluster will flash.
If the Traction Control system is activated excessively in a short period
of time, the braking portion of the system may become temporarily
disabled to allow the brakes to cool down. In this situation, Traction
Control will use only engine power reduction or transfer to help control
the wheels from over-spinning. When the brakes have cooled down, the
system will regain all features. Anti-lock braking, RSC
, and ESC are not
affected by this condition and will continue to function during the
cool-down period.
The Engine Traction Control and Brake Traction Control system may be
deactivated in certain situations. See theSwitching off traction control
section below.
Electronic Stability Control (ESC)
Electronic Stability Control (ESC) may enhance your vehicle’s directional
stability during adverse maneuvers, for example when cornering severely
or avoiding objects in the roadway. ESC operates by applying brakes to
one or more of the wheels individually and, if necessary, reducing engine
power if the system detects that the vehicle is about to skid or slide
laterally.
During Electronic Stability Control events the “sliding car” icon
in the
instrument cluster will flash.
Driving
219
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Certain adverse driving maneuvers may activate the Electronic Stability
Control system, which include but are not limited to:
•Taking a turn too fast
•Maneuvering quickly to avoid an accident, pedestrian or obstacle
•Driving over a patch of ice or other slippery surfaces
•Changing lanes on a snow-rutted road
•Entering a snow-free road from a snow-covered side street, or vice
versa
•Entering a paved road from a gravel road, or vice versa
•Cornering while towing a heavily loaded trailer (refer toTrailer
towingin theTires, Wheels and Loadingchapter).
Roll Stability Control™ (RSC
)
Roll Stability Control (RSC
) may help to maintain roll stability of the
vehicle during adverse maneuvers. RSC
operates by detecting the
vehicle’s roll motion and the rate at which it changes and by applying the
brakes to one or more wheels individually.
During an event that activates the Roll Stability Control™ (RSC
)the
“sliding car” icon
in the instrument cluster will flash.
Certain adverse driving maneuvers may activate the Roll Stability Control
system, which include:
•Emergency lane-change
•Taking a turn too fast
•Quick maneuvering to avoid an accident, pedestrian or obstacle
Switching Off Traction Control
If the vehicle is stuck in snow, mud or sand, and seems to lose engine
power, switching off the Traction Control features of the AdvanceTrac

with RSC
system may be beneficial because the wheels are allowed to
spin. This will restore full engine power and will enhance momentum
through the obstacle. To switch off the Traction Control press the
AdvanceTrac
with RSC
“Off” button. Full features of the AdvanceTrac

with RSC
system can be restored by pressing the AdvanceTrac
with
RSC
“Off” button again or by turning off and restarting the engine.
If you switch off the Traction Control, the “sliding car” icon
will
illuminate steadily. Pressing the AdvanceTrac
with RSC
“Off” button
again will turn off the “sliding car” icon
.
In R (Reverse), ABS and the Engine and Brake Traction Control features
will continue to function; however, ESC and RSC
are disabled.
Driving
220
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)
