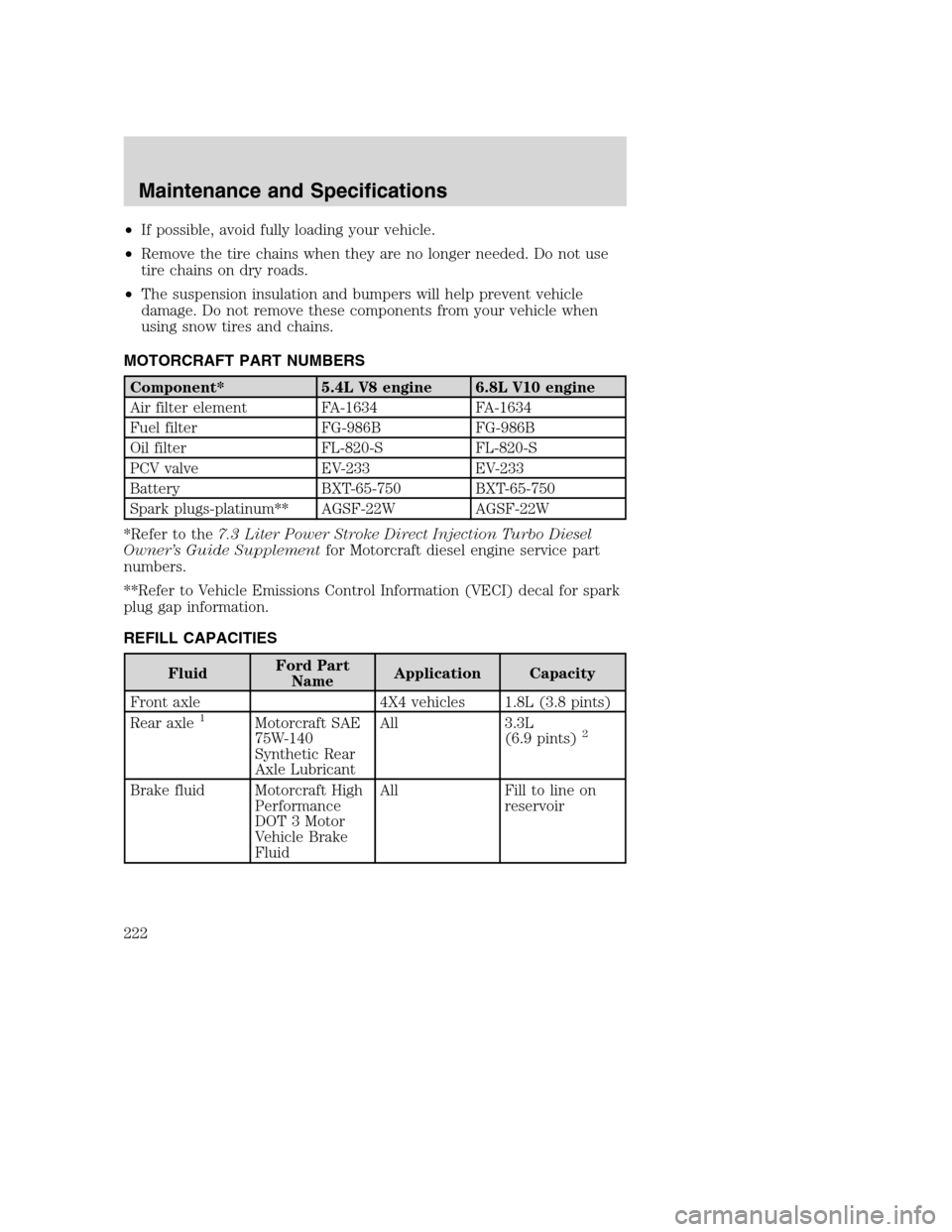

Page 222 of 240

•If possible, avoid fully loading your vehicle.
•Remove the tire chains when they are no longer needed. Do not use
tire chains on dry roads.
•The suspension insulation and bumpers will help prevent vehicle
damage. Do not remove these components from your vehicle when
using snow tires and chains.
MOTORCRAFT PART NUMBERS
Component* 5.4L V8 engine 6.8L V10 engine
Air filter element FA-1634 FA-1634
Fuel filter FG-986B FG-986B
Oil filter FL-820-S FL-820-S
PCV valve EV-233 EV-233
Battery BXT-65-750 BXT-65-750
Spark plugs-platinum** AGSF-22W AGSF-22W
*Refer to the7.3 Liter Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplementfor Motorcraft diesel engine service part
numbers.
**Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
REFILL CAPACITIES
FluidFord Part
NameApplication Capacity
Front axle 4X4 vehicles 1.8L (3.8 pints)
Rear axle
1Motorcraft SAE
75W-140
Synthetic Rear
Axle LubricantAll 3.3L
(6.9 pints)2
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line on
reservoir
Maintenance and Specifications
222
Page 239 of 240

Parts (see Motorcraft parts) ....222
Pedals (see Power
adjustable foot pedals) ...............61
Power adjustable foot
pedals .....................................61, 88
Power distribution box
(see Fuses) ...............................157
Power door locks ........................75
Power point .................................57
Power steering ..........................129
fluid, checking and adding ....213
fluid, refill capacity ................222
fluid, specifications .........225, 227
Power Windows ...........................58
Preparing to drive your
vehicle ........................................130
R
Radio ......................................17, 21
Relays ........................................156
Remote entry system .................77
illuminated entry ......................79
locking/unlocking doors ...........75
Reverse sensing system ...........134
Roadside assistance ..................154
Roof rack .....................................73
S
Safety belts (see
Safety restraints) ................98–102
Safety defects, reporting ..........182
Safety restraints ..................98–102
belt minder .............................104
cleaning the safety belts ........108extension assembly ................108
for adults ...........................99–101
for children .....................113–114
lap belt ....................................103
warning light and chime ........104
Safety seats for children ..........116
Seat belts (see
Safety restraints) ........................98
Seats ............................................86
child safety seats ....................116
memory seat .............................88
Servicing your vehicle ..............189
Snowplowing .................................7
Spare tire (see
Changing the Tire) ...................161
Spark plugs,
specifications .............222, 227–228
Special notice
diesel-powered vehicles .............7
utility-type vehicles ....................7
Specification chart,
lubricants ...........................225, 227
Speed control ..............................61
Starting your vehicle .......124–125,
127
jump starting ..........................166
Steering wheel
controls ......................................64
tilting .........................................55
T
Temperature control
(see Climate control) .................43
Tires ...........................161, 218–219
changing ..........................161–162
checking the pressure ............219
Index
239
