Distance to empty (DTE)
Selecting this function from the
INFO MENU estimates
approximately how far you can drive
with the fuel remaining in your tank
under normal driving conditions.
Remember to turn the ignition off
when refueling to allow this feature to correctly detect the added fuel.
The DTE function will display LOW FUEL LEVEL and sound a tone for
one second when you have approximately 50 miles (80 km) to empty. If
you RESET this warning message, this display and tone will return
within 10 minutes.
DTE is calculated using a running average fuel economy, which is based
on your recent driving history of 500 miles (800 km). This value is not
the same as the average fuel economy display. The running average fuel
economy is reinitialized to a factory default value if the battery is
disconnected.
Average fuel economy (AFE)
Select this function to display your
average fuel economy in miles/gallon
or liters/km.
If you calculate your average fuel
economy by dividing miles traveled
by gallons of fuel used (liters of fuel
used by 100 kilometers traveled), your figure may be different than
displayed for the following reasons:
• Your vehicle was not perfectly level during fill-up
• Differences in the automatic shut-off points on the fuel pumps at
service stations
• Variations in top-off procedure from one fill-up to another
• Rounding of the displayed values to the nearest 0.1 gallon (liter)
1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference.
It is important to press the RESET stem (press and hold for two seconds
in order to reset the function) after setting the speed control to get
accurate highway fuel economy readings.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus) Driver Controls
131

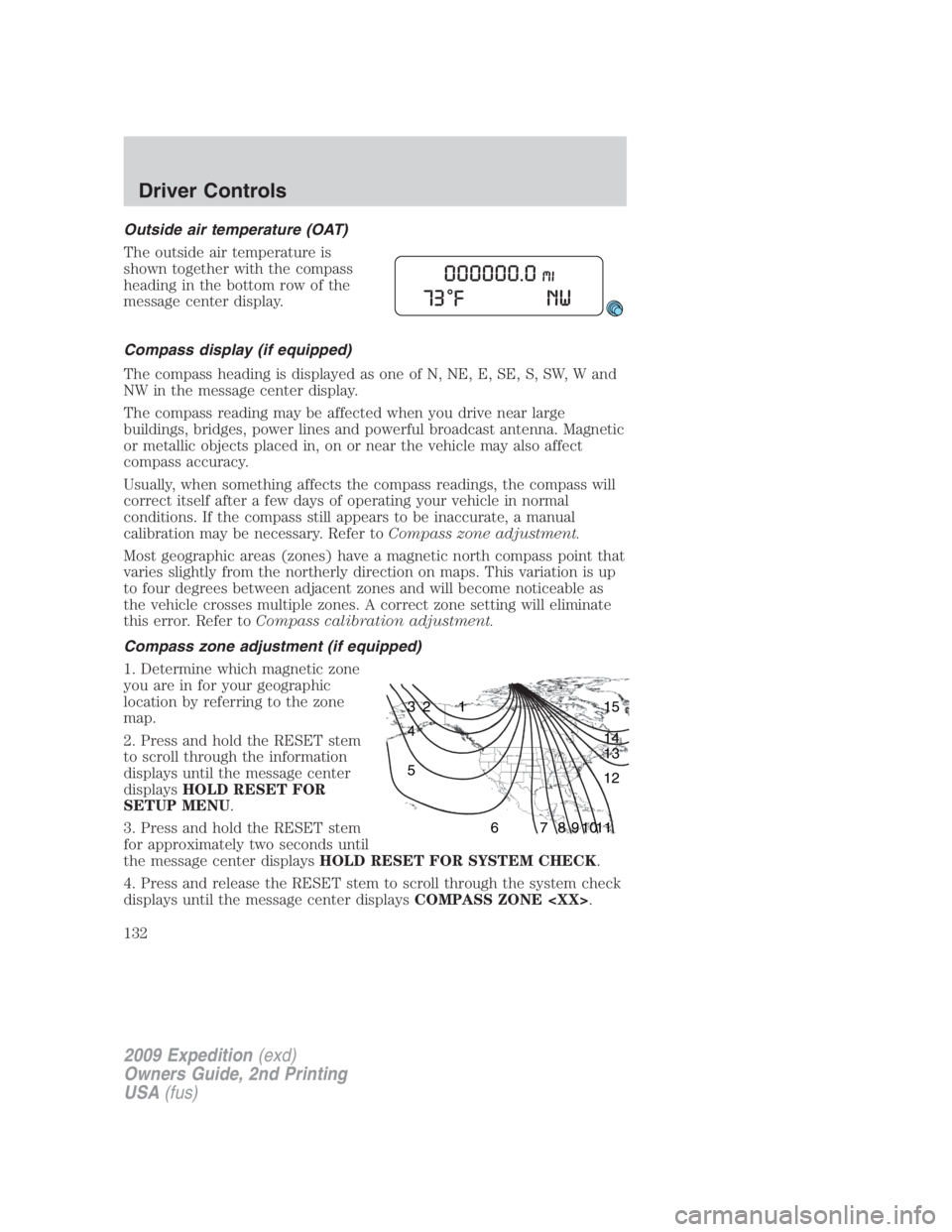

Outside air temperature (OAT)
The outside air temperature is
shown together with the compass
heading in the bottom row of the
message center display.
Compass display (if equipped)
The compass heading is displayed as one of N, NE, E, SE, S, SW, W and
NW in the message center display.
The compass reading may be affected when you drive near large
buildings, bridges, power lines and powerful broadcast antenna. Magnetic
or metallic objects placed in, on or near the vehicle may also affect
compass accuracy.
Usually, when something affects the compass readings, the compass will
correct itself after a few days of operating your vehicle in normal
conditions. If the compass still appears to be inaccurate, a manual
calibration may be necessary. Refer to Compass zone adjustment.
Most geographic areas (zones) have a magnetic north compass point that
varies slightly from the northerly direction on maps. This variation is up
to four degrees between adjacent zones and will become noticeable as
the vehicle crosses multiple zones. A correct zone setting will eliminate
this error. Refer to Compass calibration adjustment.
Compass zone adjustment (if equipped)
1. Determine which magnetic zone
you are in for your geographic
location by referring to the zone
map.
2. Press and hold the RESET stem
to scroll through the information
displays until the message center
displays HOLD RESET FOR
SETUP MENU .
3. Press and hold the RESET stem
for approximately two seconds until
the message center displays HOLD RESET FOR SYSTEM CHECK .
4. Press and release the RESET stem to scroll through the system check
displays until the message center displays COMPASS ZONE .123
4
5
6 7 8 9 1011 12131415
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus)Driver Controls
132

5. Press and hold the RESET stem for approximately two seconds to
enter the compass zone adjustment mode.
6. Press and release the RESET stem until the desired zone number
appears.
7. Release the RESET stem and allow the setup timer to expire to exit
the procedure.
Compass calibration adjustment
NOTE: For optimum calibration, drive to an open, level location away
from large metallic objects or structures. Switch off all non-essential
electrical accessories (heated rear window, heater, A/C, map lamps,
wiper, etc.) and make sure all the doors are closed.
1. Start the vehicle. Press and release the RESET stem to scroll through
the information displays until the message center displays HOLD
RESET FOR SETUP MENU .
2. Press and hold the RESET stem for approximately two seconds until
the message center displays HOLD RESET FOR SYSTEM CHECK .
3. Press and release the RESET stem to scroll through the system check
displays until the message center displays COMPASS ZONE .
4. Press and hold the RESET stem for approximately two seconds until
the message center to enter the compass zone adjustment mode.
5. Press and hold the RESET stem until the message center displays
CIRCLE SLOWLY TO CALIBRATE .
NOTE: This step may require up to five circles to complete the
calibration.
NOTE: If the RESET stem is pressed during the calibration or three
minutes has elapsed since the beginning of the calibration without
driving the vehicle, the message center reverts back to normal operation
and the CAL will display until a successful calibration is carried out.
6. Slowly drive the vehicle in a circle less than 3 mph (5 km/h ) until the
CIRCLE SLOWLY TO CALIBRATE message changes to
CALIBRATION COMPLETED .
Blank display
Press the RESET stem once to turn the message center display off.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus) Driver Controls
133

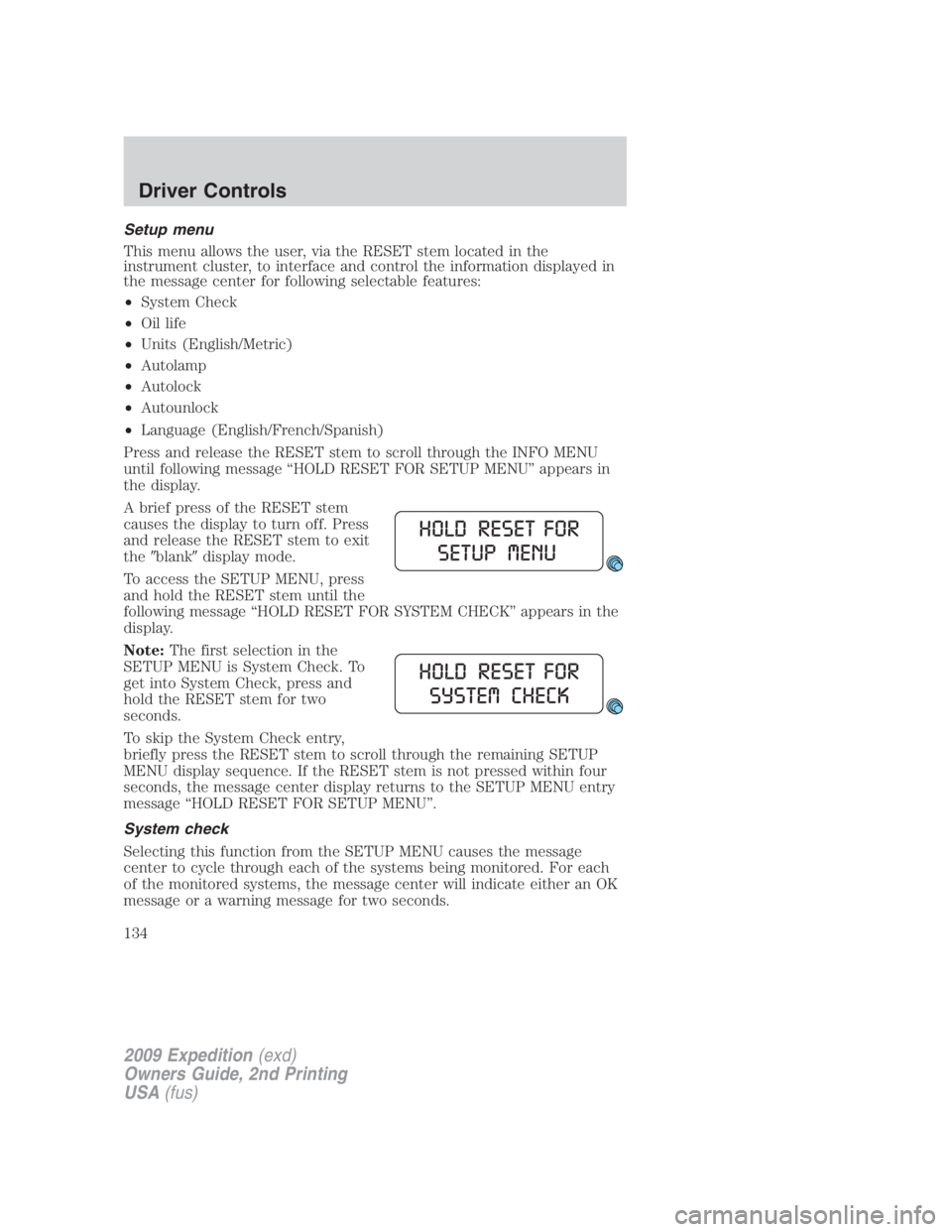

Setup menu
This menu allows the user, via the RESET stem located in the
instrument cluster, to interface and control the information displayed in
the message center for following selectable features:
• System Check
• Oil life
• Units (English/Metric)
• Autolamp
• Autolock
• Autounlock
• Language (English/French/Spanish)
Press and release the RESET stem to scroll through the INFO MENU
until following message “HOLD RESET FOR SETUP MENU” appears in
the display.
A brief press of the RESET stem
causes the display to turn off. Press
and release the RESET stem to exit
the  blank  display mode.
To access the SETUP MENU, press
and hold the RESET stem until the
following message “HOLD RESET FOR SYSTEM CHECK” appears in the
display.
Note: The first selection in the
SETUP MENU is System Check. To
get into System Check, press and
hold the RESET stem for two
seconds.
To skip the System Check entry,
briefly press the RESET stem to scroll through the remaining SETUP
MENU display sequence. If the RESET stem is not pressed within four
seconds, the message center display returns to the SETUP MENU entry
message “HOLD RESET FOR SETUP MENU”.
System check
Selecting this function from the SETUP MENU causes the message
center to cycle through each of the systems being monitored. For each
of the monitored systems, the message center will indicate either an OK
message or a warning message for two seconds.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus)Driver Controls
134

Pressing the RESET stem cycles the message center through each of the
systems being monitored. If the RESET stem is not pressed, the display
will automatically scroll through each of the systems being monitored:
1. OIL LIFE
2. CHARGING SYSTEM
3. WASHER FLUID LEVEL
4. DOOR/LIFTGATE/GLASS AJAR
5. BRAKE SYSTEM
6. FUEL LEVEL (will only display if 50 miles or less to empty)
Oil life
An oil change is required whenever indicated by the message center and
according to the recommended maintenance schedule. USE ONLY
RECOMMENDED ENGINE OILS.
To reset the oil monitoring system to 100% after each oil change
(approximately 7,500 miles [12,000 km] or six months) perform the
following:
1. Press and release the RESET
stem to display “OIL LIFE = XXX%
HOLD RESET = NEW”.
2. Press and hold the RESET stem
for two seconds and release. Oil life
is set to XX% and “OIL LIFE SET
TO XX%” is displayed.
Note: Oil Life Start Value of 100% equals 7,500 miles (12,000 km) or six
months. For example, setting Oil Life Start Value to 60% sets the Oil Life
Start Value to 3,000 miles (4,800 km) and 120 days.
Units (English/Metric)
1. Select this function from the
SETUP MENU for the current units
to be displayed.
2. Press and hold the RESET stem
for two seconds to change from
English to Metric.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus) Driver Controls
135

3. Press the RESET stem for the next SETUP MENU item or wait for
more than four seconds to return to the INFO MENU (“HOLD RESET
FOR SETUP MENU” will appear).
Autolamp
This feature keeps your headlights on for up to three minutes after the
ignition is switched off.
1. To change the time delay of the
autolamp feature, select this
function from the SETUP MENU.
2. Press and hold the RESET stem
for two seconds to select the new
Autolamp delay time (in seconds)
values of 0, 10, 20, 30, 60, 90, 120 or 180 and wraps back to 0. Selecting
0 will result in no delay feature.
3. Press the RESET stem for the next SETUP MENU item or wait for
more than four seconds to return to the INFO MENU (HOLD RESET
FOR SETUP MENU will appear).
Autolock
This feature automatically locks all vehicle doors when the vehicle is
shifted into any gear and when the vehicle is in motion over 13 mph
(20 km/h) or higher.
1. To disable/enable the autolock
feature, select this function from the
SETUP MENU.
2. Press and hold the RESET stem
for two seconds to turn the autolock
feature ON or OFF.
3. Press the RESET stem for the next SETUP MENU item or wait for
more than four seconds to return to the INFO MENU (HOLD RESET
FOR SETUP MENU will appear).
Autounlock
This feature automatically unlocks all vehicle doors when the driver’s
door is opened within 10 minutes of the ignition being turned off.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus)Driver Controls
136

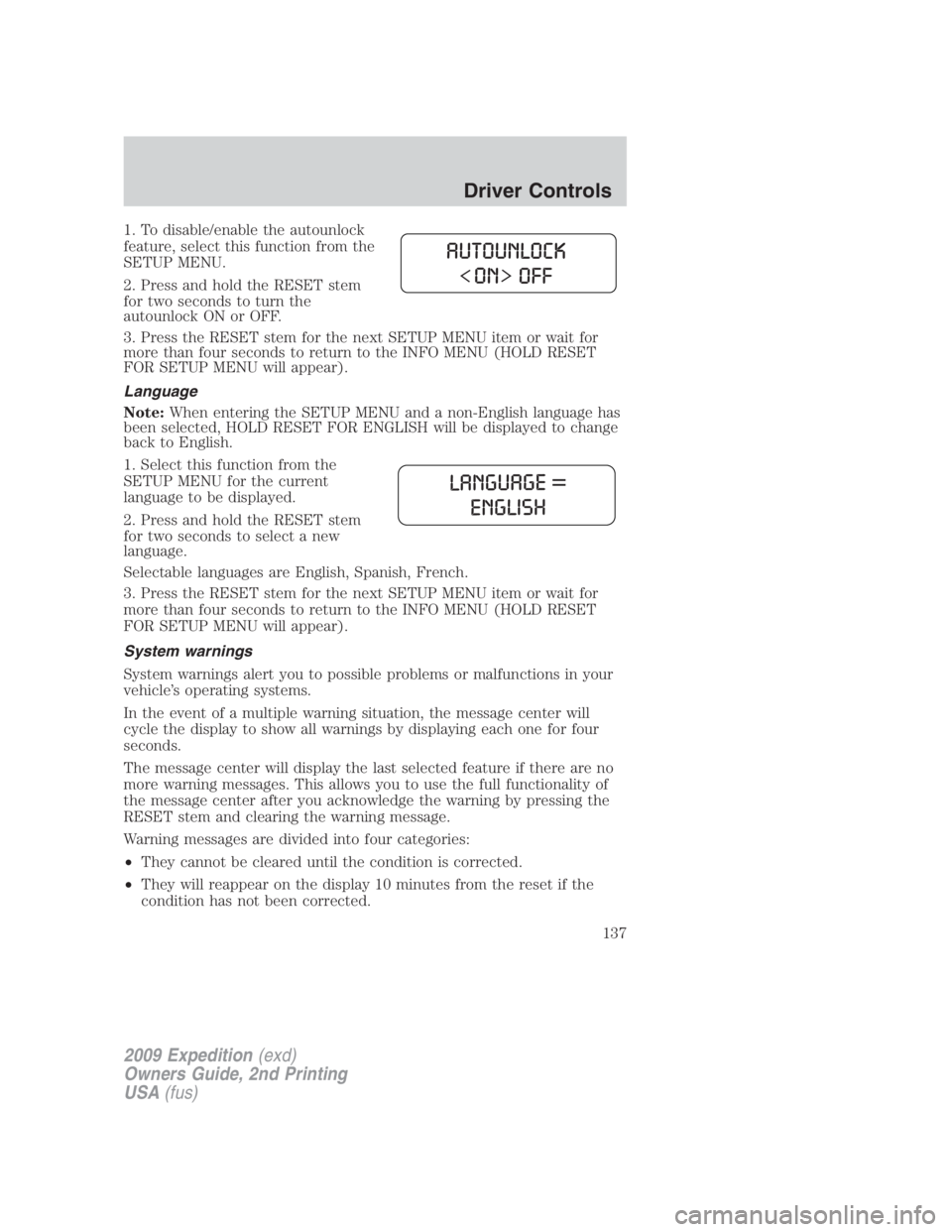

1. To disable/enable the autounlock
feature, select this function from the
SETUP MENU.
2. Press and hold the RESET stem
for two seconds to turn the
autounlock ON or OFF.
3. Press the RESET stem for the next SETUP MENU item or wait for
more than four seconds to return to the INFO MENU (HOLD RESET
FOR SETUP MENU will appear).
Language
Note: When entering the SETUP MENU and a non-English language has
been selected, HOLD RESET FOR ENGLISH will be displayed to change
back to English.
1. Select this function from the
SETUP MENU for the current
language to be displayed.
2. Press and hold the RESET stem
for two seconds to select a new
language.
Selectable languages are English, Spanish, French.
3. Press the RESET stem for the next SETUP MENU item or wait for
more than four seconds to return to the INFO MENU (HOLD RESET
FOR SETUP MENU will appear).
System warnings
System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.
In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for four
seconds.
The message center will display the last selected feature if there are no
more warning messages. This allows you to use the full functionality of
the message center after you acknowledge the warning by pressing the
RESET stem and clearing the warning message.
Warning messages are divided into four categories:
• They cannot be cleared until the condition is corrected.
• They will reappear on the display 10 minutes from the reset if the
condition has not been corrected.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus) Driver Controls
137

• They will not reappear until an ignition off-on cycle has been
completed.
• They reappear if the condition clears then reoccurs within the same
ignition on-off cycle.
This acts as a reminder that these warning conditions still exist within
the vehicle.

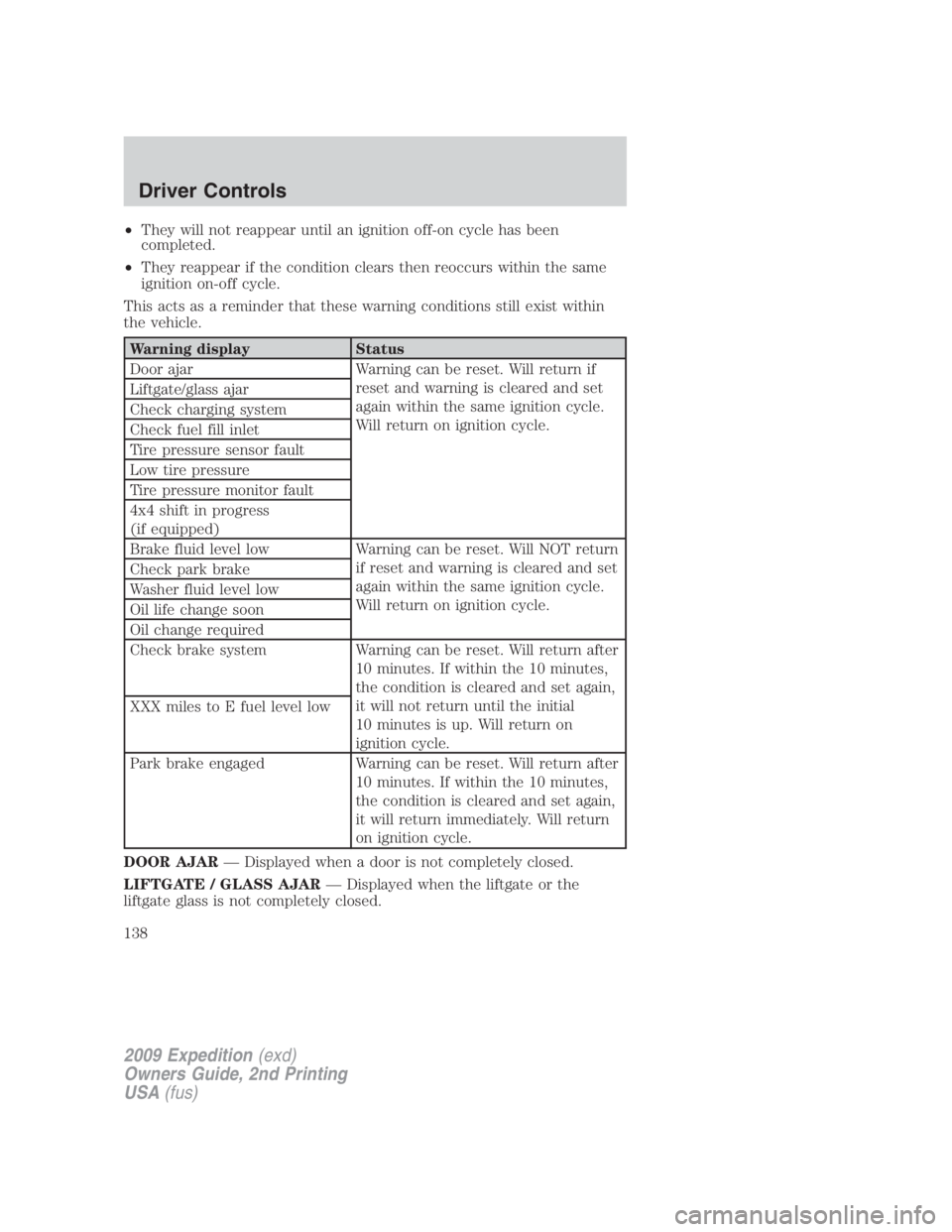

Warning display Status
Door ajar Warning can be reset. Will return if
reset and warning is cleared and set
again within the same ignition cycle.
Will return on ignition cycle.Liftgate/glass ajar
Check charging system
Check fuel fill inlet
Tire pressure sensor fault
Low tire pressure
Tire pressure monitor fault
4x4 shift in progress
(if equipped)
Brake fluid level low Warning can be reset. Will NOT return
if reset and warning is cleared and set
again within the same ignition cycle.
Will return on ignition cycle.Check park brake
Washer fluid level low
Oil life change soon
Oil change required
Check brake system Warning can be reset. Will return after
10 minutes. If within the 10 minutes,
the condition is cleared and set again,
it will not return until the initial
10 minutes is up. Will return on
ignition cycle.XXX miles to E fuel level low
Park brake engaged Warning can be reset. Will return after
10 minutes. If within the 10 minutes,
the condition is cleared and set again,
it will return immediately. Will return
on ignition cycle.
DOOR AJAR — Displayed when a door is not completely closed.
LIFTGATE / GLASS AJAR — Displayed when the liftgate or the
liftgate glass is not completely closed.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus)Driver Controls
138

CHECK CHARGING SYSTEM — Displayed when the electrical system
is not maintaining proper voltage when the engine is running. If you are
operating electrical accessories when the engine is idling at a low speed,
turn off as many of the electrical loads as soon as possible. If the
warning stays on or comes on when the engine is operating at normal
speeds, have the electrical system checked as soon as possible.
PARK BRAKE ENGAGED — Displayed when the manual park brake is
set, the engine is running and the vehicle is driven more than 3 mph
(5 km/h). If the warning stays on after the park brake is released,
contact your authorized dealer as soon as possible.
CHECK BRAKE SYSTEM — Displayed when the braking system is not
operating properly. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.
CHECK FUEL FILL INLET — Displayed when the fuel fill inlet may
not be properly closed. Refer to Easy Fuel™ “no cap” fuel system in
the Maintenance and Specifications chapter.
LOW TIRE PRESSURE — Displayed when one or more tires on your
vehicle have low tire pressure. Refer to Inflating your tires in the Tires,
Wheels and Loading chapter.
TIRE PRESSURE MONITOR FAULT — Displayed when the Tire
Pressure Monitoring System is malfunctioning. If the warning stays on or
continues to come on, contact your authorized dealer as soon as
possible.
TIRE PRESSURE SENSOR FAULT — Displayed when a tire pressure
sensor is malfunctioning, or your spare tire is in use. For more
information on how the system operates under these conditions, refer to
Understanding your Tire Pressure Monitoring System (TPMS) in the
Tires, Wheels and Loading chapter. If the warning stays on or
continues to come on, contact your authorized dealer as soon as
possible.
4X4 SHIFT IN PROGRESS — Displayed on 4x4 vehicles only when
4x4 Low, 4x4 High or 4x4 Auto Range is selected. For further
information, refer to Control Trac four-wheel drive (4x4) operation in
the Driving chapter.
BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low
and the brake system should be inspected immediately. Refer to Brake
fluid in the Maintenance and Specifications chapter.
CHECK PARK BRAKE — Displayed when the park brake is engaged. If
the warning stays on after the park brake is off, contact your authorized
dealer as soon as possible.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus) Driver Controls
139

XXX MILES TO E FUEL LEVEL LOW — Displayed as an early
reminder of a low fuel condition.
WASHER FLUID LEVEL LOW — Indicates the washer fluid reservoir
is less than one quarter full. Check the washer fluid level. Refer to
Windshield washer fluid in the Maintenance and Specifications
chapter.
OIL LIFE CHANGE SOON — Displayed when the engine oil life
remaining is 10% or less. When oil life left is between 10% and 0%, the
XX% OIL LIFE CHANGE SOON message will be displayed.
OIL CHANGE REQUIRED — Displayed when the oil life left reaches
0%, the OIL CHANGE REQUIRED message will be displayed.

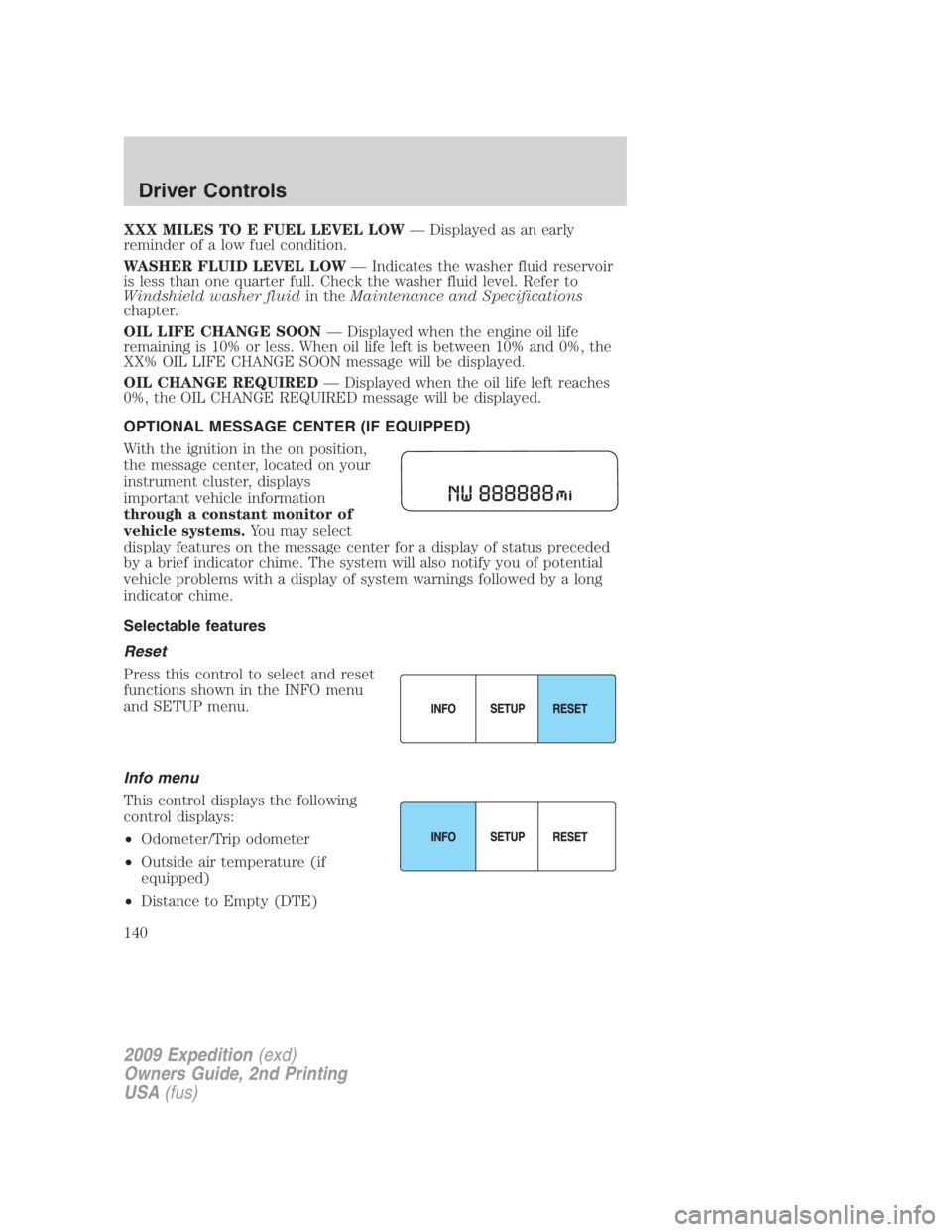

OPTIONAL MESSAGE CENTER (IF EQUIPPED)
With the ignition in the on position,
the message center, located on your
instrument cluster, displays
important vehicle information
through a constant monitor of
vehicle systems. You may select
display features on the message center for a display of status preceded
by a brief indicator chime. The system will also notify you of potential
vehicle problems with a display of system warnings followed by a long
indicator chime.
Selectable features
Reset
Press this control to select and reset
functions shown in the INFO menu
and SETUP menu.
Info menu
This control displays the following
control displays:
• Odometer/Trip odometer
• Outside air temperature (if
equipped)
• Distance to Empty (DTE)
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus)Driver Controls
140
