air conditioning FORD EXPLORER SPORT TRAC 2008 Owners Manual

Introduction 4
Instrument Cluster 12
Warning lights and chimes 12
Gauges 19
Entertainment Systems 22
How to get going 22
AM/FM stereo with CD 26
AM/FM stereo with in-dash six CD 34
Auxiliary input jack (Line in) 42
USB port 44
Satellite radio information 47
Family entertainment system 50
Navigation system 77
Climate Controls 78
Manual heating and air conditioning 78
Automatic temperature control 80
Lights 85
Driver Controls 95
Windshield wiper/washer control 95
Steering wheel adjustment 96
Power windows 100
Mirrors 104
Speed control 107
Moon roof 112
Message center 113
Locks and Security 146
Keys 146
Locks 146
Anti-theft system 158
Table of Contents
1
2008 07+ Explorer Sport Trac(esp)
Owners Guide (post-2002-fmt)
USA(fus)

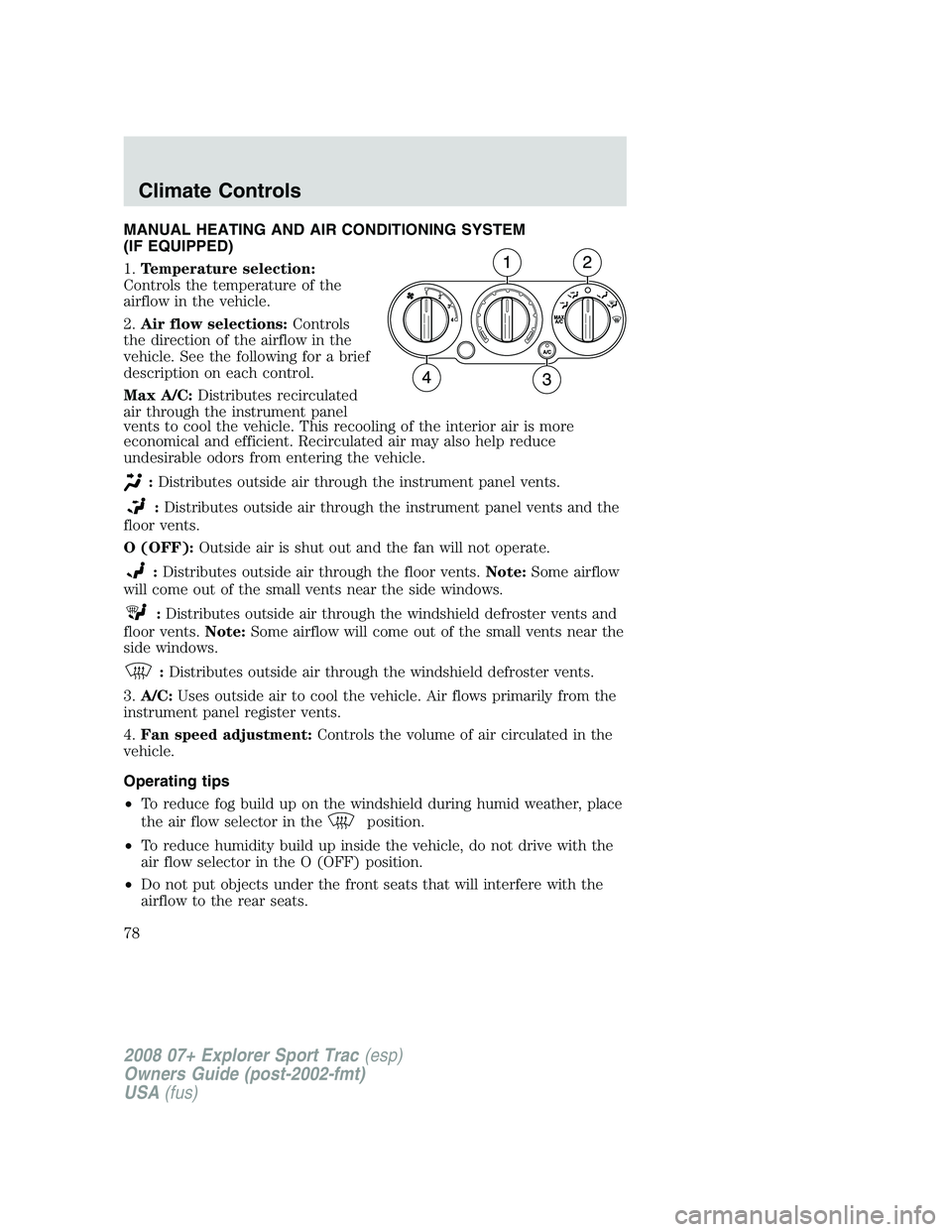

MANUAL HEATING AND AIR CONDITIONING SYSTEM
(IF EQUIPPED)
1.Temperature selection:
Controls the temperature of the
airflow in the vehicle.
2.Air flow selections:Controls
the direction of the airflow in the
vehicle. See the following for a brief
description on each control.
Max A/C:Distributes recirculated
air through the instrument panel
vents to cool the vehicle. This recooling of the interior air is more
economical and efficient. Recirculated air may also help reduce
undesirable odors from entering the vehicle.
:Distributes outside air through the instrument panel vents.
:Distributes outside air through the instrument panel vents and the
floor vents.
O (OFF):Outside air is shut out and the fan will not operate.
:Distributes outside air through the floor vents.Note:Some airflow
will come out of the small vents near the side windows.
:Distributes outside air through the windshield defroster vents and
floor vents.Note:Some airflow will come out of the small vents near the
side windows.
:Distributes outside air through the windshield defroster vents.
3.A/C:Uses outside air to cool the vehicle. Air flows primarily from the
instrument panel register vents.
4.Fan speed adjustment:Controls the volume of air circulated in the
vehicle.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle, do not drive with the
air flow selector in the O (OFF) position.
•Do not put objects under the front seats that will interfere with the
airflow to the rear seats.
2008 07+ Explorer Sport Trac(esp)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
78

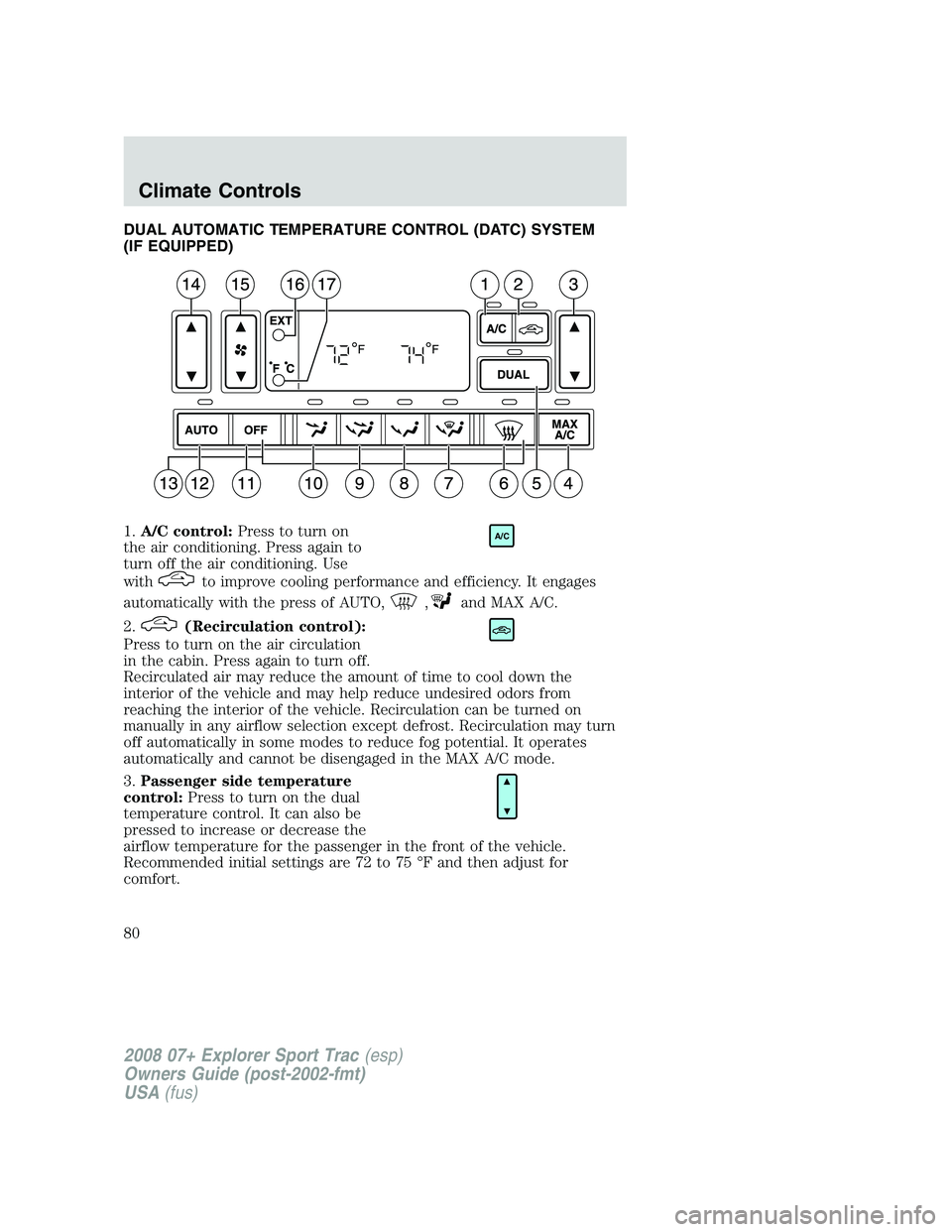

DUAL AUTOMATIC TEMPERATURE CONTROL (DATC) SYSTEM
(IF EQUIPPED)
1.A/C control:Press to turn on
the air conditioning. Press again to
turn off the air conditioning. Use
with
to improve cooling performance and efficiency. It engages
automatically with the press of AUTO,
,and MAX A/C.
2.
(Recirculation control):
Press to turn on the air circulation
in the cabin. Press again to turn off.
Recirculated air may reduce the amount of time to cool down the
interior of the vehicle and may help reduce undesired odors from
reaching the interior of the vehicle. Recirculation can be turned on
manually in any airflow selection except defrost. Recirculation may turn
off automatically in some modes to reduce fog potential. It operates
automatically and cannot be disengaged in the MAX A/C mode.
3.Passenger side temperature
control:Press to turn on the dual
temperature control. It can also be
pressed to increase or decrease the
airflow temperature for the passenger in the front of the vehicle.
Recommended initial settings are 72 to 75 °F and then adjust for
comfort.
A/C
2008 07+ Explorer Sport Trac(esp)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
80

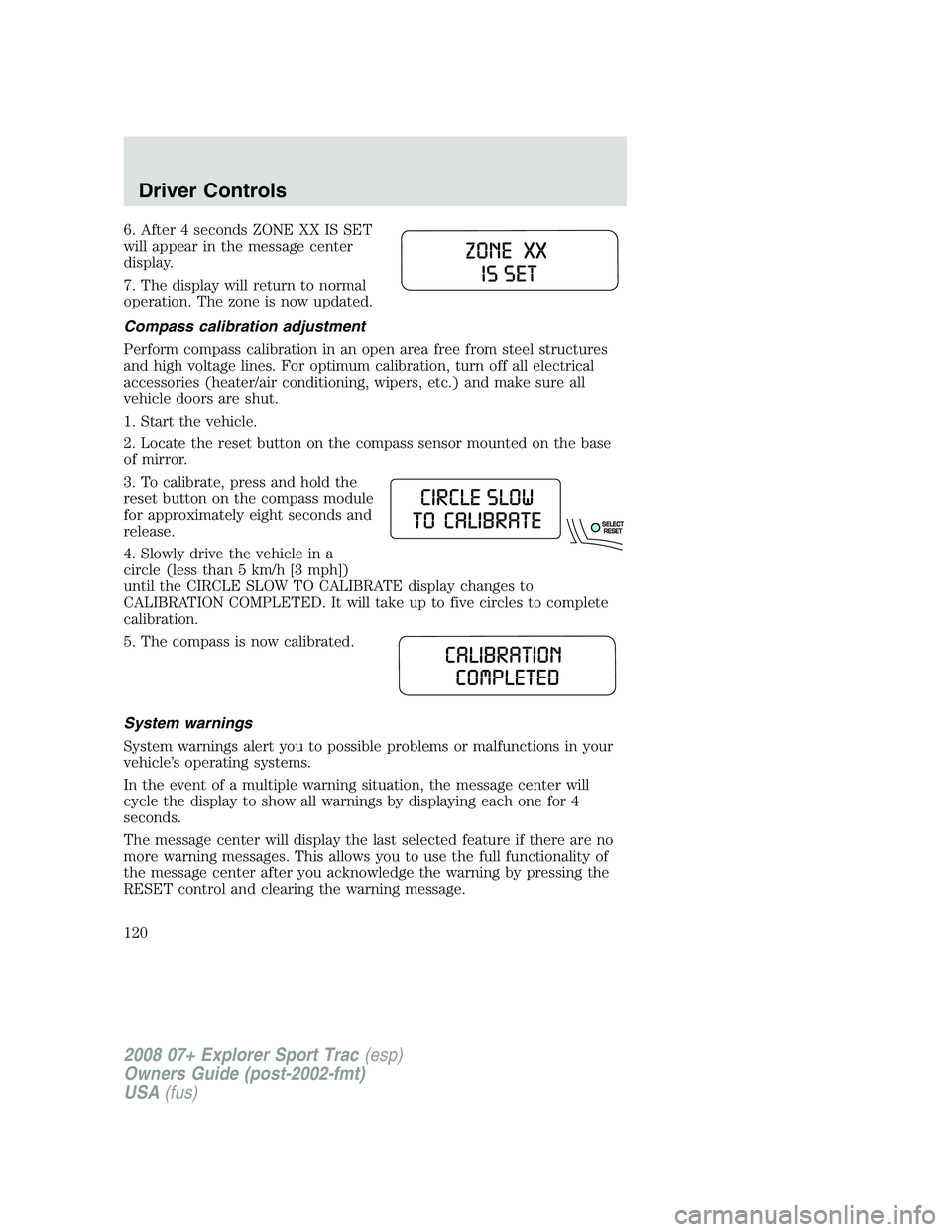

6. After 4 seconds ZONE XX IS SET
will appear in the message center
display.
7. The display will return to normal
operation. The zone is now updated.
Compass calibration adjustment
Perform compass calibration in an open area free from steel structures
and high voltage lines. For optimum calibration, turn off all electrical
accessories (heater/air conditioning, wipers, etc.) and make sure all
vehicle doors are shut.
1. Start the vehicle.
2. Locate the reset button on the compass sensor mounted on the base
of mirror.
3. To calibrate, press and hold the
reset button on the compass module
for approximately eight seconds and
release.
4. Slowly drive the vehicle in a
circle (less than 5 km/h [3 mph])
until the CIRCLE SLOW TO CALIBRATE display changes to
CALIBRATION COMPLETED. It will take up to five circles to complete
calibration.
5. The compass is now calibrated.
System warnings
System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.
In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for 4
seconds.
The message center will display the last selected feature if there are no
more warning messages. This allows you to use the full functionality of
the message center after you acknowledge the warning by pressing the
RESET control and clearing the warning message.
2008 07+ Explorer Sport Trac(esp)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
120

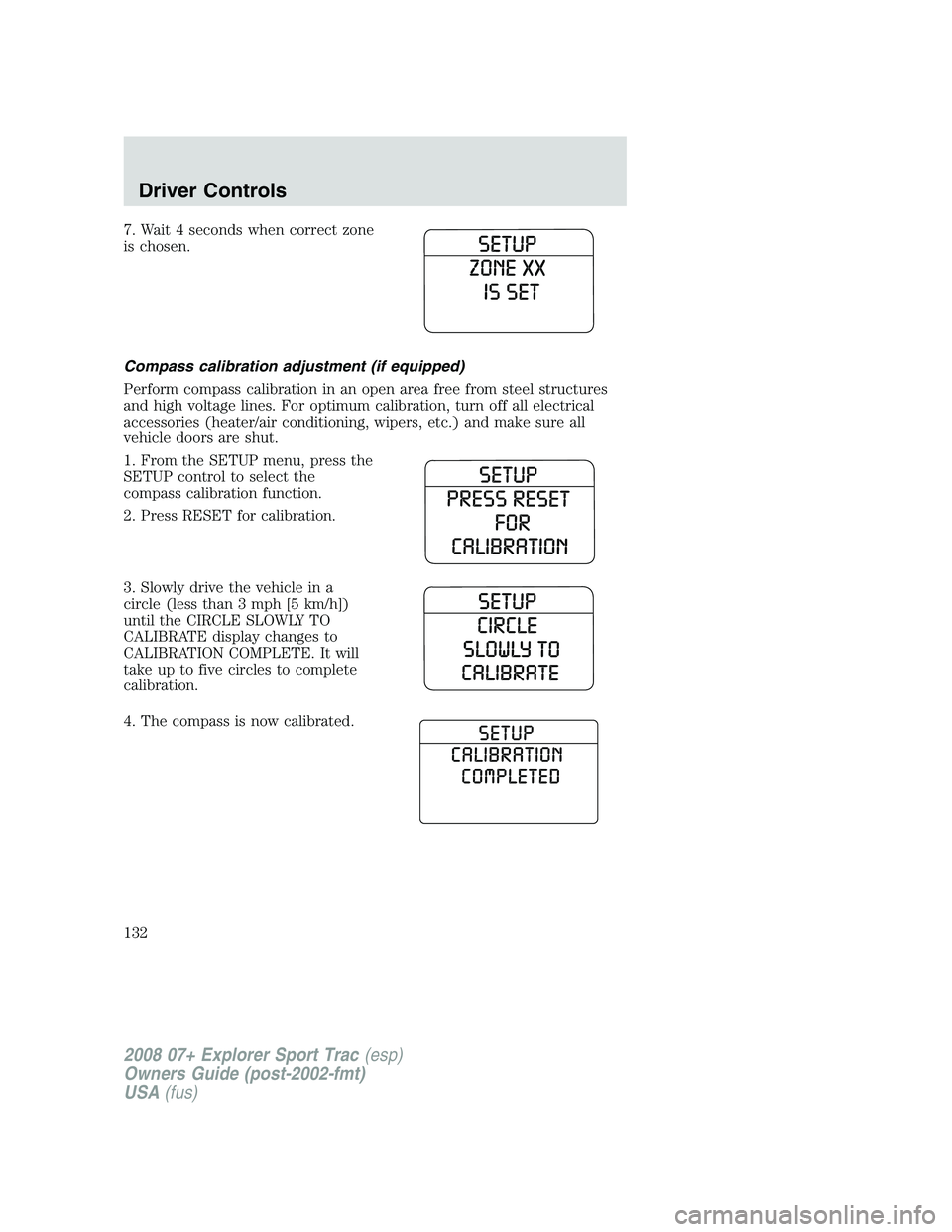

7. Wait 4 seconds when correct zone
is chosen.
Compass calibration adjustment (if equipped)
Perform compass calibration in an open area free from steel structures
and high voltage lines. For optimum calibration, turn off all electrical
accessories (heater/air conditioning, wipers, etc.) and make sure all
vehicle doors are shut.
1. From the SETUP menu, press the
SETUP control to select the
compass calibration function.
2. Press RESET for calibration.
3. Slowly drive the vehicle in a
circle (less than 3 mph [5 km/h])
until the CIRCLE SLOWLY TO
CALIBRATE display changes to
CALIBRATION COMPLETE. It will
take up to five circles to complete
calibration.
4. The compass is now calibrated.
2008 07+ Explorer Sport Trac(esp)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
132

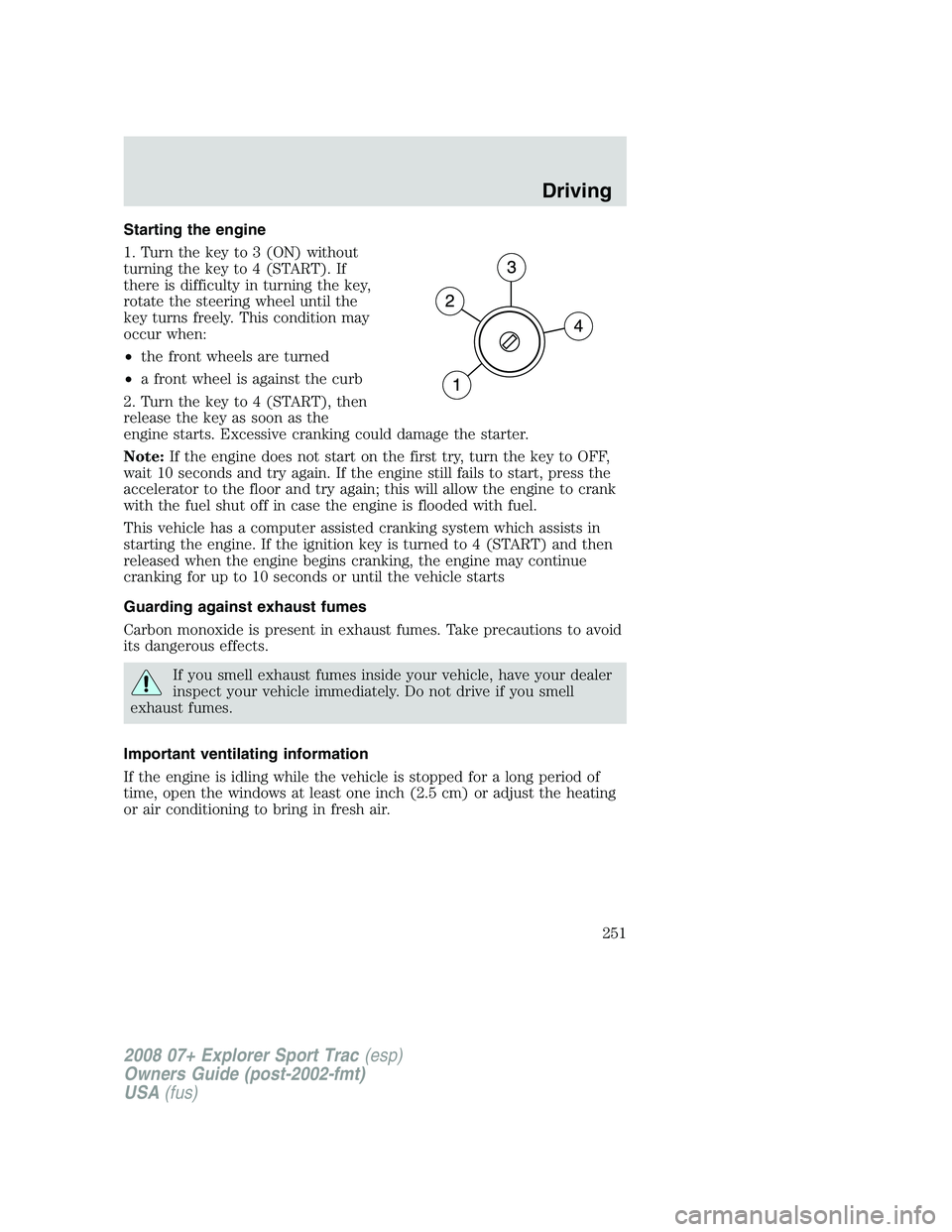

Starting the engine
1. Turn the key to 3 (ON) without
turning the key to 4 (START). If
there is difficulty in turning the key,
rotate the steering wheel until the
key turns freely. This condition may
occur when:
•the front wheels are turned
•a front wheel is against the curb
2. Turn the key to 4 (START), then
release the key as soon as the
engine starts. Excessive cranking could damage the starter.
Note:If the engine does not start on the first try, turn the key to OFF,
wait 10 seconds and try again. If the engine still fails to start, press the
accelerator to the floor and try again; this will allow the engine to crank
with the fuel shut off in case the engine is flooded with fuel.
This vehicle has a computer assisted cranking system which assists in
starting the engine. If the ignition key is turned to 4 (START) and then
released when the engine begins cranking, the engine may continue
cranking for up to 10 seconds or until the vehicle starts
Guarding against exhaust fumes
Carbon monoxide is present in exhaust fumes. Take precautions to avoid
its dangerous effects.
If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important ventilating information
If the engine is idling while the vehicle is stopped for a long period of
time, open the windows at least one inch (2.5 cm) or adjust the heating
or air conditioning to bring in fresh air.
2008 07+ Explorer Sport Trac(esp)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
251

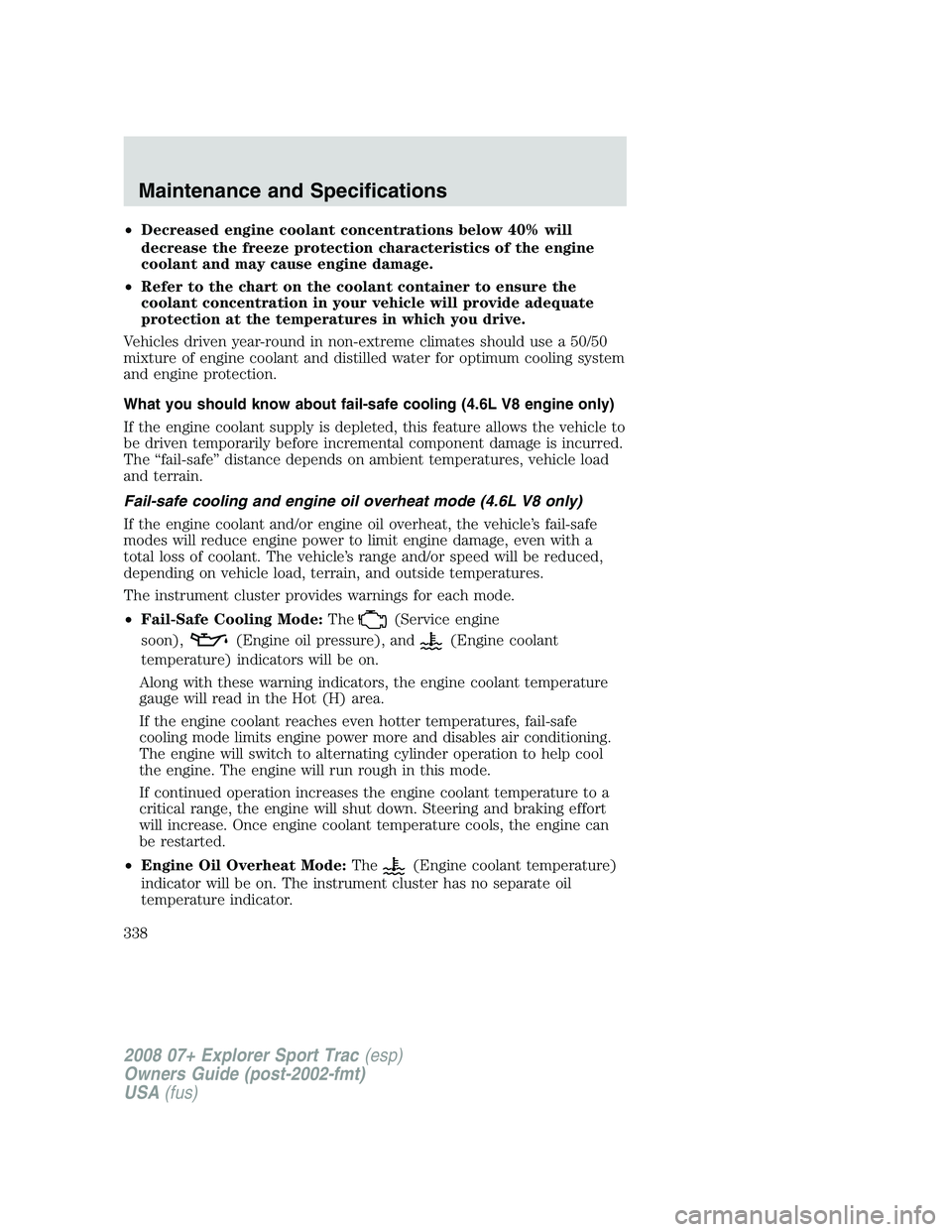

•Decreased engine coolant concentrations below 40% will
decrease the freeze protection characteristics of the engine
coolant and may cause engine damage.
•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
protection at the temperatures in which you drive.
Vehicles driven year-round in non-extreme climates should use a 50/50
mixture of engine coolant and distilled water for optimum cooling system
and engine protection.
What you should know about fail-safe cooling (4.6L V8 engine only)
If the engine coolant supply is depleted, this feature allows the vehicle to
be driven temporarily before incremental component damage is incurred.
The “fail-safe” distance depends on ambient temperatures, vehicle load
and terrain.
Fail-safe cooling and engine oil overheat mode (4.6L V8 only)
If the engine coolant and/or engine oil overheat, the vehicle’s fail-safe
modes will reduce engine power to limit engine damage, even with a
total loss of coolant. The vehicle’s range and/or speed will be reduced,
depending on vehicle load, terrain, and outside temperatures.
The instrument cluster provides warnings for each mode.
•Fail-Safe Cooling Mode:The
(Service engine
soon),
(Engine oil pressure), and(Engine coolant
temperature) indicators will be on.
Along with these warning indicators, the engine coolant temperature
gauge will read in the Hot (H) area.
If the engine coolant reaches even hotter temperatures, fail-safe
cooling mode limits engine power more and disables air conditioning.
The engine will switch to alternating cylinder operation to help cool
the engine. The engine will run rough in this mode.
If continued operation increases the engine coolant temperature to a
critical range, the engine will shut down. Steering and braking effort
will increase. Once engine coolant temperature cools, the engine can
be restarted.
•Engine Oil Overheat Mode:The
(Engine coolant temperature)
indicator will be on. The instrument cluster has no separate oil
temperature indicator.
2008 07+ Explorer Sport Trac(esp)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
338

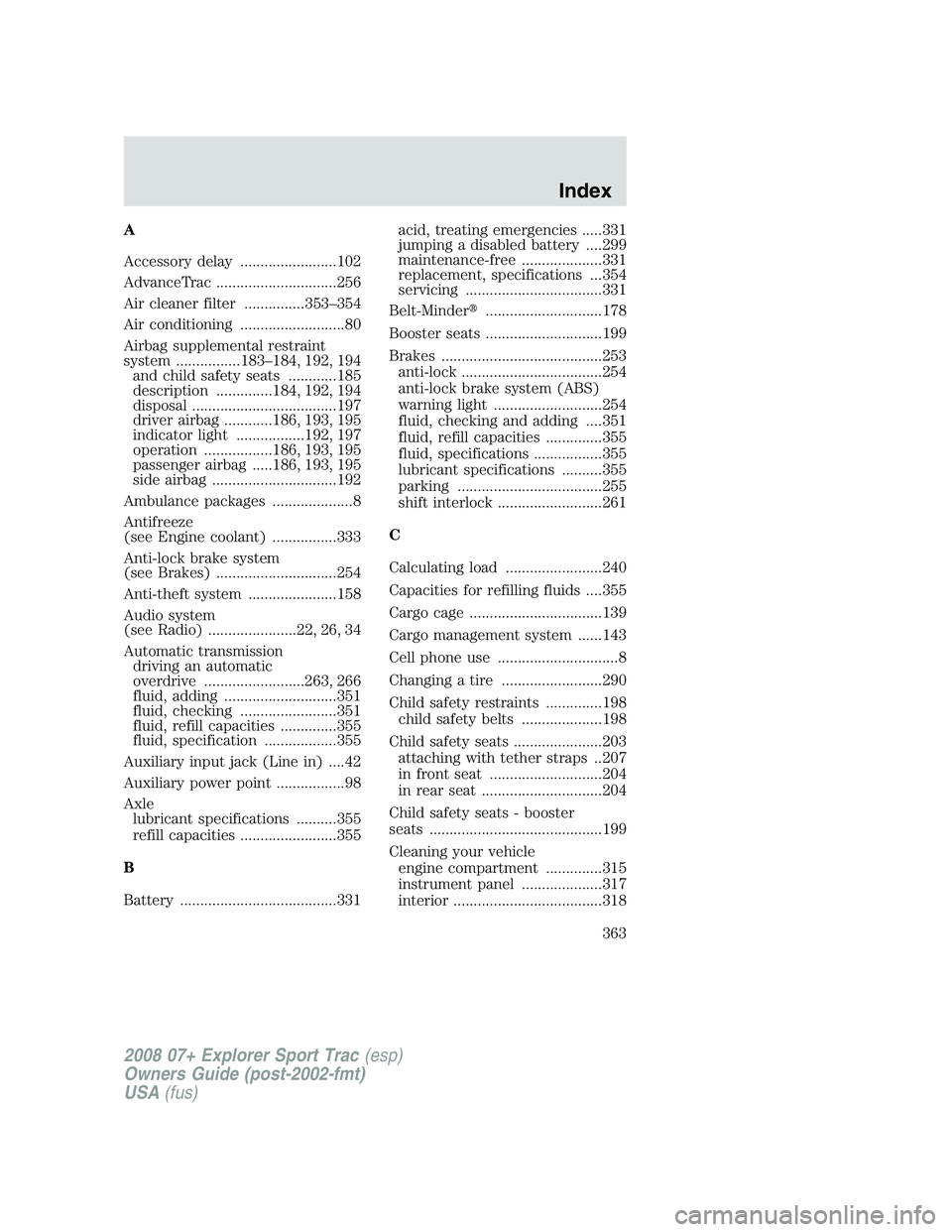

A
Accessory delay ........................102
AdvanceTrac ..............................256
Air cleaner filter ...............353–354
Air conditioning ..........................80
Airbag supplemental restraint
system ................183–184, 192, 194
and child safety seats ............185
description ..............184, 192, 194
disposal ....................................197
driver airbag ............186, 193, 195
indicator light .................192, 197
operation .................186, 193, 195
passenger airbag .....186, 193, 195
side airbag ...............................192
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................333
Anti-lock brake system
(see Brakes) ..............................254
Anti-theft system ......................158
Audio system
(see Radio) ......................22, 26, 34
Automatic transmission
driving an automatic
overdrive .........................263, 266
fluid, adding ............................351
fluid, checking ........................351
fluid, refill capacities ..............355
fluid, specification ..................355
Auxiliary input jack (Line in) ....42
Auxiliary power point .................98
Axle
lubricant specifications ..........355
refill capacities ........................355
B
Battery .......................................331acid, treating emergencies .....331
jumping a disabled battery ....299
maintenance-free ....................331
replacement, specifications ...354
servicing ..................................331
Belt-Minder
.............................178
Booster seats .............................199
Brakes ........................................253
anti-lock ...................................254
anti-lock brake system (ABS)
warning light ...........................254
fluid, checking and adding ....351
fluid, refill capacities ..............355
fluid, specifications .................355
lubricant specifications ..........355
parking ....................................255
shift interlock ..........................261
C
Calculating load ........................240
Capacities for refilling fluids ....355
Cargo cage .................................139
Cargo management system ......143
Cell phone use ..............................8
Changing a tire .........................290
Child safety restraints ..............198
child safety belts ....................198
Child safety seats ......................203
attaching with tether straps ..207
in front seat ............................204
in rear seat ..............................204
Child safety seats - booster
seats ...........................................199
Cleaning your vehicle
engine compartment ..............315
instrument panel ....................317
interior .....................................318
2008 07+ Explorer Sport Trac(esp)
Owners Guide (post-2002-fmt)
USA(fus)
Index
363

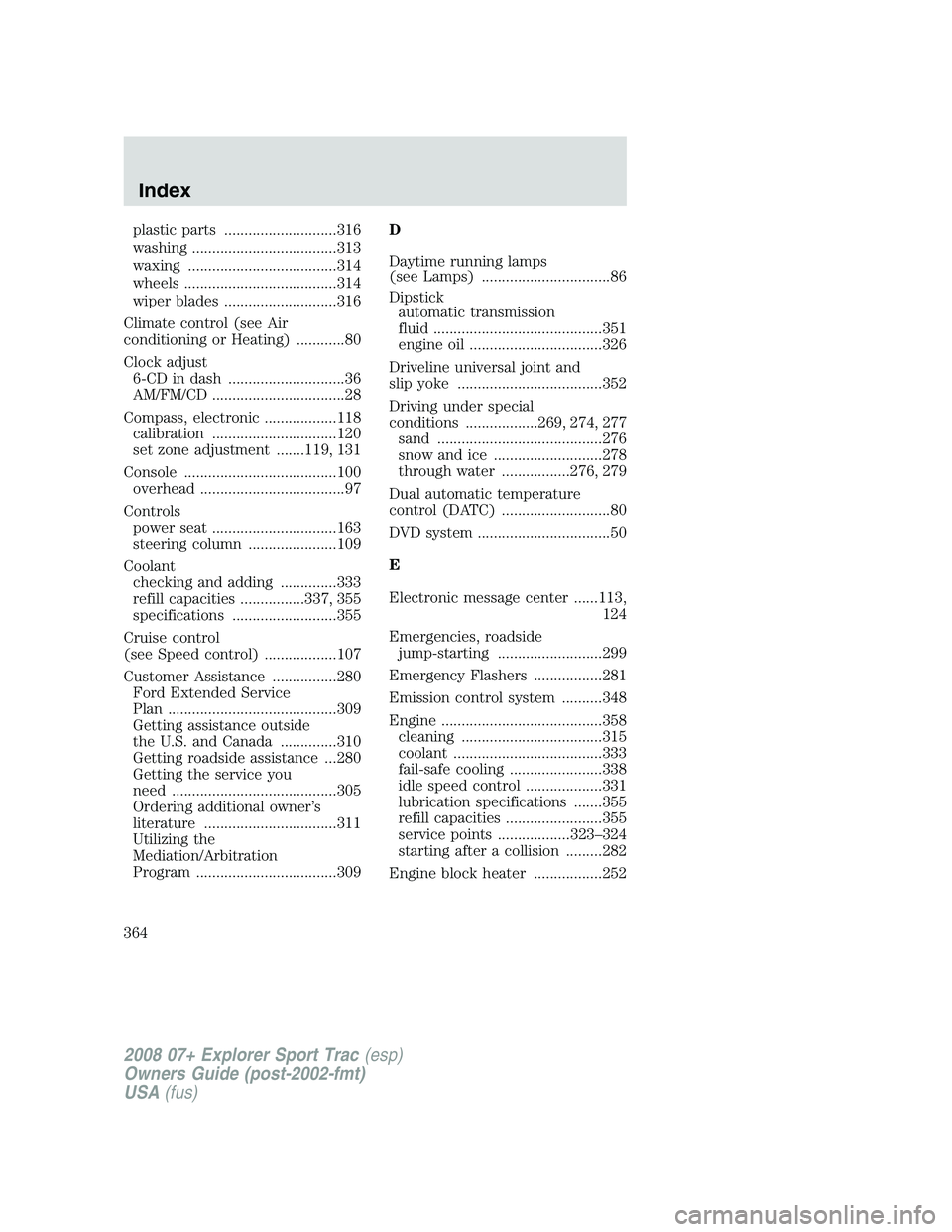

plastic parts ............................316
washing ....................................313
waxing .....................................314
wheels ......................................314
wiper blades ............................316
Climate control (see Air
conditioning or Heating) ............80
Clock adjust
6-CD in dash .............................36
AM/FM/CD .................................28
Compass, electronic ..................118
calibration ...............................120
set zone adjustment .......119, 131
Console ......................................100
overhead ....................................97
Controls
power seat ...............................163
steering column ......................109
Coolant
checking and adding ..............333
refill capacities ................337, 355
specifications ..........................355
Cruise control
(see Speed control) ..................107
Customer Assistance ................280
Ford Extended Service
Plan ..........................................309
Getting assistance outside
the U.S. and Canada ..............310
Getting roadside assistance ...280
Getting the service you
need .........................................305
Ordering additional owner’s
literature .................................311
Utilizing the
Mediation/Arbitration
Program ...................................309D
Daytime running lamps
(see Lamps) ................................86
Dipstick
automatic transmission
fluid ..........................................351
engine oil .................................326
Driveline universal joint and
slip yoke ....................................352
Driving under special
conditions ..................269, 274, 277
sand .........................................276
snow and ice ...........................278
through water .................276, 279
Dual automatic temperature
control (DATC) ...........................80
DVD system .................................50
E
Electronic message center ......113,
124
Emergencies, roadside
jump-starting ..........................299
Emergency Flashers .................281
Emission control system ..........348
Engine ........................................358
cleaning ...................................315
coolant .....................................333
fail-safe cooling .......................338
idle speed control ...................331
lubrication specifications .......355
refill capacities ........................355
service points ..................323–324
starting after a collision .........282
Engine block heater .................252
2008 07+ Explorer Sport Trac(esp)
Owners Guide (post-2002-fmt)
USA(fus)
Index
364

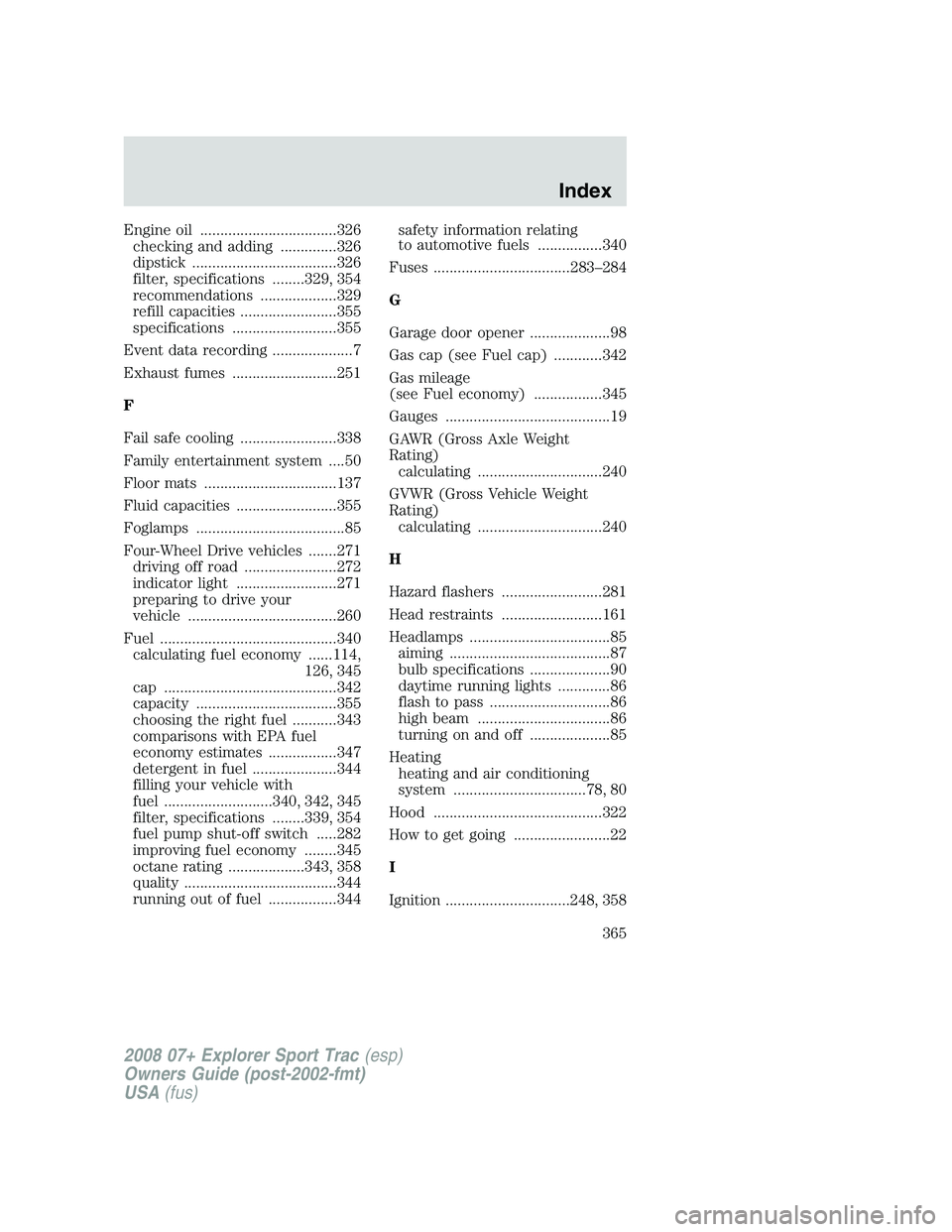

Engine oil ..................................326
checking and adding ..............326
dipstick ....................................326
filter, specifications ........329, 354
recommendations ...................329
refill capacities ........................355
specifications ..........................355
Event data recording ....................7
Exhaust fumes ..........................251
F
Fail safe cooling ........................338
Family entertainment system ....50
Floor mats .................................137
Fluid capacities .........................355
Foglamps .....................................85
Four-Wheel Drive vehicles .......271
driving off road .......................272
indicator light .........................271
preparing to drive your
vehicle .....................................260
Fuel ............................................340
calculating fuel economy ......114,
126, 345
cap ...........................................342
capacity ...................................355
choosing the right fuel ...........343
comparisons with EPA fuel
economy estimates .................347
detergent in fuel .....................344
filling your vehicle with
fuel ...........................340, 342, 345
filter, specifications ........339, 354
fuel pump shut-off switch .....282
improving fuel economy ........345
octane rating ...................343, 358
quality ......................................344
running out of fuel .................344safety information relating
to automotive fuels ................340
Fuses ..................................283–284
G
Garage door opener ....................98
Gas cap (see Fuel cap) ............342
Gas mileage
(see Fuel economy) .................345
Gauges .........................................19
GAWR (Gross Axle Weight
Rating)
calculating ...............................240
GVWR (Gross Vehicle Weight
Rating)
calculating ...............................240
H
Hazard flashers .........................281
Head restraints .........................161
Headlamps ...................................85
aiming ........................................87
bulb specifications ....................90
daytime running lights .............86
flash to pass ..............................86
high beam .................................86
turning on and off ....................85
Heating
heating and air conditioning
system .................................78, 80
Hood ..........................................322
How to get going ........................22
I
Ignition ...............................248, 358
2008 07+ Explorer Sport Trac(esp)
Owners Guide (post-2002-fmt)
USA(fus)
Index
365
