fuse box FORD F-450 2020 Owners Manual

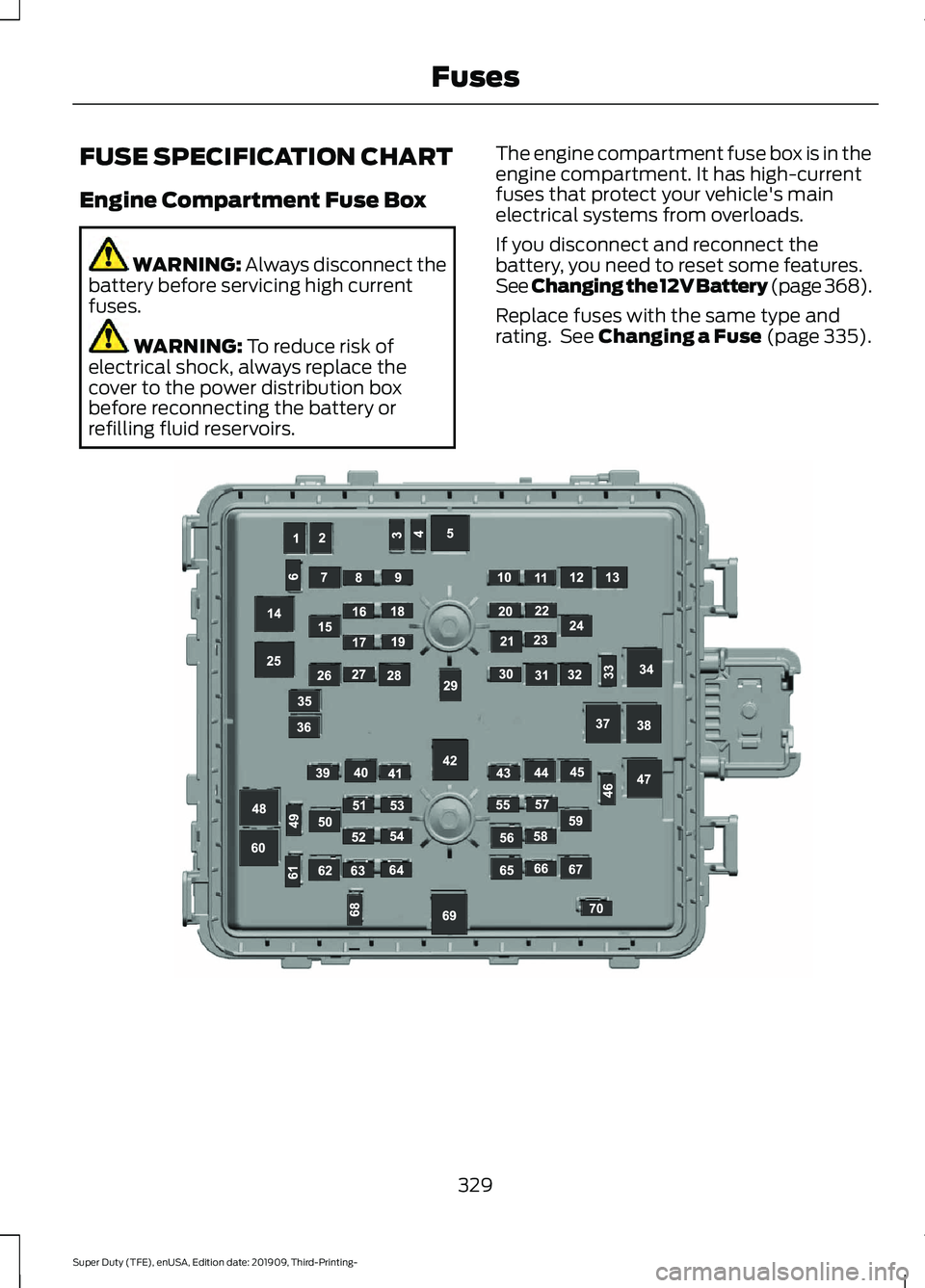

FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. The engine compartment fuse box is in the
engine compartment. It has high-current
fuses that protect your vehicle's main
electrical systems from overloads.
If you disconnect and reconnect the
battery, you need to reset some features.
See Changing the 12V Battery
(page 368).
Replace fuses with the same type and
rating. See Changing a Fuse (page 335). 329
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- FusesE306306

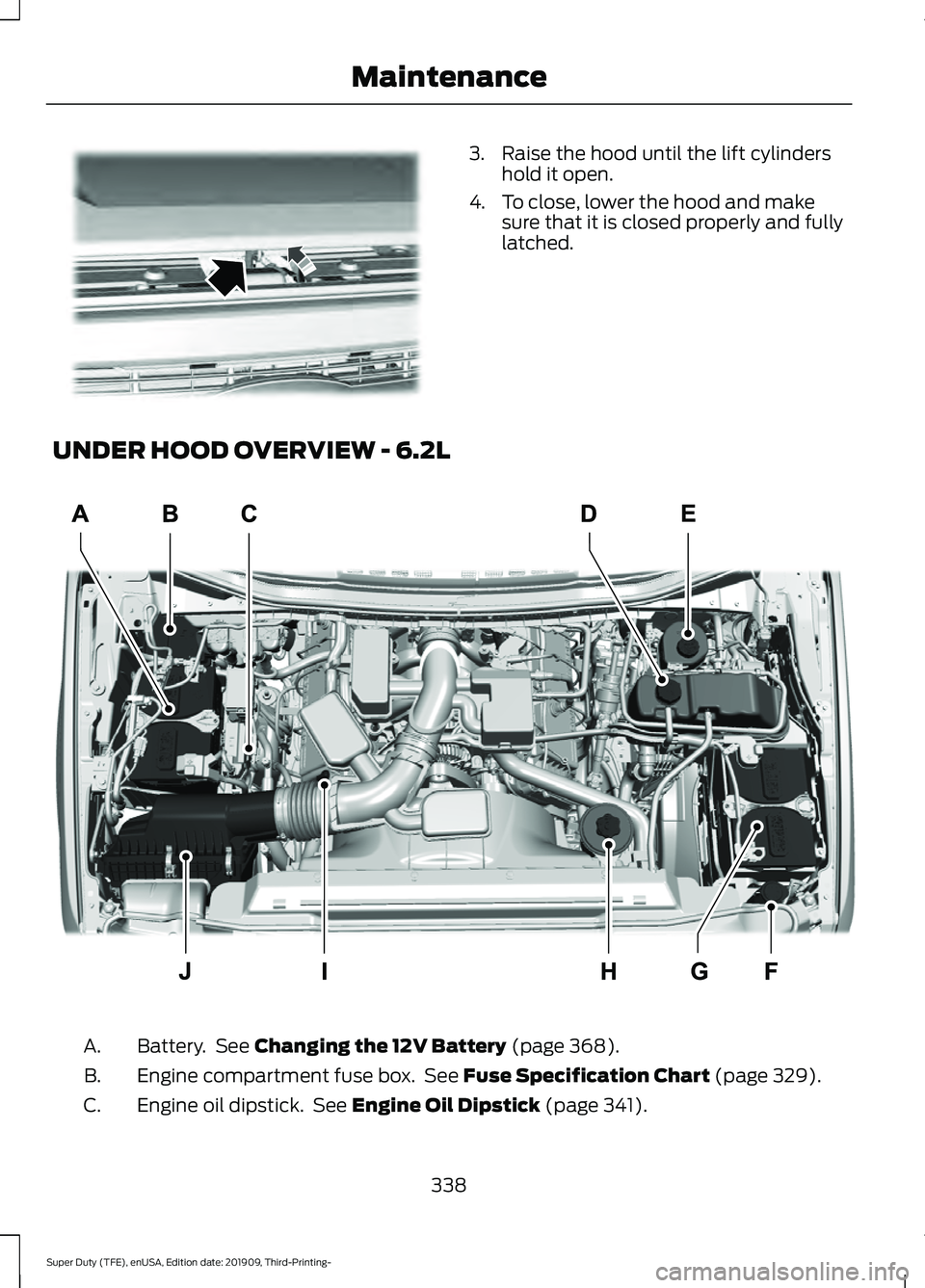

3. Raise the hood until the lift cylinders
hold it open.
4. To close, lower the hood and make sure that it is closed properly and fully
latched.
UNDER HOOD OVERVIEW - 6.2L Battery. See Changing the 12V Battery (page 368).
A.
Engine compartment fuse box. See
Fuse Specification Chart (page 329).
B.
Engine oil dipstick. See
Engine Oil Dipstick (page 341).
C.
338
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- MaintenanceE190266 E330427

Engine coolant reservoir. See Engine Coolant Check (page 353).
D.
Brake fluid reservoir. See
Brake Fluid Check (page 366).
E.
Windshield washer fluid reservoir. See
Washer Fluid Check (page 371).
F.
Battery. See
Changing the 12V Battery (page 368).
G.
Power steering fluid reservoir. See
Power Steering Fluid Check (page 367).
H.
Engine oil fill cap. See
Engine Oil Check (page 341).
I.
Air filter. See
Changing the Engine Air Filter (page 346).
J.

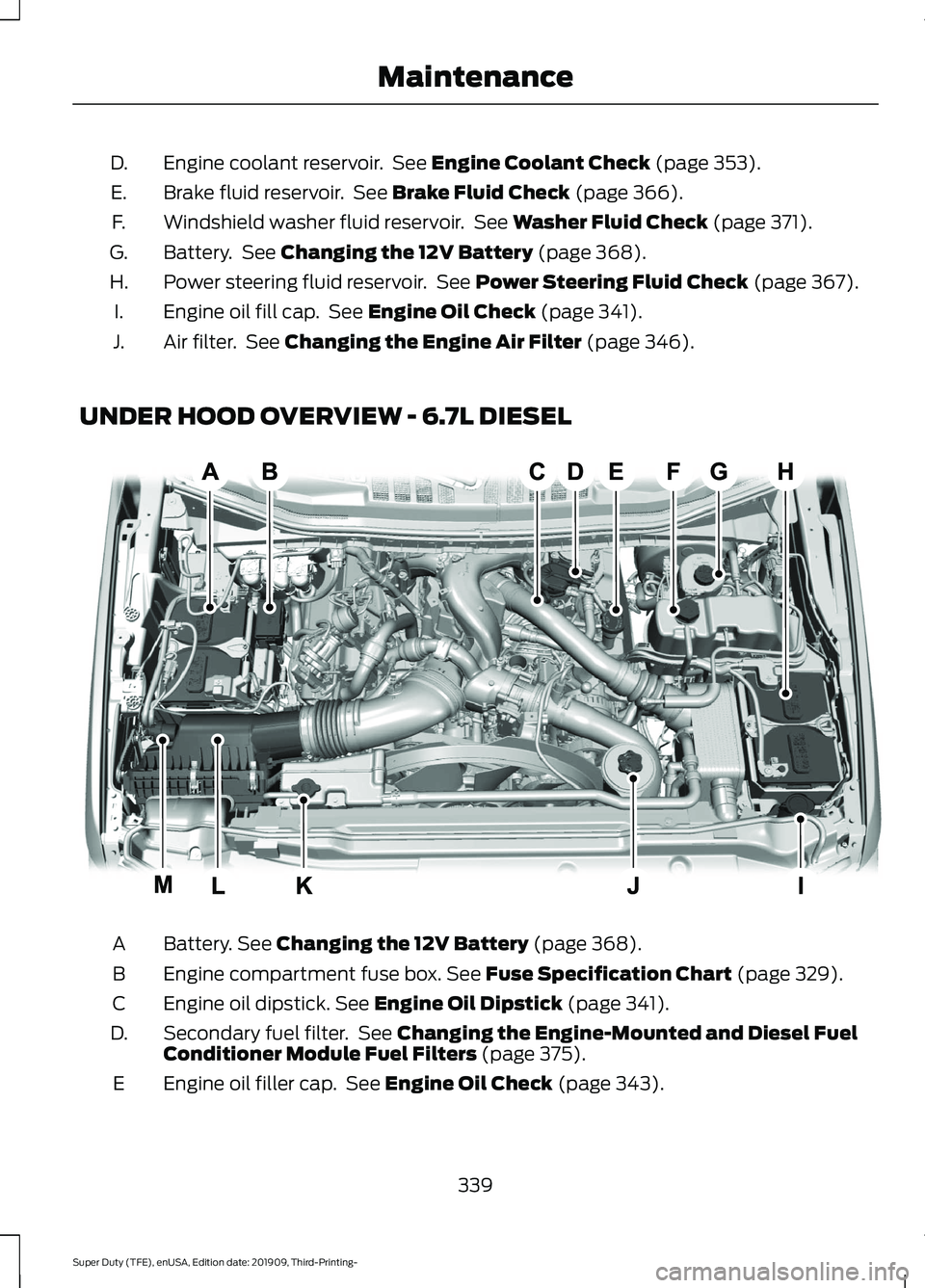

UNDER HOOD OVERVIEW - 6.7L DIESEL Battery.
See Changing the 12V Battery (page 368).
A
Engine compartment fuse box.
See Fuse Specification Chart (page 329).
B
Engine oil dipstick.
See Engine Oil Dipstick (page 341).
C
Secondary fuel filter. See
Changing the Engine-Mounted and Diesel Fuel
Conditioner Module Fuel Filters (page 375).
D.
Engine oil filler cap. See
Engine Oil Check (page 343).
E
339
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- MaintenanceE310091

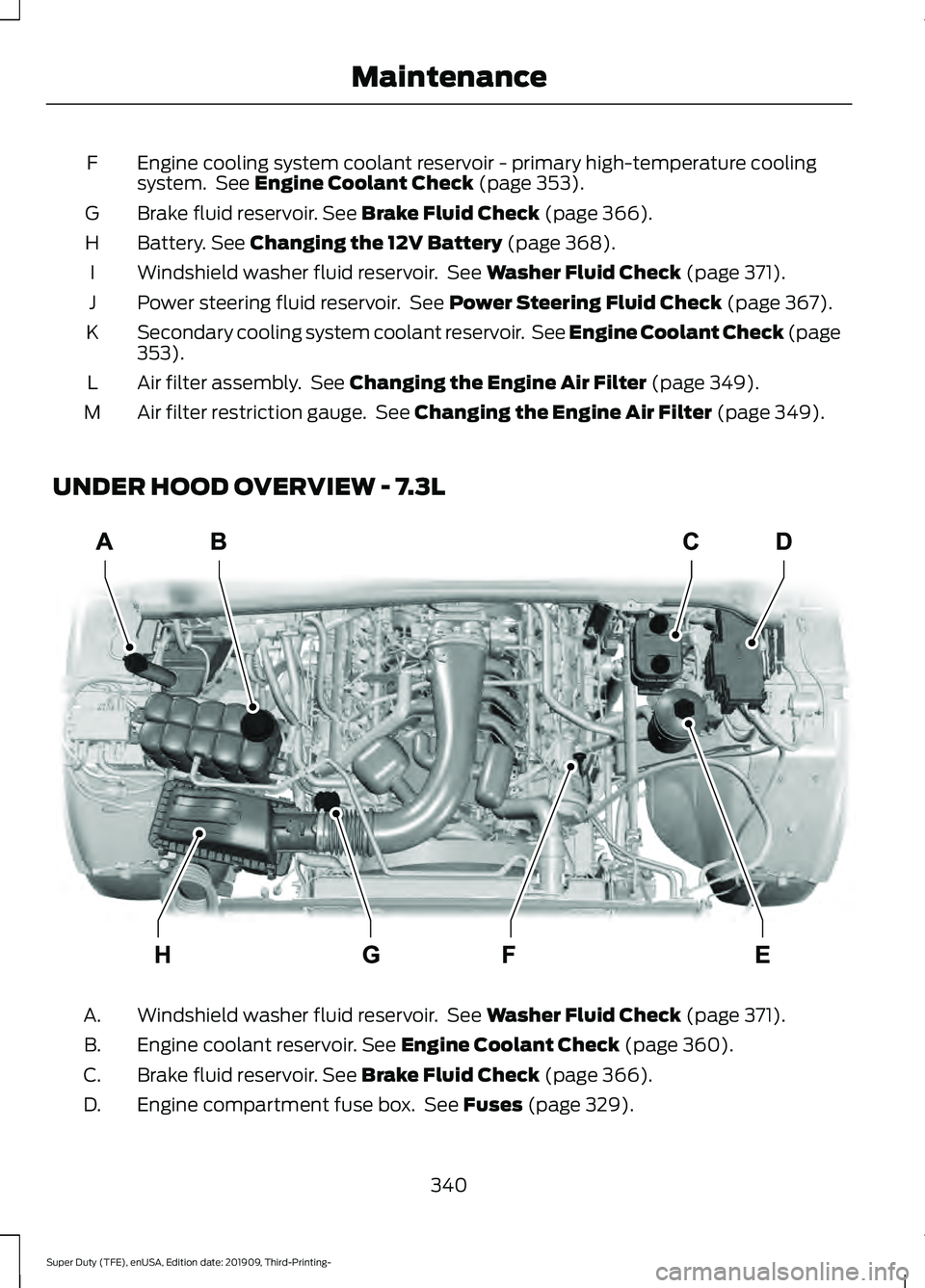

Engine cooling system coolant reservoir - primary high-temperature cooling
system. See Engine Coolant Check (page 353).
F
Brake fluid reservoir.
See Brake Fluid Check (page 366).
G
Battery.
See Changing the 12V Battery (page 368).
H
Windshield washer fluid reservoir. See
Washer Fluid Check (page 371).
I
Power steering fluid reservoir. See
Power Steering Fluid Check (page 367).
J
Secondary cooling system coolant reservoir. See Engine Coolant Check
(page
353).
K
Air filter assembly. See
Changing the Engine Air Filter (page 349).
L
Air filter restriction gauge. See
Changing the Engine Air Filter (page 349).
M
UNDER HOOD OVERVIEW - 7.3L Windshield washer fluid reservoir. See
Washer Fluid Check (page 371).
A.
Engine coolant reservoir.
See Engine Coolant Check (page 360).
B.
Brake fluid reservoir.
See Brake Fluid Check (page 366).
C.
Engine compartment fuse box. See
Fuses (page 329).
D.
340
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- MaintenanceE314803

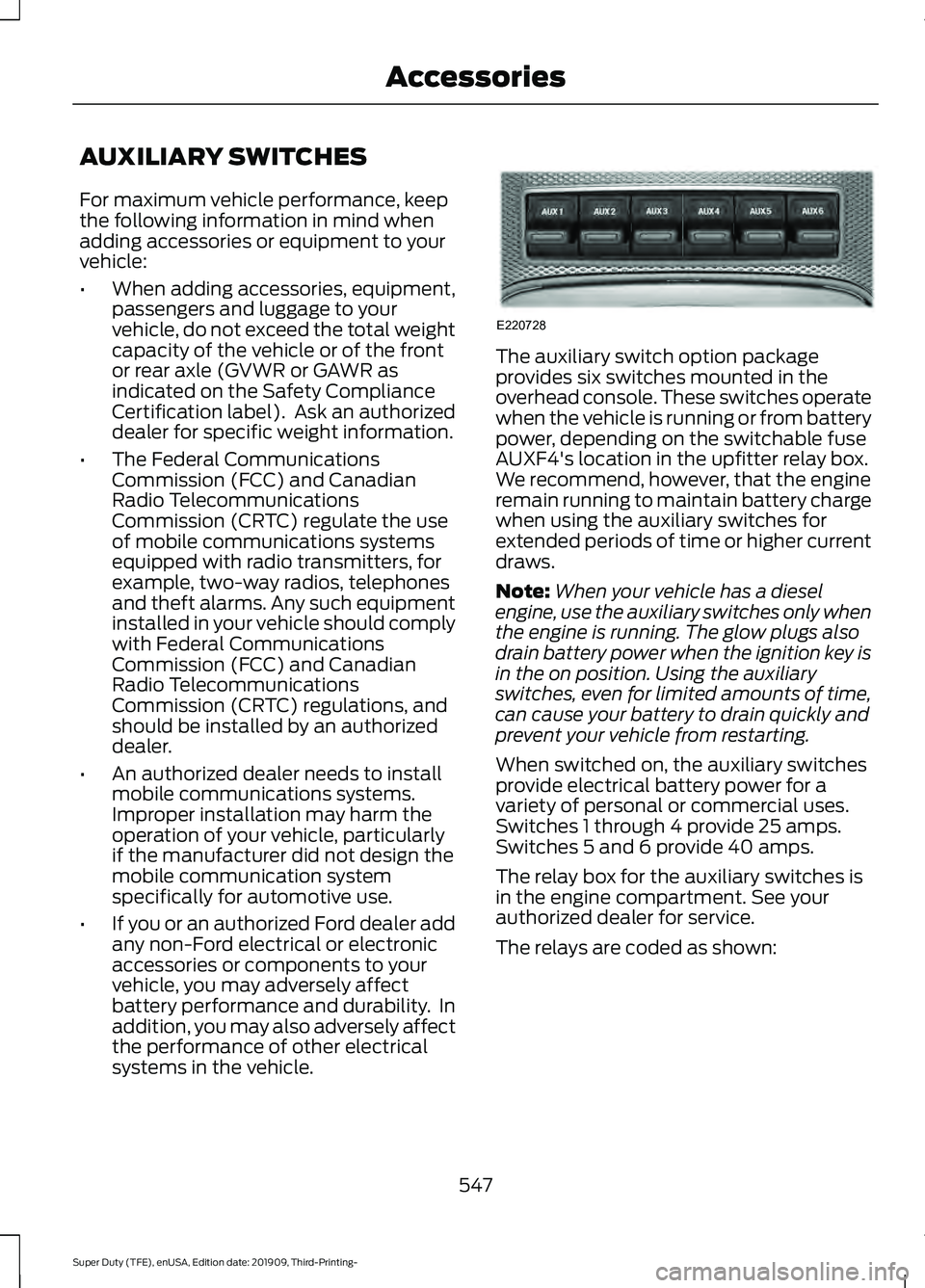

AUXILIARY SWITCHES
For maximum vehicle performance, keep
the following information in mind when
adding accessories or equipment to your
vehicle:
•
When adding accessories, equipment,
passengers and luggage to your
vehicle, do not exceed the total weight
capacity of the vehicle or of the front
or rear axle (GVWR or GAWR as
indicated on the Safety Compliance
Certification label). Ask an authorized
dealer for specific weight information.
• The Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulate the use
of mobile communications systems
equipped with radio transmitters, for
example, two-way radios, telephones
and theft alarms. Any such equipment
installed in your vehicle should comply
with Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulations, and
should be installed by an authorized
dealer.
• An authorized dealer needs to install
mobile communications systems.
Improper installation may harm the
operation of your vehicle, particularly
if the manufacturer did not design the
mobile communication system
specifically for automotive use.
• If you or an authorized Ford dealer add
any non-Ford electrical or electronic
accessories or components to your
vehicle, you may adversely affect
battery performance and durability. In
addition, you may also adversely affect
the performance of other electrical
systems in the vehicle. The auxiliary switch option package
provides six switches mounted in the
overhead console. These switches operate
when the vehicle is running or from battery
power, depending on the switchable fuse
AUXF4's location in the upfitter relay box.
We recommend, however, that the engine
remain running to maintain battery charge
when using the auxiliary switches for
extended periods of time or higher current
draws.
Note:
When your vehicle has a diesel
engine, use the auxiliary switches only when
the engine is running. The glow plugs also
drain battery power when the ignition key is
in the on position. Using the auxiliary
switches, even for limited amounts of time,
can cause your battery to drain quickly and
prevent your vehicle from restarting.
When switched on, the auxiliary switches
provide electrical battery power for a
variety of personal or commercial uses.
Switches 1 through 4 provide 25 amps.
Switches 5 and 6 provide 40 amps.
The relay box for the auxiliary switches is
in the engine compartment. See your
authorized dealer for service.
The relays are coded as shown:
547
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- AccessoriesE220728

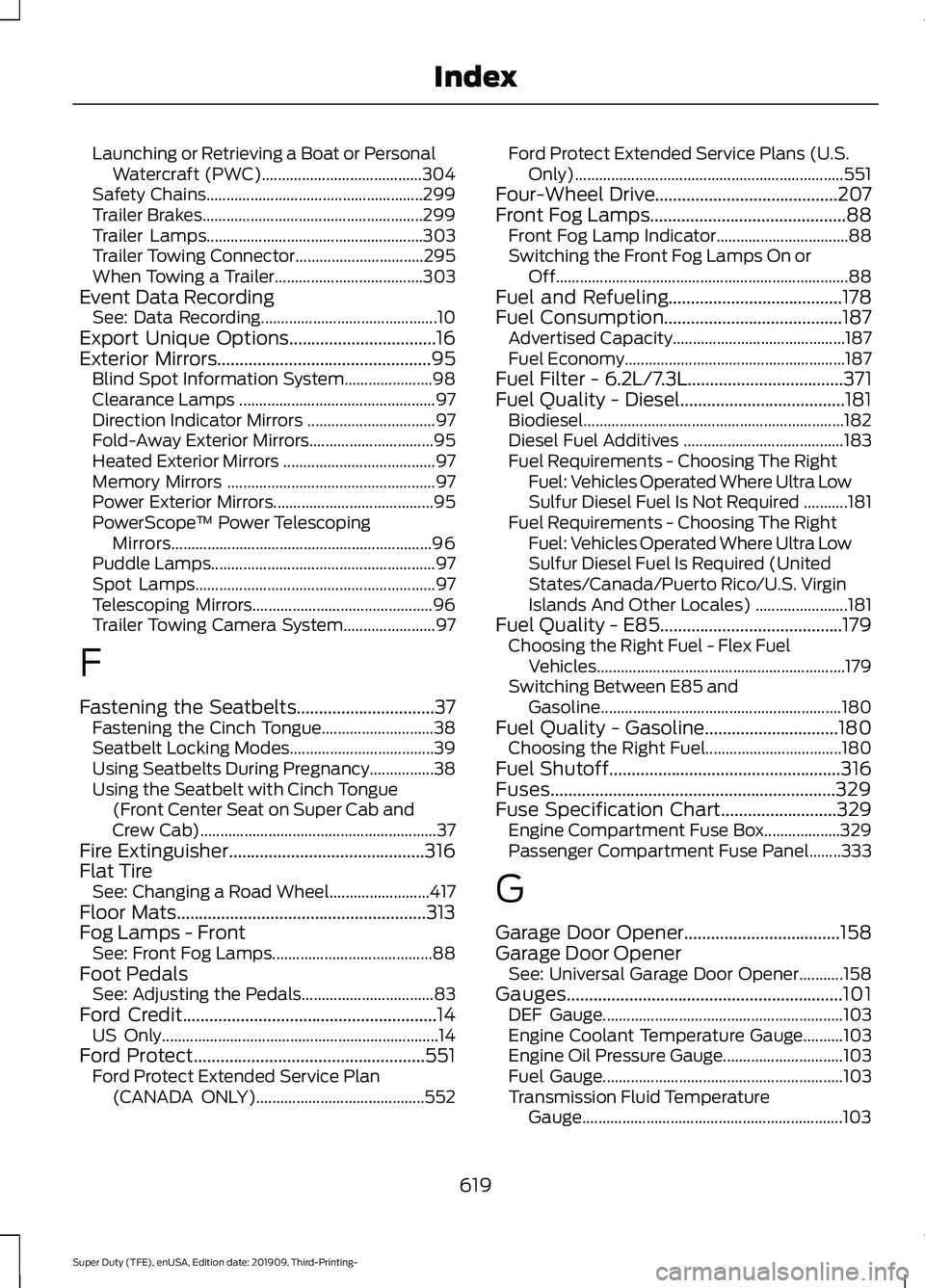

Launching or Retrieving a Boat or Personal
Watercraft (PWC)........................................ 304
Safety Chains...................................................... 299
Trailer Brakes....................................................... 299
Trailer Lamps...................................................... 303
Trailer Towing Connector................................ 295
When Towing a Trailer..................................... 303
Event Data Recording See: Data Recording............................................ 10
Export Unique Options.................................16
Exterior Mirrors................................................95 Blind Spot Information System...................... 98
Clearance Lamps ................................................. 97
Direction Indicator Mirrors ................................ 97
Fold-Away Exterior Mirrors............................... 95
Heated Exterior Mirrors ...................................... 97
Memory Mirrors .................................................... 97
Power Exterior Mirrors........................................ 95
PowerScope ™ Power Telescoping
Mirrors................................................................. 96
Puddle Lamps........................................................ 97
Spot Lamps............................................................ 97
Telescoping Mirrors............................................. 96
Trailer Towing Camera System....................... 97
F
Fastening the Seatbelts...............................37 Fastening the Cinch Tongue............................ 38
Seatbelt Locking Modes.................................... 39
Using Seatbelts During Pregnancy................38
Using the Seatbelt with Cinch Tongue (Front Center Seat on Super Cab and
Crew Cab)........................................................... 37
Fire Extinguisher
............................................316
Flat Tire See: Changing a Road Wheel......................... 417
Floor Mats........................................................313
Fog Lamps - Front See: Front Fog Lamps........................................ 88
Foot Pedals See: Adjusting the Pedals................................. 83
Ford Credit
.........................................................14
US Only..................................................................... 14
Ford Protect....................................................551 Ford Protect Extended Service Plan
(CANADA ONLY).......................................... 552Ford Protect Extended Service Plans (U.S.
Only)................................................................... 551
Four-Wheel Drive.........................................207
Front Fog Lamps............................................88 Front Fog Lamp Indicator................................. 88
Switching the Front Fog Lamps On or Off........................................................................\
. 88
Fuel and Refueling.......................................178
Fuel Consumption........................................187 Advertised Capacity........................................... 187
Fuel Economy....................................................... 187
Fuel Filter - 6.2L/7.3L...................................371
Fuel Quality - Diesel.....................................181 Biodiesel................................................................. 182
Diesel Fuel Additives ........................................ 183
Fuel Requirements - Choosing The Right Fuel: Vehicles Operated Where Ultra Low
Sulfur Diesel Fuel Is Not Required ...........181
Fuel Requirements - Choosing The Right Fuel: Vehicles Operated Where Ultra Low
Sulfur Diesel Fuel Is Required (United
States/Canada/Puerto Rico/U.S. Virgin
Islands And Other Locales) ....................... 181
Fuel Quality - E85.........................................179 Choosing the Right Fuel - Flex Fuel
Vehicles.............................................................. 179
Switching Between E85 and Gasoline............................................................ 180
Fuel Quality - Gasoline..............................180 Choosing the Right Fuel.................................. 180
Fuel Shutoff
....................................................316
Fuses................................................................329
Fuse Specification Chart
..........................329
Engine Compartment Fuse Box................... 329
Passenger Compartment Fuse Panel........333
G
Garage Door Opener...................................158
Garage Door Opener See: Universal Garage Door Opener...........158
Gauges..............................................................101 DEF Gauge............................................................ 103
Engine Coolant Temperature Gauge..........103
Engine Oil Pressure Gauge.............................. 103
Fuel Gauge............................................................ 103
Transmission Fluid Temperature Gauge................................................................. 103
619
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Index
