Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01A-61 Duratec-1 6V (Sigma)/l .6L Duratec-I 6V (Sigma) 303-OIA-61
IN-VEHICLE REPAIR

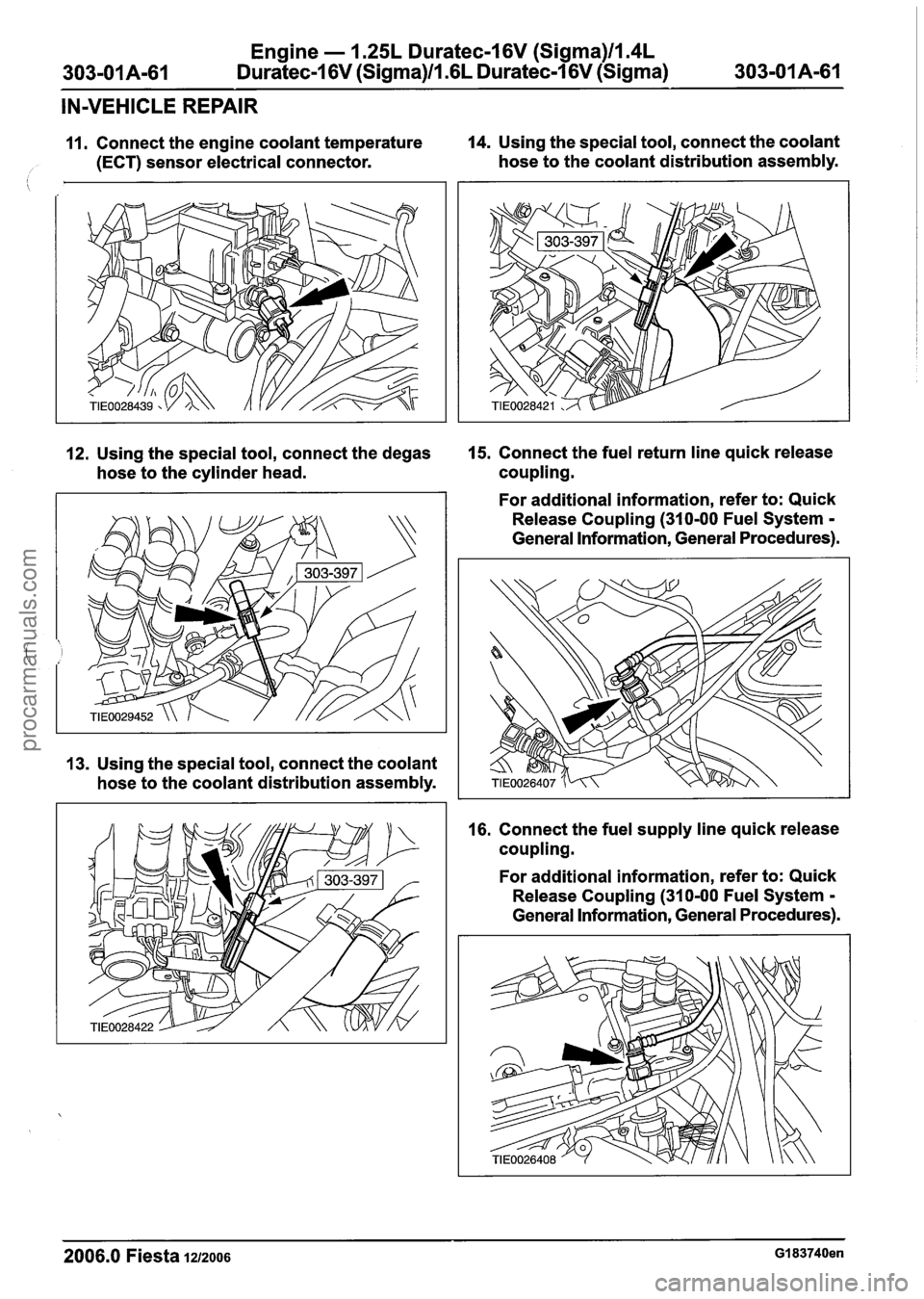

11. Connect the engine coolant temperature 14.
Using the special tool, connect the coolant
/ (ECT) sensor electrical connector.
hose to the coolant distribution assembly.
12. Using the special tool, connect the degas 15.
Connect the fuel return line quick release
hose to the cylinder head. coupling.
13. Using the special tool, connect the coolant
hose to the coolant distribution assembly. For additional
information, refer to: Quick
Release Coupling (310-00 Fuel System
-
General Information, General Procedures).
16. Connect the fuel supply line quick release
coupling.
For additional information, refer to: Quick
Release Coupling (310-00 Fuel System
-
General Information, General Procedures).
2006.0 Fiesta 1212006 GI 83740en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-72 Duratec-1 6V (Sigma)Il.GL Duratec-1 6V (Sigma) 303=01 A-72
REMOVAL

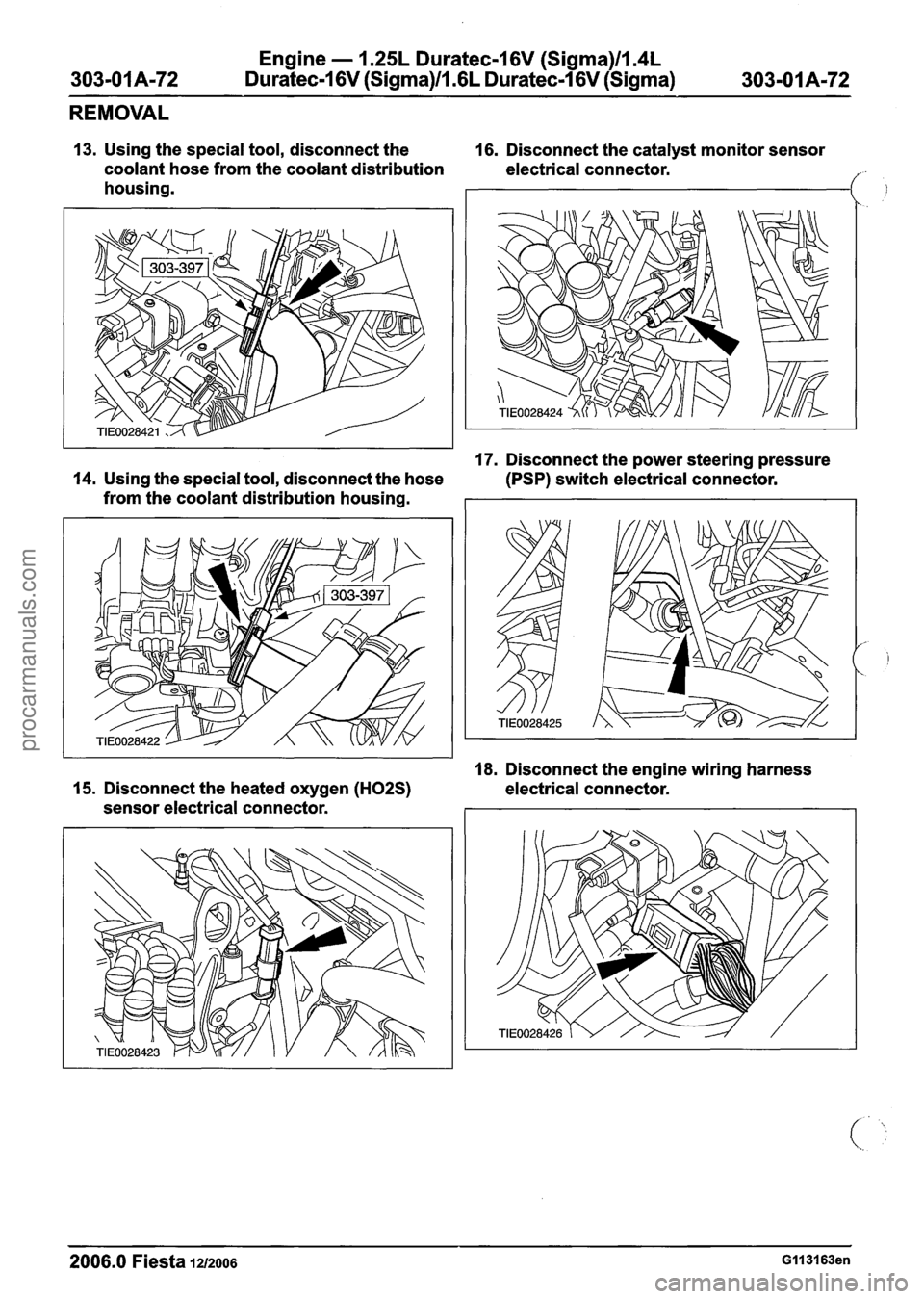

13. Using the special tool, disconnect the 16. Disconnect the catalyst monitor sensor
coolant hose from the coolant distribution electrical connector.
housing.
I
17. Disconnect the power steering pressure
14. Using the special tool, disconnect the hose
(PSP) switch electrical connector.
from the coolant distribution housing.
18. Disconnect the engine wiring harness
15. Disconnect the heated oxygen (H02S) electrical connector.
sensor electrical connector.
2006.0 Fiesta 1212006 Gll3163en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)lIl4L
Duratec-1 6V (Sigma)ll .6L Duratec-1 6V (Sigma)
REMOVAL

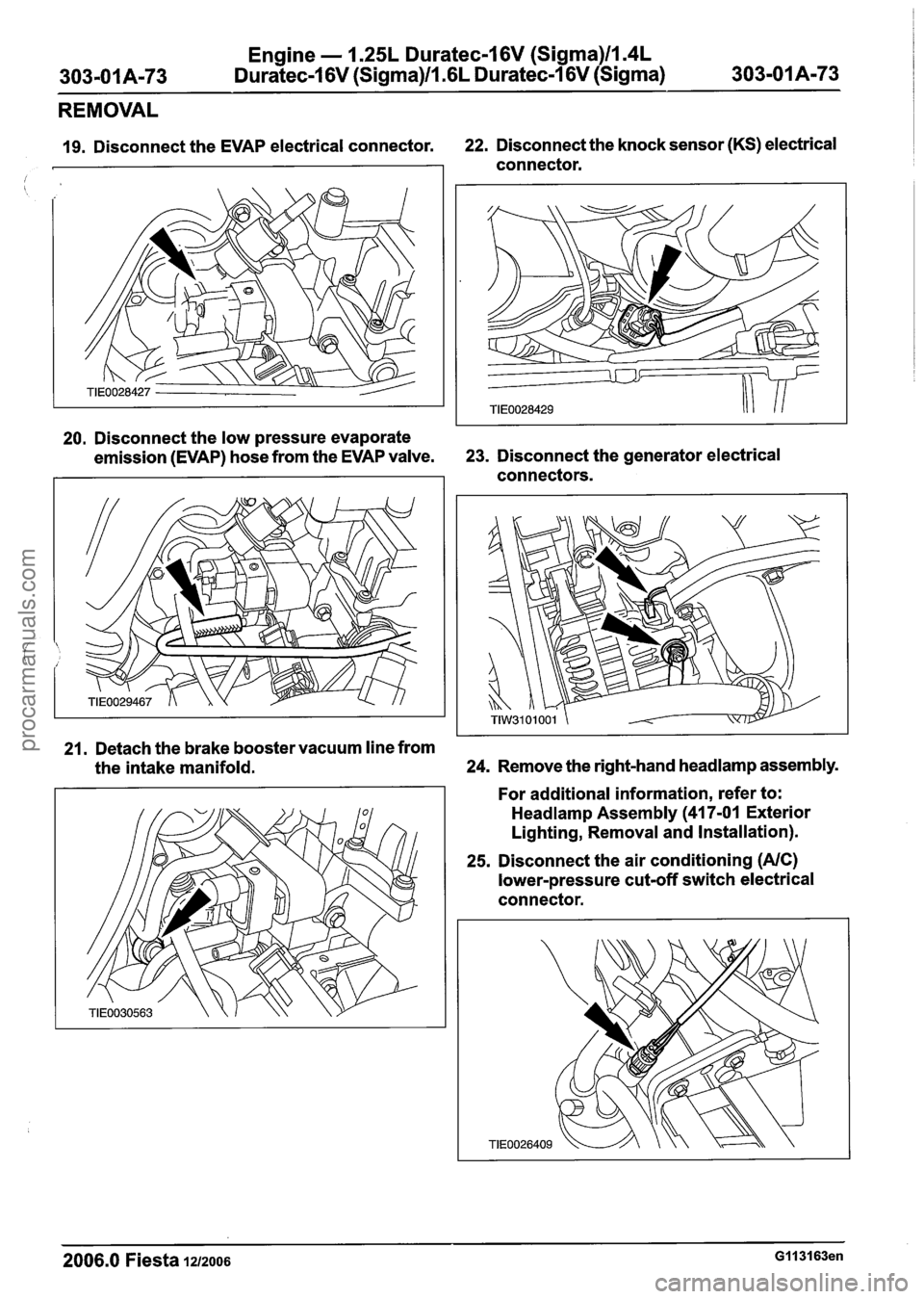

19. Disconnect the EVAP electrical connector. 22.
Disconnect the knock sensor (KS) electrical
connector.
20. Disconnect the low pressure evaporate
emission (EVAP) hose from the EVAP valve. 23.
Disconnect the generator electrical
connectors.
21. Detach the brake booster vacuum line from
the intake manifold. 24.
Remove the right-hand
headlamp assembly.
For additional information, refer to:
Headlamp Assembly (41 7-01 Exterior
Lighting, Removal and Installation).
25. Disconnect the air conditioning
(AIC)
lower-pressure cut-off switch electrical
connector.
2006.0 Fiesta 1212006 GI 131 63en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
Duratec-I 6V (Sigma)/l .6L Duratec-16V (Sigma)
REMOVAL

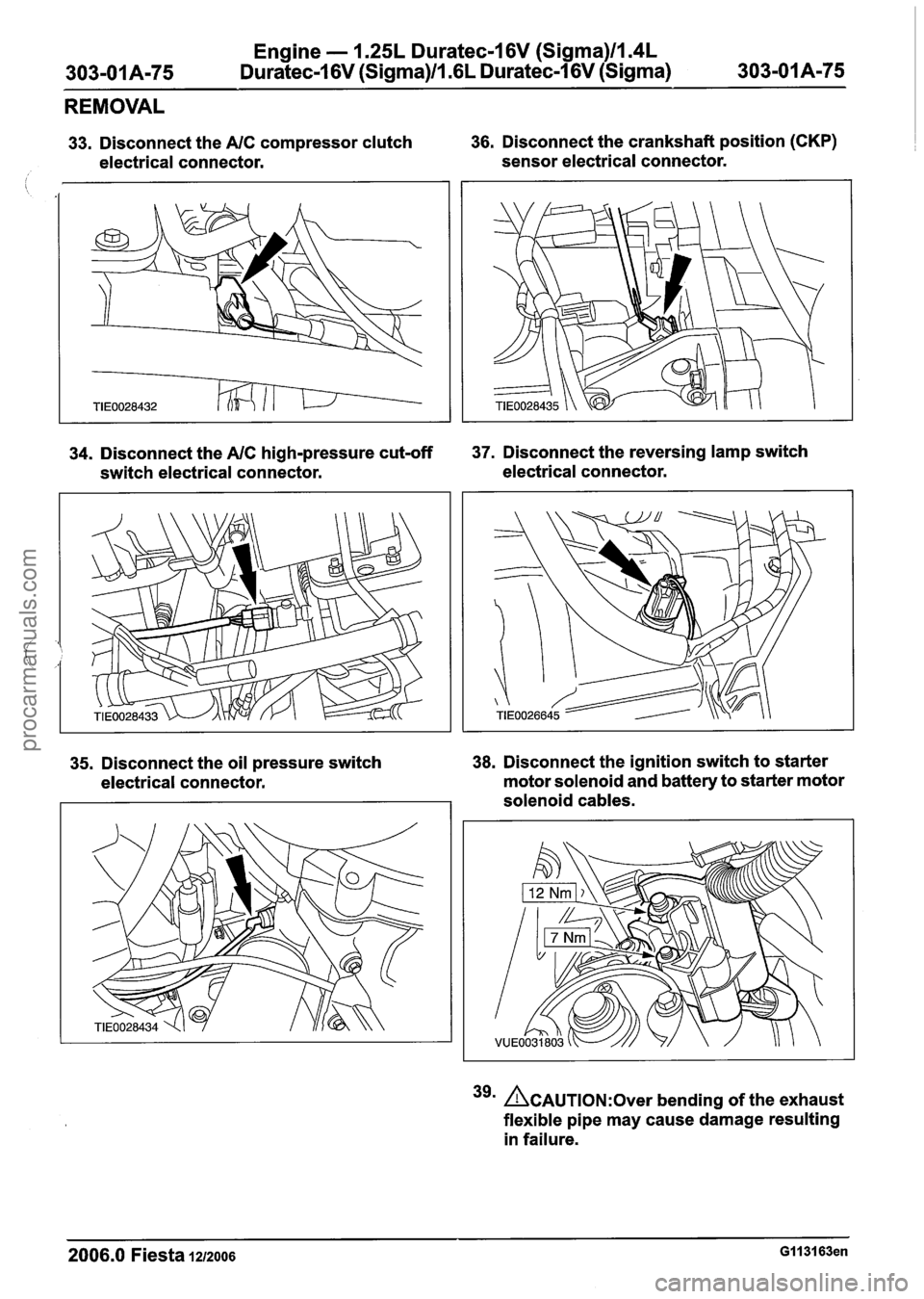

33. Disconnect the NC compressor clutch 36. Disconnect the crankshaft position (CKP)
electrical connector. sensor
electrical connector.
34. Disconnect the NC high-pressure cut-off 37. Disconnect the reversing lamp switch
switch electrical connector. electrical connector.
35. Disconnect the oil pressure switch
electrical connector. 38. Disconnect the ignition switch to starter
motor solenoid and battery to starter motor
solenoid cables.
39m ACAUTION:~~~~ bending of the exhaust
flexible pipe may cause damage resulting
in failure.
2006.0 Fiesta IZIZOO~ G113163en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)llm4L
Duratec-I 6V (Sigma)ll .6L Duratec-1 6V (Sigma)
REMOVAL

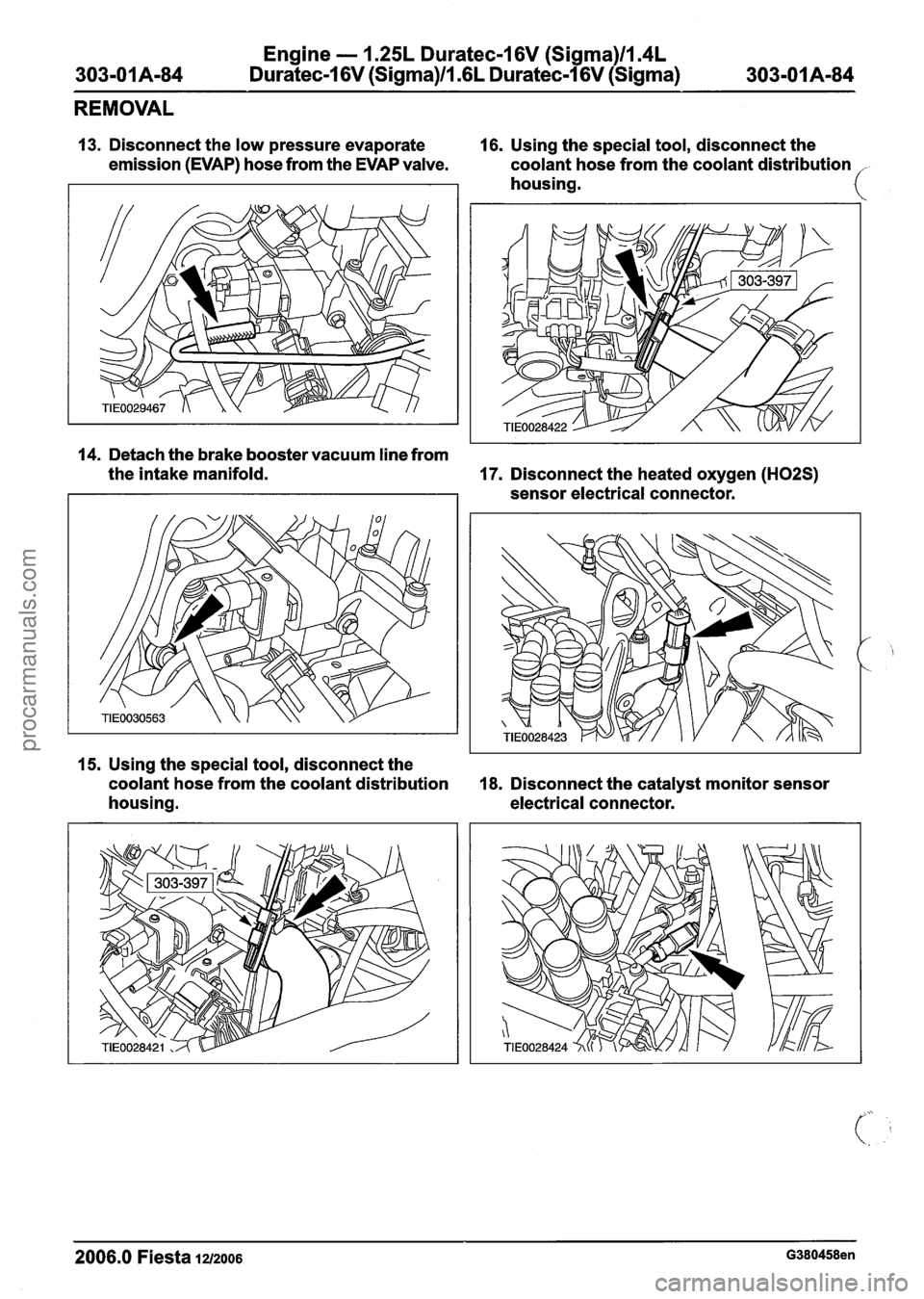

13. Disconnect the low pressure evaporate 16. Using the special tool, disconnect the
emission
(EVAP) hose from the EVAP valve. coolant hose from the coolant distribution
housing.
14. Detach the brake booster vacuum line from
the intake manifold.
17. Disconnect the heated oxygen (HOZS)
sensor electrical connector.
15. Using the special tool, disconnect the
coolant hose from the coolant distribution
18. Disconnect the catalyst monitor sensor
housing. electrical connector.
2006.0 Fiesta 1212006 G380458en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)llm4L
Duratec-1 6V (Sigma)/l.6L Duratec-I 6V (Sigma)
REMOVAL

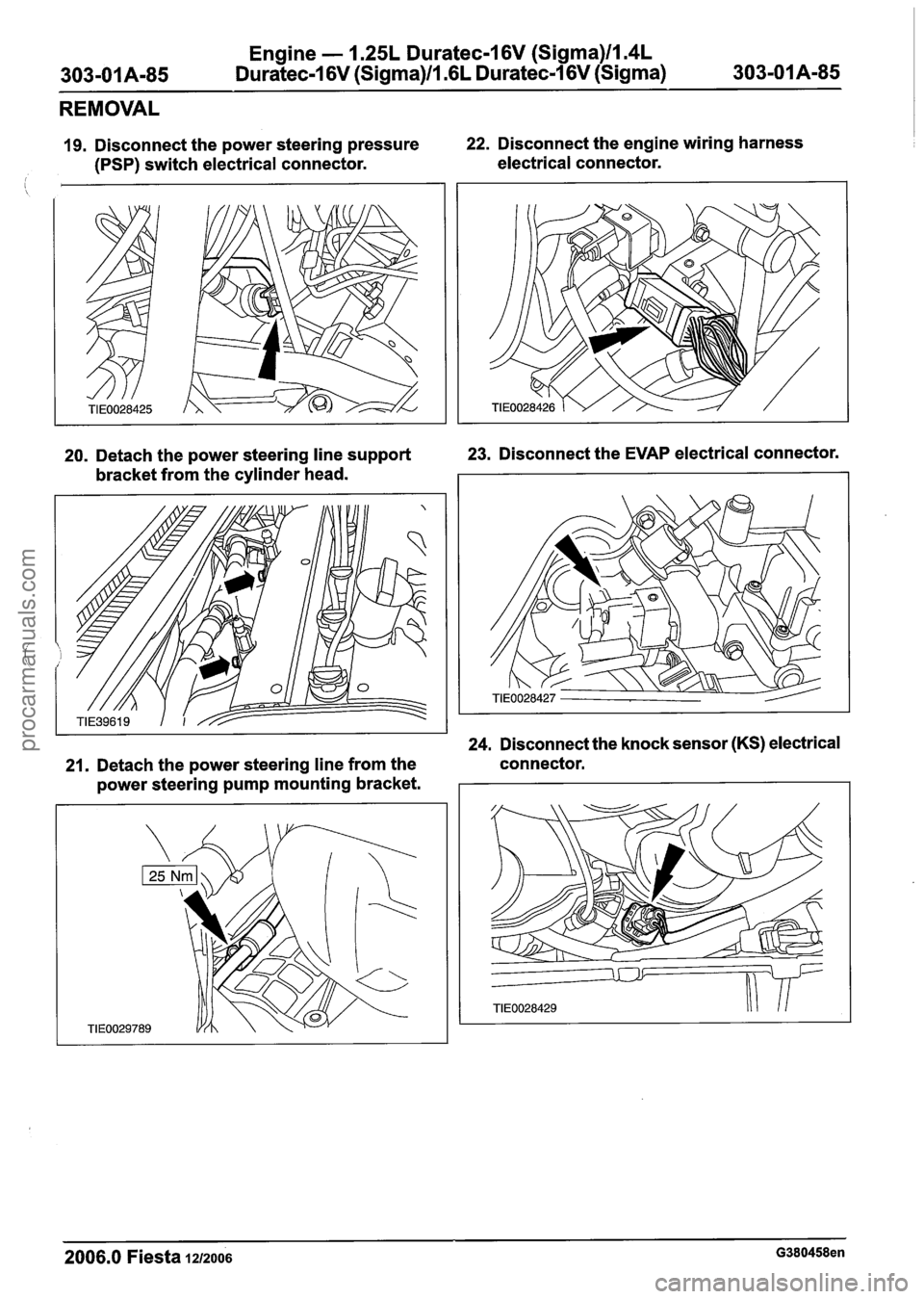

19. Disconnect the power steering pressure 22.
Disconnect the engine wiring harness
(PSP) switch electrical connector. electrical
connector.
I
20. Detach the power steering line support 23. Disconnect
the EVAP electrical connector.
bracket from the cylinder head.
24. Disconnect the knock sensor (KS) electrical
21. Detach the power steering line from the connector.
power steering pump mounting bracket.
2006.0 Fiesta 121200'6 G380458en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)lIl4L
303-01 A-86 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma)
303-01 A-86
REMOVAL

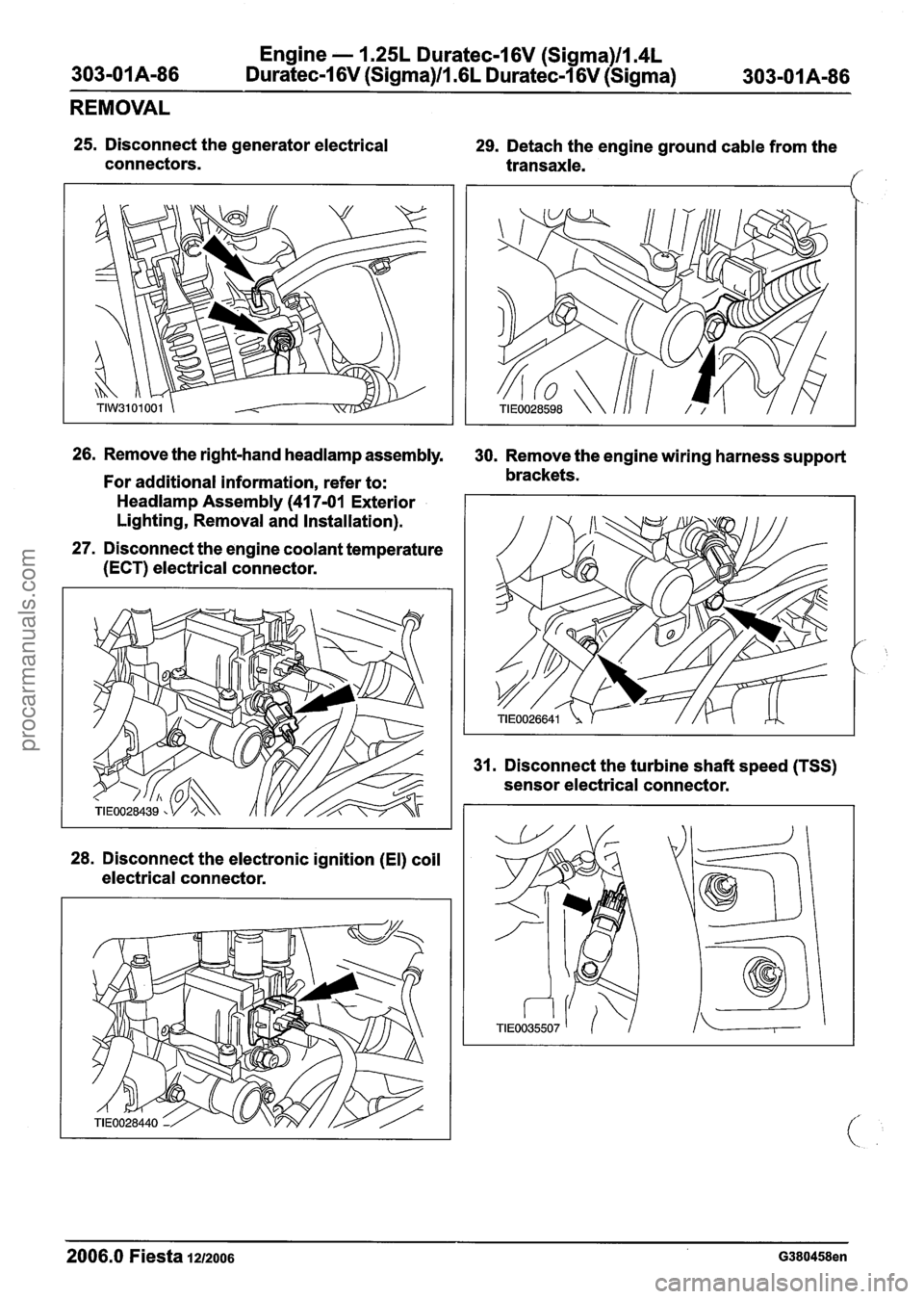

25. Disconnect the generator electrical
connectors. 29. Detach the engine ground cable from the
transaxle.
J
26. Remove the right-hand headlamp assembly.
30. Remove the engine wiring harness support
For additional information, refer to: brackets.
Headlamp Assembly
(41 7-01 Exterior
Lighting, Removal and Installation).
27. Disconnect the engine coolant temperature
(ECT) electrical connector.
28. Disconnect the electronic ignition (El) coil
electrical connector. 31.
Disconnect the turbine shaft speed (TSS)
sensor electrical connector.
2006.0 Fiesta 1212006 G380458en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
Duratec-1 6V (Sigma)ll .6L Duratec-1 6V (Sigma) - ---
REMOVAL

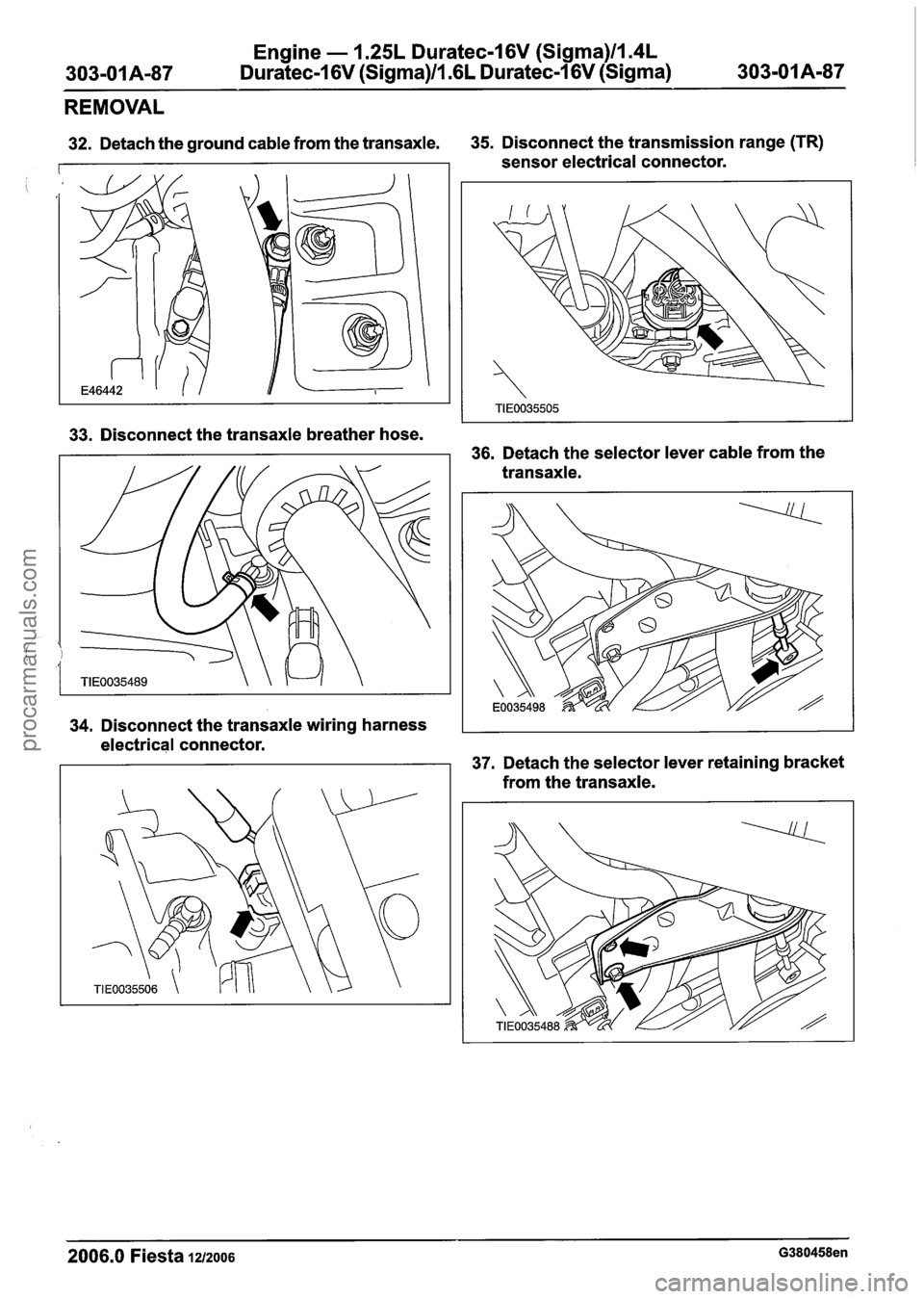

32. Detach the ground cable from the transaxle. 35.
Disconnect the transmission range (TR)
sensor electrical connector.
33. Disconnect the transaxle breather hose.
36. Detach the selector lever cable from the
transaxle.
34. Disconnect the transaxle wiring harness
electrical connector.
37. Detach the selector lever retaining bracket
from the transaxle.
2006.0 Fiesta 1212006 G380458en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)llI4L
303-01 Am88 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma) 303101 A-88
REMOVAL

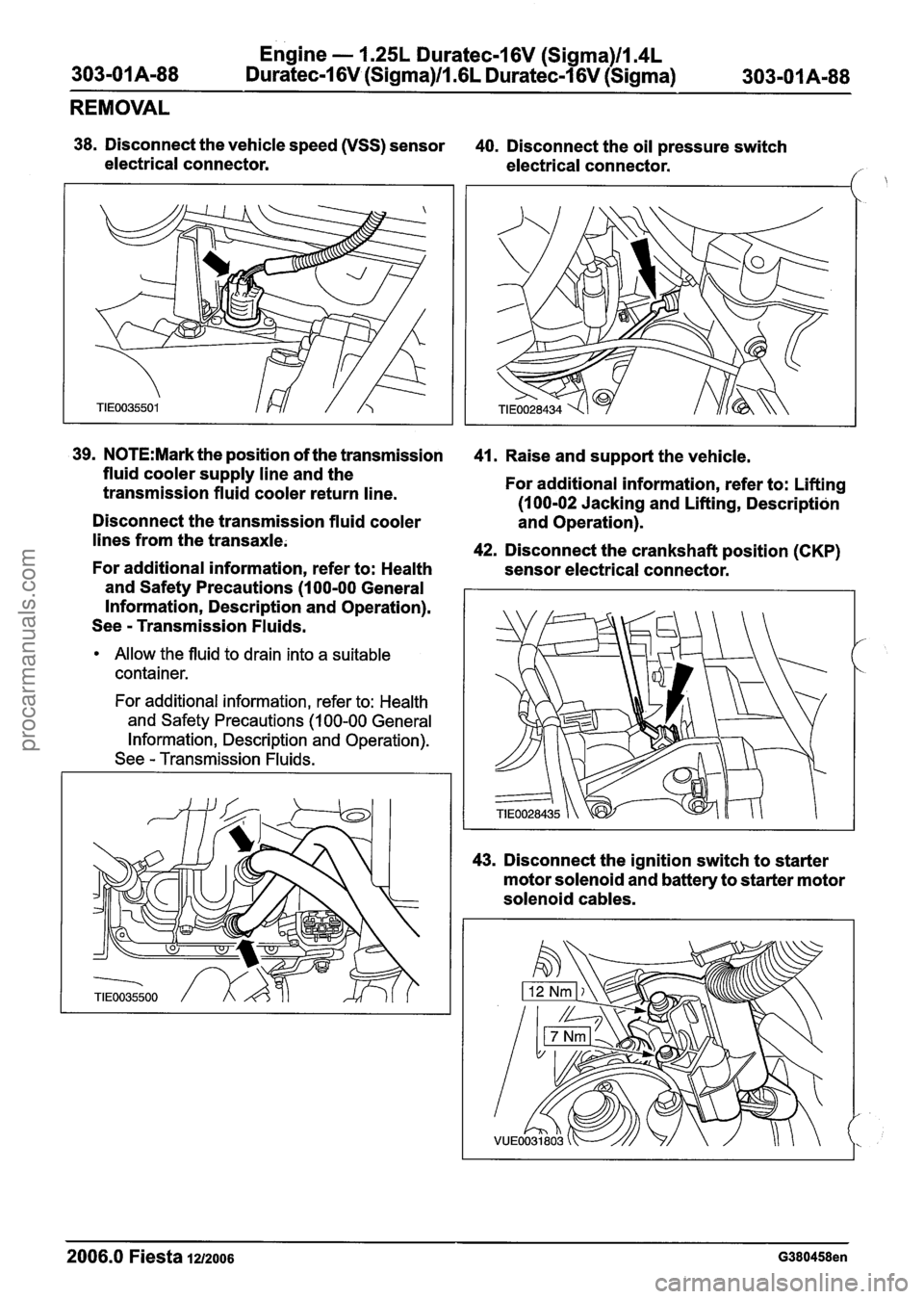

38. Disconnect the vehicle speed (VSS) sensor
40. Disconnect the oil pressure switch
electrical connector. electrical connector.
/
39. N0TE:Mark the position of the transmission
fluid cooler supply line and the
transmission fluid cooler return line.
Disconnect the transmission fluid cooler
lines from the transaxle.
For additional information, refer to: Health
and Safety Precautions
(1 00-00 General
Information, Description and Operation).
See
- Transmission Fluids.
Allow the fluid to drain into a suitable
container.
For additional information, refer to: Health and Safety Precautions
(1 00-00 General
Information, Description and Operation).
See
- Transmission Fluids.
41. Raise and support the vehicle.
For additional information, refer to: Lifting
(1 00-02 Jacking and Lifting, Description
and Operation).
42. Disconnect the crankshaft position (CKP)
sensor electrical connector.
43. Disconnect the ignition switch to starter
motor solenoid and battery to starter motor
solenoid cables.
2006.0 Fiesta la2006 G380458en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)llI4L
Duratec-1 6V (Sigma)lI.GL Duratec-1 6V (Sigma) 303-01A-101

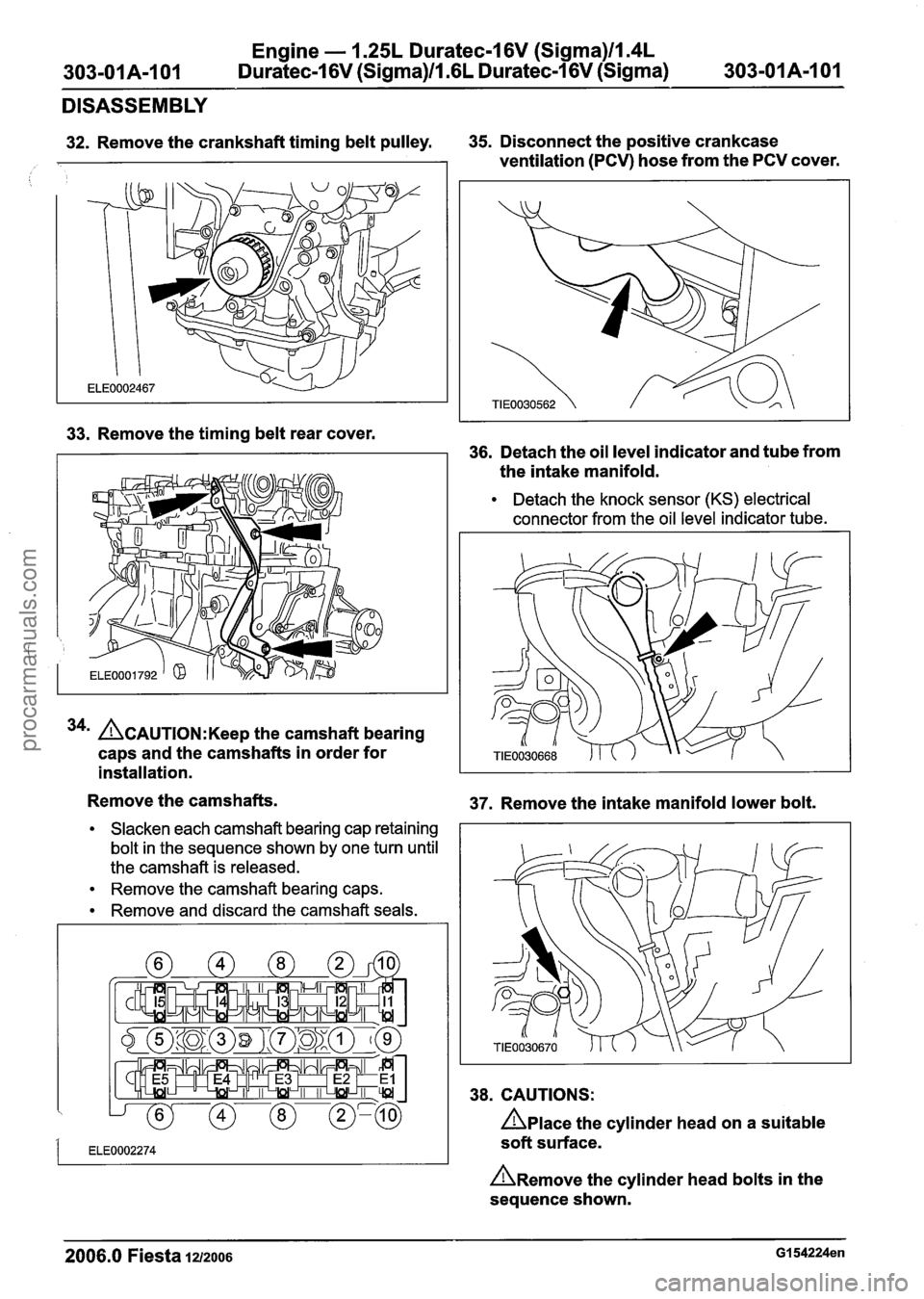

DISASSEMBLY
32. Remove the crankshaft timing belt pulley. 35. Disconnect the positive crankcase
ventilation (PCV) hose from the PCV cover.
33. Remove the timing belt rear cover.
34m ACAUTION: ~ee~ the camshaft bearing
caps and the camshafts in order for
installation.
36. Detach the oil level indicator and tube from
the intake manifold.
Detach the knock sensor (KS) electrical
connector from the oil level indicator tube.
Remove the camshafts. 37. Remove the intake manifold lower bolt.
Slacken each camshaft bearing cap retaining
bolt in the sequence shown by one turn until
the camshaft is released.
Remove the camshaft bearing caps.
Remove and discard the camshaft seals.
38.
CAUTIONS:
A~~ace the cylinder head on a suitable
soft surface.
A~emove the cylinder head bolts in the
sequence shown.
2006.0 Fiesta 1212006 G 1 54224en
