engine coolant FORD FLEX 2009 1.G User Guide

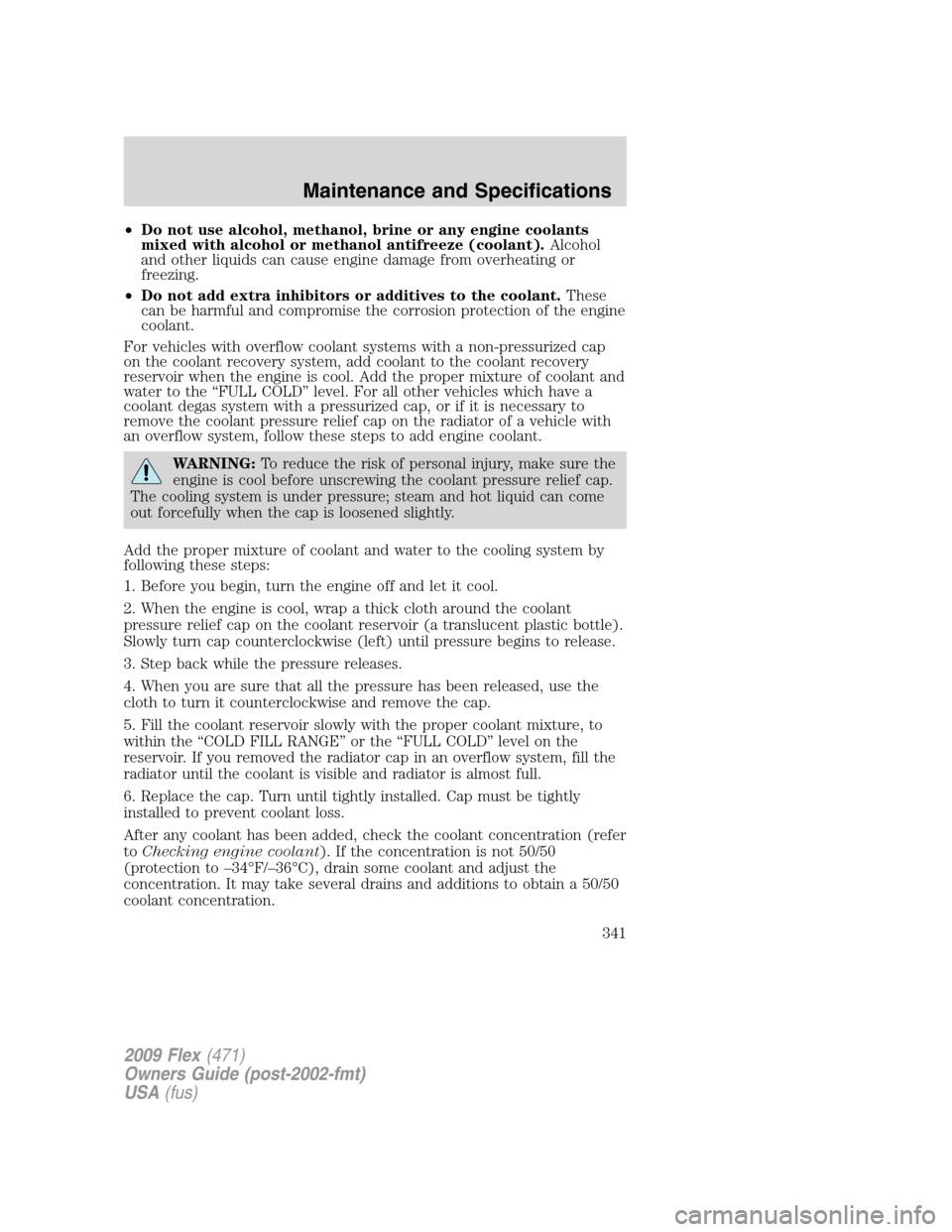

•Do not use alcohol, methanol, brine or any engine coolants
mixed with alcohol or methanol antifreeze (coolant).Alcohol
and other liquids can cause engine damage from overheating or
freezing.
•Do not add extra inhibitors or additives to the coolant.These
can be harmful and compromise the corrosion protection of the engine
coolant.
For vehicles with overflow coolant systems with a non-pressurized cap
on the coolant recovery system, add coolant to the coolant recovery
reservoir when the engine is cool. Add the proper mixture of coolant and
water to the “FULL COLD” level. For all other vehicles which have a
coolant degas system with a pressurized cap, or if it is necessary to
remove the coolant pressure relief cap on the radiator of a vehicle with
an overflow system, follow these steps to add engine coolant.
WARNING:To reduce the risk of personal injury, make sure the
engine is cool before unscrewing the coolant pressure relief cap.
The cooling system is under pressure; steam and hot liquid can come
out forcefully when the cap is loosened slightly.
Add the proper mixture of coolant and water to the cooling system by
following these steps:
1. Before you begin, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the coolant
pressure relief cap on the coolant reservoir (a translucent plastic bottle).
Slowly turn cap counterclockwise (left) until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
5. Fill the coolant reservoir slowly with the proper coolant mixture, to
within the “COLD FILL RANGE” or the “FULL COLD” level on the
reservoir. If you removed the radiator cap in an overflow system, fill the
radiator until the coolant is visible and radiator is almost full.
6. Replace the cap. Turn until tightly installed. Cap must be tightly
installed to prevent coolant loss.
After any coolant has been added, check the coolant concentration (refer
toChecking engine coolant). If the concentration is not 50/50
(protection to –34°F/–36°C), drain some coolant and adjust the
concentration. It may take several drains and additions to obtain a 50/50
coolant concentration.
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
341

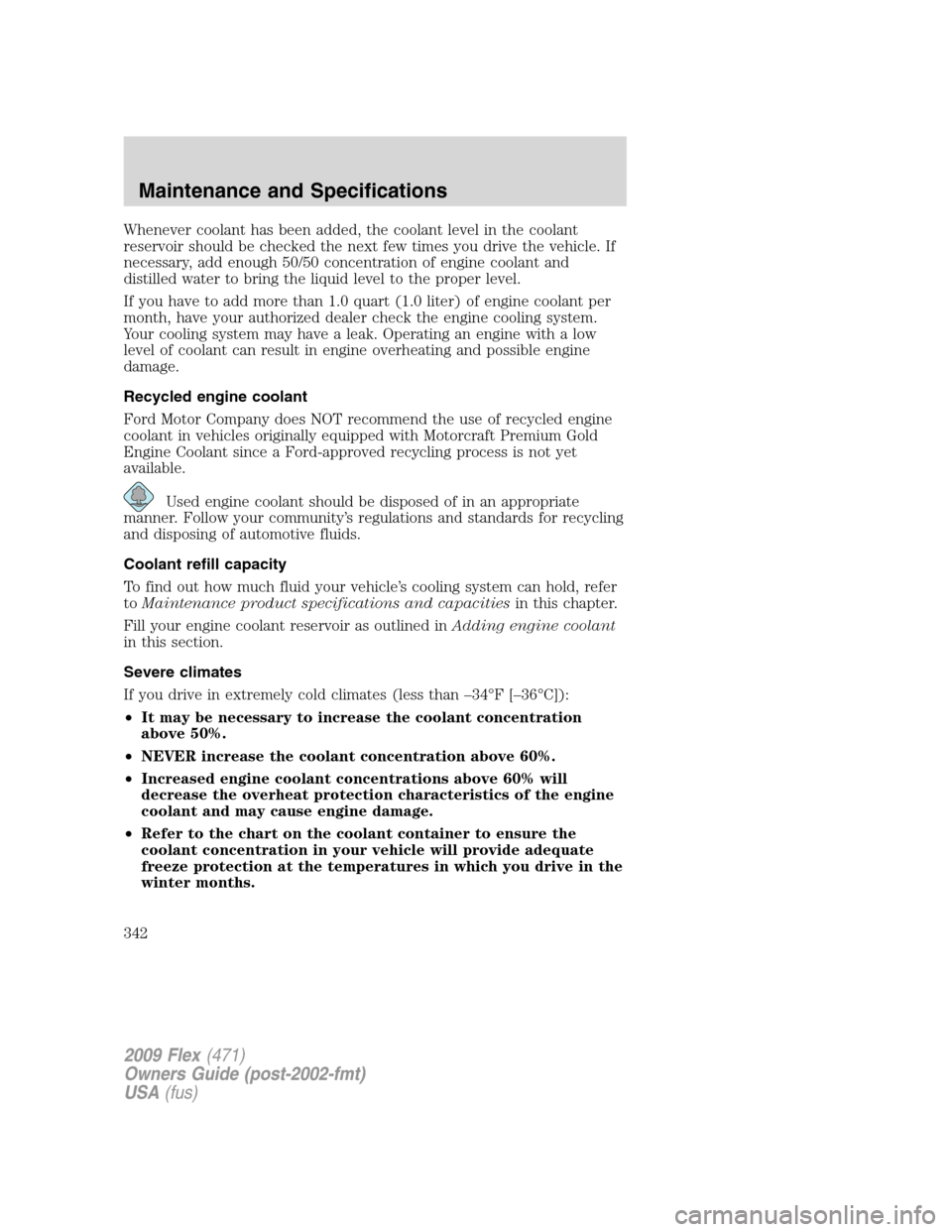

Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper level.
If you have to add more than 1.0 quart (1.0 liter) of engine coolant per
month, have your authorized dealer check the engine cooling system.
Your cooling system may have a leak. Operating an engine with a low
level of coolant can result in engine overheating and possible engine
damage.
Recycled engine coolant
Ford Motor Company does NOT recommend the use of recycled engine
coolant in vehicles originally equipped with Motorcraft Premium Gold
Engine Coolant since a Ford-approved recycling process is not yet
available.
Used engine coolant should be disposed of in an appropriate
manner. Follow your community’s regulations and standards for recycling
and disposing of automotive fluids.
Coolant refill capacity
To find out how much fluid your vehicle’s cooling system can hold, refer
toMaintenance product specifications and capacitiesin this chapter.
Fill your engine coolant reservoir as outlined inAdding engine coolant
in this section.
Severe climates
If you drive in extremely cold climates (less than –34°F [–36°C]):
•It may be necessary to increase the coolant concentration
above 50%.
•NEVER increase the coolant concentration above 60%.
•Increased engine coolant concentrations above 60% will
decrease the overheat protection characteristics of the engine
coolant and may cause engine damage.
•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
freeze protection at the temperatures in which you drive in the
winter months.
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
342

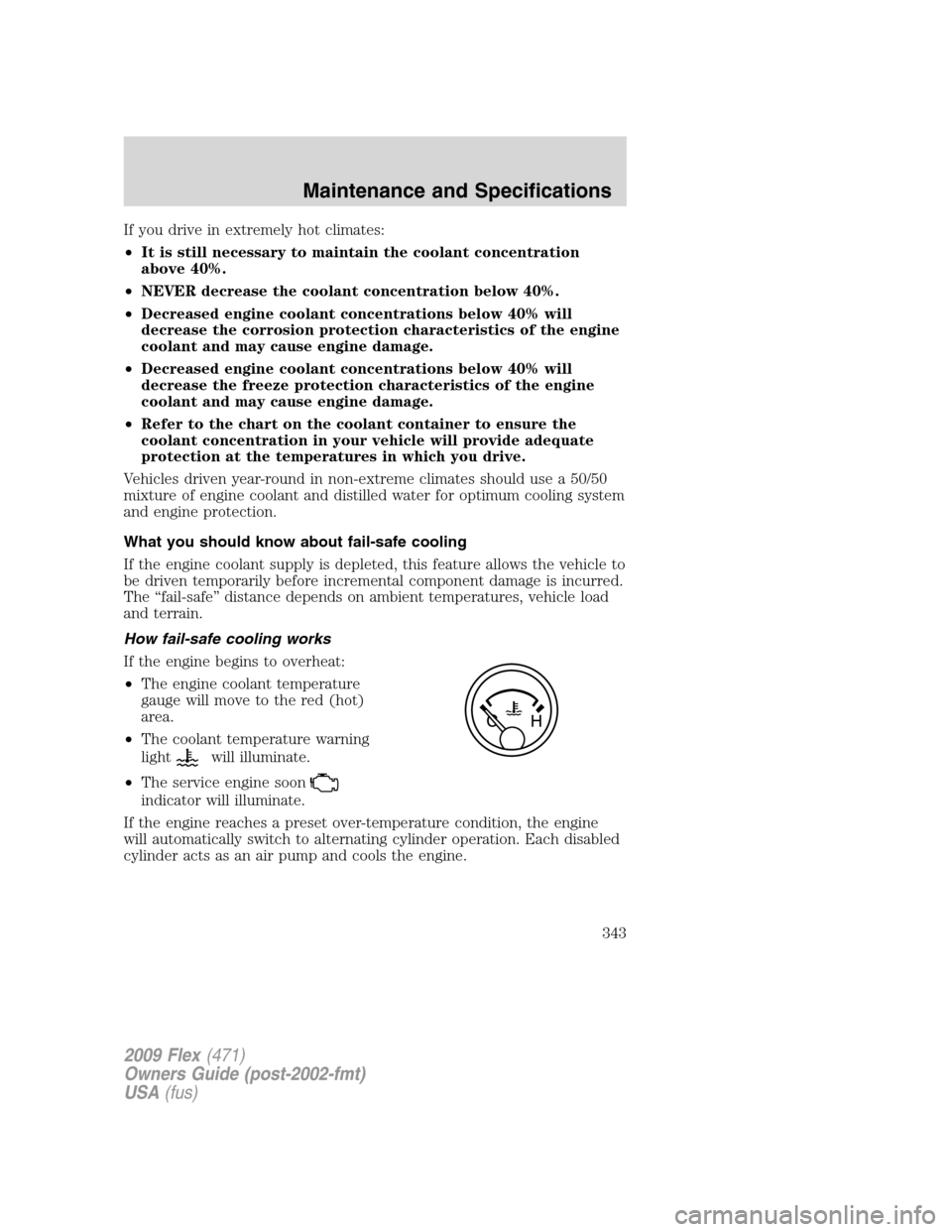

If you drive in extremely hot climates:
•It is still necessary to maintain the coolant concentration
above 40%.
•NEVER decrease the coolant concentration below 40%.
•Decreased engine coolant concentrations below 40% will
decrease the corrosion protection characteristics of the engine
coolant and may cause engine damage.
•Decreased engine coolant concentrations below 40% will
decrease the freeze protection characteristics of the engine
coolant and may cause engine damage.
•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
protection at the temperatures in which you drive.
Vehicles driven year-round in non-extreme climates should use a 50/50
mixture of engine coolant and distilled water for optimum cooling system
and engine protection.
What you should know about fail-safe cooling
If the engine coolant supply is depleted, this feature allows the vehicle to
be driven temporarily before incremental component damage is incurred.
The “fail-safe” distance depends on ambient temperatures, vehicle load
and terrain.
How fail-safe cooling works
If the engine begins to overheat:
•The engine coolant temperature
gauge will move to the red (hot)
area.
•The coolant temperature warning
light
will illuminate.
•The service engine soon
indicator will illuminate.
If the engine reaches a preset over-temperature condition, the engine
will automatically switch to alternating cylinder operation. Each disabled
cylinder acts as an air pump and cools the engine.
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
343

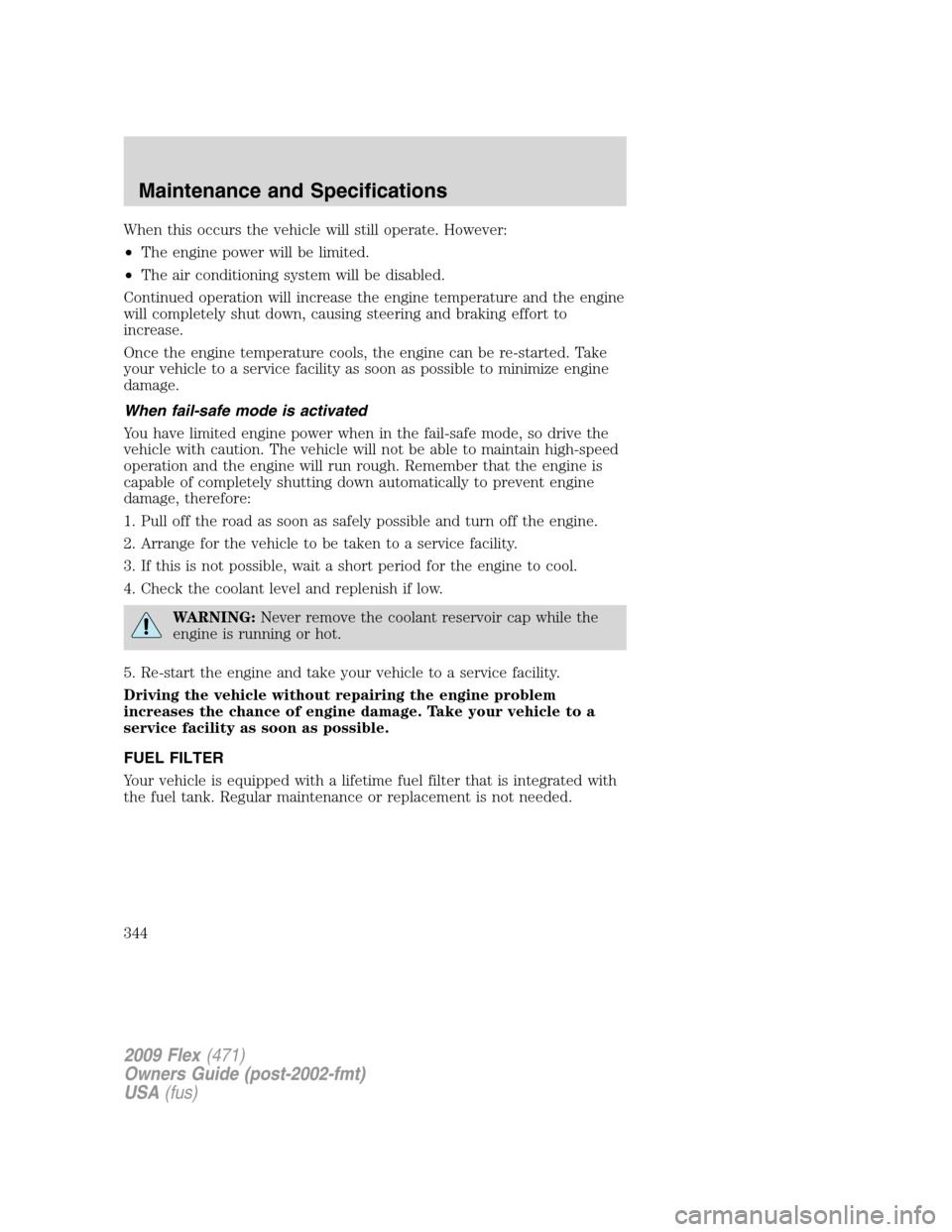

When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
Continued operation will increase the engine temperature and the engine
will completely shut down, causing steering and braking effort to
increase.
Once the engine temperature cools, the engine can be re-started. Take
your vehicle to a service facility as soon as possible to minimize engine
damage.
When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high-speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to a service facility.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
5. Re-start the engine and take your vehicle to a service facility.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to a
service facility as soon as possible.
FUEL FILTER
Your vehicle is equipped with a lifetime fuel filter that is integrated with
the fuel tank. Regular maintenance or replacement is not needed.
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
344

POWER STEERING FLUID
Refer to thescheduled maintenance informationfor the service
interval schedules.
1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir. It should be between the MIN
and MAX lines. Do not add fluid if the level is in this range.
5. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the range between the MIN and MAX lines. Be
sure to put the cap back on the reservoir. Refer toMaintenance
product specifications and capacitiesin this chapter for the proper
fluid type.
BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range the performance of the
system could be compromised; seek
service from your authorized dealer
immediately.
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
357

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine oil 5.5 quarts (5.2L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
4
XO-5W20-QSP (US)
CXO-5W20-LSP12
(Canada) /
WSS-M2C930-A and API
Certification Mark
Engine coolant (with
rear heater)13.2 quarts
(12.5L)Motorcraft Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)
3
VC-7-B /
WSS-M97B51-A1
Power steering fluidBetween MAX and
MIN on reservoirMotorcraft
MERCON
VATFXT-5-QM /
MERCON
V
Fuel tank18.6 gallons
(70.4 L)——
Windshield washer fluidTop- off fluid as
neededMotorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
1Approximate dry fill capacity. Actual amount may vary during fluid changes.2Automatic transmissions that require MERCON
V should only use MERCON
V fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.3Add the coolant type originally equipped in your vehicle.4Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.5See your authorized dealer for fluid level checking or filling.
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
363

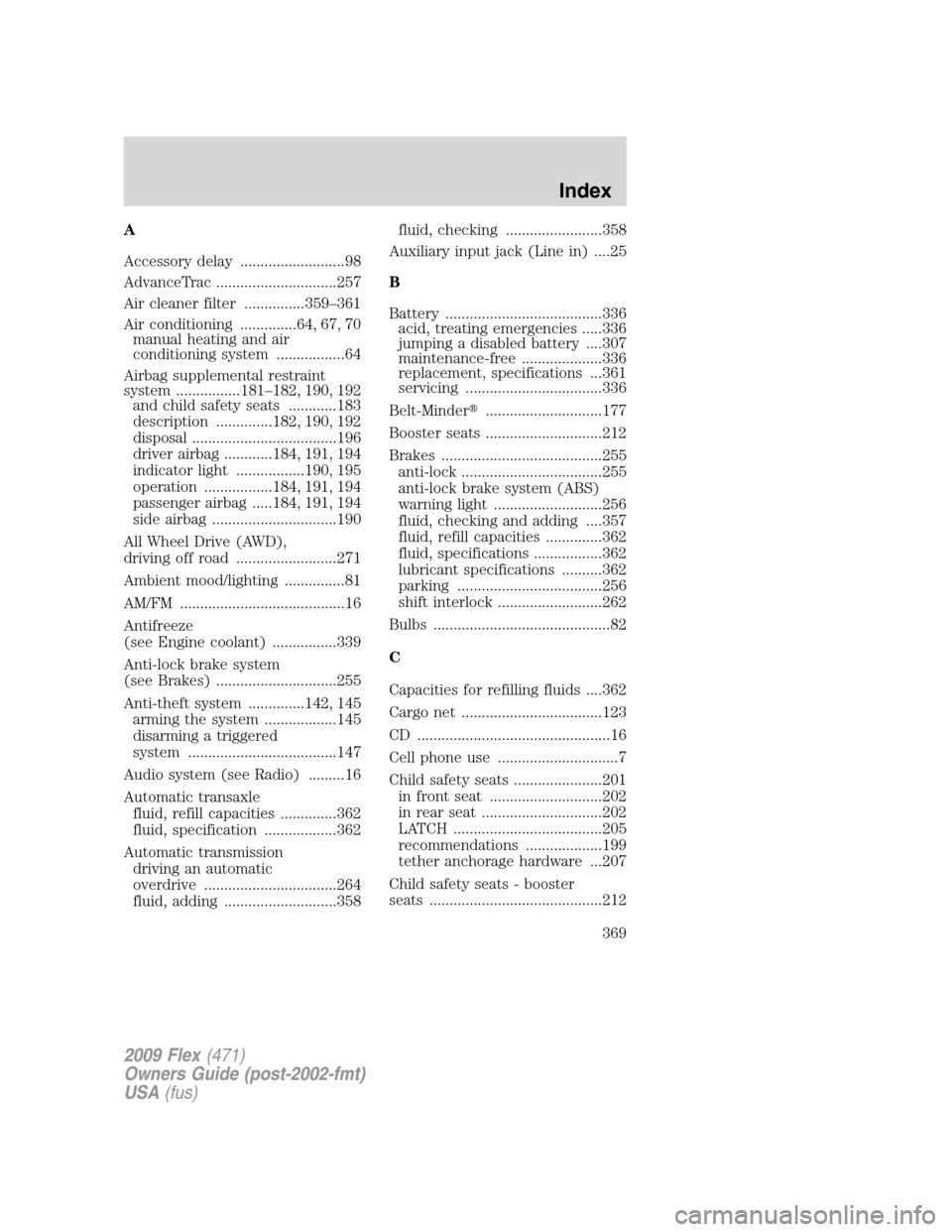

A
Accessory delay ..........................98
AdvanceTrac ..............................257
Air cleaner filter ...............359–361
Air conditioning ..............64, 67, 70
manual heating and air
conditioning system .................64
Airbag supplemental restraint
system ................181–182, 190, 192
and child safety seats ............183
description ..............182, 190, 192
disposal ....................................196
driver airbag ............184, 191, 194
indicator light .................190, 195
operation .................184, 191, 194
passenger airbag .....184, 191, 194
side airbag ...............................190
All Wheel Drive (AWD),
driving off road .........................271
Ambient mood/lighting ...............81
AM/FM .........................................16
Antifreeze
(see Engine coolant) ................339
Anti-lock brake system
(see Brakes) ..............................255
Anti-theft system ..............142, 145
arming the system ..................145
disarming a triggered
system .....................................147
Audio system (see Radio) .........16
Automatic transaxle
fluid, refill capacities ..............362
fluid, specification ..................362
Automatic transmission
driving an automatic
overdrive .................................264
fluid, adding ............................358fluid, checking ........................358
Auxiliary input jack (Line in) ....25
B
Battery .......................................336
acid, treating emergencies .....336
jumping a disabled battery ....307
maintenance-free ....................336
replacement, specifications ...361
servicing ..................................336
Belt-Minder
.............................177
Booster seats .............................212
Brakes ........................................255
anti-lock ...................................255
anti-lock brake system (ABS)
warning light ...........................256
fluid, checking and adding ....357
fluid, refill capacities ..............362
fluid, specifications .................362
lubricant specifications ..........362
parking ....................................256
shift interlock ..........................262
Bulbs ............................................82
C
Capacities for refilling fluids ....362
Cargo net ...................................123
CD ................................................16
Cell phone use ..............................7
Child safety seats ......................201
in front seat ............................202
in rear seat ..............................202
LATCH .....................................205
recommendations ...................199
tether anchorage hardware ...207
Child safety seats - booster
seats ...........................................212
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Index
369

Cleaning your vehicle
engine compartment ..............324
instrument panel ....................326
interior .....................................326
plastic parts ............................325
washing ....................................322
waxing .....................................323
wheels ......................................323
wiper blades ............................325
Climate control
(see Air conditioning or
Heating) ...........................64, 67, 70
Clock ............................................88
Clock adjust
AM/FM .......................................17
Compass, electronic ....................89
calibration .................................90
set zone adjustment .................90
Console
overhead ..............................88–89
Controls
power seat ...............................153
steering column ......................104
Coolant
checking and adding ..............339
refill capacities ................342, 362
specifications ..........................362
Cooler ..........................................92
Cruise control
(see Speed control) ..................101
Customer Assistance ................278
Ford Extended Service
Plan ..........................................318
Getting assistance outside the
U.S. and Canada .....................319
Getting roadside assistance ...278
Getting the service you
need .........................................314Ordering additional owner’s
literature .................................320
Utilizing the
Mediation/Arbitration
Program ...................................318
D
Daytime running lamps
(see Lamps) ................................78
Defrost
rear window and rearview
mirrors .......................................70
windshield .................................70
Dipstick
automatic transmission
fluid ..........................................358
engine oil .................................333
Driving under special
conditions ..........................272, 275
sand .........................................274
snow and ice ...........................276
through water .................274, 277
DVD system .................................34
E
Electronic message center .......110
Emergencies, roadside
jump-starting ..........................307
running out of fuel .........307, 349
Emission control system ..........354
Engine ........................................364
cleaning ...................................324
coolant .....................................339
fail-safe cooling .......................343
idle speed control ...................336
lubrication specifications .......362
refill capacities ........................362
service points ..................331–332
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Index
370
