set clock FORD FLEX 2010 1.G Owners Manual

Setting the clock
To set the time, press CLOCK. The
display will read SET TIME. Use the
memory preset numbers (0–9) to
enter in the desired time–hours and minutes. The clock will then begin
from that time.
If your vehicle is equipped with an in-dash clock, refer toClockin the
Driver Controlschapter for instructions on how to set the time.
AM/FM Radio
/ VOL (Power/Volume):Press
to turn the radio on/off. Turn the
knob to increase/decrease volume.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a nominal listening level when the
ignition switch is turned back on.
AM/FM:Press repeatedly to select
AM/FM1/FM2 frequency band.
TUNE:Turn the knob to go
up/down the frequency band in
individual increments.
DIRECT:Press DIRECT and then
select the desired radio frequency
(i.e. 93.9) using the memory preset
numbers (0–9).
SEEK:Press
SEEKto
access the previous/next strong
radio station.
SCAN:Press for a brief sampling of
all strong radio stations.
Entertainment Systems
29
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

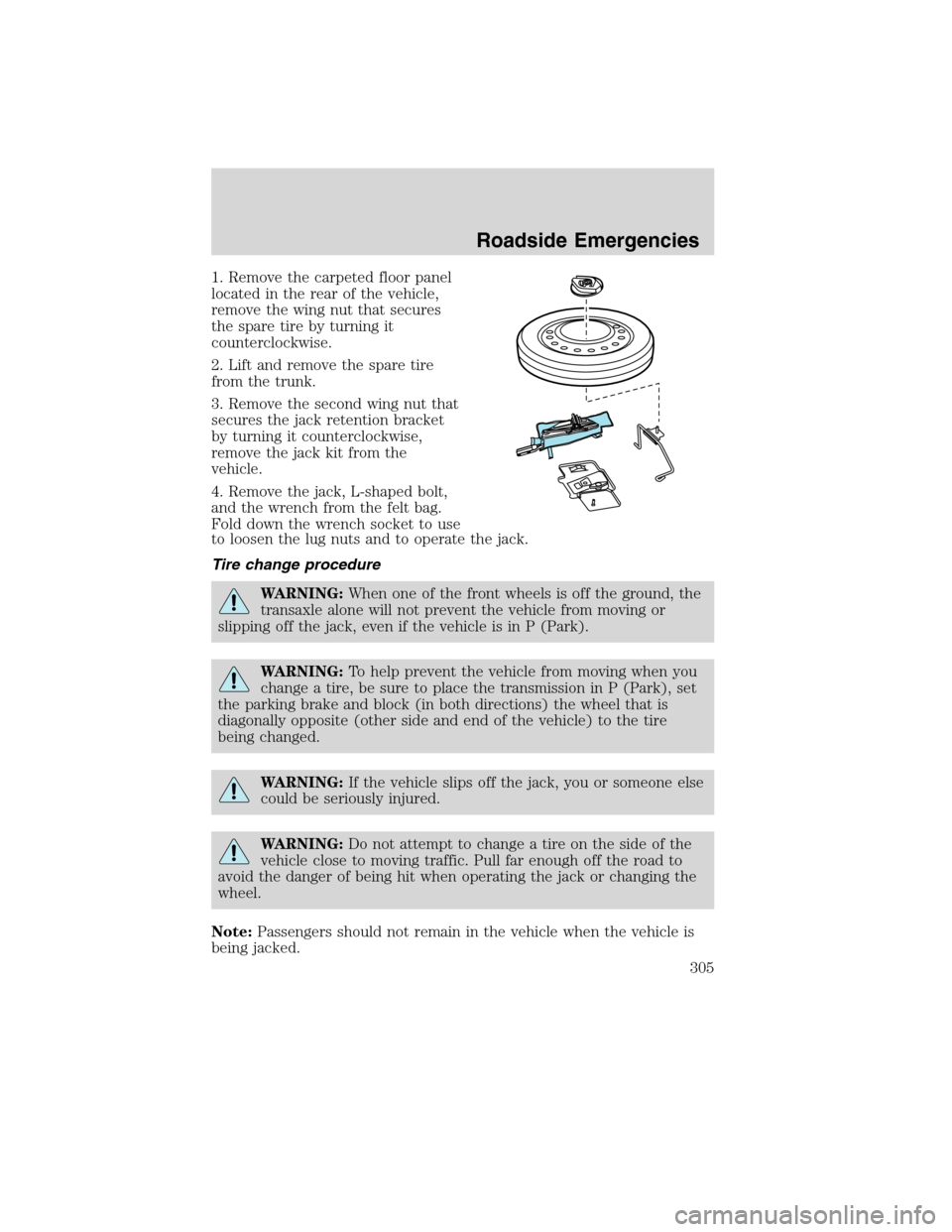

1. Remove the carpeted floor panel
located in the rear of the vehicle,
remove the wing nut that secures
the spare tire by turning it
counterclockwise.
2. Lift and remove the spare tire
from the trunk.
3. Remove the second wing nut that
secures the jack retention bracket
by turning it counterclockwise,
remove the jack kit from the
vehicle.
4. Remove the jack, L-shaped bolt,
and the wrench from the felt bag.
Fold down the wrench socket to use
to loosen the lug nuts and to operate the jack.
Tire change procedure
WARNING:When one of the front wheels is off the ground, the
transaxle alone will not prevent the vehicle from moving or
slipping off the jack, even if the vehicle is in P (Park).
WARNING:To help prevent the vehicle from moving when you
change a tire, be sure to place the transmission in P (Park), set
the parking brake and block (in both directions) the wheel that is
diagonally opposite (other side and end of the vehicle) to the tire
being changed.
WARNING:If the vehicle slips off the jack, you or someone else
could be seriously injured.
WARNING:Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off the road to
avoid the danger of being hit when operating the jack or changing the
wheel.
Note:Passengers should not remain in the vehicle when the vehicle is
being jacked.
Roadside Emergencies
305
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

WARNING:Keep batteries out of reach of children. Batteries
contain sulfuric acid. Avoid contact with skin, eyes or clothing.
Shield your eyes when working near the battery to protect against
possible splashing of acid solution. In case of acid contact with skin or
eyes, flush immediately with water for a minimum of 15 minutes and
get prompt medical attention. If acid is swallowed, call a physician
immediately.
WARNING:Battery posts, terminals and related accessories
contain lead and lead compounds.Wash hands after handling.
Because your vehicle’s engine is electronically controlled by a computer,
some control conditions are maintained by power from the battery. When
the battery is disconnected or a new battery is installed, the engine must
relearn its idle and fuel trim strategy for optimum driveability and
performance. To begin this process:
1. With the vehicle at a complete stop, set the parking brake.
2. Put the gearshift in P (Park), turn off all accessories and start the
engine.
3. Run the engine until it reaches normal operating temperature.
4. Allow the engine to idle for at least one minute.
5. Turn the A/C on and allow the engine to idle for at least one minute.
6. Release the parking brake. With your foot on the brake pedal and with
the A/C on, put the vehicle in D (Drive) and allow the engine to idle for
at least one minute.
7. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 10 miles (16 km) or more to
relearn the idle and fuel trim strategy.
•If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
Maintenance and Specifications
353
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

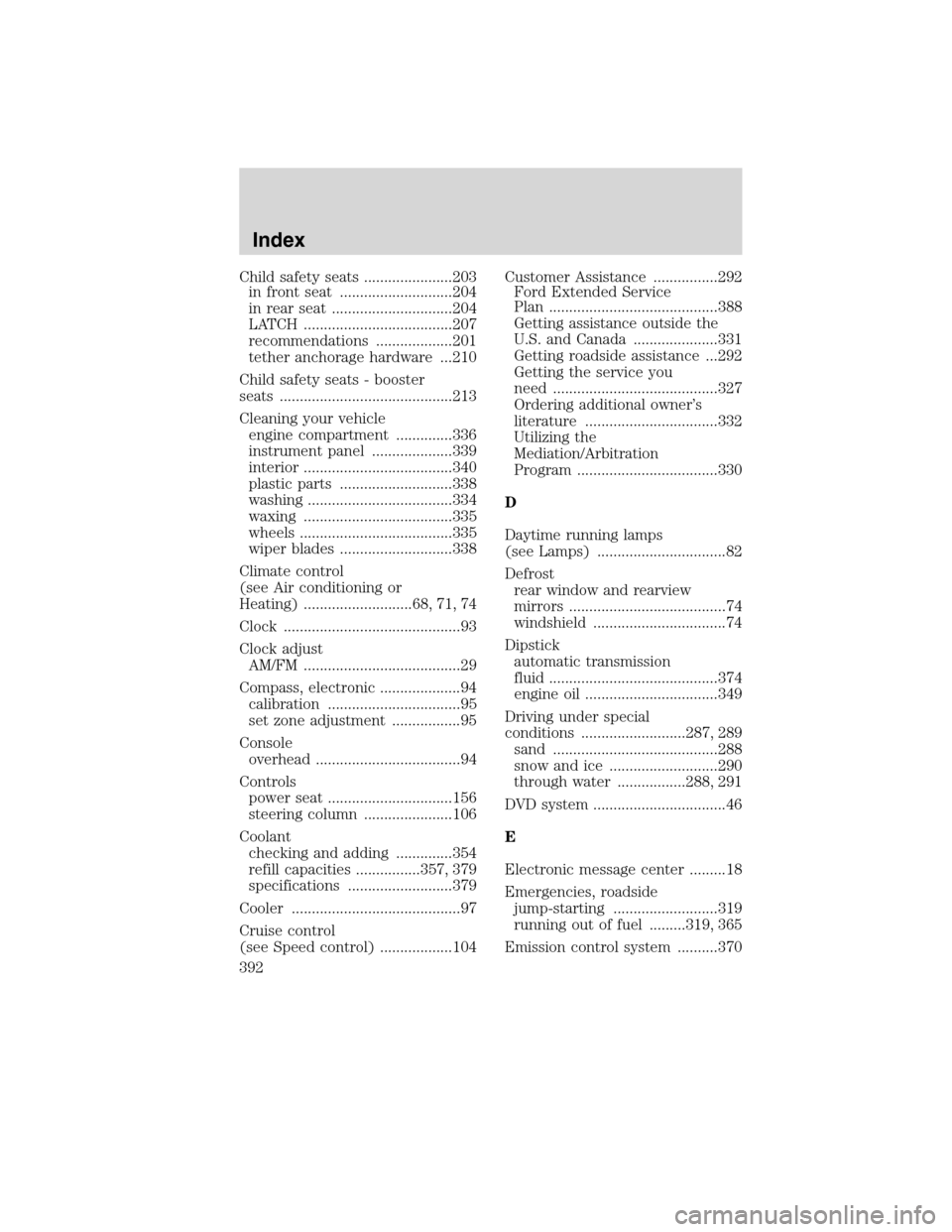

Child safety seats ......................203
in front seat ............................204
in rear seat ..............................204
LATCH .....................................207
recommendations ...................201
tether anchorage hardware ...210
Child safety seats - booster
seats ...........................................213
Cleaning your vehicle
engine compartment ..............336
instrument panel ....................339
interior .....................................340
plastic parts ............................338
washing ....................................334
waxing .....................................335
wheels ......................................335
wiper blades ............................338
Climate control
(see Air conditioning or
Heating) ...........................68, 71, 74
Clock ............................................93
Clock adjust
AM/FM .......................................29
Compass, electronic ....................94
calibration .................................95
set zone adjustment .................95
Console
overhead ....................................94
Controls
power seat ...............................156
steering column ......................106
Coolant
checking and adding ..............354
refill capacities ................357, 379
specifications ..........................379
Cooler ..........................................97
Cruise control
(see Speed control) ..................104Customer Assistance ................292
Ford Extended Service
Plan ..........................................388
Getting assistance outside the
U.S. and Canada .....................331
Getting roadside assistance ...292
Getting the service you
need .........................................327
Ordering additional owner’s
literature .................................332
Utilizing the
Mediation/Arbitration
Program ...................................330
D
Daytime running lamps
(see Lamps) ................................82
Defrost
rear window and rearview
mirrors .......................................74
windshield .................................74
Dipstick
automatic transmission
fluid ..........................................374
engine oil .................................349
Driving under special
conditions ..........................287, 289
sand .........................................288
snow and ice ...........................290
through water .................288, 291
DVD system .................................46
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................319
running out of fuel .........319, 365
Emission control system ..........370
Index
392
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Satellite Radio Information ........43
Seats ..........................................151
child safety seats ....................203
climate control ..........................74
easy access/easyout feature ..159
front seats ...............................154
heated ........................71, 158, 167
memory seat ...................135, 159
second row seats ............162, 165
third row seats ........165, 168–169
Second-row power fold seat ....164
SecuriCode keyless entry
system ........................................138
SecuriLock passive anti-theft
system ........................................140
Servicing your vehicle ..............343
Setting the clock .........................29
SOS Post Crash Alert ...............198
Spare tire
(see Changing the Tire) ...........304
Spark plugs,
specifications .....................378, 382
Specification chart,
lubricants ...................................379
Speed control ............................104
Starting your vehicle ........255–257
jump starting ..........................319
Steering wheel
controls ....................................106
tilting .........................................92
Stereo
6-CD in dash .............................28
CD-MP3 .....................................28
SYNC..........................................67
T
Temporary mobility kit .............309Tilt steering wheel ......................92
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....236
Tires ...........................220–221, 302
alignment ................................228
care ..........................................224
changing ..................302, 304–305
checking the pressure ............224
inflating ...................................222
label .........................................235
replacing ..................................226
rotating ....................................229
safety practices .......................228
sidewall information ...............230
snow tires and chains ............241
spare tire .................................302
Temporary mobility kit ..........309
terminology .............................221
tire grades ...............................221
treadwear ........................220, 225
Towing .......................................249
recreational towing .................253
trailer towing ..........................249
wrecker ....................................325
Transaxle
fluid, refill capacities ..............379
lubricant specifications ..........379
Transmission .............................270
brake-shift interlock (BSI) ....269
fluid, checking and adding
(automatic) .............................374
Turn signal ..................................84
U
Universal garage door opener ..109
USB port ......................................39
Index
396
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)
