Page 548 of 571

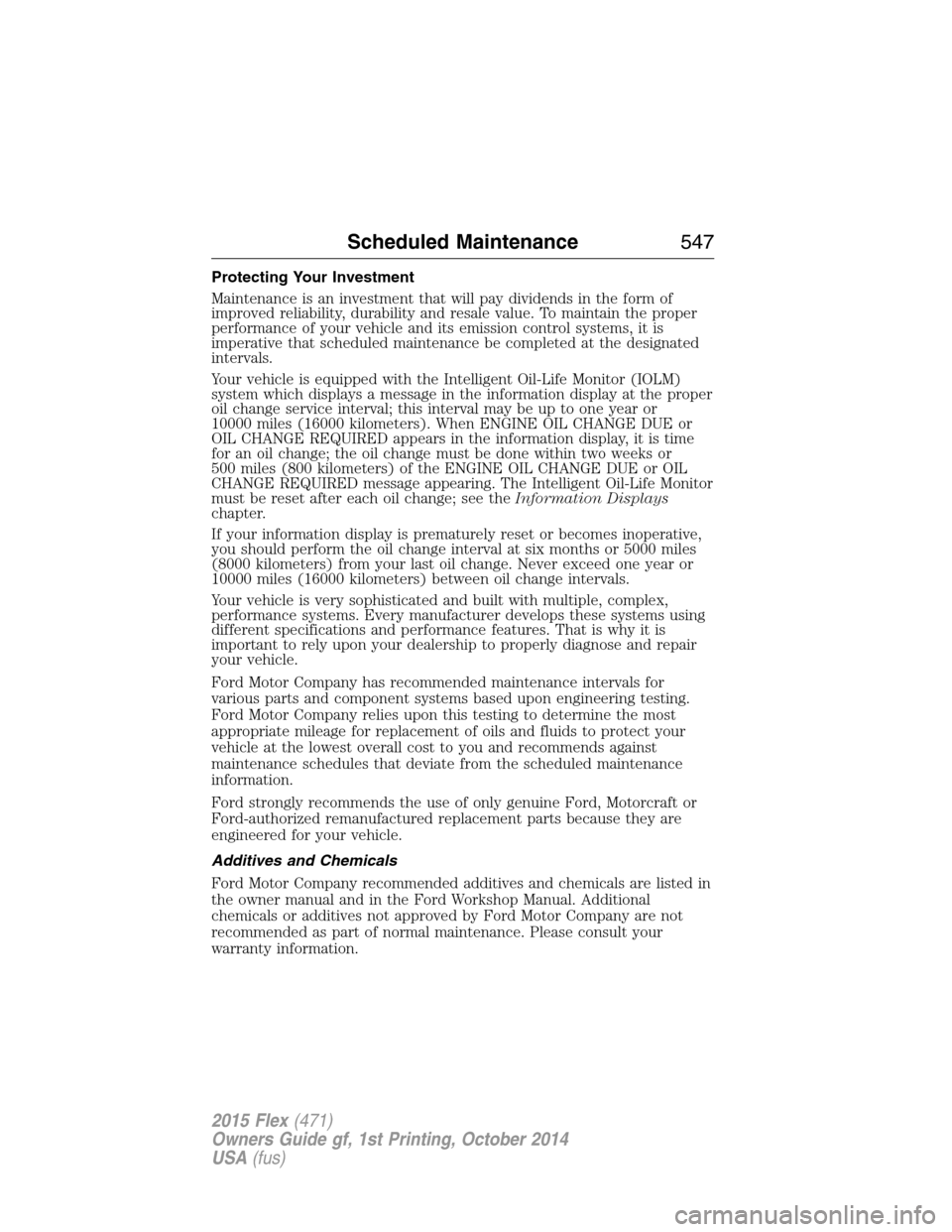

Protecting Your Investment
Maintenance is an investment that will pay dividends in the form of
improved reliability, durability and resale value. To maintain the proper
performance of your vehicle and its emission control systems, it is
imperative that scheduled maintenance be completed at the designated
intervals.
Your vehicle is equipped with the Intelligent Oil-Life Monitor (IOLM)
system which displays a message in the information display at the proper
oil change service interval; this interval may be up to one year or
10000 miles (16000 kilometers). When ENGINE OIL CHANGE DUE or
OIL CHANGE REQUIRED appears in the information display, it is time
for an oil change; the oil change must be done within two weeks or
500 miles (800 kilometers) of the ENGINE OIL CHANGE DUE or OIL
CHANGE REQUIRED message appearing. The Intelligent Oil-Life Monitor
must be reset after each oil change; see theInformation Displays
chapter.
If your information display is prematurely reset or becomes inoperative,
you should perform the oil change interval at six months or 5000 miles
(8000 kilometers) from your last oil change. Never exceed one year or
10000 miles (16000 kilometers) between oil change intervals.
Your vehicle is very sophisticated and built with multiple, complex,
performance systems. Every manufacturer develops these systems using
different specifications and performance features. That is why it is
important to rely upon your dealership to properly diagnose and repair
your vehicle.
Ford Motor Company has recommended maintenance intervals for
various parts and component systems based upon engineering testing.
Ford Motor Company relies upon this testing to determine the most
appropriate mileage for replacement of oils and fluids to protect your
vehicle at the lowest overall cost to you and recommends against
maintenance schedules that deviate from the scheduled maintenance
information.
Ford strongly recommends the use of only genuine Ford, Motorcraft or
Ford-authorized remanufactured replacement parts because they are
engineered for your vehicle.
Additives and Chemicals
Ford Motor Company recommended additives and chemicals are listed in
the owner manual and in the Ford Workshop Manual. Additional
chemicals or additives not approved by Ford Motor Company are not
recommended as part of normal maintenance. Please consult your
warranty information.
Scheduled Maintenance547
2015 Flex(471)
Owners Guide gf, 1st Printing, October 2014
USA(fus)
Page 552 of 571

NORMAL SCHEDULED MAINTENANCE AND LOG
Intelligent Oil-Life Monitor®
Your vehicle is equipped with an Intelligent Oil-Life Monitor that
determines when the engine oil needs to be changed based on how your
vehicle is used. By using several important factors in its calculations, the
monitor helps reduce the cost of owning your vehicle and reduce
environmental waste at the same time. This means you won’t have to
remember to change the oil on a mileage-based schedule; the vehicle lets
you know when an oil change is due by displaying ENGINE OIL
CHANGE DUE or OIL CHANGE REQUIRED in the information display.
The following table is intended to provide examples of vehicle use and
its impact on engine oil change intervals; it is provided as a guideline
only. Actual engine oil change intervals depend on several factors and
generally decrease with severity of use.
When to expect the OIL CHANGE REQUIRED message
Interval Vehicle use and examples
7500-10000 miles
(12000-16000 km)Normal
– Normal commuting with highway driving
– No, or moderate, load or towing
– Flat to moderately hilly roads
– No extended idling
5000-7499 miles
(8000-11999 km)Severe
– Moderate to heavy load or towing
– Mountainous or off-road conditions
– Extended idling
– Extended hot or cold operation
3000-4999 miles
(4800-7999 km)Extreme
– Maximum load or towing
– Extreme hot or cold operation
Scheduled Maintenance551
2015 Flex(471)
Owners Guide gf, 1st Printing, October 2014
USA(fus)
Page 553 of 571

Normal scheduled maintenance*
At every oil change
interval as indicated by
the information displayChange engine oil and filter.**
Rotate tires, inspect tire wear and measure
tread depth.
Perform multi-point inspection
(recommended).
Inspect automatic transmission fluid level (if
equipped with dipstick). Consult dealer for
requirements.
Inspect brake pads, shoes, rotors, drums,
brake linings, hoses and parking brake.
Inspect engine cooling system strength and
hoses.
Inspect exhaust system and heat shields.
Inspect rear axle and U-joints. Lubricate if
equipped with grease fittings (All-wheel drive
vehicles).
Inspect half-shaft boots (if equipped).
Inspect steering linkage, ball joints,
suspension, tie-rod ends, driveshaft and
U-joints. Lubricate if equipped with grease
fittings.
Inspect wheels and related components for
abnormal noise, wear, looseness or drag.
*Do not exceed one year or 10000 miles (16000 kilometers) between
service intervals.
**Reset your Intelligent Oil-Life Monitor after each engine oil and filter
change. See theInstrument Clusterchapter.
552Scheduled Maintenance
2015 Flex(471)
Owners Guide gf, 1st Printing, October 2014
USA(fus)
Page 558 of 571

SPECIAL OPERATING CONDITIONS
If you operate your vehicleprimarilyin any of the following conditions,
you need to perform additional maintenance as indicated. If you
occasionallyoperate your vehicle under any of these conditions, it is
not necessary to perform the additional maintenance. For specific
recommendations, see your dealership service advisor or technician.
Perform the services shown in the following tables when specified or
within 3000 miles (4800 kilometers) of the OIL CHANGE REQUIRED
message appearing in the information display.
Example #1:The OIL CHANGE REQUIRED message comes on at
28751 miles (46270 kilometers); perform the 30000 mile (48000
kilometer) automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on,
but the odometer reads 30000 miles (48000 kilometers); perform the
engine air filter replacement. (For example, the Intelligent Oil-Life
Monitor was reset at 25000 miles [40000 kilometers].)
Towing a trailer or using a camper or car-top carrier
As required Change engine oil and filter as indicated by
the information display and perform services
listed in the Normal Scheduled Maintenance
chart.
Inspect frequently,
service as requiredInspect and lubricate U-joints.
See axle maintenance items under
Exceptions.
Every 30000 miles
(48000 km)Change automatic transmission fluid.
Scheduled Maintenance557
2015 Flex(471)
Owners Guide gf, 1st Printing, October 2014
USA(fus)
Page 559 of 571

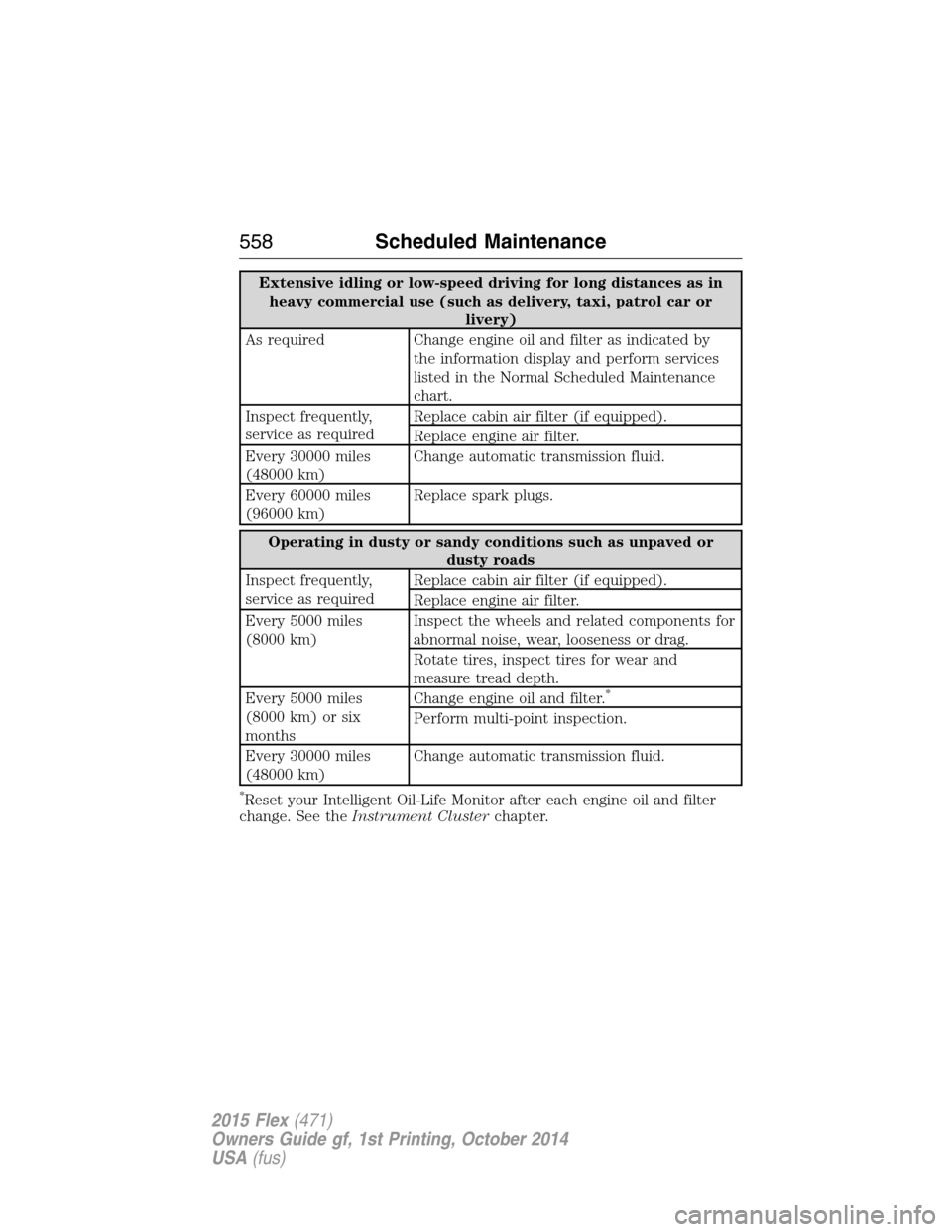

Extensive idling or low-speed driving for long distances as in
heavy commercial use (such as delivery, taxi, patrol car or
livery)
As required Change engine oil and filter as indicated by
the information display and perform services
listed in the Normal Scheduled Maintenance
chart.
Inspect frequently,
service as requiredReplace cabin air filter (if equipped).
Replace engine air filter.
Every 30000 miles
(48000 km)Change automatic transmission fluid.
Every 60000 miles
(96000 km)Replace spark plugs.
Operating in dusty or sandy conditions such as unpaved or
dusty roads
Inspect frequently,
service as requiredReplace cabin air filter (if equipped).
Replace engine air filter.
Every 5000 miles
(8000 km)Inspect the wheels and related components for
abnormal noise, wear, looseness or drag.
Rotate tires, inspect tires for wear and
measure tread depth.
Every 5000 miles
(8000 km) or six
monthsChange engine oil and filter.
*
Perform multi-point inspection.
Every 30000 miles
(48000 km)Change automatic transmission fluid.
*Reset your Intelligent Oil-Life Monitor after each engine oil and filter
change. See theInstrument Clusterchapter.
558Scheduled Maintenance
2015 Flex(471)
Owners Guide gf, 1st Printing, October 2014
USA(fus)
Page 565 of 571

Booster seats ...............................33
Brakes ........................................211
anti-lock ...................................212
anti-lock brake system (ABS)
warning light ...........................212
brake warning light ................212
fluid, checking and adding ....308
fluid, refill capacities ..............362
fluid, specifications .................362
lubricant specifications ..........362
parking ....................................212
shift interlock ..........................202
trailer .......................................261
C
Capacities for refilling fluids ....362
Cargo net ...................................247
CD ..............................376, 381–382
CD player ..........................374, 467
CD voice commands .................468
Cell phone use ............................16
Changing a tire .........................353
Child safety restraints ..........26, 28
Child safety seats
automatic locking mode
(retractor) .................................41
LATCH .......................................26
Child safety seats -
booster seats ...............................33
Cleaning the touchscreen ........445
Cleaning your vehicle ...............320
engine compartment ..............322
instrument panel ....................324
interior .....................................324
plastic parts ............................321
washing ....................................320
waxing .....................................322wheels ......................................326
wiper blades ............................323
Climate control (see Air
conditioning or Heating) ..........138
Climate voice commands .........509
Clock ..................................376, 495
Collision Warning System .........241
Compass Display .......................123
Console ......................................178
overhead ..................................180
rear ..........................................178
Coolant ......................................298
checking and adding ..............298
refill capacities ........................362
specifications ..........................362
Cooler ........................................179
Cross Traffic Alert ....................237
Cruise control ...........................227
Customer Assistance ................270
Ford Extended Service
Plan ..........................................371
Getting roadside assistance ...270
Getting the service you
need .........................................276
Ordering additional owner’s
literature .................................282
Utilizing the
Mediation/Arbitration
Program ...................................280
D
Defrost .......................138, 140, 142
rear window ............................147
Dipstick
automatic transmission
fluid ..........................................304
engine oil .................................297
564Index
2015 Flex(471)
Owners Guide gf, 1st Printing, October 2014
USA(fus)
Page 566 of 571

Display settings .........................496
Drivebelt ....................................361
Driving under special
conditions ..................203, 205, 208
sand .........................................207
snow and ice ...........................209
through water .................207, 268
Dual automatic temperature
control (DATC) .................140, 142
E
Electronic message center .......120
Electronic stability control ......215
Emergencies, roadside
jump-starting ..........................273
running out of fuel .................191
Emergency brake
(see Parking brake) ..................212
Emission control system ..........196
End user license agreement ....528
Engine ........................................361
cleaning ...................................322
coolant .....................................298
fail-safe cooling .......................302
idle speed control ...................309
lubrication specifications .......362
refill capacities ........................362
service points ..........................296
Engine block heater .................187
Engine oil
checking and adding ..............297
dipstick ....................................297
filter, specifications ................366
refill capacities ........................362
specifications ..........................362
Event data recording ..................13
Exhaust fumes ..........................187F
Fail safe cooling ........................302
Fleet MyKey programming ........70
Floor mats .................................268
Fluid capacities .........................362
Four-Wheel Drive vehicles
driving off road .......................205
Freezer ......................................179
Fuel
cap ...........................................194
capacity ...................................362
choosing the right fuel ...........190
filler funnel .............................191
filling your vehicle
with fuel ..................................194
filter, specifications ........308, 366
fuel pump shut-off ..................272
octane rating ...................191, 361
quality ......................................190
running out of fuel .................191
safety information relating to
automotive fuels .....................189
Fuel and distance computer ....123
outside temperature
indicator ..................................123
to empty indicator ..................123
trip distance ............................123
trip/reset button .....................123
Fuses ..................................284–285
G
Garage door opener ..................170
Gas cap (see Fuel cap) ............194
Gauges ...............................112–113
odometer .................................123
trip odometer ..........................123
Index565
2015 Flex(471)
Owners Guide gf, 1st Printing, October 2014
USA(fus)
Page 567 of 571

H
Hazard flashers .........................272
HD Radio™ ...............................458
Headlamps
aiming ......................................314
bulb specifications ..................319
flash to pass ..............................98
high beam .........................98, 101
replacing bulbs .......................316
Head restraints .........................150
Heated steering wheel ..............507
Heating ......................138, 140, 142
Help ............................................506
Homelink wireless control
system ........................................170
Hood ..........................................294
How to use voice commands ...451
I
Ignition ...............................182, 361
Illuminated visor mirror ...........110
Information displays .................120
Inspection/maintenance (I/M)
testing ........................................198
Instrument panel
cleaning ...................................324
cluster ......................................114
Intelligent Access Key ................64
J
Jack ............................................353
positioning ...............................353storage .....................................353
Joining two calls
(multiparty/conference call) ....401
Jump-starting your vehicle ......273
K
Keyless entry system
autolock .....................................77
keypad .......................................83
locking and unlocking
doors ..........................................84
programming entry code .........83
Keys .......................................64, 85
positions of the ignition .........182
L
Lamps
bulb replacement
specifications chart ................319
headlamps, flash to pass ..........98
interior lamps .........................104
replacing bulbs .......................316
LATCH anchors ...........................26
Liftgate ..................................79–80
Lights, warning and
indicator ....................................114
Listening to music ....................454
Load limits .................................248
Locks
autolock .....................................77
childproof ..................................37
doors ..........................................74
Lubricant specifications ...........362
Lug nuts ....................................359
566Index
2015 Flex(471)
Owners Guide gf, 1st Printing, October 2014
USA(fus)
Page 569 of 571

Q
Quick touch buttons .................519
R
Radio ..........................376, 381–382
AM/FM .....................................456
Single CD ................376, 381–382
Radio reception .........................374
Radio voice commands .............461
Rear heated seats .....................158
Rear view camera
display ................................222, 498
Rear window
defroster ....................138, 140, 142
Receiving a text
message .............................404, 480
Recommendations for
attaching safety restraints for
children ........................................20
Refrigerator ...............................179
Relays ................................284–285
Remote entry system
illuminated entry ......................78
locking/unlocking doors .....74–75
replacing the batteries .............65
Remote start climate
operation ...................................148
Reverse sensing system ...........217
Roadside assistance ..................270
Roof rack ...................................247
Route preferences ....................514
S
Safety Belt Maintenance ............48Safety belts
(see Safety restraints) .........40, 43
Safety defects, reporting ..........283
Safety information ............393, 446
Safety restraints ..............40–41, 43
Belt-Minder® ............................44
extension assembly ..................43
for adults .............................40–41
for children ...............................20
inflatable safety belt .................46
Occupant Classification
Sensor ........................................54
safety belt maintenance ...........48
seat belt maintenance ..............48
warning light and chime ..........44
Safety restraints -
LATCH anchors ...........................26
Safety seats for children ............20
Safety Compliance
Certification Label ....................368
Satellite Radio ...................376, 462
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............551
SD card ......................391, 469, 510
Seat belts
(see Safety restraints) ...............40
Seats ..........................................161
child safety seats ......................20
climate control ........................160
easy access/easyout feature ..156
front seats ...............153–154, 159
heated ..............................157–158
memory seat .....................66, 156
second row seats ............161, 164
third row seats ........164, 166–167
Second-row power fold seat ....162
568Index
2015 Flex(471)
Owners Guide gf, 1st Printing, October 2014
USA(fus)
