wiper fluid FORD GT 2018 Owners Manual

Stability Control
Principle of Operation..................................115
Using Stability Control
................................116
Parking Aids
Rear View Camera........................................119
Cruise Control
Principle of Operation..................................121
Using Cruise Control.....................................121
Driving Aids
Steering.............................................................122
Drive Mode Control......................................122
Load Carrying
Rear Under Hatch Storage........................128
Load Limit........................................................128
Towing
Towing a Trailer..............................................133
Towing the Vehicle on Four Wheels......133
Driving Hints
Breaking-In......................................................134
Driving Through Water................................134
Floor Mats
........................................................135
Roadside Emergencies
Roadside Assistance
...................................136
Hazard Flashers
............................................136
Fuel Shutoff
....................................................136
Jump Starting the Vehicle..........................137
Post-Crash Alert System...........................138
Transporting the Vehicle............................138
Towing Points
................................................139
Customer Assistance
Getting the Services You Need...............140 In California (U.S. Only)
..............................141
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................141
Utilizing the Mediation/Arbitration Program (Canada Only)........................142
Getting Assistance Outside the U.S. and Canada
.........................................................143
Ordering Additional Owner's Literature.....................................................144
Reporting Safety Defects (U.S. Only).............................................................144
Reporting Safety Defects (Canada Only).............................................................145
Fuses
Fuse Specification Chart
...........................146
Changing a Fuse
...........................................155
Maintenance
General Information
.....................................157
Opening and Closing the Hood...............157
Under Hood Overview
................................160
Engine Oil Dipstick........................................161
Engine Oil Check
............................................161
Engine Coolant Check
................................162
Automatic Transmission Fluid Check............................................................166
Brake Fluid Check.........................................166
Power Steering Fluid Check......................167
Washer Fluid Check.....................................167
Fuel Filter
.........................................................167
Changing the 12V Battery..........................168
Checking the Wiper Blades......................169
Changing the Wiper Blades.....................169
Adjusting the Headlamps..........................170
Changing a Bulb.............................................171
Changing the Engine Air Filter
...................171
Vehicle Care
General Information.....................................172
Cleaning Products.........................................172
3
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Table of Contents

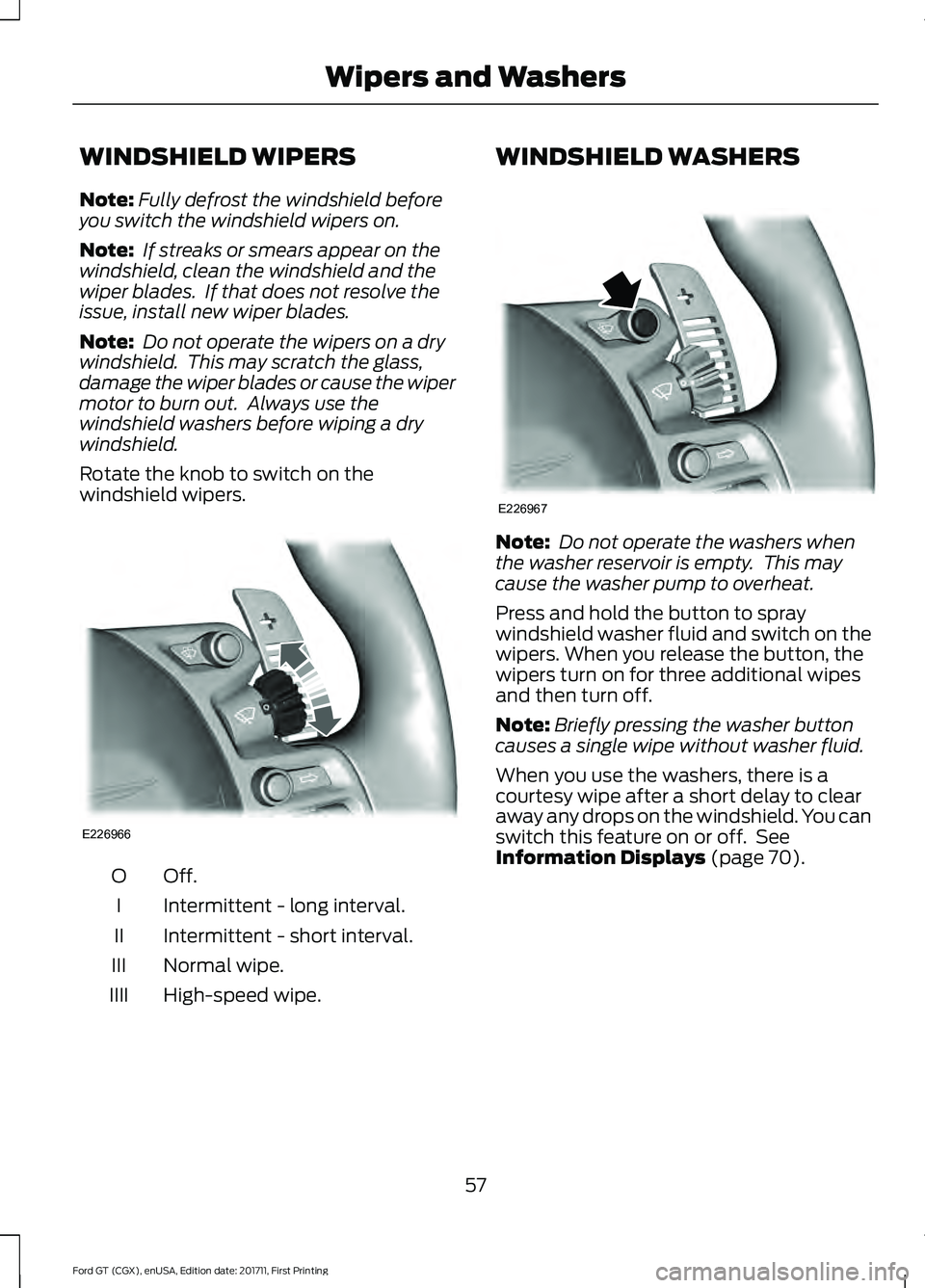

WINDSHIELD WIPERS
Note:
Fully defrost the windshield before
you switch the windshield wipers on.
Note: If streaks or smears appear on the
windshield, clean the windshield and the
wiper blades. If that does not resolve the
issue, install new wiper blades.
Note: Do not operate the wipers on a dry
windshield. This may scratch the glass,
damage the wiper blades or cause the wiper
motor to burn out. Always use the
windshield washers before wiping a dry
windshield.
Rotate the knob to switch on the
windshield wipers. Off.O
Intermittent - long interval.
I
Intermittent - short interval.
II
Normal wipe.
III
High-speed wipe.
IIII WINDSHIELD WASHERS
Note:
Do not operate the washers when
the washer reservoir is empty. This may
cause the washer pump to overheat.
Press and hold the button to spray
windshield washer fluid and switch on the
wipers. When you release the button, the
wipers turn on for three additional wipes
and then turn off.
Note: Briefly pressing the washer button
causes a single wipe without washer fluid.
When you use the washers, there is a
courtesy wipe after a short delay to clear
away any drops on the windshield. You can
switch this feature on or off. See
Information Displays (page 70).
57
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Wipers and WashersE226966 E226967

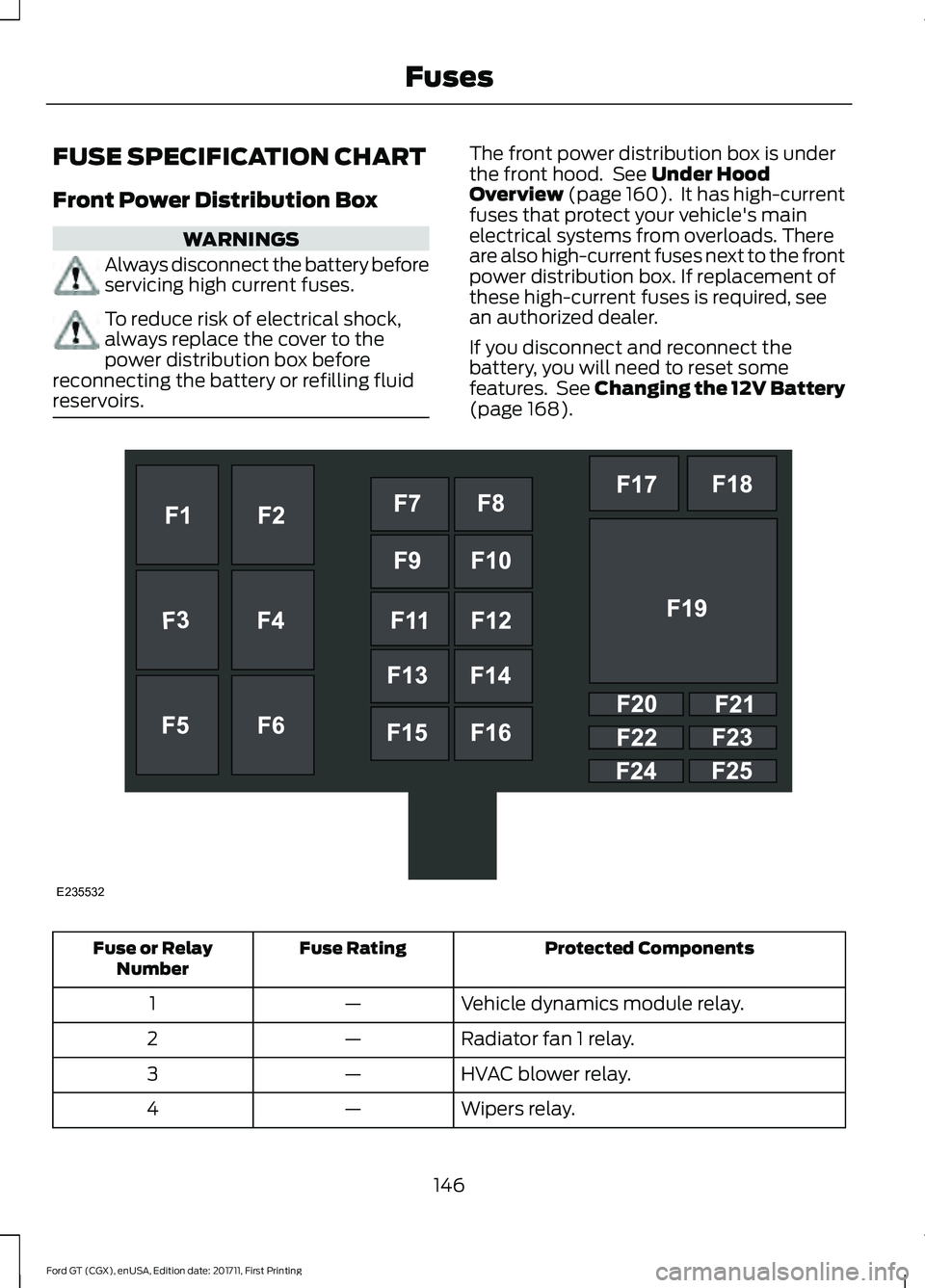

FUSE SPECIFICATION CHART
Front Power Distribution Box
WARNINGS
Always disconnect the battery before
servicing high current fuses.
To reduce risk of electrical shock,
always replace the cover to the
power distribution box before
reconnecting the battery or refilling fluid
reservoirs. The front power distribution box is under
the front hood. See Under Hood
Overview (page 160). It has high-current
fuses that protect your vehicle's main
electrical systems from overloads. There
are also high-current fuses next to the front
power distribution box. If replacement of
these high-current fuses is required, see
an authorized dealer.
If you disconnect and reconnect the
battery, you will need to reset some
features. See Changing the 12V Battery
(page
168). Protected Components
Fuse Rating
Fuse or Relay
Number
Vehicle dynamics module relay.
—
1
Radiator fan 1 relay.
—
2
HVAC blower relay.
—
3
Wipers relay.
—
4
146
Ford GT (CGX), enUSA, Edition date: 201711, First Printing FusesE235532

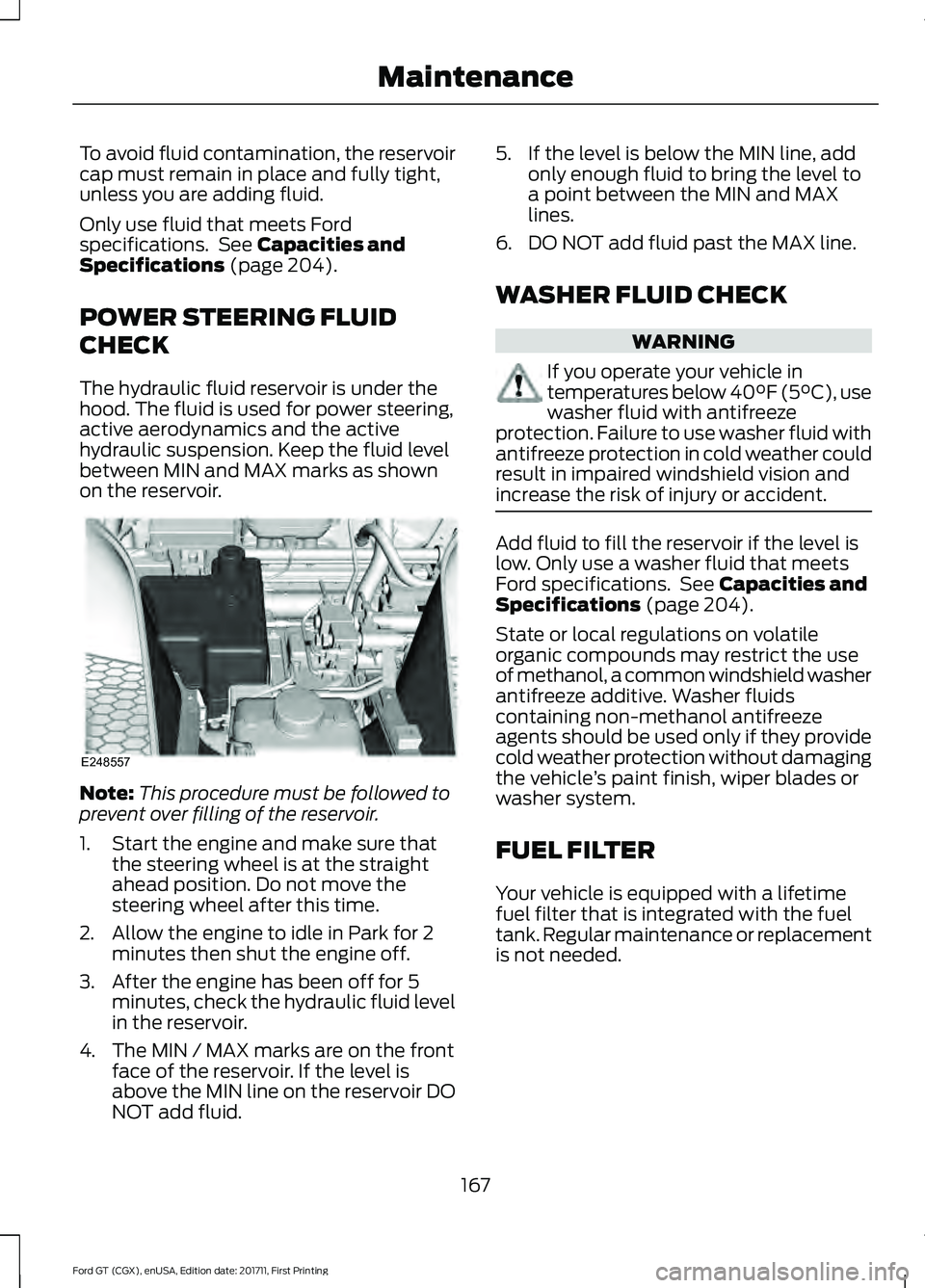

To avoid fluid contamination, the reservoir
cap must remain in place and fully tight,
unless you are adding fluid.
Only use fluid that meets Ford
specifications. See Capacities and
Specifications (page 204).
POWER STEERING FLUID
CHECK
The hydraulic fluid reservoir is under the
hood. The fluid is used for power steering,
active aerodynamics and the active
hydraulic suspension. Keep the fluid level
between MIN and MAX marks as shown
on the reservoir. Note:
This procedure must be followed to
prevent over filling of the reservoir.
1. Start the engine and make sure that the steering wheel is at the straight
ahead position. Do not move the
steering wheel after this time.
2. Allow the engine to idle in Park for 2 minutes then shut the engine off.
3. After the engine has been off for 5 minutes, check the hydraulic fluid level
in the reservoir.
4. The MIN / MAX marks are on the front face of the reservoir. If the level is
above the MIN line on the reservoir DO
NOT add fluid. 5. If the level is below the MIN line, add
only enough fluid to bring the level to
a point between the MIN and MAX
lines.
6. DO NOT add fluid past the MAX line.
WASHER FLUID CHECK WARNING
If you operate your vehicle in
temperatures below 40°F (5°C), use
washer fluid with antifreeze
protection. Failure to use washer fluid with
antifreeze protection in cold weather could
result in impaired windshield vision and
increase the risk of injury or accident. Add fluid to fill the reservoir if the level is
low. Only use a washer fluid that meets
Ford specifications. See
Capacities and
Specifications (page 204).
State or local regulations on volatile
organic compounds may restrict the use
of methanol, a common windshield washer
antifreeze additive. Washer fluids
containing non-methanol antifreeze
agents should be used only if they provide
cold weather protection without damaging
the vehicle ’s paint finish, wiper blades or
washer system.
FUEL FILTER
Your vehicle is equipped with a lifetime
fuel filter that is integrated with the fuel
tank. Regular maintenance or replacement
is not needed.
167
Ford GT (CGX), enUSA, Edition date: 201711, First Printing MaintenanceE248557

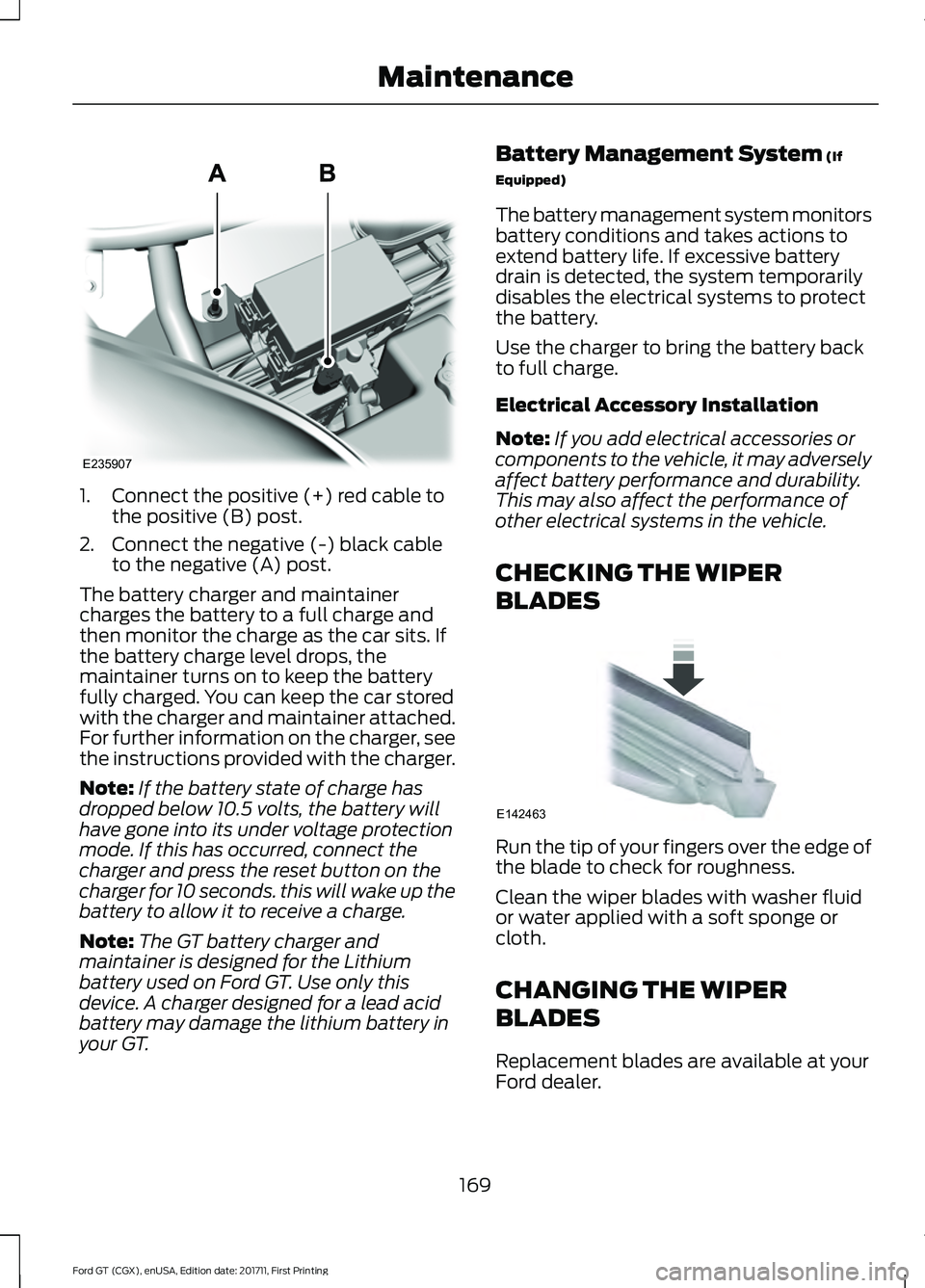

1. Connect the positive (+) red cable to
the positive (B) post.
2. Connect the negative (-) black cable to the negative (A) post.
The battery charger and maintainer
charges the battery to a full charge and
then monitor the charge as the car sits. If
the battery charge level drops, the
maintainer turns on to keep the battery
fully charged. You can keep the car stored
with the charger and maintainer attached.
For further information on the charger, see
the instructions provided with the charger.
Note: If the battery state of charge has
dropped below 10.5 volts, the battery will
have gone into its under voltage protection
mode. If this has occurred, connect the
charger and press the reset button on the
charger for 10 seconds. this will wake up the
battery to allow it to receive a charge.
Note: The GT battery charger and
maintainer is designed for the Lithium
battery used on Ford GT. Use only this
device. A charger designed for a lead acid
battery may damage the lithium battery in
your GT. Battery Management System (If
Equipped)
The battery management system monitors
battery conditions and takes actions to
extend battery life. If excessive battery
drain is detected, the system temporarily
disables the electrical systems to protect
the battery.
Use the charger to bring the battery back
to full charge.
Electrical Accessory Installation
Note: If you add electrical accessories or
components to the vehicle, it may adversely
affect battery performance and durability.
This may also affect the performance of
other electrical systems in the vehicle.
CHECKING THE WIPER
BLADES Run the tip of your fingers over the edge of
the blade to check for roughness.
Clean the wiper blades with washer fluid
or water applied with a soft sponge or
cloth.
CHANGING THE WIPER
BLADES
Replacement blades are available at your
Ford dealer.
169
Ford GT (CGX), enUSA, Edition date: 201711, First Printing MaintenanceE235907 E142463

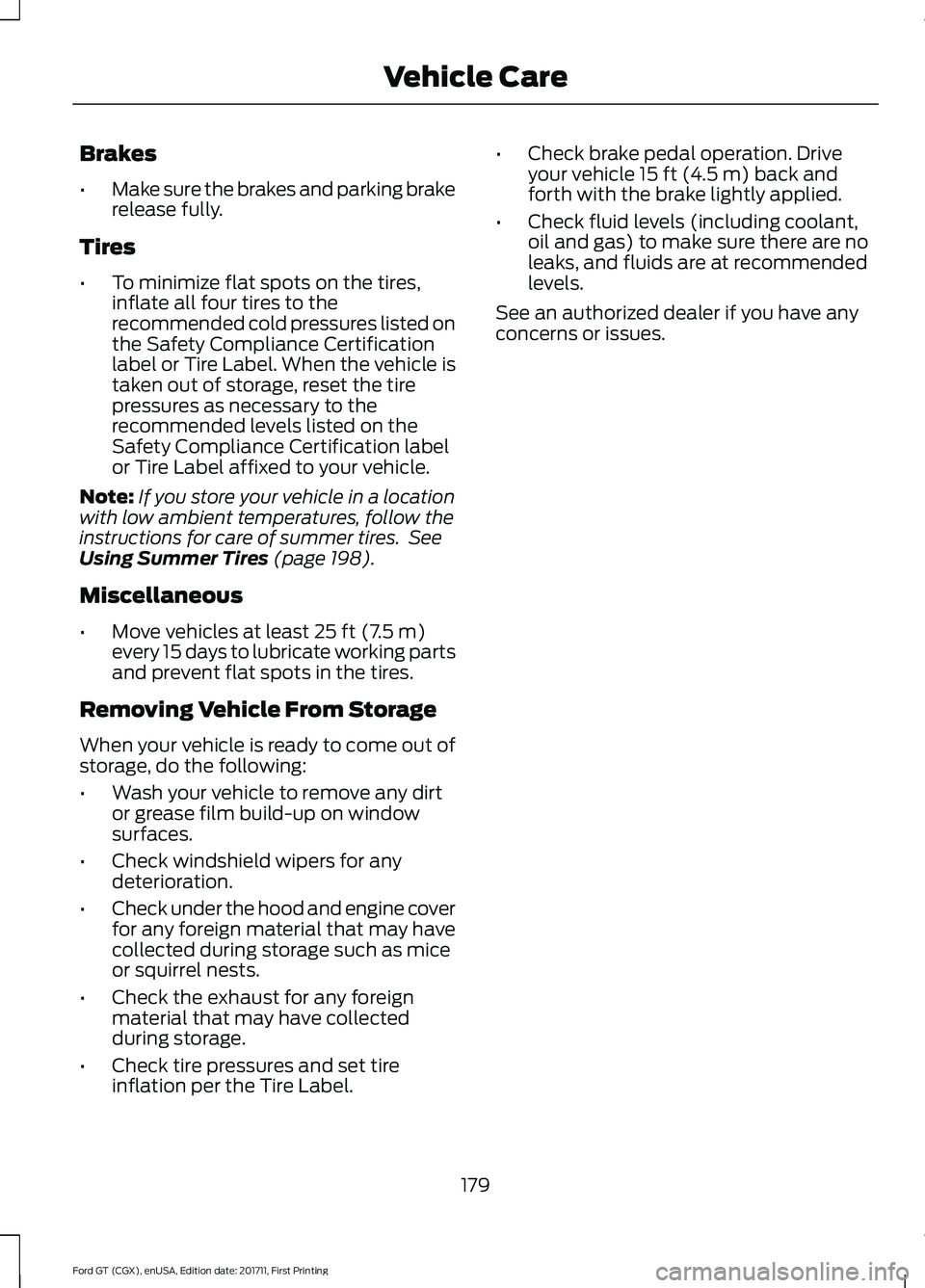

Brakes
•
Make sure the brakes and parking brake
release fully.
Tires
• To minimize flat spots on the tires,
inflate all four tires to the
recommended cold pressures listed on
the Safety Compliance Certification
label or Tire Label. When the vehicle is
taken out of storage, reset the tire
pressures as necessary to the
recommended levels listed on the
Safety Compliance Certification label
or Tire Label affixed to your vehicle.
Note: If you store your vehicle in a location
with low ambient temperatures, follow the
instructions for care of summer tires. See
Using Summer Tires (page 198).
Miscellaneous
• Move vehicles at least
25 ft (7.5 m)
every 15 days to lubricate working parts
and prevent flat spots in the tires.
Removing Vehicle From Storage
When your vehicle is ready to come out of
storage, do the following:
• Wash your vehicle to remove any dirt
or grease film build-up on window
surfaces.
• Check windshield wipers for any
deterioration.
• Check under the hood and engine cover
for any foreign material that may have
collected during storage such as mice
or squirrel nests.
• Check the exhaust for any foreign
material that may have collected
during storage.
• Check tire pressures and set tire
inflation per the Tire Label. •
Check brake pedal operation. Drive
your vehicle
15 ft (4.5 m) back and
forth with the brake lightly applied.
• Check fluid levels (including coolant,
oil and gas) to make sure there are no
leaks, and fluids are at recommended
levels.
See an authorized dealer if you have any
concerns or issues.
179
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Vehicle Care

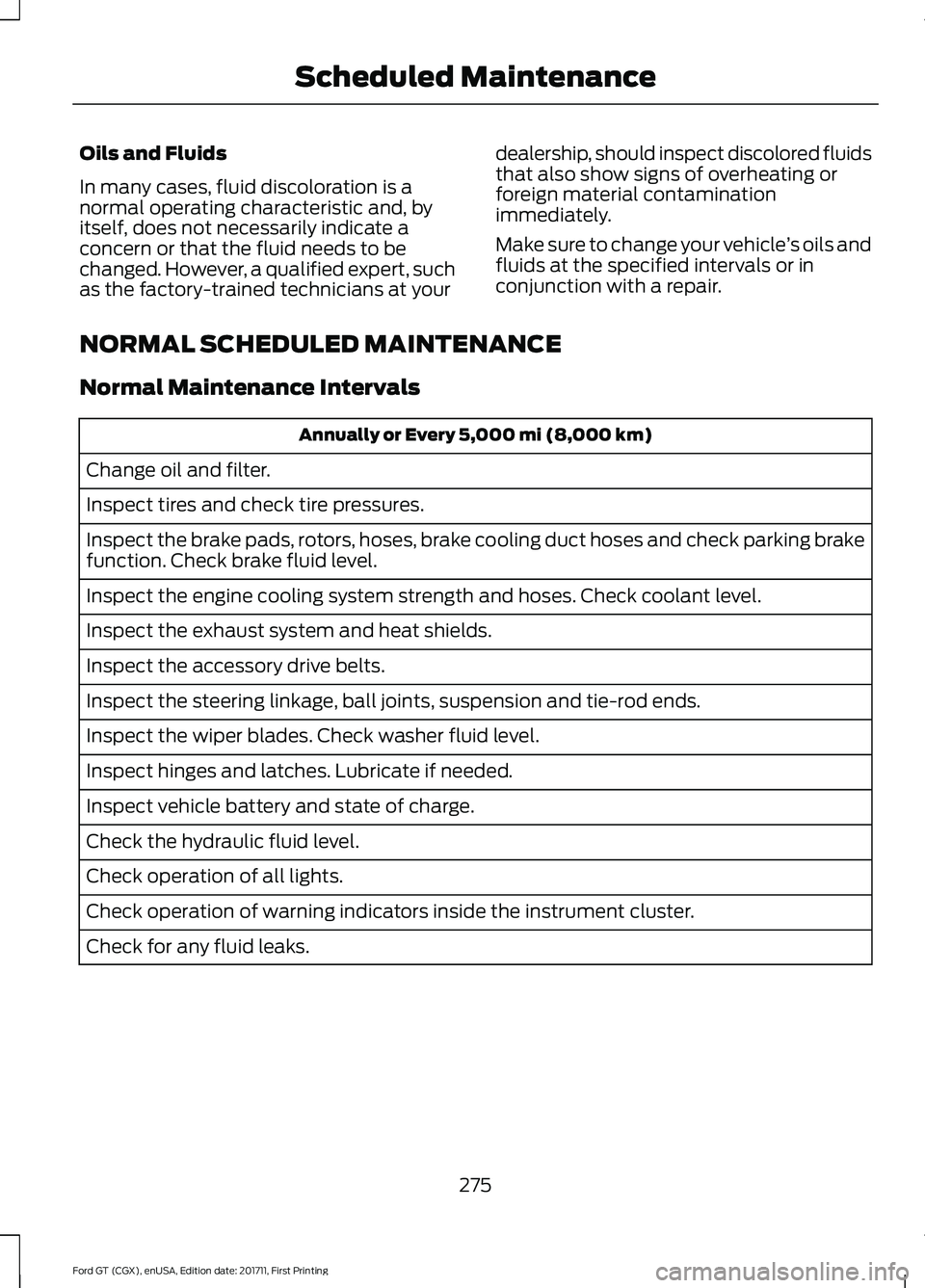

Oils and Fluids
In many cases, fluid discoloration is a
normal operating characteristic and, by
itself, does not necessarily indicate a
concern or that the fluid needs to be
changed. However, a qualified expert, such
as the factory-trained technicians at your
dealership, should inspect discolored fluids
that also show signs of overheating or
foreign material contamination
immediately.
Make sure to change your vehicle
’s oils and
fluids at the specified intervals or in
conjunction with a repair.
NORMAL SCHEDULED MAINTENANCE
Normal Maintenance Intervals Annually or Every 5,000 mi (8,000 km)
Change oil and filter.
Inspect tires and check tire pressures.
Inspect the brake pads, rotors, hoses, brake cooling duct hoses and check parking brake
function. Check brake fluid level.
Inspect the engine cooling system strength and hoses. Check coolant level.
Inspect the exhaust system and heat shields.
Inspect the accessory drive belts.
Inspect the steering linkage, ball joints, suspension and tie-rod ends.
Inspect the wiper blades. Check washer fluid level.
Inspect hinges and latches. Lubricate if needed.
Inspect vehicle battery and state of charge.
Check the hydraulic fluid level.
Check operation of all lights.
Check operation of warning indicators inside the instrument cluster.
Check for any fluid leaks.
275
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Scheduled Maintenance

A
A/C
See: Climate Control.......................................... 80
About This Manual...........................................5 Ford GT Concierge Phone Numbers................5
ABS See: Brakes.............................................................. 111
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................... 111
Accessories.....................................................273
Accessories See: Replacement Parts
Recommendation............................................ 10
Adjusting the Headlamps..........................170 Headlamp Aim Target....................................... 170
Adjusting the Pedals.....................................56
Adjusting the Steering Wheel....................52
Airbag Disposal...............................................39
Air Conditioning See: Climate Control.......................................... 80
Air Filter See: Changing the Engine Air Filter...............171
Alarm See: Anti-Theft Alarm......................................... 51
Anti-Theft Alarm
.............................................51
Arming the Alarm.................................................. 51
Disarming the Alarm............................................ 51
Appendices....................................................288
Apps..................................................................247 ........................................................................\
........... 247
At a Glance........................................................14
Audible Warnings and Indicators.............69 Headlamps On Warning Chime..................... 69
Keyless Warning Alert........................................ 69
Audio Control
...................................................53
Seek, Next or Previous........................................ 53
Audio System
.................................................212
Audio Unit........................................................212
Autolamps........................................................59
Automatic Climate Control
.........................81
Automatic Transmission...........................106
Brake-Shift Interlock......................................... 108
If Your Vehicle Gets Stuck In Mud or Snow................................................................... 110
SelectShift™ Automatic Transmission................................................... 107Understanding the Positions of Your
Automatic Transmission............................ 106
Automatic Transmission Fluid Check.............................................................166
Auxiliary Power Points.................................88 12 Volt DC Power Point...................................... 88
Location................................................................... 88
B
Battery See: Changing the 12V Battery...................... 168
Bonnet Lock See: Opening and Closing the Hood............157
Booster Seats
..................................................22
Types of Booster Seats...................................... 23
Brake Fluid Check.........................................166
Brakes..................................................................111 General Information............................................ 111
Breaking-In......................................................134 Cold Engine Operation..................................... 134
Hot Engine Shut down..................................... 134
C
Cabin Air Filter.................................................85
California Proposition 65...............................9
Capacities and Specifications
...............209
Specifications...................................................... 210
Car Wash See: Cleaning the Exterior................................ 172
Catalytic Converter
......................................103
On-Board Diagnostics (OBD-II)................... 104
Readiness for Inspection and Maintenance (I/M) Testing................................................... 104
Changing a Bulb.............................................171 LED Lamps............................................................. 171
Changing a Fuse
...........................................155
Fuses....................................................................... 155
Changing a Road Wheel
...........................202
Important Information for Lifting or
Jacking.............................................................. 202
Changing the 12V Battery..........................168 Battery Charger and Maintainer................... 168
Battery Management System....................... 169
Changing the Engine Air Filter...................171
Changing the Wiper Blades......................169
Checking the Wiper Blades......................169
315
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Index

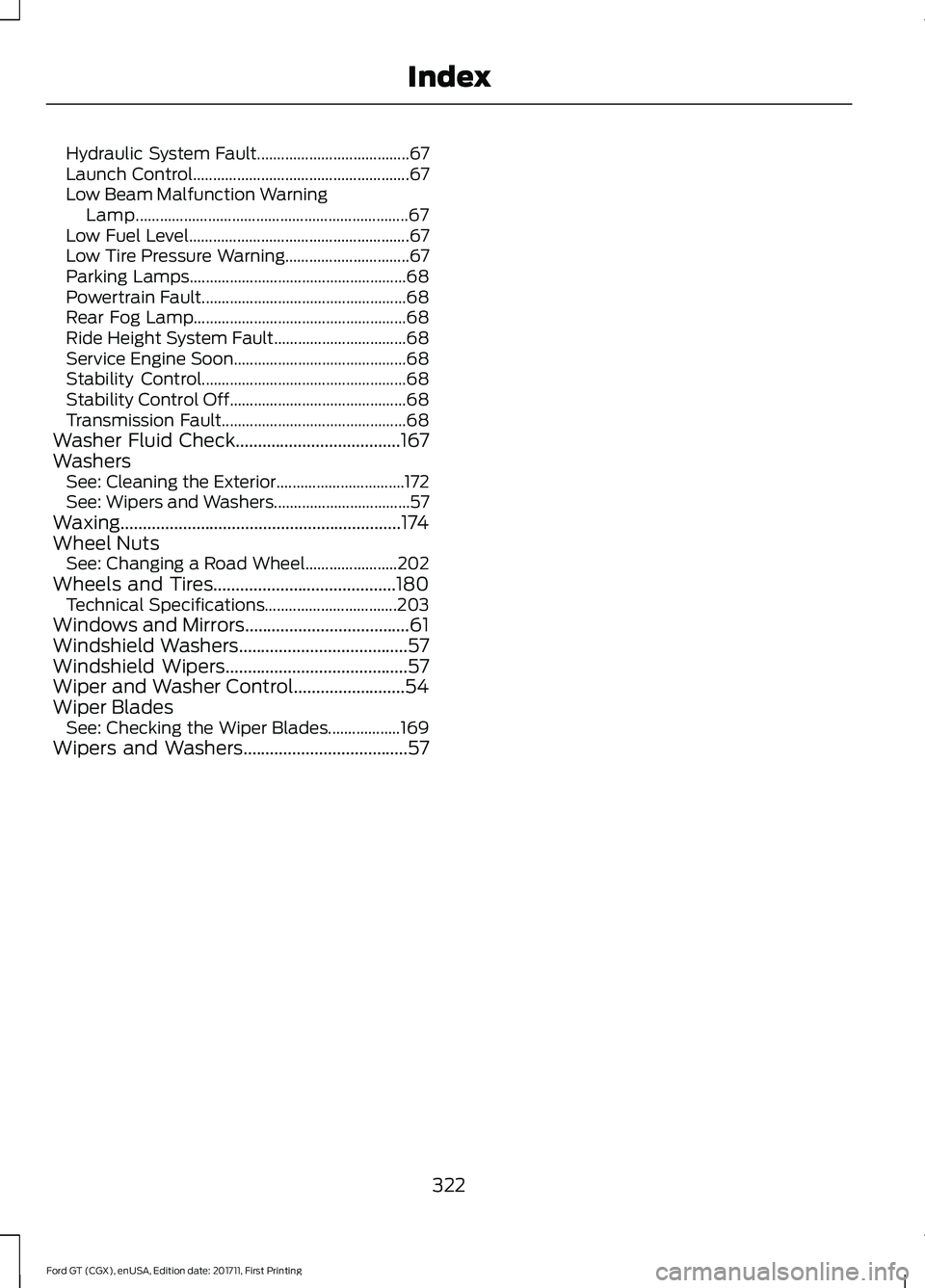

Hydraulic System Fault......................................
67
Launch Control...................................................... 67
Low Beam Malfunction Warning Lamp.................................................................... 67
Low Fuel Level....................................................... 67
Low Tire Pressure Warning............................... 67
Parking Lamps...................................................... 68
Powertrain Fault................................................... 68
Rear Fog Lamp..................................................... 68
Ride Height System Fault................................. 68
Service Engine Soon........................................... 68
Stability Control................................................... 68
Stability Control Off............................................ 68
Transmission Fault.............................................. 68
Washer Fluid Check.....................................167
Washers See: Cleaning the Exterior................................ 172
See: Wipers and Washers.................................. 57
Waxing...............................................................174
Wheel Nuts See: Changing a Road Wheel....................... 202
Wheels and Tires.........................................180
Technical Specifications................................. 203
Windows and Mirrors
.....................................61
Windshield Washers......................................57
Windshield Wipers.........................................57
Wiper and Washer Control.........................54
Wiper Blades See: Checking the Wiper Blades.................. 169
Wipers and Washers
.....................................57
322
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Index
