FORD MUSTANG 2003 4.G Owners Manual

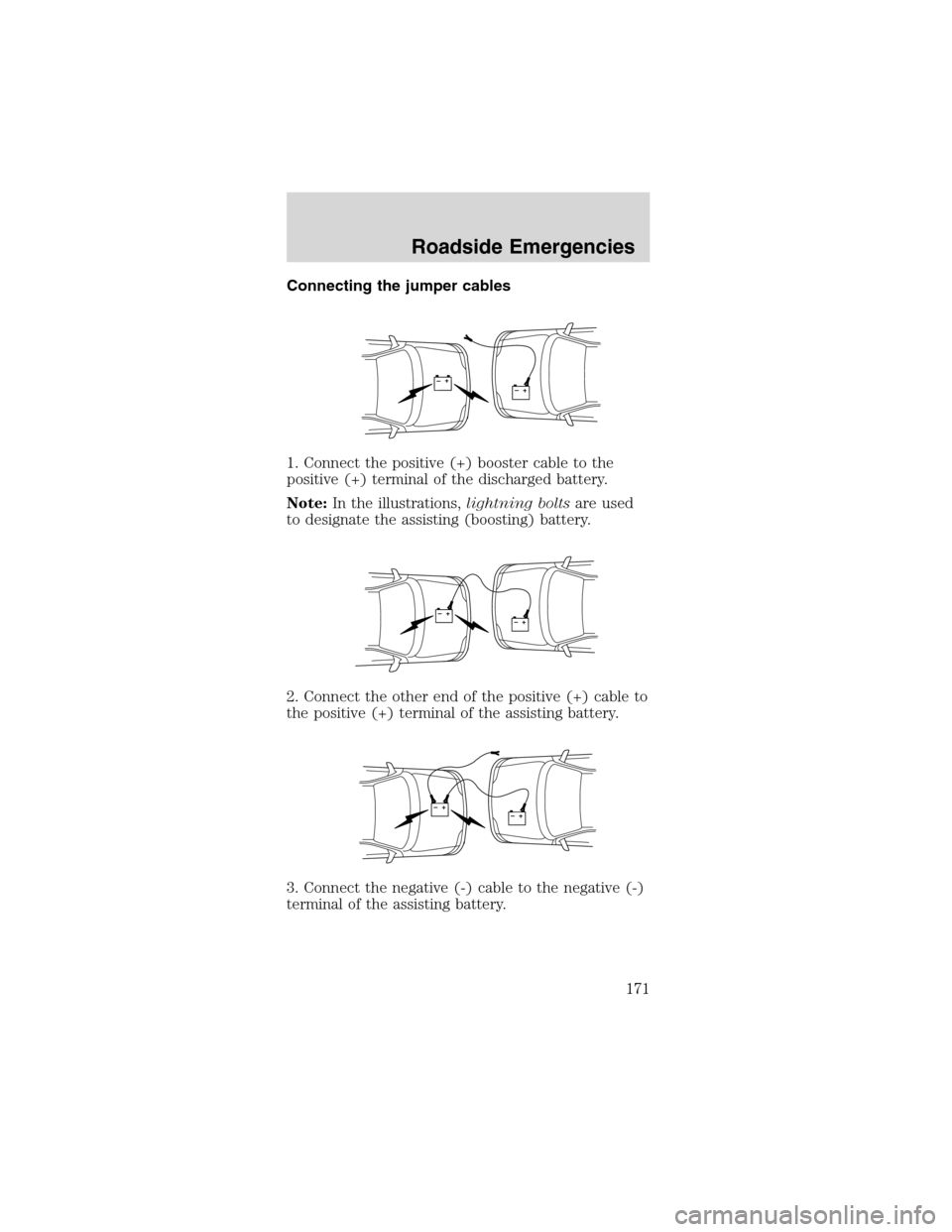

Connecting the jumper cables
1. Connect the positive (+) booster cable to the
positive (+) terminal of the discharged battery.
Note:In the illustrations,lightning boltsare used
to designate the assisting (boosting) battery.
2. Connect the other end of the positive (+) cable to
the positive (+) terminal of the assisting battery.
3. Connect the negative (-) cable to the negative (-)
terminal of the assisting battery.
+–+–
+–+–
+–+–
Roadside Emergencies
171

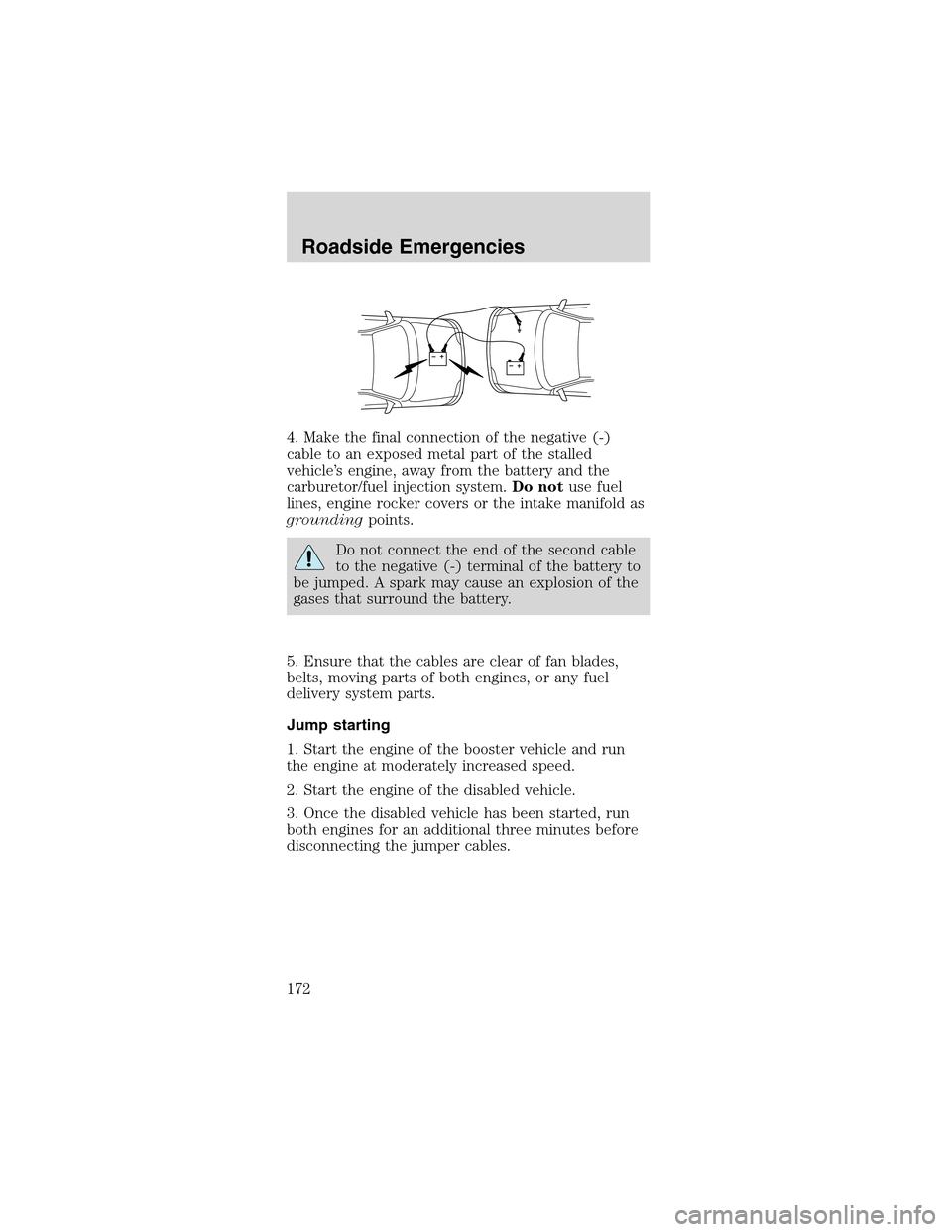

4. Make the final connection of the negative (-)
cable to an exposed metal part of the stalled
vehicle’s engine, away from the battery and the
carburetor/fuel injection system.Do notuse fuel
lines, engine rocker covers or the intake manifold as
groundingpoints.
Do not connect the end of the second cable
to the negative (-) terminal of the battery to
be jumped. A spark may cause an explosion of the
gases that surround the battery.
5. Ensure that the cables are clear of fan blades,
belts, moving parts of both engines, or any fuel
delivery system parts.
Jump starting
1. Start the engine of the booster vehicle and run
the engine at moderately increased speed.
2. Start the engine of the disabled vehicle.
3. Once the disabled vehicle has been started, run
both engines for an additional three minutes before
disconnecting the jumper cables.
+–+–
Roadside Emergencies
172

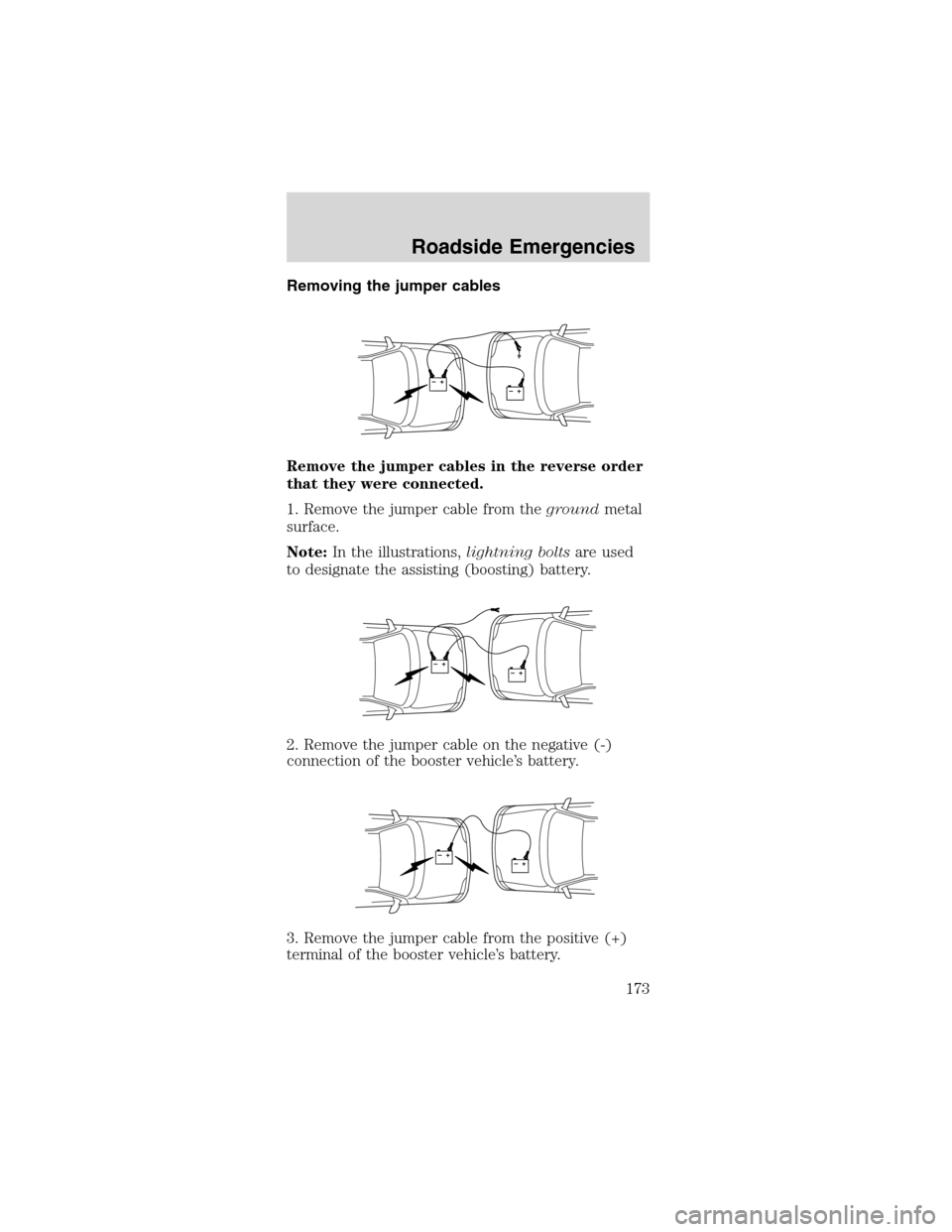

Removing the jumper cables
Remove the jumper cables in the reverse order
that they were connected.
1. Remove the jumper cable from thegroundmetal
surface.
Note:In the illustrations,lightning boltsare used
to designate the assisting (boosting) battery.
2. Remove the jumper cable on the negative (-)
connection of the booster vehicle’s battery.
3. Remove the jumper cable from the positive (+)
terminal of the booster vehicle’s battery.
+–+–
+–+–
+–+–
Roadside Emergencies
173

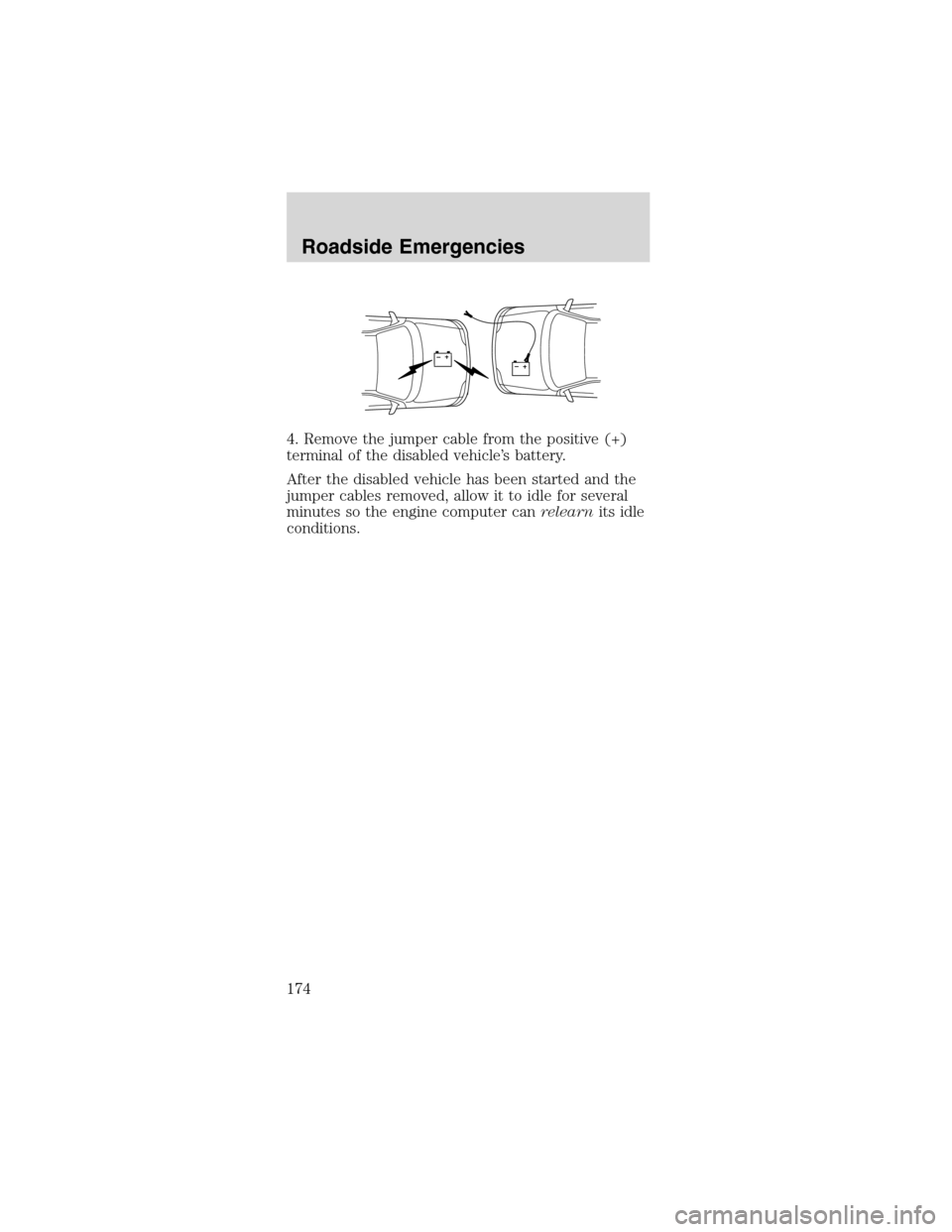

4. Remove the jumper cable from the positive (+)
terminal of the disabled vehicle’s battery.
After the disabled vehicle has been started and the
jumper cables removed, allow it to idle for several
minutes so the engine computer canrelearnits idle
conditions.
+–+–
Roadside Emergencies
174

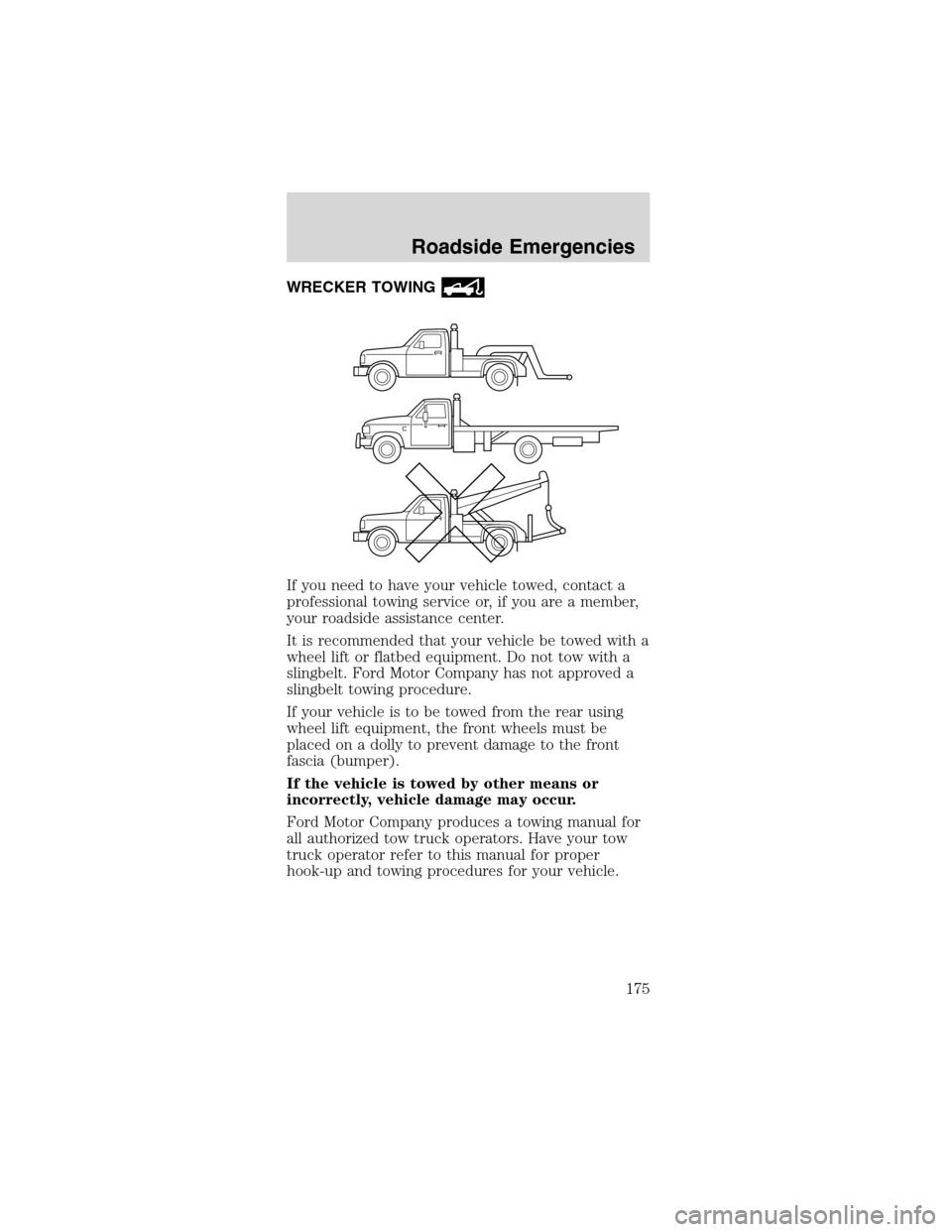

WRECKER TOWING
If you need to have your vehicle towed, contact a
professional towing service or, if you are a member,
your roadside assistance center.
It is recommended that your vehicle be towed with a
wheel lift or flatbed equipment. Do not tow with a
slingbelt. Ford Motor Company has not approved a
slingbelt towing procedure.
If your vehicle is to be towed from the rear using
wheel lift equipment, the front wheels must be
placed on a dolly to prevent damage to the front
fascia (bumper).
If the vehicle is towed by other means or
incorrectly, vehicle damage may occur.
Ford Motor Company produces a towing manual for
all authorized tow truck operators. Have your tow
truck operator refer to this manual for proper
hook-up and towing procedures for your vehicle.
Roadside Emergencies
175

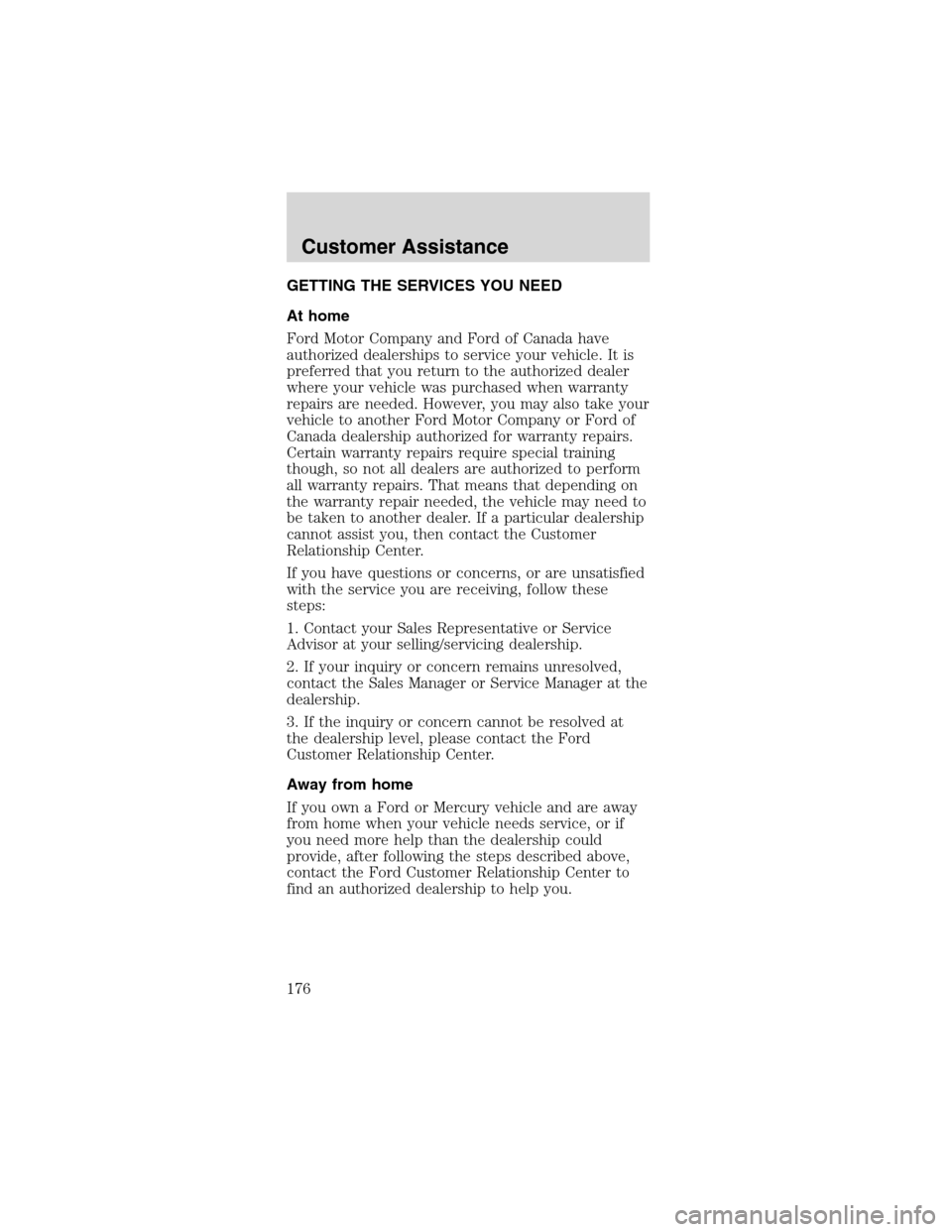

GETTING THE SERVICES YOU NEED
At home
Ford Motor Company and Ford of Canada have
authorized dealerships to service your vehicle. It is
preferred that you return to the authorized dealer
where your vehicle was purchased when warranty
repairs are needed. However, you may also take your
vehicle to another Ford Motor Company or Ford of
Canada dealership authorized for warranty repairs.
Certain warranty repairs require special training
though, so not all dealers are authorized to perform
all warranty repairs. That means that depending on
the warranty repair needed, the vehicle may need to
be taken to another dealer. If a particular dealership
cannot assist you, then contact the Customer
Relationship Center.
If you have questions or concerns, or are unsatisfied
with the service you are receiving, follow these
steps:
1. Contact your Sales Representative or Service
Advisor at your selling/servicing dealership.
2. If your inquiry or concern remains unresolved,
contact the Sales Manager or Service Manager at the
dealership.
3. If the inquiry or concern cannot be resolved at
the dealership level, please contact the Ford
Customer Relationship Center.
Away from home
If you own a Ford or Mercury vehicle and are away
from home when your vehicle needs service, or if
you need more help than the dealership could
provide, after following the steps described above,
contact the Ford Customer Relationship Center to
find an authorized dealership to help you.
Customer Assistance
176

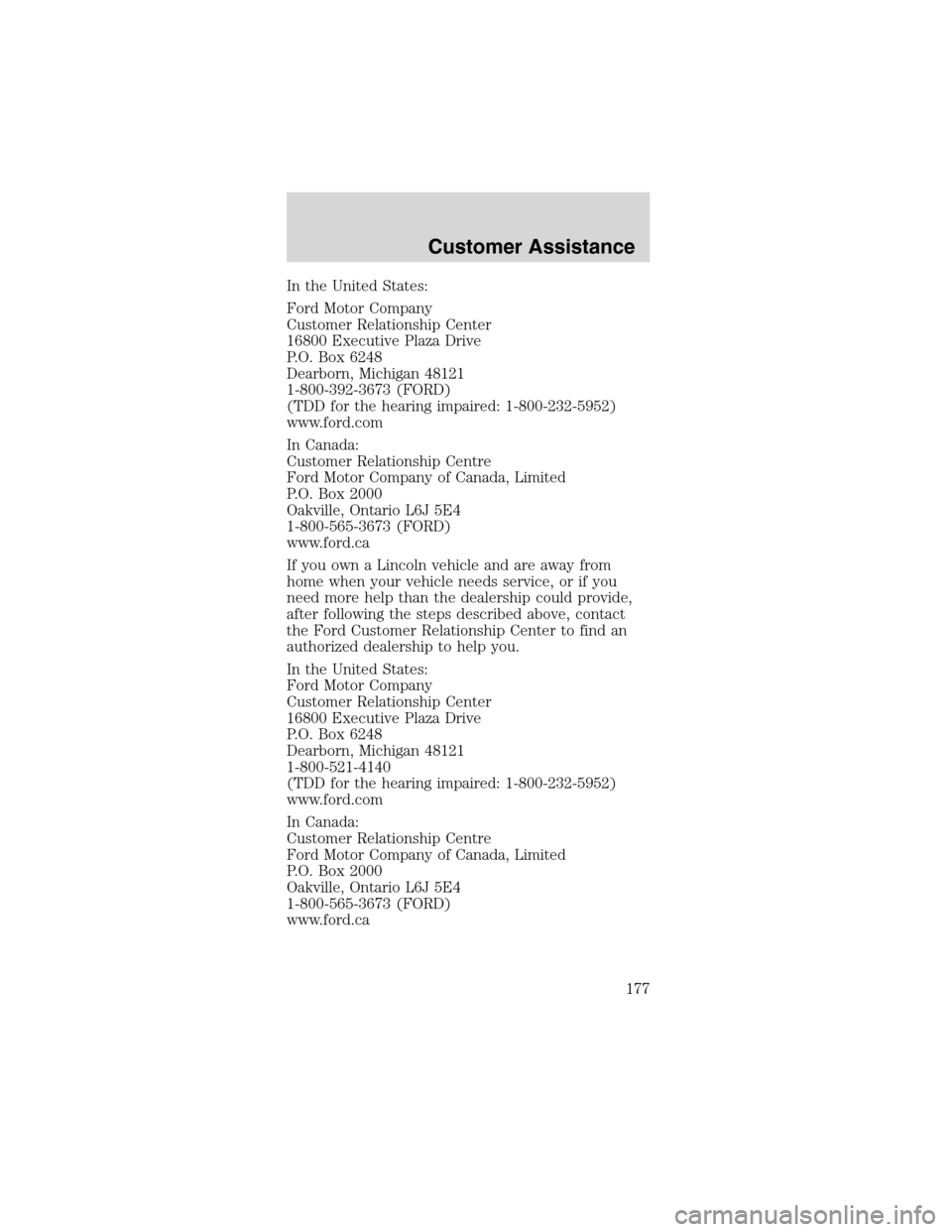

In the United States:
Ford Motor Company
Customer Relationship Center
16800 Executive Plaza Drive
P.O. Box 6248
Dearborn, Michigan 48121
1-800-392-3673 (FORD)
(TDD for the hearing impaired: 1-800-232-5952)
www.ford.com
In Canada:
Customer Relationship Centre
Ford Motor Company of Canada, Limited
P.O. Box 2000
Oakville, Ontario L6J 5E4
1-800-565-3673 (FORD)
www.ford.ca
If you own a Lincoln vehicle and are away from
home when your vehicle needs service, or if you
need more help than the dealership could provide,
after following the steps described above, contact
the Ford Customer Relationship Center to find an
authorized dealership to help you.
In the United States:
Ford Motor Company
Customer Relationship Center
16800 Executive Plaza Drive
P.O. Box 6248
Dearborn, Michigan 48121
1-800-521-4140
(TDD for the hearing impaired: 1-800-232-5952)
www.ford.com
In Canada:
Customer Relationship Centre
Ford Motor Company of Canada, Limited
P.O. Box 2000
Oakville, Ontario L6J 5E4
1-800-565-3673 (FORD)
www.ford.ca
Customer Assistance
177

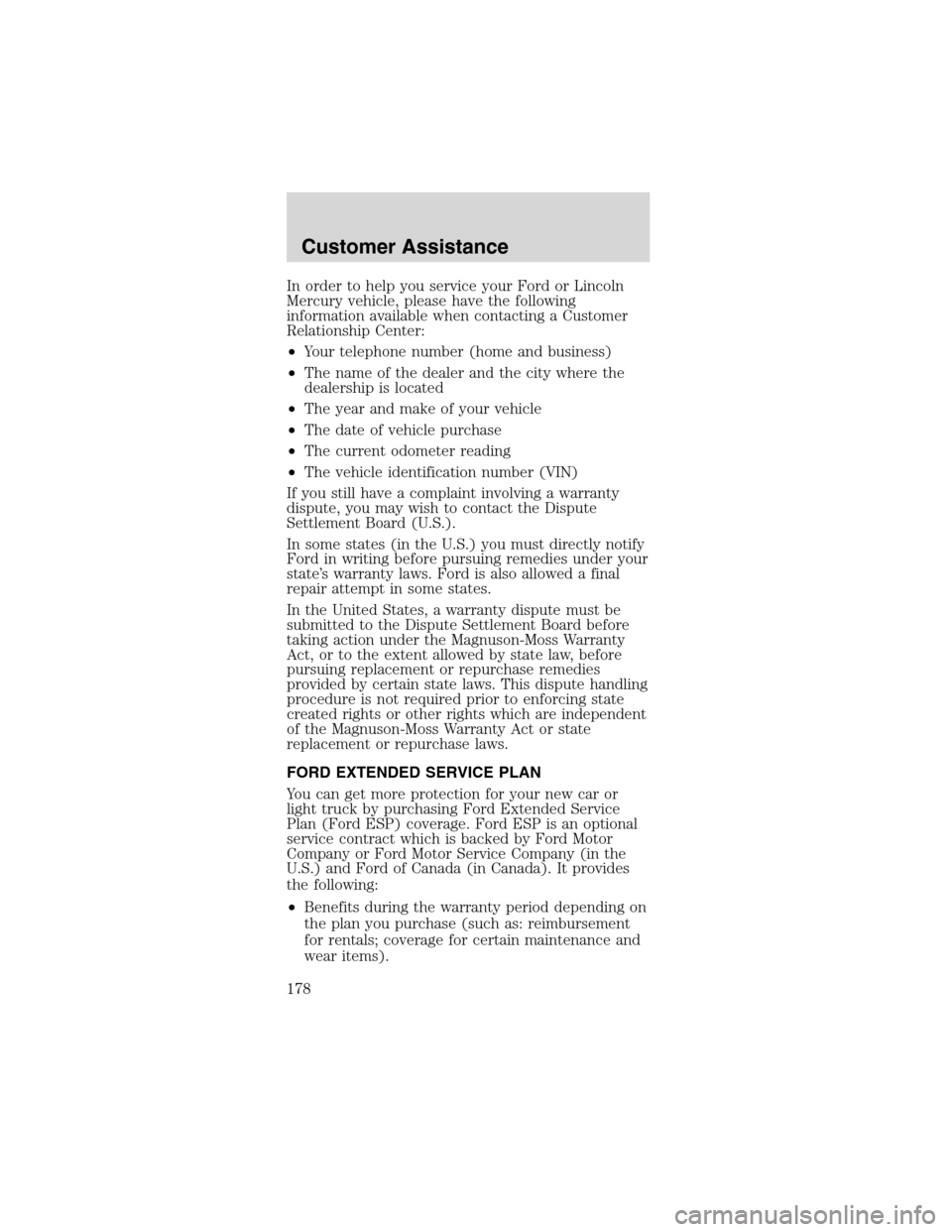

In order to help you service your Ford or Lincoln
Mercury vehicle, please have the following
information available when contacting a Customer
Relationship Center:
•Your telephone number (home and business)
•The name of the dealer and the city where the
dealership is located
•The year and make of your vehicle
•The date of vehicle purchase
•The current odometer reading
•The vehicle identification number (VIN)
If you still have a complaint involving a warranty
dispute, you may wish to contact the Dispute
Settlement Board (U.S.).
In some states (in the U.S.) you must directly notify
Ford in writing before pursuing remedies under your
state’s warranty laws. Ford is also allowed a final
repair attempt in some states.
In the United States, a warranty dispute must be
submitted to the Dispute Settlement Board before
taking action under the Magnuson-Moss Warranty
Act, or to the extent allowed by state law, before
pursuing replacement or repurchase remedies
provided by certain state laws. This dispute handling
procedure is not required prior to enforcing state
created rights or other rights which are independent
of the Magnuson-Moss Warranty Act or state
replacement or repurchase laws.
FORD EXTENDED SERVICE PLAN
You can get more protection for your new car or
light truck by purchasing Ford Extended Service
Plan (Ford ESP) coverage. Ford ESP is an optional
service contract which is backed by Ford Motor
Company or Ford Motor Service Company (in the
U.S.) and Ford of Canada (in Canada). It provides
the following:
•Benefits during the warranty period depending on
the plan you purchase (such as: reimbursement
for rentals; coverage for certain maintenance and
wear items).
Customer Assistance
178

•Protection against covered repair costs after your
Bumper-to-Bumper Warranty expires.
You may purchase Ford ESP from any participating
Ford and Lincoln Mercury and Ford of Canada
dealer. There are several plans available in various
time, distance and deductible combinations which
can be tailored to fit your own driving needs. Ford
ESP also offers reimbursement benefits for towing
and rental coverage.
When you buy Ford ESP, you receive Peace-of-Mind
protection throughout the United States and Canada,
provided by a network of more than 5,000
participating Ford or Lincoln Mercury and Ford of
Canada dealers.
If you did not take advantage of the Ford Extended
Service Plan at the time of purchasing your vehicle,
you may still be eligible. Please contact your dealer
for further information. Since this information is
subject to change, please ask your dealer for
complete details about Ford Extended Service Plan
coverage options, or visit the Ford ESP website at
www.ford-esp.com.
THE DISPUTE SETTLEMENT BOARD
(U.S. ONLY)
The Dispute Settlement Board is:
•an independent, third-party arbitration program
for warranty disputes.
•available free to owners and lessees of qualifying
Ford Motor Company vehicles.
The Dispute Settlement Board may not be available in
all states. Ford Motor Company reserves the right to
change eligibility limitations, modify procedures
and/or to discontinue this service without notice and
without incurring obligations per applicable state law.
What kinds of cases does the Board review?
Unresolved warranty repair concerns or vehicle
performance concerns as on Ford and Lincoln
Mercury cars and Ford and Lincoln Mercury light
Customer Assistance
179

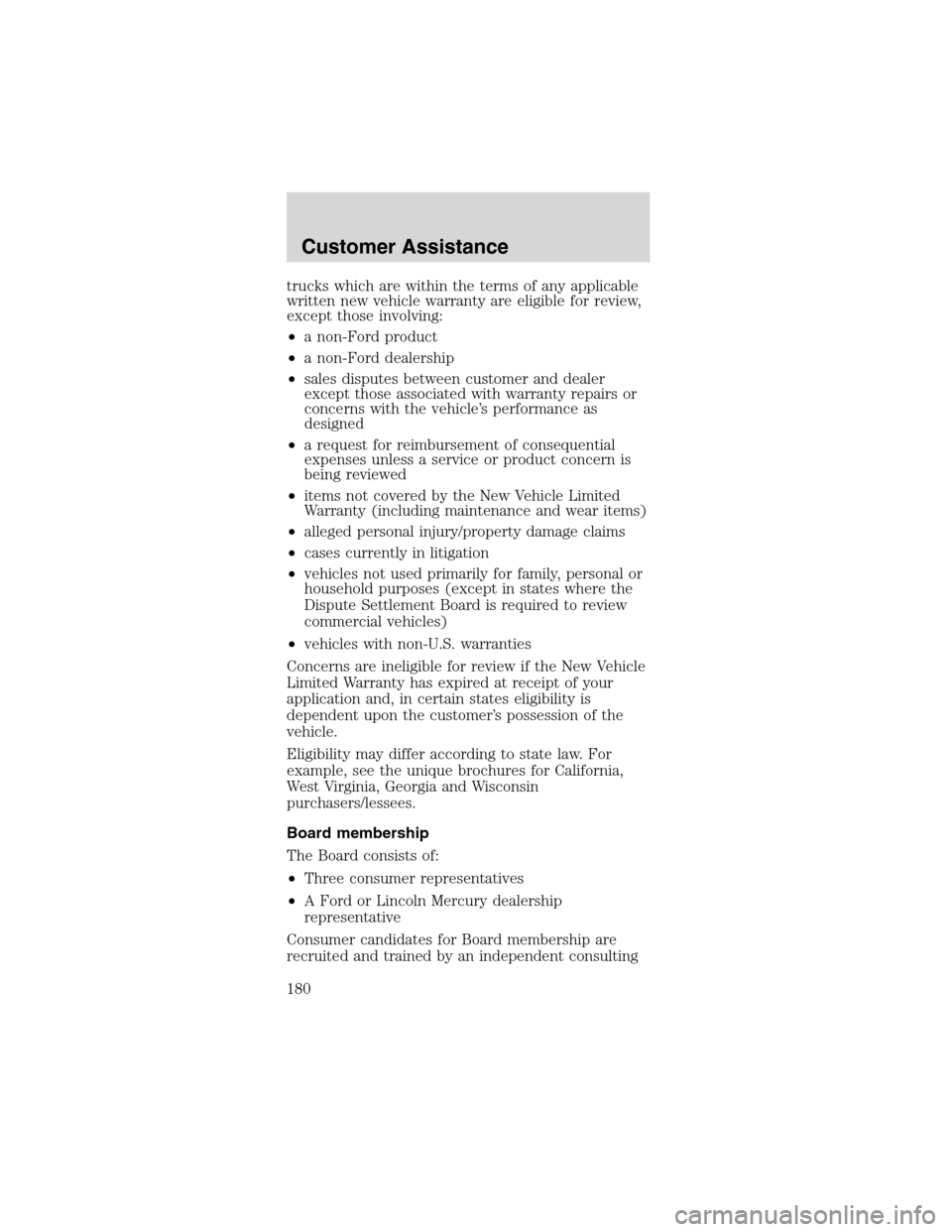

trucks which are within the terms of any applicable
written new vehicle warranty are eligible for review,
except those involving:
•a non-Ford product
•a non-Ford dealership
•sales disputes between customer and dealer
except those associated with warranty repairs or
concerns with the vehicle’s performance as
designed
•a request for reimbursement of consequential
expenses unless a service or product concern is
being reviewed
•items not covered by the New Vehicle Limited
Warranty (including maintenance and wear items)
•alleged personal injury/property damage claims
•cases currently in litigation
•vehicles not used primarily for family, personal or
household purposes (except in states where the
Dispute Settlement Board is required to review
commercial vehicles)
•vehicles with non-U.S. warranties
Concerns are ineligible for review if the New Vehicle
Limited Warranty has expired at receipt of your
application and, in certain states eligibility is
dependent upon the customer’s possession of the
vehicle.
Eligibility may differ according to state law. For
example, see the unique brochures for California,
West Virginia, Georgia and Wisconsin
purchasers/lessees.
Board membership
The Board consists of:
•Three consumer representatives
•A Ford or Lincoln Mercury dealership
representative
Consumer candidates for Board membership are
recruited and trained by an independent consulting
Customer Assistance
180
