interior lights FORD MUSTANG 2004 4.G Owners Manual

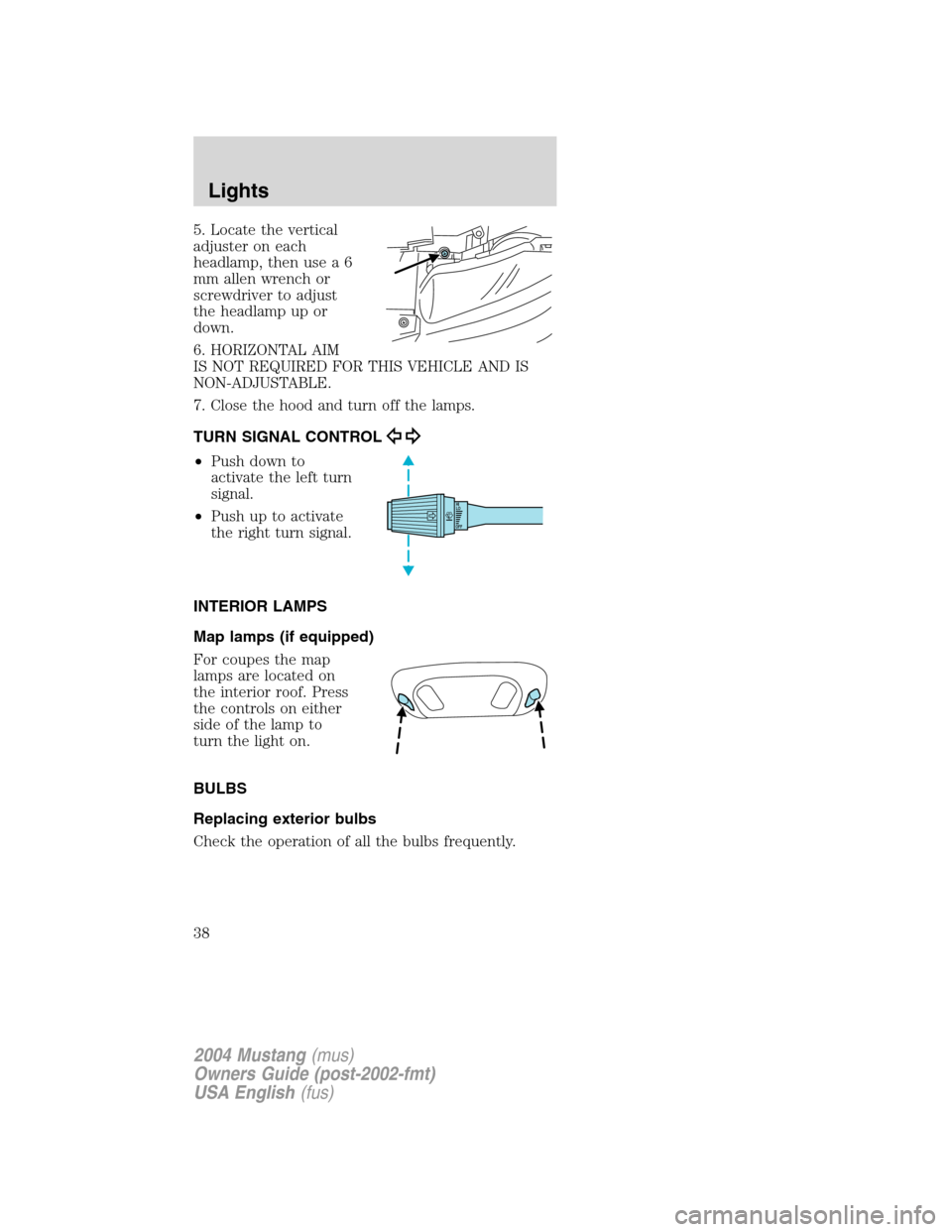

5. Locate the vertical
adjuster on each
headlamp, then use a 6
mm allen wrench or
screwdriver to adjust
the headlamp up or
down.
6. HORIZONTAL AIM
IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.
7. Close the hood and turn off the lamps.
TURN SIGNAL CONTROL
•Push down to
activate the left turn
signal.
•Push up to activate
the right turn signal.
INTERIOR LAMPS
Map lamps (if equipped)
For coupes the map
lamps are located on
the interior roof. Press
the controls on either
side of the lamp to
turn the light on.
BULBS
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
OFFHI
LO
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
38

Using the right bulbs
Replacement bulbs are specified in the chart below.
Headlamp bulbs must be marked with an authorized
“D.O.T.”for North America and an“E”for Europe to
assure lamp performance, light brightness and
pattern and safe visibility. The correct bulbs will not
damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb burn
time.
Function Trade Number
Tail lamp, brakelamp, turn lamp 3157K
Park lamp, turn lamp, side marker
(front)3157 AK (amber)
Backup lamp 3156K
License plate lamp 168
High-mount brakelamp 906
Headlamps 9007
Luggage compartment lamp 906
Dome lamp 575
Map lamp 575
Visor vanity lamp 74
Glove compartment 194
Rearview mirror map lamps 192
Fog lamp 899
All replacement bulbs are clear in color except where
noted.
To replace all instrument panel lights - see your dealer.
Interior bulbs
Check the operation of all bulbs frequently.
Map lamps
For bulb replacement, see a qualified service
technician or your dealer.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
39

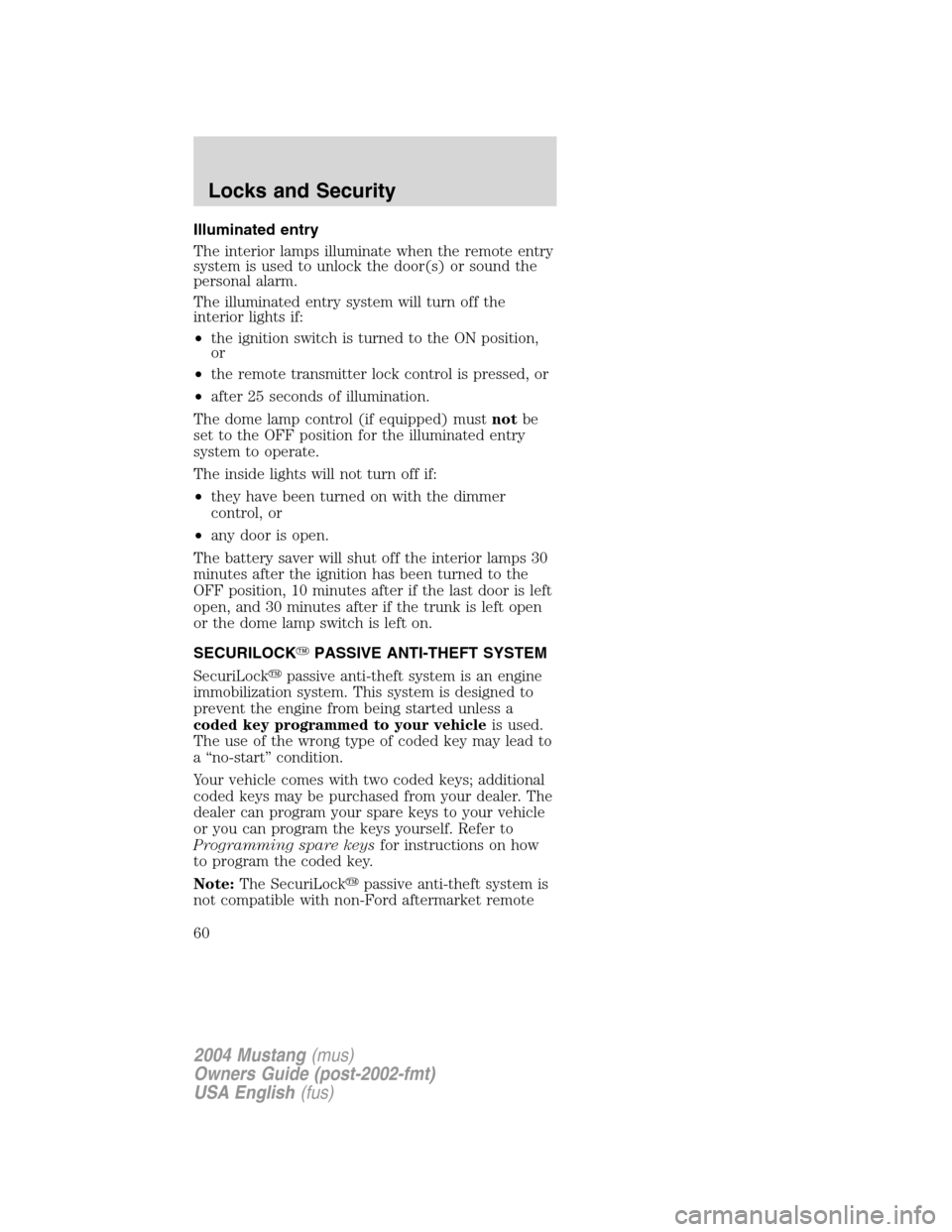

Illuminated entry
The interior lamps illuminate when the remote entry
system is used to unlock the door(s) or sound the
personal alarm.
The illuminated entry system will turn off the
interior lights if:
•the ignition switch is turned to the ON position,
or
•the remote transmitter lock control is pressed, or
•after 25 seconds of illumination.
The dome lamp control (if equipped) mustnotbe
set to the OFF position for the illuminated entry
system to operate.
The inside lights will not turn off if:
•they have been turned on with the dimmer
control, or
•any door is open.
The battery saver will shut off the interior lamps 30
minutes after the ignition has been turned to the
OFF position, 10 minutes after if the last door is left
open, and 30 minutes after if the trunk is left open
or the dome lamp switch is left on.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine
immobilization system. This system is designed to
prevent the engine from being started unless a
coded key programmed to your vehicleis used.
The use of the wrong type of coded key may lead to
a“no-start”condition.
Your vehicle comes with two coded keys; additional
coded keys may be purchased from your dealer. The
dealer can program your spare keys to your vehicle
or you can program the keys yourself. Refer to
Programming spare keysfor instructions on how
to program the coded key.
Note:The SecuriLock
passive anti-theft system is
not compatible with non-Ford aftermarket remote
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
60

Grille inserts
Headlamps, fog lights and Daytime Running Lamps
(DRLS)
Splash guards
Wheels
Interior style
Cell phone holders
Electrochromatic compass/temperature interior
mirrors
Floor mats
Interior trim kits
Leather wrapped steering wheels
Scuff plates
Speed control
Lifestyle
Bike racks
Cargo organization and management
Engine block heaters and blankets
Peace of mind
Airbag anti-theft locks
First aid and safety kits
Full vehicle covers
Locking gas cap
Navigation systems
Remote start
Vehicle security systems
For maximum vehicle performance, keep the
following information in mind when adding
accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers
and luggage to your vehicle, do not exceed the
total weight capacity of the vehicle or of the front
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
226

turning on and off .. 35
Heating
heating and air
conditioning system.33
Hood ........................ 162
I
Ignition ............... 99, 221
Infant seats (see
Safety seats) ............. 88
Inspection/maintenance
(I/M) testing ............ 193
Instrument panel
cleaning ................. 157
cluster ...................... 10
lighting up panel
and interior ............. 36
J
Jump-starting your
vehicle ...................... 136
K
Keys
positions of the
ignition .................... 99
L
Lamps
bulb replacement
specifications
chart ........................ 39
daytime running
light .......................... 35
fog lamps ................. 35
headlamps ......... 35, 40headlamps, flash
to pass ..................... 36
instrument panel,
dimming ................... 36
interior lamps ... 38–39
replacing
bulbs ............ 38, 40–42
Lane change indicator
(see Turn signal) ...... 38
Lights, warning and
indicator .................... 10
anti-lock brakes
(ABS) .................... 104
Limited slip axle
(see Traction Loc) .. 108
Load limits ............... 117
Locks
doors ........................ 54
Lubricant
specifications ... 218, 221
Lug nuts, anti-theft . 134
Lumbar support,
seats ........................... 65
M
Manual transmission. 114
fluid capacities ...... 215
lubricant
specifications ........ 221
reverse ................... 115
Mirrors
side view mirrors
(power) ................... 46
Motorcraft
parts ................. 187, 215
O
Octane rating .. 185–186
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
231
