light FORD MUSTANG 2014 5.G Quick Reference Guide

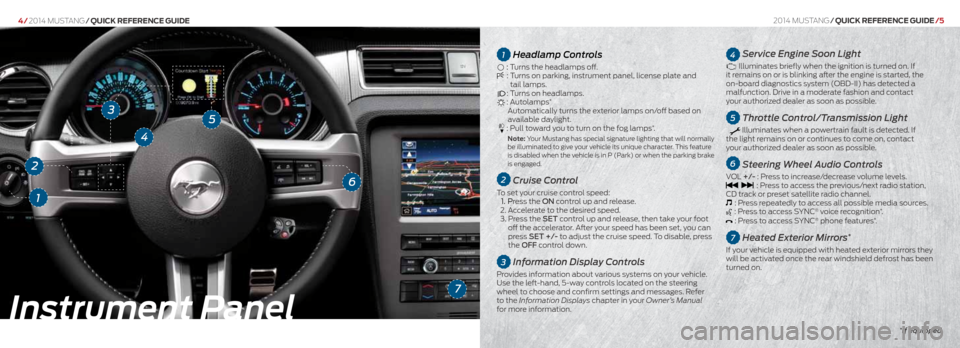

1Headlamp Controls
: Turns the headlamps off. : Turns on parking, instrument panel, license plate and
tail lamps.
: Turns on headlamps.: Autolamps*
Automatically turns the exterior lamps on/off based on
available daylight.
: Pull toward you to turn on the fog lamps*. Note: Y our Mustang has special signature lighting that will normally
be illuminated to give your vehicle its unique character. This feature
is disabled when the vehicle is in P (Park) or when the parking brake
is engaged .
2Cruise Control
To set your cruise control speed:
1. Press the ON control up and release.
2. Accelerate to the desired speed.
3. Press the SET control up and release, then take your foot
off the accelerator. After your speed has been set, you can
press SET +/- to adjust the cruise speed. To disable, press
the OFF control down.
3Information Display Controls
Provides information about various systems on your vehicle.
Use the left-hand, 5-way controls located on the steering
wheel to choose and confirm settings and messages. Refer
to the Information Displays chapter in your Owner’s Manual
for more information.
4Service Engine Soon Light
Illuminates briefly when the ignition is turned on. If
it remains on or is blinking after the engine is started, the
on-board diagnostics system (OBD-II) has detected a
malfunction. Drive in a moderate fashion and contact
your authorized dealer as soon as possible.
5Throttle Control/Transmission Light
Illuminates when a powertrain fault is detected. If
the light remains on or continues to come on, contact
your authorized dealer as soon as possible.
6Steering Wheel Audio Controls
VOL +/- : Press to increase/decrease volume levels. : Press to access the previous/next radio station,
cD track or preset satellite radio channel.
: Press repeatedly to access all possible media sources. : Press to access SYnc® voice recognition*. : Press to access SYnc® phone features*.
7Heated Exterior Mirrors*
If your vehicle is equipped with heated exterior mirrors they
will be activated once the rear windshield defrost has been
turned on.
4/ 2014 mustang /Quick RefeRence Guide
1
Instrument Panel
2
6
*if equipped
3
2014 mustang /Quick RefeRence Guide /5
4
5
7

8/2014 mustang /Quick RefeRence Guide
Convertible To p*
Using your convertible top
Do not store articles behind the rear seat. Articles
stored in the convertible top stowage compartment
may break the rear glass window when the top is
lowered. The windows automatically lower when
lowering or raising the top. Do not lower the top when
the top material is wet. Remove any leaves or debris
on the outer surface of the top. The convertible top
will not operate unless the vehicle is stationary or
traveling under 3 mph (5 km/h).
Opening the convertible top
Note: Your ignition must be on to open the top. It is
recommended that your engine is running to prevent
draining the battery.
To open the top:
1. Bring the vehicle to a complete stop.
2. Unclamp the latches located where the top meets
the windshield header. To do this, pull down the
latch handles and rotate them rearward until the
latches clear the windshield header.
3. Press and hold the convertible top control
on the overhead console until the windows come
all the way down and the top is completely stored.
Using the convertible top boot*
Make sure the boot is always fully secured before
driving. Improper installation of the boot can result
in the loss or damage of the boot. For information
on installing the boot, removing the boot, and
storing the boot, see the Using the Boot section of
your Owner’s Manual.
Closing the convertible top
Note: The ignition must be on to close the top. It is
recommended that your engine is running to prevent
draining the battery.
To close the top:
1. Bring the vehicle to a complete stop.
2. Press and hold the convertible top control. The
windows will lower completely. The top will
unfold and move forward until it is completely
flush with the windshield header.
Note: Make sure that the latch handles are pulled
down and are in the fully opened position before
the top makes contact with the windshield header.
This allows for hand clearance and proper closure
of the top.
3. Pull down on the driver’s latch handle and
rotate it all the way forward into the
windshield header.
4. Press the latch handle up into the original
stowed position.
5. Pull down on the passenger’s side latch
handle and rotate it all the way forward into
the windshield header.
6. Press the handle up to the original
stowed position.
7. close the rear windows before closing the
front windows.
Note: If the top has been open for an extended period
of time or if the temperature is low, the top material
may shrink slightly. If this happens, pull on the latch
handles or the center grip to fasten to the top.
For more complete information, refer to the
Convertible Top chapter in your Owner’s Manual.
*if equipped
2014 mustang /Quick RefeRence Guide /9
*if equipped

10/2014 mustang /Quick RefeRence Guide

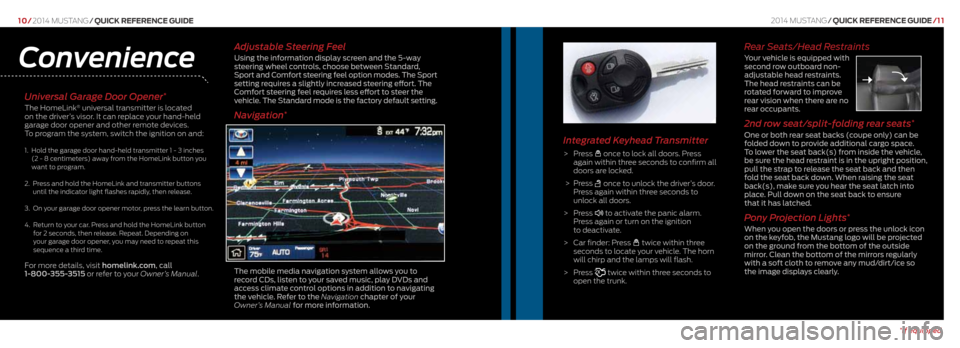

Universal Garage Door Opener*
The HomeLink® universal transmitter is located
on the driver’s visor. It can replace your hand-held
garage door opener and other remote devices.
To program the system, switch the ignition on and:
1. Hold the garage door hand-held transmitter 1 - 3 inches
(2 - 8 centimeters) away from the HomeLink button you
want to program.
2. Press and hold the HomeLink and transmitter buttons
until the indicator light flashes rapidly, then release.
3. On your garage door opener motor, press the learn button.
4. Return to your car. Press and hold the HomeLink button
for 2 seconds, then release. Repeat. Depending on
your garage door opener, you may need to repeat this
sequence a third time.

For more details, visit homelink.com, call
1-800-355-3515 or refer to your Owner’s Manual.
Convenience
Integrated Keyhead Transmitter
> Press once to lock all doors. Press
again within three seconds to confirm all
doors are locked.
> Press
once to unlock the driver’s door.
Press again within three seconds to
unlock all doors.
> Press
to activate the panic alarm.
Press again or turn on the ignition
to deactivate.
> c ar finder: Press
twice within three
seconds to locate your vehicle. The horn
will chirp and the lamps will flash.
> Press
twice within three seconds to
open the trunk.
Adjustable Steering Feel
Using the information display screen and the 5-way
steering wheel controls, choose between Standard,
Sport and Comfort steering feel option modes. The Sport
setting requires a slightly increased steering effort. The
Comfort steering feel requires less effort to steer the
vehicle. The Standard mode is the factory default setting.
Navigation*
The mobile media navigation system allows you to
record CDs, listen to your saved music, play DVDs and
access climate control options in addition to navigating
the vehicle. Refer to the Navigation chapter of your
Owner’s Manual for more information.
*if equipped
2014 mustang /Quick RefeRence Guide /1 1
Rear Seats/Head Restraints
Your vehicle is equipped with
second row outboard non-
adjustable head restraints.
The head restraints can be
rotated forward to improve
rear vision when there are no
rear occupants.
2nd row seat/split-folding rear seats*
One or both rear seat backs (coupe only) can be
folded down to provide additional cargo space.
To lower the seat back(s) from inside the vehicle,
be sure the head restraint is in the upright position,
pull the strap to release the seat back and then
fold the seat back down. When raising the seat
back(s), make sure you hear the seat latch into
place. Pull down on the seat back to ensure
that it has latched.
Pony Projection Lights*
When you open the doors or press the unlock icon
on the keyfob, the Mustang logo will be projected
on the ground from the bottom of the outside
mirror. Clean the bottom of the mirrors regularly
with a soft cloth to remove any mud/dirt/ice so
the image displays clearly.

Roadside assistance
Your new Ford vehicle comes
with the assurance and support
of 24-hour emergency roadside
assistance. To receive roadside
assistance in the United States,
call 1-800-241-3673. In canada,
call 1 -800-665-2006.
Tire pressure monitoring system
Your vehicle illuminates a low tire pressure warning light in your instrument cluster when one or more of your
tires is significantly under-inflated. If this happens, stop
and check your tires as soon as possible. Inflate them
to the proper pressure. Refer to the Inflating Your Tires
section in the Wheels and Tires chapter of your Owner’s
Manual for more information.
Cleaning
When washing your vehicle, do not use a commercial or
high pressure wand to wash striped surfaces. For the best
results, use Motorcraft
® cleaning products. Wash your
vehicle regularly with cool or lukewarm water, and use
a neutral pH shampoo such as Motorcraft Detail Wash.
For cleaning chrome wheels, use c ustom Bright Metal
cleaner. Apply the product as you would a wax to clean
bumpers and other chrome parts; allow the cleaner to
dry for a few minutes, then wipe off the haze with a
clean, dry rag.
Fuel-efficient transmission
Automatic transmission vehicles have been designed
to improve fuel economy by reducing fuel usage while
coasting or decelerating. This may be perceived as a
light to medium braking sensation when removing your
foot from the accelerator pedal.
Fuel tank capacity/fuel info
Your vehicle has a 16 gallon (60.6L) fuel tank capacity.
Use only “Regular” unleaded gasoline with an octane
rating of 87 or higher. Do not use E85 fuels because
your vehicle was not designed to run on fuels with
more than 15% ethanol.
Note: For all V8 engines, premium fuel is recommended.
Shelby Mustang vehicles require premium fuel. See the
respective supplements for more fuel information on
these vehicles.
SOS Post-Crash Alert System™
Provides audible and visual alarms when a crash
causes the deployment of airbags or the activation
of the safety belt pretensioners. The turn signals will
flash and the horn will sound. To deactivate, press the
hazard flasher control, or the panic button
on your
remote transmitter.
12/
2014 mustang /Quick RefeRence Guide
Easy Fuel® System
With this system, you simply open the fuel door, insert the
nozzle and begin fueling. It is self-sealing and therefore
protected against dust, dirt, water, snow and ice. Wait
five seconds from the time the refueling nozzle is shut-off
until you remove the nozzle from the vehicle to allow
residual fuel in the nozzle to drain into the tank. When
using a portable fuel container, slowly insert the fuel
funnel (located in the spare tire compartment), and pour
the fuel into the funnel.
Note: Do not use aftermarket funnels as they will not
work with the Easy Fuel system and may cause damage.
Properly clean the funnel after each use.
Location of spare tire and tools
Your vehicle is either equipped with a temporary spare
tire or a temporary mobility kit, both of which are located
in the trunk. The mobility kit contains an air compressor
to re-inflate the tire and a sealing compound that will
seal most punctures caused by nails or similar objects.
Do not attempt to repair large punctures or damage to
the tire’s sidewall. The mobility kit provides a temporary
seal allowing you to drive up to 120 miles at a maximum
speed of 50 mph. After sealant use, the TPMS sensor
and valve stem on the wheel must be replaced by an
authorized Ford dealer. For vehicles with a spare tire,
refer to Changing a Road Wheel in the Wheels and Tires
chapter of your Owner’s Manual.
Essential Information
2014 mustang /Quick RefeRence Guide /13

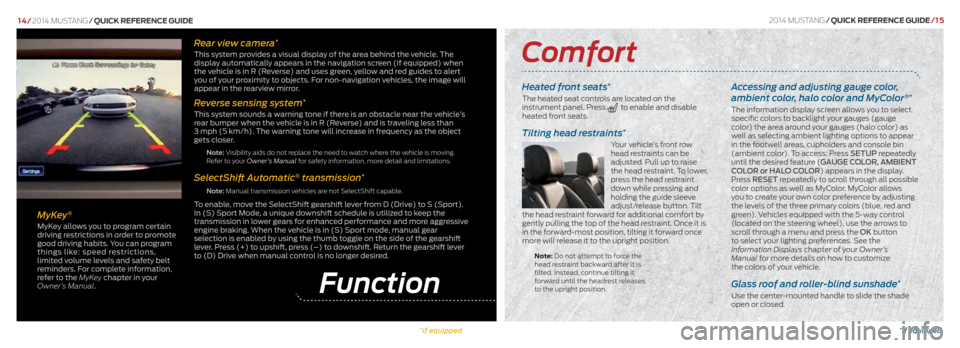

Heated front seats*
The heated seat controls are located on the
instrument panel. Press to enable and disable
heated front seats.
Tilting head restraints*
Your vehicle’s front row
head restraints can be
adjusted. Pull up to raise
the head restraint. To lower,
press the head restraint
down while pressing and
holding the guide sleeve
adjust/release button. Tilt
the head restraint forward for additional comfort by
gently pulling the top of the head restraint. Once it is
in the forward-most position, tilting it forward once
more will release it to the upright position.
Note: Do not attempt to force the
head restraint backward after it is
tilted. Instead, continue tilting it
forward until the headrest releases
to the upright position.
Accessing and adjusting gauge color,
ambient color, halo color and MyColor®*
The information display screen allows you to select
specific colors to backlight your gauges (gauge
color) the area around your gauges (halo color) as
well as selecting ambient lighting options to appear
in the footwell areas, cupholders and console bin
(ambient color). To access: Press SETUP repeatedly
until the desired feature (GAUGE COLOR, AMBIENT
COLOR or HALO COLOR) appears in the display.
Press RESET repeatedly to scroll through all possible
color options as well as Myc olor. Mycolor allows
you to create your own color preference by adjusting
the levels of the three primary colors (blue, red and
green). Vehicles equipped with the 5-way control
(located on the steering wheel), use the arrows to
scroll through a menu and press the OK button
to select your lighting preferences. See the
Information Displays chapter of your Owner’s
Manual for more details on how to customize
the colors of your vehicle.
Glass roof and roller-blind sunshade*
Use the center-mounted handle to slide the shade
open or closed.Function
Rear view camera*
This system provides a visual display of the area behind the vehicle. The
display automatically appears in the navigation screen (if equipped) when
the vehicle is in R (Reverse) and uses green, yellow and red guides to alert
you of your proximity to objects. For non-navigation vehicles, the image will
appear in the rearview mirror.
Reverse sensing system*
This system sounds a warning tone if there is an obstacle near the vehicle’s
rear bumper when the vehicle is in R (Reverse) and is traveling less than
3 mph (5 km/h). The warning tone will increase in frequency as the object
gets closer.
Note: Visibility aids do not replace the need to watch where the vehicle is moving.
Refer to your Owner’s Manual for safety information, more detail and limitations.
SelectShift Automatic® transmission*
Note: Manual transmission vehicles are not SelectShift capable.
To enable, move the SelectShift gearshift lever from D (Drive) to S (Sport).
In (S) Sport Mode, a unique downshift schedule is utilized to keep the
transmission in lower gears for enhanced performance and more aggressive
engine braking. When the vehicle is in (S) Sport mode, manual gear
selection is enabled by using the thumb toggle on the side of the gearshift
lever. Press (+) to upshift, press (–) to downshift. Return the gearshift lever
to (D) Drive when manual control is no longer desired.
14/
2014 mustang /Quick RefeRence Guide
Comfort
MyKey®
MyKey allows you to program certain
driving restrictions in order to promote
good driving habits. You can program
things like: speed restrictions,
limited volume levels and safety belt
reminders. For complete information,
refer to the MyKey chapter in your
Owner’s Manual. 2014 mustang
/Quick RefeRence Guide /1 5
*if equipped*if equipped
