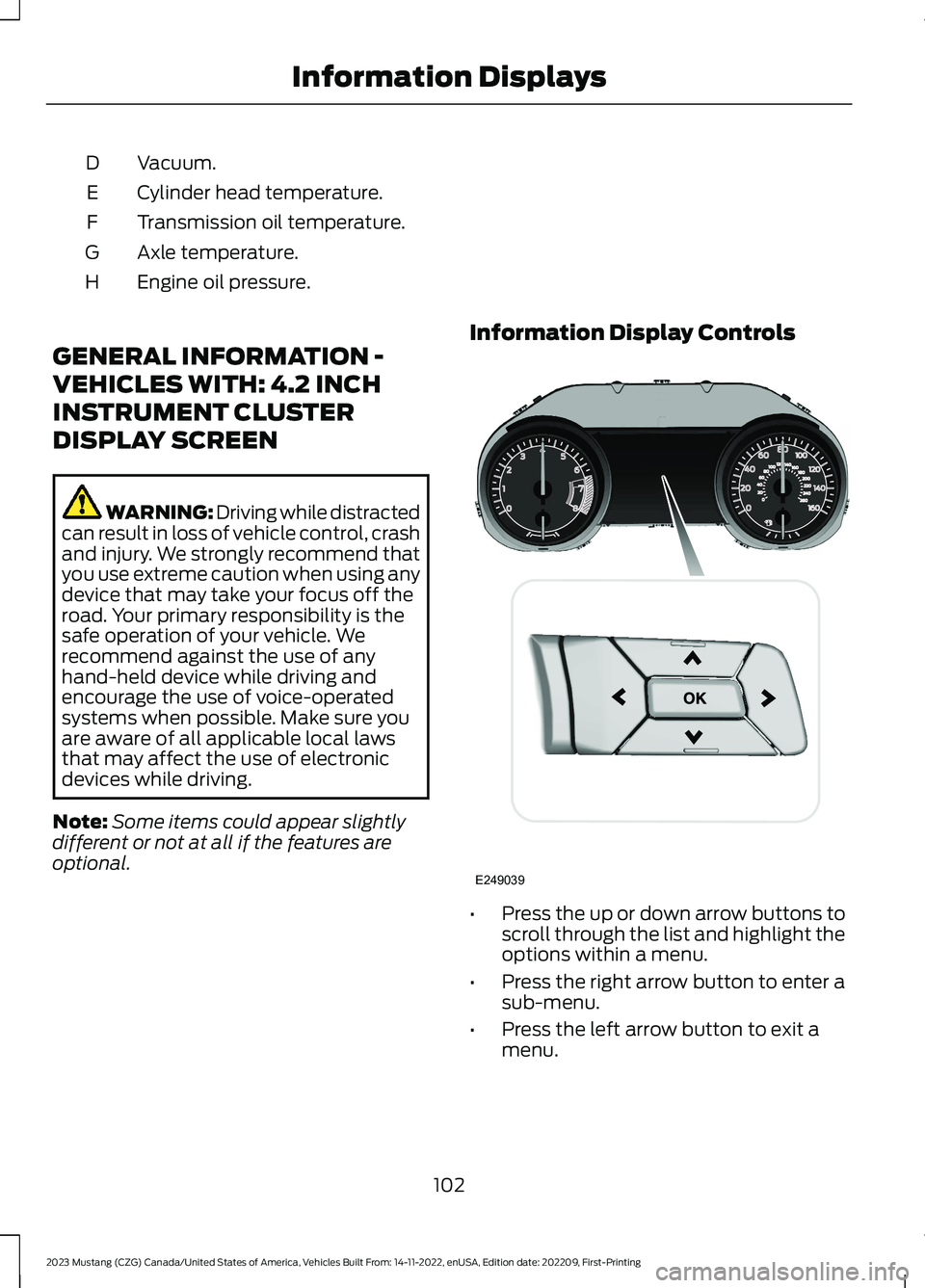

Vacuum.D
Cylinder head temperature.E
Transmission oil temperature.F
Axle temperature.G
Engine oil pressure.H
GENERAL INFORMATION -
VEHICLES WITH: 4.2 INCH
INSTRUMENT CLUSTER
DISPLAY SCREEN
WARNING: Driving while distractedcan result in loss of vehicle control, crashand injury. We strongly recommend thatyou use extreme caution when using anydevice that may take your focus off theroad. Your primary responsibility is thesafe operation of your vehicle. Werecommend against the use of anyhand-held device while driving andencourage the use of voice-operatedsystems when possible. Make sure youare aware of all applicable local lawsthat may affect the use of electronicdevices while driving.
Note:Some items could appear slightlydifferent or not at all if the features areoptional.
Information Display Controls
•Press the up or down arrow buttons toscroll through the list and highlight theoptions within a menu.
•Press the right arrow button to enter asub-menu.
•Press the left arrow button to exit amenu.
102
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation DisplaysE249039
Page 107 of 535

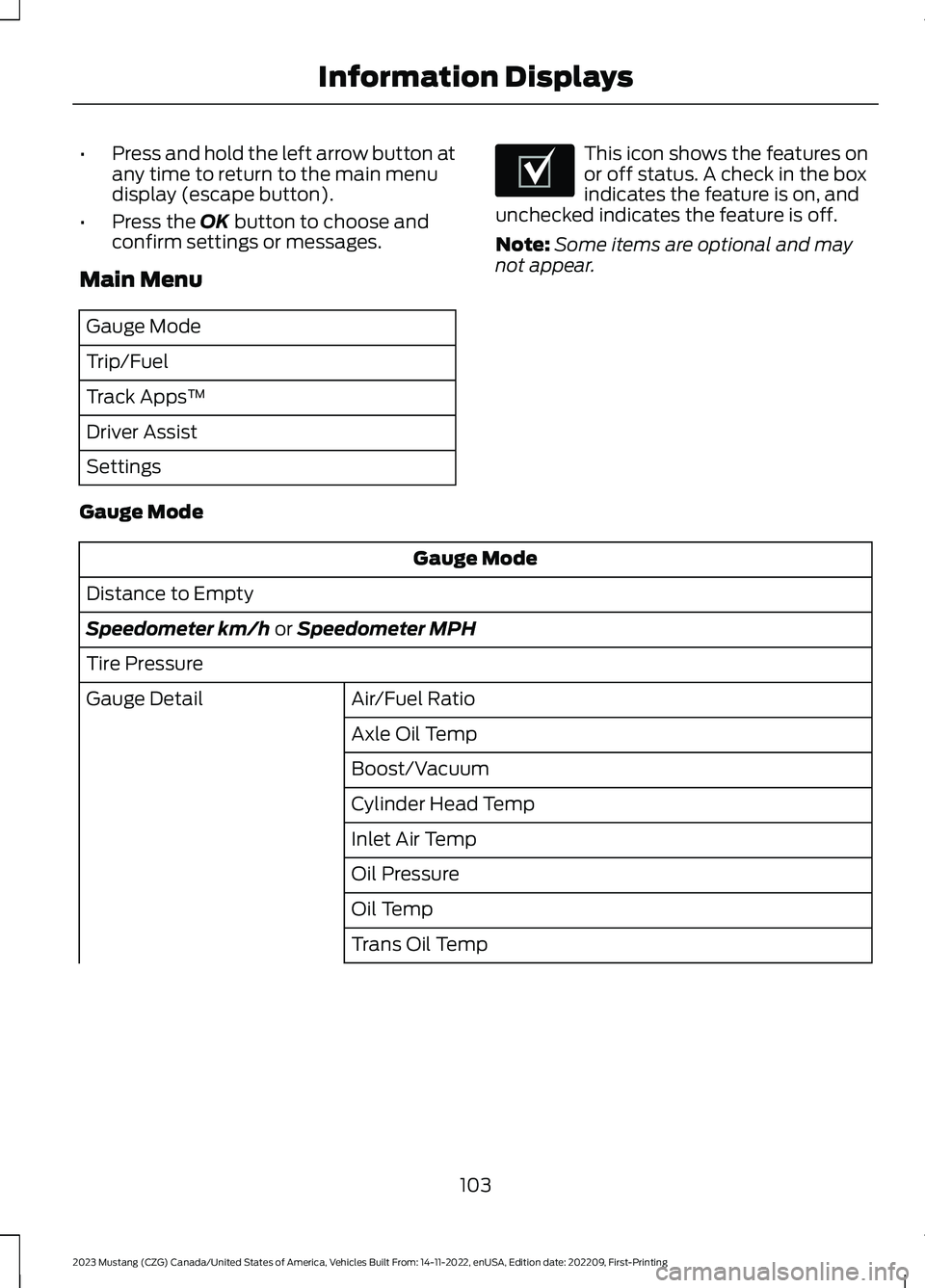

•Press and hold the left arrow button atany time to return to the main menudisplay (escape button).
•Press the OK button to choose andconfirm settings or messages.
Main Menu
Gauge Mode
Trip/Fuel
Track Apps™
Driver Assist
Settings
This icon shows the features onor off status. A check in the boxindicates the feature is on, andunchecked indicates the feature is off.
Note:Some items are optional and maynot appear.
Gauge Mode
Gauge Mode
Distance to Empty
Speedometer km/h or Speedometer MPH
Tire Pressure
Air/Fuel RatioGauge Detail
Axle Oil Temp
Boost/Vacuum
Cylinder Head Temp
Inlet Air Temp
Oil Pressure
Oil Temp
Trans Oil Temp
103
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation DisplaysE204495
Page 108 of 535

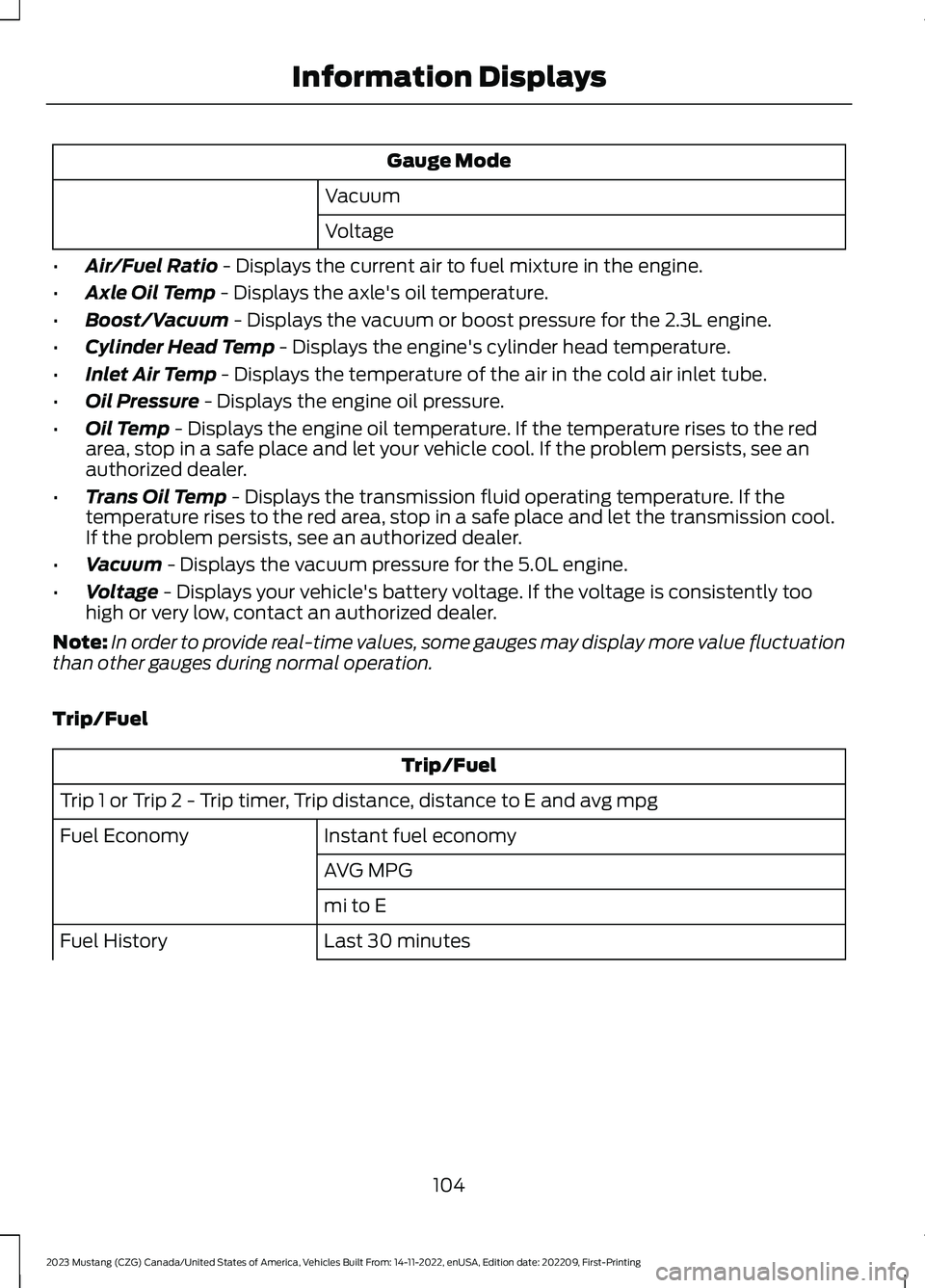

Gauge Mode
Vacuum
Voltage
•Air/Fuel Ratio - Displays the current air to fuel mixture in the engine.
•Axle Oil Temp - Displays the axle's oil temperature.
•Boost/Vacuum - Displays the vacuum or boost pressure for the 2.3L engine.
•Cylinder Head Temp - Displays the engine's cylinder head temperature.
•Inlet Air Temp - Displays the temperature of the air in the cold air inlet tube.
•Oil Pressure - Displays the engine oil pressure.
•Oil Temp - Displays the engine oil temperature. If the temperature rises to the redarea, stop in a safe place and let your vehicle cool. If the problem persists, see anauthorized dealer.
•Trans Oil Temp - Displays the transmission fluid operating temperature. If thetemperature rises to the red area, stop in a safe place and let the transmission cool.If the problem persists, see an authorized dealer.
•Vacuum - Displays the vacuum pressure for the 5.0L engine.
•Voltage - Displays your vehicle's battery voltage. If the voltage is consistently toohigh or very low, contact an authorized dealer.
Note:In order to provide real-time values, some gauges may display more value fluctuationthan other gauges during normal operation.
Trip/Fuel
Trip/Fuel
Trip 1 or Trip 2 - Trip timer, Trip distance, distance to E and avg mpg
Instant fuel economyFuel Economy
AVG MPG
mi to E
Last 30 minutesFuel History
104
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays
Page 109 of 535

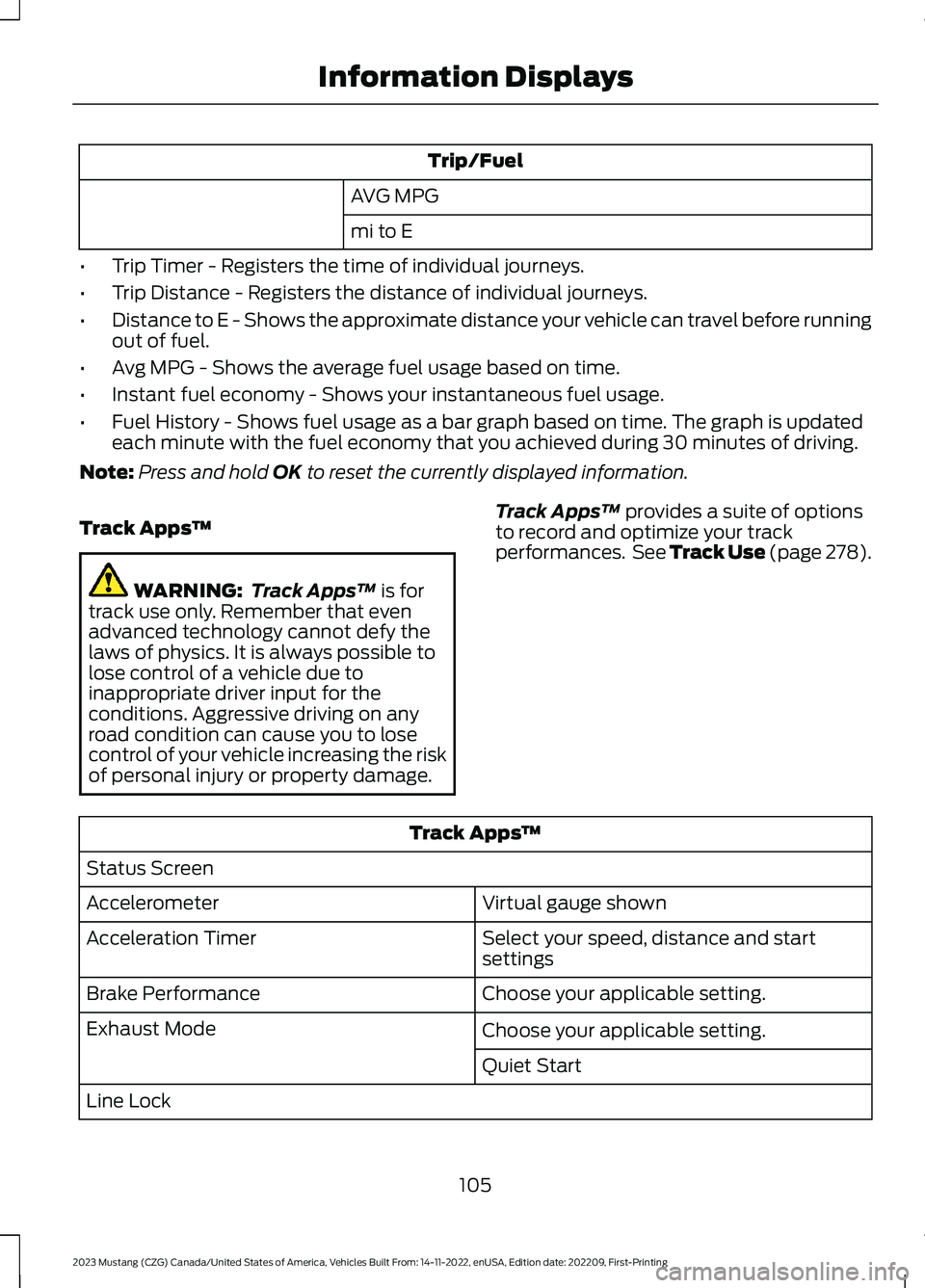

Trip/Fuel
AVG MPG
mi to E
•Trip Timer - Registers the time of individual journeys.
•Trip Distance - Registers the distance of individual journeys.
•Distance to E - Shows the approximate distance your vehicle can travel before runningout of fuel.
•Avg MPG - Shows the average fuel usage based on time.
•Instant fuel economy - Shows your instantaneous fuel usage.
•Fuel History - Shows fuel usage as a bar graph based on time. The graph is updatedeach minute with the fuel economy that you achieved during 30 minutes of driving.
Note:Press and hold OK to reset the currently displayed information.
Track Apps™
WARNING: Track Apps™ is fortrack use only. Remember that evenadvanced technology cannot defy thelaws of physics. It is always possible tolose control of a vehicle due toinappropriate driver input for theconditions. Aggressive driving on anyroad condition can cause you to losecontrol of your vehicle increasing the riskof personal injury or property damage.
Track Apps™ provides a suite of optionsto record and optimize your trackperformances. See Track Use (page 278).
Track Apps™
Status Screen
Virtual gauge shownAccelerometer
Select your speed, distance and startsettingsAcceleration Timer
Choose your applicable setting.Brake Performance
Choose your applicable setting.Exhaust Mode
Quiet Start
Line Lock
105
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays
Page 110 of 535

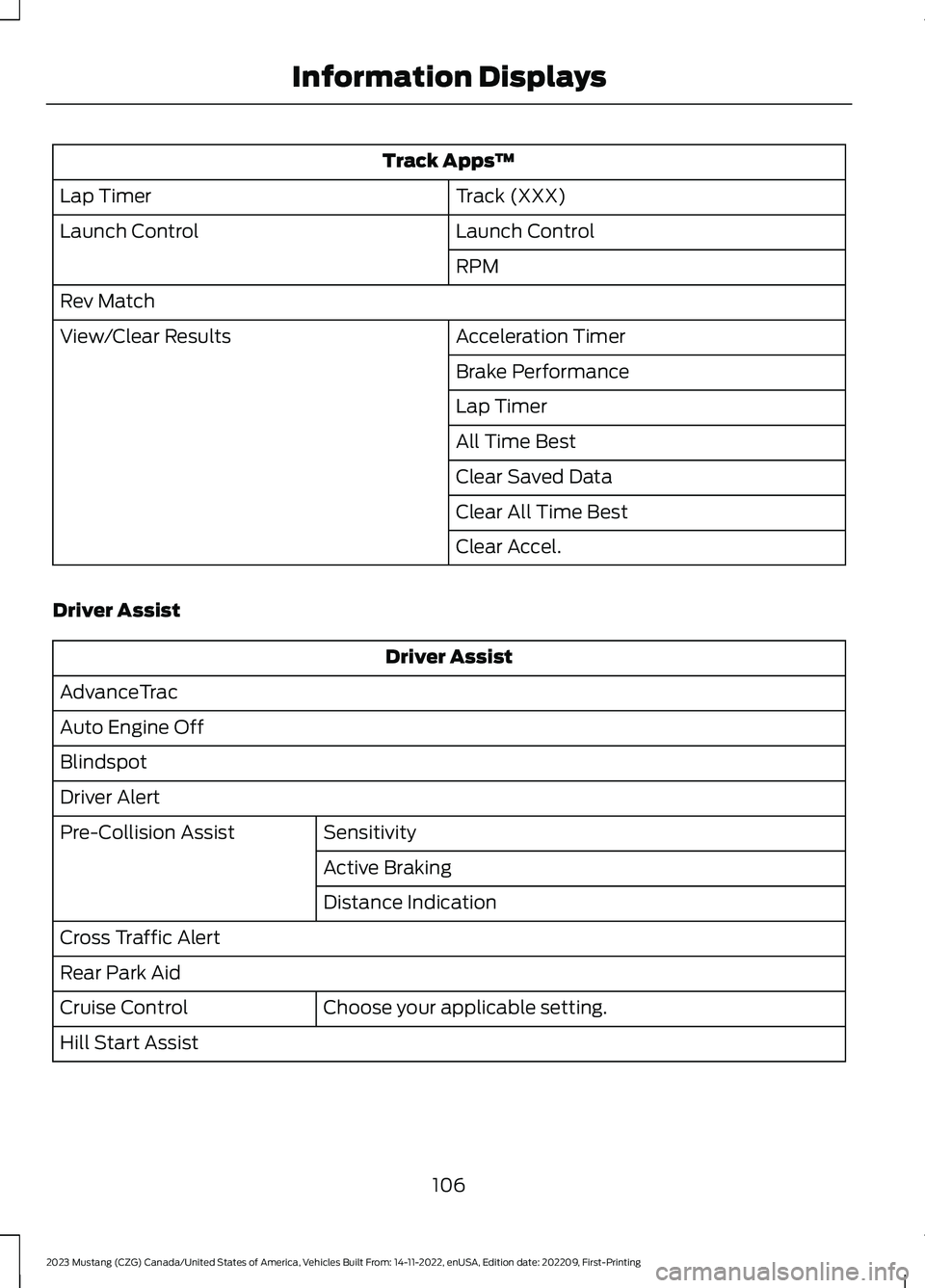

Track Apps™
Track (XXX)Lap Timer
Launch ControlLaunch Control
RPM
Rev Match
Acceleration TimerView/Clear Results
Brake Performance
Lap Timer
All Time Best
Clear Saved Data
Clear All Time Best
Clear Accel.
Driver Assist
Driver Assist
AdvanceTrac
Auto Engine Off
Blindspot
Driver Alert
SensitivityPre-Collision Assist
Active Braking
Distance Indication
Cross Traffic Alert
Rear Park Aid
Choose your applicable setting.Cruise Control
Hill Start Assist
106
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays
Page 111 of 535
Driver Assist
ModeLane Keeping Assist
Intensity
Hold OK to ResetTire Monitor

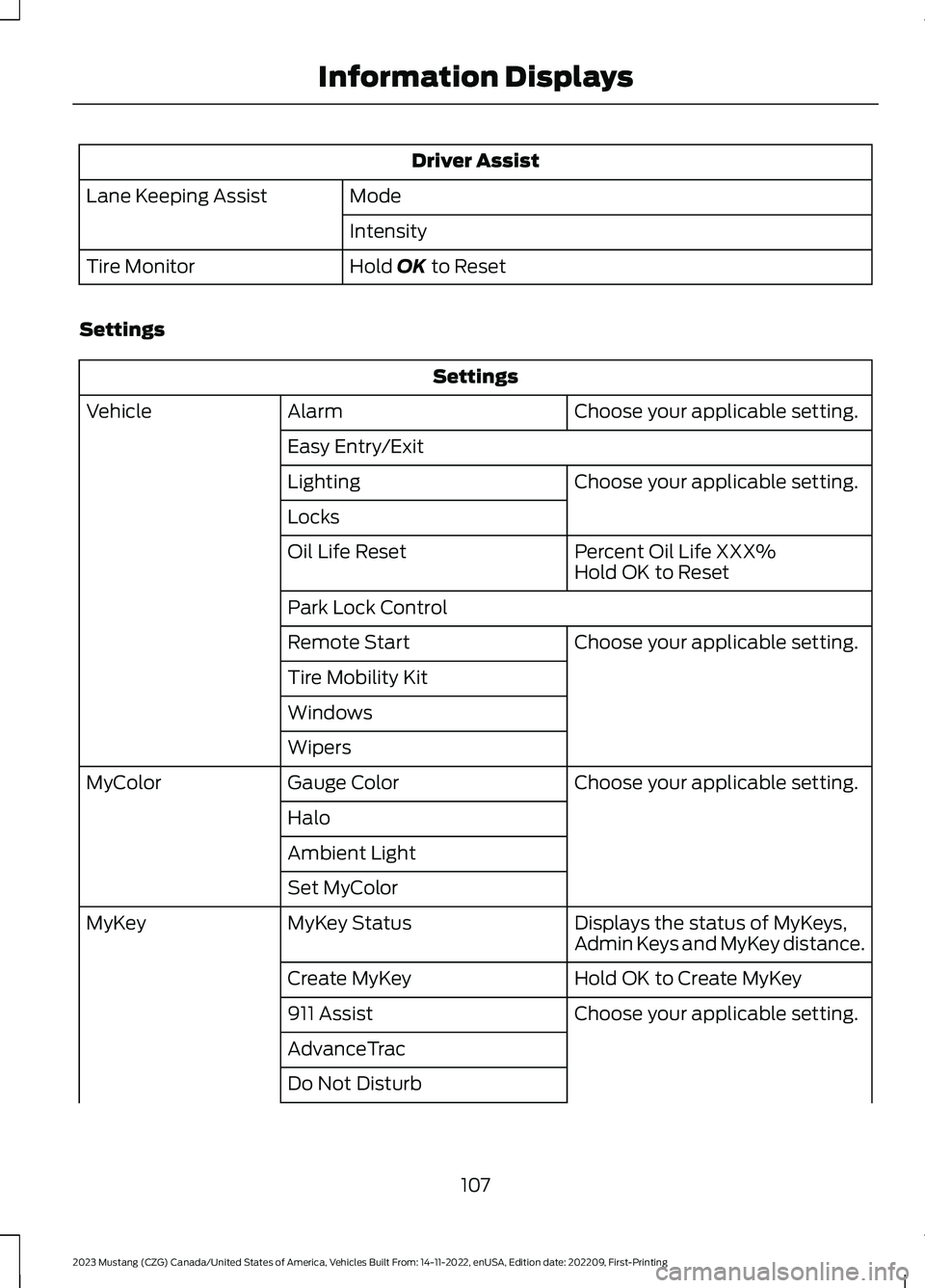

Settings
Settings
Choose your applicable setting.AlarmVehicle
Easy Entry/Exit
Choose your applicable setting.Lighting
Locks
Percent Oil Life XXX%Oil Life ResetHold OK to Reset
Park Lock Control
Choose your applicable setting.Remote Start
Tire Mobility Kit
Windows
Wipers
Choose your applicable setting.Gauge ColorMyColor
Halo
Ambient Light
Set MyColor
Displays the status of MyKeys,Admin Keys and MyKey distance.MyKey StatusMyKey
Hold OK to Create MyKeyCreate MyKey
Choose your applicable setting.911 Assist
AdvanceTrac
Do Not Disturb
107
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays
Page 112 of 535

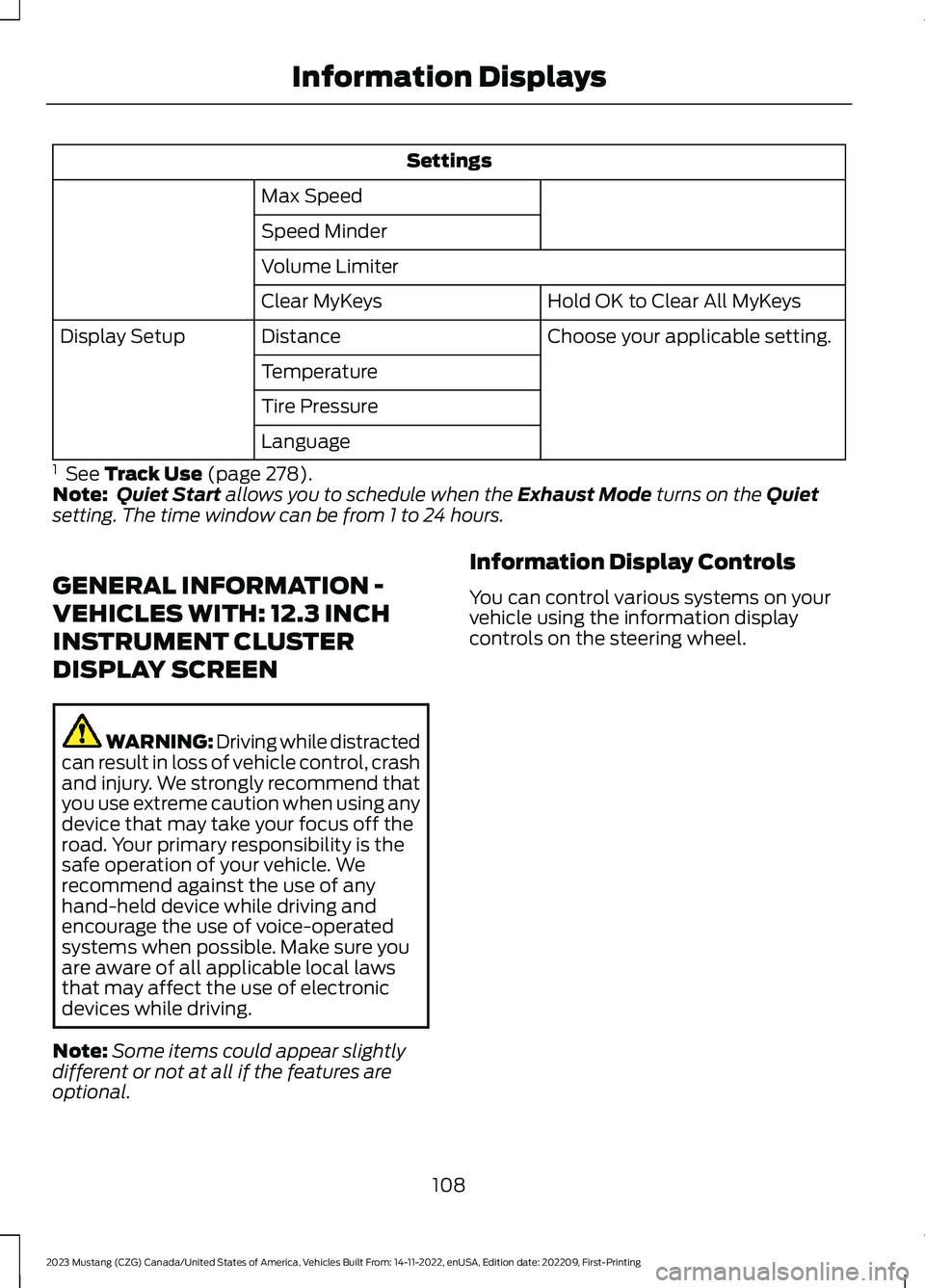

Settings
Max Speed
Speed Minder
Volume Limiter
Hold OK to Clear All MyKeysClear MyKeys
Choose your applicable setting.DistanceDisplay Setup
Temperature
Tire Pressure
Language
1 See Track Use (page 278).Note:Quiet Start allows you to schedule when the Exhaust Mode turns on the Quietsetting. The time window can be from 1 to 24 hours.
GENERAL INFORMATION -
VEHICLES WITH: 12.3 INCH
INSTRUMENT CLUSTER
DISPLAY SCREEN
WARNING: Driving while distractedcan result in loss of vehicle control, crashand injury. We strongly recommend thatyou use extreme caution when using anydevice that may take your focus off theroad. Your primary responsibility is thesafe operation of your vehicle. Werecommend against the use of anyhand-held device while driving andencourage the use of voice-operatedsystems when possible. Make sure youare aware of all applicable local lawsthat may affect the use of electronicdevices while driving.
Note:Some items could appear slightlydifferent or not at all if the features areoptional.
Information Display Controls
You can control various systems on yourvehicle using the information displaycontrols on the steering wheel.
108
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays
Page 113 of 535

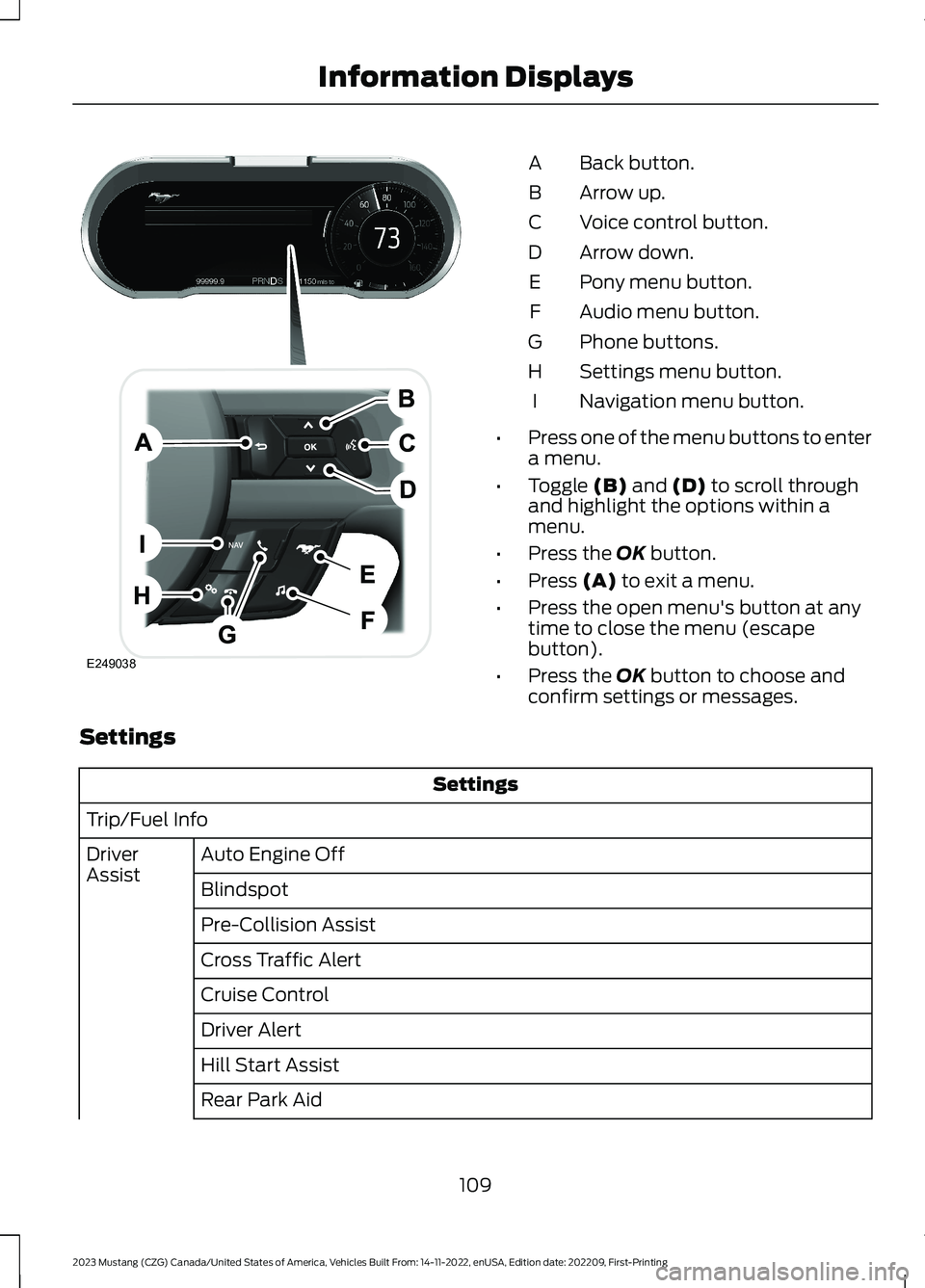

Back button.A
Arrow up.B
Voice control button.C
Arrow down.D
Pony menu button.E
Audio menu button.F
Phone buttons.G
Settings menu button.H
Navigation menu button.I
•Press one of the menu buttons to entera menu.
•Toggle (B) and (D) to scroll throughand highlight the options within amenu.
•Press the OK button.
•Press (A) to exit a menu.
•Press the open menu's button at anytime to close the menu (escapebutton).
•Press the OK button to choose andconfirm settings or messages.
Settings
Settings
Trip/Fuel Info
Auto Engine OffDriverAssistBlindspot
Pre-Collision Assist
Cross Traffic Alert
Cruise Control
Driver Alert
Hill Start Assist
Rear Park Aid
109
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation DisplaysE249038
Page 114 of 535

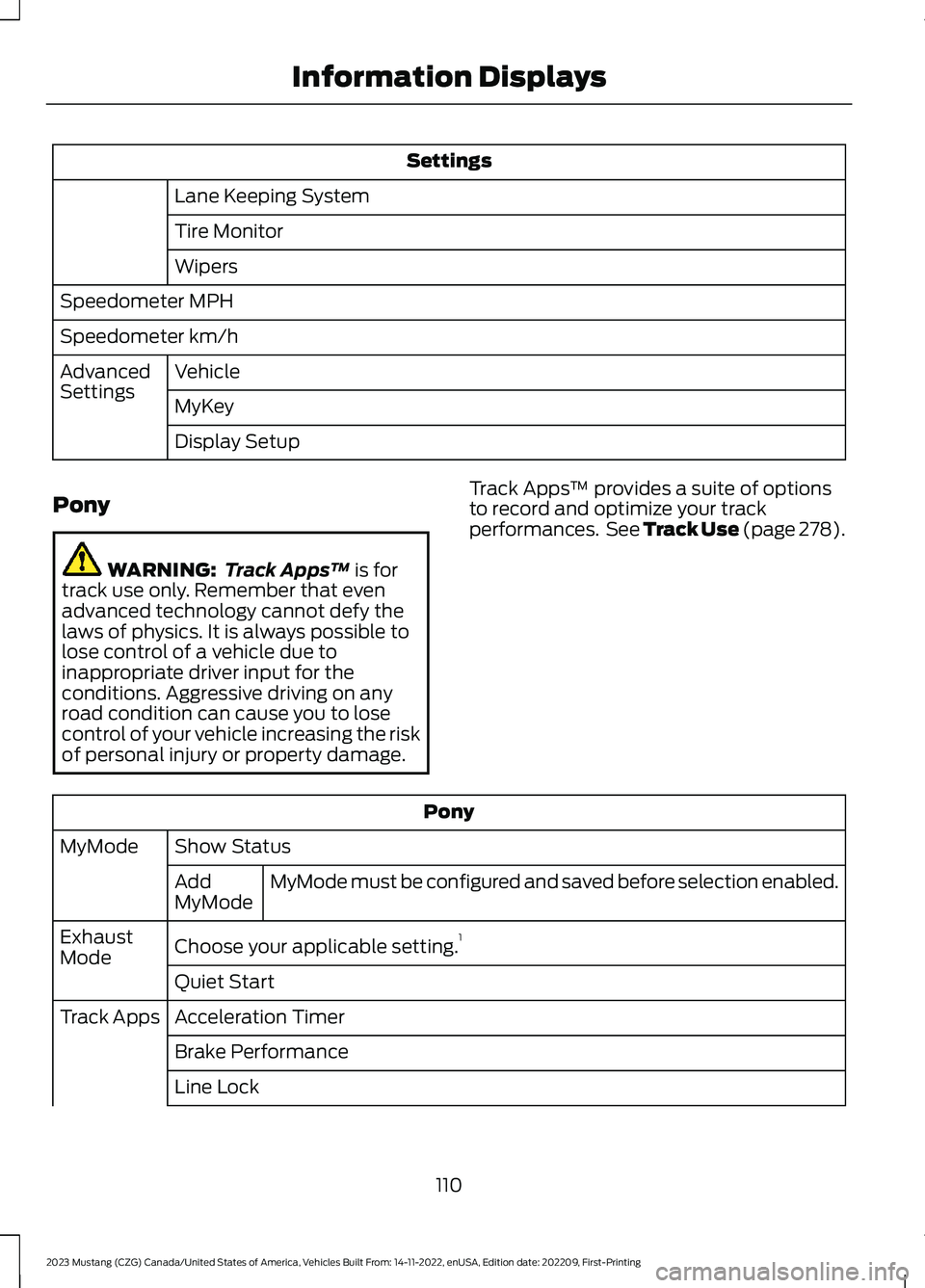

Settings
Lane Keeping System
Tire Monitor
Wipers
Speedometer MPH
Speedometer km/h
VehicleAdvancedSettingsMyKey
Display Setup
Pony
WARNING: Track Apps™ is fortrack use only. Remember that evenadvanced technology cannot defy thelaws of physics. It is always possible tolose control of a vehicle due toinappropriate driver input for theconditions. Aggressive driving on anyroad condition can cause you to losecontrol of your vehicle increasing the riskof personal injury or property damage.
Track Apps™ provides a suite of optionsto record and optimize your trackperformances. See Track Use (page 278).
Pony
Show StatusMyMode
MyMode must be configured and saved before selection enabled.AddMyMode
Choose your applicable setting.1ExhaustMode
Quiet Start
Acceleration TimerTrack Apps
Brake Performance
Line Lock
110
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays
Page 115 of 535

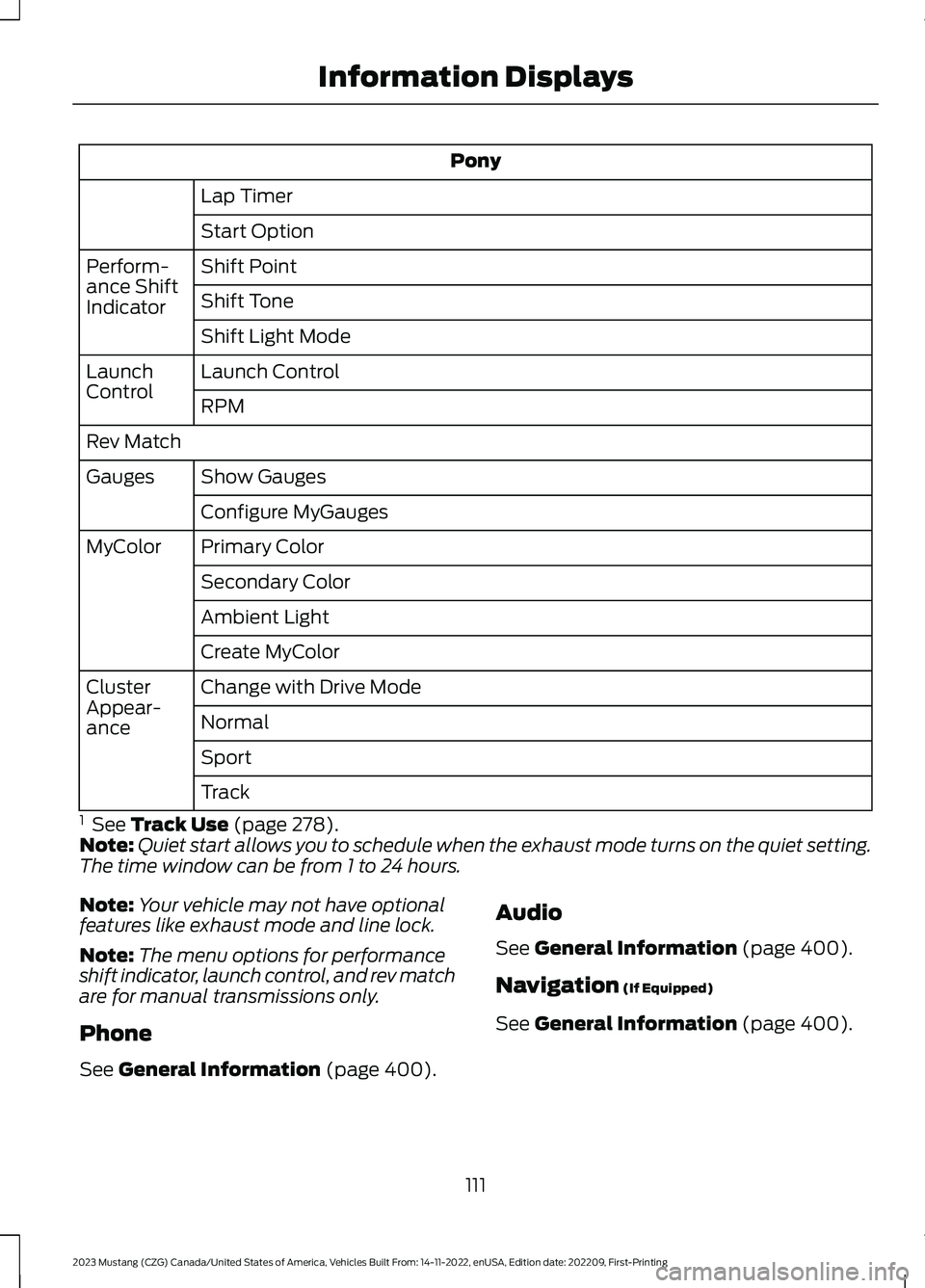

Pony
Lap Timer
Start Option
Shift PointPerform-ance ShiftIndicatorShift Tone
Shift Light Mode
Launch ControlLaunchControlRPM
Rev Match
Show GaugesGauges
Configure MyGauges
Primary ColorMyColor
Secondary Color
Ambient Light
Create MyColor
Change with Drive ModeClusterAppear-anceNormal
Sport
Track
1 See Track Use (page 278).Note:Quiet start allows you to schedule when the exhaust mode turns on the quiet setting.The time window can be from 1 to 24 hours.
Note:Your vehicle may not have optionalfeatures like exhaust mode and line lock.
Note:The menu options for performanceshift indicator, launch control, and rev matchare for manual transmissions only.
Phone
See General Information (page 400).
Audio
See General Information (page 400).
Navigation (If Equipped)
See General Information (page 400).
111
