FORD MUSTANG MACH-E 2021 Owners Manual

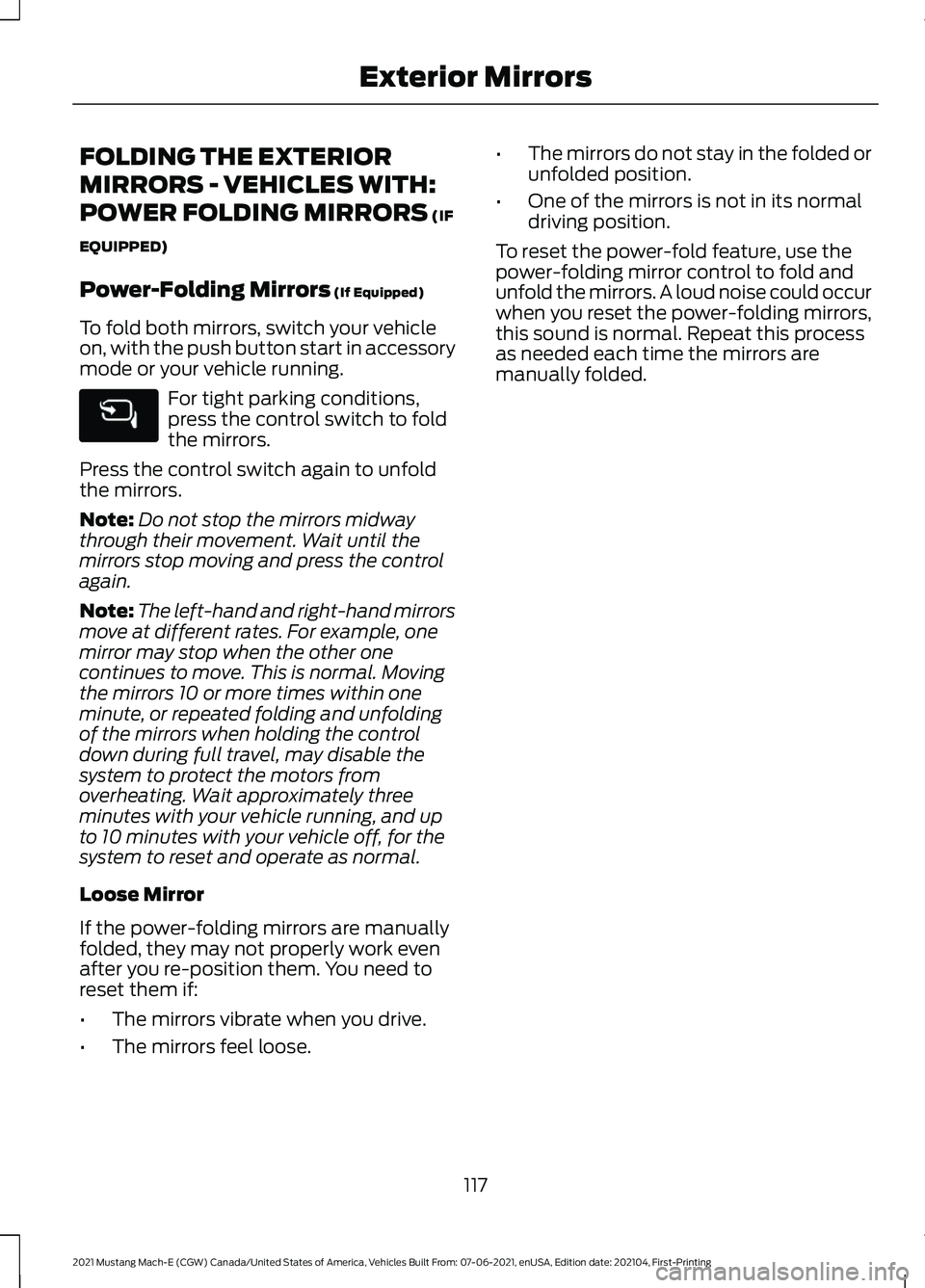

FOLDING THE EXTERIOR
MIRRORS - VEHICLES WITH:
POWER FOLDING MIRRORS (IF
EQUIPPED)
Power-Folding Mirrors
(If Equipped)
To fold both mirrors, switch your vehicle
on, with the push button start in accessory
mode or your vehicle running. For tight parking conditions,
press the control switch to fold
the mirrors.
Press the control switch again to unfold
the mirrors.
Note: Do not stop the mirrors midway
through their movement. Wait until the
mirrors stop moving and press the control
again.
Note: The left-hand and right-hand mirrors
move at different rates. For example, one
mirror may stop when the other one
continues to move. This is normal. Moving
the mirrors 10 or more times within one
minute, or repeated folding and unfolding
of the mirrors when holding the control
down during full travel, may disable the
system to protect the motors from
overheating. Wait approximately three
minutes with your vehicle running, and up
to 10 minutes with your vehicle off, for the
system to reset and operate as normal.
Loose Mirror
If the power-folding mirrors are manually
folded, they may not properly work even
after you re-position them. You need to
reset them if:
• The mirrors vibrate when you drive.
• The mirrors feel loose. •
The mirrors do not stay in the folded or
unfolded position.
• One of the mirrors is not in its normal
driving position.
To reset the power-fold feature, use the
power-folding mirror control to fold and
unfold the mirrors. A loud noise could occur
when you reset the power-folding mirrors,
this sound is normal. Repeat this process
as needed each time the mirrors are
manually folded.
117
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Exterior Mirrors

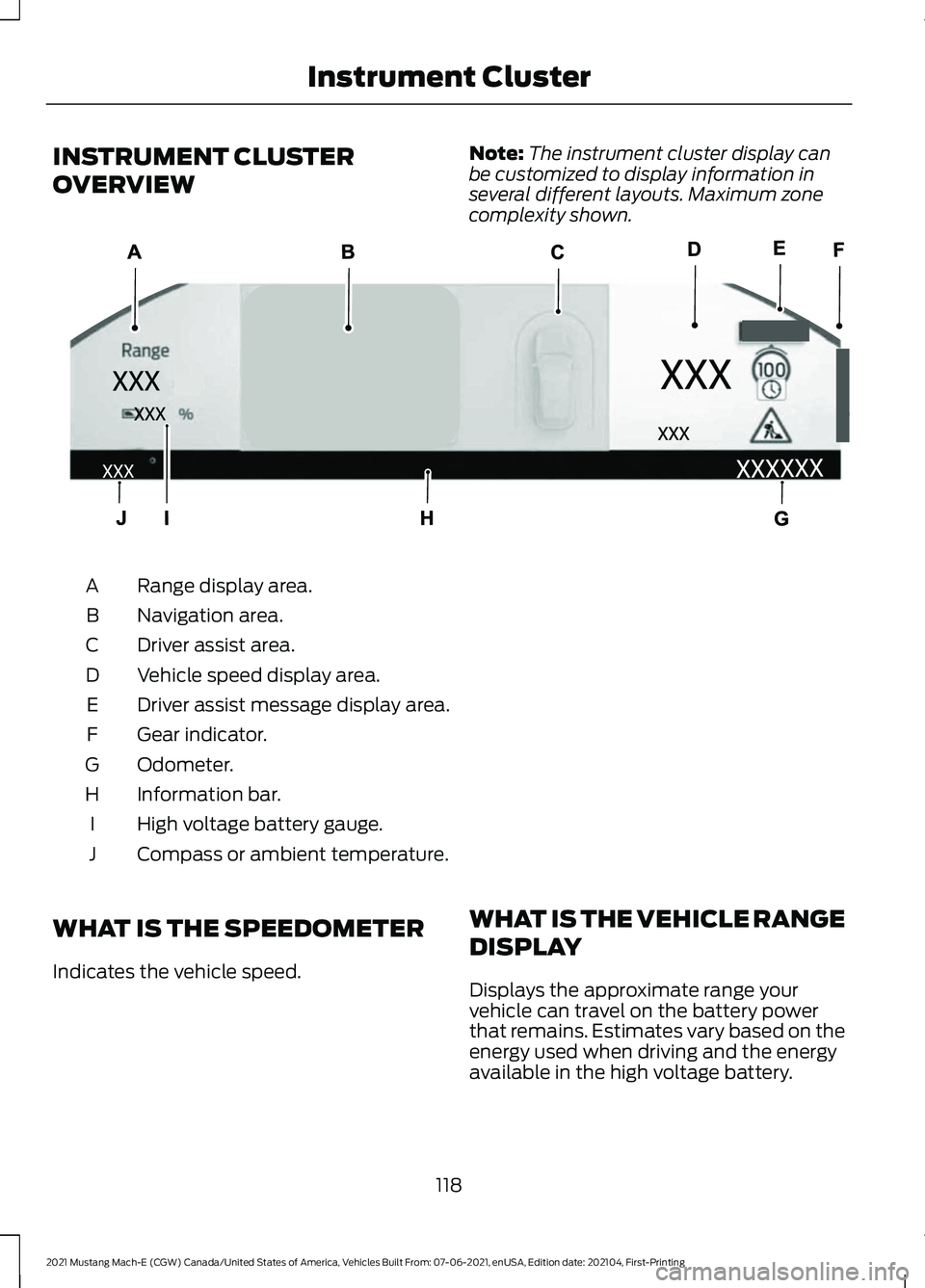

INSTRUMENT CLUSTER
OVERVIEW
Note:
The instrument cluster display can
be customized to display information in
several different layouts. Maximum zone
complexity shown. Range display area.
A
Navigation area.
B
Driver assist area.
C
Vehicle speed display area.
D
Driver assist message display area.
E
Gear indicator.
F
Odometer.
G
Information bar.
H
High voltage battery gauge.
I
Compass or ambient temperature.
J
WHAT IS THE SPEEDOMETER
Indicates the vehicle speed. WHAT IS THE VEHICLE RANGE
DISPLAY
Displays the approximate range your
vehicle can travel on the battery power
that remains. Estimates vary based on the
energy used when driving and the energy
available in the high voltage battery.
118
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Instrument ClusterE323745

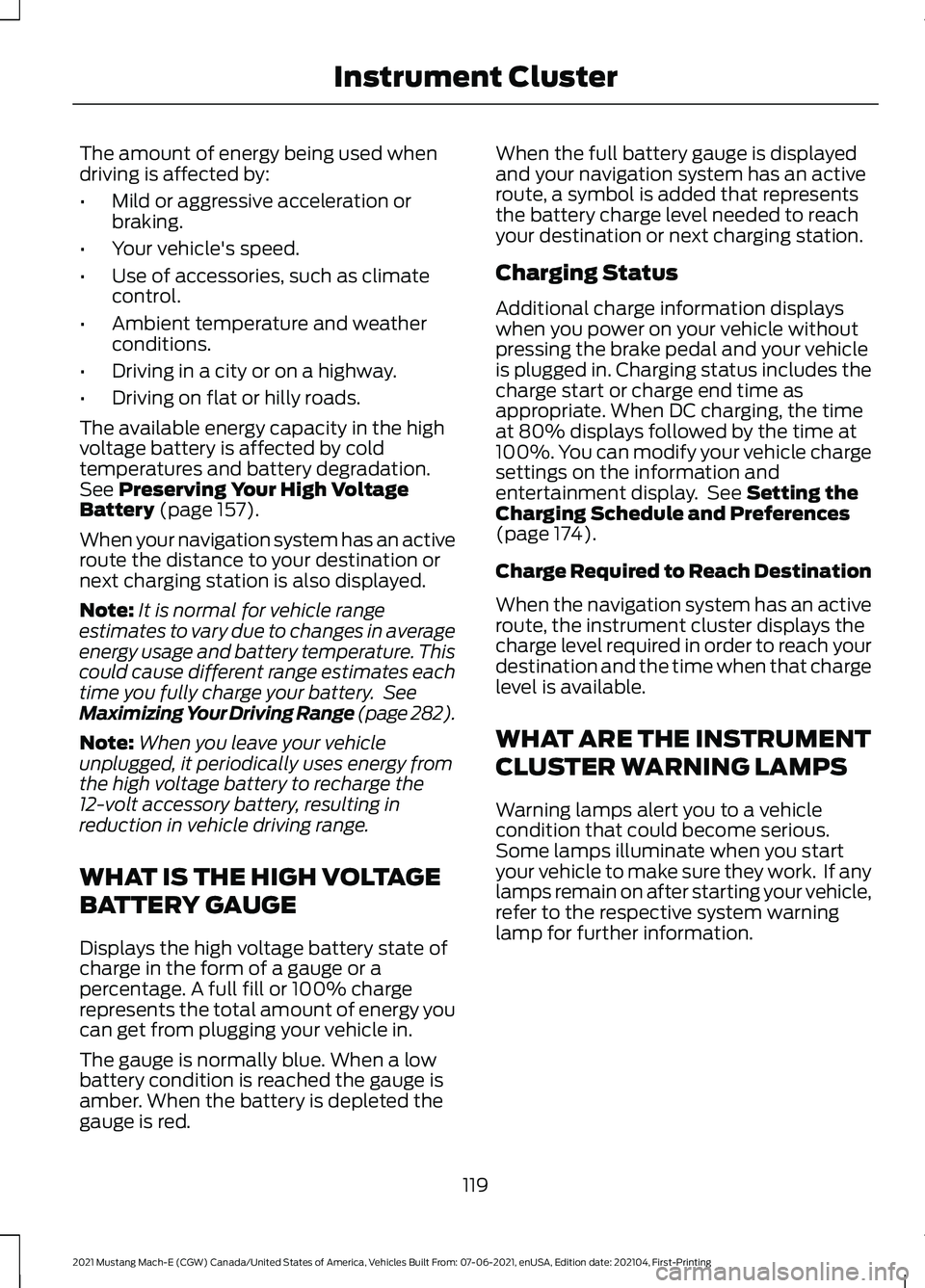

The amount of energy being used when
driving is affected by:
•
Mild or aggressive acceleration or
braking.
• Your vehicle's speed.
• Use of accessories, such as climate
control.
• Ambient temperature and weather
conditions.
• Driving in a city or on a highway.
• Driving on flat or hilly roads.
The available energy capacity in the high
voltage battery is affected by cold
temperatures and battery degradation.
See Preserving Your High Voltage
Battery (page 157).
When your navigation system has an active
route the distance to your destination or
next charging station is also displayed.
Note: It is normal for vehicle range
estimates to vary due to changes in average
energy usage and battery temperature. This
could cause different range estimates each
time you fully charge your battery. See
Maximizing Your Driving Range (page 282
).
Note: When you leave your vehicle
unplugged, it periodically uses energy from
the high voltage battery to recharge the
12-volt accessory battery, resulting in
reduction in vehicle driving range.
WHAT IS THE HIGH VOLTAGE
BATTERY GAUGE
Displays the high voltage battery state of
charge in the form of a gauge or a
percentage. A full fill or 100% charge
represents the total amount of energy you
can get from plugging your vehicle in.
The gauge is normally blue. When a low
battery condition is reached the gauge is
amber. When the battery is depleted the
gauge is red. When the full battery gauge is displayed
and your navigation system has an active
route, a symbol is added that represents
the battery charge level needed to reach
your destination or next charging station.
Charging Status
Additional charge information displays
when you power on your vehicle without
pressing the brake pedal and your vehicle
is plugged in. Charging status includes the
charge start or charge end time as
appropriate. When DC charging, the time
at 80% displays followed by the time at
100%. You can modify your vehicle charge
settings on the information and
entertainment display. See
Setting the
Charging Schedule and Preferences
(page
174).
Charge Required to Reach Destination
When the navigation system has an active
route, the instrument cluster displays the
charge level required in order to reach your
destination and the time when that charge
level is available.
WHAT ARE THE INSTRUMENT
CLUSTER WARNING LAMPS
Warning lamps alert you to a vehicle
condition that could become serious.
Some lamps illuminate when you start
your vehicle to make sure they work. If any
lamps remain on after starting your vehicle,
refer to the respective system warning
lamp for further information.
119
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Instrument Cluster

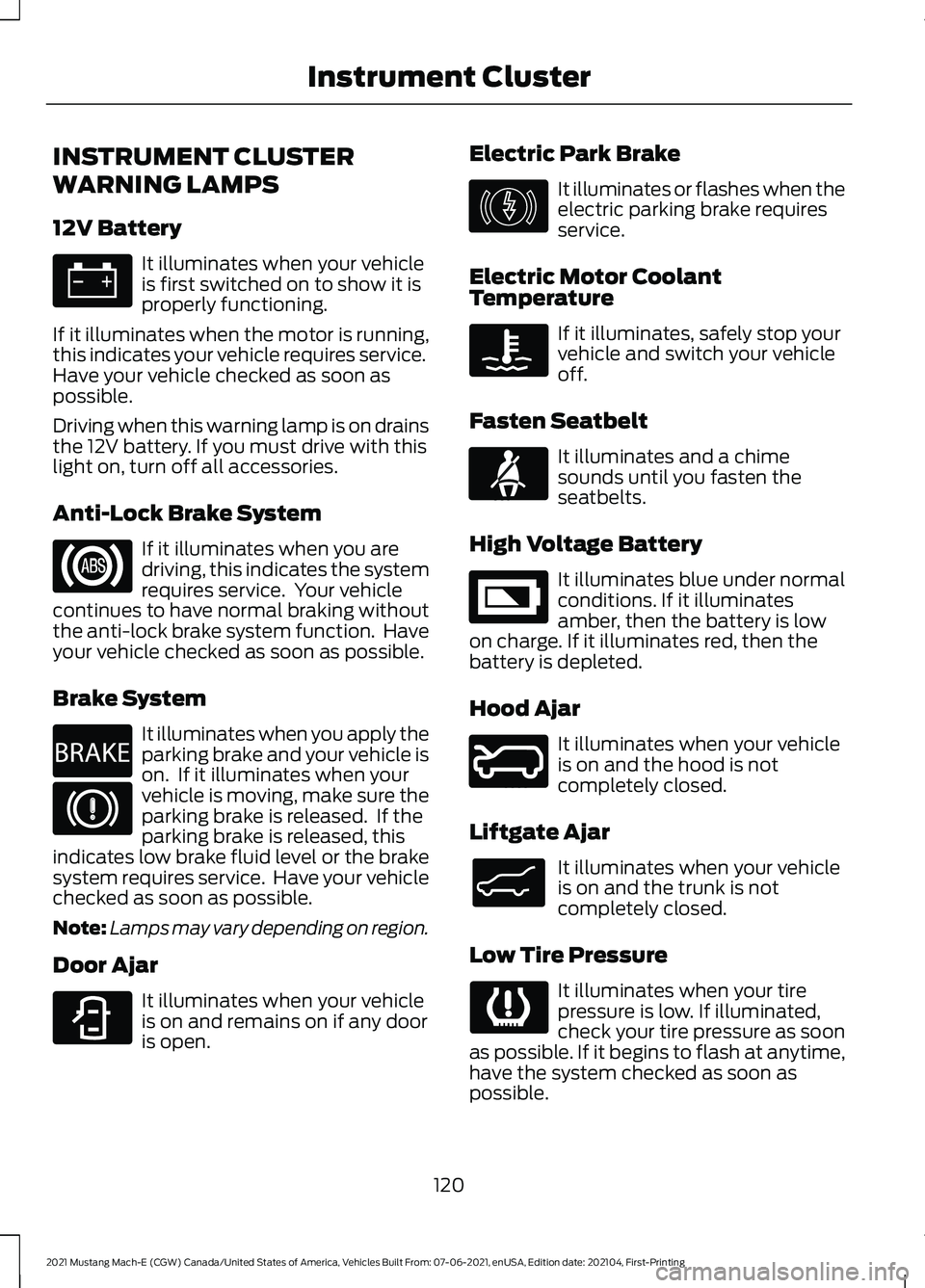

INSTRUMENT CLUSTER
WARNING LAMPS
12V Battery
It illuminates when your vehicle
is first switched on to show it is
properly functioning.
If it illuminates when the motor is running,
this indicates your vehicle requires service.
Have your vehicle checked as soon as
possible.
Driving when this warning lamp is on drains
the 12V battery. If you must drive with this
light on, turn off all accessories.
Anti-Lock Brake System If it illuminates when you are
driving, this indicates the system
requires service. Your vehicle
continues to have normal braking without
the anti-lock brake system function. Have
your vehicle checked as soon as possible.
Brake System It illuminates when you apply the
parking brake and your vehicle is
on. If it illuminates when your
vehicle is moving, make sure the
parking brake is released. If the
parking brake is released, this
indicates low brake fluid level or the brake
system requires service. Have your vehicle
checked as soon as possible.
Note: Lamps may vary depending on region.
Door Ajar It illuminates when your vehicle
is on and remains on if any door
is open. Electric Park Brake It illuminates or flashes when the
electric parking brake requires
service.
Electric Motor Coolant
Temperature If it illuminates, safely stop your
vehicle and switch your vehicle
off.
Fasten Seatbelt It illuminates and a chime
sounds until you fasten the
seatbelts.
High Voltage Battery It illuminates blue under normal
conditions. If it illuminates
amber, then the battery is low
on charge. If it illuminates red, then the
battery is depleted.
Hood Ajar It illuminates when your vehicle
is on and the hood is not
completely closed.
Liftgate Ajar It illuminates when your vehicle
is on and the trunk is not
completely closed.
Low Tire Pressure It illuminates when your tire
pressure is low. If illuminated,
check your tire pressure as soon
as possible. If it begins to flash at anytime,
have the system checked as soon as
possible.
120
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Instrument Cluster E270480 E323451 E146190 E71880 E335242 E246598 E138633

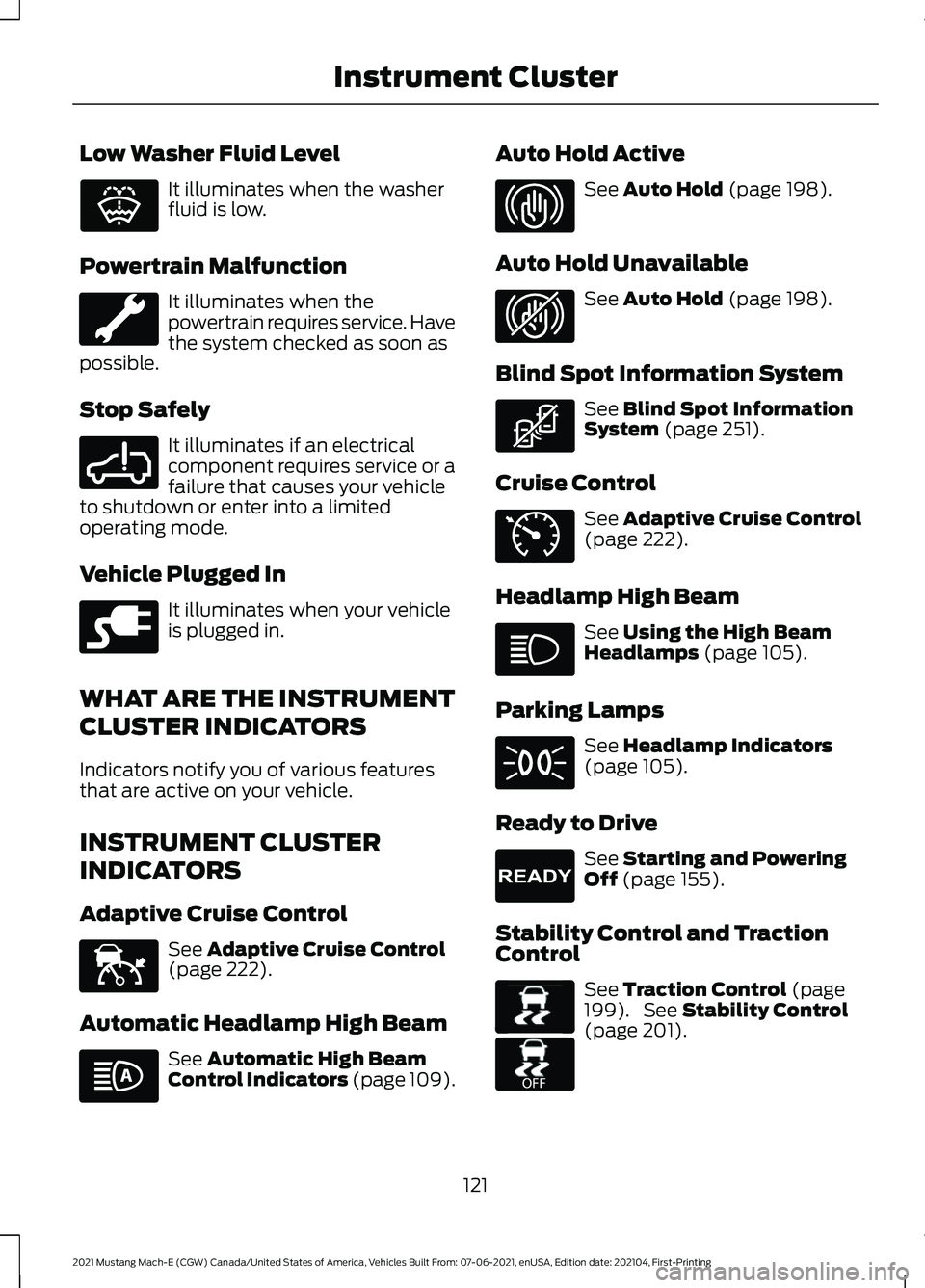

Low Washer Fluid Level
It illuminates when the washer
fluid is low.
Powertrain Malfunction It illuminates when the
powertrain requires service. Have
the system checked as soon as
possible.
Stop Safely It illuminates if an electrical
component requires service or a
failure that causes your vehicle
to shutdown or enter into a limited
operating mode.
Vehicle Plugged In It illuminates when your vehicle
is plugged in.
WHAT ARE THE INSTRUMENT
CLUSTER INDICATORS
Indicators notify you of various features
that are active on your vehicle.
INSTRUMENT CLUSTER
INDICATORS
Adaptive Cruise Control See Adaptive Cruise Control
(page 222).
Automatic Headlamp High Beam See
Automatic High Beam
Control Indicators (page 109). Auto Hold Active See
Auto Hold (page 198).
Auto Hold Unavailable See
Auto Hold (page 198).
Blind Spot Information System See
Blind Spot Information
System (page 251).
Cruise Control See
Adaptive Cruise Control
(page 222).
Headlamp High Beam See
Using the High Beam
Headlamps (page 105).
Parking Lamps See
Headlamp Indicators
(page 105).
Ready to Drive See
Starting and Powering
Off (page 155).
Stability Control and Traction
Control See
Traction Control (page
199). See Stability Control
(page 201).
121
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Instrument ClusterE132353 E288355 E228962 E144524 E323448 E323449 E323542 E71340 E224090 E138639 E225466

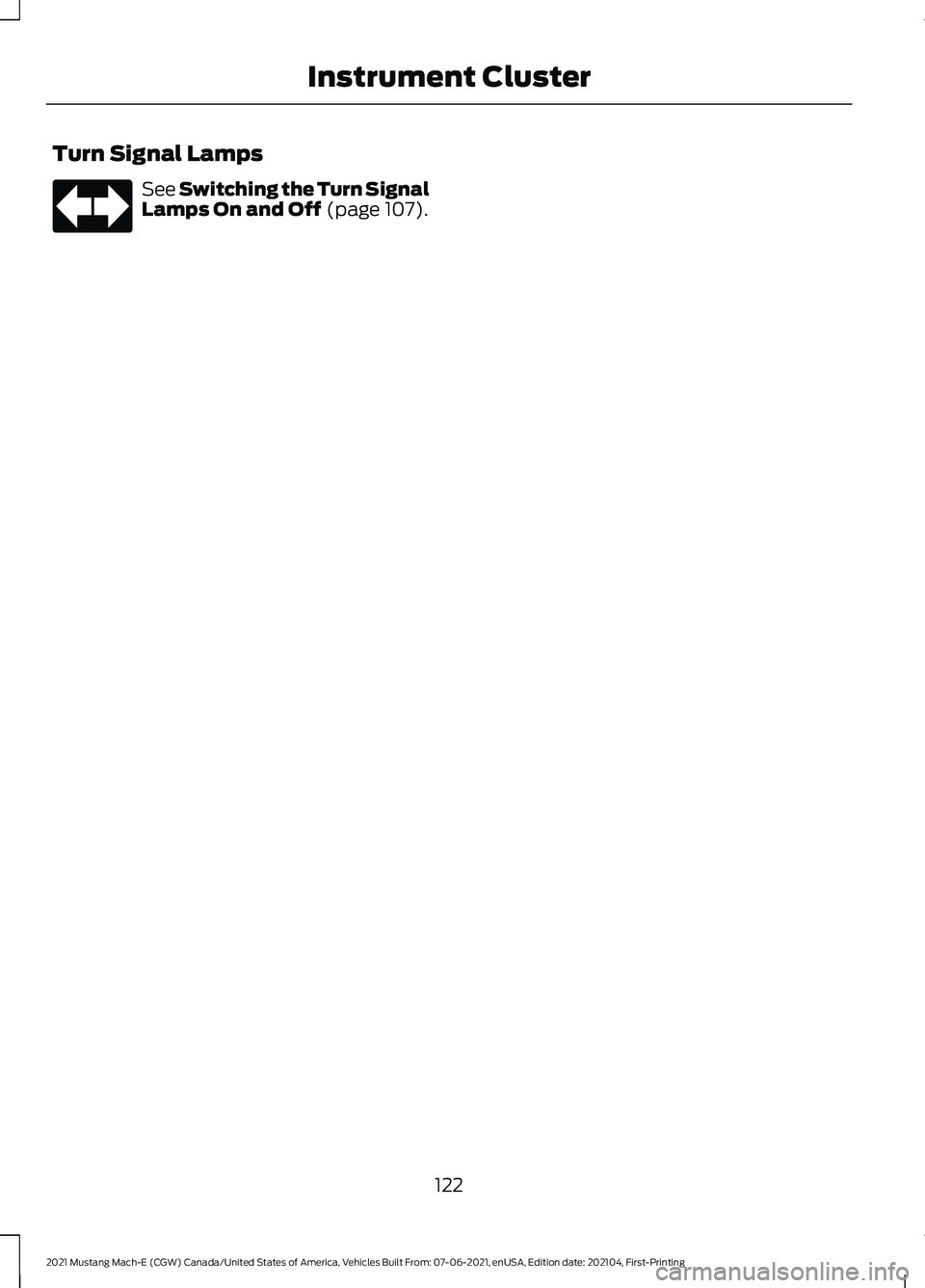

Turn Signal Lamps
See Switching the Turn Signal
Lamps On and Off (page 107).
122
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Instrument Cluster

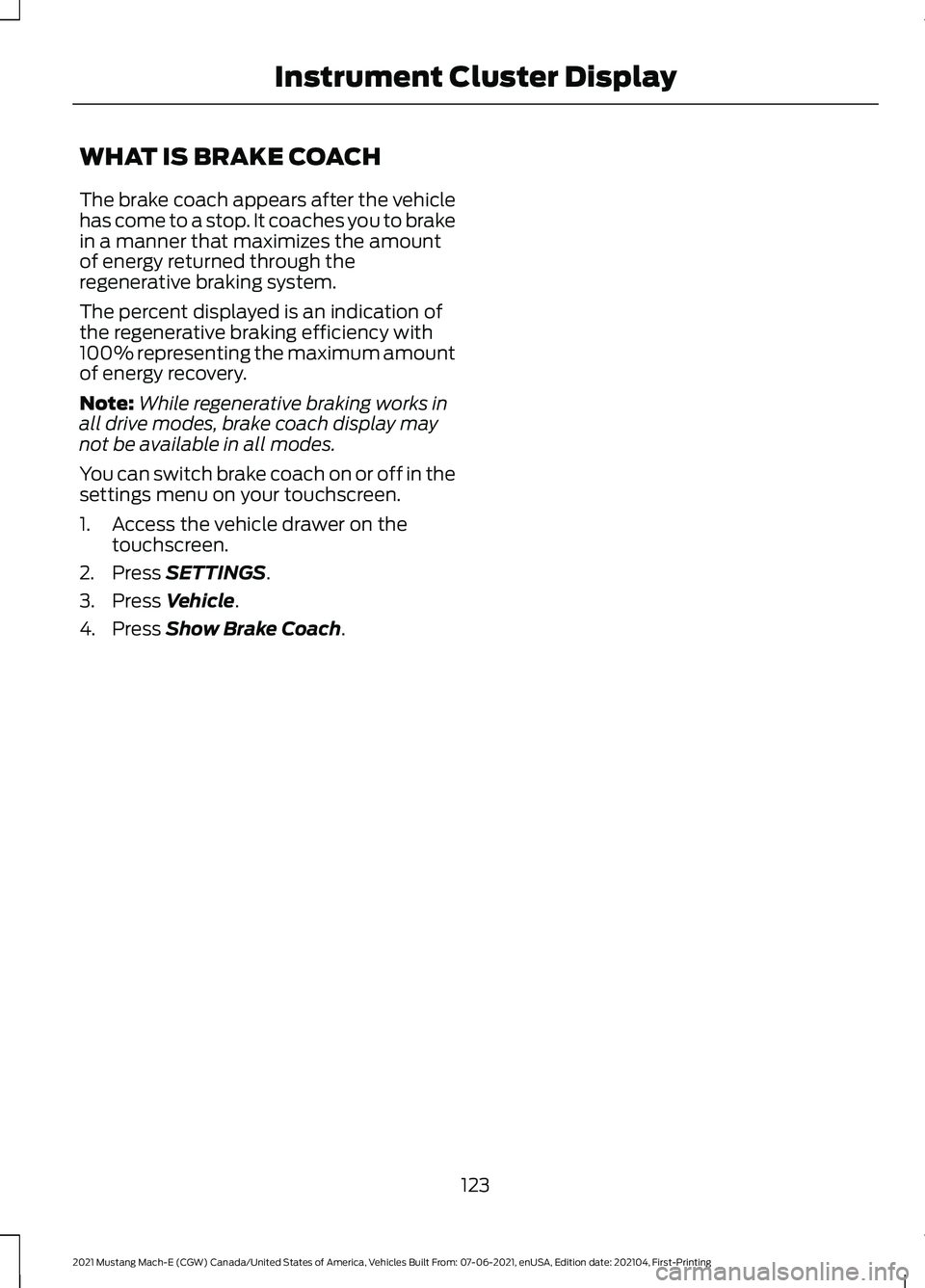

WHAT IS BRAKE COACH
The brake coach appears after the vehicle
has come to a stop. It coaches you to brake
in a manner that maximizes the amount
of energy returned through the
regenerative braking system.
The percent displayed is an indication of
the regenerative braking efficiency with
100% representing the maximum amount
of energy recovery.
Note:
While regenerative braking works in
all drive modes, brake coach display may
not be available in all modes.
You can switch brake coach on or off in the
settings menu on your touchscreen.
1. Access the vehicle drawer on the touchscreen.
2. Press SETTINGS.
3. Press
Vehicle.
4. Press
Show Brake Coach.
123
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Instrument Cluster Display

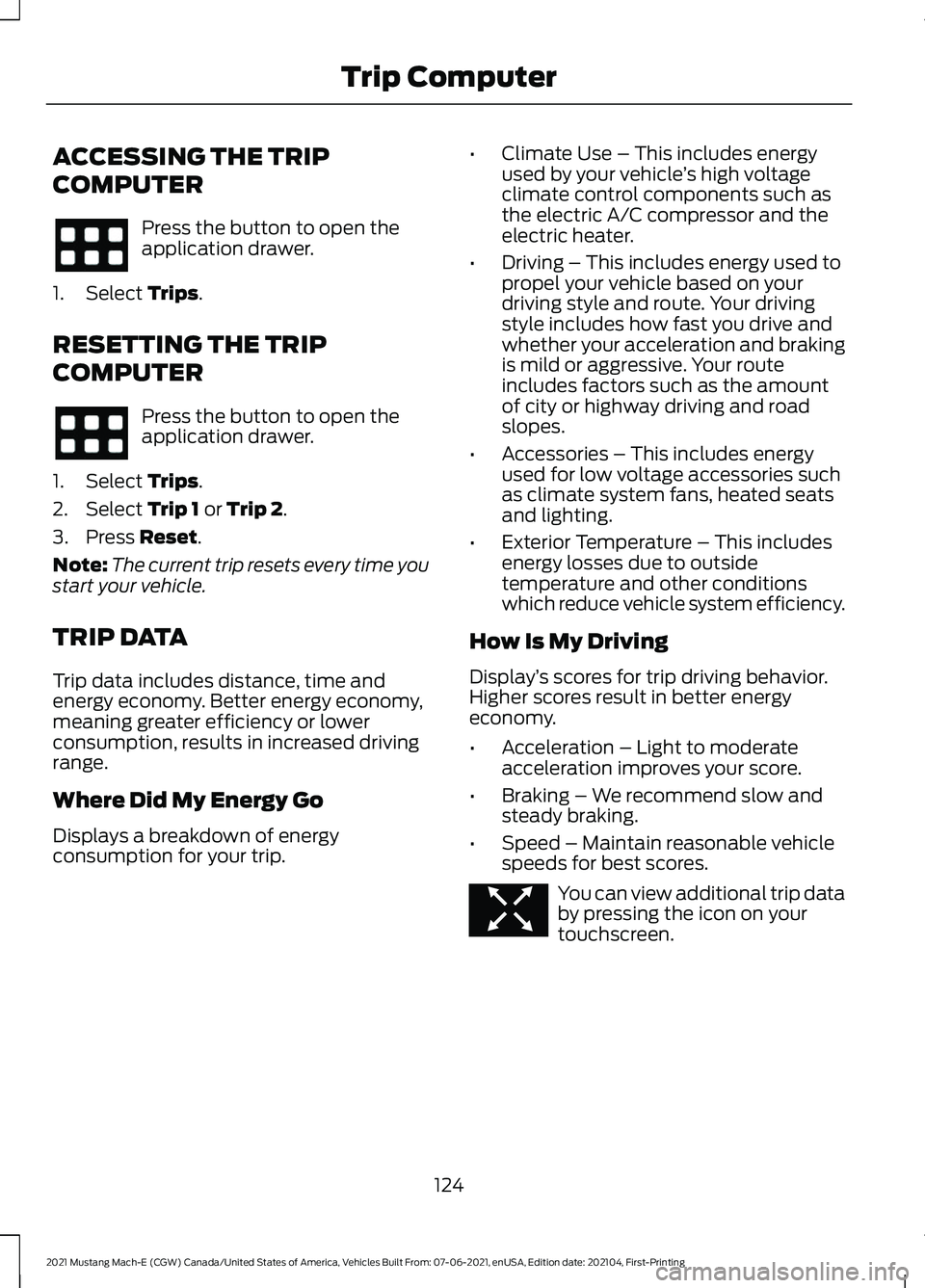

ACCESSING THE TRIP
COMPUTER
Press the button to open the
application drawer.
1. Select Trips.
RESETTING THE TRIP
COMPUTER Press the button to open the
application drawer.
1. Select
Trips.
2. Select
Trip 1 or Trip 2.
3. Press
Reset.
Note: The current trip resets every time you
start your vehicle.
TRIP DATA
Trip data includes distance, time and
energy economy. Better energy economy,
meaning greater efficiency or lower
consumption, results in increased driving
range.
Where Did My Energy Go
Displays a breakdown of energy
consumption for your trip. •
Climate Use – This includes energy
used by your vehicle ’s high voltage
climate control components such as
the electric A/C compressor and the
electric heater.
• Driving – This includes energy used to
propel your vehicle based on your
driving style and route. Your driving
style includes how fast you drive and
whether your acceleration and braking
is mild or aggressive. Your route
includes factors such as the amount
of city or highway driving and road
slopes.
• Accessories – This includes energy
used for low voltage accessories such
as climate system fans, heated seats
and lighting.
• Exterior Temperature – This includes
energy losses due to outside
temperature and other conditions
which reduce vehicle system efficiency.
How Is My Driving
Display ’s scores for trip driving behavior.
Higher scores result in better energy
economy.
• Acceleration – Light to moderate
acceleration improves your score.
• Braking – We recommend slow and
steady braking.
• Speed – Maintain reasonable vehicle
speeds for best scores. You can view additional trip data
by pressing the icon on your
touchscreen.
124
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Trip Computer E352790

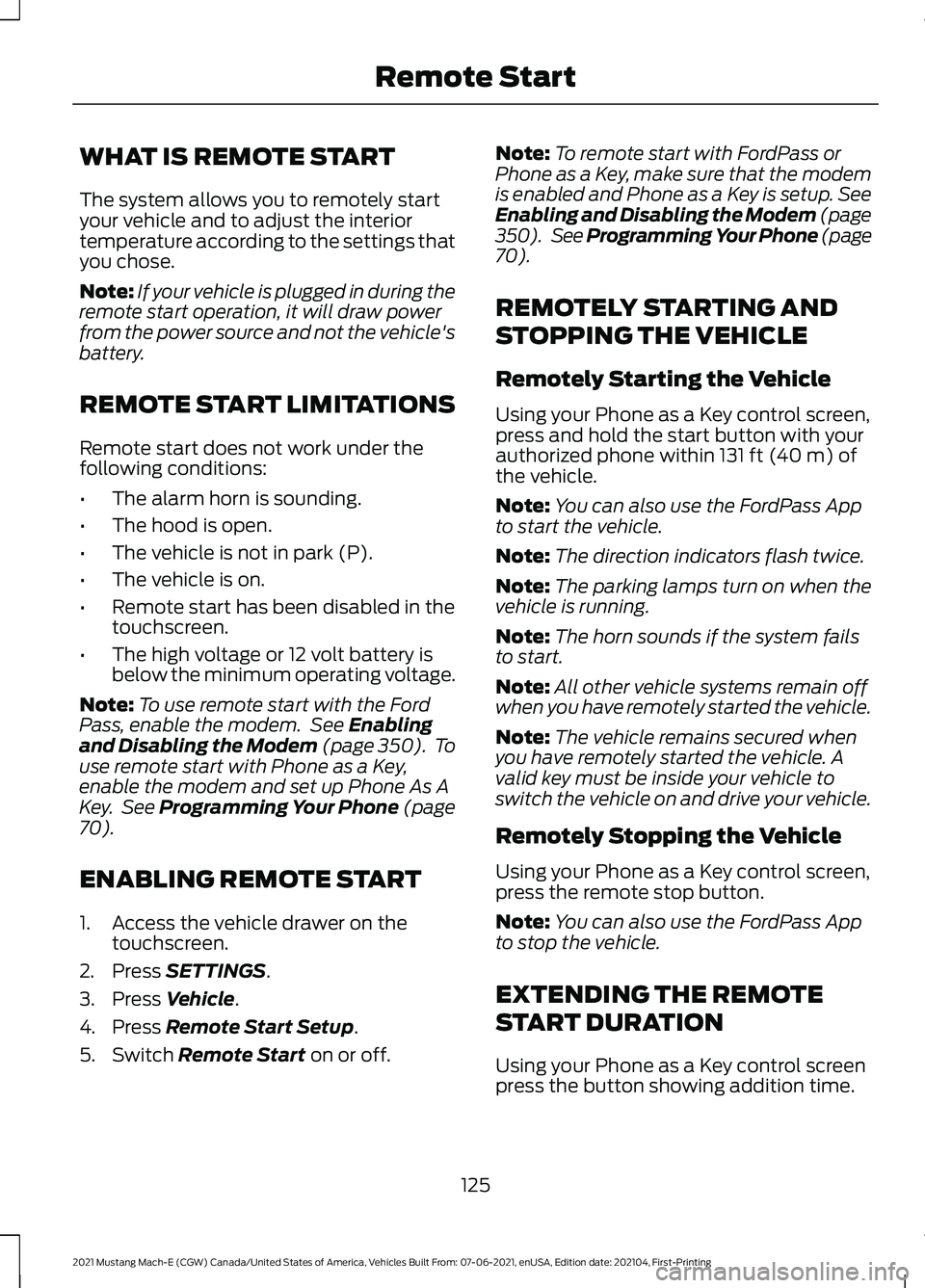

WHAT IS REMOTE START
The system allows you to remotely start
your vehicle and to adjust the interior
temperature according to the settings that
you chose.
Note:
If your vehicle is plugged in during the
remote start operation, it will draw power
from the power source and not the vehicle's
battery.
REMOTE START LIMITATIONS
Remote start does not work under the
following conditions:
• The alarm horn is sounding.
• The hood is open.
• The vehicle is not in park (P).
• The vehicle is on.
• Remote start has been disabled in the
touchscreen.
• The high voltage or 12 volt battery is
below the minimum operating voltage.
Note: To use remote start with the Ford
Pass, enable the modem. See Enabling
and Disabling the Modem (page 350). To
use remote start with Phone as a Key,
enable the modem and set up Phone As A
Key. See
Programming Your Phone (page
70).
ENABLING REMOTE START
1. Access the vehicle drawer on the touchscreen.
2. Press
SETTINGS.
3. Press
Vehicle.
4. Press
Remote Start Setup.
5. Switch
Remote Start on or off. Note:
To remote start with FordPass or
Phone as a Key, make sure that the modem
is enabled and Phone as a Key is setup. See
Enabling and Disabling the Modem (page
350). See Programming Your Phone (page
70
).
REMOTELY STARTING AND
STOPPING THE VEHICLE
Remotely Starting the Vehicle
Using your Phone as a Key control screen,
press and hold the start button with your
authorized phone within
131 ft (40 m) of
the vehicle.
Note: You can also use the FordPass App
to start the vehicle.
Note: The direction indicators flash twice.
Note: The parking lamps turn on when the
vehicle is running.
Note: The horn sounds if the system fails
to start.
Note: All other vehicle systems remain off
when you have remotely started the vehicle.
Note: The vehicle remains secured when
you have remotely started the vehicle. A
valid key must be inside your vehicle to
switch the vehicle on and drive your vehicle.
Remotely Stopping the Vehicle
Using your Phone as a Key control screen,
press the remote stop button.
Note: You can also use the FordPass App
to stop the vehicle.
EXTENDING THE REMOTE
START DURATION
Using your Phone as a Key control screen
press the button showing addition time.
125
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Remote Start

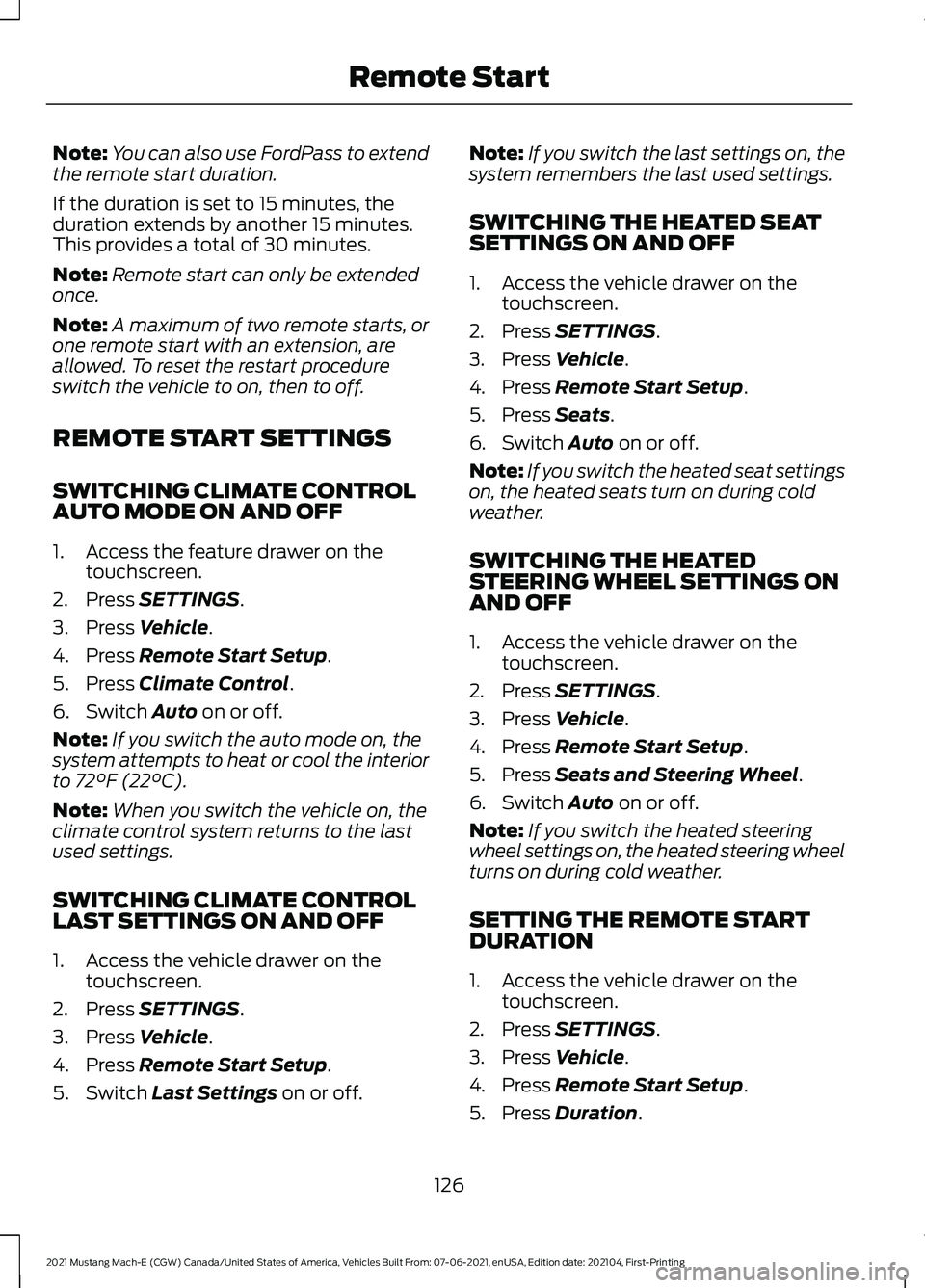

Note:
You can also use FordPass to extend
the remote start duration.
If the duration is set to 15 minutes, the
duration extends by another 15 minutes.
This provides a total of 30 minutes.
Note: Remote start can only be extended
once.
Note: A maximum of two remote starts, or
one remote start with an extension, are
allowed. To reset the restart procedure
switch the vehicle to on, then to off.
REMOTE START SETTINGS
SWITCHING CLIMATE CONTROL
AUTO MODE ON AND OFF
1. Access the feature drawer on the touchscreen.
2. Press SETTINGS.
3. Press
Vehicle.
4. Press
Remote Start Setup.
5. Press
Climate Control.
6. Switch
Auto on or off.
Note: If you switch the auto mode on, the
system attempts to heat or cool the interior
to
72°F (22°C).
Note: When you switch the vehicle on, the
climate control system returns to the last
used settings.
SWITCHING CLIMATE CONTROL
LAST SETTINGS ON AND OFF
1. Access the vehicle drawer on the touchscreen.
2. Press
SETTINGS.
3. Press
Vehicle.
4. Press
Remote Start Setup.
5. Switch
Last Settings on or off. Note:
If you switch the last settings on, the
system remembers the last used settings.
SWITCHING THE HEATED SEAT
SETTINGS ON AND OFF
1. Access the vehicle drawer on the touchscreen.
2. Press
SETTINGS.
3. Press
Vehicle.
4. Press
Remote Start Setup.
5. Press
Seats.
6. Switch
Auto on or off.
Note: If you switch the heated seat settings
on, the heated seats turn on during cold
weather.
SWITCHING THE HEATED
STEERING WHEEL SETTINGS ON
AND OFF
1. Access the vehicle drawer on the touchscreen.
2. Press
SETTINGS.
3. Press
Vehicle.
4. Press
Remote Start Setup.
5. Press
Seats and Steering Wheel.
6. Switch
Auto on or off.
Note: If you switch the heated steering
wheel settings on, the heated steering wheel
turns on during cold weather.
SETTING THE REMOTE START
DURATION
1. Access the vehicle drawer on the touchscreen.
2. Press
SETTINGS.
3. Press
Vehicle.
4. Press
Remote Start Setup.
5. Press
Duration.
126
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Remote Start
