windshield wipers FORD MUSTANG MACH E 2023 Owners Manual
[x] Cancel search | Manufacturer: FORD, Model Year: 2023, Model line: MUSTANG MACH E, Model: FORD MUSTANG MACH E 2023Pages: 496, PDF Size: 13.09 MB
Page 110 of 496

WIPERS
WIPER PRECAUTIONS
Do not operate the wipers on a drywindshield. This could scratch the glass ordamage the wiper blades. Use thewindshield washers before wiping a drywindshield.
Fully defrost the windshield before youswitch the windshield wipers on.
Switch the windshield wipers off beforeentering a car wash.
SWITCHING WINDSHIELD WIPERSON AND OFF
Single wipe.A
Intermittent wipe/Auto wipe.B
Normal wipe.C
High-speed wipe.D
Push the lever up or down tooperate the windshield wipers.
AUTOWIPERS
WHAT ARE AUTOWIPERS
Autowipers turns on and controls thespeed and frequency of the windshieldwipers.
AUTOWIPERS SETTINGS
1.
Press the button on thetouchscreen.
2.Press Vehicle.
3.Press Wipers.
4.Switch Rain Sensing on or off.
Note:When you switch the feature off, thewipers do not operate based on the rainsensor. When you switch on the windshieldwipers to the intermittent wipe position withthe feature off, the wipers use the wipespeed set by the rotary control.
106
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMWipers and WashersE295996 E270969 E386797
Page 111 of 496

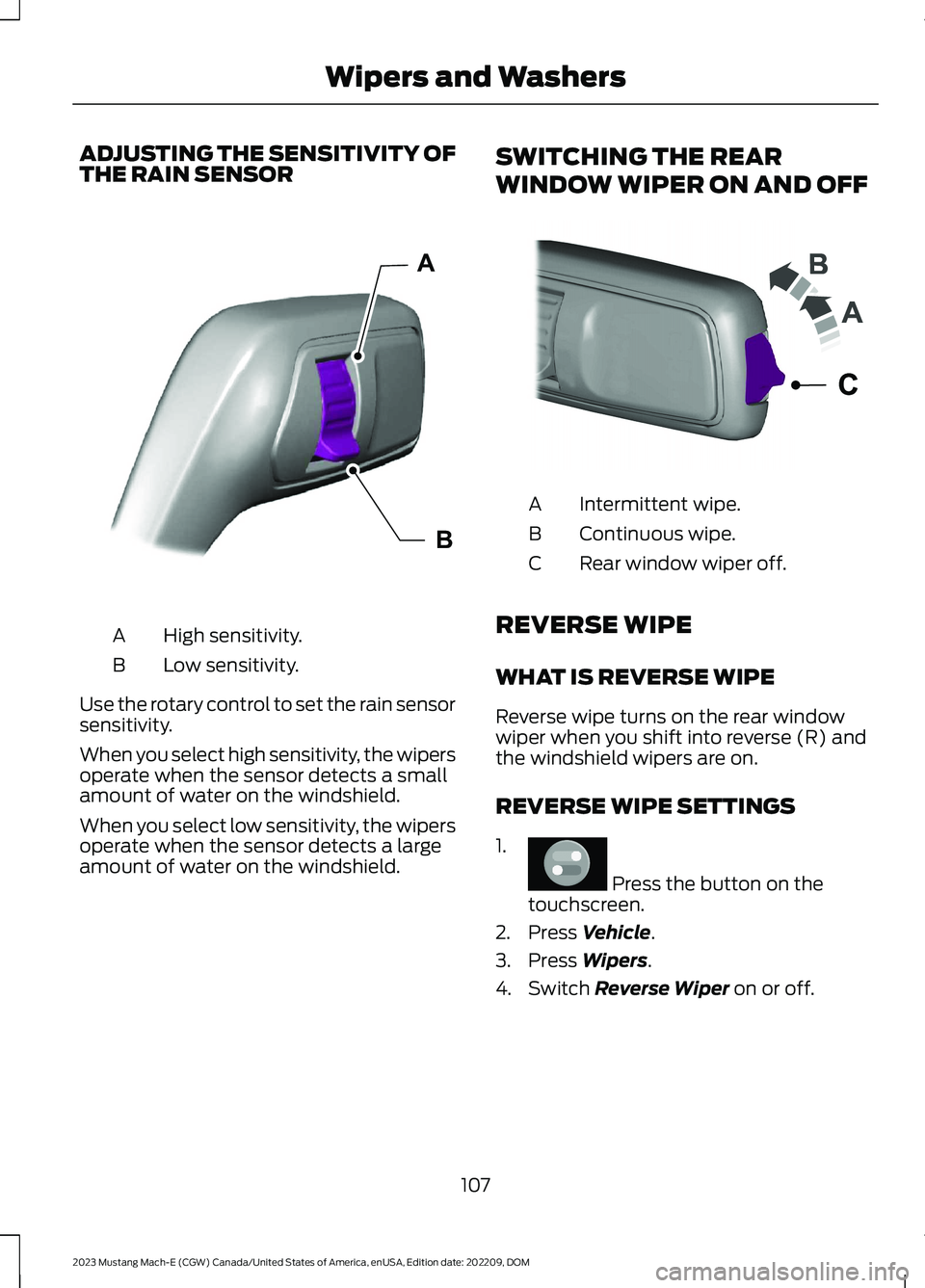

ADJUSTING THE SENSITIVITY OFTHE RAIN SENSOR
High sensitivity.A
Low sensitivity.B
Use the rotary control to set the rain sensorsensitivity.
When you select high sensitivity, the wipersoperate when the sensor detects a smallamount of water on the windshield.
When you select low sensitivity, the wipersoperate when the sensor detects a largeamount of water on the windshield.
SWITCHING THE REAR
WINDOW WIPER ON AND OFF
Intermittent wipe.A
Continuous wipe.B
Rear window wiper off.C
REVERSE WIPE
WHAT IS REVERSE WIPE
Reverse wipe turns on the rear windowwiper when you shift into reverse (R) andthe windshield wipers are on.
REVERSE WIPE SETTINGS
1.
Press the button on thetouchscreen.
2.Press Vehicle.
3.Press Wipers.
4.Switch Reverse Wiper on or off.
107
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMWipers and WashersABE308824 E242324 E386797
Page 113 of 496

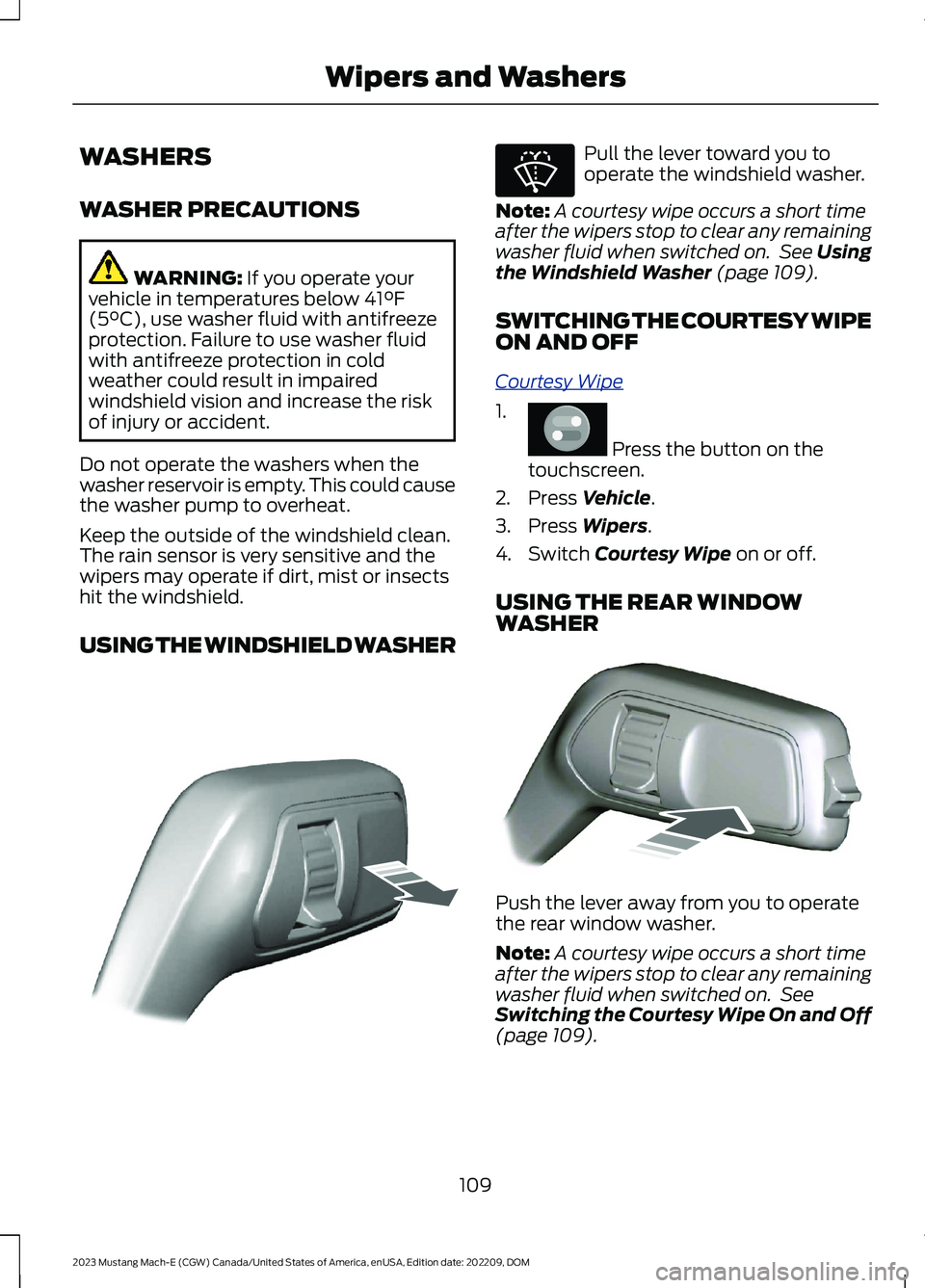

WASHERS
WASHER PRECAUTIONS
WARNING: If you operate yourvehicle in temperatures below 41°F(5°C), use washer fluid with antifreezeprotection. Failure to use washer fluidwith antifreeze protection in coldweather could result in impairedwindshield vision and increase the riskof injury or accident.
Do not operate the washers when thewasher reservoir is empty. This could causethe washer pump to overheat.
Keep the outside of the windshield clean.The rain sensor is very sensitive and thewipers may operate if dirt, mist or insectshit the windshield.
USING THE WINDSHIELD WASHER
Pull the lever toward you tooperate the windshield washer.
Note:A courtesy wipe occurs a short timeafter the wipers stop to clear any remainingwasher fluid when switched on. See Usingthe Windshield Washer (page 109).
SWITCHING THE COURTESY WIPEON AND OFF
Courtesy Wipe
1.
Press the button on thetouchscreen.
2.Press Vehicle.
3.Press Wipers.
4.Switch Courtesy Wipe on or off.
USING THE REAR WINDOWWASHER
Push the lever away from you to operatethe rear window washer.
Note:A courtesy wipe occurs a short timeafter the wipers stop to clear any remainingwasher fluid when switched on. SeeSwitching the Courtesy Wipe On and Off(page 109).
109
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMWipers and WashersE308825 E270967 E386797 E242432
Page 114 of 496

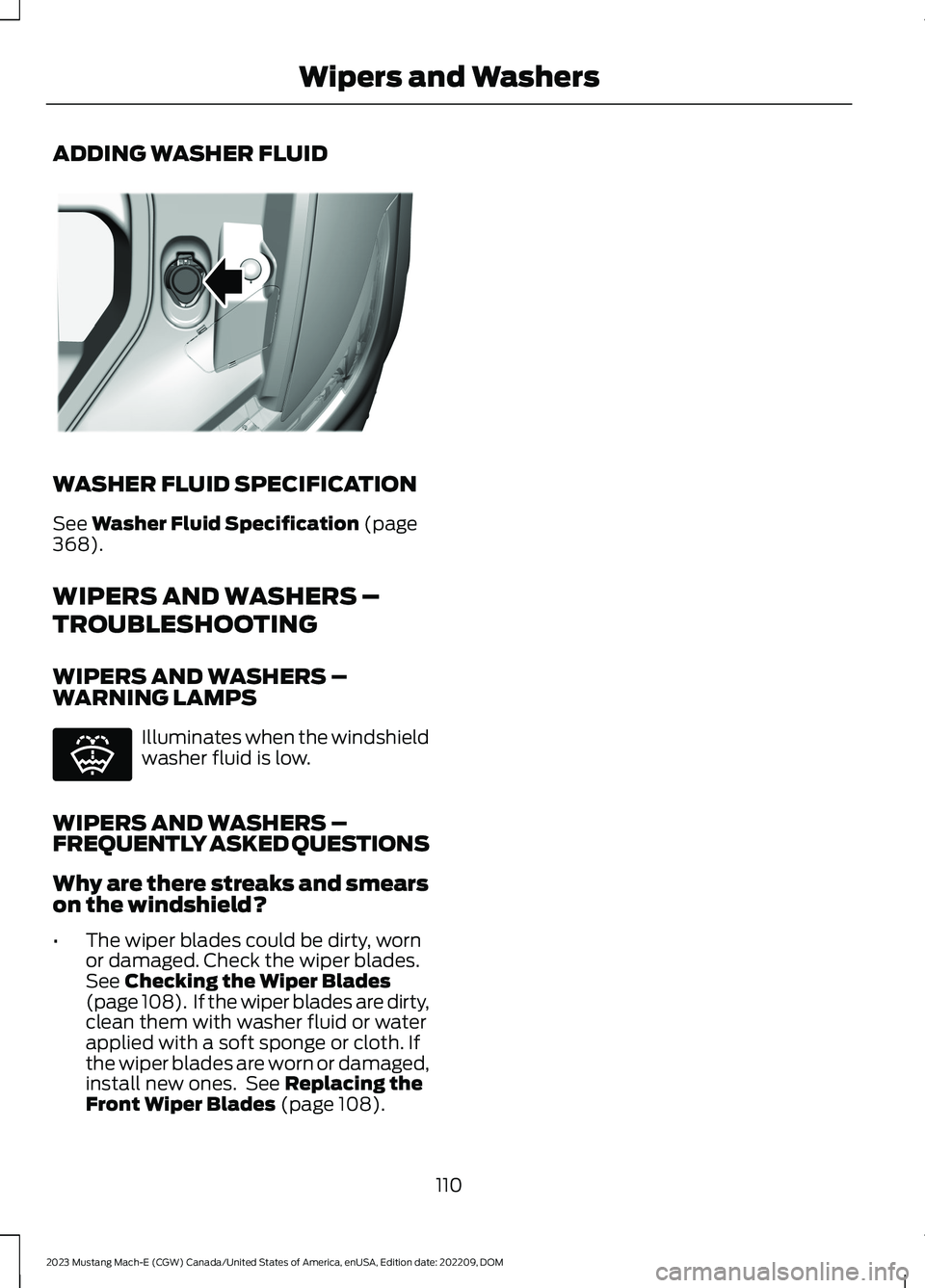

ADDING WASHER FLUID
WASHER FLUID SPECIFICATION
See Washer Fluid Specification (page368).
WIPERS AND WASHERS –
TROUBLESHOOTING
WIPERS AND WASHERS –WARNING LAMPS
Illuminates when the windshieldwasher fluid is low.
WIPERS AND WASHERS –FREQUENTLY ASKED QUESTIONS
Why are there streaks and smearson the windshield?
•The wiper blades could be dirty, wornor damaged. Check the wiper blades.See Checking the Wiper Blades(page 108). If the wiper blades are dirty,clean them with washer fluid or waterapplied with a soft sponge or cloth. Ifthe wiper blades are worn or damaged,install new ones. See Replacing theFront Wiper Blades (page 108).
110
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMWipers and WashersE329072 E132353
Page 116 of 496

HEADLAMPS –
TROUBLESHOOTING
HEADLAMPS – FREQUENTLYASKED QUESTIONS
Why is there condensation in theheadlamps?
•Headlamps have vents toaccommodate normal changes in airpressure. Condensation can be anatural by-product of this design.When moist air enters the lampassembly through the vents, there is apossibility that condensation can occurwhen the temperature is cold. Whennormal condensation occurs, a finemist can form on the interior of thelens. The fine mist eventually clearsand exits through the vents duringnormal operation.
How much condensation isacceptable?
•The presence of a fine mist, forexample no streaks, drip marks or largedroplets. A fine mist covers less than50% of the lens.
How long may it take for theacceptable condensation to becleared?
•Clearing time may take as long as 48hours under dry weather conditions.
How much condensation isunacceptable?
•A water puddle inside the lamp.Streaks, drip marks or large dropletspresent on the interior of the lens.
What should I do if unacceptablecondensation is present?
•Have your vehicle checked as soon aspossible.
Why do my headlamps turn offwhen I have them switched onwhen I switch my vehicle off?
•The battery saver turns the headlampsoff after a short period of time after youswitch your vehicle off.
AUTOLAMPS
WHAT ARE AUTOLAMPS
WARNING: The system does notrelieve you of your responsibility to drivewith due care and attention. You mayneed to override the system if it does notturn the headlamps on in low visibilityconditions, for example daytime fog.
Autolamps turn the headlamps on in lowlight situations or when the windshieldwipers operate.
AUTOLAMP SETTINGS
To set the amount of time that theheadlamps remain on after you switch yourvehicle off:
1.
Press the button on thetouchscreen.
2.Press Vehicle.
3.Press Lighting.
4.Press Autolamp Delay.
5.Press a setting.
112
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMExterior LightingE386797
Page 342 of 496

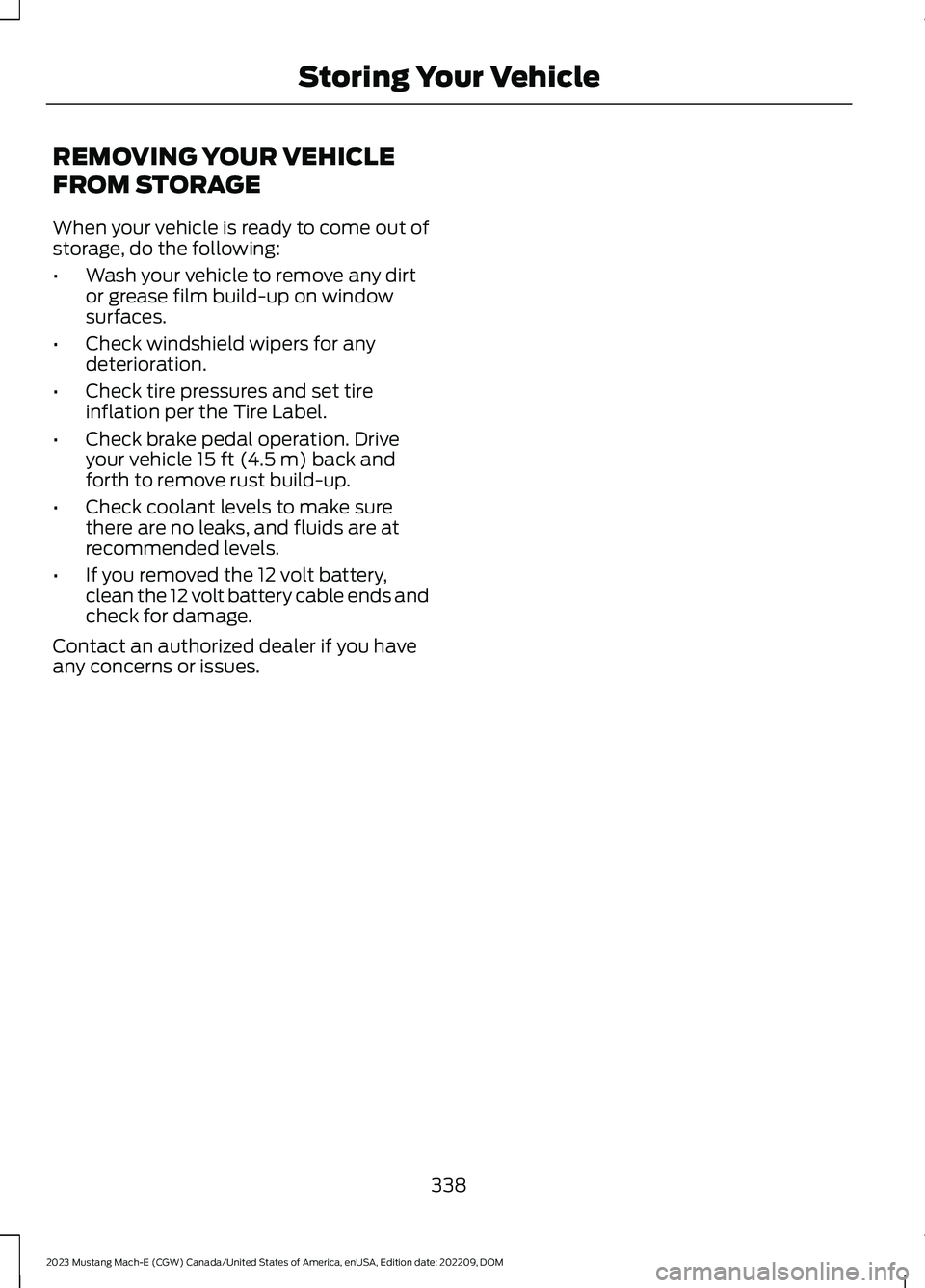

REMOVING YOUR VEHICLE
FROM STORAGE
When your vehicle is ready to come out ofstorage, do the following:
•Wash your vehicle to remove any dirtor grease film build-up on windowsurfaces.
•Check windshield wipers for anydeterioration.
•Check tire pressures and set tireinflation per the Tire Label.
•Check brake pedal operation. Driveyour vehicle 15 ft (4.5 m) back andforth to remove rust build-up.
•Check coolant levels to make surethere are no leaks, and fluids are atrecommended levels.
•If you removed the 12 volt battery,clean the 12 volt battery cable ends andcheck for damage.
Contact an authorized dealer if you haveany concerns or issues.
338
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMStoring Your Vehicle
Page 493 of 496

Towing Your Vehicle –Troubleshooting.........................................313Towing Your Vehicle – InformationMessages..........................................................313Traction Control Indicator..........................213Traction Control.............................................213Traction Control – Troubleshooting............214Traction Control –Troubleshooting.........................................214Traction Control – InformationMessages..........................................................214Traction Control – Warning Lamps..............214Transporting the Vehicle.............................311Trip Computer................................................133Trip Data...........................................................133
U
Under Hood Fuse Box.................................314Accessing the Under Hood Fuse Box..........314Identifying the Fuses in the Under HoodFuse Box............................................................315Locating the Under Hood Fuse Box.............314Under Hood Overview................................325USB Ports........................................................159Using Alexa Built-In.....................................391Using Auto Hold.............................................211Using FordPass and Charging.................189Using Keyless Entry.......................................85Using MyKey With Remote StartSystems..........................................................78Using Snow Chains.....................................349Using Summer Tires...................................348Using the Backup Start Passcode...........73Using the Frunk EmergencyRelease..........................................................297Using the Keyless Entry Keypad...............88Using the Remote Control..........................68Using the Tire Sealant and InflatorKit...................................................................356Using the Valet Mode....................................73Using This Publication..................................18Using Winter Tires.......................................349
V
Vehicle Care....................................................331Cleaning the Exterior.........................................331
Cleaning the Interior.........................................333General Information..........................................331Vehicle Identification Number................370Locating the Vehicle IdentificationNumber.............................................................370Vehicle Identification NumberOverview..........................................................370Vehicle Identification..................................370Vehicle Identification Number......................370Vehicle Interior - Excluding: GT..................31Vehicle Interior - GT.......................................32Vehicle Range Display.................................127Vehicle Software Updates......................404Vehicle System Reset................................406Vehicle Wi-Fi Hotspot –Troubleshooting........................................376Vehicle Wi-Fi Hotspot – Frequently AskedQuestions.........................................................376Vehicle Wi-Fi Hotspot................................375Vehicle Wi-Fi Hotspot –Troubleshooting............................................376VentilationSee: Climate Control.........................................136Viewing the Tire Pressures.......................363Visual Search....................................................27Voice Interaction..........................................389Ford Assistant....................................................389
W
Walk Away Lock Limitations.....................90Walk Away Lock.............................................90Warranty Information................................468Washer Fluid Specification......................368Washers...........................................................109Adding Washer Fluid..........................................110Switching the Courtesy Wipe On andOff.......................................................................109Using the Rear Window Washer...................109Using the Windshield Washer.......................109Washer Fluid Specification..............................110Washer Precautions..........................................109WashersSee: Wipers and Washers...............................106Waxing Your Vehicle...................................335Waypoints......................................................402Adding a Waypoint...........................................402Editing Waypoints.............................................402
489
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMIndex
Page 494 of 496

What Are the Instrument ClusterIndicators......................................................129What Are the Instrument ClusterWarning Lamps..........................................128What Is 911 Assist..........................................66What is AC Charging...................................168What Is a Connected Vehicle...................372What Is Active Park Assist........................232What is Alexa Built-In.................................391What Is Blind Spot InformationSystem...........................................................271What Is BlueCruise.......................................251What Is Cross Traffic Alert........................274What Is Cross Traffic Braking..................207What is DC Charging...................................168What Is Drive Mode Control....................260What Is Driver Alert.....................................285What Is Ford Protect.................................408What Is Hill Start Assist.............................210What Is Keyless Entry...................................85What Is MyKey.................................................76What is One Pedal Drive...........................262What Is Phone as a Key................................72What Is Pre-Collision Assist.....................277What Is Remote Start.................................134What Is Reverse Brake Assist..................203What Is Speed Sign Recognition...........287What Is the 360 Degree Camera...........229What Is the Cabin Air Filter.......................142What Is the Electric Parking Brake.......200What Is the Gross Axle WeightRating.............................................................291What Is the Gross Combined WeightRating............................................................292What Is the Gross Vehicle WeightRating.............................................................291What Is the High Voltage Battery...........166What Is the Keyless Entry Keypad...........87What Is the Lane Keeping System........263What Is the Maximum Loaded TrailerWeight............................................................291What Is the Memory Function.................154What Is the Pedestrian AlertSystem............................................................65What Is the Personal SafetySystem............................................................55What Is the Power Outlet...........................161
What is the Rear Occupant AlertSystem...........................................................152What Is the Rear View Camera..............226What Is the Tire Pressure MonitoringSystem...........................................................361What Is the Tire Sealant and InflatorKit....................................................................355What Is the Wireless AccessoryCharger..........................................................162What Is Traction Control............................213What is Walk Away Lock.............................90Wheel and Tire Information....................339Wheel Nuts....................................................365Wi FiSee: Changing the Vehicle Wi-Fi HotspotName or Password.......................................376See: Connecting the Vehicle to a Wi-FiNetwork.............................................................372See: Creating a Vehicle Wi-Fi Hotspot.......375See: Vehicle Wi-Fi Hotspot............................375Window Bounce-Back...............................120Overriding Window Bounce-Back................120What Is Window Bounce-Back.....................120Windows...........................................................119Global Opening and Closing...........................119Window Bounce-Back......................................120Wipers and Washers –Troubleshooting..........................................110Wipers and Washers – Frequently AskedQuestions..........................................................110Wipers and Washers – WarningLamps.................................................................110Wipers and Washers...................................106Autowipers...........................................................106Reverse Wipe........................................................107Washers.................................................................109Wipers....................................................................106Wipers and Washers –Troubleshooting..............................................110Wipers..............................................................106Switching Windshield Wipers On andOff.......................................................................106Wiper Precautions.............................................106Wireless Accessory ChargerPrecautions..................................................162Wireless Accessory Charger.....................162
490
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMIndex
