Dome lamp FORD POLICE INTERCEPTOR SEDAN 2014 1.G Owners Manual

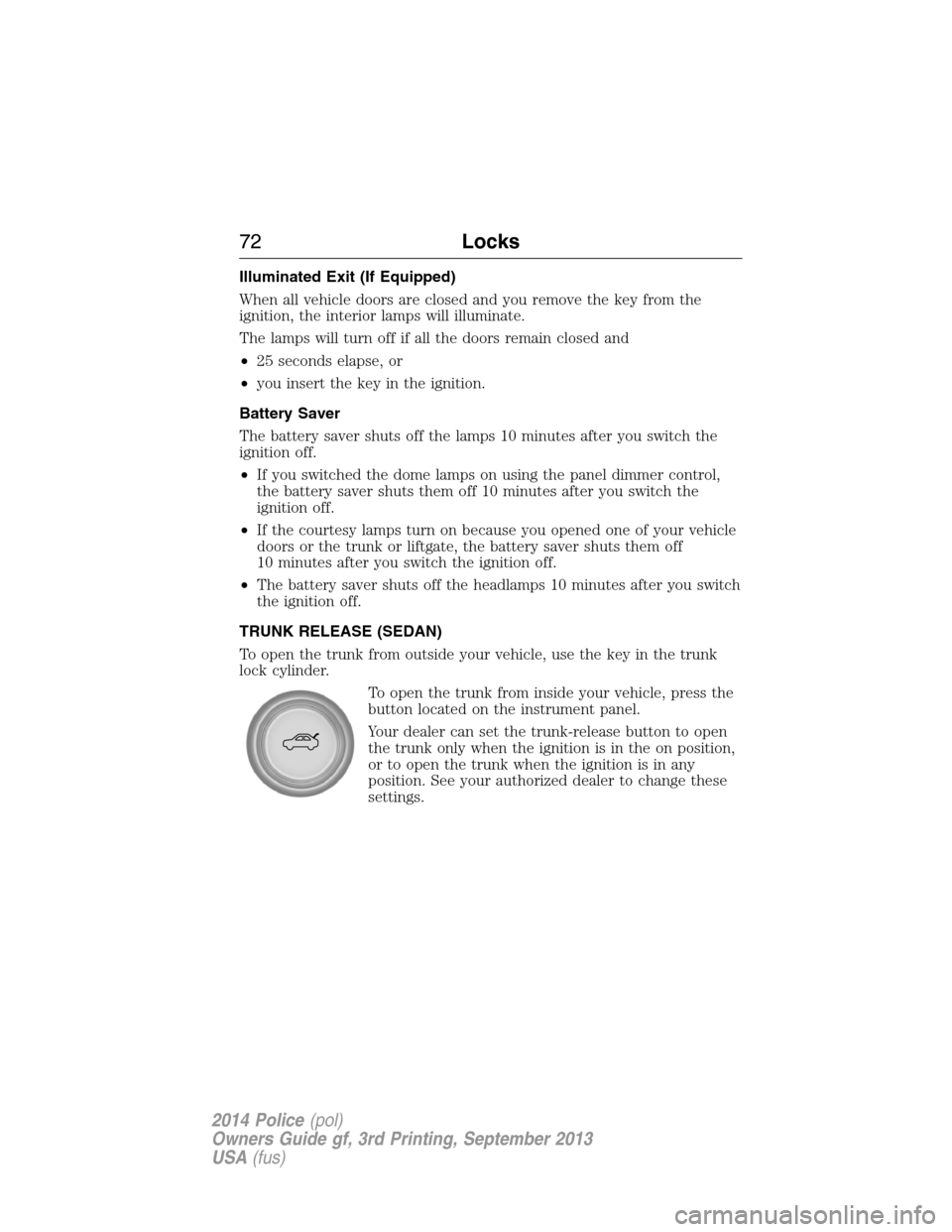

Illuminated Exit (If Equipped)
When all vehicle doors are closed and you remove the key from the
ignition, the interior lamps will illuminate.
The lamps will turn off if all the doors remain closed and
•25 seconds elapse, or
•you insert the key in the ignition.
Battery Saver
The battery saver shuts off the lamps 10 minutes after you switch the
ignition off.
•If you switched the dome lamps on using the panel dimmer control,
the battery saver shuts them off 10 minutes after you switch the
ignition off.
•If the courtesy lamps turn on because you opened one of your vehicle
doors or the trunk or liftgate, the battery saver shuts them off
10 minutes after you switch the ignition off.
•The battery saver shuts off the headlamps 10 minutes after you switch
the ignition off.
TRUNK RELEASE (SEDAN)
To open the trunk from outside your vehicle, use the key in the trunk
lock cylinder.
To open the trunk from inside your vehicle, press the
button located on the instrument panel.
Your dealer can set the trunk-release button to open
the trunk only when the ignition is in the on position,
or to open the trunk when the ignition is in any
position. See your authorized dealer to change these
settings.
72Locks
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

Utility
•To operate the left direction indicator, push the lever down until it
stops.
•To operate the right direction indicator, push the lever up until it
stops.
Note:Tap the lever up or down to make the direction indicators flash
only three times to indicate a lane change.
INTERIOR LAMPS
Dome Lamp Control (Utility)
Press the control to switch on the interior
courtesy lights. The lights will remain on until
the control is pressed again.
88Lighting
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

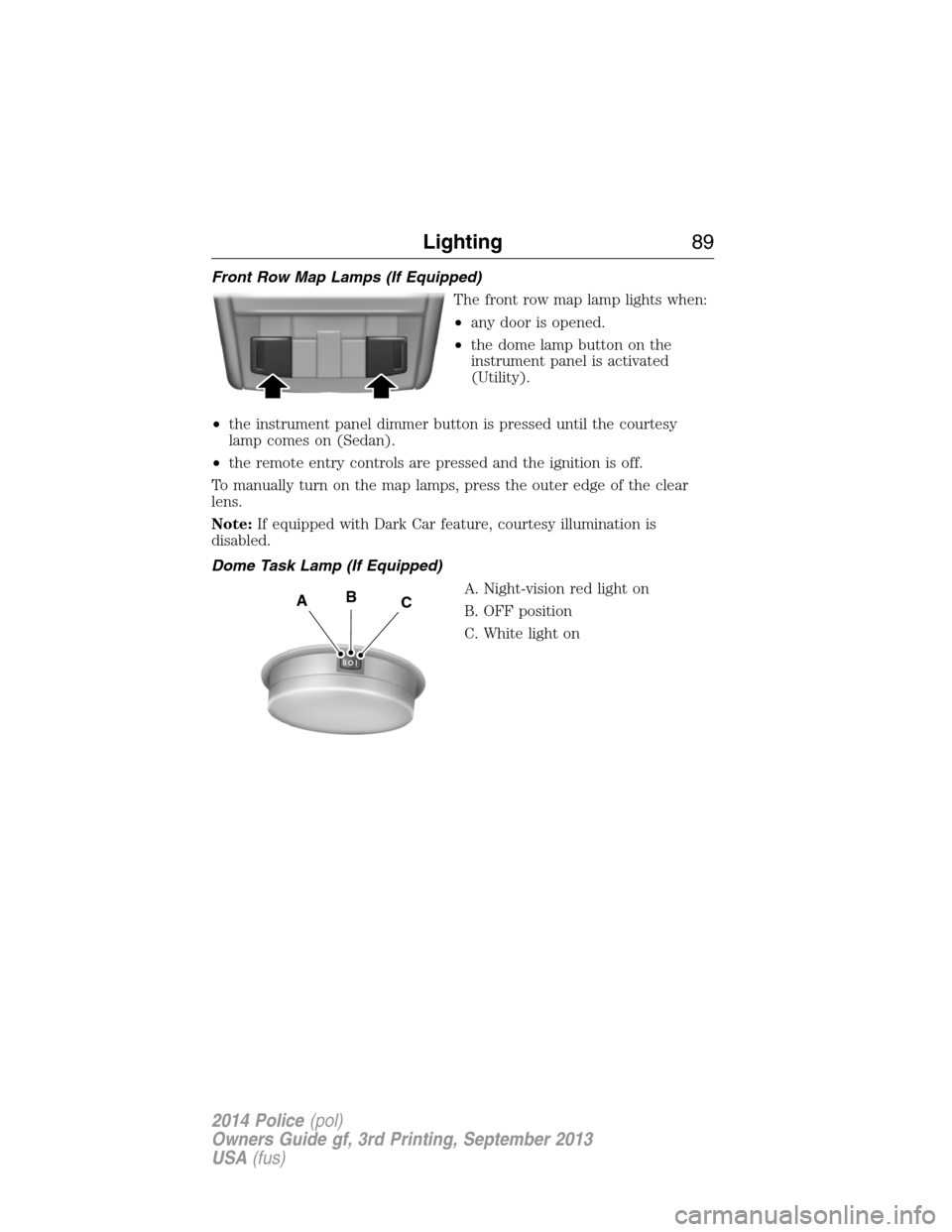

Front Row Map Lamps (If Equipped)
The front row map lamp lights when:
•any door is opened.
•the dome lamp button on the
instrument panel is activated
(Utility).
•the instrument panel dimmer button is pressed until the courtesy
lamp comes on (Sedan).
•the remote entry controls are pressed and the ignition is off.
To manually turn on the map lamps, press the outer edge of the clear
lens.
Note:If equipped with Dark Car feature, courtesy illumination is
disabled.
Dome Task Lamp (If Equipped)
A. Night-vision red light on
B. OFF position
C. White light on
ABC
Lighting89
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

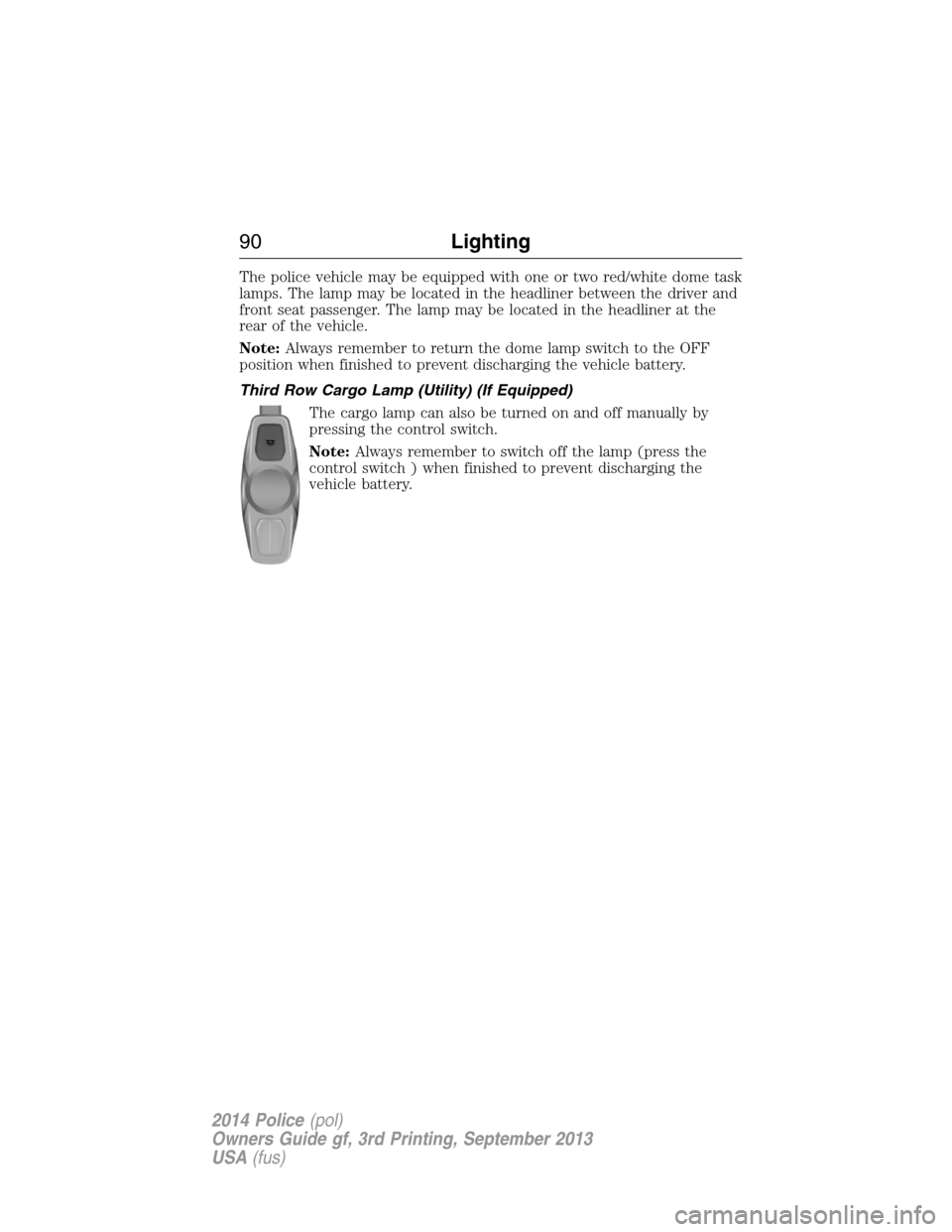

The police vehicle may be equipped with one or two red/white dome task
lamps. The lamp may be located in the headliner between the driver and
front seat passenger. The lamp may be located in the headliner at the
rear of the vehicle.
Note:Always remember to return the dome lamp switch to the OFF
position when finished to prevent discharging the vehicle battery.
Third Row Cargo Lamp (Utility) (If Equipped)
The cargo lamp can also be turned on and off manually by
pressing the control switch.
Note:Always remember to switch off the lamp (press the
control switch ) when finished to prevent discharging the
vehicle battery.
90Lighting
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

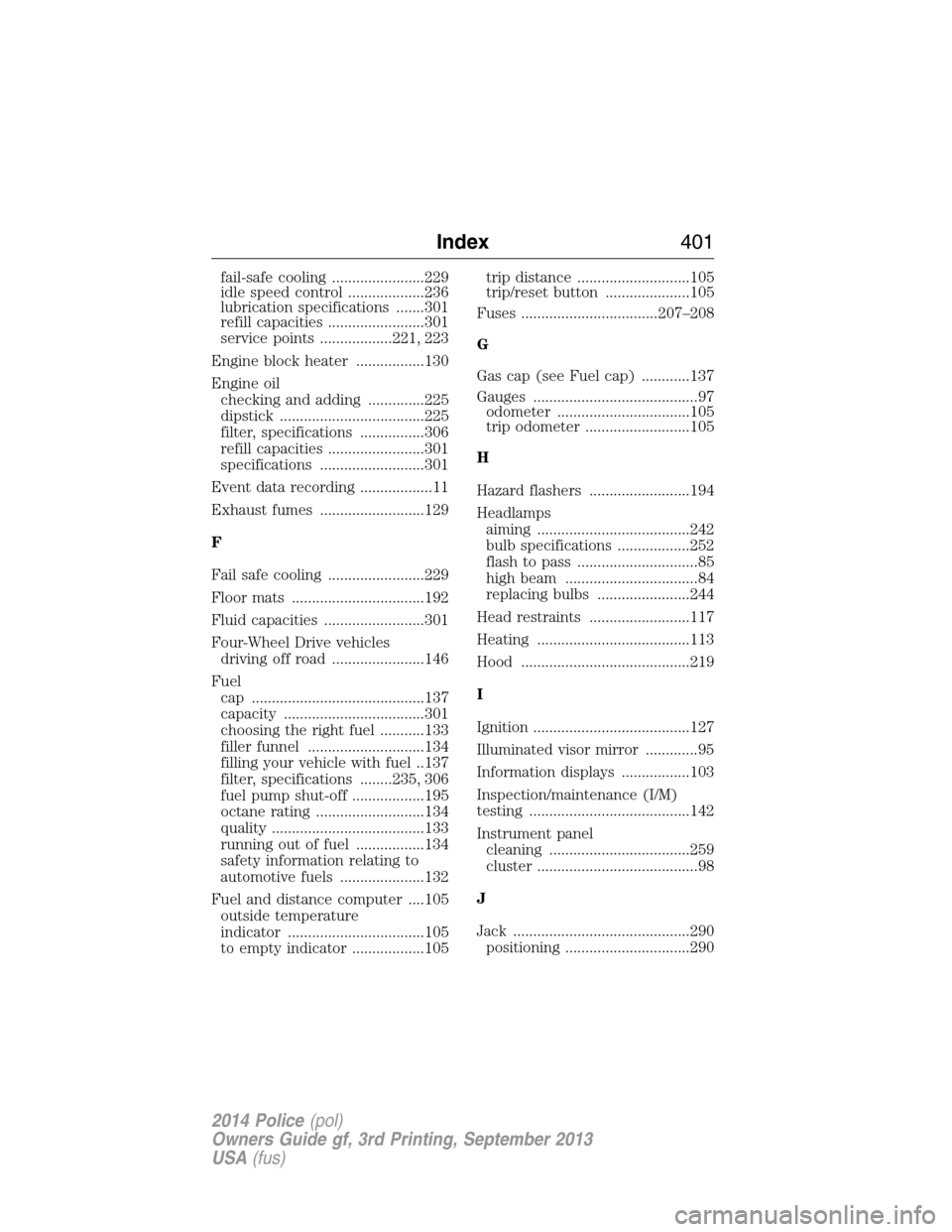

fail-safe cooling .......................229
idle speed control ...................236
lubrication specifications .......301
refill capacities ........................301
service points ..................221, 223
Engine block heater .................130
Engine oil
checking and adding ..............225
dipstick ....................................225
filter, specifications ................306
refill capacities ........................301
specifications ..........................301
Event data recording ..................11
Exhaust fumes ..........................129
F
Fail safe cooling ........................229
Floor mats .................................192
Fluid capacities .........................301
Four-Wheel Drive vehicles
driving off road .......................146
Fuel
cap ...........................................137
capacity ...................................301
choosing the right fuel ...........133
filler funnel .............................134
filling your vehicle with fuel ..137
filter, specifications ........235, 306
fuel pump shut-off ..................195
octane rating ...........................134
quality ......................................133
running out of fuel .................134
safety information relating to
automotive fuels .....................132
Fuel and distance computer ....105
outside temperature
indicator ..................................105
to empty indicator ..................105trip distance ............................105
trip/reset button .....................105
Fuses ..................................207–208
G
Gas cap (see Fuel cap) ............137
Gauges .........................................97
odometer .................................105
trip odometer ..........................105
H
Hazard flashers .........................194
Headlamps
aiming ......................................242
bulb specifications ..................252
flash to pass ..............................85
high beam .................................84
replacing bulbs .......................244
Head restraints .........................117
Heating ......................................113
Hood ..........................................219
I
Ignition .......................................127
Illuminated visor mirror .............95
Information displays .................103
Inspection/maintenance (I/M)
testing ........................................142
Instrument panel
cleaning ...................................259
cluster ........................................98
J
Jack ............................................290
positioning ...............................290
Index401
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)
