11Remote Control Operations
EN
Remote Control Operations

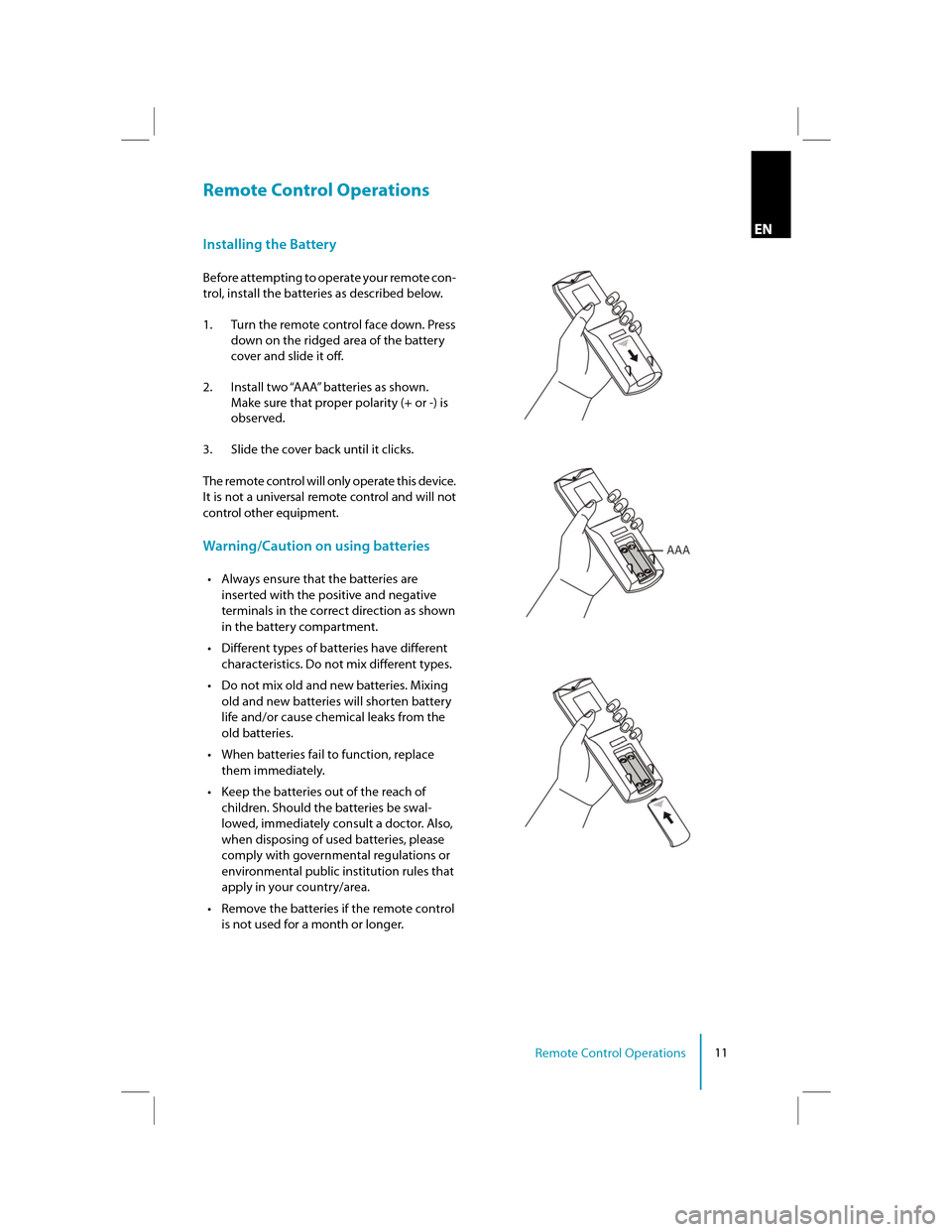

Installing the Battery
Before attempting to operate your remote con-
trol, install the batteries as described below.
1. Turn the remote control face down. Press down on the ridged area of the battery
cover and slide it of.
2. Install two “AAA” batteries as shown. Make sure that proper polarity (+ or -) is
observed.
3. Slide the cover back until it clicks.
The remote control will only operate this device.
It is not a universal remote control and will not
control other equipment.
Warning/Caution on using batteries
t Always ensure that the batteries are
inserted with the positive and negative
terminals in the correct direction as shown
in the battery compartment.
t Diferent types of batteries have diferent
characteristics. Do not mix diferent types.
t Do not mix old and new batteries. Mixing
old and new batteries will shorten battery
life and/or cause chemical leaks from the
old batteries.
t When batteries fail to function, replace
them immediately.
t Keep the batteries out of the reach of
children. Should the batteries be swal-
lowed, immediately consult a doctor. Also,
when disposing of used batteries, please
comply with governmental regulations or
environmental public institution rules that
apply in your country/area.
t Remove the batteries if the remote control
is not used for a month or longer.
Page 12 of 32
12Button Function Descriptions

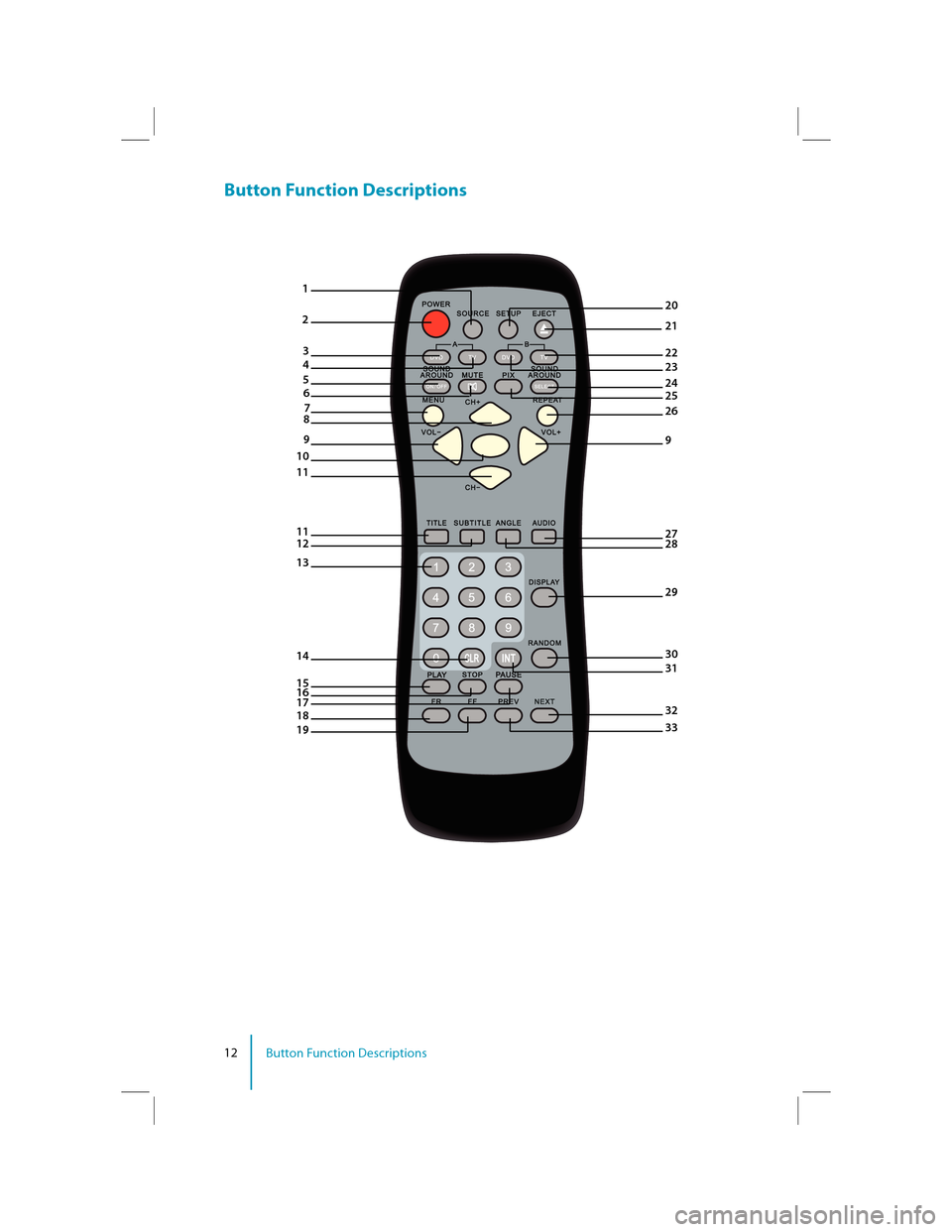

Button Function Descriptions
PLAYPAUSECLRINT
1 2
3 4 5 6
7
8 9
10
11
11
12
13
14
15
16
17
18
19 20
21
22
23
24
25
26 9
27
28
29
30
31
32
33
Page 13 of 32
13Button Function Descriptions
EN1. SOURCE
Any video equipment connected to the
audio/video inputs can be used with the
monitor by pressing this button. Each
time the button is pressed, the audio/
video source will change in the following
sequence: Monitor A, Monitor B, AUX/TV,
AUX 2.
2. POWER
Press the button to turn the device on. The
current video source will be displayed on
the screen, and the picture will appear in a
few seconds. Press the button again to turn
the device off.
3. DVD-Monitor A
Transmit IR codes for DVD mode of
MONITOR A.
4. TV-Monitor A (If available)
Transmit IR codes for TV mode of Monitor A.
5. SOUND AROUND ON/OFF (If available)
Turn the FM transmitter ON/OFF.
6. MUTE (for DVD only)
Press the button to shut off the sound
transmitted to the headphone stations.
The screen will display that the sound has
been turned off. Pressing the button again
restores sound to the previously set level.
7. MENU
Press the button to go to the Root Menu
included on the disc.
8. UP, DOWN
For DVD: Navigation button, you can
use this button to move the select bar to
items among the menu or file list. For TV:
Use these buttons to advance to the next
higher or lower channel. For OSD: Increase
or decrease the setting of selected item.
9. LEFT, RIGHT
Navigation button; you can use this button
to move the select bar to one of the items
in the menu or file list. 10.
ENTER
Makes a selection or begins playback of
the disc.
11. TITLE
Navigate the title menu included in the disc.
12. SUBTITLE
Press this button. If the current disc has dif-
ferent subtitles options, this now appears
on the screen. Press this button repeat-
edly until you have reached your desired
subtitles option.
13. Numbers
Decimal number: 0 to 9.
14. CLR
Press this button to clear any wrong
numeric input from the number keypad.
15. PLAY
Press this button to Play a disc that is
inserted into the DVD Player.
16. STOP
Stop playing the movie or songs.
STOP PLAY: Resumes disc playback.
STOP STOP PLAY: Resumes from the begin-
ning of the disc.
17. PAUSE
While playing, press this button to pause
the playback of the CD or DVD.
18. FR (Fast Rewind)
Press this button to search disc backward
continuously. There are 5 speed options to
choose: 2X, 4X, 8X, 16X, and 32X.
19. FF (Fast Forward)
Press this button to search disc forward
continuously. There are 5 speed options to
choose: 2X, 4X, 8X, 16X, and 32X.
20. SETUP
Navigate the Setup Menu. Please refer to
the appropriate section of this manual for
detailed information on each menu.
Page 14 of 32
14Button Function Descriptions
21. EJECT
Eject the disc from the disc compartment
or load the disc into the disc compartment.
22. TV-Monitor B (If available)
Transmit IR codes for TV mode of Monitor B.
23. 24. DVD-Monitor B
Transmit IR codes for DVD mode of Monitor B.
24. SOUND AROUND SELECT (If available)
Select a FM transmitter channel.
25. PIX (Picture Selection)
Each time the button is pressed, the picture
adjustment OSD, cycles through bars for
BRIGHTNESS, CONTRAST, SATURATION,
HUE, SHARPNESS, IR HEADPHONE, and
RESET. Once the desired adjustment bar
is displayed, use the UP/DOWN button
to adjust the setting. The bar display will
automatically disappear, if no adjustments
are made within 6 seconds or if any button
is pressed.
26. REPEAT
Press this button to switch the repeat mode
by ALL, TITLE, CHAPTER and cancel the repeat
mode while playing DVD-video. Other disc
types such as VCD, CD, and SVCD that only
have two repeat modes that can be selected:
TRACK and ALL
Note: Both repeat functions of VCD and SVCD
need the PBC status set to ON when available.
27. AUDIO
Press this button if the current disc has
different language options.
Press this button repeatedly until you have
reached your desired language option.
28. ANGLE
View with a different camera angle (the
button takes effect only on the DVD that
supports frames with multiple angles).
Press this button repeatedly until you have
reached your desired viewing angle. 29.
DISPLAY
Show information on the screen including
title, chapter/track, time elapsed, and time
remaining, or turn off the display.
30. RANDOM
Play titles randomly.
31. INT (Intro/Scan)
Press this button to play each audio file for
10 seconds to scan/review the files. This
button acts as a toggle for this feature.
32. NEXT
When a disc has more than one Chapter,
Track, or File, you can move to another
Chapter/Track/File.
Press the button briefly during play to
select the next Chapter for DVD-video or
Track/File for VCD, SVCD, MP3, CD, etc.
33. PREV
When a disc has more than one Chapter,
Track, or File, you can move to another
Chapter/Track/File.
Press this button briefly during play to step
back to the previous Chapter for DVD-video
or Track/File for VCD, SVCD, MP3, CD, etc.
Note:
The remote control incorporates an infrared
sensor that relays signals from the remote
control to be controlled simply by pointing its
remote control at the remote sensor eye. This
provides control of auxiliary equipment such
as a video DVD player. The infrared sensor can-
not relay signals from any other manufacturer’s
remote control to its respective component
connected to the AUX input, such as a DVD
player. In this case, you must use the remote
control supplied with the device.
Page 15 of 32
15General Operating Instructions

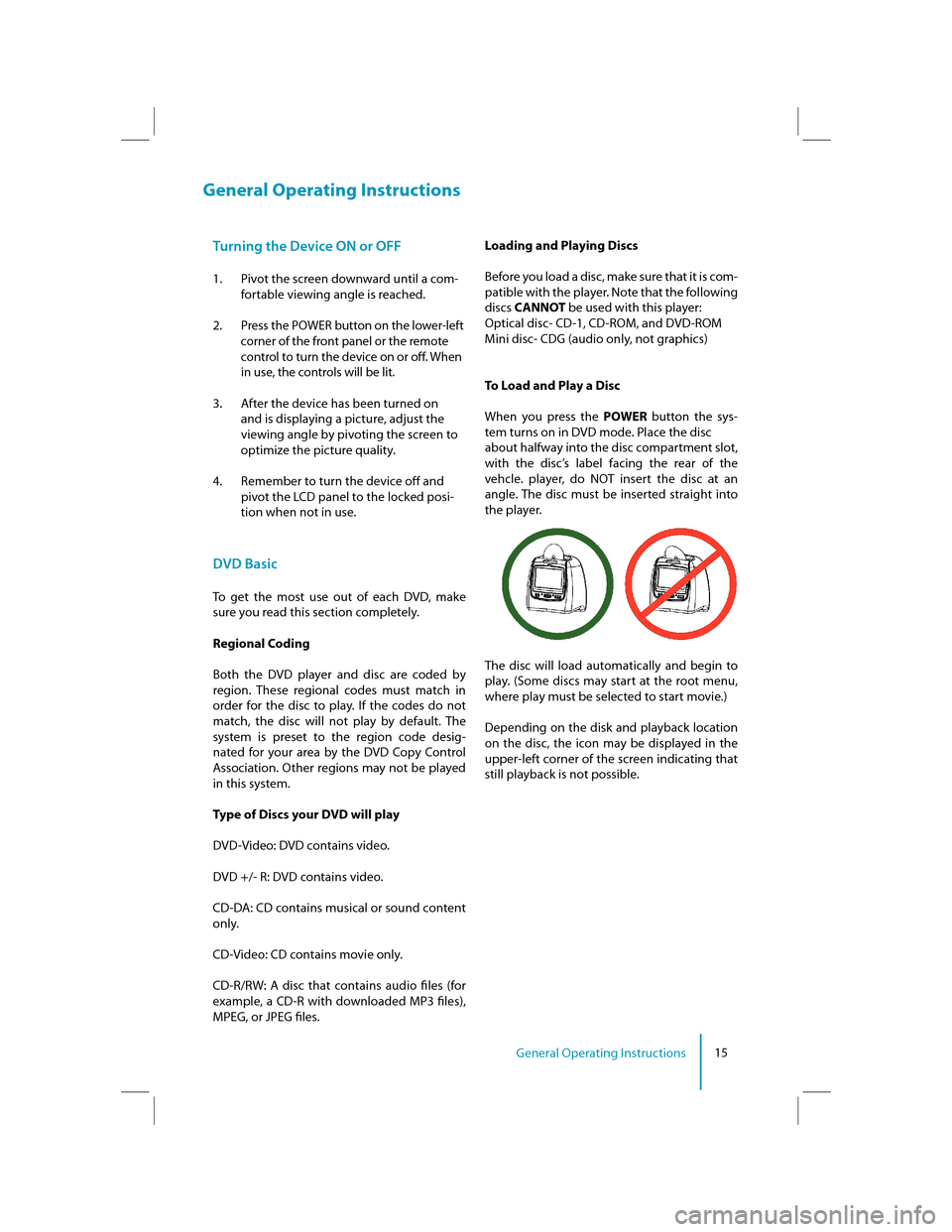

General Operating Instructions
Turning the Device ON or OFF
1. Pivot the screen downward until a com-
fortable viewing angle is reached.
2. Press the POWER button on the lower-left corner of the front panel or the remote
control to turn the device on or of. When
in use, the controls will be lit.
3. After the device has been turned on and is displaying a picture, adjust the
viewing angle by pivoting the screen to
optimize the picture quality.
4. Remember to turn the device of and pivot the LCD panel to the locked posi-
tion when not in use.
DVD Basic
To get the most use out of each DVD, make
sure you read this section completely.
Regional Coding
Both the DVD player and disc are coded by
region. These regional codes must match in
order for the disc to play. If the codes do not
match, the disc will not play by default. The
system is preset to the region code desig-
nated for your area by the DVD Copy Control
Association. Other regions may not be played
in this system.
Type of Discs your DVD will play
DVD-Video: DVD contains video.
DVD +/- R: DVD contains video.
CD-DA: CD contains musical or sound content
only.
CD-Video: CD contains movie only.
CD-R/RW: A disc that contains audio fles (for
example, a CD-R with downloaded MP3 fles),
MPEG, or JPEG fles. Loading and Playing Discs
Before you load a disc, make sure that it is com-
patible with the player. Note that the following
discs
CANNOT be used with this player:
Optical disc- CD-1, CD-ROM, and DVD-ROM
Mini disc- CDG (audio only, not graphics)
To Load and Play a Disc
When you press the POWER button the sys-
tem turns on in DVD mode. Place the disc
about halfway into the disc compartment slot,
with the disc’s label facing the rear of the
vehcle. player, do NOT insert the disc at an
angle. The disc must be inserted straight into
the player.
The disc will load automatically and begin to
play. (Some discs may start at the root menu,
where play must be selected to start movie.)
Depending on the disk and playback location
on the disc, the icon may be displayed in the
upper-left corner of the screen indicating that
still playback is not possible.
