turn signal GENESIS GV60 2023 Owners Manual

2-9
02
Light bulb Bulb type Wattage
FrontHeadlampLow LED LED
High LED LED
Turn signal lamp LED LED
Position lamp LED LED
Daytime Running Lamp (DRL) LED LED
Side marker LED LED
Puddle lamp LED LED
Side repeater lamp LED LED
RearStop lamp LED LED
Tail lamp LED LED
Turn signal lamp (Combined with rear
combination lamp)LED LED
Backup lamp LED LED
Side marker (Combined with rear
combination lamp)LED LED
License plate lamp LED LED
High mounted stop lamp LED LED
InteriorMap lamp LED LED
Personal lamp LED LED
Vanity mirror lamp LED LED
Glove box lamp LED LED
Mood lamp LED LED
Luggage compartment lamp LED LED
Front trunk lamp LED LED
BULB WATTAGE

3-54
Safety System
During a moderate to severe frontal
collision, sensors will detect the
vehicle’s rapid deceleration. If the rate of
deceleration is high enough, the control
unit will inflate the front air bags, at the
time and with the force needed.
The front air bags help protect the driver
and front passenger by responding to
frontal impacts in which seat belts alone
cannot provide adequate restraint. When
needed, the side air bags help provide
protection in the event of a side impact
or rollover by supporting the side upper
body area.

[Air bags are activated (able to inflate
if necessary) only when the Start/Stop
button is in the ON or START position
and it can be activated within about 3
minutes after the vehicle is turned off.

[Air bags inflate in the event of certain
frontal or side collisions to help
protect the occupants from serious
physical injury.

[There is no single speed at which the
air bags will inflate. Generally, air bags
are designed to inflate based upon the
severity of a collision and its direction.
These two factors determine whether
the sensors produce an electronic
deployment/inflation signal.

[The front air bags will completely
inflate and deflate in an instant. It is
virtually impossible for you to see the
air bags inflate during an accident. It is
much more likely that you will simply
see the deflated air bags hanging out
of their storage compartments after
the collision.
[In addition to inflating in serious side
collisions, vehicles equipped with a
rollover sensor, side and/or curtain
air bags and front center air bag will
inflate if the sensing system detects a
rollover.
When a rollover is detected, curtain
air bags will remain inflated longer to
help provide protection from ejection,
especially when used in conjunction
with the seat belts. (if equipped with a
rollover sensor)

[To help provide protection, the air
bags must inflate rapidly. The speed
of air bag inflation is a consequence
of extremely short time in which
to inflate the air bag between the
occupant and the vehicle structures
before the occupant impacts those
structures. This speed of inflation
reduces the risk of serious or life-
threatening injuries and is thus a
necessary part of air bag design.
However, the rapid air bag inflation
can also cause injuries which can
include facial abrasions, bruises and
broken bones because the inflation
speed also causes the air bags to
expand with a great deal of force.

[There are even circumstances under
which contact with the air bag can
cause fatal injuries, especially if the
occupant is positioned excessively
close to the air bag.
You can take steps to reduce the risk
of being injured by an inflating air bag.
The greatest risk is sitting too close to
the air bag. An air bag needs about 10
in. (25 cm) of space to inflate. NHTSA
recommends that drivers allow at least
10 in. (25 cm) between the center of the
steering wheel and the chest.

4
4. Instrument Cluster
Instrument Cluster ............................................................................................ 4-3Instrument Cluster Control ......................................................................................... 4-4
Gauges and Meters ......................................................................................................4-5
Outside temperature gauge ...................................................................................... 4-7
Odometer ................................................................................................................... 4-7
Distance to empty .................................................................................................... 4-8
Fuel economy ............................................................................................................ 4-8
Reduction gear shift indicator ................................................................................. 4-9
Regenerative braking level indicator ....................................................................... 4-9
Warning and Indicator Lights .................................................................................... 4-10
Ready indicator ........................................................................................................ 4-10
Service warning light ............................................................................................... 4-10
Power down indicator light ..................................................................................... 4-10
Charging indicator light ............................................................................................ 4-11
High voltage battery level warning light ................................................................. 4-11
Seat belt warning light ............................................................................................. 4-11
Air bag warning light ................................................................................................ 4-11
Regenerative brake warning light ............................................................................ 4-11
Parking brake & brake fluid warning light .............................................................. 4-12
Anti-lock Brake System (ABS) warning light .......................................................... 4-13
Electronic Brake Force Distribution (EBD) system warning light ......................... 4-13
Electric Power Steering (EPS) warning light .......................................................... 4-14
Master warning light ................................................................................................ 4-14
Electronic Parking Brake (EPB) warning light ........................................................ 4-14
Low tire pressure warning light .............................................................................. 4-15
Forward safety warning light .................................................................................. 4-15
Lane safety indicator light ....................................................................................... 4-16
LED headlight warning light .................................................................................... 4-16
Icy road warning light ...............................................................................................4-17
Electronic Stability Control (ESC) indicator light ....................................................4-17
Electronic Stability Control (ESC) OFF indicator light ............................................4-17
Immobilizer indicator light ...................................................................................... 4-18
Turn signal indicator light ........................................................................................ 4-18
High beam indicator light ....................................................................................... 4-19
Low beam indicator light ........................................................................................ 4-19
Light ON indicator light ........................................................................................... 4-19
High Beam Assist indicator light ............................................................................. 4-19
AUTO HOLD indicator light ..................................................................................... 4-19
LCD Display Messages ...............................................................................................4-20
Shift to P ...................................................................................................................4-20
Vehicle is in N. Press START button and shift to P (and turn vehicle off) .............4-20
Low key battery .......................................................................................................4-20

4
Press START button while turning wheel ...............................................................4-20
Low washer fluid ......................................................................................................4-20
Check steering wheel lock system .........................................................................4-20
Press brake pedal to start vehicle ..........................................................................4-20
Key not in vehicle ....................................................................................................4-20
Key not detected ......................................................................................................4-20
Press START button again ......................................................................................4-20
Place the smart key in the emergency start slot and press the start button ........4-21
Check BRAKE SWITCH fuse ....................................................................................4-21
Shift to P to start vehicle ..........................................................................................4-21
Battery discharging due to external/additional electrical devices .......................4-21
Door, Hood, Liftgate open indicator ........................................................................4-21
Low tire pressure ..................................................................................................... 4-22
Lights ........................................................................................................................4-22
Wiper ........................................................................................................................ 4-22
Check haptic steering wheel system ...................................................................... 4-23
Check headlight ....................................................................................................... 4-23
Check turn signal ..................................................................................................... 4-23
Check headlamp LED .............................................................................................. 4-23
Shift to P to charge .................................................................................................. 4-23
Remaining time ........................................................................................................ 4-23
Unplug vehicle to start ............................................................................................ 4-24
Charging door open ................................................................................................. 4-24
Charging stopped. Check the charger ................................................................... 4-24
Charging stopped. Check the cable connection ................................................... 4-25
Check regenerative brakes...................................................................................... 4-25
Low EV battery ........................................................................................................ 4-25
Charge immediately. Power limited .......................................................................4-26
Power limited due to low EV battery temperature. Charge battery .....................4-26
EV Battery Overheated! Stop vehicle .................................................................... 4-27
Power limited ........................................................................................................... 4-27
Stop vehicle and check power supply ....................................................................4-28
Check virtual engine sound system........................................................................4-28
Check electric vehicle system ................................................................................4-28
LCD Display ..................................................................................................... 4-29LCD Display Control ...................................................................................................4-29
View Modes ................................................................................................................4-29
Driving Assist view .................................................................................................. 4-30
Widget ...................................................................................................................... 4-31
Option Menu ...............................................................................................................4-33
Vehicle Settings (infotainment system) ........................................................ 4-34Setting Your Vehicle ..................................................................................................4-34

4-18

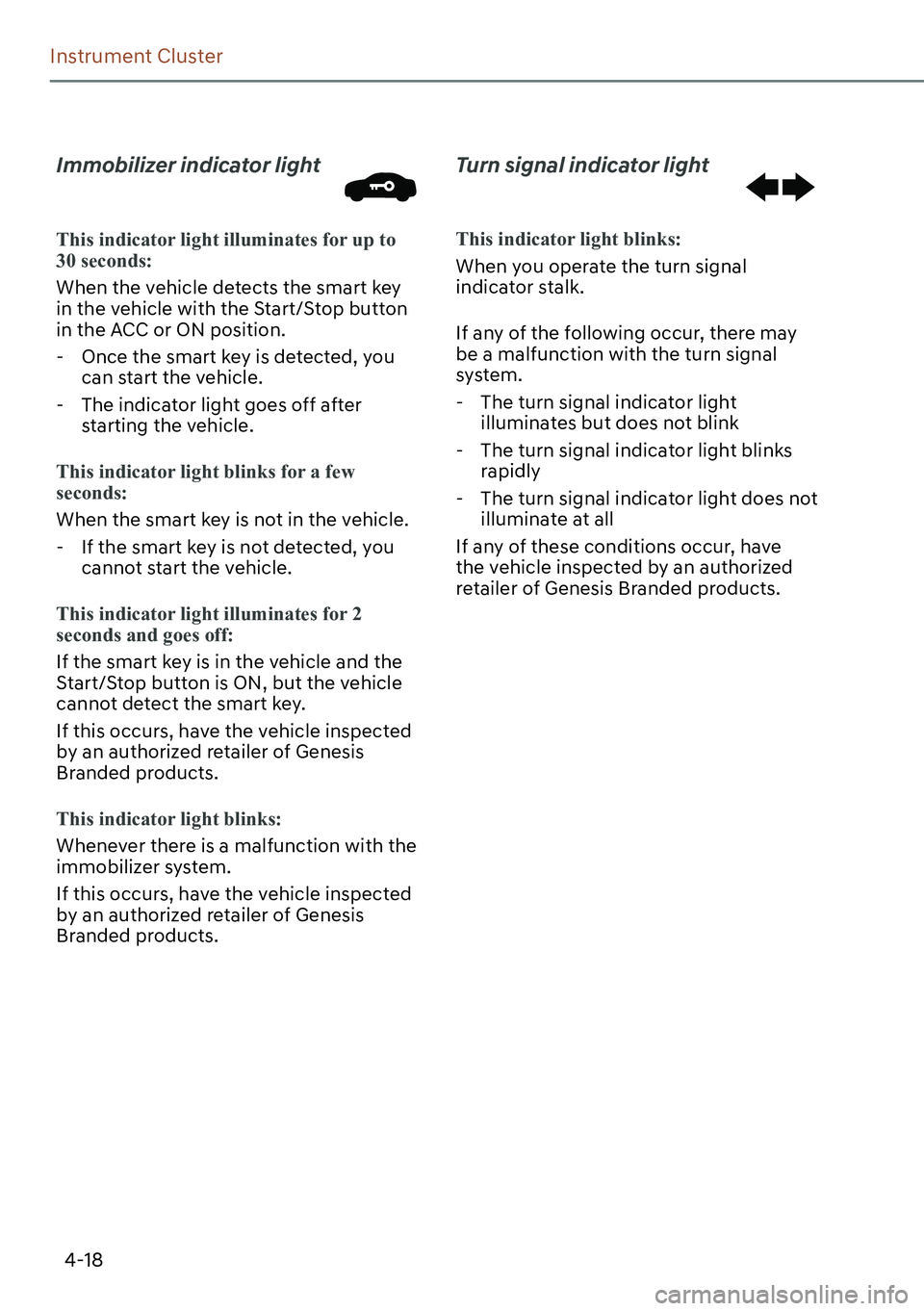

Instrument Cluster
Immobilizer indicator light
This indicator light illuminates for up to
30 seconds:
When the vehicle detects the smart key
in the vehicle with the Start/Stop button
in the ACC or ON position.
- Once the smart key is detected, you
can start the vehicle.
- The indicator light goes off after
starting the vehicle.
This indicator light blinks for a few
seconds:
When the smart key is not in the vehicle.
- If the smart key is not detected, you
cannot start the vehicle.
This indicator light illuminates for 2
seconds and goes off:
If the smart key is in the vehicle and the
Start/Stop button is ON, but the vehicle
cannot detect the smart key.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
This indicator light blinks:
Whenever there is a malfunction with the
immobilizer system.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Turn signal indicator light
This indicator light blinks:
When you operate the turn signal
indicator stalk.
If any of the following occur, there may
be a malfunction with the turn signal
system.
- The turn signal indicator light
illuminates but does not blink
- The turn signal indicator light blinks
rapidly
- The turn signal indicator light does not
illuminate at all
If any of these conditions occur, have
the vehicle inspected by an authorized
retailer of Genesis Branded products.

4-19
04
High beam indicator light
This indicator light illuminates:

[When the headlamps are on and in
the high beam position

[When the turn signal lever is pulled
into the Flash-to-Pass position.
Low beam indicator light
This indicator light illuminates:
When the headlamps are on.
Light ON indicator light
This indicator light illuminates:
When the parking lamps or headlamps
are on.
High Beam Assist indicator
light
This indicator light illuminates:
When the high-beam is on with the light
switch in the AUTO position.
If your vehicle detects oncoming or
preceding vehicles, High Beam Assist
will switch the high beam to low beam
automatically.
For more details, refer to “High Beam
Assist (HBA)” section in chapter 5.
AUTO HOLD indicator light
This indicator light illuminates:

[[White] When you activate Auto Hold
by pressing the AUTO HOLD switch.

[[Green] When you stop the vehicle
completely by depressing the brake
pedal with Auto Hold activated.

[[Yellow] Whenever there is a
malfunction with the Auto Hold
function.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
For more details, refer to “Electronic
Parking Brake (EPB)” section in chapter
6.

4-23
04
Check haptic steering wheel system
(if equipped)
This message is displayed if there is a
problem with the haptic steering wheel
system.
Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Check headlight
This message is displayed if the
headlights are not operating properly. A
lamp may need to be replaced.
Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Check turn signal
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Check headlamp LED
This message is displayed if there is a
problem with the LED headlamp. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
Shift to P to charge
ORG3EVQ011117L
This message is displayed if you connect
the charging cable without the gear in
the P (Park) position.
Shift to P (Park) before connecting the
charging cable.
Remaining time
„AC charge„DC charge
OJWEVQ011117NOJWEVQ011118N
This message is displayed to notify the
remaining time to charge the battery to
the selected target battery charge level.

5-95
05
High beam operation
ORS051271
To turn on the high beam headlamp,
push the lever away from you. The lever
will return to its original position.
The high beam indicator will light when
the headlamp high beams are switched
on.
To turn off the high beam headlamp, pull
the lever towards you. The low beams
will turn on.
OJWEV091053N
To flash the high beam headlamp, pull
the lever towards you, then release the
lever. The high beams will remain ON as
long as you hold the lever towards you.
Turn signals and lane change signals
ORG3EV051074
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position (A).
If an indicator stays on and does not flash
or if it flashes abnormally, one of the turn
signal bulbs may be burned out and will
require replacement.
One touch turn signal
To use One Touch Turn Signal push the
turn signal lever up or down to position
(B) and then release it.
The lane change signals will blink 3, 5 or
7 times.
You can enable the One Touch Turn
Signal function or choose the number
RIEOLQNLQJE\VHOHFWLQJ
S6HWXS

5-125
05
Auto Defogging System
OJWEV051064
Auto defogging helps reduce the
possibility of fogging up the inside of the
windshield by automatically sensing the
moisture on inside the windshield.
The auto defogging system operates
when the heater or air conditioning is on.
Information
The auto defogging system may not
operate normally, when the outside
temperature is below -10 °C (14 °F).
When the Auto Defogging
System operates, the indicator
will illuminate.
If a high amount of humidity is detected
in the vehicle, the Auto Defogging
System will be enabled. The following
steps will be performed automatically:
Step 1) Air conditioning will turn ON.
Step 2) Air intake control will change to
Fresh mode.
Step 3) Mode will change to defrost to
direct airflow to the windshield.
Step 4) Fan speed will be set to MAX.
If the air conditioning is off or
recirculation mode is manually selected
while Auto Defogging System is ON, the
Auto Defogging System indicator will
blink 3 times to signal that the manual
operation has been canceled.
Turning the Auto Defogging System
ON or OFF
Climate control system
Press the front windshield defroster
button for 3 seconds when the Start/Stop
button is in the ON position. When the
Auto Defogging System is turned off, the
ADS OFF symbol will blink 3 times and
ADS OFF will be displayed on the climate
control information screen.
When the Auto Defogging System is
turned on, the ADS OFF symbol will blink
6 times without a signal.
CLIMATE CONTROL ADDITIONAL FEATURES

6-72
Driving Your Vehicle
Driving with a Trailer
Towing a trailer requires a certain
amount of experience. Before setting
out for the open road, you must get to
know your trailer. Acquaint yourself with
the feel of handling and braking with the
added weight of the trailer. And always
keep in mind that the vehicle you are
driving is now longer and not nearly as
responsive as your vehicle is by itself.
Before you start, check the trailer hitch
and platform, safety chains, electrical
connector(s), lights, tires and brakes.
During your trip, occasionally check
to be sure that the load is secure, and
that the lights and trailer brakes are still
working.
Distance
Stay at least twice as far behind the
vehicle ahead as you would when driving
your vehicle without a trailer. This can
help you avoid situations that require
heavy braking and sudden turns.
Passing
You will need more passing distance up
ahead when you’re towing a trailer. And,
because of the increased vehicle length,
you’ll need to go much farther beyond
the passed vehicle before you can return
to your lane.
Backing up
Hold the bottom of the steering wheel
with one hand. Then, to move the trailer
to the left, move your hand to the left. To
move the trailer to the right, move your
hand to the right. Always back up slowly
and, if possible, have someone guide
you.
Making turns
When you’re turning with a trailer, make
wider turns than normal. Do this so your
trailer won’t strike soft shoulders, curbs,
road signs, trees, or other objects. Avoid
jerky or sudden maneuvers. Signal well in
advance.
Turn signals
When you tow a trailer, your vehicle has
to have a different turn signal flasher and
extra wiring. The green arrows on your
instrument panel will flash whenever you
signal a turn or lane change. Properly
connected, the trailer lights will also flash
to alert other drivers you’re about to turn,
change lanes, or stop.
When towing a trailer, the green arrows
on your instrument panel will flash for
turns even if the bulbs on the trailer
are burned out. Thus, you may think
drivers behind you are seeing your
signals when, in fact, they are not. It’s
important to check frequently to be sure
the trailer bulbs are still working. You
must also check the lights every time
you disconnect and then reconnect the
wires.
