2. Insert the hoist end (chiseled end) of the extension
tool through the hole in the rear bumper and into
the funnel-shaped guide. The chiseled end of
the extension is used to lower the spare tire.
3. Turn the wheel wrench (D) counterclockwise to
lower the spare tire to the ground. Continue to
turn the wheel wrench until the spare tire can be
pulled out from under the vehicle.
If the spare tire does not lower to the ground, the
secondary latch is engaged causing the tire not to
lower. See “Secondary Latch System” later in this
section.4. When the tire has been
lowered, tilt the retainer
and slide it up the
cable so it can
be pulled up through
the wheel opening.
5. Put the spare tire near the at tire.
5-77

Removing the Flat Tire and Installing
the Spare Tire
Use the following pictures and instructions to remove
the at tire and raise the vehicle.
The tools you will be using include the bottle jack (A),
the wheel blocks (B), the extension tool (C), the jack
handle extensions (D), and the wheel wrench (E).1. Remove the center cap by placing the chisel end of
the wheel wrench (E) in the slot on the wheel and
gently prying the cap out.
5-78

2. Use the wheel wrench to loosen all the wheel nuts.
Turn the wheel wrench counterclockwise to loosen
the wheel nuts. Do not remove the wheel nuts yet.Front Location
5-79

3. Position the jack (A) under the vehicle as shown. Front Location
Rear Location
5-80

If the at tire is on the front of the vehicle, position
the jack to the rear of the front tire in the pocket
off of the frame.
If the at tire is on the rear, position the jack under
the rear axle and get as close as possible to the
shock absorber.
{CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack you
could be badly injured or killed. Never get
under a vehicle when it is supported only by
a jack.
{CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall. To help avoid personal
injury and vehicle damage, be sure to t the
jack lift head into the proper location before
raising the vehicle. Front Location
5-81

4. Make sure the jack head is positioned so that the
rear axle is resting securely between the grooves
that are on the jack head.
5. Turn the wheel wrench clockwise to raise the
vehicle. Raise the vehicle far enough off the ground
so there is enough room for the spare tire to t
under the wheel well.6. Remove all the wheel
nuts and take off the
at tire.
7. Remove any rust or dirt
from the wheel bolts,
mounting surfaces
and spare wheel. Rear Position
5-82

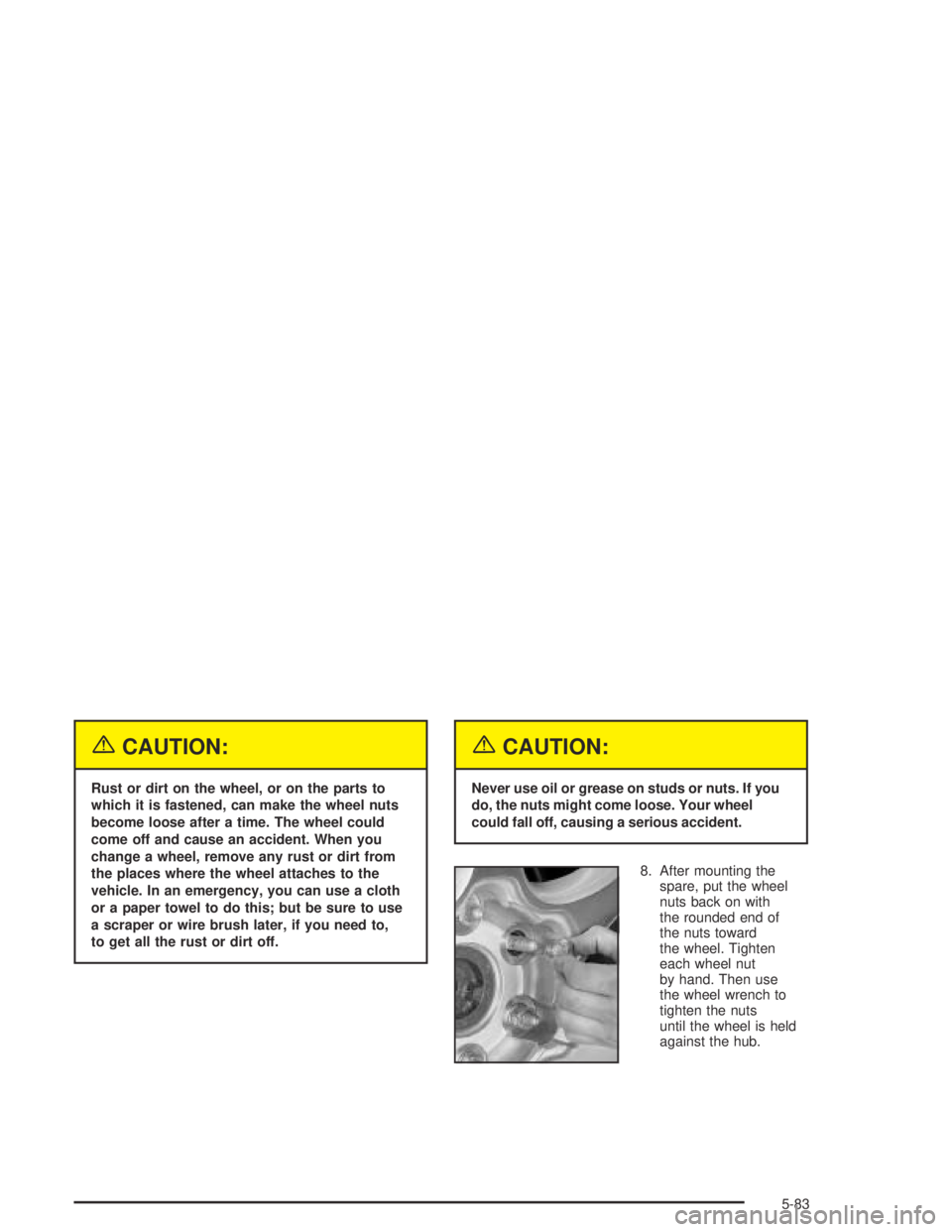

{CAUTION:
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after a time. The wheel could
come off and cause an accident. When you
change a wheel, remove any rust or dirt from
the places where the wheel attaches to the
vehicle. In an emergency, you can use a cloth
or a paper towel to do this; but be sure to use
a scraper or wire brush later, if you need to,
to get all the rust or dirt off.
{CAUTION:
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel
could fall off, causing a serious accident.
8. After mounting the
spare, put the wheel
nuts back on with
the rounded end of
the nuts toward
the wheel. Tighten
each wheel nut
by hand. Then use
the wheel wrench to
tighten the nuts
until the wheel is held
against the hub.
5-83

9. Turn the wheel wrench counterclockwise to lower
the vehicle. Lower the jack completely. Front Position
Rear Position
5-84

10. Tighten the wheel nuts
rmly in a crisscross
sequence as shown by
turning the wheel
wrench clockwise.
{CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to come loose
and even come off. This could lead to an
accident. Be sure to use the correct wheel
nuts. If you have to replace them, be sure to
get new GM original equipment wheel nuts.
CAUTION: (Continued)
CAUTION: (Continued)
Stop somewhere as soon as you can and have
the nuts tightened with a torque wrench to the
proper torque specication. See “Capacities
and Specications” in the Index for wheel nut
torque specication.
Notice:Improperly tightened wheel nuts can lead
to brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specication. See “Capacities and
Specications” in the index for the wheel nut
torque specication.
When you reinstall the regular wheel and tire, you must
also reinstall the center cap. Place the cap on the
wheel and tap it into place until it seats ush with the
wheel. The cap only goes on one way. Be sure to line up
the tab on the center cap with the indentation on the
wheel.
5-85

Storing a Flat or Spare Tire,
Jack and Tools
{CAUTION:
Storing a jack, a tire, or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision,
loose equipment could strike someone.
Store all these in the proper place.
Notice:Storing an aluminum wheel with a at tire
under your vehicle for an extended period of time or
with the valve stem pointing up may damage the
wheel. Always stow the wheel with the valve
stem pointing down and have the wheel/tire repaired
as soon as possible.Store the tire under the rear of the vehicle in the spare tire
carrier. Use the art and text following to help you.
1. Put the tire on the ground at the rear of the vehicle
with the valve stem pointed down.
