GMC ENVOY 1998 Owners Manual

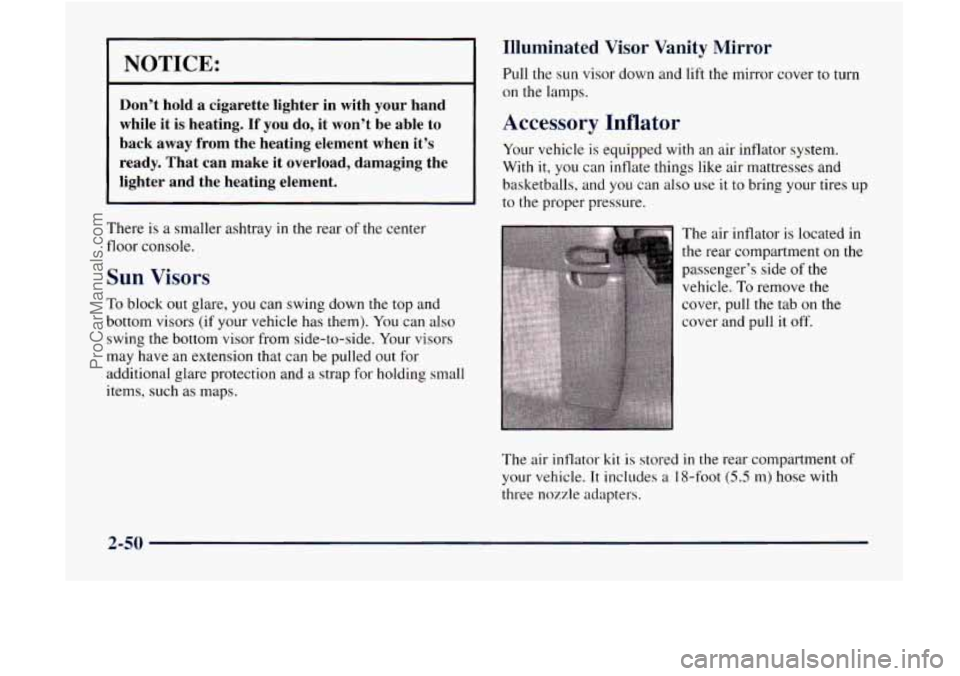

NOTICE:
Don’t hold a cigarette lighter in with your hand
while
it is heating. If you do, it won’t be able to
back away from the heating element when it’s
ready. That can make it overload, damaging the
lighter and the heating element.
There is a smaller ashtray in the rear of the center
floor console.
Sun Visors
To block out glare, you can swing down the top and
bottom visors
(if your vehicle has them). You can also
swing the bottom visor from side-to-side. Your visors
may have an extension that can be pulled out for
additional glare protection and a strap for holding small
items, such
as maps.
Illuminated Visor Vanity Mirror
Pull the sun visor down and lift the mirror cover to turn
on the lamps.
Accessory Inflator
Your vehicle is equipped with an air inflator system.
With
it, you can inflate things like air mattresses and
basketballs, and you can also use it to bring your tires up
to the proper pressure.
The air inflator is located in
the rear compartment on the
passenger’s side
of the
vehicle.
To remove the
cover, pull the tab on the
cover and pull
it off’.
The air inflator kit
is stored in the rear compartment of
your vehicle. It includes a I %foot (5.5 m) hose with
three nozzle adapters.
2-50
ProCarManuals.com

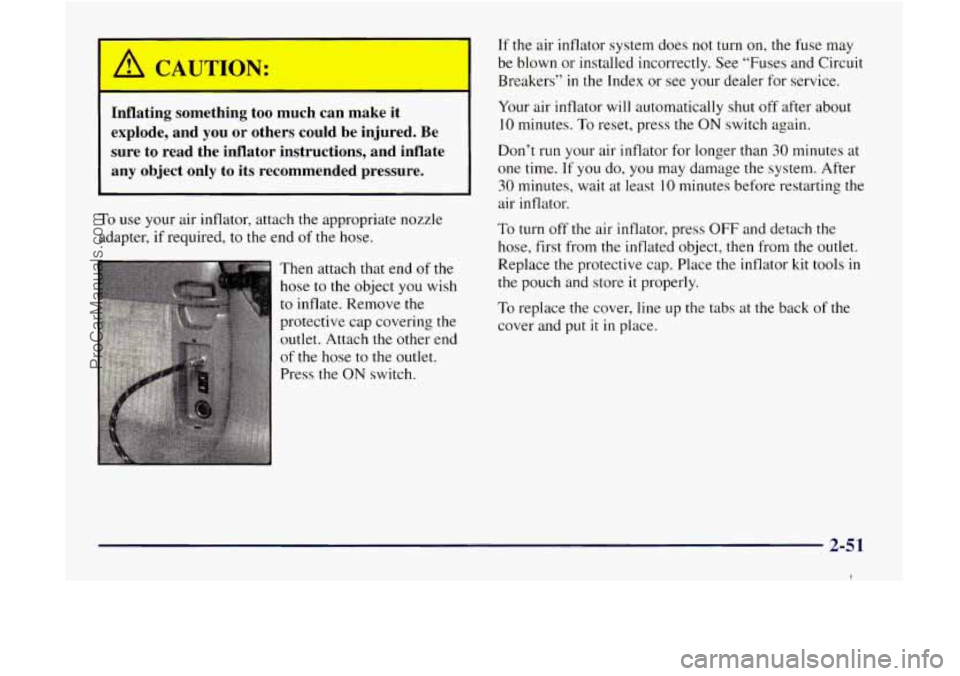

Inflating something too much can make it
explode, and
you or others could be injured. Be
sure to read the inflator instructions, and inflate
any object only to its recommended pressure.
To use your air inflator, attach the appropriate nozzle
adapter, if required, to the end of the hose.
Then attach that end of
the
hose to the object you wish
to inflate. Remove
the
protective cap covering the
outlet. Attach
the other end
of
the hose to the outlet.
Press the
ON switch.
If the air inflator system does not turn on, the fuse may
be blown
or installed incorrectly. See “Fuses and Circuit
Breakers”
in the Index or see your dealer for service.
Your air inflator will automatically shut off after about
10 minutes. To reset, press the ON switch again.
Don’t
run your air inflator for longer than 30 minutes at
one time.
If you do, you may damage the system. After
30 minutes, wait at least 10 minutes before restarting the
air inflator.
To turn off the air inflator, press OFF and detach the
hose, first from the inflated object, then from the outlet.
Replace the protective cap. Place the inflator kit tools
in
the pouch and store it properly.
To replace the cover, line up the tabs at the back of the
cover and put
it in place.
2-51
!
ProCarManuals.com

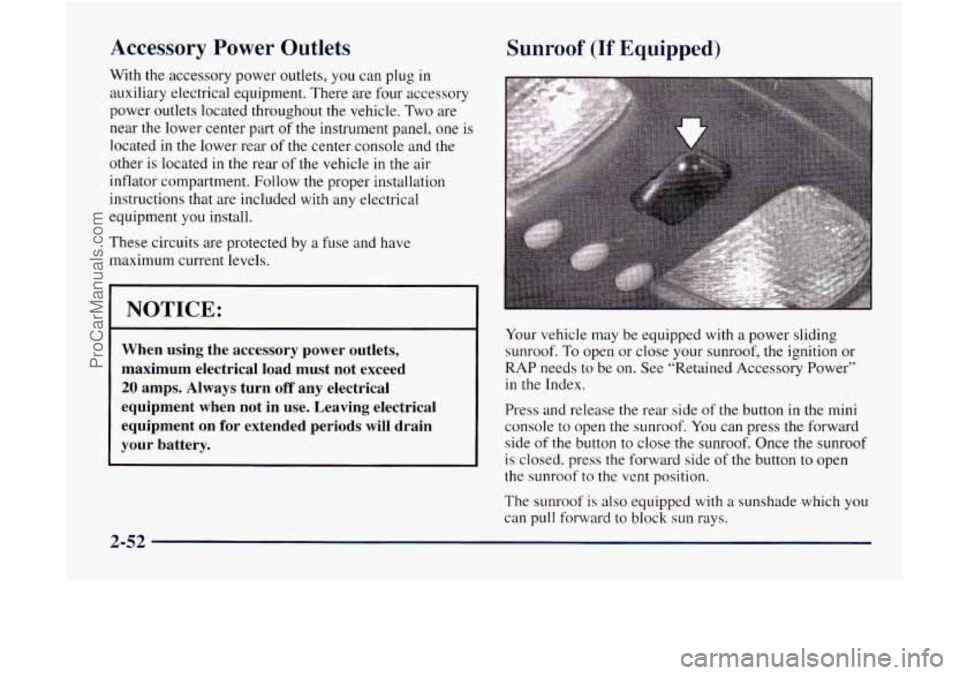

Accessory Power Outlets
With the accessory power outlets, you can plug in
auxiliary electrical equipment. There are four accessory
power outlets located throughout the vehicle. Two are
near the lower center part
of the instrument panel, one is
located in
the lower rear of the center console and the
other is located in
the rear of the vehicle in the air
inflator compartment. Follow the proper installation
instructions that are included with any electrical
equipment you install.
These circuits are protected by
a fuse and have
maximum current levels.
NOTICE:
When using the accessory power outlets,
maximum electrical load must not exceed
20 amps. Always turn off any electrical
equipment when not in use. Leaving electrical
equipment on for extended periods will drain
your battery.
Sunroof (If Equipped)
Your vehicle may be equipped with a power sliding
sunroof. To open or close your sunroof, the ignition or
RAP needs to be on. See “Retained Accessory Power”
in the Index.
Press and release the rear side
of the button in the mini
console to open the sunroof. You can press the forward
side
of the button to close the sunroof. Once the sunroof
is closed, press the forward side of the button to open
the sunroof to the vent position.
The sunroof
is also equipped with a sunshade which you
can pull forward to block sun rays.
2-52
ProCarManuals.com

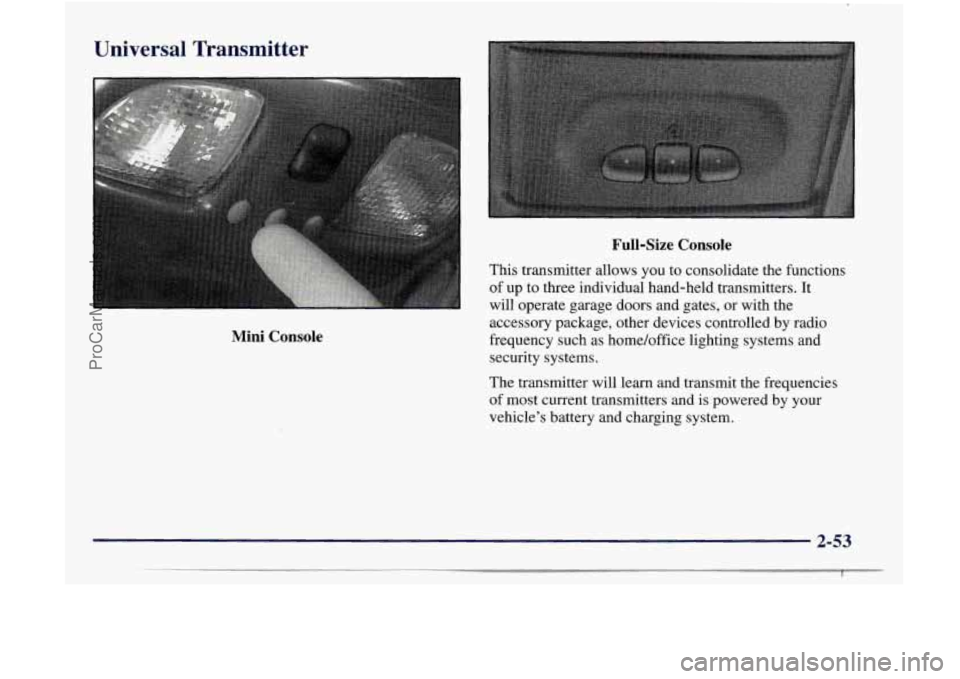

Universal Transmitter
Mini Console Full-Size
Console
This transmitter allows you to consolidate the functions
of up to three individual hand-held transmitters. It
will operate garage doors and gates, or with the
accessory package, other devices controlled by radio
frequency such as home/office lighting systems and
security systems.
The transmitter will learn and transmit the frequencies
of most current transmitters and is powered by your
vehicle’s battery and charging system.
2-53
I
ProCarManuals.com

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with
RSS-2 10 of Industry Canada.
Operation
is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of
the device.
Changes and modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
Programming the Transmitter
Do not use the transmitter with any garage door opener
that does not have the “stop and reverse” feature. This
includes any garage door opener model manufactured
before April
1, 1982.
Be sure that pe~ple arid objects Lire clear of the garclge
door- you ~1-e Iwogmmning!
Your vehicle’s engine should be turned off while
programming the transmitter. Follow these steps to
program up to three channels:
1. If you have not previously programmed a universal
channel, proceed to Step
2. Otherwise, hold down
the two outside buttons
on the universal transmitter
until the red light begins to flash rapidly
(approximately
20 seconds). Then release the
buttons. This procedure initializes the memory and
erases any previous settings for all three channels.
2. Hold the end of the hand-held transmitter against the
bottom surface
of the universal transmitter so that
you can still see the red light.
2-54
ProCarManuals.com

3.
4.
Decide which one of the three channels you want to
program. Using both hands, press the hand-held
transmitter button and the desired button
on the
universal transmitter. Continue
to hold both buttons
through Step
4.
Hold down both buttons until you see the red light
on the universal transmitter flash rapidly. The rapid
flashing, which could take up to
90 seconds,
indicates that the universal transmitter has been
programmed. Release both buttons once the light
starts
to flash rapidly.
If you have trouble programming the universal
transmitter, make sure that you have followed the
directions exactly as described and that the battery
in the
hand-held transmitter is not dead. If you still cannot
program
it, rotate the hand-held transmitter end over end
and try again. The universal transmitter may not work
with older garage door openers that do not meet current
Federal Consumer Safety Standards.
If you cannot
program the transmitter after repeated attempts, consult
your
GMC dealer. Be
sure to keep the original hand-held transmitter
in case you need to erase and reprogram the
universal transmitter.
Operating the Transmitter
Press and hold the appropriate button on the universal
transmitter. The red light comes on while the signal is
being transmitted.
Note that the effective transmission range of the
universal transmitter may differ from the hand-held
transmitter and from one channel to another.
2-55
I
ProCarManuals.com

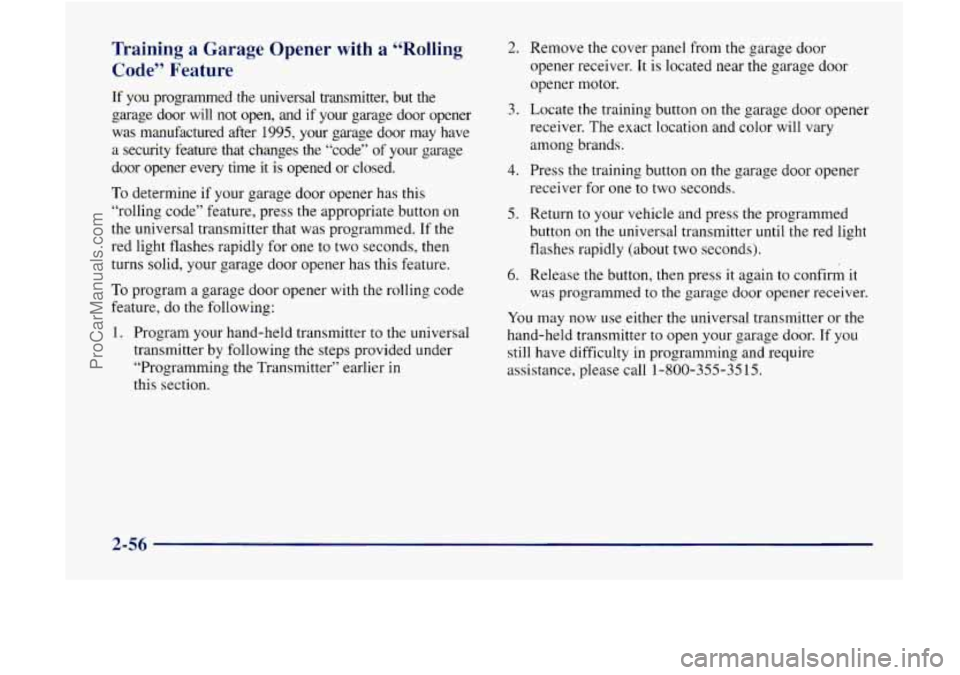

Training a Garage Opener with a “Rolling
Code” Feature
If you programmed the universal transmitter, but the
garage door will not open, and
if your garage door opener
was manufactured after
1995, your garage door may have
a security feature that changes the “code” of your garage
door opener every time it is opened or closed.
To determine if your garage door opener has this
“rolling code” feature, press the appropriate button on
the universal transmitter that was programmed.
If the
red light flashes rapidly for one to two seconds, then
turns solid, your garage door opener has this feature.
To program a garage door opener with the rolling code
feature, do the following:
1. Program your hand-held transmitter to the universal
transmitter by following the steps provided under
“Programming the Transmitter” earlier in
this section.
2.
3.
4.
5.
6.
Remove the cover panel from the garage door
opener receiver.
It is located near the garage door
opener motor.
Locate the training button on the garage door opener
receiver. The exact location and color will vary
among brands.
Press the training button on the garage door opener
receiver for one to two seconds.
Return to your vehicle and press the programmed
button on the universal transmitter
until the red light
flashes rapidly (about two seconds).
Release the button, then press it again to confirm it
was programmed
to the garage door opener receiver.
You may now use either the universal transmitter or the
hand-held transmitter to open your garage door.
If you
still have difficulty in programming and require
assistance, please call
1-800-355-35 15.
2-56
ProCarManuals.com

Erasing Ch; !lS
To erase all three programmed channels, hold down the
two outside buttons
until the red light begins to flash.
Individual channels cannot be erased, but can be
reprogrammed using the procedure for programming the
transmitter explained earlier.
Accessories
Accessories for the universal transmitter are available
from the manufacturer of
the unit. If you would like
additional information, please call
1-800-355-35 15.
Cellular Telephone (Option)
Your vehicle has been prewired for dealer installation of
a dual-mode (analog/digital) cellular telephone.
A fixed
mobile or a portable hand-held system is available.
Voice activation and hands-free operation are standard
features. For more information, contact your
GMC
dealer. A user’s guide is provided with the telephone.
Onstar@ System (Optional)
This system may be ordered if you have the optional
fixed cellular telephone. the following services are
available
24 hours a day:
0 Roadside Services with location
0 Emergency Services Button
Remote Door Unlock
0 Theft Detectionhlotification and Stolen-Vehicle
Tracking
0 Automatic Notification of Air Bag Deployment
ConciergeKustomer Convenience Services
For more information, contact your GMC dealer.
2-57
1
ProCarManuals.com

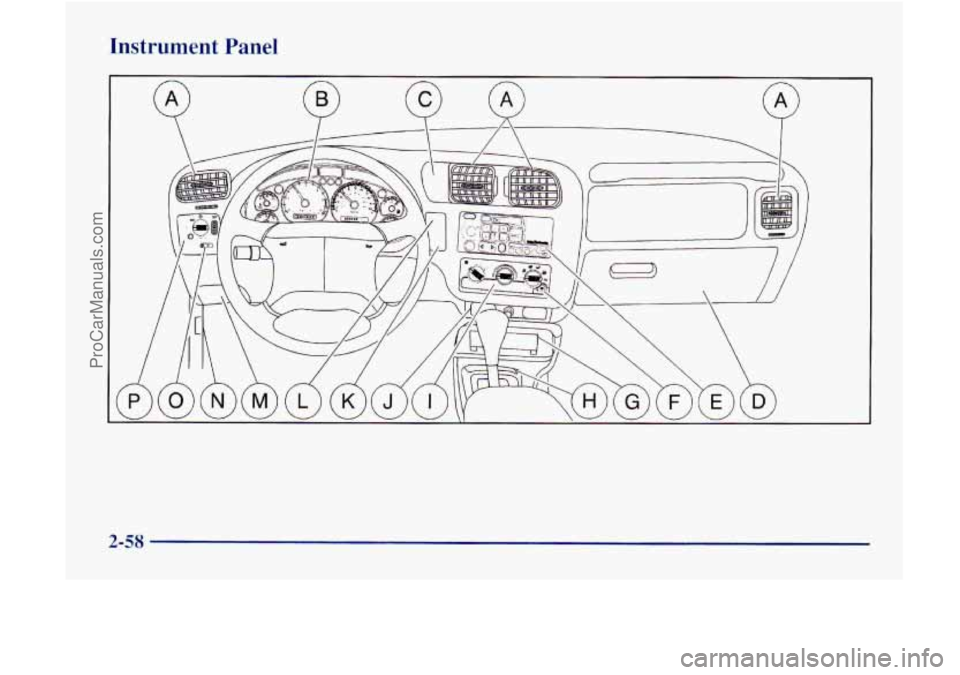

Instrument Panel
2-58
ProCarManuals.com

A. Air Vents
B. Instrument Cluster
C. Electronic Transfer Case
D. Glove Box
E. Audio System
E Rear Window Defogger
G. CD Changer
H. Ashtray
1. Comfort Controls
J. Accessory Power Outlets and Lighter
K. Rear Liftgate Release
L. Rear Window Washerwiper
M. Brake Release
N. Hood Release
0. Fog Lamps
P. Lamp Controls
2-59
