glove box GMC SIERRA 2022 Owners Manual

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15883563) - 2022 - CRC - 11/19/21

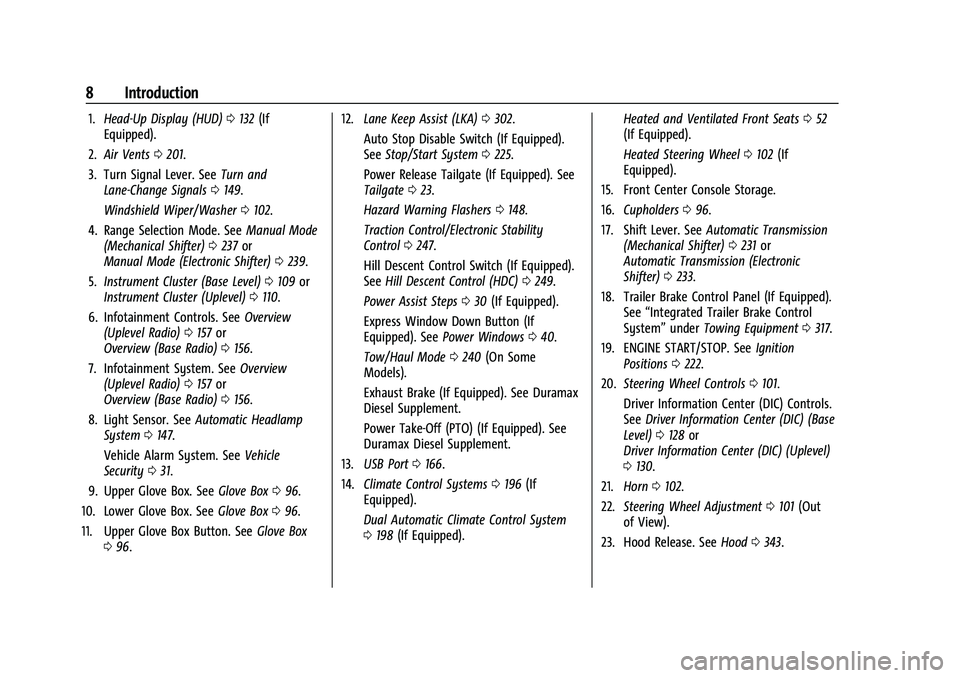

8 Introduction
1.Head-Up Display (HUD) 0132 (If
Equipped).
2. Air Vents 0201.
3. Turn Signal Lever. See Turn and
Lane-Change Signals 0149.
Windshield Wiper/Washer 0102.
4. Range Selection Mode. See Manual Mode
(Mechanical Shifter) 0237 or
Manual Mode (Electronic Shifter) 0239.
5. Instrument Cluster (Base Level) 0109 or
Instrument Cluster (Uplevel) 0110.
6. Infotainment Controls. See Overview
(Uplevel Radio) 0157 or
Overview (Base Radio) 0156.
7. Infotainment System. See Overview
(Uplevel Radio) 0157 or
Overview (Base Radio) 0156.
8. Light Sensor. See Automatic Headlamp
System 0147.
Vehicle Alarm System. See Vehicle
Security 031.
9. Upper Glove Box. See Glove Box096.
10. Lower Glove Box. See Glove Box096.
11. Upper Glove Box Button. See Glove Box
0 96. 12.
Lane Keep Assist (LKA) 0302.
Auto Stop Disable Switch (If Equipped).
See Stop/Start System 0225.
Power Release Tailgate (If Equipped). See
Tailgate 023.
Hazard Warning Flashers 0148.
Traction Control/Electronic Stability
Control 0247.
Hill Descent Control Switch (If Equipped).
See Hill Descent Control (HDC) 0249.
Power Assist Steps 030 (If Equipped).
Express Window Down Button (If
Equipped). See Power Windows 040.
Tow/Haul Mode 0240 (On Some
Models).
Exhaust Brake (If Equipped). See Duramax
Diesel Supplement.
Power Take-Off (PTO) (If Equipped). See
Duramax Diesel Supplement.
13. USB Port 0166.
14. Climate Control Systems 0196 (If
Equipped).
Dual Automatic Climate Control System
0 198 (If Equipped). Heated and Ventilated Front Seats
052
(If Equipped).
Heated Steering Wheel 0102 (If
Equipped).
15. Front Center Console Storage.
16. Cupholders 096.
17. Shift Lever. See Automatic Transmission
(Mechanical Shifter) 0231 or
Automatic Transmission (Electronic
Shifter) 0233.
18. Trailer Brake Control Panel (If Equipped). See“Integrated Trailer Brake Control
System” underTowing Equipment 0317.
19. ENGINE START/STOP. See Ignition
Positions 0222.
20. Steering Wheel Controls 0101.
Driver Information Center (DIC) Controls.
See Driver Information Center (DIC) (Base
Level) 0128 or
Driver Information Center (DIC) (Uplevel)
0 130.
21. Horn 0102.
22. Steering Wheel Adjustment 0101 (Out
of View).
23. Hood Release. See Hood0343.

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15883563) - 2022 - CRC - 11/19/21

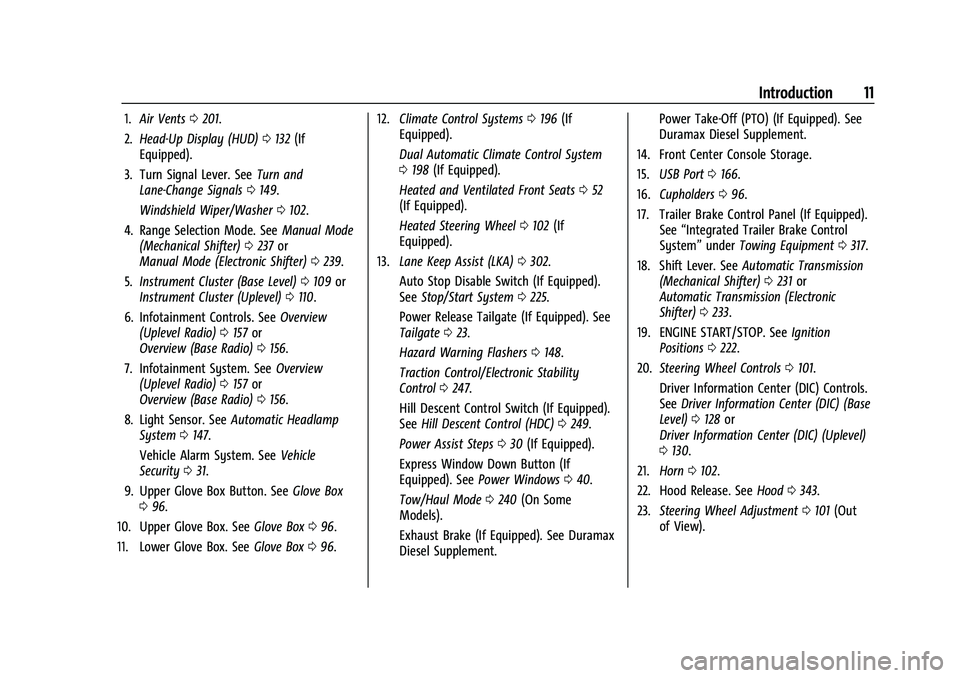

Introduction 11
1.Air Vents 0201.
2. Head-Up Display (HUD) 0132 (If
Equipped).
3. Turn Signal Lever. See Turn and
Lane-Change Signals 0149.
Windshield Wiper/Washer 0102.
4. Range Selection Mode. See Manual Mode
(Mechanical Shifter) 0237 or
Manual Mode (Electronic Shifter) 0239.
5. Instrument Cluster (Base Level) 0109 or
Instrument Cluster (Uplevel) 0110.
6. Infotainment Controls. See Overview
(Uplevel Radio) 0157 or
Overview (Base Radio) 0156.
7. Infotainment System. See Overview
(Uplevel Radio) 0157 or
Overview (Base Radio) 0156.
8. Light Sensor. See Automatic Headlamp
System 0147.
Vehicle Alarm System. See Vehicle
Security 031.
9. Upper Glove Box Button. See Glove Box
0 96.
10. Upper Glove Box. See Glove Box096.
11. Lower Glove Box. See Glove Box096. 12.
Climate Control Systems 0196 (If
Equipped).
Dual Automatic Climate Control System
0 198 (If Equipped).
Heated and Ventilated Front Seats 052
(If Equipped).
Heated Steering Wheel 0102 (If
Equipped).
13. Lane Keep Assist (LKA) 0302.
Auto Stop Disable Switch (If Equipped).
See Stop/Start System 0225.
Power Release Tailgate (If Equipped). See
Tailgate 023.
Hazard Warning Flashers 0148.
Traction Control/Electronic Stability
Control 0247.
Hill Descent Control Switch (If Equipped).
See Hill Descent Control (HDC) 0249.
Power Assist Steps 030 (If Equipped).
Express Window Down Button (If
Equipped). See Power Windows 040.
Tow/Haul Mode 0240 (On Some
Models).
Exhaust Brake (If Equipped). See Duramax
Diesel Supplement. Power Take-Off (PTO) (If Equipped). See
Duramax Diesel Supplement.
14. Front Center Console Storage.
15. USB Port 0166.
16. Cupholders 096.
17. Trailer Brake Control Panel (If Equipped). See“Integrated Trailer Brake Control
System” underTowing Equipment 0317.
18. Shift Lever. See Automatic Transmission
(Mechanical Shifter) 0231 or
Automatic Transmission (Electronic
Shifter) 0233.
19. ENGINE START/STOP. See Ignition
Positions 0222.
20. Steering Wheel Controls 0101.
Driver Information Center (DIC) Controls.
See Driver Information Center (DIC) (Base
Level) 0128 or
Driver Information Center (DIC) (Uplevel)
0 130.
21. Horn 0102.
22. Hood Release. See Hood0343.
23. Steering Wheel Adjustment 0101 (Out
of View).

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15883563) - 2022 - CRC - 11/19/21

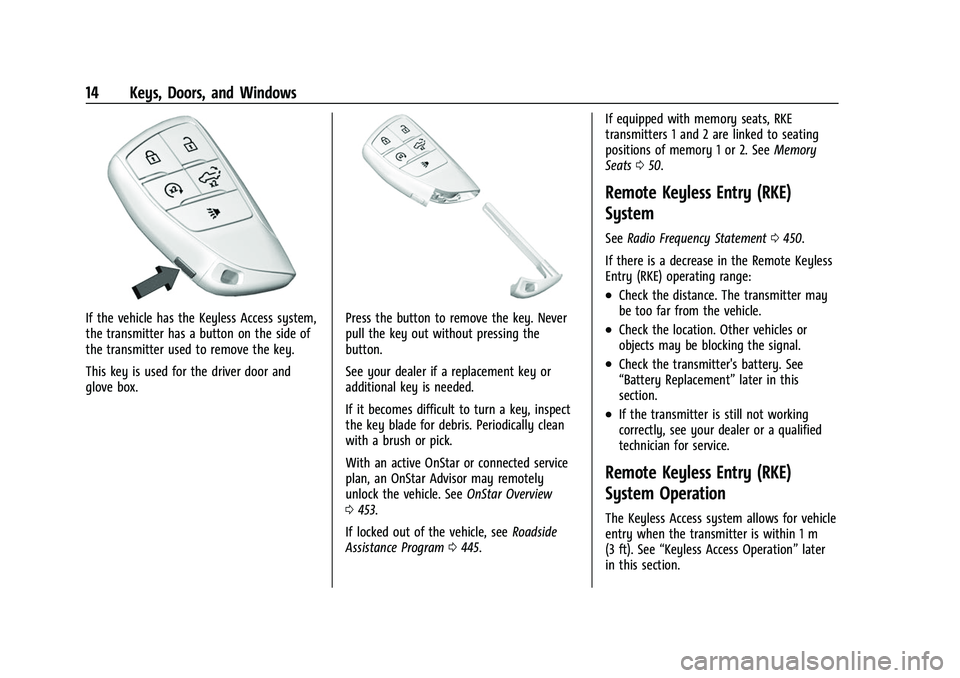

14 Keys, Doors, and Windows
If the vehicle has the Keyless Access system,
the transmitter has a button on the side of
the transmitter used to remove the key.
This key is used for the driver door and
glove box.Press the button to remove the key. Never
pull the key out without pressing the
button.
See your dealer if a replacement key or
additional key is needed.
If it becomes difficult to turn a key, inspect
the key blade for debris. Periodically clean
with a brush or pick.
With an active OnStar or connected service
plan, an OnStar Advisor may remotely
unlock the vehicle. SeeOnStar Overview
0 453.
If locked out of the vehicle, see Roadside
Assistance Program 0445. If equipped with memory seats, RKE
transmitters 1 and 2 are linked to seating
positions of memory 1 or 2. See
Memory
Seats 050.
Remote Keyless Entry (RKE)
System
See Radio Frequency Statement 0450.
If there is a decrease in the Remote Keyless
Entry (RKE) operating range:
.Check the distance. The transmitter may
be too far from the vehicle.
.Check the location. Other vehicles or
objects may be blocking the signal.
.Check the transmitter's battery. See
“Battery Replacement” later in this
section.
.If the transmitter is still not working
correctly, see your dealer or a qualified
technician for service.
Remote Keyless Entry (RKE)
System Operation
The Keyless Access system allows for vehicle
entry when the transmitter is within 1 m
(3 ft). See “Keyless Access Operation” later
in this section.

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15883563) - 2022 - CRC - 11/19/21

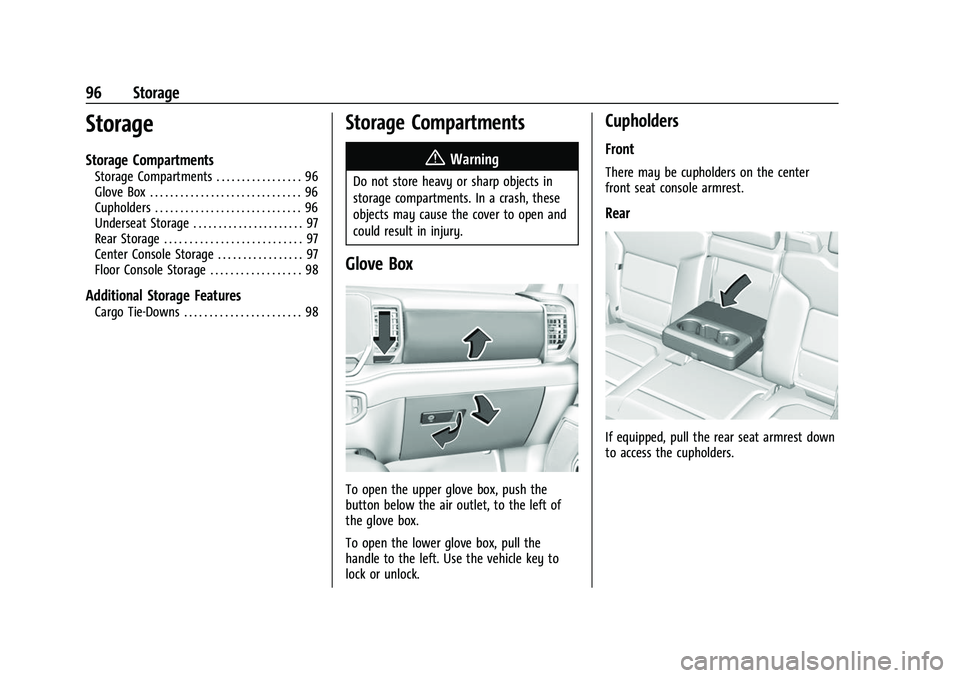

96 Storage
Storage
Storage Compartments
Storage Compartments . . . . . . . . . . . . . . . . . 96
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Underseat Storage . . . . . . . . . . . . . . . . . . . . . . 97
Rear Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Center Console Storage . . . . . . . . . . . . . . . . . 97
Floor Console Storage . . . . . . . . . . . . . . . . . . 98
Additional Storage Features
Cargo Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . 98
Storage Compartments{
Warning
Do not store heavy or sharp objects in
storage compartments. In a crash, these
objects may cause the cover to open and
could result in injury.
Glove Box
To open the upper glove box, push the
button below the air outlet, to the left of
the glove box.
To open the lower glove box, pull the
handle to the left. Use the vehicle key to
lock or unlock.
Cupholders
Front
There may be cupholders on the center
front seat console armrest.
Rear
If equipped, pull the rear seat armrest down
to access the cupholders.

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15883563) - 2022 - CRC - 11/19/21

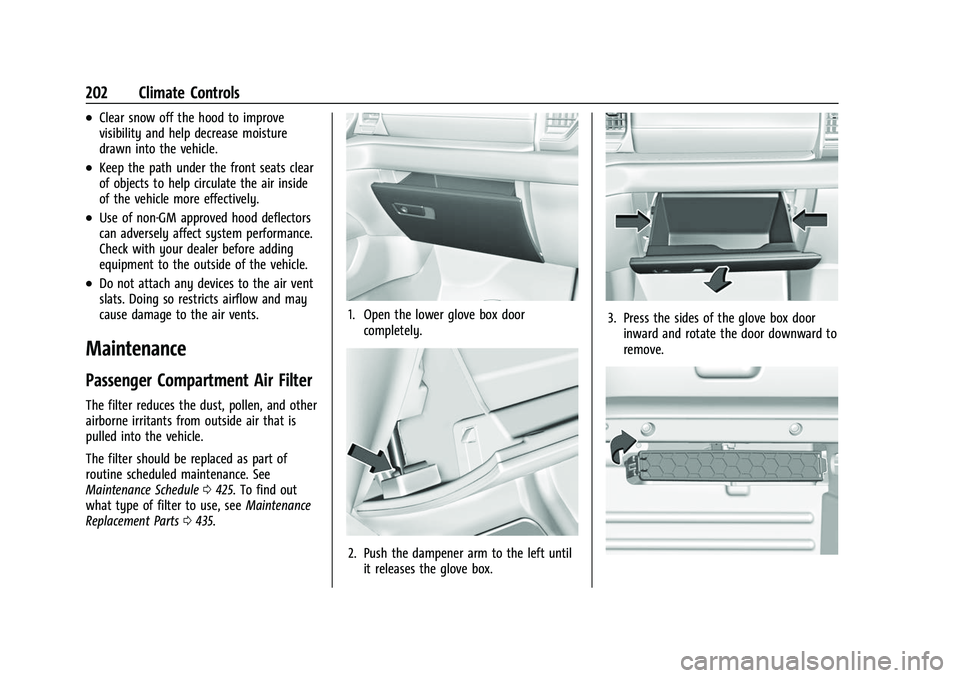

202 Climate Controls
.Clear snow off the hood to improve
visibility and help decrease moisture
drawn into the vehicle.
.Keep the path under the front seats clear
of objects to help circulate the air inside
of the vehicle more effectively.
.Use of non-GM approved hood deflectors
can adversely affect system performance.
Check with your dealer before adding
equipment to the outside of the vehicle.
.Do not attach any devices to the air vent
slats. Doing so restricts airflow and may
cause damage to the air vents.
Maintenance
Passenger Compartment Air Filter
The filter reduces the dust, pollen, and other
airborne irritants from outside air that is
pulled into the vehicle.
The filter should be replaced as part of
routine scheduled maintenance. See
Maintenance Schedule0425. To find out
what type of filter to use, see Maintenance
Replacement Parts 0435.
1. Open the lower glove box door
completely.
2. Push the dampener arm to the left untilit releases the glove box.
3. Press the sides of the glove box doorinward and rotate the door downward to
remove.

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15883563) - 2022 - CRC - 11/19/21

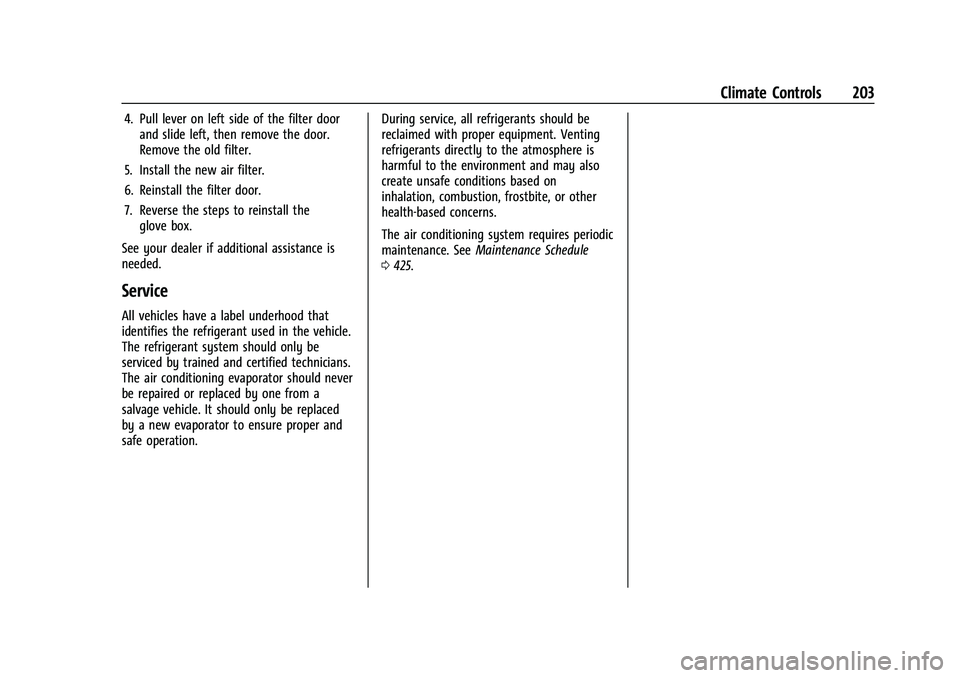

Climate Controls 203
4. Pull lever on left side of the filter doorand slide left, then remove the door.
Remove the old filter.
5. Install the new air filter.
6. Reinstall the filter door.
7. Reverse the steps to reinstall the glove box.
See your dealer if additional assistance is
needed.
Service
All vehicles have a label underhood that
identifies the refrigerant used in the vehicle.
The refrigerant system should only be
serviced by trained and certified technicians.
The air conditioning evaporator should never
be repaired or replaced by one from a
salvage vehicle. It should only be replaced
by a new evaporator to ensure proper and
safe operation. During service, all refrigerants should be
reclaimed with proper equipment. Venting
refrigerants directly to the atmosphere is
harmful to the environment and may also
create unsafe conditions based on
inhalation, combustion, frostbite, or other
health-based concerns.
The air conditioning system requires periodic
maintenance. See
Maintenance Schedule
0 425.

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15883563) - 2022 - CRC - 11/19/21

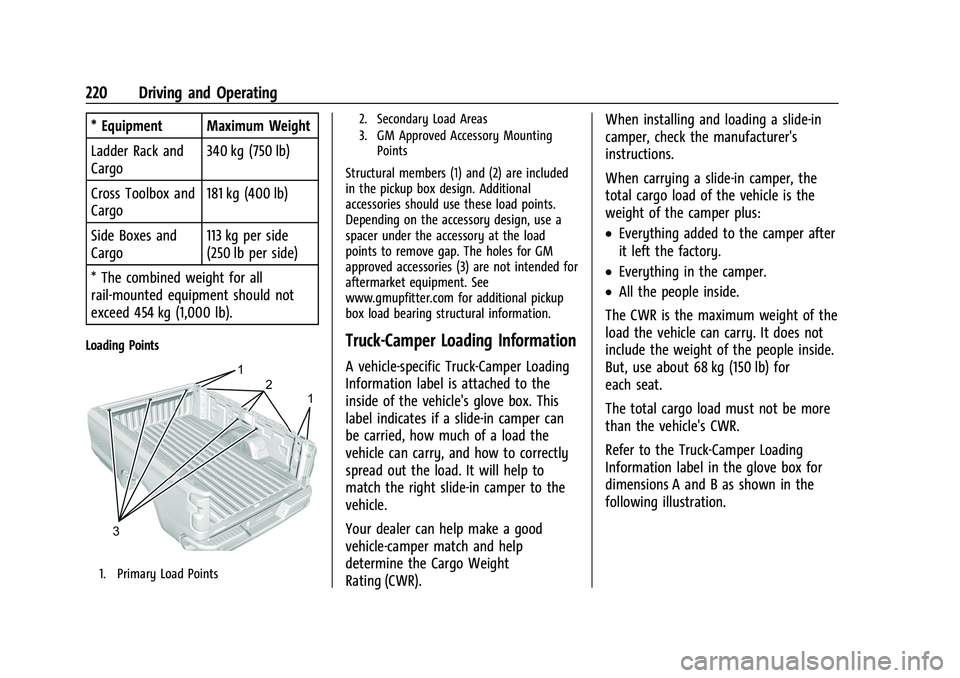

220 Driving and Operating
* Equipment Maximum Weight
Ladder Rack and
Cargo340 kg (750 lb)
Cross Toolbox and
Cargo 181 kg (400 lb)
Side Boxes and
Cargo 113 kg per side
(250 lb per side)
* The combined weight for all
rail-mounted equipment should not
exceed 454 kg (1,000 lb).
Loading Points
1. Primary Load Points 2. Secondary Load Areas
3. GM Approved Accessory Mounting
Points
Structural members (1) and (2) are included
in the pickup box design. Additional
accessories should use these load points.
Depending on the accessory design, use a
spacer under the accessory at the load
points to remove gap. The holes for GM
approved accessories (3) are not intended for
aftermarket equipment. See
www.gmupfitter.com for additional pickup
box load bearing structural information.
Truck-Camper Loading Information
A vehicle-specific Truck-Camper Loading
Information label is attached to the
inside of the vehicle's glove box. This
label indicates if a slide-in camper can
be carried, how much of a load the
vehicle can carry, and how to correctly
spread out the load. It will help to
match the right slide-in camper to the
vehicle.
Your dealer can help make a good
vehicle-camper match and help
determine the Cargo Weight
Rating (CWR). When installing and loading a slide-in
camper, check the manufacturer's
instructions.
When carrying a slide-in camper, the
total cargo load of the vehicle is the
weight of the camper plus:
.Everything added to the camper after
it left the factory.
.Everything in the camper.
.All the people inside.
The CWR is the maximum weight of the
load the vehicle can carry. It does not
include the weight of the people inside.
But, use about 68 kg (150 lb) for
each seat.
The total cargo load must not be more
than the vehicle's CWR.
Refer to the Truck-Camper Loading
Information label in the glove box for
dimensions A and B as shown in the
following illustration.

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15883563) - 2022 - CRC - 11/19/21

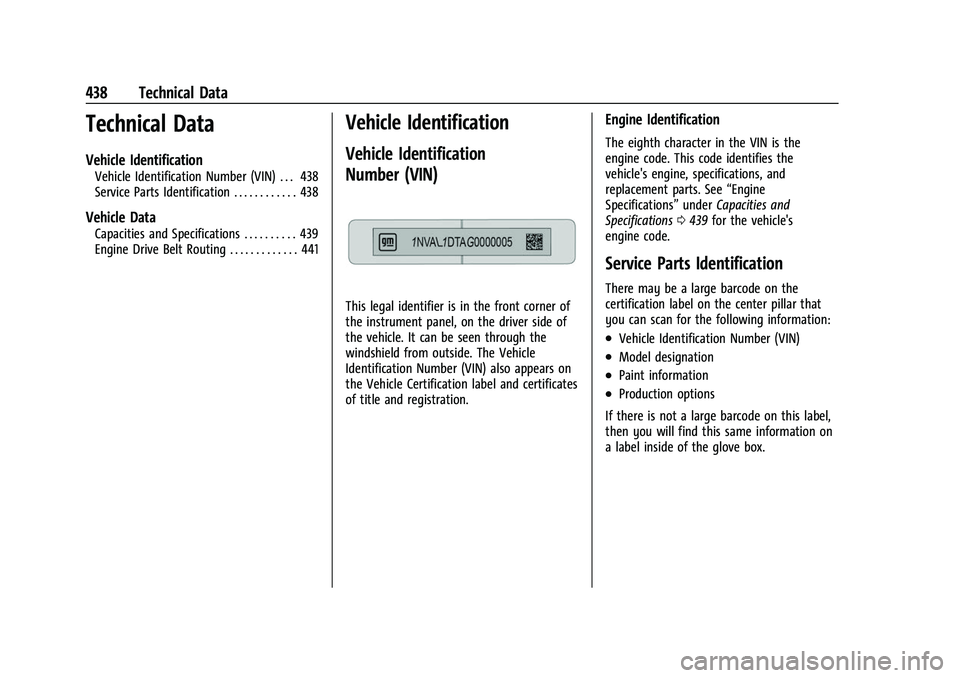

438 Technical Data
Technical Data
Vehicle Identification
Vehicle Identification Number (VIN) . . . 438
Service Parts Identification . . . . . . . . . . . . 438
Vehicle Data
Capacities and Specifications . . . . . . . . . . 439
Engine Drive Belt Routing . . . . . . . . . . . . . 441
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front corner of
the instrument panel, on the driver side of
the vehicle. It can be seen through the
windshield from outside. The Vehicle
Identification Number (VIN) also appears on
the Vehicle Certification label and certificates
of title and registration.
Engine Identification
The eighth character in the VIN is the
engine code. This code identifies the
vehicle's engine, specifications, and
replacement parts. See“Engine
Specifications” underCapacities and
Specifications 0439 for the vehicle's
engine code.
Service Parts Identification
There may be a large barcode on the
certification label on the center pillar that
you can scan for the following information:
.Vehicle Identification Number (VIN)
.Model designation
.Paint information
.Production options
If there is not a large barcode on this label,
then you will find this same information on
a label inside of the glove box.

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-15883563) - 2022 - CRC - 11/19/21

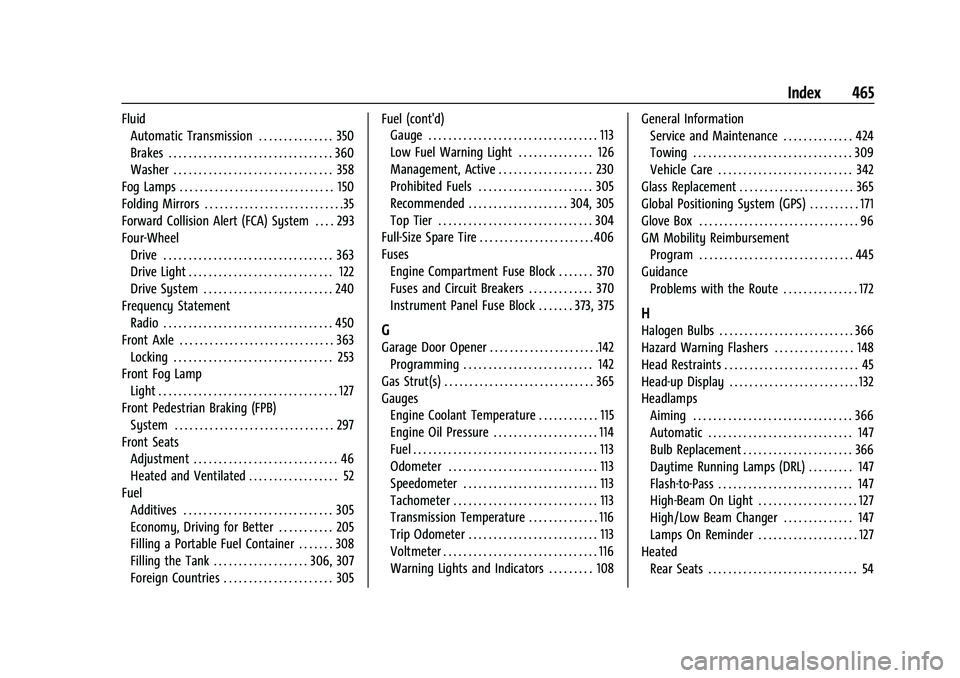

Index 465
FluidAutomatic Transmission . . . . . . . . . . . . . . . 350
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 358
Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Forward Collision Alert (FCA) System . . . . 293
Four-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363
Drive Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Drive System . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450
Front Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363 Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Front Fog Lamp
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Front Pedestrian Braking (FPB) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Heated and Ventilated . . . . . . . . . . . . . . . . . . 52
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
Economy, Driving for Better . . . . . . . . . . . 205
Filling a Portable Fuel Container . . . . . . . 308
Filling the Tank . . . . . . . . . . . . . . . . . . . 306, 307
Foreign Countries . . . . . . . . . . . . . . . . . . . . . . 305 Fuel (cont'd)
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Low Fuel Warning Light . . . . . . . . . . . . . . . 126
Management, Active . . . . . . . . . . . . . . . . . . . 230
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 305
Recommended . . . . . . . . . . . . . . . . . . . . 304, 305
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Full-Size Spare Tire . . . . . . . . . . . . . . . . . . . . . . . 406
Fuses Engine Compartment Fuse Block . . . . . . . 370
Fuses and Circuit Breakers . . . . . . . . . . . . . 370
Instrument Panel Fuse Block . . . . . . . 373, 375
G
Garage Door Opener . . . . . . . . . . . . . . . . . . . . . .142Programming . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Gauges
Engine Coolant Temperature . . . . . . . . . . . . 115
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . . 114
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Transmission Temperature . . . . . . . . . . . . . . 116
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Voltmeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Warning Lights and Indicators . . . . . . . . . 108 General Information
Service and Maintenance . . . . . . . . . . . . . . 424
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
Glass Replacement . . . . . . . . . . . . . . . . . . . . . . . 365
Global Positioning System (GPS) . . . . . . . . . . 171
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 445
Guidance Problems with the Route . . . . . . . . . . . . . . . 172
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 366
Hazard Warning Flashers . . . . . . . . . . . . . . . . 148
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Head-up Display . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Headlamps
Aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 366
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 366
Daytime Running Lamps (DRL) . . . . . . . . . 147
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
High-Beam On Light . . . . . . . . . . . . . . . . . . . . 127
High/Low Beam Changer . . . . . . . . . . . . . . 147
Lamps On Reminder . . . . . . . . . . . . . . . . . . . . 127
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-15883563) - 2022 - CRC - 11/19/21

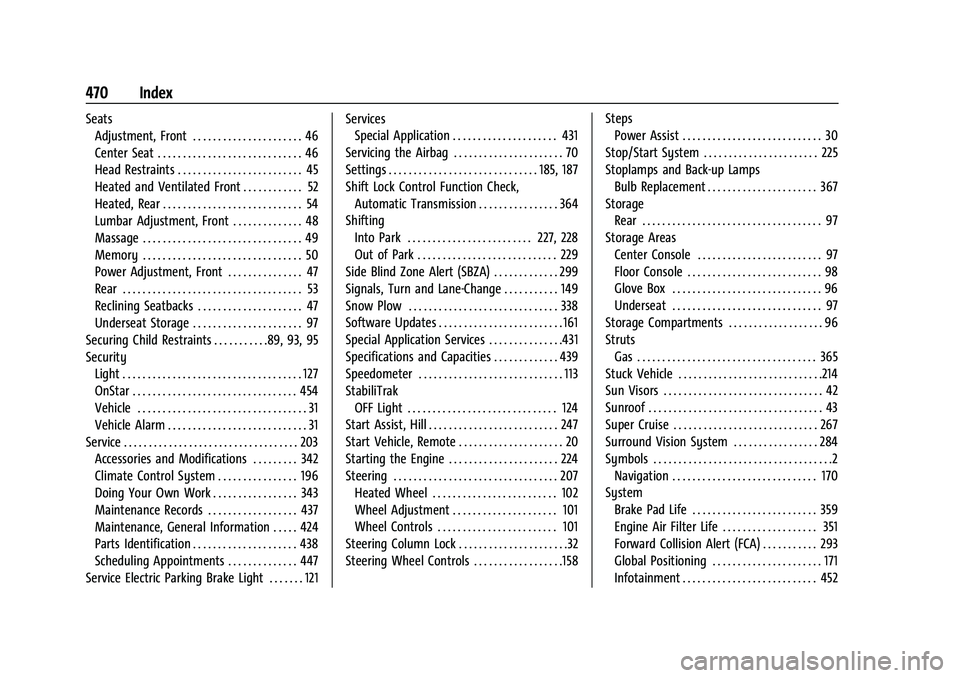

470 Index
SeatsAdjustment, Front . . . . . . . . . . . . . . . . . . . . . . 46
Center Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . 45
Heated and Ventilated Front . . . . . . . . . . . . 52
Heated, Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Lumbar Adjustment, Front . . . . . . . . . . . . . . 48
Massage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Power Adjustment, Front . . . . . . . . . . . . . . . 47
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Reclining Seatbacks . . . . . . . . . . . . . . . . . . . . . 47
Underseat Storage . . . . . . . . . . . . . . . . . . . . . . 97
Securing Child Restraints . . . . . . . . . . .89, 93, 95
Security Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 454
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Vehicle Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203 Accessories and Modifications . . . . . . . . . 342
Climate Control System . . . . . . . . . . . . . . . . 196
Doing Your Own Work . . . . . . . . . . . . . . . . . 343
Maintenance Records . . . . . . . . . . . . . . . . . . 437
Maintenance, General Information . . . . . 424
Parts Identification . . . . . . . . . . . . . . . . . . . . . 438
Scheduling Appointments . . . . . . . . . . . . . . 447
Service Electric Parking Brake Light . . . . . . . 121 Services
Special Application . . . . . . . . . . . . . . . . . . . . . 431
Servicing the Airbag . . . . . . . . . . . . . . . . . . . . . . 70
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185, 187
Shift Lock Control Function Check, Automatic Transmission . . . . . . . . . . . . . . . . 364
Shifting
Into Park . . . . . . . . . . . . . . . . . . . . . . . . . 227, 228
Out of Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Side Blind Zone Alert (SBZA) . . . . . . . . . . . . . 299
Signals, Turn and Lane-Change . . . . . . . . . . . 149
Snow Plow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
Software Updates . . . . . . . . . . . . . . . . . . . . . . . . . 161
Special Application Services . . . . . . . . . . . . . . .431
Specifications and Capacities . . . . . . . . . . . . . 439
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
StabiliTrak OFF Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Start Assist, Hill . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Start Vehicle, Remote . . . . . . . . . . . . . . . . . . . . . 20
Starting the Engine . . . . . . . . . . . . . . . . . . . . . . 224
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207 Heated Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 102
Wheel Adjustment . . . . . . . . . . . . . . . . . . . . . 101
Wheel Controls . . . . . . . . . . . . . . . . . . . . . . . . 101
Steering Column Lock . . . . . . . . . . . . . . . . . . . . . .32
Steering Wheel Controls . . . . . . . . . . . . . . . . . .158 Steps
Power Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Stop/Start System . . . . . . . . . . . . . . . . . . . . . . . 225
Stoplamps and Back-up Lamps Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 367
Storage Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Storage Areas Center Console . . . . . . . . . . . . . . . . . . . . . . . . . 97
Floor Console . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Underseat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Storage Compartments . . . . . . . . . . . . . . . . . . . 96
Struts Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Stuck Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . .214
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Super Cruise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Surround Vision System . . . . . . . . . . . . . . . . . 284
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
System Brake Pad Life . . . . . . . . . . . . . . . . . . . . . . . . . 359
Engine Air Filter Life . . . . . . . . . . . . . . . . . . . 351
Forward Collision Alert (FCA) . . . . . . . . . . . 293
Global Positioning . . . . . . . . . . . . . . . . . . . . . . 171
Infotainment . . . . . . . . . . . . . . . . . . . . . . . . . . . 452
