GMC SONOMA 2000 Owner's Manual

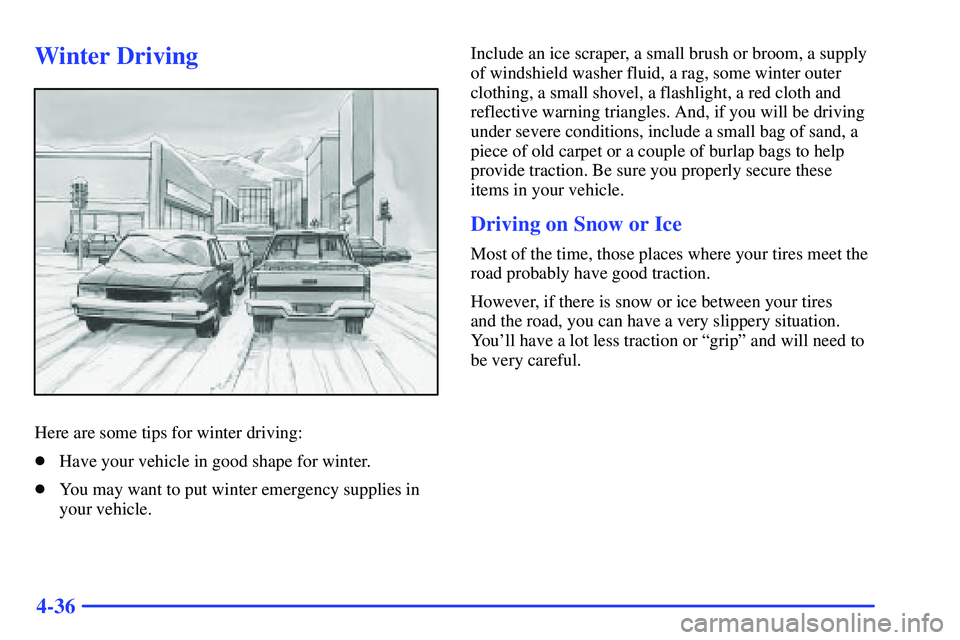

4-36
Winter Driving
Here are some tips for winter driving:

Have your vehicle in good shape for winter.

You may want to put winter emergency supplies in
your vehicle.Include an ice scraper, a small brush or broom, a supply
of windshield washer fluid, a rag, some winter outer
clothing, a small shovel, a flashlight, a red cloth and
reflective warning triangles. And, if you will be driving
under severe conditions, include a small bag of sand, a
piece of old carpet or a couple of burlap bags to help
provide traction. Be sure you properly secure these
items in your vehicle.
Driving on Snow or Ice
Most of the time, those places where your tires meet the
road probably have good traction.
However, if there is snow or ice between your tires
and the road, you can have a very slippery situation.
You'll have a lot less traction or ªgripº and will need to
be very careful.

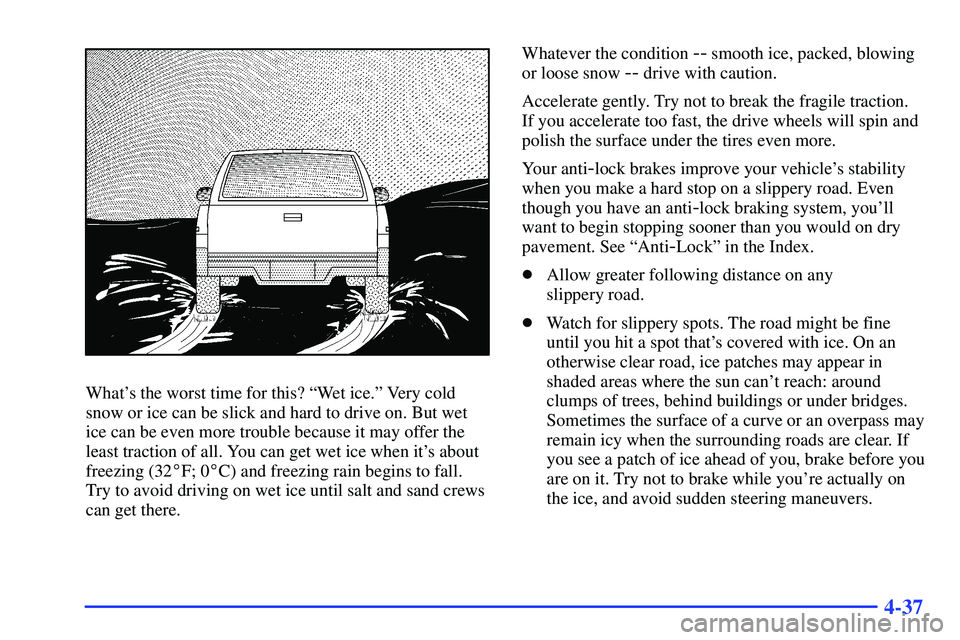

4-37
What's the worst time for this? ªWet ice.º Very cold
snow or ice can be slick and hard to drive on. But wet
ice can be even more trouble because it may offer the
least traction of all. You can get wet ice when it's about
freezing (32F; 0C) and freezing rain begins to fall.
Try to avoid driving on wet ice until salt and sand crews
can get there.Whatever the condition
-- smooth ice, packed, blowing
or loose snow
-- drive with caution.
Accelerate gently. Try not to break the fragile traction.
If you accelerate too fast, the drive wheels will spin and
polish the surface under the tires even more.
Your anti
-lock brakes improve your vehicle's stability
when you make a hard stop on a slippery road. Even
though you have an anti
-lock braking system, you'll
want to begin stopping sooner than you would on dry
pavement. See ªAnti
-Lockº in the Index.

Allow greater following distance on any
slippery road.

Watch for slippery spots. The road might be fine
until you hit a spot that's covered with ice. On an
otherwise clear road, ice patches may appear in
shaded areas where the sun can't reach: around
clumps of trees, behind buildings or under bridges.
Sometimes the surface of a curve or an overpass may
remain icy when the surrounding roads are clear. If
you see a patch of ice ahead of you, brake before you
are on it. Try not to brake while you're actually on
the ice, and avoid sudden steering maneuvers.

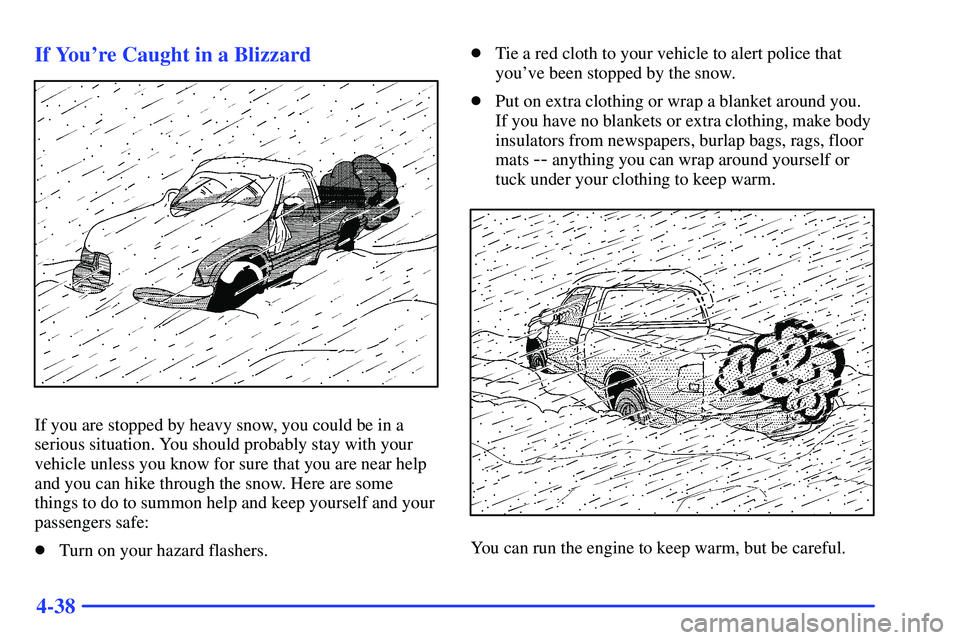

4-38 If You're Caught in a Blizzard
If you are stopped by heavy snow, you could be in a
serious situation. You should probably stay with your
vehicle unless you know for sure that you are near help
and you can hike through the snow. Here are some
things to do to summon help and keep yourself and your
passengers safe:

Turn on your hazard flashers.
Tie a red cloth to your vehicle to alert police that
you've been stopped by the snow.

Put on extra clothing or wrap a blanket around you.
If you have no blankets or extra clothing, make body
insulators from newspapers, burlap bags, rags, floor
mats
-- anything you can wrap around yourself or
tuck under your clothing to keep warm.
You can run the engine to keep warm, but be careful.

4-39
CAUTION:
Snow can trap exhaust gases under your vehicle.
This can cause deadly CO (carbon monoxide) gas
to get inside. CO could overcome you and kill
you. You can't see it or smell it, so you might not
know it is in your vehicle. Clear away snow from
around the base of your vehicle, especially any
that is blocking your exhaust pipe. And check
around again from time to time to be sure snow
doesn't collect there.
Open a window just a little on the side of the
vehicle that's away from the wind. This will help
keep CO out.
Run your engine only as long as you must. This saves
fuel. When you run the engine, make it go a little faster
than just idle. That is, push the accelerator slightly. This
uses less fuel for the heat that you get and it keeps the
battery charged. You will need a well
-charged battery to
restart the vehicle, and possibly for signaling later on
with your headlamps. Let the heater run for a while.Then, shut the engine off and close the window almost
all the way to preserve the heat. Start the engine again
and repeat this only when you feel really uncomfortable
from the cold. But do it as little as possible. Preserve the
fuel as long as you can. To help keep warm, you can get
out of the vehicle and do some fairly vigorous exercises
every half hour or so until help comes.
Recreational Vehicle Towing
Your vehicle should not be towed with all four wheels
on the ground. Your transmission has no provision for
internal lubrication while being towed. To properly tow
your vehicle, it should be placed on a platform trailer
with all four wheels off the ground. Towing with all four
wheels on the ground should be avoided.
In rare cases when it's unavoidable and your vehicle must
be towed with all four wheels on the ground, the propeller
shaft to axle yoke orientation should be marked and the
propeller shaft removed following the applicable service
manual removal/installation procedure. See ªService and
Owner Publicationsº in the Index.

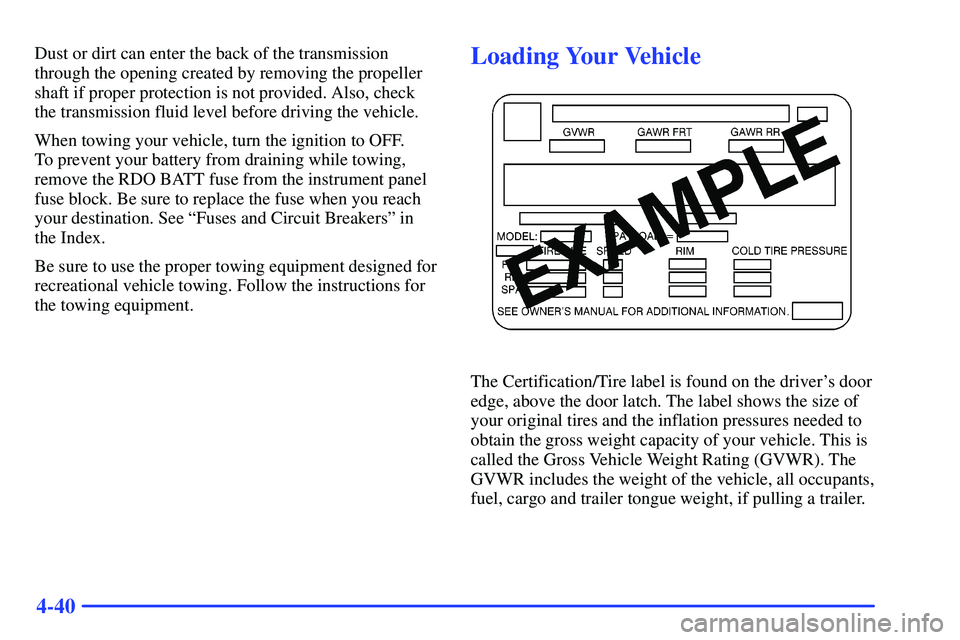

4-40
Dust or dirt can enter the back of the transmission
through the opening created by removing the propeller
shaft if proper protection is not provided. Also, check
the transmission fluid level before driving the vehicle.
When towing your vehicle, turn the ignition to OFF.
To prevent your battery from draining while towing,
remove the RDO BATT fuse from the instrument panel
fuse block. Be sure to replace the fuse when you reach
your destination. See ªFuses and Circuit Breakersº in
the Index.
Be sure to use the proper towing equipment designed for
recreational vehicle towing. Follow the instructions for
the towing equipment.Loading Your Vehicle
The Certification/Tire label is found on the driver's door
edge, above the door latch. The label shows the size of
your original tires and the inflation pressures needed to
obtain the gross weight capacity of your vehicle. This is
called the Gross Vehicle Weight Rating (GVWR). The
GVWR includes the weight of the vehicle, all occupants,
fuel, cargo and trailer tongue weight, if pulling a trailer.

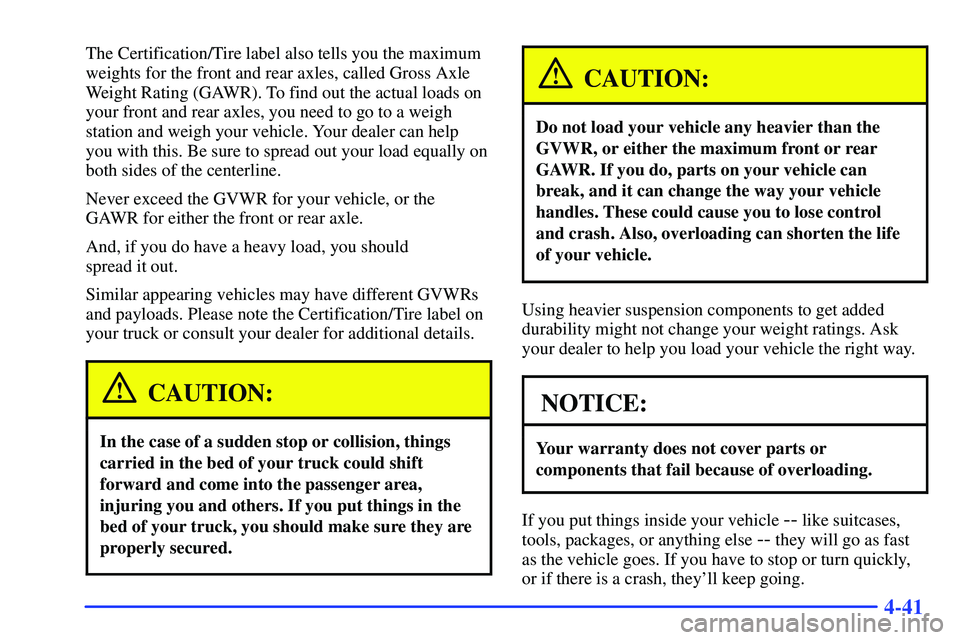

4-41
The Certification/Tire label also tells you the maximum
weights for the front and rear axles, called Gross Axle
Weight Rating (GAWR). To find out the actual loads on
your front and rear axles, you need to go to a weigh
station and weigh your vehicle. Your dealer can help
you with this. Be sure to spread out your load equally on
both sides of the centerline.
Never exceed the GVWR for your vehicle, or the
GAWR for either the front or rear axle.
And, if you do have a heavy load, you should
spread it out.
Similar appearing vehicles may have different GVWRs
and payloads. Please note the Certification/Tire label on
your truck or consult your dealer for additional details.
CAUTION:
In the case of a sudden stop or collision, things
carried in the bed of your truck could shift
forward and come into the passenger area,
injuring you and others. If you put things in the
bed of your truck, you should make sure they are
properly secured.
CAUTION:
Do not load your vehicle any heavier than the
GVWR, or either the maximum front or rear
GAWR. If you do, parts on your vehicle can
break, and it can change the way your vehicle
handles. These could cause you to lose control
and crash. Also, overloading can shorten the life
of your vehicle.
Using heavier suspension components to get added
durability might not change your weight ratings. Ask
your dealer to help you load your vehicle the right way.
NOTICE:
Your warranty does not cover parts or
components that fail because of overloading.
If you put things inside your vehicle -- like suitcases,
tools, packages, or anything else
-- they will go as fast
as the vehicle goes. If you have to stop or turn quickly,
or if there is a crash, they'll keep going.

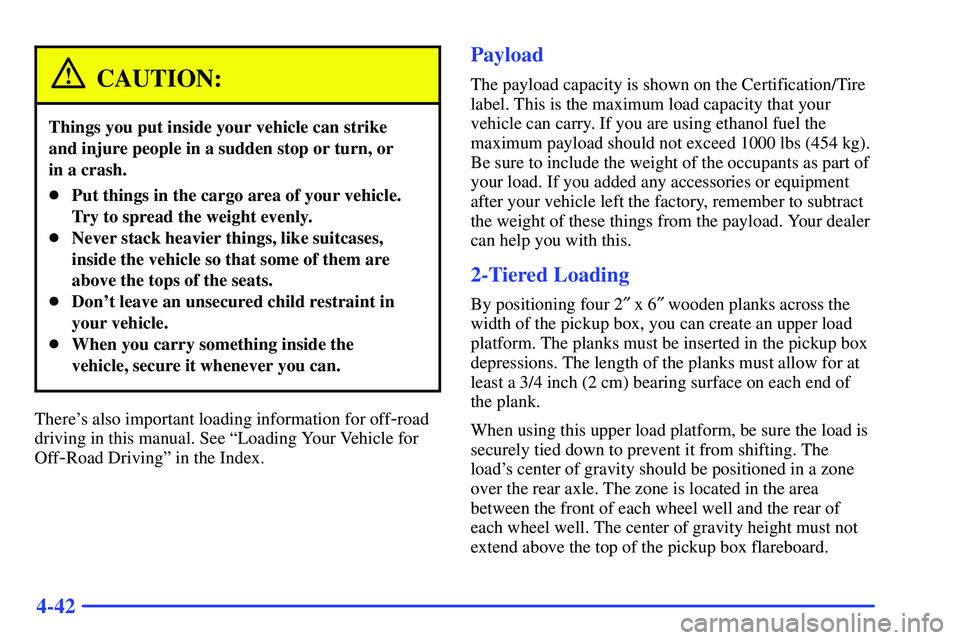

4-42
CAUTION:
Things you put inside your vehicle can strike
and injure people in a sudden stop or turn, or
in a crash.

Put things in the cargo area of your vehicle.
Try to spread the weight evenly.

Never stack heavier things, like suitcases,
inside the vehicle so that some of them are
above the tops of the seats.

Don't leave an unsecured child restraint in
your vehicle.

When you carry something inside the
vehicle, secure it whenever you can.
There's also important loading information for off-road
driving in this manual. See ªLoading Your Vehicle for
Off
-Road Drivingº in the Index.
Payload
The payload capacity is shown on the Certification/Tire
label. This is the maximum load capacity that your
vehicle can carry. If you are using ethanol fuel the
maximum payload should not exceed 1000 lbs (454 kg).
Be sure to include the weight of the occupants as part of
your load. If you added any accessories or equipment
after your vehicle left the factory, remember to subtract
the weight of these things from the payload. Your dealer
can help you with this.
2-Tiered Loading
By positioning four 2, x 6, wooden planks across the
width of the pickup box, you can create an upper load
platform. The planks must be inserted in the pickup box
depressions. The length of the planks must allow for at
least a 3/4 inch (2 cm) bearing surface on each end of
the plank.
When using this upper load platform, be sure the load is
securely tied down to prevent it from shifting. The
load's center of gravity should be positioned in a zone
over the rear axle. The zone is located in the area
between the front of each wheel well and the rear of
each wheel well. The center of gravity height must not
extend above the top of the pickup box flareboard.

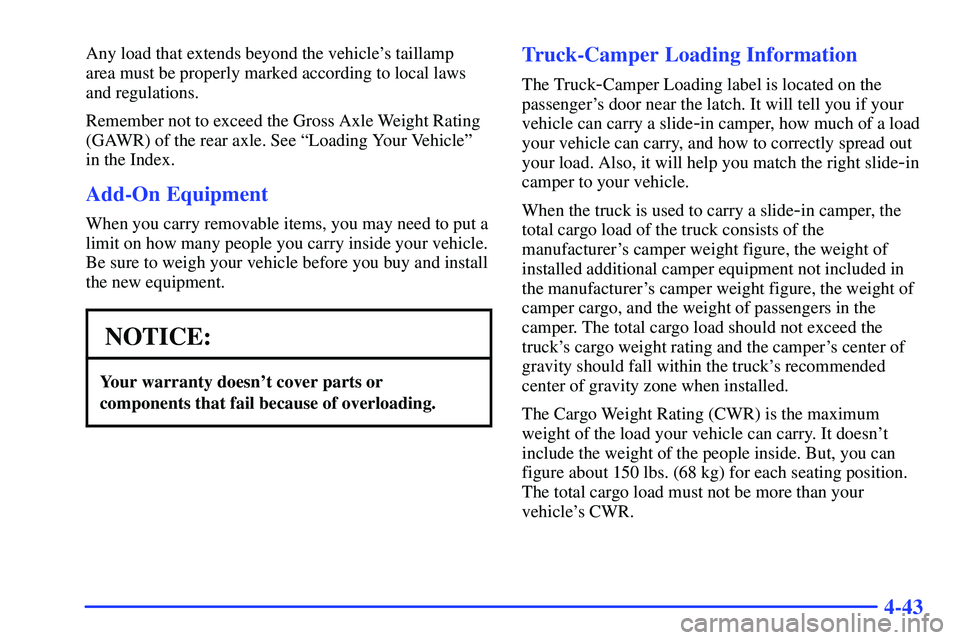

4-43
Any load that extends beyond the vehicle's taillamp
area must be properly marked according to local laws
and regulations.
Remember not to exceed the Gross Axle Weight Rating
(GAWR) of the rear axle. See ªLoading Your Vehicleº
in the Index.
Add-On Equipment
When you carry removable items, you may need to put a
limit on how many people you carry inside your vehicle.
Be sure to weigh your vehicle before you buy and install
the new equipment.
NOTICE:
Your warranty doesn't cover parts or
components that fail because of overloading.
Truck-Camper Loading Information
The Truck-Camper Loading label is located on the
passenger's door near the latch. It will tell you if your
vehicle can carry a slide
-in camper, how much of a load
your vehicle can carry, and how to correctly spread out
your load. Also, it will help you match the right slide
-in
camper to your vehicle.
When the truck is used to carry a slide
-in camper, the
total cargo load of the truck consists of the
manufacturer's camper weight figure, the weight of
installed additional camper equipment not included in
the manufacturer's camper weight figure, the weight of
camper cargo, and the weight of passengers in the
camper. The total cargo load should not exceed the
truck's cargo weight rating and the camper's center of
gravity should fall within the truck's recommended
center of gravity zone when installed.
The Cargo Weight Rating (CWR) is the maximum
weight of the load your vehicle can carry. It doesn't
include the weight of the people inside. But, you can
figure about 150 lbs. (68 kg) for each seating position.
The total cargo load must not be more than your
vehicle's CWR.

4-44
Refer to the Truck-Camper Loading Information Label
on the passenger's door for dimensions A and B as
shown in the following illustration.
Use the rear edge of the load floor for measurement
purposes. The recommended location for the cargo
center of gravity for the Cargo Weight Rating (C) is
the point where the mass of a body is concentrated
and, if suspended at that point, would balance the front
and rear.Here is an example of proper truck and camper match:
A. Camper Center of Gravity
B. Recommended Center of Gravity Location Zone
The camper's center of gravity should fall within the
center of gravity zone for your vehicle's cargo load.
Campers can only be installed in a long box pickup.
Check your Truck
-Camper Loading Label on the
passenger's door to determine if your vehicle can carry a
slide
-in camper.

4-45

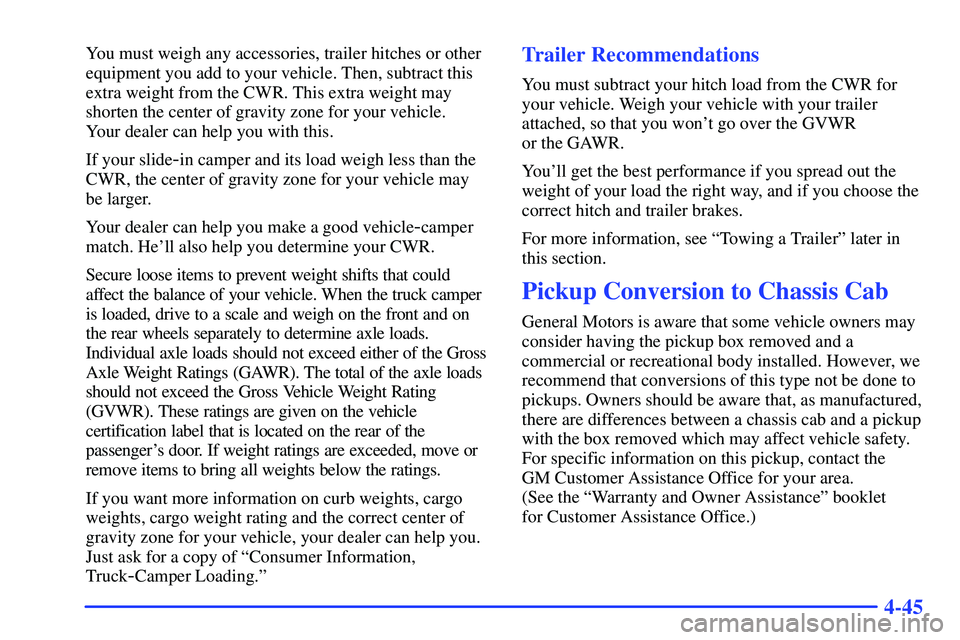

You must weigh any accessories, trailer hitches or other
equipment you add to your vehicle. Then, subtract this
extra weight from the CWR. This extra weight may
shorten the center of gravity zone for your vehicle.
Your dealer can help you with this.
If your slide
-in camper and its load weigh less than the
CWR, the center of gravity zone for your vehicle may
be larger.
Your dealer can help you make a good vehicle
-camper
match. He'll also help you determine your CWR.
Secure loose items to prevent weight shifts that could
affect the balance of your vehicle. When the truck camper
is loaded, drive to a scale and weigh on the front and on
the rear wheels separately to determine axle loads.
Individual axle loads should not exceed either of the Gross
Axle Weight Ratings (GAWR). The total of the axle loads
should not exceed the Gross Vehicle Weight Rating
(GVWR). These ratings are given on the vehicle
certification label that is located on the rear of the
passenger's door. If weight ratings are exceeded, move or
remove items to bring all weights below the ratings.
If you want more information on curb weights, cargo
weights, cargo weight rating and the correct center of
gravity zone for your vehicle, your dealer can help you.
Just ask for a copy of ªConsumer Information,
Truck
-Camper Loading.º
Trailer Recommendations
You must subtract your hitch load from the CWR for
your vehicle. Weigh your vehicle with your trailer
attached, so that you won't go over the GVWR
or the GAWR.
You'll get the best performance if you spread out the
weight of your load the right way, and if you choose the
correct hitch and trailer brakes.
For more information, see ªTowing a Trailerº later in
this section.
Pickup Conversion to Chassis Cab
General Motors is aware that some vehicle owners may
consider having the pickup box removed and a
commercial or recreational body installed. However, we
recommend that conversions of this type not be done to
pickups. Owners should be aware that, as manufactured,
there are differences between a chassis cab and a pickup
with the box removed which may affect vehicle safety.
For specific information on this pickup, contact the
GM Customer Assistance Office for your area.
(See the ªWarranty and Owner Assistanceº booklet
for Customer Assistance Office.)
