Power Lumbar
If your vehicle has this
feature, there will be a
control located on
the outboard side of
the front seat(s).
Press and hold the front of the control until you have
the desired lumbar support. To decrease lumbar
support, press and hold the rear of the control.
Heated Seats
If your vehicle has this
feature, the controls are
located on the outboard
side of the front seats.
This feature will quickly heat the lower cushion and
lower back of the driver’s and front passenger’s seats
for added comfort.
Press the lower part of the switch to turn the heater on
low. Press the upper part of the switch to turn the
heater on high. Put the switch in the center position to
turn the heater off.
The passenger’s safety belt must be engaged for the
heated seat feature to work on the passenger’s seat.
1-5
2003 - Sonoma OM

Reclining Seatbacks
To adjust a manual
seatback, lift the lever
on the outboard side
of the seat.
Release the lever to lock the seatback where you want
it. To return the seat to an upright position, pull up
on the lever without pushing on the seatback.
If your vehicle is equipped with the vertical power seat
control described inPower Seats on page 1-4,
pressing it rearward allows the seatback to recline.But don’t have a seatback reclined if your vehicle is
moving.
1-6
2003 - Sonoma OM

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts can’t do their job
when you’re reclined like this.
The shoulder belt can’t do its job because it
won’t be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can’t do its job either. In a crash
the belt could go up over your abdomen. The
belt forces would be there, not at your pelvic
bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
Head Restraints
Head restraints are fixed on some models and
adjustable on others. Slide an adjustable head restraint
up or down so that the top of the restraint is closest
to the top of your head. This position reduces the
chance of a neck injury in a crash.
1-7
2003 - Sonoma OM

Seatback Latches
The front seatback folds forward to let people get into
the rear seat or to access the storage area behind
the seat.
To fold the front seatback
forward, push the lever
on the side of the
seat rearward and pull the
seatback forward.To return the seatback to the upright position, push the
seatback all the way back until the latch catches. If
the seatback was reclined before being folded forward,
it will return to the reclined position.
{CAUTION:
If the seatback isn’t locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
1-8
2003 - Sonoma OM

Rear Seats
Rear Seat Operation
The rear seatback can be tilted forward to let you reach
the area behind it.
To tilt the seatback
forward, lift up on the lever
located at the base of
the seatback on the
driver’s or passenger’s
side. Then tilt the
seatback forward.
To return the seatback to the upright position, push the
seatback rearward until it latches. After returning the
seatback to its upright position, try to pull the seatback
forward to make sure it is locked.
{CAUTION:
If the seatback isn’t locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there.
Always press rearward on the seatback to be
sure it is locked.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won’t provide the
protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
1-9
2003 - Sonoma OM

Jump Seat
If your vehicle has an
extended cab pickup,
there is a jump seat in
the rear area.
To fold the jump seat down, pull down on the pull tab
on the bottom of the seat until the seat is in place, then
move the seatback to a vertical position. To store the
seat, fold the seatback down on the cushion, then push
the entire seat up until it isflush with the trim panel.
Don’t let the safety belts be damaged by the hinges or
the latches. Safety belts should be folded and stored
between the seat cushion and seatback.
Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Don’t let anyone ride where he or she can’t
wear a safety belt properly. If you are in a
crash and you’re not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers’ belts are
fastened properly too.
1-10
2003 - Sonoma OM

{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allowpeople to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has a light
that comes on as a
reminder to buckle up.
SeeSafety Belt Reminder
Light on page 3-23.In most states and in all Canadian provinces, the law
says to wear safety belts. Here’s why:They work.
You never know if you’ll be in a crash. If you do have a
crash, you don’t know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person wouldn’t survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt
or killed.
After more than 30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up
does matter... a lot!
1-11
2003 - Sonoma OM

Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.

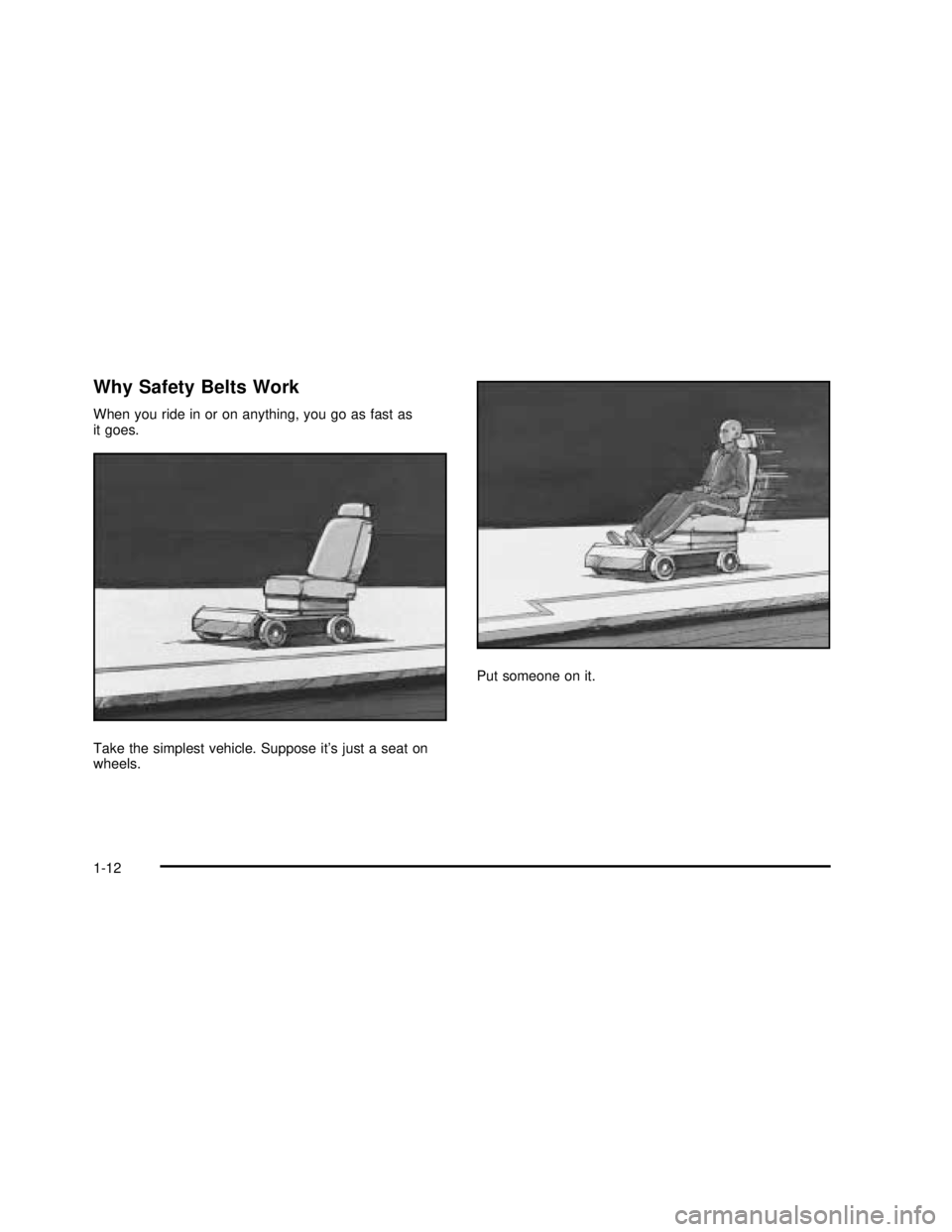

Take the simplest vehicle. Suppose it’s just a seat on
wheels.Put someone on it.
1-12
2003 - Sonoma OM

Get it up to speed. Then stop the vehicle. The rider
doesn’t stop.The person keeps going until stopped by something.

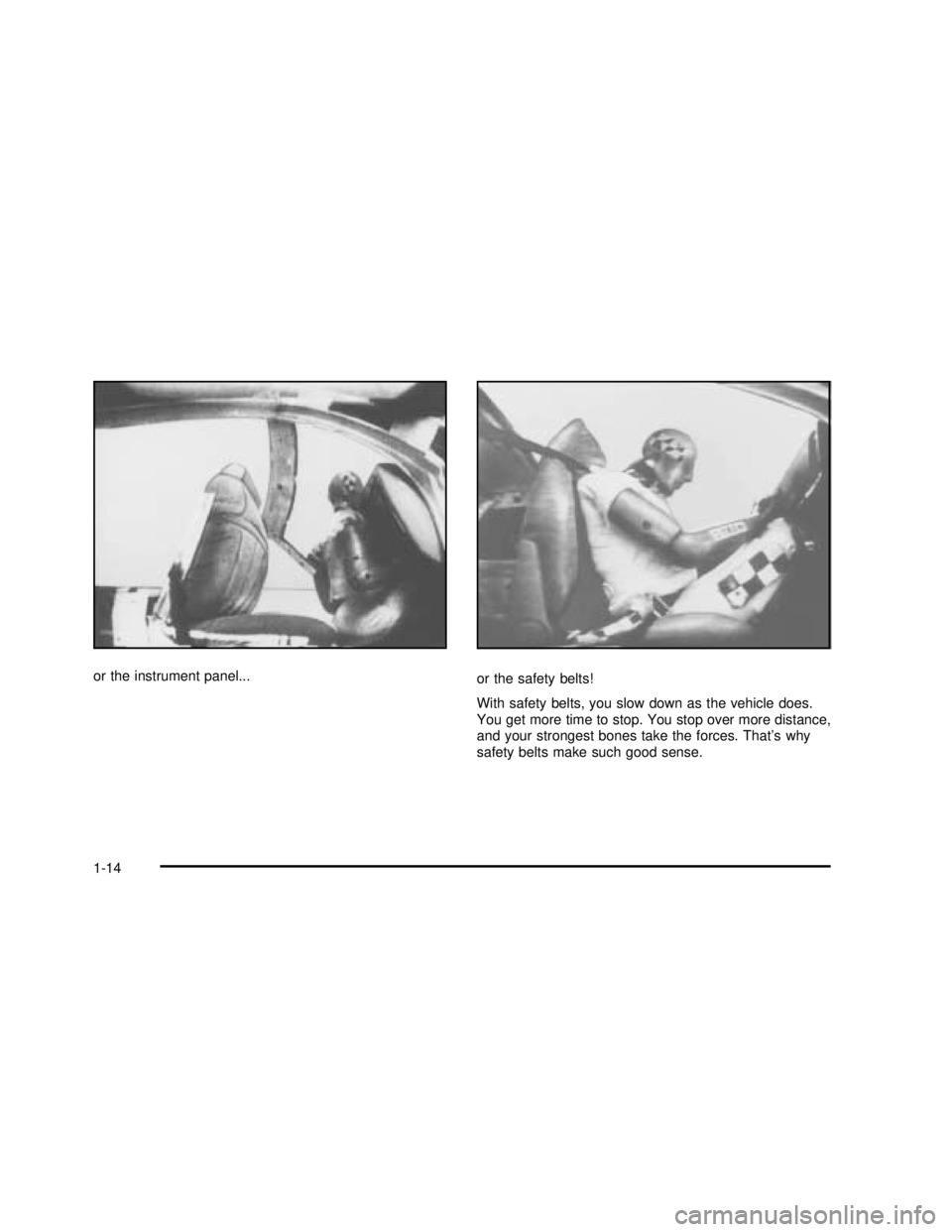

In a real vehicle, it could be the windshield...
1-13
2003 - Sonoma OM

or the instrument panel...
or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That’s why
safety belts make such good sense.
1-14
