BE-33Body Electric System
Combination Instrument
Electric circuit diagram (continued)
SF
A3 connected
with negative pole
A1 connected
with positive pole
B8 connected
with negative
pole
B7connected
with positive
pole
A4 connecting
with lighting
switch
A6 connected
with negative
pole
pressure-regulating
potential deviceirect-current
power supply
5-9Vdrive power
supply
110VEL
luminous
plate
left turn indicating lamp
right turn indicating lamp
upper beam indicating lamp
rear fog lamp indicating lamp
rear window/defroster indicating lamp
front fog-lamp indicating lamp
water
thermometer
tachometer
connected with sensor
connected with revolution signal
speedometer
digital clock
fuel gaugeconnect to the cathode of sensor
connected with sensor anode
connected with sensor
connected with sensor
back door indicating lamp
parking brake indicating lamp
safety airbag indicating lamp
low oil pressure indicating lamp
engine failure indicating lamp
four wheel drive indicating lamp
generator preheating indicating lamp
fuel alarming indicating lamp
accumulator charging indicating lamp
ABS failure indicating lamp75
B9
B2 A15 B1 A9 B11 B10
A14 B4 B6 A12
B14 connected
with positive
pole
B7 connected
with positive
pole
A11 A5A7 B12B5 B13 A16A13 B16 B15
A2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
In this drawing, A stands for the white plugging
elements, B for black plugging elements, they
use the same numerical order.
instrument
plugging element

BE-34Body Electric System
Combination Instrument
Electric circuit diagram (continued)
A16 A1 B16 B1
SL SK
B1
B16
A1
A16
speed and mileage meter
4P
G
VA9vehicle speed signal
A11odometer sensorA10odometer sensor anode
B11sensor signalelectronic tachometer
water thermometer
fuel gaugecoolant temperature sensor
B5
A12
fuel gauge sensor
B14
A2
B3
upper beam
_NPdifferential latch-in
safety belt
preheating
sediment water alarmingelectricity charging/
discharging
fuel level alarming
brake failure alarming lamp
oil pressure alarming lamp
rear fog lamp
engine failure
four wheel drive indicating lamp
A1 Aturn indicating lamp
B16 left turn indicating lamp
A8
B4 +B7 - B8 A16 B15 B2B1 A15 A14B6 A13 B10B9
SY SJaccumulator plus four door-closing indicating lampA3turn on when the door is opened.
A11odometer sensor_NO
electronic odometer
electronic tachometerA10
B11
engine ignition coil
water thermometer
fuel gauge
B5
A12
neutral gear indicating lampA9
_NP
upper beamB14
differential latch-in
vacuum alarming
preheating
sediment water alarming
electricity charging/
discharging
fuel level alarming
brake failure alarming lamp
oil pressure alarming lamp
rear fog lamp
engine failure
four wheel drive indicating lamp
A1 left turn indicating lamp
B16 right turn indicating lamp
A8
B4 +
instrument lighting
system
B8
B7 - A16 B15 B2
B1 A15A14 B6 A13 B9 B3 B10A2
instrument lighting
system

BE-35Body Electric System
Combination Instrument
Common Troubleshooting
a. Such failures as inaccuracy indication, out-operation of indicator, on the fly of large and small summation meters
(mechanical wheel drive excluded) or incomplete liquid crystal display are caused by the interior failures of the
instrument, therefore, these failures, once occur, should be judged according to the instrument interior failures, and
change the combination instrument directly.
b. In case both the large and small summation meter and the indicator of electronic odometer are on the fly, such failures
can be removed by disassembling the speed sensor from the whole vehicle first, then connecting the sensor and
combination instruments as shown in the drawing.
Then, open the power supply and run the rotors quickly to observe the indicator variation of odometer.
the odometer indicator
should be no less than 40Km/
h variation in speed under
common condition whenrunning the rotors,
otherwise,
change with the good sensor
good combination instruments
vÉë
No
Yes
No
Yes
No
installation of sensorconnector for wiring harnessmalfunction of sensorfailure of instrument
panel connector for wiring
harness


12V

combination instrument




signal input
sensor

BE-36Body Electric System
Combination Instrument
Normal indicating range of combination instrument indicator
Speedometer
Real speed Km/h
Displayed speedKm/h
20 40 60 80 100 120 140 160
20
340
056005
Tachometer SY SL
800510005120061400716008
750 1000 2000 3000 4000 5000 6000
750
-10+201000-10+502000
120 3000
150 4000
200 5000
250 6000
300 Real rotating
speedr/min
Displayed rotating
speedr/min
Tachometer Dr SL SK SF
1000 2000 3000 4000 5000 6000 7000
1000
100 2000
200 3000
150 4000
200 5000
250 6000
300 7000
350 Real rotating
speedr/min
Displayed rotating
speedr/min
c. The inaccuracy display of tachometer is usually caused by the interior failures of tachometer, in such situation,
change the combination directly. As for the good-bad shift or out-operation of tachometer, the failures can be judged
according to the following approaches:
1) Start the vehicle, then check the voltage of signal input of tachometer (wire harness with multi-meter, the
voltage should be 6 V or so.
2) In case there is no signal voltage, check the power supply system of the whole vehicle to remove the failures
in circuit.
3) The plugs of wire harness is only allowed to be inserted in the combination instruments under the condition
that the signal voltage is normal, and the instrument is in normal operation.
4) Where the instrument is in abnormal operation, such trouble is caused by the failure of combination
instruments, in such case, change the combination instrument directly.
d. Troubles of fuel gauge and water thermometer
1) In case the instrument indicator points to the large number after it is powered, disconnect the sensor from the
plugging elements of wire harness before judging such kinds of troubles, if the indicator is still at large number,
it can be make a judgment that the trouble is caused by the interior failure of instrument, in such case, change
the combination instrument directly; if the indicator returns to the small number, according to which it can be
judged that the trouble is caused by the sensor failure, therefore, change the sensor directly.
2) where the instrument indicator stands still, such trouble may be caused by three causes probably, interior failure
of sensor, plugging elements of wire harness or interior failure of instrument; the inspection may be conducted
according to the following approaches: disconnect the plugging elements of wire harness from that of sensor,
grounding the wire at the sensor end; in such condition, the indicator should move upwardly to the largest
number; if such phenomena occurs, it can show the trouble is caused by the interior failure of sensor, in such
case, change the sensor directly; if the instrument indicator is still immobilized after it is powered, it can be
judged that the trouble is caused by the interior failure of instrument under the condition that the wire harness
and plugging elements are normal, in such case, change the combination instrument directly.
Fuel gauge Dr SF SY
Displayed oil
volume
Reference
resistance

Permitted
error
E 1/2 F
110 38 7

5
4+3
Fuel gauge SJ
Displayed oil
volume
Reference
resistance

Permitted
error
E 1/2 F
110 38 7

12
4
2
Fuel gauge SL SK
Displayed oil
volume
Reference
resistance

Permitted
error
E 1/2 F
120 45 17

10
10
10

BE-37Body Electric System
Backup Radar System
Backup Radar System
Dr SF
SL SK
back up radar control box
back up radar control box
right rear wheel
left rear wheel
rear bumper
Part Mounting Position

BE-38Body Electric System
Backup Radar System
Inspection on Common Trouble
Failure Judgment Methods
No backup radar display (no
system start notification when
the reverse gear is engaged)Check whether the plugging elements of power supply
of back up radar control box are in well connection as
shown in drawing H in next page.(when the reverse
gear is engaged, touch the detector, if there is vibration,
which shows the detector is powered.
Check whether the wire harness of inner mirror in
electric room and that on the top of body are in well
connection as shown in the drawing A in next page
Check whether the wire harness of back up radar
control box is well connected with that of chassis
and that on the top of body.
Rotate the vehicle key to the ACC position and
engage the reverse gear, then measure to see whether
the back up power supply reaches to 12 V with the
multi-meter of 50 V of voltage, refer to the
red
and black
positions shown in the drawing in next
page.
If the voltage reaches 12 V, change the backup
radar control box in trial firstly, then the inner
mirror in electric room, finally change the roof
wire harness and the chassis.
No backup radar display (but
there is start notification when
the reverse gear is engaged)
remark: such trouble occur
under the blocking condition.Check whether the power supply of back up radar
is well located, see the red and position in the
drawing of next page.
Check and align the plugging element.Poor properties of ultrasonic wave
Change the ultrasonic detector heads.
Continuous back up radar red
lamp alarming (remark: there
is no obstacle within 0.5 m away
from the detector head)Check whether the detectors in the two circuit of
back up radar control box is well plugged, see the
marked positions F, G in the drawing of next page.
Check and well connect those plugging elements
Poor connection of the left/right ultrasonic detector head
Poor performance of back up radar control box.Check and well connect those plugging elements
Change the ultrasonic detector head
Change the back up radar control box.
Vehicle modelpc
Alarming by mistake
The rear standby tire is removedConduct the inspection operation for the rear
standby tire at the spacious place
fail to detect the obstacle
The detector head doesn
t workChange the detector head
There is dirt on detector headClean the detector head
Rear standby tire inspection1. engage the reverse gear for five times repeatedly within ten seconds at the spacious place so that the red
lamp on the screen flash three times, the system will automatically remember the standby tire status.
2. When the body height varies or the stand by tire is opened, make a new inspection for the rear stand by
tire to ensure the backup radar in normal operation.
Seven section of lamp display
Column I
1.49m-1.3m Column II
1.29m-1.1m
Column III
1.09m-0.9m Column IV
0.89m-0.75m
Column V
0.74m-0.6m column VI
0.59m-0.45m
Column VII

0.45m
Remark: the right and left LED display the direction and distance of obstacle respectively for driver
reference.If the voltage fails to reach 12 v, check the power
supply system of original vehicle
s large wires
to restore the voltage to 12 V.
Vehicle model SL SK
fail to detect the obstacle
Trouble description Repairing and treatment approaches

BE-39Body Electric System
Backup Radar System
Distribution Drawing of Wire Harness
SL SK
inner mirror in electronic room
back up radar control box
HF connected with
detector head
G connected with
detector head
red
black A

BE-40Body Electric System
Wiping and Washing System
Wiping and Washing System

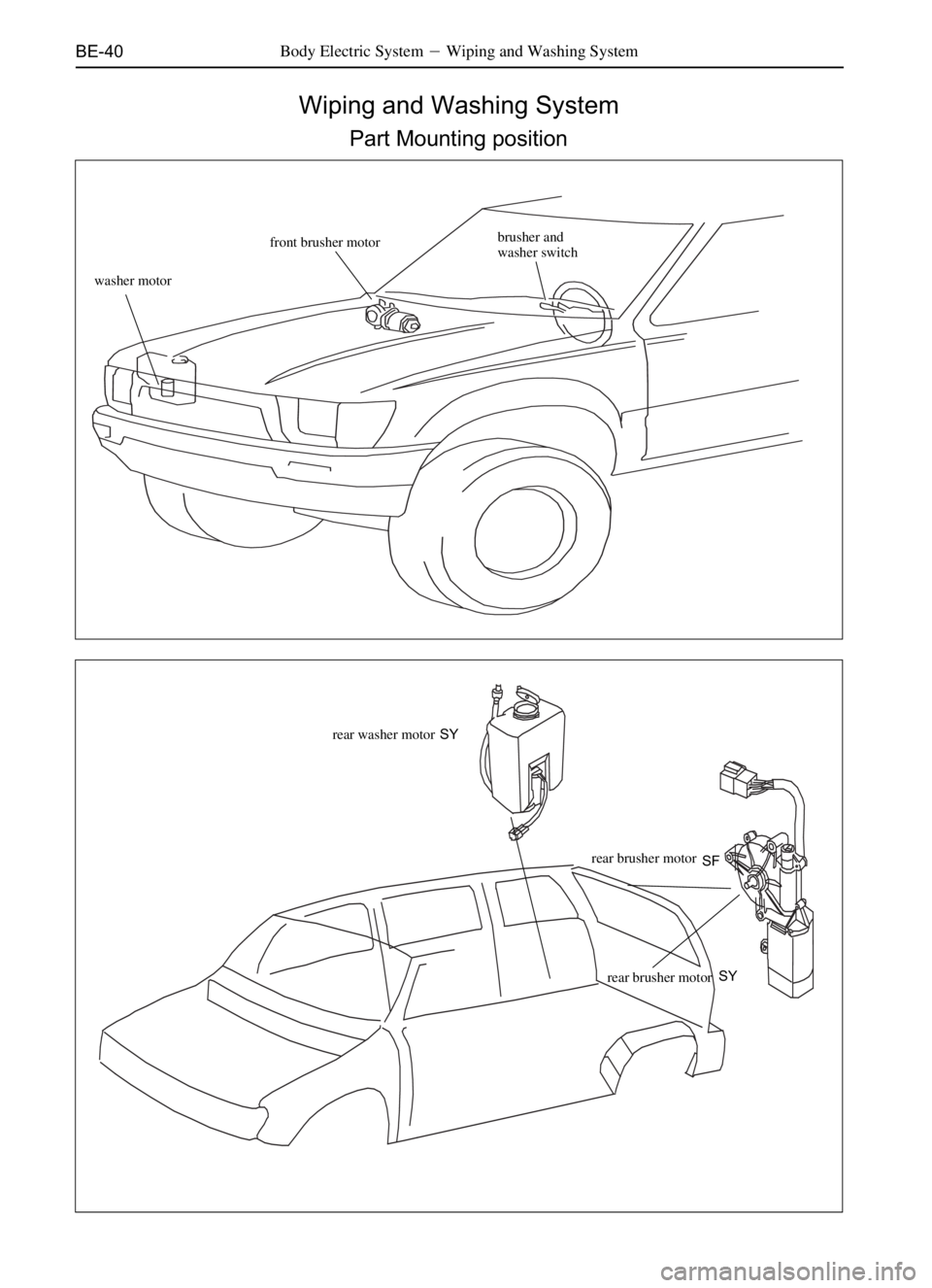

Part Mounting position
front brusher motorbrusher and
washer switch
SY rear washer motor
rear brusher motor
rear brusher motorSY SF washer motor

BE-41Body Electric System
Wiping and Washing System
Electric circuit diagram of wiping and washing system
Dr SF
fuse5
ignition switch
ACCONST3
fuse13
OFF
INT
LO
HI
washing
614
2120
MM
combined switch
ignition switchbrusher motor
1 2 3
4 5 6 1 2 3 4 5
6 7 8 9 10 1 2 3 4 5 6 7
14
2113
2012 11 10 9 8
15 16 17 18 19421
P 5
battery brusher switch
brusher motorwasher motor

BE-42Body Electric System
Wiping and Washing System
Electric circuit diagram of wiping and washing system (continued)
SL SK
fuse
ignition switch
ACCONST
N21 3
4
56
1
27
2P
12 3 4 5
67
MIST
OFF
INT
LO
HI
washing
16
5
4
432
51
ignition switchcombined switch
rain-brusher intermissive relay brusher motorwasher motor
1
2 12
3
456 123
4561 2 3 4
5 6 7 8123
7U910 11
12 456
battery brusher switchbrusher motor
washer motor
intermissionreturn geargrounding
wire
power
supplywashingmotor
returning
