Page 31 of 223
If the light comes on at any other
time, or does not come on at all, you
should have the system checked by
your dealer. For example:If the SRS indicator light does not
come on after you turn the ignition
ON (II).
If the light stays on after the
engine starts.
If the light comes on or f lashes on
andoff whileyoudrive.
If you see any of these indications,
your f ront or side airbags may not
deploy, your passenger’s side airbag
automatic cutoff system may not
work properly, or your seat belt
tensioners may not work when you
need them. See your Honda dealer
as soon as possible. This light alerts you that
the passenger’s side airbag
has been automatically shut off.
To reduce the risk of injury f rom an
inf lating side airbag, your car has an
automatic cutoff system for the
passenger’s side airbag.
Although Honda does not encourage
children to ride in the f ront, this
system is designed to shut of f the
side airbag if a child leans sideways
and the child’s head is in the side
airbag deployment path.
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
How the Side Airbag Of f
Indicator L ight Works
48
Ignoring the SRS indicator light
can result in serious injury or
death if the airbags, cutoff
system, or tensioners do not
work properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS light alerts you to a
potential problem.
Page 32 of 223
Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury. See page f or f urther inf ormation
and precautions relating to your
airbags.
If rain or spilled water
soaks into a seat-back, it can
prevent the side airbag system
f rom working properly. Improperly
replacing or covering f ront seat-
back covers can prevent your side
airbags f rom inf lating during a
collision.
Your f ront and side airbag systems
(if equipped) are virtually
maintenance-f ree, and there are no
parts you can saf ely service.
However, you must have your car
serviced if :
Take your car to an
authorized Honda dealer as soon
as possible. If you ignore this
indication, the airbags might not
inf late when you need them. Any
airbag that has deployed must be
replaced along with the control
unit, automatic seat belt
tensioners, and other related parts.
Do not try to remove or replace
anyairbagbyyourself.Thismust
be done by a Honda dealer or a
knowledgeable body shop. 203
Airbag Service Additional Saf ety Precautions
Donotattempttodeactivateyour
airbags.
Do not t amper wit h airbagcomponent s or wiring f or any
reason.
Do not expose t he f ront seat -backsto water. Do not cover or replace f ront seat -
back covers wit hout consult ing aHonda dealer.
T he SRS indicat or light alert s you t o a problem.
Your airbags ever inf late.
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety50
Page 33 of 223
Push the button.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
Your car’s exhaust contains carbon
monoxide gas. You should have no
problem with carbon monoxide
entering the car in normal driving if
you maintain your car properly.
Have the exhaust system inspected
f or leaks whenever:
The car is raised f or an oil change.
You notice a change in the sound
of the exhaust.
Thecarwasinanaccidentthat
may have damaged the underside. If you must sit in your parked car,
even in an unconf ined area, with the
engine running, adjust the heating
and cooling system as f ollows:
With the trunk lid open, air f low can
pull exhaust gas into your car’s
interior and create a hazardous
condition. If you must drive with the
trunk lid open, open all the windows
and set the heating and cooling
system as shown below. 1. 2.3.4.
Driver and Passenger Saf ety
Carbon Monoxide Hazard
51
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even killyou.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
Page 34 of 223
These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels caref ully.
If a label comes of f or becomes hard
to read, contact your Honda dealer
f or a replacement.
U.S. models onlyU.S. models
Canadian models
Saf ety L abels
Driver and Passenger Saf ety52
HOOD RADIATOR CAP
DASH BOARD
SUN VISOR
Page 35 of 223
This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your Honda. All the essential
controls are within easy reach............................
Control Locations . 54
...............................
Indicator Lights . 55
.............................................
Gauges . 60
...............................
Speedometer . 60
.................................
Tachometer . 60
.....................................
Odometer . 60
...................................
Trip Meter . 61
...................
Temperature Gauge . 61
..................................
Fuel Gauge . 61
Maintenance Required
...................................
Indicator . 62
Controls Near the Steering .......................................
Wheel . 63
...................................
Headlights . 64 Automatic Lighting Off
.....................................
Feature . 65
............
Daytime Running Lights . 65
....
Instrument Panel Brightness . 65
................................
Turn Signals . 66
.....................
Windshield Wipers . 66
..................
Windshield Washers . 68
..........................
Hazard Warning . 68
.............
Rear Window Def ogger . 68
......
Steering Wheel Adjustment . 69
...............................
Keys and Locks . 70
..............................................
Keys . 70
....................
Immobilizer System . 71
............................
Ignition Switch . 72
..................................
Door Locks . 73
......................
Power Door Locks . 74
...................
Remote Transmitter . 75
..............
Childproof Door Locks . 79
...........................................
Trunk . 79
........
Emergency Trunk Opener . 80
....................................
Glove Box . 81
............................
Seat Adjustments . 82
.............
Front Seat Adjustments . 82
Driver’s Seat Manual Height
..............................
Adjustment . 83 Driver’s Seat Power Height
..............................
Adjustment . 83
Driver’s Seat Full Power ............................
Adjustments . 84
...........
Driver’s Lumbar Support . 85
Front Passenger’s Seat
............................
Adjustments . 86
..........................
Head Restraints . 86
.......................
Folding Rear Seat . 87
......................
Rear Seat Armrest . 88
....................................
Seat Heaters . 90
..............................
Power Windows . 91
.........................................
Moonroof . 92
.............................................
Mirrors . 93
....
Adjusting the Power Mirrors . 94
.................................
Parking Brake . 95
....................................
Digital Clock . 96
...................
Console Compartment . 97
..........................................
Coin Box . 97
.............................
Beverage Holder . 98
..........................................
Sun Visor . 99
..................................
Vanity Mirror . 99
........................
Sunglasses Holder . 100
.............
Accessory Power Socket . 100
...............................
Interior Lights . 101
Instruments and Controls
Inst rument s and Cont rols53
Page 36 of 223
Inst rument s and Cont rols

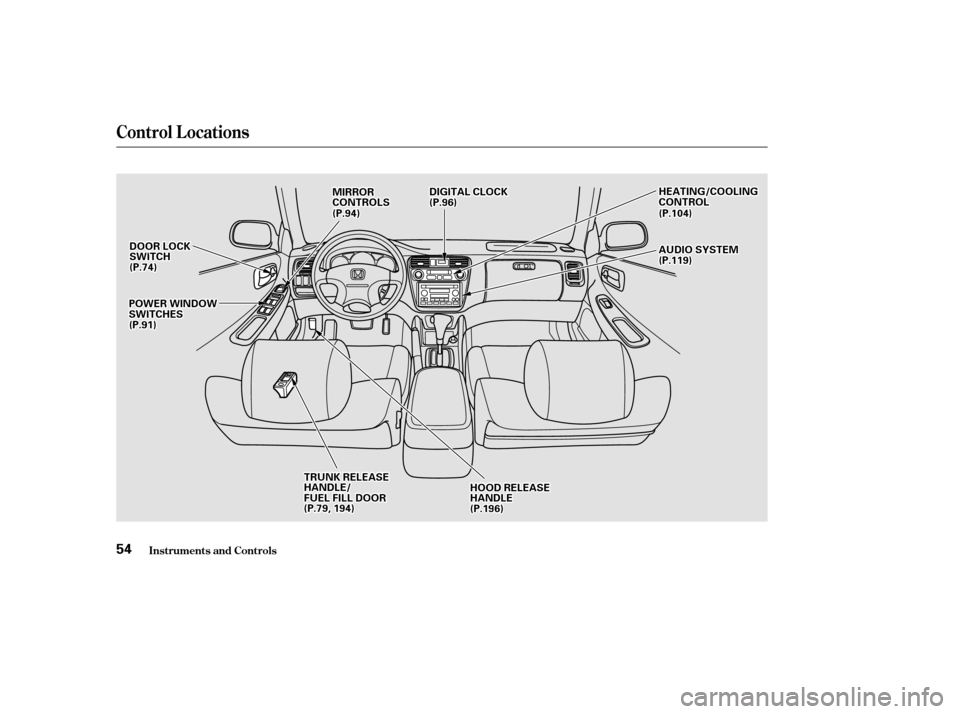

Control L ocations
54
DDOOOORRLLOOCCKKSSWWIITTCCHH
PPOOWWEERRWWIINNDDOOWWSSWWIITTCCHHEESS
HHOOOODDRREELLEEAASSEEHHAANNDDLLEE
MMIIRRRROORRCCOONNTTRROOLLSSDDIIGGIITTAALLCCLLOOCCKKHHEEAATTIINNGG//CCOOOOLLIINNGGCCOONNTTRROOLL
AAUUDDIIOOSSYYSSTTEEMM
TTRRUUNNKKRREELLEEAASSEEHHAANNDDLLEE//FFUUEELLFFIILLLLDDOOOORR
((PP..7744))
((PP..9911))
((PP..9944))((PP..9966))((PP..110044))
((PP..111199))
((PP..119966))((PP..7799,,119944))
Page 37 of 223
Î
ÎÎ
ÎÎ

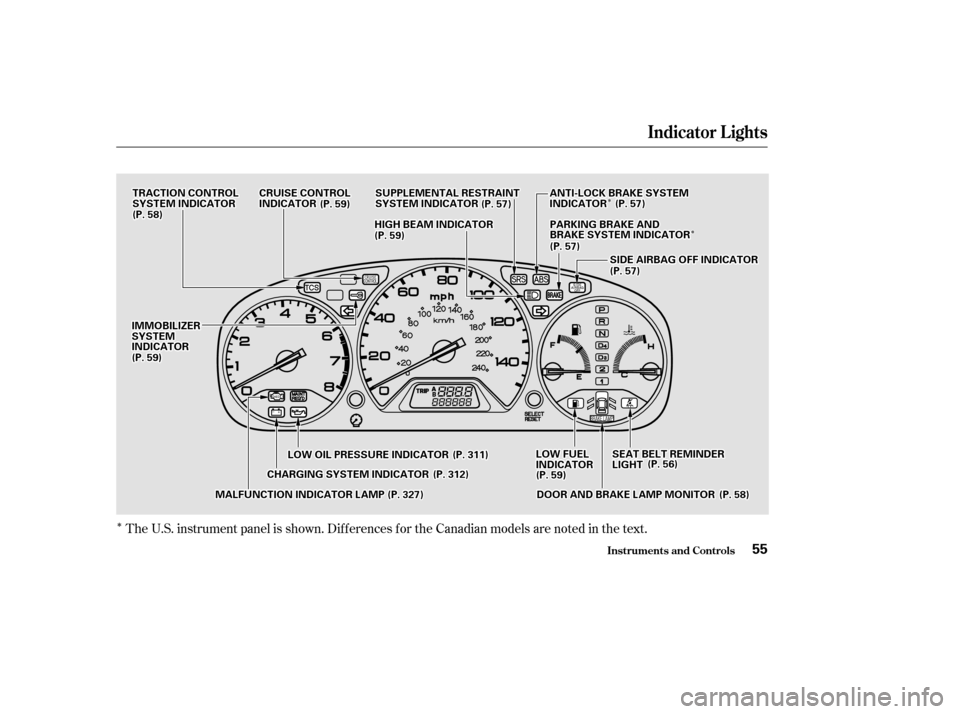

The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in thetext.
Indicator L ights
Inst rument s and Cont rols55
MMAALLFFUUNNCCTTIIOONNIINNDDIICCAATTOORRLLAAMMPP
LLOOWWFFUUEELLIINNDDIICCAATTOORRSSEEAATTBBEELLTTRREEMMIINNDDEERRLLIIGGHHTTCCHHAARRGGIINNGGSSYYSSTTEEMMIINNDDIICCAATTOORR
DDOOOORRAANNDDBBRRAAKKEELLAAMMPPMMOONNIITTOORR
PPAARRKKIINNGGBBRRAAKKEEAANNDDBBRRAAKKEESSYYSSTTEEMMIINNDDIICCAATTOORR
AANNTTII--LLOOCCKKBBRRAAKKEESSYYSSTTEEMMIINNDDIICCAATTOORRSSUUPPPPLLEEMMEENNTTAALLRREESSTTRRAAIINNTTSSYYSSTTEEMMIINNDDIICCAATTOORRTTRRAACCTTIIOONNCCOONNTTRROOLLSSYYSSTTEEMMIINNDDIICCAATTOORRCCRRUUIISSEECCOONNTTRROOLLIINNDDIICCAATTOORR
IIMMMMOOBBIILLIIZZEERRSSYYSSTTEEMMIINNDDIICCAATTOORR
HHIIGGHHBBEEAAMMIINNDDIICCAATTOORR
LLOOWWOOIILLPPRREESSSSUURREEIINNDDIICCAATTOORR
((PP..5588))((PP..5599))((PP..5577))
((PP..5599))
((PP..5577))
((PP..5577))
SSIIDDEEAAIIRRBBAAGGOOFFFFIINNDDIICCAATTOORR((PP..5577))
((PP..5599))((PP..5566))
((PP..5588))
((PP..5599))
((PP..331111))
((PP..331122))
((PP..332277))
Page 38 of 223
The tachometer shows the engine
speed in revolutions per minute
(rpm). To protect the engine f rom
damage, never drive with the
tachometer needle in the red zone.
This shows your speed in miles per
hour (mph). The smaller inner
numbers are the speed in kilometers
per hour (km/h).
This shows your speed in kilometers
per hour (km/h). The smaller inner
numbers are the speed in miles per
hour (mph). The odometer shows the total dis-
tance your car has been driven. It
measures miles in U.S. models and
kilometers in Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.U.S. Models
Canadian Models
Speedometer Odometer
T achometer
Gauges
Inst rument s and Cont rols60
SSPPEEEEDDOOMMEETTEERR
MMAAIINNTTEENNAANNCCEERREEQQUUIIRREEDDIINNDDIICCAATTOORROODDOOMMEETTEERR
TTEEMMPPEERRAATTUURREEGGAAUUGGEE
TTRRIIPPMMEETTEERR
TTAACCHHOOMMEETTEERRFFUUEELLGGAAUUGGEE
SSEELLEECCTT//RREESSEETTBBUUTTTTOONN
Page 39 of 223
4-cylinder models6-cylinder models
The gauge stays at the same f uel
level reading af ter you turn of f the
ignition. When you add f uel, the
gauge slowly changes to the new
readingafteryouturntheignition
switch back ON (II).
The needle returns to the bottom
after you turn off the ignition. The
gauge shows the f uel level reading
immediately af ter you turn the
ignition switch back ON (II).
This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the Select/
Reset button repeatedly. Each trip
meter works independently, so you
can keep track of two dif f erent
distances.
To reset a trip meter, display it and
then press and hold the Select/Reset
button until the number resets to
‘‘0.0’’. Both trip meters will reset if
the vehicle’s battery goes dead or is
disconnected.
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to near
the upper grey zone. If it reaches the
red (Hot) mark, pull saf ely to the
side of the road. Turn to page f or
instructions and precautions on
checking the engine’s cooling
system.
This shows how much f uel you have.
It is most accurate when the car is on
level ground. It may show slightly
more or less than the actual amount
whenyouaredrivingoncurvyor
hilly roads.
325
Gauges
Inst rument s and Cont rols
Trip Meter Temperature Gauge Fuel Gauge
61
Page 40 of 223
µ
For the f irst 6,000 miles (9,600 km)
af ter the Maintenance Required
Indicator is reset, it will come on f or
two seconds when you turn the
ignition switch ON (II). Between 6,000 miles (9,600 km) and
7,500 miles (12,000 km) this
indicator will light f or two seconds
when you first turn the ignition
switch ON (II), and then f lash f or
ten seconds.
If you exceed 7,500 miles (12,000
km) without having the scheduled
maintenance perf ormed, this
indicator will remain on as a constant
reminder.Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
done by someone other than your
Honda dealer, reset the indicator as
f ollows.
Turn of f the engine.
Press and hold the select/reset
buttonintheinstrumentpanel,
then turn the ignition switch ON
(II).
Hold the buttons for
approximately ten seconds until
the indicator resets.
This indicator reminds you that it is
time to take your car in for
scheduled maintenance.
Ref er to the Maintenance Schedules
f or Normal and Severe Driving
Conditions on pages . 1. 2. 3.
240 244
Gauges
Maintenance Required Indicator
Inst rument s and Cont rols62
MMAAIINNTTEENNAANNCCEERREEQQUUIIRREEDDIINNDDIICCAATTOORR
SSEELLEECCTT//RREESSEETTBBUUTTTTOONN
