This section covers the more
common problems that motorists
experience with their vehicles. It
gives you inf ormation about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also f ind instructions
on getting your vehicle towed.......................
Compact Spare Tire . 392
....................
Changing a Flat Tire . 393
.............
If the Engine Won’t Start . 398
................................
Jump Starting . 400
..............
If the Engine Overheats . 403
.........
Low Oil Pressure Indicator . 405
..........
Charging System Indicator . 405
.......
Malf unction Indicator Lamp . 406
...............
Brake System Indicator . 407
..............................................
Fuses . 408
..............................
Fuse Locations . 412
......................
Emergency Towing . 415
Taking Care of the Unexpected
T aking Care of t he Unexpect ed
391
Main Menu
Page 412 of 456

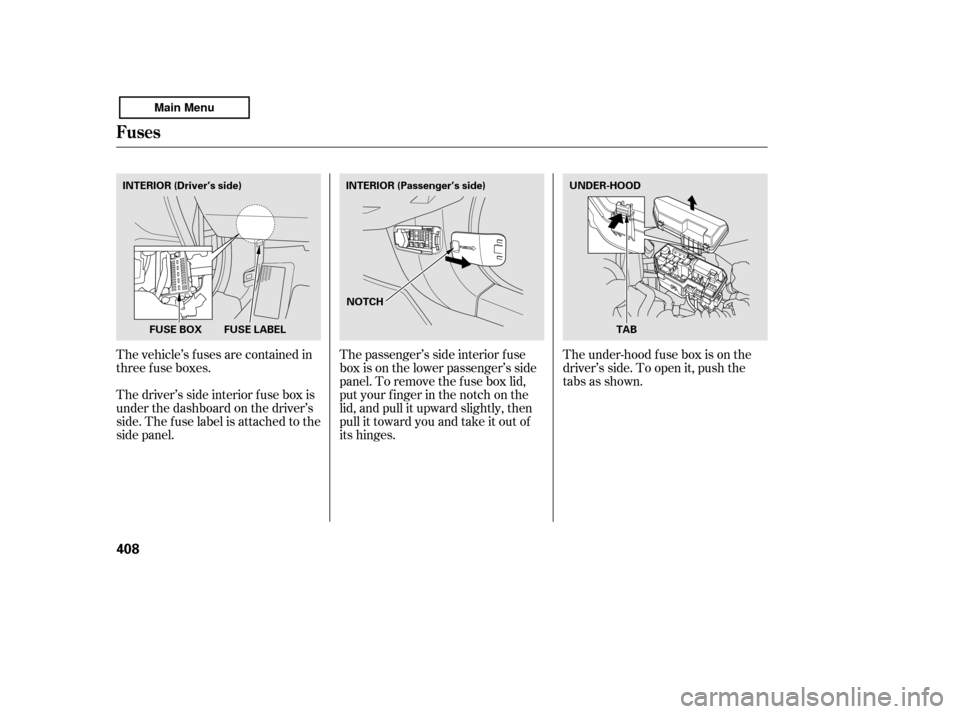

The vehicle’s f uses are contained in
threefuseboxes.
Thedriver’ssideinteriorfuseboxis
under the dashboard on the driver’s
side. The fuse label is attached to the
side panel.The passenger’s side interior f use
box is on the lower passenger’s side
panel. To remove the f use box lid,
put your f inger in the notch on the
lid, and pull it upward slightly, then
pull it toward you and take it out of
its hinges.The under-hood f use box is on the
driver’s side. To open it, push the
tabs as shown.
Fuses
408
UNDER-HOOD
INTERIOR (Driver’s side)
FUSE BOX FUSE LABEL TAB
NOTCH
INTERIOR (Passenger’s side)
Main Menu
Page 413 of 456
Also check the combined f use box in
the under-hood f use box.
If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pages
, and , or the diagram on
thefuseboxlidorthefuselabel,
which f use or f uses control that
component. Check those f uses f irst,
but check all the f uses bef ore
deciding that a blown f use is not the
cause. Replace any blown f uses and

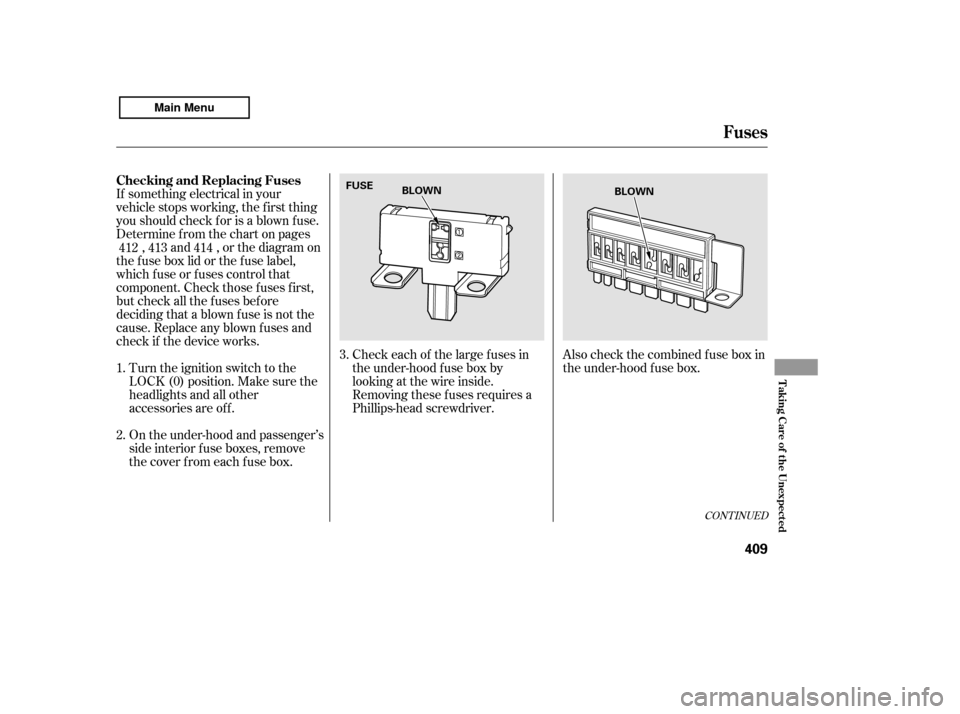

check if the device works. Check each of the large f uses in
the under-hood f use box by
looking at the wire inside.
Removing these f uses requires a
Phillips-head screwdriver.
Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are of f .
On the under-hood and passenger’s
side interior f use boxes, remove
the cover f rom each f use box. 3.
1. 2. 412 413 414
CONT INUED
Fuses
Checking and Replacing Fuses
T aking Care of t he Unexpect ed
409
FUSE
BLOWN BLOWN
Main Menu
Page 414 of 456
Your vehicle has spare fuses on the
back of the under-hood f use box
cover.
Look f or a blown wire inside the
f use. If it is blown, replace it with
oneof thesparefusesof thesame
rating or lower.
Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse boxes by
pulling out each one with the f use
pullerprovidedonthebackof the
under-hood f use box cover. 5.
4.
Fuses
410
BLOWN
SPARE FUSES
FUSE PULLER FUSE PULLER
Main Menu
Page 415 of 456
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualif ied technician.
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate that anything is wrong.
Replace the f use with one of the
correct rating as soon as you can.
If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket).
6.
Fuses
T aking Care of t he Unexpect ed
411
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
Main Menu
Page 425 of 456
µ
µ µµµµµ
Î ÎÎ
Î
Î Î
Î
Î
Î
Specif icat ions (4-cylinder models)
T echnical Inf ormation
421
Lights Battery Fuses
Tires
Alignment
Headlights
Front turn signal/parking lights
Front side marker lights
Rear turn signal lights
Back-up lights
Stop/taillights
License plate lights
High-mount brake light
Ceiling light
Spotlights
Trunk light
Front door courtesy lights
Vanity mirror lights
Capacity 12 V
12 V
12 V
12 V
12 V
12 V36 AH/5 HR
38 AH/5 HR
45 AH/20 HR
47 AH/20 HR
52 AH/5 HR
65 AH/20 HR Interior
Under-hood Size
Pressure
P215/60R16 94H
P225/50R17 93V
T135/80D16 101M
32 psi (220 kPa , 2.2 kgf/cm
)
30 psi (210 kPa , 2.1 kgf/cm)
60 psi (420 kPa , 4.2 kgf/cm
)
Toe-in
CamberCaster 0.00 in (0.0 mm)
0.08 in (2.0 mm)
0°
1°
3°48’
See page 413 or the fuse label
attached on the side panel.
See page 414 or the fuse label
attached to the inside of the fuse
box door.
See page 412 or the fuse box
cover.
60 W (HB3)
51 W (HB4)
21/5 W
3CP
21 W
21 W
21/5 W5W
21 W8W8W5W
1.4 W
2CP
High Low
: Passenger’s side
Driver’s side
Front/Rear
Spare
Front/Rear
Spare
1: 2:
FrontRear
FrontRear
Front
PZEV engine model, and Canadian models LX, LX-P, SE
EX, EX-L
(Amber)
2
1
2
1
Main Menu
Page 427 of 456
µ
Î
µ µ
Î
Specif icat ions (V6 models)
Technical Inf ormation
423
Fuses
Tires
Alignment
Lights Battery Interior
Under-hood Size
Pressure
P225/50R17 93V
T135/80D16 101M
32 psi (220 kPa , 2.2 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm)
Toe-in
CamberCaster 0.00 in (0.0 mm)
0.08 in (2.0 mm)
0°
1°
3°48’
Headlights
Front turn signal/parking lights
Front side marker lights
Fog lights
Rear turn signal lights
Back-up lights
Stop/taillights
License plate lights
High-mount brake light
Ceiling light
Spotlights
Trunk light
Front door courtesy lights
Vanity mirror lights
Capacity
12 V
12 V
60 AH/5 HR
72 AH/20 HR See page 413 or the fuse label
attached on the side panel.
See page 414 or the fuse label
attached to the inside of the fuse
box door.
See page 412 or the fuse box
cover.
60 W (HB3)
51 W (HB4)
21/5 W
3CP
55 W
21 W
21 W
21/5 W5W
21 W8W8W5W
2CP
1.4 W
HighLow
: Front/Rear
Spare
Front/Rear
Spare
Front Rear
FrontRear
Front
Driver’s side
Passenger’s side
If equipped (H11)
(Amber)
Main Menu
