HONDA ACCORD HYBRID 2023 Owners Manual

359Continued
Features

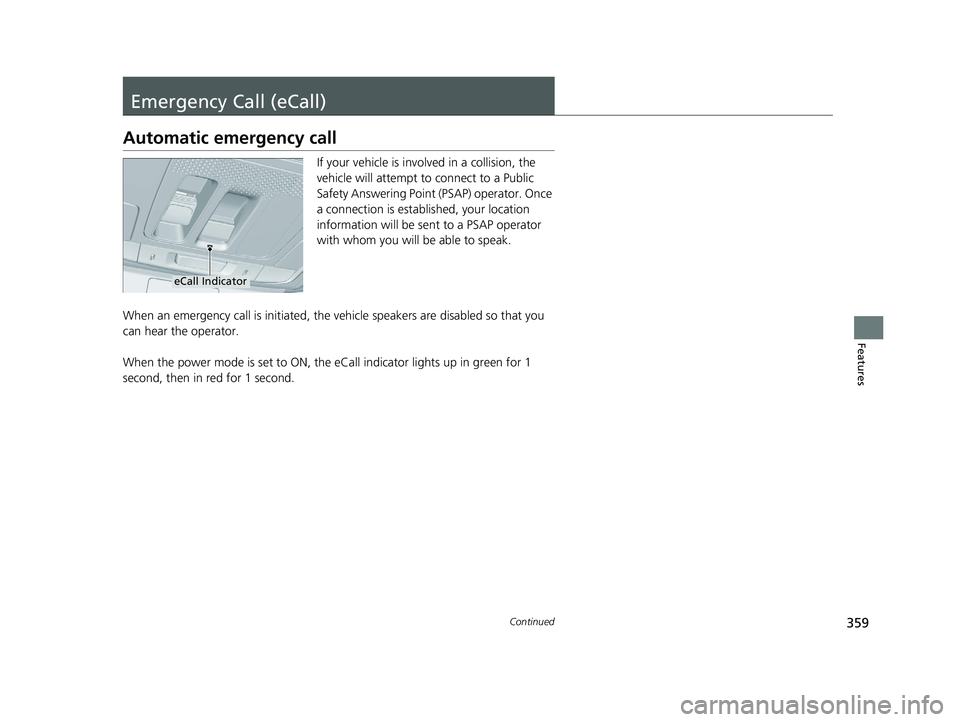

Emergency Call (eCall)
Automatic emergency call
If your vehicle is involved in a collision, the
vehicle will attempt to connect to a Public
Safety Answering Point (PSAP) operator. Once
a connection is established, your location
information will be sent to a PSAP operator
with whom you will be able to speak.
When an emergency call is initiated, the vehicle speakers are disabled so that you
can hear the operator.
When the power mode is set to ON, the eCall indicator lights up in green for 1
second, then in red for 1 second.
eCall Indicator
23 ACCORD 4D US HEV MAP-3130B6000.book 359 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

uuEmergency Call (eCall) uAutomatic emergency call
360
Features

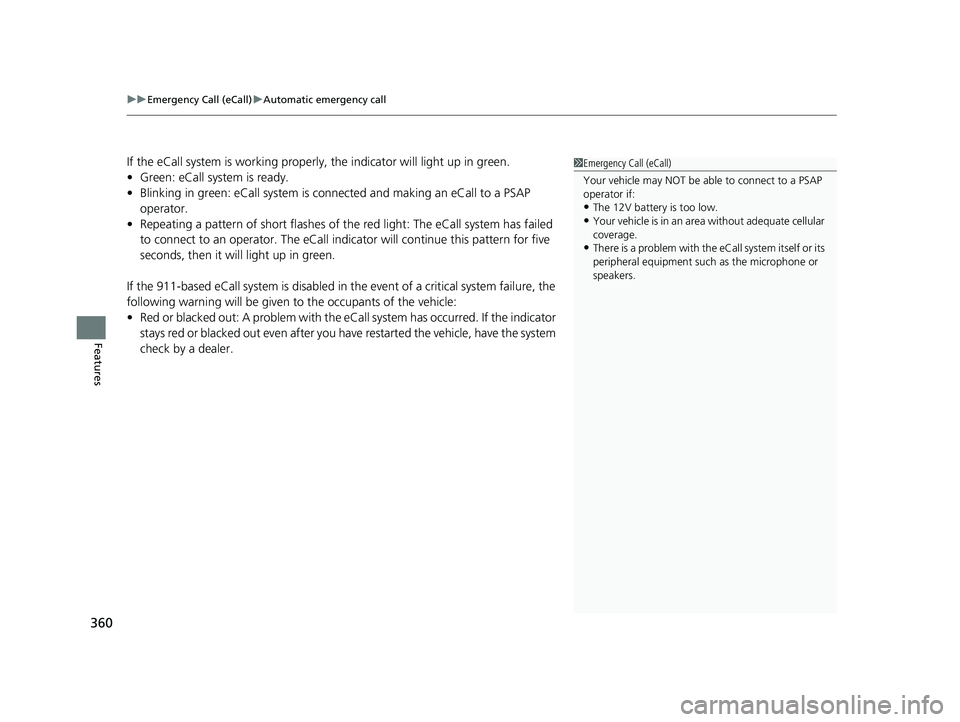

If the eCall system is working properly, the indicator will light up in green.
• Green: eCall system is ready.
• Blinking in green: eCall system is conne cted and making an eCall to a PSAP
operator.
• Repeating a pattern of short flashes of the red light: The eCall system has failed
to connect to an operator. The eCall indica tor will continue this pattern for five
seconds, then it will light up in green.
If the 911-based eCall system is disabled in the event of a critical system failure, the
following warning will be given to the occupants of the vehicle:
• Red or blacked out: A problem with the eC all system has occurred. If the indicator
stays red or blacked out even after you have restarted the vehicle, have the system
check by a dealer.1 Emergency Call (eCall)
Your vehicle may NOT be ab le to connect to a PSAP
operator if:
•The 12V batter y is too low.
•Your vehicle is in an area without adequate cellular
coverage.
•There is a problem with the eCall system itself or its
peripheral equipment such as the microphone or
speakers.
23 ACCORD 4D US HEV MAP-3130B6000.book 360 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

361
uuEmergency Call (eCall) uManual emergency call
Features

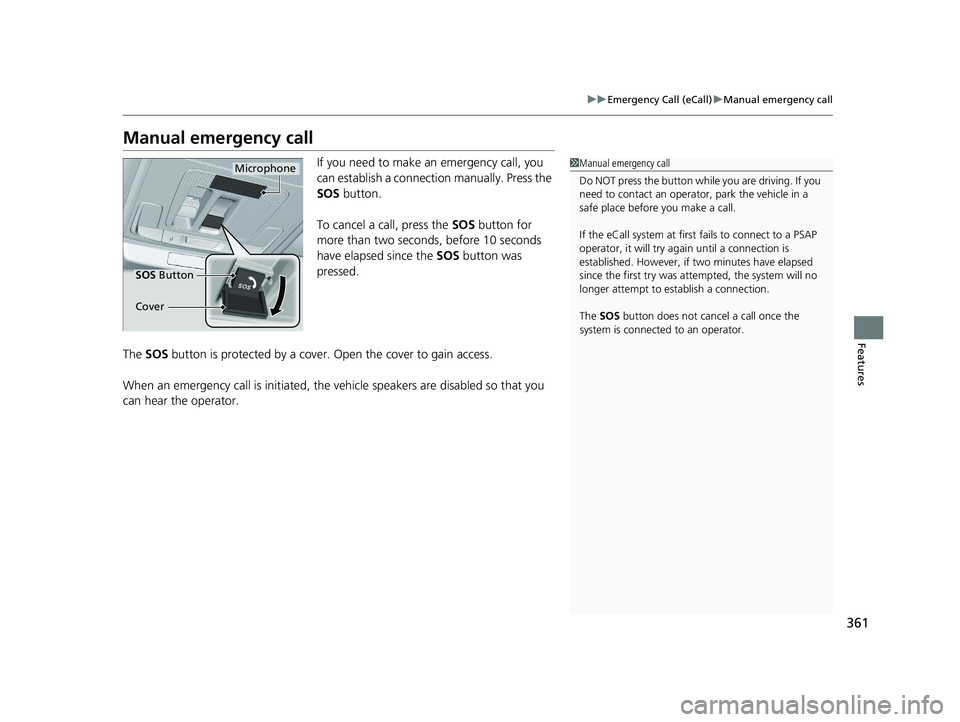

Manual emergency call
If you need to make an emergency call, you
can establish a connection manually. Press the
SOS button.
To cancel a call, press the SOS button for
more than two seconds, before 10 seconds
have elapsed since the SOS button was
pressed.
The SOS button is protected by a cover. Open the cover to gain access.
When an emergency call is initiated, the vehicle speakers are disabled so that you
can hear the operator.1 Manual emergency call
Do NOT press the button while you are driving. If you
need to contact an operator, park the vehicle in a
safe place before you make a call.
If the eCall system at first fails to connect to a PSAP
operator, it will try again until a connection is
established. However, if two minutes have elapsed
since the first try was attempted, the system will no
longer attempt to establish a connection.
The SOS button does not canc el a call once the
system is connected to an operator.
Cover
Microphone
SOS Button
23 ACCORD 4D US HEV MAP-3130B6000.book 361 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

362
23 ACCORD 4D US HEV MAP-3130B6000.book 362 ページ ２０２２年１０月１３日　木曜日　午後４時５０分This page intentionally left blank.

363
Driving
This chapter discusses driving and refueling.
Before Driving................................... 364
Towing a Trailer ................................ 369
When Driving
Turning on the Power ...................... 370
Precautions While Driving................. 377
Transmission .................................... 377
Shifting ............................................ 378
Deceleration Paddle Selector ............ 380
Acoustic Vehicle Al erting System ...... 383
Drive Mode System .......................... 384
Vehicle Stability AssistTM (VSA®), aka Electronic
Stability Control (ESC), System ................. 390
Motion Management System ........... 392
Tire Pressure Monitoring System (TPMS)*.. 393Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 396
Blind Spot Information System ......... 398
High Voltage Battery ........................ 402
Honda Sensing ®
Collision Mitigati on Braking System
TM
(CMBSTM) ....................................... 406
Low Speed Braking Control*............ 418
Adaptive Cruise Control (ACC) with Low Speed Follow ................................. 424
Lane Keeping Assist System (LKAS) .. 445
Traffic Jam Assist ............................. 456 Road Departure Miti
gation System... 465
Traffic Sign Recognition System ....... 473
Front Sensor Camera ....................... 479
Radar Sensor ................................... 481
Sonar Sensors
*................................ 482
Braking
Brake System ................................... 483
Anti-lock Brake System (ABS) ........... 491
Brake Assist System ......................... 492
Parking Your Vehicle ........................ 493
Multi-View Rear Camera .................. 502
Refueling ........................................... 504
Fuel Economy and CO
2 Emissions .... 507
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 363 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

364
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on th e windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheel s, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 537
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you’ve parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also, check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
23 ACCORD 4D US HEV MAP-3130B6000.book 364 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

Continued365
uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle's
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 367
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driv ing and a crash could occur.
• Securely close and lock all doors and the trunk.
2 Locking/Unlocking the Doors from the Inside P. 155
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Seats P. 189
2 Adjusting the Front Head Restraint Positions P. 195
•Adjust the mirrors and steering wheel properly.
u Adjust them while sitting in the proper driving position.
2 Mirrors P. 187
2 Adjusting the Steering Wheel P. 186
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
23 ACCORD 4D US HEV MAP-3130B6000.book 365 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

366
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 51
•Make sure that the indicators in the in strument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 90
23 ACCORD 4D US HEV MAP-3130B6000.book 366 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

367
uuBefore Driving uMaximum Load Limit
Continued
Driving

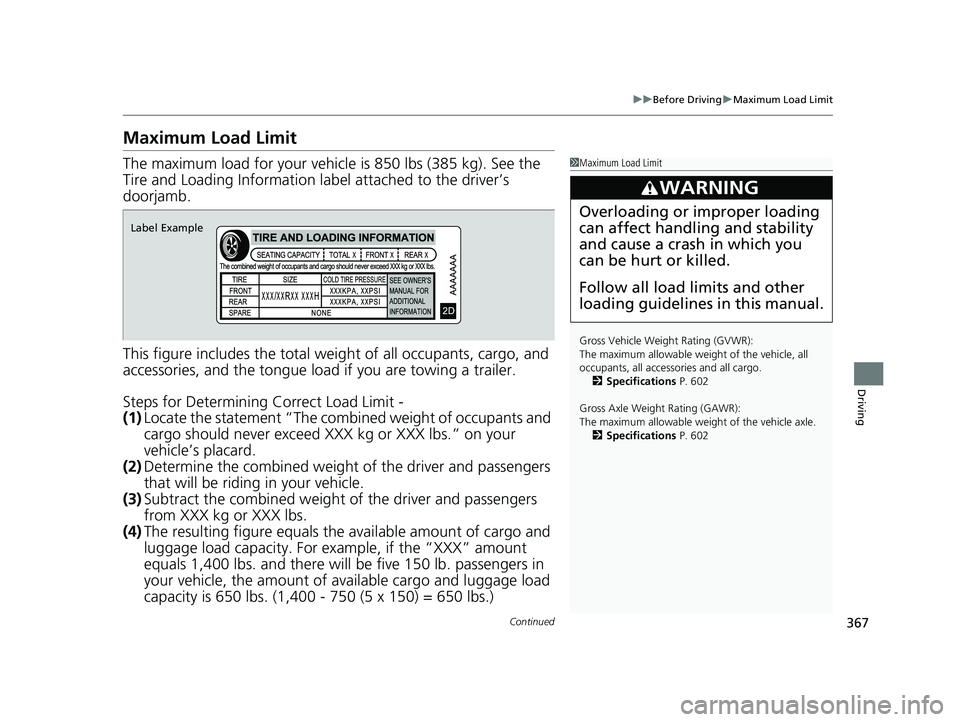

Maximum Load Limit
The maximum load for your vehicl e is 850 lbs (385 kg). See the
Tire and Loading Information la bel attached to the driver’s
doorjamb.
This figure includes the total weig ht of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer.
Steps for Determining Correct Load Limit -
(1) Locate the statement “The combined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your
vehicle’s placard.
(2) Determine the combined weight of the driver and passengers
that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers
from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and
luggage load capacity. For example, if the “XXX” amount
equals 1,400 lbs. and there will be five 150 lb. passengers in
your vehicle, the am ount of available cargo and luggage load
capacity is 650 lbs. (1,400 - 750 (5 x 150) = 650 lbs.)1 Maximum Load Limit
Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all accesso ries and all cargo.
2 Specifications P. 602
Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle. 2 Specifications P. 602
3WARNING
Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.
Follow all load limits and other
loading guidelines in this manual.
Label Example
23 ACCORD 4D US HEV MAP-3130B6000.book 367 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

uuBefore Driving uMaximum Load Limit
368
Driving

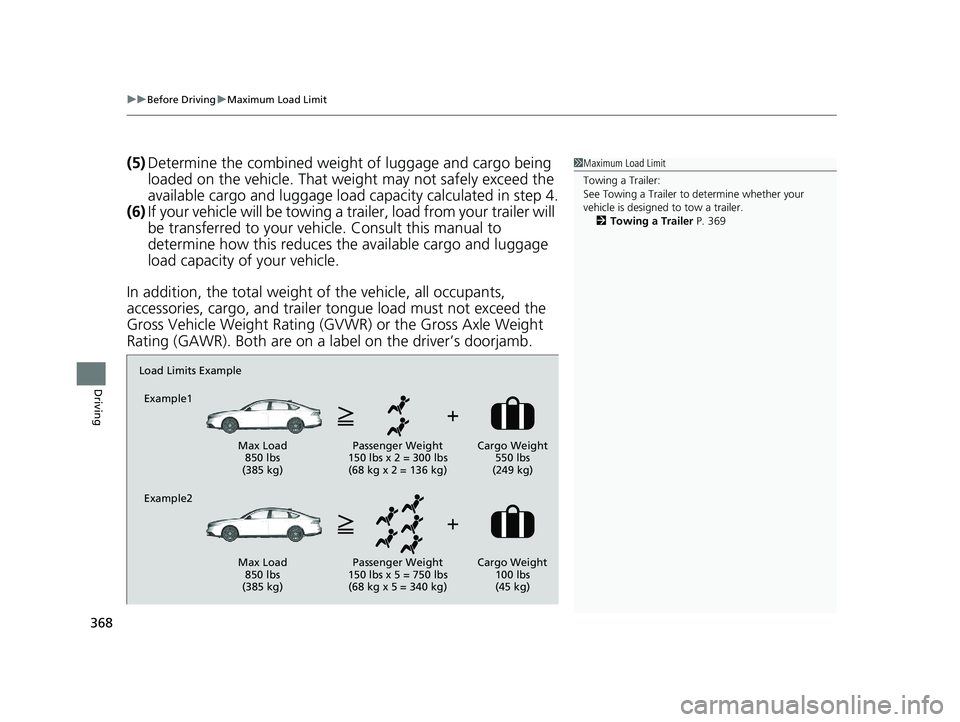

(5) Determine the combined weight of luggage and cargo being
loaded on the vehicle. That we ight may not safely exceed the
available cargo and luggage load capacity calculated in step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will
be transferred to your vehicl e. Consult this manual to
determine how this reduces the available cargo and luggage
load capacity of your vehicle.
In addition, the total weight of the vehicle, all occupants,
accessories, cargo, and trailer tongue load must not exceed the
Gross Vehicle Weight Rating (GVW R) or the Gross Axle Weight
Rating (GAWR). Both are on a label on the driver’s doorjamb.1 Maximum Load Limit
Towing a Trailer:
See Towing a Trailer to determine whether your
vehicle is designed to tow a trailer.
2 Towing a Trailer P. 369
Load Limits Example
Example1
Max Load 850 lbs
(385 kg) Passenger Weight
150 lbs x 2 = 300 lbs (68 kg x 2 = 136 kg) Cargo Weight
550 lbs
(249 kg)
Example2
Max Load 850 lbs
(385 kg) Passenger Weight
150 lbs x 5 = 750 lbs (68 kg x 5 = 340 kg) Cargo Weight
100 lbs
(45 kg)
23 ACCORD 4D US HEV MAP-3130B6000.book 368 ページ ２０２２年１０月１３日　木曜日　午後４時５０分
