HONDA CIVIC 2010 8.G Owners Manual

ÎÎ
Î
The courtesy light between the
spotlights comes on when you turn
the parking lights on. To adjust its
brightness, push the instrument
panel brightness control buttons
under the driver’s side vent with the
ignition switch in the ON (II)
position.
On Canadian Si model
Interior Convenience Items
Courtesy L ight
Interior L ights, Interior Convenience Items
Inst rument s and Cont rols
107

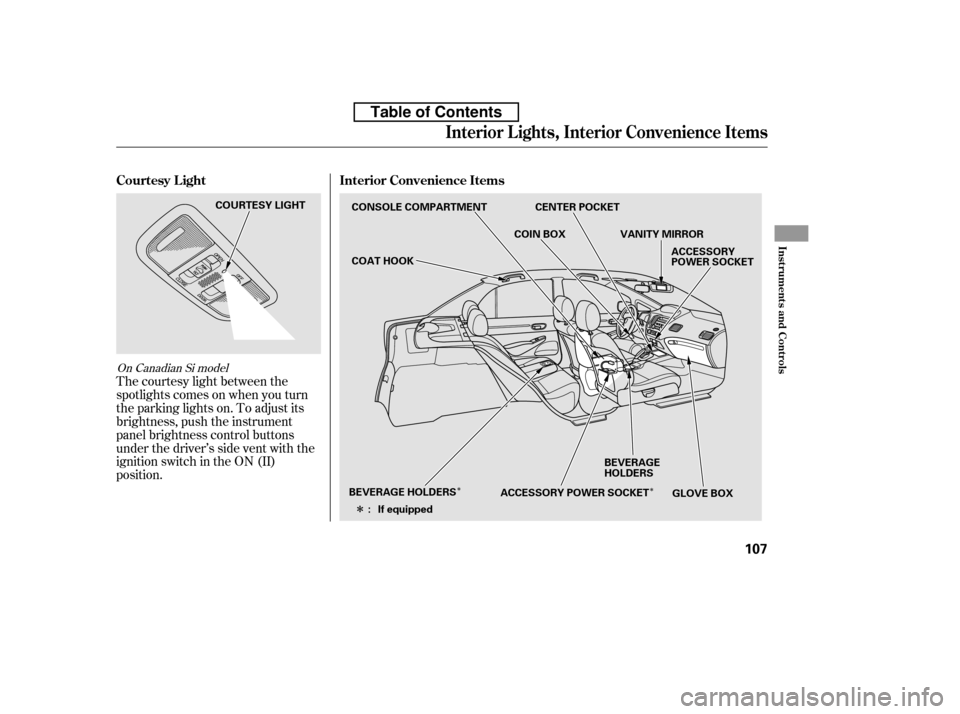

CONSOLE COMPARTMENT
COAT HOOK
GLOVE BOX
ACCESSORY
POWER SOCKET
BEVERAGE
HOLDERS
BEVERAGE HOLDERS ACCESSORY POWER SOCKETVANITY MIRROR
COIN BOX
If equipped
: CENTER POCKET
COURTESY LIGHT
Table of Contents

Be caref ul when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Spilled liquids can
damage the upholstery, carpeting,
and electrical components in the
interior.To close, lower the lid, and push it
down until it latches.
To open the console compartment,
pull up on the lever, and lif t the lid.
Open the f ront beverage holder by
sliding its cover backward.
The rear seat also has a beverage
holder in the center armrest. To use
it, pivot the armrest down.
This socket is intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps). It will not power an
automotive type cigarette lighter
element.
To use an accessory power socket,
the ignition switch must be in the
ACCESSORY (I) or ON (II) position. The EX, EX-L, and Si models without
navigation system have another
accessory power socket in the center
console compartment. When more
than one socket is being used, the
combined power rating of the
accessories should be 120 watts or
less (10 amps).
Open the glove box by pulling the
handle to the lef t. Close it with a f irm
push.
If equipped
Beverage Holders
Console Compartment
A ccessory Power Socket Glove Box
Interior Convenience Items
108
LEVER
ACCESSORY
POWER SOCKET CONSOLE
COMPARTMENT
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seatbelt.
Always keep the glove box
closed while driving.
Table of Contents

Î
Î
The heating and air conditioning
systems in your vehicle provide a
comf ortable driving environment in
all weather conditions.
The security system helps to dis-
courage vandalism and thef t of your
vehicle.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them. (If you have an optional
audio system, ref er to the operating
instructions that came with it.)
Air conditioning is optional on DX
model. .............Vents, Heating, and A/C . 110
...........................
Using the A/C . 112
................................
Audio System . 114
Audio System (Models without
...............
navigation system) . 115
......................
Playing the Radio . 116
Playing the XM
Radio
..............................
(Optional) . 120
............................
Playing a Disc . 125
...
Disc Player Error Messages . 131
.......................
PlayinganiPod
. 133
.............
iPod
Error Messages . 140
Playing a USB Flash Memory ....................................
Device . 141
USB Flash Memory Device ....................
Error Messages . 148
Audio System (Models with ...............
navigation system) . 149
......
Playing the AM/FM Radio . 149
............
Playing the XM
Radio . 153
............................
Playing a Disc . 162
...
Disc Player Error Messages . 170
.....................
Playing a PC Card . 171
........
PC Card Error Messages . 183
.......................
PlayinganiPod
. 184
.............
iPod
Error Messages . 190 Playing a USB Flash Memory
....................................
Device . 191
USB Flash Memory Device
....................
Error Messages . 198
............
AM/FM Radio Reception . 199
..................
Protecting Your Discs . 201
................
Remote Audio Controls . 204
......................
Auxiliary Input Jack . 205
.................
Radio Thef t Protection . 206
..........................
Setting the Clock . 207
............................
Security System . 208
...............................
Cruise Control . 209
........
HandsFreeLink
. 212Bluetooth
All U.S. models except DX
If equipped
Features
Features
109

Turn the dial clockwise to increase
the fan speed and airflow. Turn the
dial counterclockwise to decrease
them.
This button turns the air
conditioning on and of f . The
indicatorinthebuttonisonwhen
the A/C is on.
When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
Turning this dial clockwise increases
the temperature of the airflow.
If equipped
Vents, Heating, and A/C
Fan Control Dial
Recirculation Button
Air Conditioning (A/C) Button
T emperature Control Dial
110

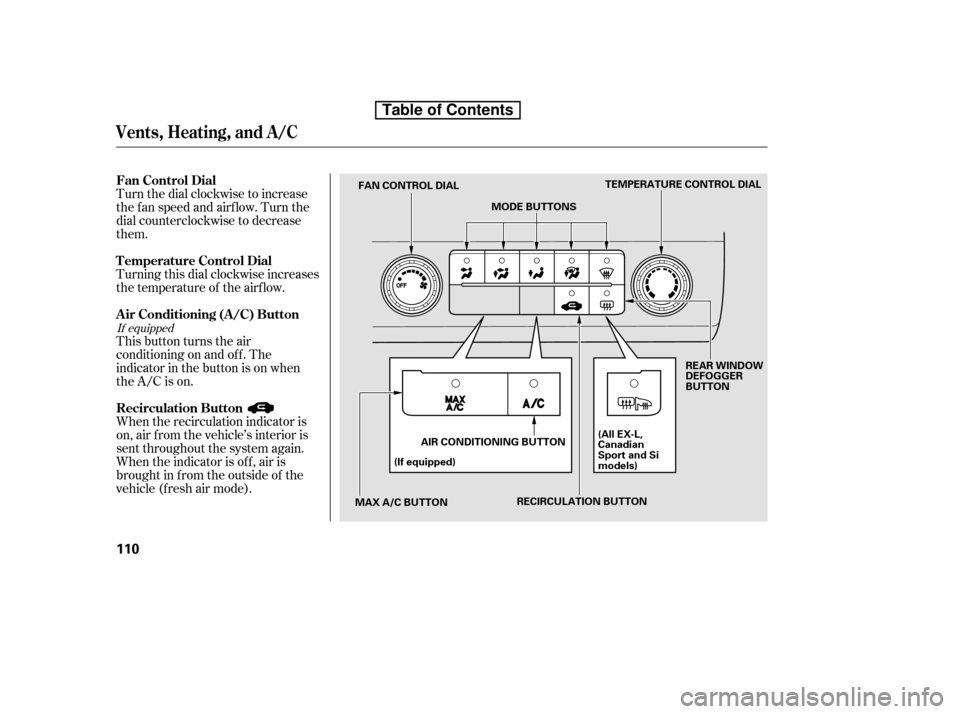

TEMPERATURE CONTROL DIAL
MODE BUTTONS
FAN CONTROL DIAL
MAX A/C BUTTON (If equipped)
AIR CONDITIONING BUTTON REAR WINDOW
DEFOGGER
BUTTON
RECIRCULATION BUTTON (All EX-L,
Canadian
Sport and Si
models)
Table of Contents

The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
This button turns the rear window
def ogger of f and on (see page ).
Use the mode control buttons to
select the vents air flows from. Some
air will f low f rom the dashboard
corner vents in all modes.Air flows from the center
and corner vents in the dashboard.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Air f lows f rom the f loor
vents. When you select , the
system automatically switches to
f resh air mode.
Airf low is divided between
the f loor vents and def roster vents at
the base of the windshield.
Air f lows f rom the def roster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
f resh air mode and turns on the A/C
(if equipped). The system automatically
turns on the A/C and switches to
recirculation mode (see page to
use this setting). Air f lows f rom the
center and side vents in the
dashboard. Pressing the , A/C,
or any of the mode buttons cancels
MAX A/C, but the A/C stays on.
The ventilation system draws in
outside air, circulates it through the
interior, then exhausts it through
vents near the rear side panels.
Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and fresh air mode.
Set the f an to the desired speed.
1. 2. 3.4.
76 112
If equipped
Vents, Heating, and A/C
Rear Window Def ogger Button
Mode Control MAX A/C Button
Ventilation
Features
111
Table of Contents

The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.Select .
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page ). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal.
Turn on the A/C by pressing the
button. The indicator in the button
comesonwhenafanspeedis
selected.
Make sure the temperature is set to maximum cool.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select f resh air mode.
Set the f an to the desired speed.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in f resh air mode.
To cool the interior with MAX A/C: Set the f an to the desired speed.
Select MAX A/C.
The system automatically turns on
the A/C, selects , and
switches to recirculation mode.
Make sure the temperature is set
to maximum cool. Turn the fan on.
If the A/C is of f , turn it on (if
equipped).
Select and fresh air mode.
Adjust the temperature to your
pref erence.
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry and
can prevent the windows f rom
f ogging up.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).
1.2.3.
3.4. 5.
1. 2. 1. 2. 3.1. 2. 3. 4.
70
If equipped If the interior is very warm,
Vents, Heating, and A/C
Using the Heater
Using the A /C Dehumidif y the Interior
112
Table of Contents

To remove f og f rom the inside of the
windows:Set the f an to the desired speed, or
high f or f aster def rosting.
Select . When you select , the system automatically
switches to f resh air mode and
turns on the A/C (if equipped).
The A/C indicator will not come
on, if it was previously of f .
Adjust the temperature so the
airf low f eels warm.
Select to help clear the
rear window.
To increase airf low to the
windshield, close the corner vents. To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel next to each vent.
This sends more warm air to the
windshield def roster vents. Once the
windshield is clear, select f resh air
mode to avoid f ogging the windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
Turning the f an speed control dial all
the way to the left shuts the system
of f .
Keep the system of f f or short
periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
When you switch to , f rom
or , the A/C stays on.
This helps prevent the windows f rom
rapidly f ogging up when the air is
suddenly routed away f rom the
windshield. If you want to turn the
A/C off, press and release the A/C
button twice. The indicator in the
buttoncomesonandthengoesoff.
Select . When you select , the system automatically
switches to f resh air mode and
turns on the A/C (if equipped).
The A/C indicator will not come
on, if it was previously of f .
Select .
Set the f an and temperature
controls to maximum level.
5.
1. 2. 3.
1. 2. 3. 4.
Vents, Heating, and A/C
T o Def og and Def rost
T o Remove Exterior Frost or Ice
From the WindowsTo Turn Everything Of f
Features
113
Table of Contents

An audio system is standard on all
models except the U.S. DX. Read the
appropriate pages (as shown below)
to use your vehicle’s audio system.
For vehicles with navigation system,
see pages through .
If your vehicle has a dif f erent audio
system, ref er to its manual f or
operating instructions.
For vehicles without navigation
system, see pages through .
115 148
149 198
Audio System
114

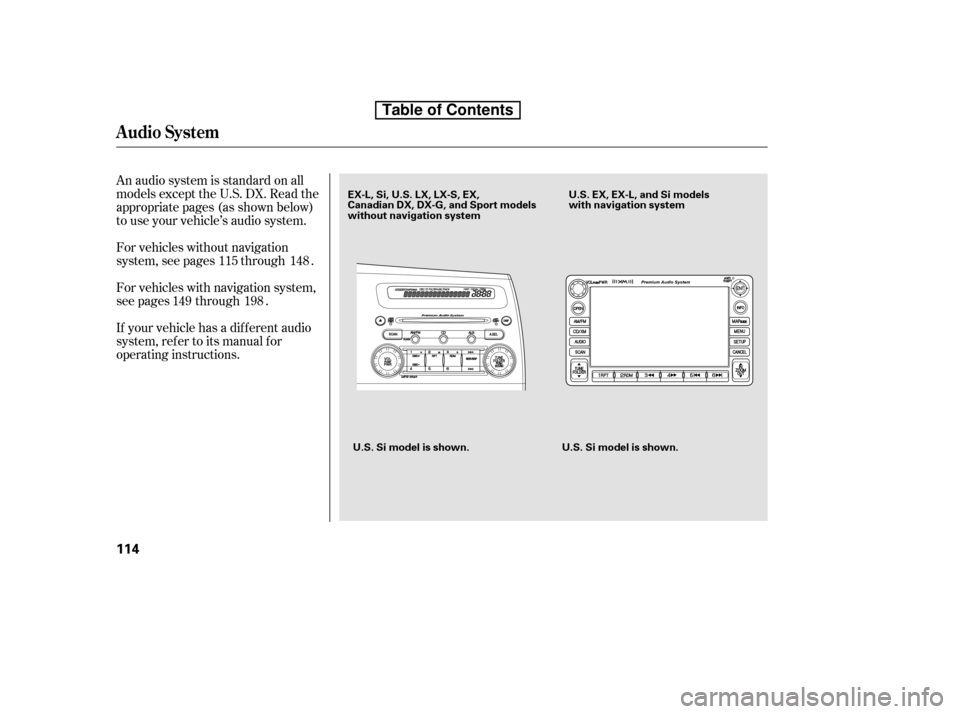

U.S. Si model is shown. U.S. Si model is shown. U.S. EX, EX-L, and Si models
with navigation system
EX-L,Si,U.S.LX,LX-S,EX,
Canadian DX, DX-G, and Sport models
without navigation system
Table of Contents

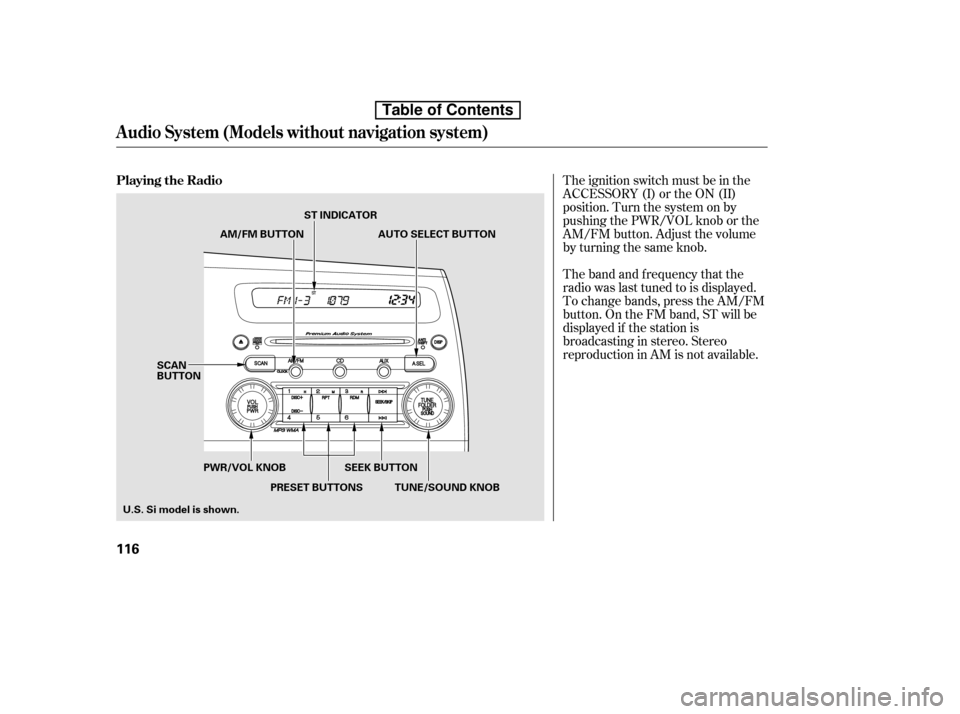

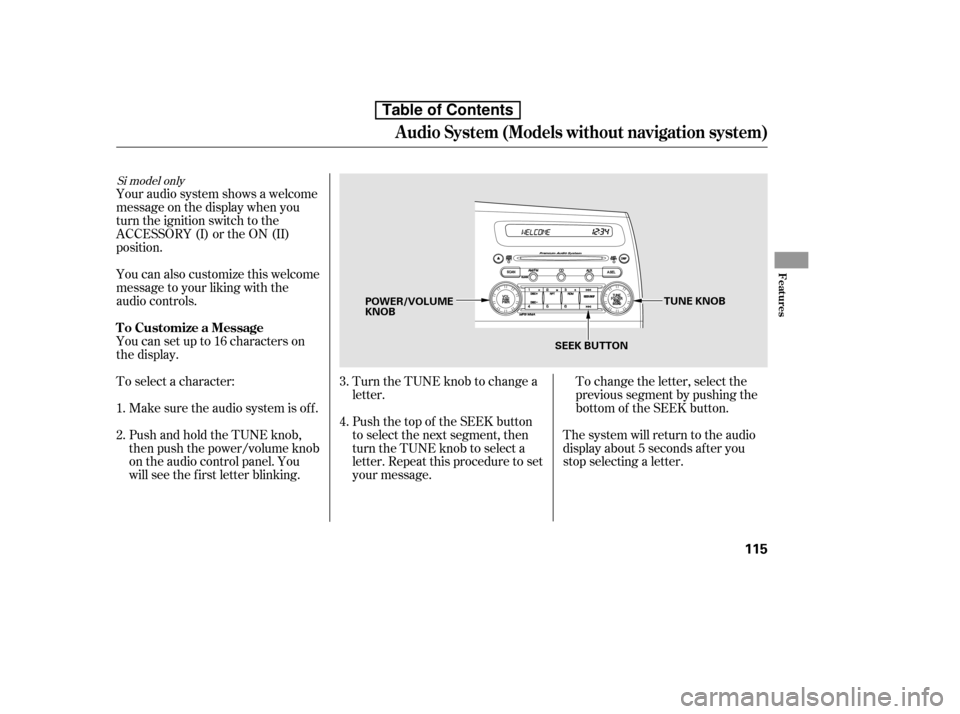

To change the letter, select the
previous segment by pushing the
bottom of the SEEK button.
Turn the TUNE knob to change a
letter.
Push the top of the SEEK button
to select the next segment, then
turn the TUNE knob to select a
letter. Repeat this procedure to set
your message. The system will return to the audio
display about 5 seconds af ter you
stop selecting a letter.
Your audio system shows a welcome
message on the display when you
turn the ignition switch to the
ACCESSORY (I) or the ON (II)
position.
You can also customize this welcome
message to your liking with the
audio controls.
Youcansetupto16characterson
the display.
To select a character:
Make sure the audio system is of f .
PushandholdtheTUNEknob,
then push the power/volume knob
on the audio control panel. You
will see the f irst letter blinking.
2. 3. 4.
1.
Si model only
Audio System (Models without navigation system)
T o Customize a Message
Features
115
TUNE KNOB
POWER/VOLUME KNOB
SEEK BUTTON
Table of Contents

The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is
broadcasting in stereo. Stereo
reproduction in AM is not available.
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Turn the system on by
pushingthePWR/VOLknoborthe
AM/FM button. Adjust the volume
by turning the same knob.
Playing the Radio
Audio System (Models without navigation system)
116
SCAN
BUTTON
SEEK BUTTON
PRESET BUTTONS AUTO SELECT BUTTON
U.S. Si model is shown. PWR/VOL KNOB
TUNE/SOUND KNOB
ST INDICATOR
AM/FM BUTTON
Table of Contents
