navigation HONDA CIVIC COUPE 2015 9.G Navigation Manual

99
uuCalculating the Route uViewing the Routes
Navigation
Viewing the Route s
View three different routes to your destination.
1.Select a route on the list.
u The travel distance and
estimated travel time is
displayed for each route.
u The system calculates and
displays the route line on the
map screen.
2 Route Line P. 102
2.Select OK.
1Viewing the Routes
It is not unusual for some ca lculated route options to
be identical.
15 CIVIC NAVI-31TR38300.book 99 ページ ２０１４年８月７日　木曜日　午前１１時４９分

100
Navigation
Driving to Your Destination
This section describes how to follow the route guidance to your destination, receive
traffic information, and choose the icons displayed on the map screen.
Viewing the Route
After calculating the route to your
destination, the route is displayed on
the map screen.
2 During Route Guidance P. 11
As you drive, the system tracks your
position on the map in real time and
provides guidance as you approach
each guidance point on the route.
■Map Screen
1
Viewing the Route
“Display Map ”
You can change the map scale using voice control
commands (e.g., say “ Display 2 mile scale”).
2 Map Scale Commands P. 235
You can also change the ma p scale by selecting the
scale icon, pinching in/out, and double tapping on
the map screen with two fingers (zoom out only).
You can control the icons displayed on the map
screen using voice control commands (e.g., say
“Display post office ”).
2 Map Display Command s P. 234
You can obtain information about the route using
voice control commands (e.g., say “ How long to
the destination?”). 2 Route Command s P. 236
If you scroll the map whil e en route, the time and
distance to destination indi cators are hidden, and an
indicator showing distance from the current vehicle
position is displayed at the bottom of the screen.
15 CIVIC NAVI-31TR38300.book 100 ページ ２０１４年８月７日　木曜日　午前１１時４９分

Continued101
uuDriving to Your Destination uViewing the Route
Navigation

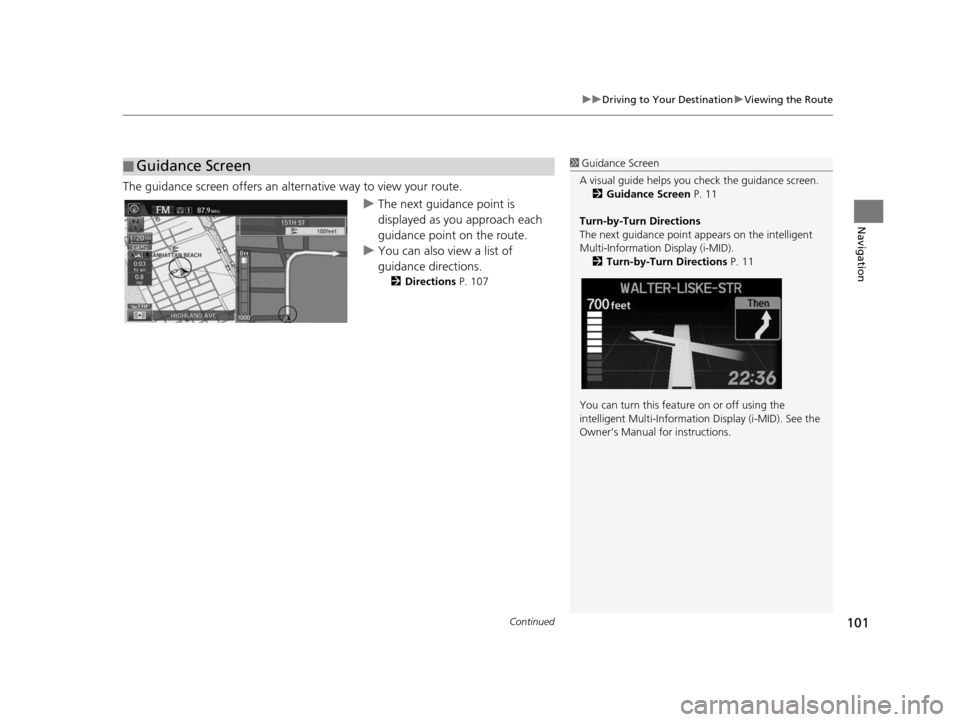

The guidance screen offers an al ternative way to view your route.
uThe next guidance point is
displayed as you approach each
guidance point on the route.
u You can also view a list of
guidance directions.
2 Direction s P. 107
■Guidance Screen1
Guidance Screen
A visual guide helps you check the guidance screen.
2 Guidance Screen P. 11
Turn-by-Turn Direction s
The next guidance point a ppears on the intelligent
Multi-Information Display (i-MID). 2 Turn-by-Turn Direction s P. 11
You can turn this feat ure on or off using the
intelligent Multi-Information Display (i-MID). See the
Owner’s Manual for instructions.
15 CIVIC NAVI-31TR38300.book 101 ページ ２０１４年８月７日　木曜日　午前１１時４９分

uuDriving to Your Destination uViewing the Route
102
Navigation

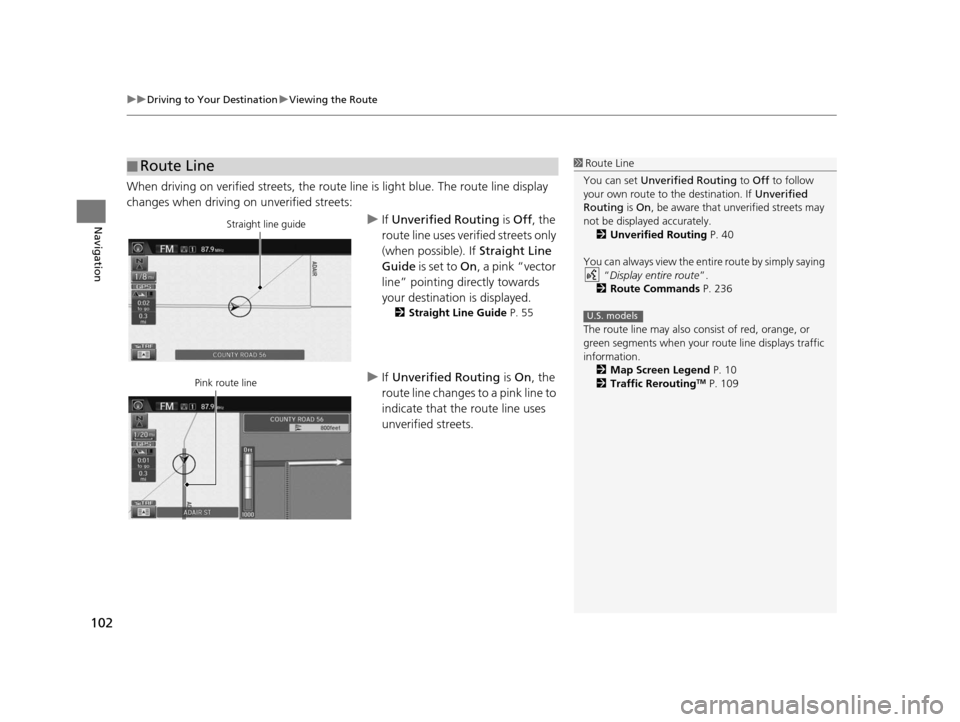

When driving on verified streets, the route line is light blue. The route line display
changes when driving on unverified streets:
uIf Unverified Routing is Off, the
route line uses verified streets only
(when possible). If Straight Line
Guide is set to On, a pink “vector
line” pointing directly towards
your destination is displayed.
2 Straight Line Guide P. 55
uIf Unverified Routing is On , the
route line changes to a pink line to
indicate that the route line uses
unverified streets.
■ Route Line1
Route Line
You can set Unverified Routing to Off to follow
your own route to the destination. If Unverified
Routing is On, be aware that unv erified streets may
not be displayed accurately. 2 Unverified Routing P. 40
You can always view the enti re route by simply saying
“ Display entire route ”.
2 Route Command s P. 236
The route line may also c onsist of red, orange, or
green segments when your route line displays traffic
information.
2 Map Screen Legend P. 10
2 Traffic Rerouting
TM P. 109
U.S. models
Straight line guide
Pink route line
15 CIVIC NAVI-31TR38300.book 102 ページ ２０１４年８月７日　木曜日　午前１１時４９分

103
uuDriving to Your Destination uViewing the Route
Navigation
If you leave the calculated r oute, the system automatically recalculates a route to the
desired destination based on your current location and direction.
If you leave all mapped (digitized) roads, the system automatically starts displaying a
series of dots (breadcrumbs) to track the path you are taking. If needed, you can
follow the dots back to the mapp ed road you originally left.
2Off-road Tracking P. 61
■Deviating From the Planned Route
■Driving Off-road1
Driving Off-road
Breadcrumbs may appear when you drive half a mile
away from a mapped road.
Breadcrumbs may occasionall y be displayed in urban
areas, such as large parking lots in shopping malls, in
new subdivisions where the roads are not yet in the
database, or in areas where a GPS signal is
unavailable, such as in a parking garage.
Off-road tracking breadcrumbs are limited to
approximately 150 miles (240 km). Breadcrumbs at
the beginning of the trail are deleted if you exceed
that distance.
Breadcrumbs are displayed onl y at 1/20, 1/8, 1/4, and
1/2 mile (80, 200, 400, and 800 m) scales.
15 CIVIC NAVI-31TR38300.book 103 ページ ２０１４年８月７日　木曜日　午前１１時４９分

104
uuDriving to Your Destination uListening to Voice Guidance
Navigation
Listening to Voice Guidance
H HOME uNavi u (Map menu) (on map) uVoice
As you approach each guidance point, a pop-up window is displayed on the map
screen with instructions for you to follow. Voice guidance for each guidance point is
also provided.
Typically, you hear three prompts:
• 1/2 mile (800 m) from the guidance point (2 miles (3 km) on freeway)
• 1/4 mile (400 m) from the guidance point (1 mile (1.5 km) on freeway)
• Just before the guidance point
To replay voice guidance, select Voice in the Map Menu.
If you select Voice between guidance points, voice guidance for the next guidance
point is provided.1 Listening to Voice Guidance
“Voice ” (on the map screen)
You can turn voice guidance off if you prefer. 2 Volume Setting P. 68
When driving in unverified areas, the phrase “ if
possible ” is inserted after each voice guidance
prompt.
Voice in the Map menu may be grayed out if:
•The system is in proce ss of gathering the route
guidance information.
•The vehicle is out of the road (e.g., pulling in a
parking lot).
The timing of voice guidanc e varies depending on the
type of road you are on and the distance to the next
guidance point.
15 CIVIC NAVI-31TR38300.book 104 ページ ２０１４年８月７日　木曜日　午前１１時４９分

105Continued
Navigation

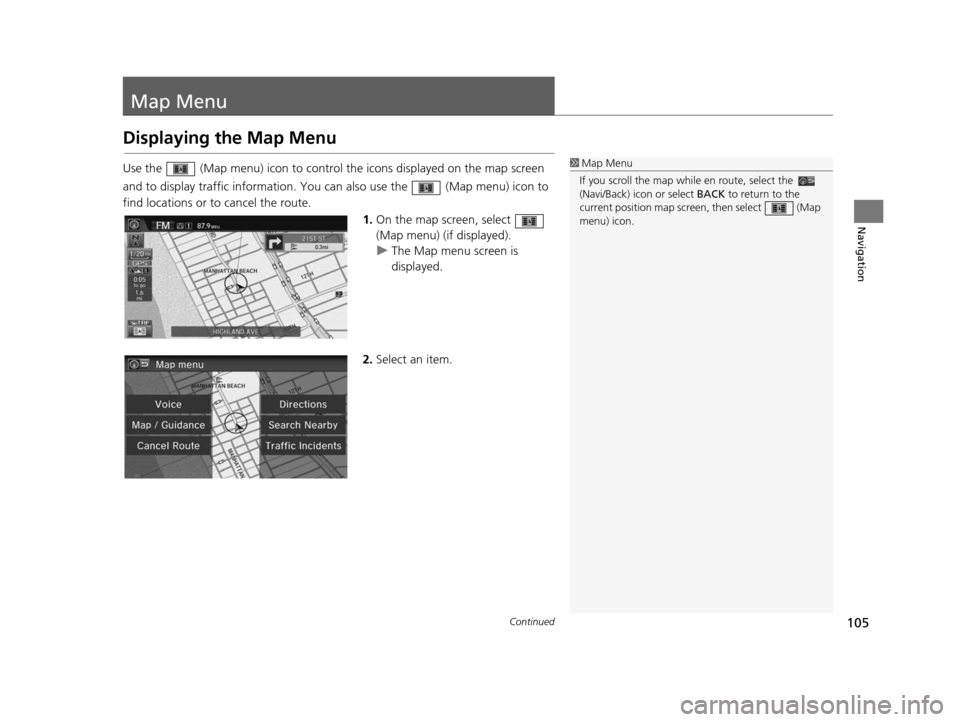

Map Menu
Displaying the Map Menu
Use the (Map menu) icon to control the icons displayed on the map screen
and to display traffic information. You can also use the (Map menu) icon to
find locations or to cancel the route.
1.On the map screen, select
(Map menu) (if displayed).
u The Map menu screen is
displayed.
2. Select an item.1Map Menu
If you scroll the map whil e en route, select the
(Navi/Back) ic on or select BACK to return to the
current position map screen, then select (Map
menu) icon.
15 CIVIC NAVI-31TR38300.book 105 ページ ２０１４年８月７日　木曜日　午前１１時４９分

uuMap Menu uDisplaying the Map Menu
106
Navigation
The following items are available:
• Voice : Select to hear the voice guidance when en route.
2Listening to Voice Guidance P. 104
•Map/Guidance : Allows you to select the map and guidance settings (display
mode, map orientation, icons to display on the map, map color, display your
current location, an overview of th e map features and 3D view angle).
2Guidance Mode P. 47
2 View (Map Orientation) P. 54
2 Showing Icons on the Map P. 51
2 Color P. 53
2 Current Location P. 56
2 Map Legend P. 57
2 3D Angle Adju stment P. 55
•Cancel Route : Cancels your current route.
2Canceling the Route P. 118
•Directions : Displays a list of the guidance points.
2Direction s P. 107
•Search Nearby : Allows you to find the nearest place/landmark (e.g., nearest gas
station) by specifying a category. You can then add the location to the list of
destinations, set as a waypoint, or set as your destination.
2 Find Neare st Place P. 120
•Traffic Incidents : Displays a list of the traffic incidents around your current
location or on your current route.
2 Traffic Rerouting P. 42
1Map Menu
Traffic Incidents
You must be in or near a traffic-enabled city to
receive coverage for that area. Traffic information is
available in the lower 48 states and Hawaii.
The incident icons are disp layed on the 5 mile (8 km)
or less map scale.
2 Map Scale and Function s P. 58
Directions
The system provides freeway exit information only in
the U.S.
U.S. models
15 CIVIC NAVI-31TR38300.book 106 ページ ２０１４年８月７日　木曜日　午前１１時４９分

107
uuMap Menu uDirections
Continued
Navigation
Direction s
HHOME uNavi u (Map menu) (on map) uDirection s
Display a list of the guidance points on your route for your confirmation.
Select or , or flick the screen
to scroll through the list.
uWhen you select a guidance point
from the list, the system displays a
map of the guidance point.1Directions
Guidance points with exit information are indicated
by a (freeway exit information) icon. Select Exit
Info to display the exit information.
The system provides freeway exit information only in
the U.S. 2 Freeway Exit Information P. 108
The route guidance inform ation is automatically
deleted when you reac h your destination.
When you select a guidance point, a map of the
guidance point is displaye d as following. Select Back
to List to return to the directions list screen.
15 CIVIC NAVI-31TR38300.book 107 ページ ２０１４年８月７日　木曜日　午前１１時４９分

uuMap Menu uDirections
108
Navigation
H HOME uNavi u (Map menu) (on map) uDirection su Exit Info
Display a list of the freeway exits for the route. You can view freeway exit
information (whether the exit is near fuel stations, restaurants, ATMs, etc.) and add
new destinations or waypoints to the calculated route.
1.Select an exit from the list.
2. Select a list item.
u Select or to display
information for different exits.
u The location is displayed on the
Calculate Route screen.
2 Calculating the Route P. 98
■Freeway Exit Information1
Freeway Exit Information
“Display Freeway Exit Information ”
You can scroll the map and select a (freeway exit
information) icon on the map screen to display the
freeway exit information. The icon is only
displayed if there is exit information available.
Icons are displayed only at 1/4, 1/2, or 1 mile (400,
800, or 1600 m) scale. 2 Map Scale and Function s P. 58
The system provides freeway exit information only in
the U.S.
15 CIVIC NAVI-31TR38300.book 108 ページ ２０１４年８月７日　木曜日　午前１１時４９分
