Owner’s Manual
2020 CLARITY
Fuel Cell

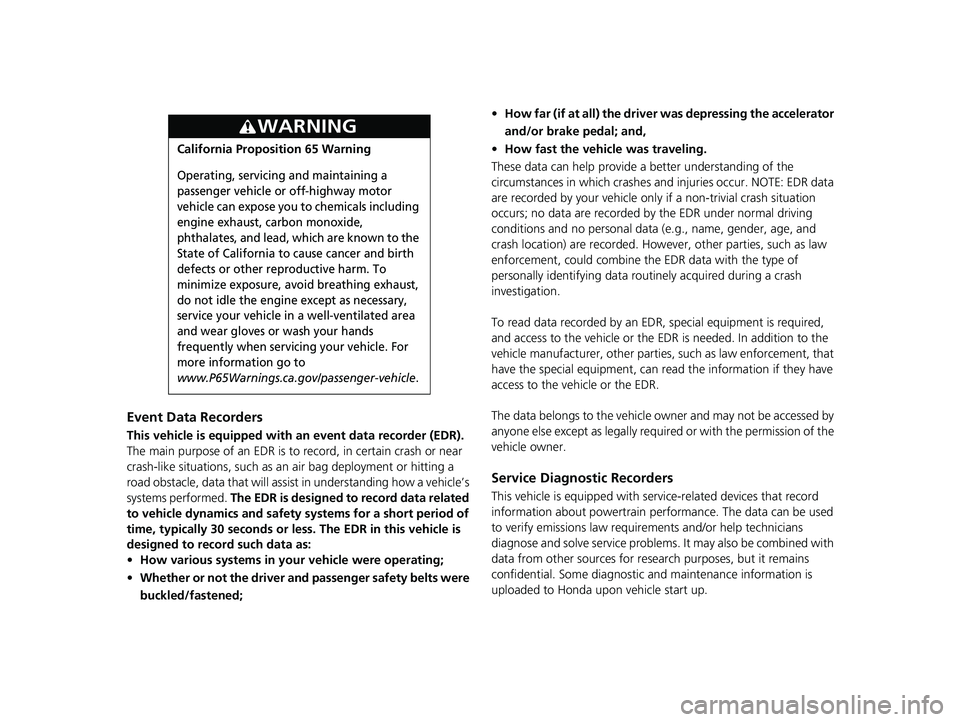

Event Data Recorders
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assist in understanding how a vehicle’s
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or le ss. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were
buckled/fastened;
3WARNING
California Proposition 65 Warning
Operating, servicing and maintaining a
passenger vehicle or off-highway motor
vehicle can expose you to chemicals including
engine exhaust, carbon monoxide,
phthalates, and lead, which are known to the
State of California to cause cancer and birth
defects or other reproductive harm. To
minimize exposure, avoid breathing exhaust,
do not idle the engine except as necessary,
service your vehicle in a well-ventilated area
and wear gloves or wash your hands
frequently when servicing your vehicle. For
more information go to
www.P65Warnings.ca.gov/passenger-vehicle.
• How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. Howeve r, other parties, such as law
enforcement, could co mbine the EDR data with the type of
personally identifying data rout inely acquired during a crash
investigation.
To read data recorded by an ED R, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can re ad the information if they have
access to the vehicle or the EDR.
The data belongs to the vehicle ow ner and may not be accessed by
anyone else except as legally requir ed or with the permission of the
vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with se rvice-related devices that record
information about powertrain perfo rmance. The data can be used
to verify emissions law requirem ents and/or help technicians
diagnose and solve service problems. It may also be combined with
data from other sources for res earch purposes, but it remains
confidential. Some diagnostic and maintenance information is
uploaded to Honda upon vehicle start up.
20 CLARITY FCV CSS-31TRT6300.book 0 ページ ２０１９年９月１０日　火曜日　午前１１時３分

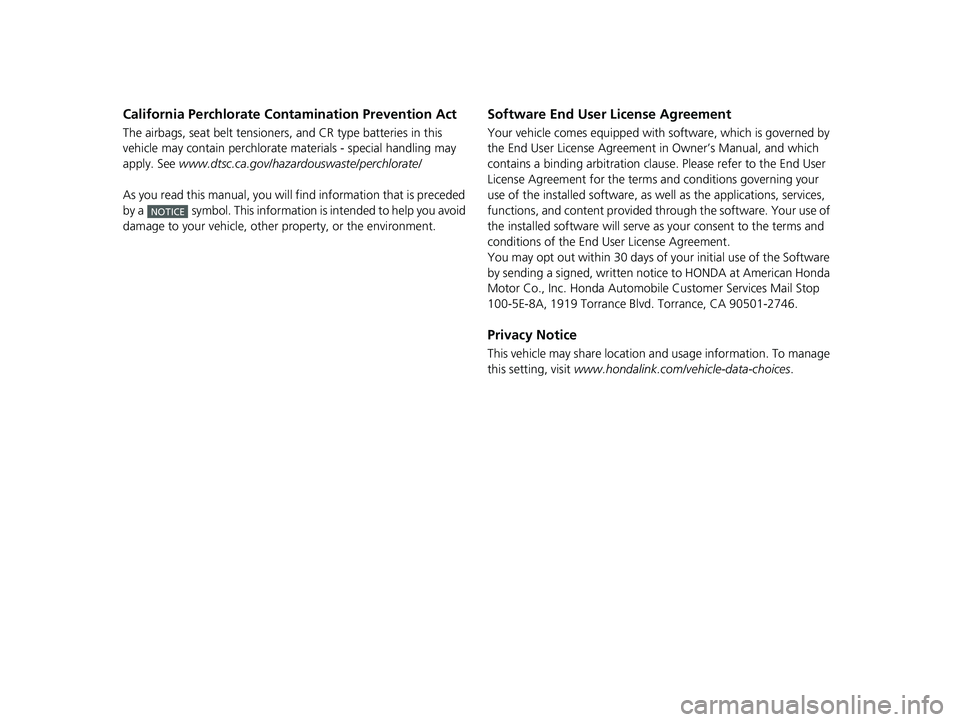

California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners, and CR type batteries in this
vehicle may contain perchlorate materials - special handling may
apply. See www.dtsc.ca.gov/hazard ouswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, othe r property, or the environment.
NOTICE
Software End User License Agreement
Your vehicle comes equipped with software, which is governed by
the End User License Agreement in Owner’s Manual, and which
contains a binding arbitration clau se. Please refer to the End User
License Agreement for the terms and conditions governing your
use of the installed software, as well as the applications, services,
functions, and content provided through the software. Your use of
the installed software will serve as your consent to the terms and
conditions of the End User License Agreement.
You may opt out within 30 days of your initial use of the Software
by sending a signed, written noti ce to HONDA at American Honda
Motor Co., Inc. Honda Automobile Customer Services Mail Stop
100-5E-8A, 1919 Torrance Blvd. Torrance, CA 90501-2746.
Privacy Notice
This vehicle may share location an d usage information. To manage
this setting, visit www.hondalink.com/vehicle-data-choices .
20 CLARITY FCV CSS-31TRT6300.book 1 ページ ２０１９年９月１０日　火曜日　午前１１時３分

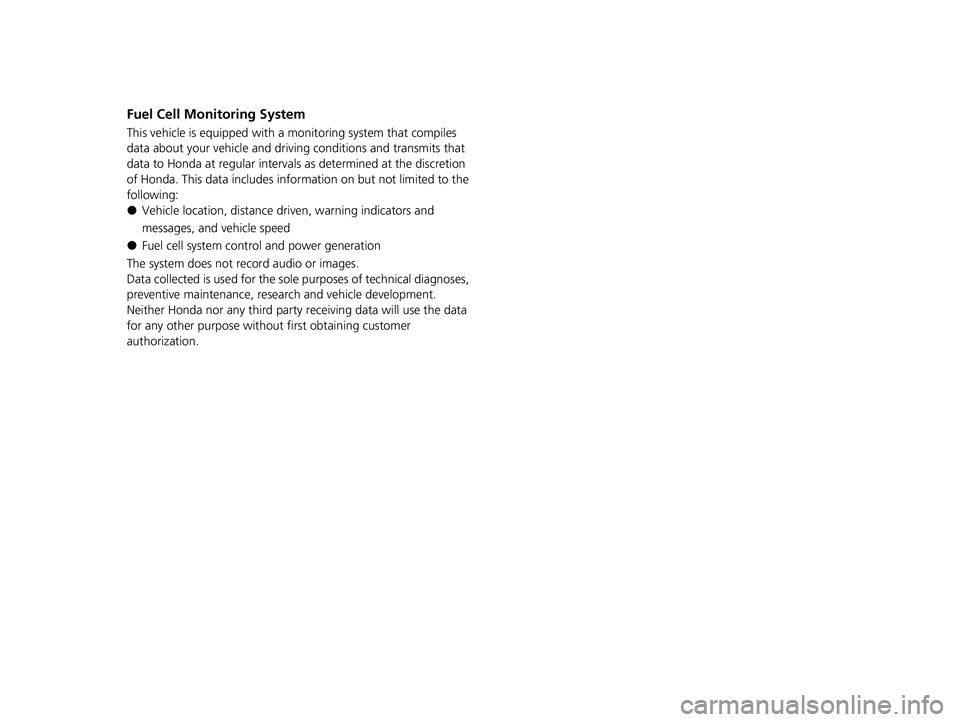

Fuel Cell Monitoring System
This vehicle is equipped with a monitoring system that compiles
data about your vehicle and drivin g conditions and transmits that
data to Honda at regular intervals as determined at the discretion
of Honda. This data includes information on but not limited to the
following:
●Vehicle location, distance dr iven, warning indicators and
messages, and vehicle speed
●Fuel cell system control and power generation
The system does not record audio or images.
Data collected is used for the sole purposes of technical diagnoses,
preventive maintenance, resear ch and vehicle development.
Neither Honda nor any third party receiving data will use the data
for any other purpose withou t first obtaining customer
authorization.
20 CLARITY FCV CSS-31TRT6300.book 2 ページ ２０１９年９月１０日　火曜日　午前１１時３分

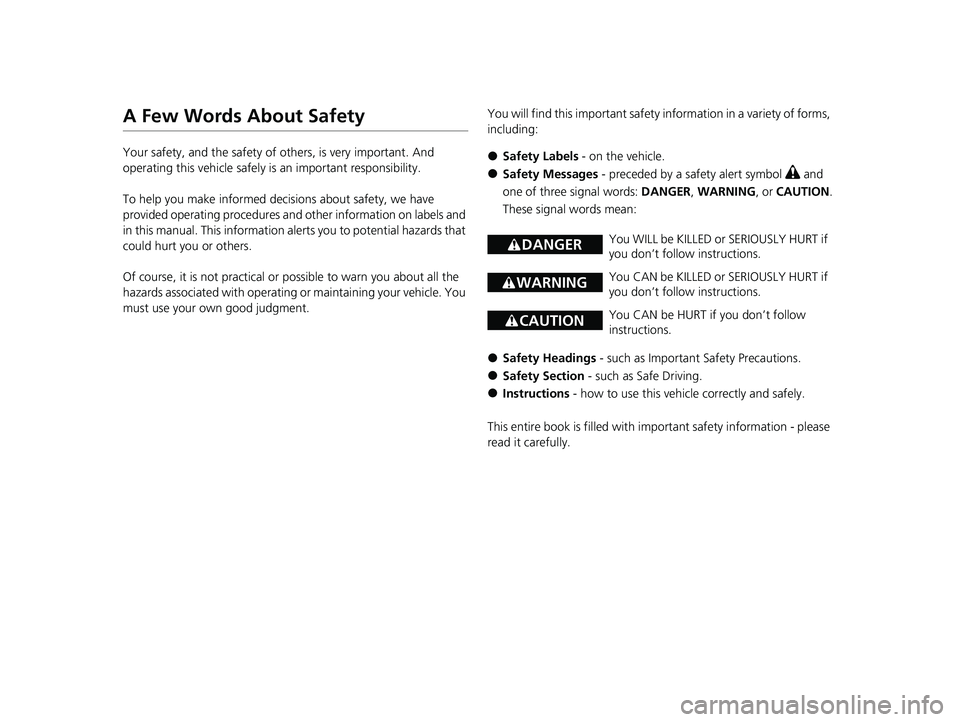

A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information alerts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment. You will find this impo
rtant safety information in a variety of forms,
including:●Safety Labels - on the vehicle.
●Safety Messages - preceded by a safety alert symbol 3 and
one of three signal words: DANGER, WARNING , or CAUTION .
These signal words mean:
●Safety Headings - such as Important Safety Precautions.
●Safety Section - such as Safe Driving.
●Instructions - how to use this vehi cle correctly and safely.
This entire book is filled with important safety information - please
read it carefully.
3 DANGERYou WILL be KILLED or SERIOUSLY HURT if
you don’t follow instructions.
3 WARNINGYou CAN be KILLED or SERIOUSLY HURT if
you don’t follow instructions.
3CAUTIONYou CAN be HURT if you don’t follow
instructions.
20 CLARITY FCV CSS-31TRT6300.book 3 ページ ２０１９年９月１０日　火曜日　午前１１時３分

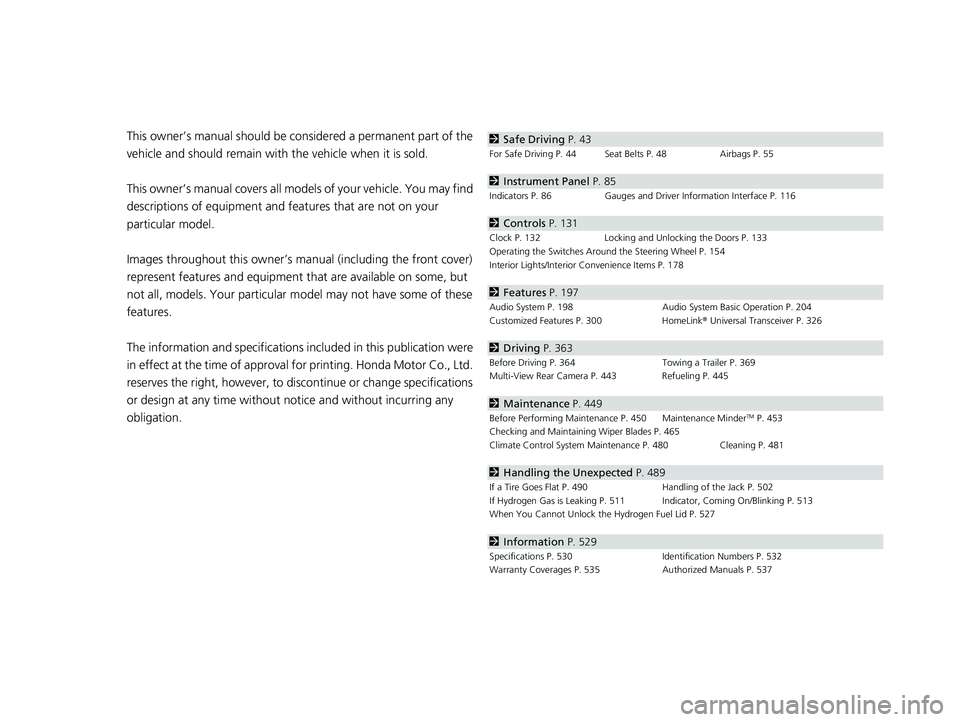

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 43
For Safe Driving P. 44 Seat Belts P. 48 Airbags P. 55
2Instrument Panel P. 85
Indicators P. 86 Gauges and Driver Information Interface P. 116
2Controls P. 131
Clock P. 132 Locking and Unlocking the Doors P. 133
Operating the Switches Ar ound the Steering Wheel P. 154
Interior Lights/Interior Convenience Items P. 178
2 Features P. 197
Audio System P. 198 Audio System Basic Operation P. 204
Customized Features P. 300 HomeLink® Universal Transceiver P. 326
2 Driving P. 363
Before Driving P. 364 Towing a Trailer P. 369
Multi-View Rear Camera P. 443 Refueling P. 445
2 Maintenance P. 449
Before Performing Maintenance P. 450 Maintenance MinderTM P. 453
Checking and Maintaining Wiper Blades P. 465
Climate Control System Main tenance P. 480 Cleaning P. 481
2Handling the Unexpected P. 489
If a Tire Goes Flat P. 490 Handling of the Jack P. 502
If Hydrogen Gas is Leaking P. 511 Indicator, Coming On/Blinking P. 513
When You Cannot Unlock the Hydrogen Fuel Lid P. 527
2 Information P. 529
Specifications P. 530 Identification Numbers P. 532
Warranty Coverages P. 535 Authorized Manuals P. 537
20 CLARITY FCV CSS-31TRT6300.book 4 ページ ２０１９年９月１０日　火曜日　午前１１時３分

Contents
Child Safety P. 70Safety Labels P. 83
Opening and Closing the Trunk P. 146 Security System P. 149 Opening and Closing the Windows P. 152
Adjusting the Mirrors P. 170 Adjusting the Seats P. 172
Climate Control System P. 188
Audio Error Messages P. 277 General Information on the Audio System P. 281
Bluetooth ® HandsFreeLink ® P. 329
When Driving P. 370 Braking P. 425Parking Your Vehicle P. 441
Fuel Economy P. 448
Maintenance Under the Hood P. 457 Replacing Light Bulbs P. 463
Checking and Maintaining Tires P. 468 12-Volt Battery P. 477 Remote Transmitter Care P. 479
Accessories and Modifications P. 487
Power System Won’t Start P. 503 Jump Starting P. 506 Overheating P. 509
Fuses P. 518 Emergency Towing P. 526
When You Cannot Open the Trunk P. 528
Devices that Emit Radio Waves P. 533 Reporting Safety Defects P. 534
Customer Service Information P. 538
Quick Reference GuideP. 6
Safe DrivingP. 43
Instrument PanelP. 85
ControlsP. 131
FeaturesP. 197
DrivingP. 363
MaintenanceP. 449
Handling the UnexpectedP. 489
InformationP. 529
IndexP. 540
20 CLARITY FCV CSS-31TRT6300.book 5 ページ ２０１９年９月１０日　火曜日　午前１１時３分

6
Quick Reference Guide
Quick Reference Guide

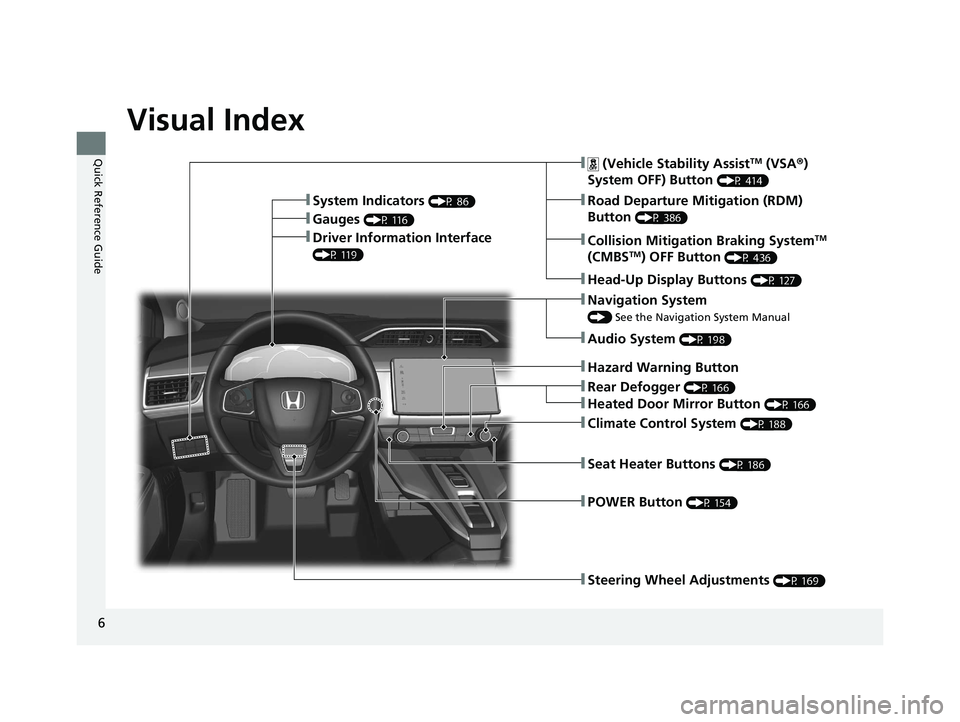

Visual Index
❚Steering Wheel Adjustments (P 169)
❚ (Vehicle Stability AssistTM (VSA®)
System OFF) Button
(P 414)
❚Road Departure Mitigation (RDM)
Button
(P 386)❚Gauges (P 116)
❚Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P 436)
❚Head-Up Display Buttons (P 127)
❚Driver Information Interface
(P 119)
❚Navigation System
() See the Navigation System Manual
❚Audio System (P 198)
❚Hazard Warning Button
❚Climate Control System (P 188)
❚POWER Button (P 154)
❚Seat Heater Buttons (P 186)
❚Rear Defogger (P 166)
❚Heated Door Mirror Button (P 166)
❚System Indicators (P 86)
20 CLARITY FCV CSS-31TRT6300.book 6 ページ ２０１９年９月１０日　火曜日　午前１１時３分

7
Quick Reference Guide
❚Wipers/Washers (P 162)
❚Headlights/Turn Signals (P 157, 158)
❚Brightness Control (P 164)
❚LaneWatchTM (P 423)
❚TRIP Button (P119, 121)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons
(P 391)
❚ (Display/Information) Button (P119 )
❚/ / / Buttons (P119, 201)34
❚ENTER Button (P119 )
❚Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 329)
❚Horn (Press an area around .)
❚Voice Control Buttons (P 232)
❚Interval Button (P 399)
❚Lane Keeping Assist System (LKAS) Button (P 408)
❚MAIN Button (P 390, 408)
20 CLARITY FCV CSS-31TRT6300.book 7 ページ ２０１９年９月１０日　火曜日　午前１１時３分

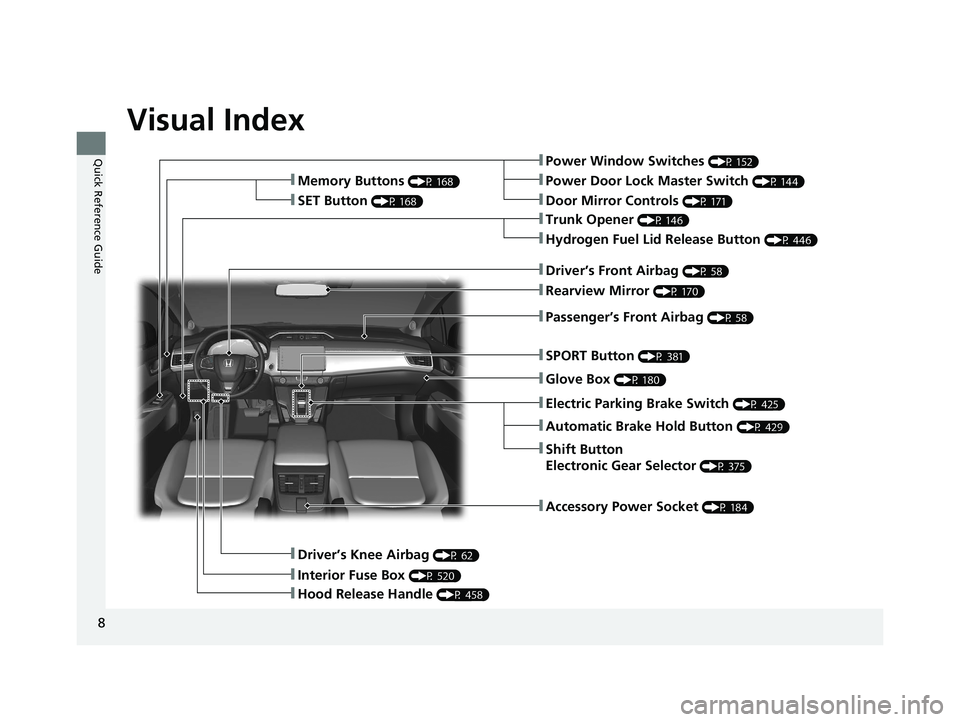

Visual Index
8
Quick Reference Guide❚Power Window Switches (P 152)
❚Trunk Opener (P 146)
❚Driver’s Knee Airbag (P 62)
❚Door Mirror Controls (P 171)
❚Power Door Lock Master Switch (P 144)
❚Hydrogen Fuel Lid Release Button (P 446)
❚SET Button (P 168)
❚Automatic Brake Hold Button (P 429)
❚Passenger’s Front Airbag (P 58)
❚Rearview Mirror (P 170)
❚SPORT Button (P 381)
❚Glove Box (P 180)
❚Shift Button
Electronic Gear Selector
(P 375)
❚Accessory Power Socket (P 184)
❚Hood Release Handle (P 458)
❚Memory Buttons (P 168)
❚Driver’s Front Airbag (P 58)
❚Electric Parking Brake Switch (P 425)
❚Interior Fuse Box (P 520)
20 CLARITY FCV CSS-31TRT6300.book 8 ページ ２０１９年９月１０日　火曜日　午前１１時３分
