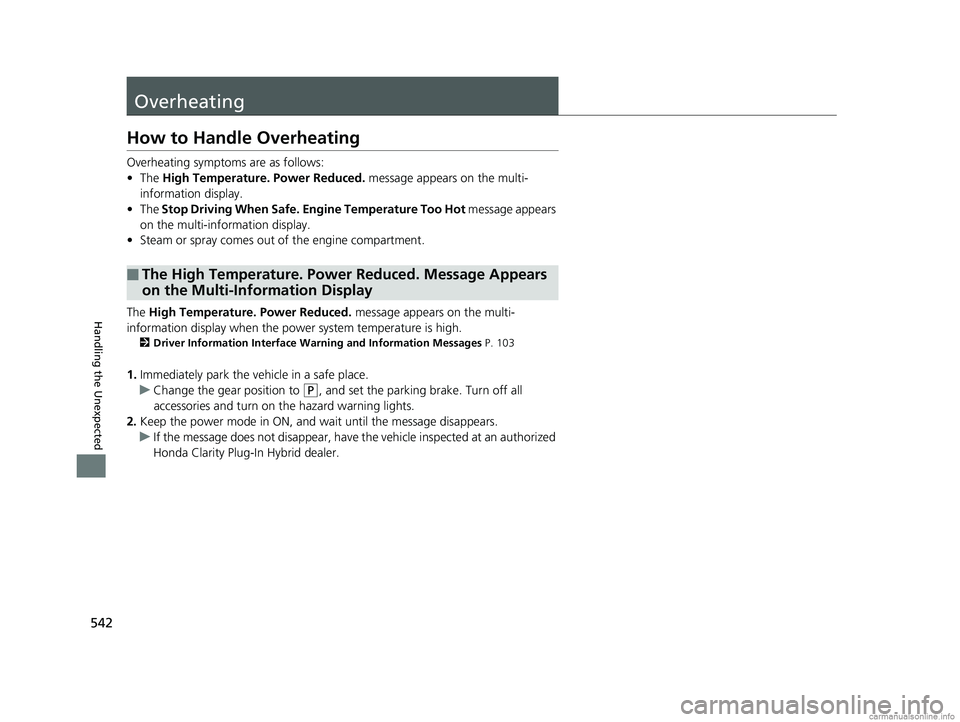

542
Handling the Unexpected
Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The High Temperature. Power Reduced. message appears on the multi-
information display.
• The Stop Driving When Safe. En gine Temperature Too Hot message appears
on the multi-information display.
• Steam or spray comes out of the engine compartment.
The High Temperature. Power Reduced. message appears on the multi-
information display when the powe r system temperature is high.
2Driver Information Interface Warning and Information Messages P. 103
1.Immediately park the vehicle in a safe place.
u Change the gear position to
(P, and set the parking brake. Turn off all
accessories and turn on the hazard warning lights.
2. Keep the power mode in ON, and wait until the message disappears.
u If the message does not disappear, have th e vehicle inspected at an authorized
Honda Clarity Plug-In Hybrid dealer.
■The High Temperature. Power Reduced. Message Appears
on the Multi-Information Display
18 CLARITY PHEV CSS-31TRW6000.book 542 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

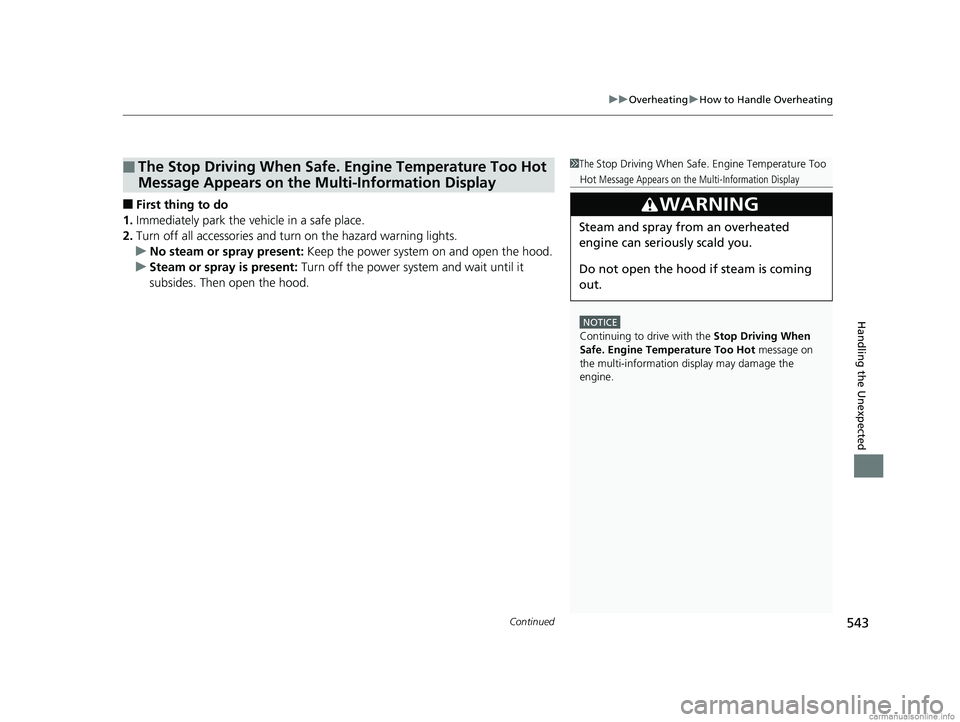

Continued543
uuOverheating uHow to Handle Overheating
Handling the Unexpected
■First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present: Keep the power system on and open the hood.
u Steam or spray is present: Turn off the power system and wait until it
subsides. Then open the hood.
■The Stop Driving When Safe. Engine Temperature Too Hot
Message Appears on the Multi-Information Display1 The Stop Driving When Safe. Engine Temperature Too
Hot Message Appears on the Multi-Information Display
NOTICE
Continuing to drive with the Stop Driving When
Safe. Engine Temperature Too Hot message on
the multi-information display may damage the
engine.
3WARNING
Steam and spray from an overheated
engine can seri ously scald you.
Do not open the hood if steam is coming
out.
18 CLARITY PHEV CSS-31TRW6000.book 543 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

545
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears
■Reasons for the Warning to appear
Appears when the engine oil pressure is low.
■What to do as soon as the warning
appears
1. Immediately park the vehicle on level
ground in a safe place.
2. If necessary, turn the hazard warning lights
on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for
approximately three minutes.
2. Open the hood and ch eck the oil level.
2Oil Check P. 483
3.Start the engine and check the low oil
pressure warning.
u The warning disappears: Start driving
again.
u The warning does not disappear within
10 seconds: Immediately stop the engine
and contact an authorized Honda Clarity
Plug-In Hybrid dealer for repairs.
1If the Low Oil Pressure Warning Appears
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
18 CLARITY PHEV CSS-31TRW6000.book 545 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

552
uuIndicator, Coming On/BlinkinguIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by
an authorized Honda Clarity Plug-In Hybrid
dealer.
• Change the gear position to
(N when you
turn the power system on.
u Check if the
(N position in the
instrument panel and the indicator on
the
(N button light/blink.
u The power system cannot be turned on
unless the parking brake is set.
2 Turning on the Power P. 376
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 561
18 CLARITY PHEV CSS-31TRW6000.book 552 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

582
Index
FM/AM Radio............................................ 243
Foot Brake ................................................. 433
Front Airbags (SRS) ..................................... 57
Front Seat Heaters .................................... 191
Front Seats ................................................ 175
Adjusting ................................................. 175
Front Sensor Camera ................................ 394
Fuel ...................................................... 33, 451
Fuel Economy and CO
2 Emissions............. 469
Gauge ..................................................... 121
Instant Fuel Economy ............................... 127
Range ...................................................... 121
Recommendation .................................... 451
Refueling ................................................. 451
Requirement ............................................ 566
Fuel Economy and CO
2 Emissions ............ 469
Fuel Fill Cap ......................................... 33, 452
Fuel Fill Door ....................................... 33, 452
Fuses .......................................................... 553
Inspecting and Changing ......................... 560
Locations ......................................... 553, 556
G
Gasoline (Fuel) Economy ................................................. 469
Information ............................................. 451
Refueling ................................................. 451
Gauges ....................................................... 121
Gear Position Indicator ....................... 91, 384 Gear Shift Positions
Transmission ........................................... 382
Glass (care) ........................................ 514, 516
Glove Box .................................................. 185
H
Handling the Unexpected ........................ 521
HandsFreeLink ® (HFL) ............................... 335
Automatic Import of Cellular Phonebook
and Call History ..................................... 348
Displaying Messages................................ 362
HFL Buttons............................................. 335
HFL Menus .............................................. 338
HFL Status Display ................................... 337
In Case of Emergency .............................. 366
Limitations for Manual Operation ............ 337
Making a Call .......................................... 356
Options During a Call .............................. 359
Phone Setup............................................ 343
Phonebook Phonetic Modification ........... 352
Receiving a Call ....................................... 359
Receiving a Text Message/E-mail.............. 360
Ring Tone................................................ 347
Selecting a Mail Account ......................... 361
Speed Dial ............................................... 349
To Set Up Text Message/E-mail Options ... 346
Hazard Warning Button .............................. 6
HD Radio
TM................................................ 243
Head Restraints ........................................ 178 Headlights
................................................ 162
Aiming.................................................... 494
Automatic Operation .............................. 163
Dimming......................................... 162, 165
Operating ............................................... 162
Heated Door Mirror Button .................... 169
Heaters (Seat) ........................................... 191
HFL (HandsFreeLink ®) .............................. 335
High Beam Indicator .................................. 97
High Voltage Battery ............................... 466
Charging ................................................ 454
High Voltage Battery Charge Level Gauge ..................................................... 123
Hill Start Assist System ............................. 379
Home Screen ............................................ 225
HomeLink ® Universal Transceiver ........... 332
Honda App License Agreement .............. 291
Honda Sensing
TM........................................ 34
HondaLink ®.............................................. 269
HV Button ................................................... 16
HV Charge .................................................. 17
HV Charge Indicator .................................. 89
HV Indicator ............................................... 89
I
Identification Numbers
Motor, and Transmission......................... 568
Vehicle Identification............................... 568
Immobilizer System .................................. 153
Indicator ................................................... 97
18 CLARITY PHEV CSS-31TRW6000.book 582 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

583
Index
Indicators.................................................... 86
12-Volt Battery Charging System ...... 90, 546
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ................. 100, 400
Anti-lock Brake System (ABS) .................... 93
Automatic Brake Hold ....................... 87, 435
Automatic Brake Hold System ........... 87, 435
Collision Mitigati on Braking System
TM
(CMBSTM) ...................................... 101, 102
Deceleration Paddle Selector ..................... 91
ECON Mode ............................................. 98
Electric Power Steering (EPS) System ......... 94
EV............................................................. 89
Gear Position ............................................ 91
High Beam ................................................ 97
HV ............................................................ 89
HV Charge ................................................ 89
Immobilizer System ................................... 97
Lane Keeping Assist System
(LKAS) ........................................... 101, 417
Lights On .................................................. 97
Low Fuel ................................................... 91
Low Tire Pressure/TPMS ............ 96, 425, 427
Malfunction Indicator Lamp ...................... 90
Parking Brake and Brake System
(Amber) .......................................... 88, 550
Parking Brake and Brake System (Red) ..................... 86, 87, 548, 550
POWER SYSTEM ....................................... 88
READY ...................................................... 90
Road Departure Mitigation (RDM) ............. 99 Seat Belt Reminder .............................. 49, 93
Security System Alarm ............................... 98
SPORT Mode ..................................... 98, 389
Supplemental Restraint System ............ 66, 94
System Message ........................................ 98
Transmission System .................................. 92
Turn Signal and Haza
rd Warning ............... 97
Vehicle Stability Assist (VSA ®)
System............................................. 95, 422
VSA ® OFF .......................................... 95, 423
Information ............................................... 565
Instant Fuel Economy ............................... 127
Instrument Panel ........................................ 85
Interior Lights ........................................... 183
Interior Rearview Mirror .......................... 173
iPod ........................................................... 255
J
Jacking Points ........................................... 534
Jump Starting ........................................... 539
K
Key Number Tag ....................................... 138
Keyless Lockout Prevention ..................... 145
Keys ........................................................... 137
Lockout Prevention .................................. 145
Number Tag ............................................ 138
Rear Door Won’t Open ............................ 148
Remote Transmitter ................................. 143 Types and Functions ................................ 137
Kickdown .................................................. 381
L
Lane Keeping Assist System (LKAS) ......... 415
LaneWatchTM............................................ 429
Language (HFL) ........................................ 337
LATCH (Child Seats) .................................... 74
Lights ................................................. 162, 494
Automatic ............................................... 163
Bulb Replacement ................................... 494
Daytime Running Lights........................... 165
High Beam Indicator .................................. 97
Interior .................................................... 183
Light Switches ......................................... 162
Lights On Indicator .................................... 97
Turn Signals ............................................ 161
Load Limits ................................................ 373
Locking/Unlocking .................................... 137
Auto Door Locking/Unlocking.................. 149
Childproof Door Locks............................. 148
From Inside ............................................. 146
From Outside .......................................... 139
Keys ........................................................ 137
Using a Key ............................................. 144
Lockout Prevention System ..................... 145
Low Battery Charge (12-Volt) .................. 546
Low Fuel Indicator ...................................... 91
Low Smart Entry Remote Signal
Strength .................................................. 138
18 CLARITY PHEV CSS-31TRW6000.book 583 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

584
Index
Lower Anchors............................................ 74
Luggage (Maximum Load Limit) .............. 373
M
Maintenance............................................. 471
12-Volt Battery ........................................ 508
Brake Fluid............................................... 492
Cleaning .................................................. 513
Climate Control System ........................... 511
Coolant ................................................... 488
Maintenance Minder
TM............................ 475
Oil ........................................................... 483
Precautions .............................................. 472
Radiator................................................... 489
Remote Transmitter ................................. 510
Replacing Light Bulbs ............................... 494
Safety ...................................................... 473
Service Items............................................ 477
Tires ........................................................ 499
Transmission Fluid.................................... 492
Under the Hood....................................... 480
Malfunction Indicator Lamp ...................... 90
Map Lights ................................................ 184
Maximum Load Limit ................................ 373
Meters, Gauges ......................................... 121
Mirrors ....................................................... 173
Adjusting ................................................. 173
Door ........................................................ 174
Exterior .................................................... 174
Interior Rearview...................................... 173 Modifications (and Accessories)
.............. 519
Motor ........................................................ 568
Jump Starting .......................................... 539
MP3 ........................................................... 264
Multi-View Rear Camera .......................... 449
N
Numbers (Identification).......................... 568
O
Odometer................................................. 126
Oil (Engine) ............................................... 482
Adding .................................................... 484
Checking................................................. 483
Displaying Oil Life .................................... 475
Recommended Engine Oil ....................... 482
Viscosity .................................................. 482
Warning .................................................. 545
Open Source Licences ............................... 305
Opening Trunk ...................................................... 564
Opening/Closing Hood....................................................... 481
Power Windows ...................................... 156
Trunk ...................................................... 150
Operating the Switches Around the Steering Wheel ....................................... 158
Outside Temperature Display .................. 126
Overheating .............................................. 542
P
Pandora®.................................................. 262
Panic Mode ............................................... 155
Parking ..................................................... 447
Parking Brake ........................................... 431
Parking Brake and Brake System Indicator (Red) ........................................ 550
Passenger Front Airbag Off Indicator ....... 67
Passing Indicators ..................................... 162
Playing Bluetooth ® Audio ....................... 267
POWER Button ......................................... 158
Power Flow Monitor ................................ 132
Power System Turning on .............................................. 376
POWER SYSTEM Indicator ......................... 88
Power Windows ....................................... 156
POWER/CHARGE Gauge .......................... 122
Precautions While Driving Rain ........................................................ 380
Pregnant Women ....................................... 52
Puncture (Tire) ......................................... 522
R
Radiator.................................................... 489
Radio (FM/AM) ......................................... 243
Radio (SiriusXM ®)..................................... 247
Radio Data System (RDS) ......................... 245
Range ................................................ 121, 129
RDS (Radio Data System) ......................... 245
Readiness Codes (Emissions Testing) ...... 572
18 CLARITY PHEV CSS-31TRW6000.book 584 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

586
Index
Tires........................................................... 499
Air Pressure ..................................... 500, 567
Chains ..................................................... 507
Checking and Maintaining ....................... 499
Flat Tire (Puncture) ................................... 522
Inspection ................................................ 499
Labeling................................................... 500
Regulations.............................................. 502
Rotation .................................................. 506
Summer................................................... 507
Temporary Tire Repair Kit......................... 523
Wear Indicators ....................................... 504
Winter ..................................................... 507
Towing a Trailer ........................................ 375
Towing Your Vehicle ................................ 375
Emergency............................................... 561
TPMS (Tire Pressure Monitoring
System) .................................................... 425
Transmission ................................ 31, 381, 382
Creeping ................................................. 381
Fluid ........................................................ 492
Gear Position Indicator....................... 91, 384
Indicator .................................................... 92
Number ................................................... 568
Operating the Shift Button................. 31, 384
Shifting.................................................... 382
Warning Message .................................... 552
Trip Meter ................................................. 126
Troubleshooting ....................................... 521
Blown Fuse ...................................... 553, 556
Brake Pedal Vibrates .................................. 37 Buzzer Sounds When Opening Door.......... 37
Cannot Start Charging ............................ 463
Emergency Towing .................................. 561
Flat Tire/Puncture .................................... 522
Noise When Braking .................................. 39
Overheating ............................................ 542
Power System Won’t Start ....................... 535
Rear Door Won’t Open...................... 37, 148
Unable to Open the Charge Lid ............... 563
Unable to Unlock the Fuel Fill Door.......... 562
Warning Indicators .................................... 86
Trunk ......................................................... 150
Lid........................................................... 150
Light Bulbs .............................................. 566
Unable to Open....................................... 564
Turn Signals .............................................. 161
Indicators (Instrument Panel) ..................... 97
Turn-by-Turn Directions ........................... 127
Turning on the Power .............................. 376
Does Not Activate ................................... 535
Jump Starting .......................................... 539
U
Under-Floor Storage Area ....................... 190
Unlocking the Doors ................................ 139
Unlocking the Front Doors from the
Inside ................................................. 25, 146
USB Flash Drives ............................... 264, 290
USB Ports ................................................... 205 Using the Smart Entr
y with Push Button
Start System ............................................ 139
V
Vanity Mirrors .............................................. 9
Vehicle Identification Number ................ 568
Vehicle Monitoring System ......................... 3
Vehicle Stability Assist (VSA ®) ................. 422
Off Button .............................................. 423
Off Indicator ..................................... 95, 423
System Indicator ............................... 95, 422
Viscosity (Oil) ............................................ 482
Voice Control Operation ......................... 239
Audio Commands ................................... 241
Climate Control Commands.................... 242
General Commands ................................ 242
Music Search Commands ........................ 242
On Screen Commands ............................ 242
Phone Commands .................................. 241
Useful Commands .................................. 241
Voice Portal Screen ................................. 240
Voice Recognition ................................... 239
VSA ® (Vehicle Stability Assist) ................. 422
W
Wallpaper................................................. 223
Warning and Information Messages ...... 103
Warning Indicator On/Blinking ............... 545
Warning Labels .......................................... 83
18 CLARITY PHEV CSS-31TRW6000.book 586 ページ ２０１７年１２月２５日　月曜日　午後２時２２分
