odometer HONDA CLARITY PLUG-IN 2018 Owner's Manual (in English)

124
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

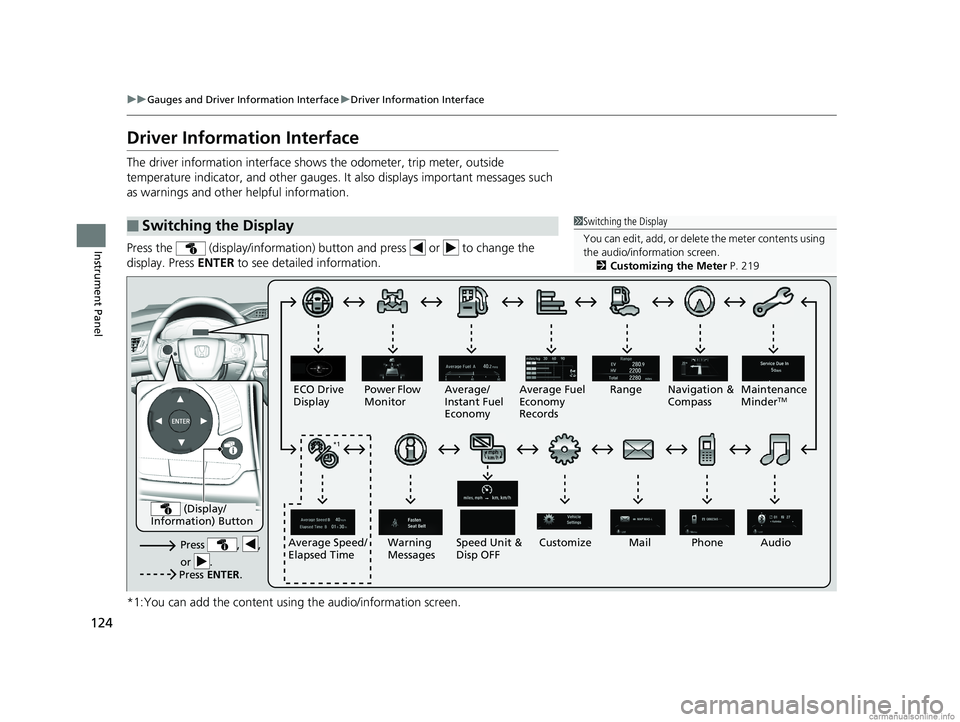

Driver Information Interface
The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges. It also displays important messages such
as warnings and other helpful information.
Press the (display/information) button and press or to change the
display. Press ENTER to see detailed information.
*1:You can add the content using the audio/information screen.
■Switching the Display1 Switching the Display
You can edit, add, or delete the meter contents using
the audio/information screen. 2 Customizing the Meter P. 219
Press , ,
or .Speed Unit &
Disp OFF
ECO Drive
Display
Power Flow
Monitor
Customize
Warning
Messages Audio
Average Speed/
Elapsed Time Average/
Instant Fuel
Economy
Range Maintenance
Minder
TMAverage Fuel
Economy
Records
Phone
Press ENTER .
(Display/
Information) Button
*1 Navigation &
Compass
Mail*1
18 CLARITY PHEV CSS-31TRW6000.book 124 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

125
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

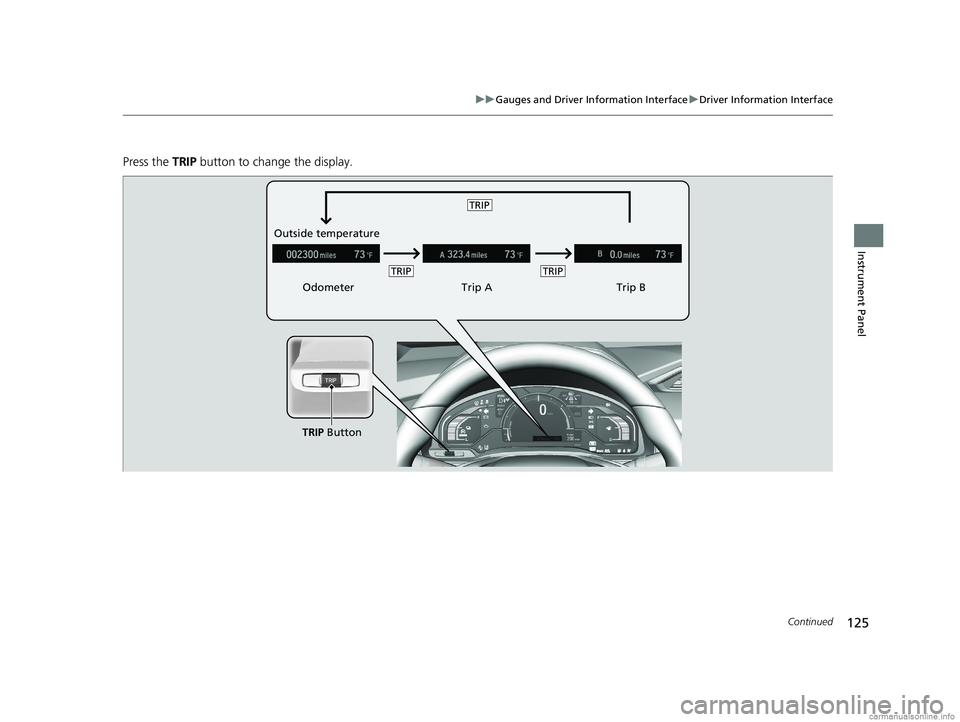

Press the TRIP button to change the display.
Odometer Trip ATrip B
Outside temperature
TRIP Button
TRIPTRIP
TRIP
18 CLARITY PHEV CSS-31TRW6000.book 125 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

uuGauges and Driver Information Interface uDriver Information Interface
126
Instrument Panel
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the TRIP button. The trip meter
is reset to 0.0.
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ± 5° F or 3°C if the temperature reading seems
incorrect.
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.
■Odometer
■Trip Meter
■Outside Temperature
■Average Fuel Economy
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the TRIP button.
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the audio/information screen’s customized
features to correct the temperature.
2 Customized Features P. 306
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 306
18 CLARITY PHEV CSS-31TRW6000.book 126 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

577Continued
Information

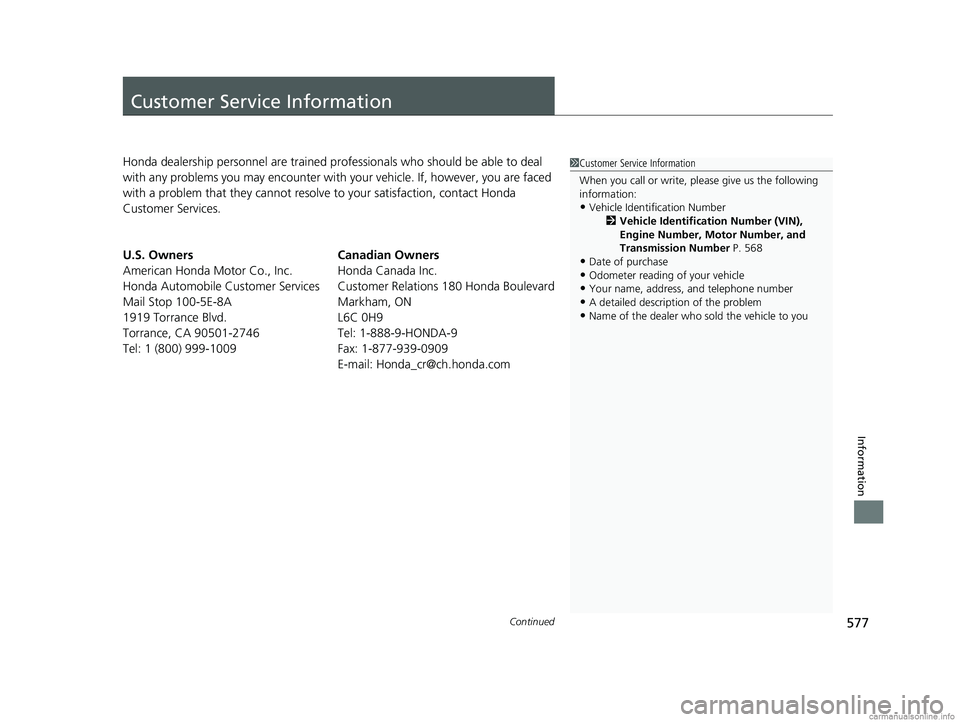

Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolve to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 100-5E-8A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations 180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
Customer Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, Motor Number, and
Transmission Number P. 568
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
18 CLARITY PHEV CSS-31TRW6000.book 577 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

584
Index
Lower Anchors............................................ 74
Luggage (Maximum Load Limit) .............. 373
M
Maintenance............................................. 471
12-Volt Battery ........................................ 508
Brake Fluid............................................... 492
Cleaning .................................................. 513
Climate Control System ........................... 511
Coolant ................................................... 488
Maintenance Minder
TM............................ 475
Oil ........................................................... 483
Precautions .............................................. 472
Radiator................................................... 489
Remote Transmitter ................................. 510
Replacing Light Bulbs ............................... 494
Safety ...................................................... 473
Service Items............................................ 477
Tires ........................................................ 499
Transmission Fluid.................................... 492
Under the Hood....................................... 480
Malfunction Indicator Lamp ...................... 90
Map Lights ................................................ 184
Maximum Load Limit ................................ 373
Meters, Gauges ......................................... 121
Mirrors ....................................................... 173
Adjusting ................................................. 173
Door ........................................................ 174
Exterior .................................................... 174
Interior Rearview...................................... 173 Modifications (and Accessories)
.............. 519
Motor ........................................................ 568
Jump Starting .......................................... 539
MP3 ........................................................... 264
Multi-View Rear Camera .......................... 449
N
Numbers (Identification).......................... 568
O
Odometer................................................. 126
Oil (Engine) ............................................... 482
Adding .................................................... 484
Checking................................................. 483
Displaying Oil Life .................................... 475
Recommended Engine Oil ....................... 482
Viscosity .................................................. 482
Warning .................................................. 545
Open Source Licences ............................... 305
Opening Trunk ...................................................... 564
Opening/Closing Hood....................................................... 481
Power Windows ...................................... 156
Trunk ...................................................... 150
Operating the Switches Around the Steering Wheel ....................................... 158
Outside Temperature Display .................. 126
Overheating .............................................. 542
P
Pandora®.................................................. 262
Panic Mode ............................................... 155
Parking ..................................................... 447
Parking Brake ........................................... 431
Parking Brake and Brake System Indicator (Red) ........................................ 550
Passenger Front Airbag Off Indicator ....... 67
Passing Indicators ..................................... 162
Playing Bluetooth ® Audio ....................... 267
POWER Button ......................................... 158
Power Flow Monitor ................................ 132
Power System Turning on .............................................. 376
POWER SYSTEM Indicator ......................... 88
Power Windows ....................................... 156
POWER/CHARGE Gauge .......................... 122
Precautions While Driving Rain ........................................................ 380
Pregnant Women ....................................... 52
Puncture (Tire) ......................................... 522
R
Radiator.................................................... 489
Radio (FM/AM) ......................................... 243
Radio (SiriusXM ®)..................................... 247
Radio Data System (RDS) ......................... 245
Range ................................................ 121, 129
RDS (Radio Data System) ......................... 245
Readiness Codes (Emissions Testing) ...... 572
