key HONDA CR-V 2017 RM1, RM3, RM4 / 4.G Service Manual

445
uuWhen Driving uStarting the Engine
Driving

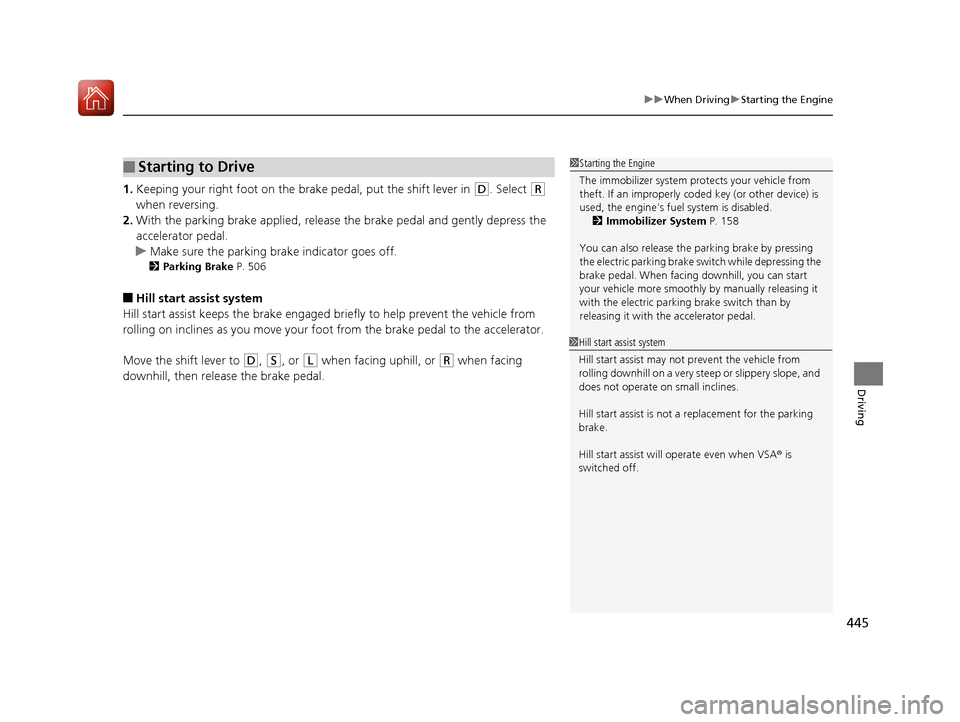

1. Keeping your right foot on the br ake pedal, put the shift lever in (D. Select (R
when reversing.
2. With the parking brake applied, release the brake pedal and gently depress the
accelerator pedal.
u Make sure the parking brake indicator goes off.
2 Parking Brake P. 506
■Hill start assist system
Hill start assist keeps the brake engaged br iefly to help prevent the vehicle from
rolling on inclines as you move your foot from the brake pedal to the accelerator.
Move the shift lever to
(D, (S, or (L when facing uphill, or (R when facing
downhill, then release the brake pedal.
■Starting to Drive1 Starting the Engine
The immobilizer system pr otects your vehicle from
theft. If an improperly code d key (or other device) is
used, the engine's fuel system is disabled.
2 Immobilizer System P. 158
You can also release the parking brake by pressing
the electric parking brake sw itch while depressing the
brake pedal. When facing downhill, you can start
your vehicle more smoothly by manually releasing it
with the electric parki ng brake switch than by
releasing it with th e accelerator pedal.
1Hill start assist system
Hill start assist may not prevent the vehicle from
rolling downhill on a very steep or slippe ry slope, and
does not operate on small inclines.
Hill start assist is not a replacement for the parking
brake.
Hill start assist will operate even when VSA ® is
switched off.
17 CR-V-31TLA6000.book 445 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

Continued449
uuWhen Driving uStarting the Engine
Driving
■To stop the engine1Remote Engine Start with Vehicle Feedback*
•You have already used the remote twice to start
the engine.
•Another registered smart entry remote is in the
vehicle.
•There is an antenna failure.
•Door is unlocked with the built-in key.
•The engine oil pressure is low.•The engine coolant temper ature is extremely high.
•The security system alarm is not set.
While the engine is running, the vehicle will
automatically preconditi on inside the vehicle.
When it is warm outside:
•The air conditioning is acti vated in recirculation
mode.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger and door mirror heaters are
activated.
•The seat and heated steering wheel are activated*
2 Heated Steering Wheel*1 P. 217
2 Front Seat Heaters* P. 218
Press and hold the
button for one
second.
Go within the range,
and try again.
The exterior lights flash once if the engine stops successfully.
The exterior lights will not flash when the remote is out of
the smart entry system range.
The engine will not stop.
* Not available on all models
17 CR-V-31TLA6000.book 449 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

453
uuWhen Driving uShifting
Continued
Driving
Shifting
Change the shift position in accordance with your driving needs.
■Shift lever positions
1Shifting
You cannot turn the ignition switch to LOCK
(0*1
and remove the key unless the shift lever is in
( P.
The vehicle may move forward very slightly even in
(N while the engine is cold.
Depress the brake pe dal firmly and, when necessary,
apply the parking brake.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an ignition
switch.
Drive
Used for normal driving
Park
Used when parking or starting the engine
Reverse
Used when reversing
Neutral
Used when idling
Drive (S)
Used:
●For better acceleration●To increase engine braking●When going up or down hills
Release Button
Low
●Used to further increase engine braking●Used when going up or down hills
17 CR-V-31TLA6000.book 453 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

590
Maintenance
Remote Transmitter Care
Replacing the Button Battery

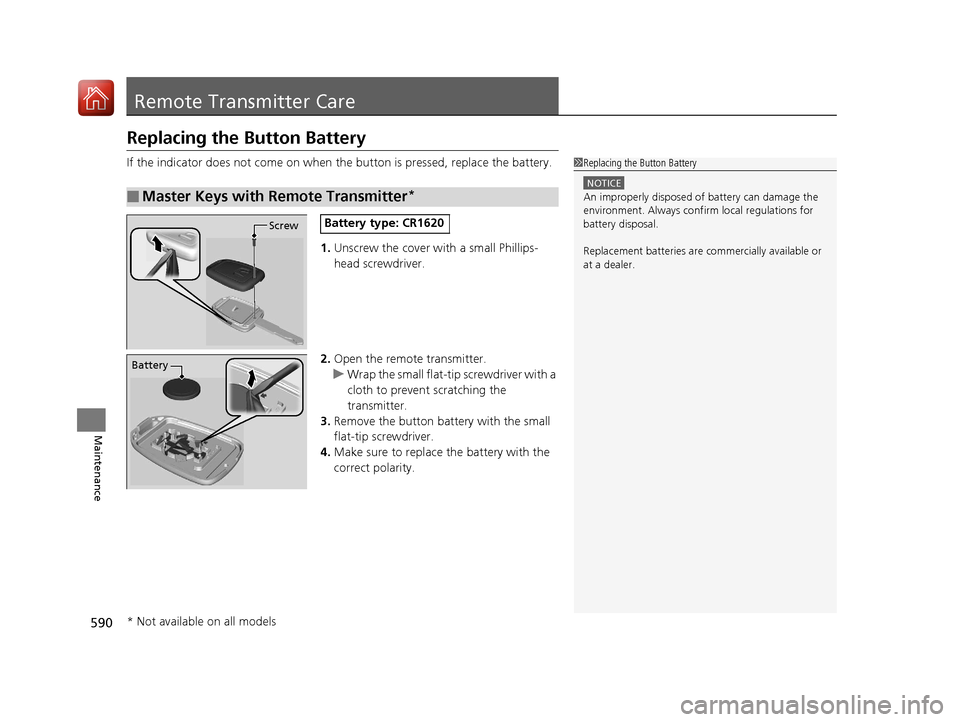

If the indicator does not come on when the button is pressed, replace the battery.
1. Unscrew the cover with a small Phillips-
head screwdriver.
2. Open the remote transmitter.
u Wrap the small flat-tip screwdriver with a
cloth to prevent scratching the
transmitter.
3. Remove the button battery with the small
flat-tip screwdriver.
4. Make sure to replace the battery with the
correct polarity.
■Master Keys with Remote Transmitter*
1 Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
ScrewBattery type: CR1620
Battery
* Not available on all models
17 CR-V-31TLA6000.book 590 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

591
uuRemote Transmitter Care uReplacing the Button Battery
Maintenance

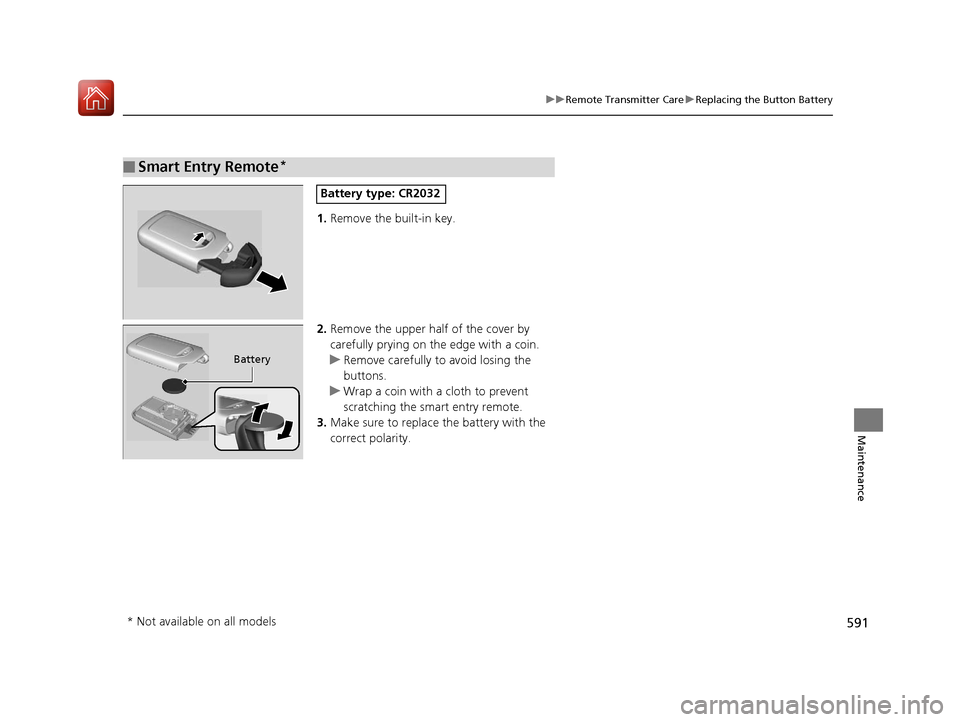

1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Remove carefully to avoid losing the
buttons.
u Wrap a coin with a cloth to prevent
scratching the smart entry remote.
3. Make sure to replace the battery with the
correct polarity.
■Smart Entry Remote*
Battery type: CR2032
Battery
* Not available on all models
17 CR-V-31TLA6000.book 591 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

614
Handling the Unexpected
Shift Lever Does Not Move

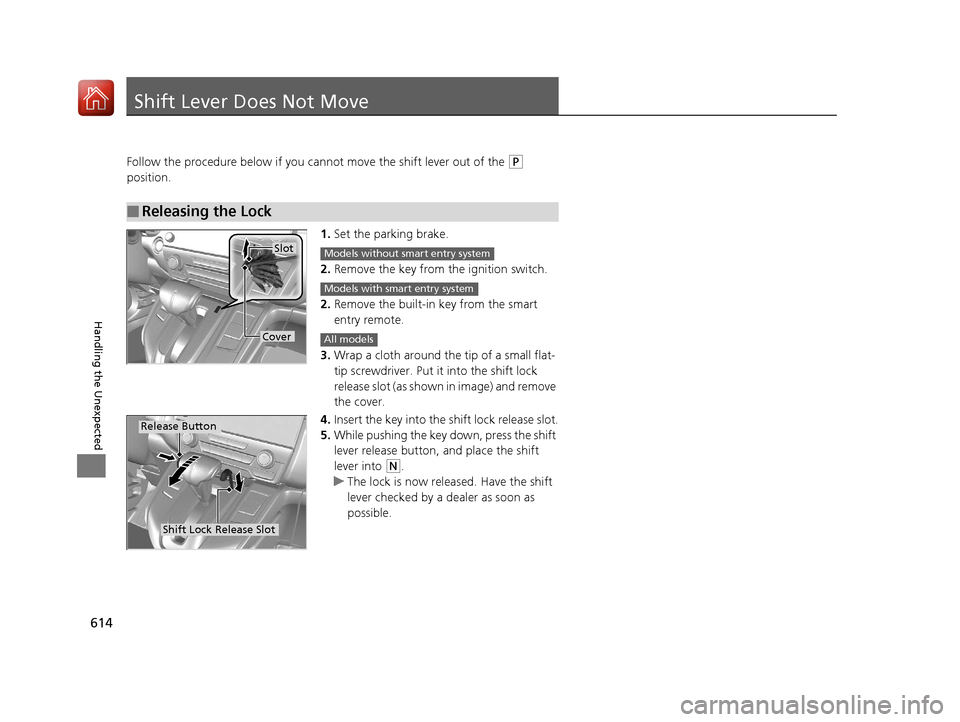

Follow the procedure below if you cannot move the shift lever out of the (P
position.
1.Set the parking brake.
2. Remove the key from the ignition switch.
2. Remove the built-in key from the smart
entry remote.
3. Wrap a cloth around the tip of a small flat-
tip screwdriver. Put it into the shift lock
release slot (as shown in image) and remove
the cover.
4. Insert the key into the sh ift lock release slot.
5. While pushing the key down, press the shift
lever release button, and place the shift
lever into
(N.
u The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.
■Releasing the Lock
Slot
Cover
Models without smart entry system
Models with smart entry system
All models
Release Button
Shift Lock Release Slot
17 CR-V-31TLA6000.book 614 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

626
uuFuses uFuse Locations
Handling the Unexpected
*1:Canadian models with rear seat heater
*2:Models without rear seat heater
*3:Models with fog lights
*4:Models without smart entry system
Circuit ProtectedAmps
21Rear Seat Heater*1
−*2(20 A)
−
22Front Fog Lights*3/Lower
Shutter Grille(15 A)
23A/C Compressor/Upper
Shutter Grille10 A
24Horn10 A
25Cooling Fan7.5 A
26−−
27−−
28ST Magnetic Switch*4(7.5 A)
29−−
30−−
Located under the dashboard.
Fuse locations are shown on the label on
the steering column lower cover.

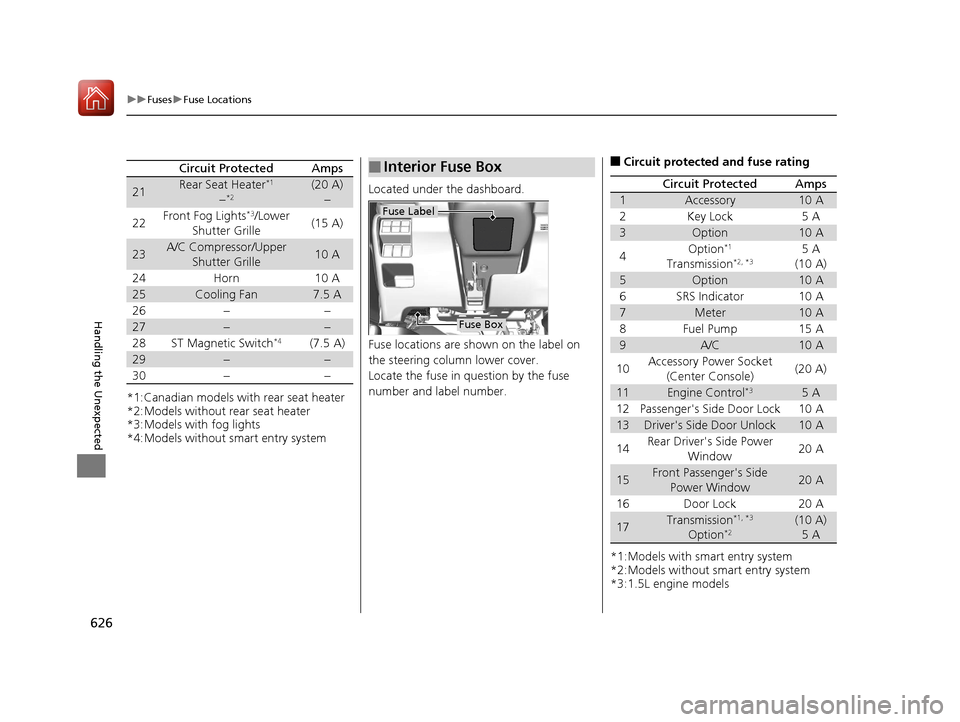

Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse Label
Fuse Box
■Circuit protected and fuse rating
*1:Models with smart entry system
*2:Models without smart entry system
*3:1.5L engine models
Circuit ProtectedAmps
1Accessory10 A
2Key Lock5 A
3Option10 A
4Option*1
Transmission*2, *35 A
(10 A)
5Option10 A
6SRS Indicator10 A
7Meter10 A
8Fuel Pump15 A
9A/C10 A
10Accessory Power Socket (Center Console)(20 A)
11Engine Control*35 A
12Passenger's Side Door Lock10 A
13Driver's Side Door Unlock10 A
14Rear Driver's Side Power Window20 A
15Front Passenger's Side
Power Window20 A
16Door Lock20 A
17Transmission*1, *3
Option*2(10 A)5 A
17 CR-V-31TLA6000.book 626 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

649
Index
Shifting ................................................... 453
Controls .................................................... 131
Coolant (Engine) .............................. 561, 563
Adding the Coolant ................................ 562
Adding to the Radiator ........................... 564
Adding to the Reserve Tank .................... 563
Overheating ............................................ 615
Creeping (Continuously Variable
Transmission) .......................................... 452
Cross Traffic Monitor ............................... 525
Cruise Control .................................. 456, 459
Indicator ................................................... 93
Cup Holders .............................................. 210
Customer Service Information ................ 645
Customized Features ............................... 335
D
Daytime Running Lights .......................... 181
Dead Battery ............................................ 611
Defaulting All the Settings ...................... 367
Defrosting the Windshield and Windows ................................................. 222
Detachable Anchor .................................... 46
Devices that Emit Radio Waves ............... 638
Dimming Headlights .............................................. 174
Rearview Mirror ...................................... 192
Dipstick (Engine Oil) ................................ 555
Directional Signals (Turn Signals) ........... 173
Display Setup .................................... 241, 279 Display/Information Button
..................... 121
Door Mirrors ............................................. 193
Doors ......................................................... 134
Auto Door Locking .................................. 146
Auto Door Unlocking ............................... 146
Door Open Indicator ............................ 38, 87
Keys ........................................................ 134
Locking/Unlocking the Doors from the
Inside..................................................... 144
Locking/Unlocking the Doors from the Outside.................................................. 137
Lockout Prevention System ...................... 143
DOT Tire Quality Grading ........................ 582
Driver Information Interface ................... 121
Driver’s Seat Lumbar Support .................. 194
Driving ....................................................... 431
Braking .................................................... 506
Continuously Variable Transmission ......... 452
Cruise Control ................................. 456, 459
Off-Highway Driving Guidelines ............... 442
Shifting Gear ........................................... 453
Starting the Engine .......................... 444, 446
Driving Position Memory System ............. 189
Dust and Pollen Filter ............................... 592
E
Eco Assist System.......................................... 9
ECON Button ............................................. 455
Elapsed Time ............................................. 124 Electric Power Steering (EPS) System
Indicator............................................ 88, 623
Electronic Stability Control (ESC) ............. 492
Emergency ................................................ 629
Emissions Testing (Readiness Codes) ....... 640
Engine ....................................................... 636
Coolant ........................................... 561, 563
Jump Starting .......................................... 611
Oil ........................................................... 554
Starting ........................................... 444, 446
Switch Buzzer.................................. 168, 171
Engine Coolant ................................. 561, 563
Adding the Coolant................................. 562
Adding to the Radiator ............................ 564
Adding to the Reserve Tank..................... 563
Overheating ............................................ 615
Temperature Gauge ................................ 117
Engine Oil ................................................. 554
Adding .................................................... 557
Checking................................................. 555
Displaying Oil Life ............................ 541, 546
Low Oil Pressure Indicator ................. 82, 619
Recommended Engine Oil ....................... 554
ENGINE START/STOP Button .................... 169
EPS (Electric Power Steering) System ...... 623
Exhaust Gas Hazard (Carbon Monoxide) .. 76
Exterior Care (Cleaning) ........................... 595
Exterior Mirrors ........................................ 193
17 CR-V-31TLA6000.book 649 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

651
Index
HomeLink® Universal Transceiver ........... 368
Honda SensingTM........................................ 26
HondaLink® .............................................. 310
I
Identification Numbers ............................ 636
Engine and Transmission ......................... 636
Vehicle Identification............................... 636
Ignition Switch ......................................... 168
Illumination Control ................................ 185
Knob ...................................................... 185
Immobilizer System .................................. 158
Immobilizer System Indicator..................... 91
Indicators .................................................... 80
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) .......................... 98, 465
Anti-lock Brake System (ABS) .................... 85
Automatic Brake Hold ....................... 82, 510
Blind spot information (BSI) ..................... 496
Brake Depressing ...................................... 94
Charging System............................... 83, 619
Collision Mitigati on Braking System
TM
(CMBSTM) ................................ 99, 100, 101
Cruise Control .......................... 93, 457, 460
Cruise Main .............................. 93, 456, 459
Door Open.......................................... 38, 87
ECON Mode ..................................... 93, 455
Electric Power Steering (EPS) System ............................................ 88, 623
Fog Light .................................................. 91 High Beam ................................................ 90
Immobilizer System .................................... 91
Lane Keeping Assist System (LKAS) ...... 98, 99
Lights On ................................................... 90
Low Fuel .................................................... 84
Low Oil Pressure ................................ 82, 619
Low Tire Pressure/TPMS ..................... 89, 504
Maintenance Minder ......................... 93, 541
Malfunction Indicator Lamp ............... 83, 620
Parking Brake and Brake System (Amber) ... 81
Parking Brake and Brake System
(Red)........................................ 80, 621, 622
Road Departure Mitigation (RDM) ........ 95, 96
Seat Belt Reminder .............................. 42, 84
Security System Alarm ............................... 92
Shift Lever Position .................................... 83
Supplemental Restraint System ............ 60, 85
System Message ........................................ 90
Tailgate Open ............................................ 87
Transmission .............................................. 84
Turn Signal ................................................ 90
Vehicle Stability Assist (VSA ®)
System............................................. 86, 492
VSA ® OFF .......................................... 87, 493
Information ............................................... 633
Information Display .................................. 118
Instant Fuel Economy ....................... 119, 128
Instrument Panel ........................................ 79
Brightness Control ................................... 185
Interior Lights ........................................... 203
Interior Rearview Mirror .......................... 192iPod
................................................... 244, 296
J
Jack (Wheel Nut Wrench) ........................ 604
Jump Starting ........................................... 611
K
Key Number Tag ....................................... 136
Keyless Lockout Prevention ..................... 143
Keys ........................................................... 134
Lockout Prevention.................................. 143
Master Keys ............................................ 134
Number Tag ............................................ 136
Rear Door Won’t Open............................ 145
Remote Transmitter ................................. 141
Types and Functions ................................ 134
Valet Key................................................. 135
Won’t Turn ............................................... 29
Kickdown (Continuously Variable Transmission) .......................................... 452
L
Lane Keeping Assist System (LKAS) ......... 484
LaneWatchTM............................................ 498
Language (HFL) ................................ 372, 396
LATCH (Child Seats) .............................. 68, 72
Lights ................................................. 174, 568
Automatic ............................................... 175
Bulb Replacement ................................... 568
17 CR-V-31TLA6000.book 651 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

652
Index
Daytime Running Lights ........................... 181
Fog Lights ................................................ 177
High Beam Indicator .................................. 90
Interior .................................................... 203
Light Switches ......................................... 174
Lights On Indicator .................................... 90
Turn Signals ............................................. 173
Load Limits ................................................ 435
Locking/Unlocking .................................... 134
Auto Door Locking/Unlocking .................. 146
Childproof Door Locks ............................. 145
From Inside .............................................. 144
From Outside ........................................... 137
Keys ........................................................ 134
Using a Key ............................................. 142
Lockout Prevention System ...................... 143
Low Battery Charge .................................. 619
Low Fuel Indicator ...................................... 84
Low Oil Pressure Indicator ................. 82, 619
Low Smart Entry Remote Signal Strength ................................................... 136
Lower Anchors ...................................... 68, 72
Luggage (Maximum Load Limit) .............. 435
Lumbar Support ........................................ 195
Lumbar Support Adjustment Switch ....... 195
M
Maintenance............................................. 537
Adding the Coolant ................................. 562
Battery..................................................... 588 Brake Fluid .............................................. 566
Cleaning ................................................. 593
Coolant ........................................... 561, 563
Maintenance Minder
TM............................ 541
Oil ........................................................... 555
Precautions ............................................. 538
Radiator .................................................. 564
Remote Transmitter ................................. 590
Replacing Light Bulbs .............................. 568
Safety...................................................... 539
Service Items ................................... 543, 548
Tires ........................................................ 579
Transmission Fluid ................................... 565
Under the Hood ...................................... 551
Malfunction Indicator Lamp .............. 83, 620
Map Lights ................................................ 204
Maximum Load Limit ............................... 435
Meters, Gauges ......................................... 117
Mirrors ...................................................... 192
Adjusting ................................................ 192
Door ....................................................... 193
Exterior ................................................... 193
Interior Rearview ..................................... 192
Modifications (and Accessories) .............. 598
Moonroof ................................................. 164
MP3 ................................................... 249, 305
Multi-View Rear Camera .......................... 529
N
Numbers (Identification) ......................... 636
O
Odometer......................................... 118, 122
Off-Highway Driving Guidelines ............. 442
Oil (Engine) .............................................. 554
Adding ................................................... 557
Checking ................................................ 555
Displaying Oil Life ........................... 541, 546
Low Oil Pressure Indicator ................. 82, 619
Recommended Engine Oil ....................... 554
Viscosity.................................................. 554
Open Source Licenses .............................. 334
Opening/Closing
Hood ...................................................... 553
Moonroof ............................................... 164
Power Windows...................................... 161
Tailgate................................................... 147
Outside Temperature Display ......... 120, 128
Overheating ............................................. 615
P
Pandora®.......................................... 247, 303
Panic Mode ............................................... 160
Panoramic Roof ........................................ 165
Parking ..................................................... 524
Parking Brake ........................................... 506
17 CR-V-31TLA6000.book 652 ページ ２０１６年１０月１１日　火曜日　午後６時３７分
